    Hi everyone,

    I saw a few posts a while ago about swapping out the qi charger in the 3rd gens for Samsung fast chargers or other brands. I personally just swapped from the S7 to an S9 and I’m getting the overheating issues again. The constant overheating can’t be good for the battery and don’t feel like shortening its life more than phone companies already will, besides I was never impressed with the charging to begin with. So I was wondering if anyone has actually gone through with it and what workarounds with voltage/ current mismatch there might be. My understanding is that the truck
    $14 is 12v 13W adhesive polyimide heater plate 70mm
    is 12v (obviously) and the circuit is only 1 amp but the Samsung fast chargers 5V@1A & 9V@1.67A for the various mode respectfully. I would really like to be able to dig into the console and just cut the wire for QI and solder in the guts from a Samsung fast charger. Linking the old threads and tagging one of the OPs for help/attention.


    [VangaSTL]

    https://www.tacomaworld.com/threads/replacing-wireless-charger-project.510428/


    https://www.tacomaworld.com/threads/wireless-charging-upgrade-need-info.504890/

    Last edited: Jun 25, 2019
    jp5, Jun 23, 2019
    #1
  2. Jun 23, 2019 at 6:04 PM
    #2
    andrewkissam

    #2
    andrewkissam Well-Known Member

    Joined:
    Mar 1, 2018
    Member:
    #245979
    Messages:
    279
    Gender:
    Male
    Dallas, Texas
    Vehicle:
    2017 Tacoma TRD Sport, DCSB, Silver Sky Metallic
    heritage grille, TRD beadlock wheels, TRD exhaust, TRD intake, rokblokz mudflaps, BFG KO2s 265/75r16, Toytec front spacer leveling kit, 2nd gen running boards, chin spoiler delete, MESO gasshole, Toyota bed mat, Toyota all weather floor mats, Tufskinz doorsill protectors, Diode Dynamics LED headlight conversion, LED reverse and plate lights, LED interior lights, Diode Dynamics 30" stealth light bar, TRD shift knob, TRD start button
    Watching this thread. Definitely interested in doing something like this myself.

    andrewkissam, Jun 23, 2019
    #2
    jp5[OP] likes this.
  3. Jun 23, 2019 at 6:07 PM
    #3
    caribe makaira

    #3
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Depending on what you got to wire-up, you could disconnect the charger and use the OEM switch to power the replacement charger.

    caribe makaira, Jun 23, 2019
    #3
    jp5[OP] likes this.
  4. Jun 23, 2019 at 6:12 PM
    #4
    MacStrong

    #4
    MacStrong Well-Known Member

    Joined:
    Feb 24, 2019
    Member:
    #284305
    Messages:
    87
    Gender:
    Male
    First Name:
    Justin
    Oregon
    Vehicle:
    2019 TRD sport DCSB
    None... yet
    I’m an electrician but do not work with vehicles. Even so I’d caution against going with anything that pulls amperage over what the circuit is rated for from the factory. If you start pulling 1.67 amps on a circuit rated and fused for 1 or .5amps or something like that you’ll be blowing fuses every other day.

    I would imagine the wires are rated for more than the fuse rating so there may or may not be fire safety risks and it may just need a swap to a higher fuse, idk...

    Just do your research and exercise caution, you’ll never fool ohms law.

    MacStrong, Jun 23, 2019
    #4
    rolled93slc, stu8319, GPsevinSixx and 4 others like this.
  5. Jun 23, 2019 at 6:19 PM
    #5
    caribe makaira

    #5
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Last edited: Jan 30, 2023
    caribe makaira, Jun 23, 2019
    #5
    Skydvrr and jp5[OP] like this.
  6. Jun 23, 2019 at 6:33 PM
    #6
    jp5

    #6
    jp5 [OP] *jp5parkles*

    Joined:
    Jan 24, 2016
    Member:
    #175987
    Messages:
    255
    Gender:
    Male
    First Name:
    JP
    AZ
    Vehicle:
    '16 DCSB TRD sport

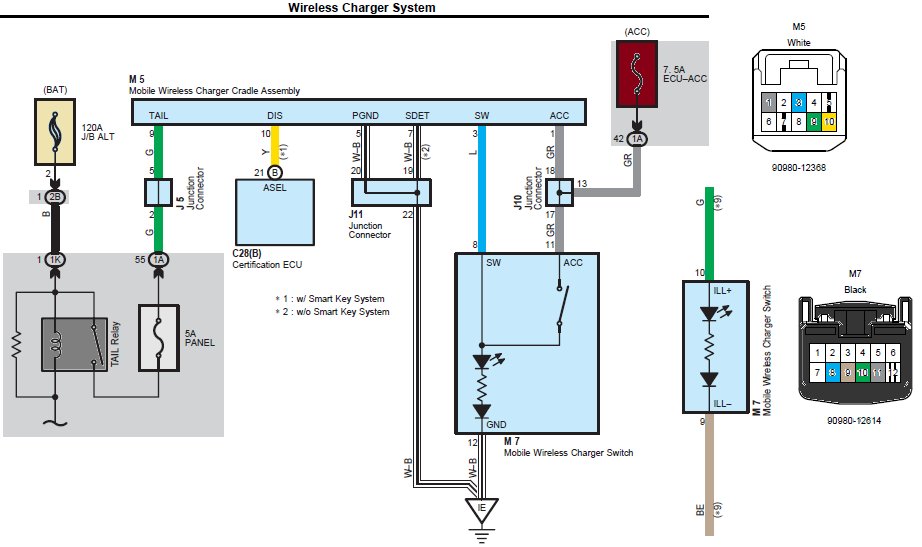

    Hmm there is more to the circuity than I thought. What does that C28(B) certification ECU have to do with anything, is that just the "key fob antenna"? The device i'm looking at using is samsung wireless charger EP-NG930. I'm pretty sure it has PCB in there that provides some control of keeping it in check.

    jp5, Jun 23, 2019
    #6
  7. Jun 23, 2019 at 6:34 PM
    #7
    bonifacio

    #7
    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    1,005
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4
    What if you found one that's thin and flat enough to just lay down in that space? Maybe just wire it in and just put it there with some Command Strips. I'll give it a go, Google Pixel charges are proprietary and expensive still. Google has a lock on the tech.

    bonifacio, Jun 23, 2019
    #7
  8. Jun 23, 2019 at 6:36 PM
    #8
    bonifacio

    #8
    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    1,005
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4
    C28 - I'm assuming it's the ECU plug maybe?
    I might just be getting ahead of myself.

    [​IMG]

    bonifacio, Jun 23, 2019
    #8
  9. Jun 23, 2019 at 6:39 PM
    #9
    bonifacio

    #9
    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    1,005
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4
    Where did you see this at? I need a diagram with part numbers to track down a connector for something.

    C29 is for the Smart Key.

    bonifacio, Jun 23, 2019
    #9
  10. Jun 23, 2019 at 6:41 PM
    #10
    caribe makaira

    #10
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Since you are disconnecting it I wouldn't worry. My guesstimate is to inform the system it's on and maintain vehicle RPM like other systems. (120 Inverter)

    caribe makaira, Jun 23, 2019
    #10
  11. Jun 23, 2019 at 6:43 PM
    #11
    jp5

    #11
    jp5 [OP] *jp5parkles*

    Joined:
    Jan 24, 2016
    Member:
    #175987
    Messages:
    255
    Gender:
    Male
    First Name:
    JP
    AZ
    Vehicle:
    '16 DCSB TRD sport
    It was in the diagram post of caribe. I'd really like the idea of everything looking stock(not using a thinner one to lay on top), just functioning like it should of from the beginning.

    jp5, Jun 23, 2019
    #11
  12. Jun 23, 2019 at 6:54 PM
    #12
    caribe makaira

    #12
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    caribe makaira, Jun 23, 2019
    #12
  13. Jun 23, 2019 at 6:59 PM
    #13
    jp5

    #13
    jp5 [OP] *jp5parkles*

    Joined:
    Jan 24, 2016
    Member:
    #175987
    Messages:
    255
    Gender:
    Male
    First Name:
    JP
    AZ
    Vehicle:
    '16 DCSB TRD sport

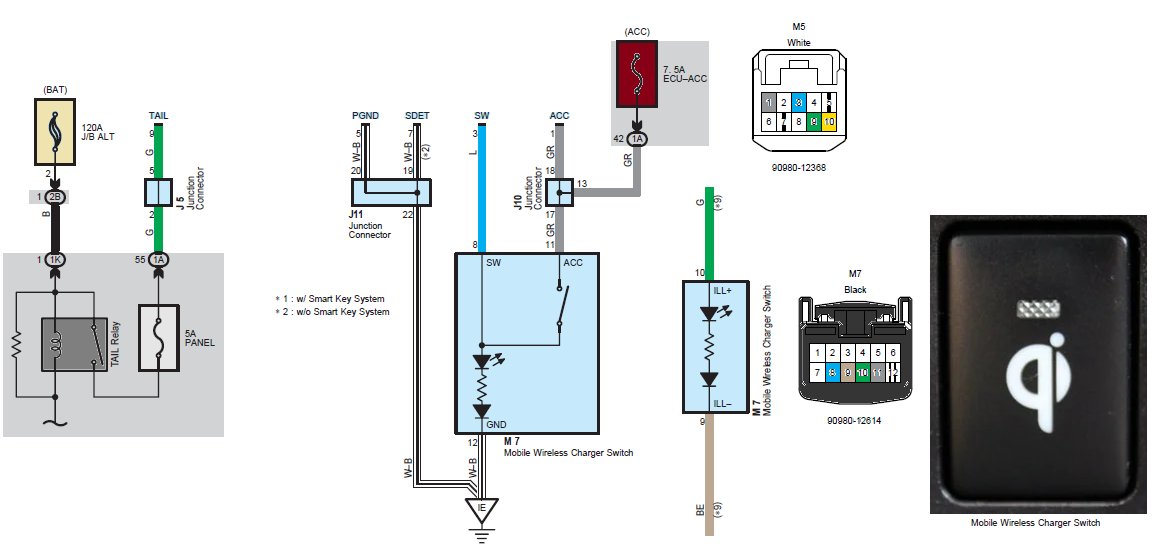

    Actually the idea was just wire the black and red power to "9 & 10" but now i'm questioning that. That would include tucking the PCB underneath the coil.

    jp5, Jun 23, 2019
    #13
  14. Jun 23, 2019 at 7:01 PM
    #14
    caribe makaira

    #14
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

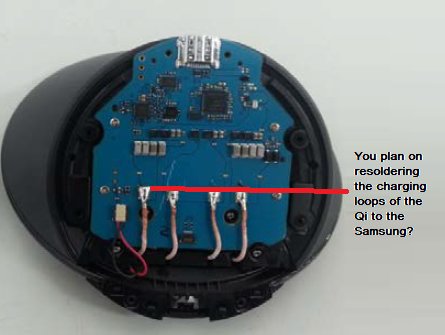

    And place the charger on top or under the original Qi?

    caribe makaira, Jun 23, 2019
    #14
  15. Jun 23, 2019 at 7:04 PM
    #15
    caribe makaira

    #15
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Like so?


    caribe makaira, Jun 23, 2019
    #15
  16. Jun 23, 2019 at 7:06 PM
    #16
    jp5

    #16
    jp5 [OP] *jp5parkles*

    Joined:
    Jan 24, 2016
    Member:
    #175987
    Messages:
    255
    Gender:
    Male
    First Name:
    JP
    AZ
    Vehicle:
    '16 DCSB TRD sport
    Removing the orignal and placing it in the same spot. might require fabricating something to hold it in place. Trying to find the photo I saw of the original removed.

    jp5, Jun 23, 2019
    #16
  17. Jun 23, 2019 at 7:06 PM
    #17
    jp5

    #17
    jp5 [OP] *jp5parkles*

    Joined:
    Jan 24, 2016
    Member:
    #175987
    Messages:
    255
    Gender:
    Male
    First Name:
    JP
    AZ
    Vehicle:
    '16 DCSB TRD sport
    Pretty much

    jp5, Jun 23, 2019
    #17
  18. Jun 23, 2019 at 7:07 PM
    #18
    caribe makaira

    #18
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,153
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

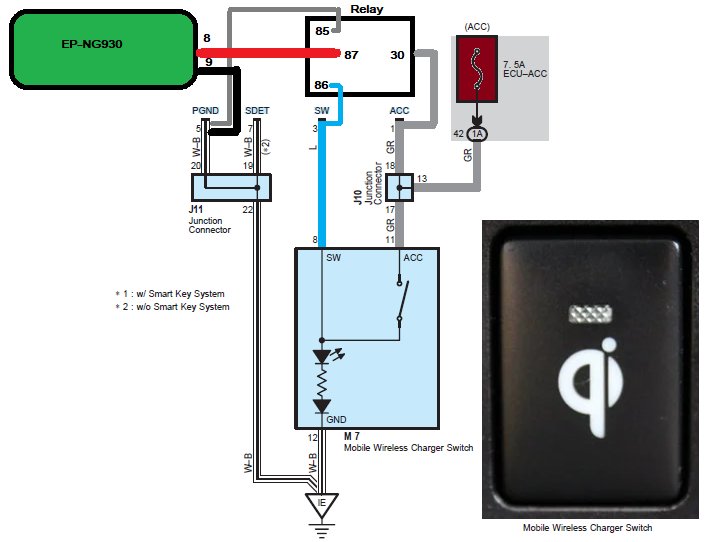

    On- Off controlled by Qi switch.:thumbsup:

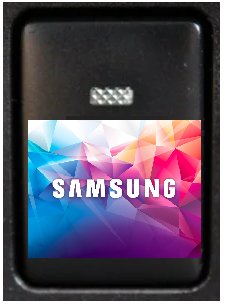

    or mod the switch logo also...:D


    caribe makaira, Jun 23, 2019
    #18
    jp5[QUOTED][OP] likes this.
  19. Jun 23, 2019 at 7:12 PM
    #19
    jp5

    #19
    jp5 [OP] *jp5parkles*

    Joined:
    Jan 24, 2016
    Member:
    #175987
    Messages:
    255
    Gender:
    Male
    First Name:
    JP
    AZ
    Vehicle:
    '16 DCSB TRD sport
    LOL im willing to put in the work for the functionality, to lazy to make a new switch.;)

    jp5, Jun 23, 2019
    #19
  20. Jun 23, 2019 at 7:15 PM
    #20
    jp5

    #20
    jp5 [OP] *jp5parkles*

    Joined:
    Jan 24, 2016
    Member:
    #175987
    Messages:
    255
    Gender:
    Male
    First Name:
    JP
    AZ
    Vehicle:
    '16 DCSB TRD sport
    But im still concerned about the 12V vs 9V/5V.
