Replacing Wireless Charger, Project

Discussion in '3rd Gen. Tacomas (2016+)' started by VangaSTL, Sep 14, 2017.

  1. Sep 14, 2017 at 7:37 AM
    #1
    VangaSTL

    VangaSTL [OP] Well-Known Member

    Joined:
    Oct 27, 2015
    Member:
    #167889
    Messages:
    3,588
    Gender:
    Male
    First Name:
    Garrick
    St. Louis, MO
    Vehicle:
    2016 TRD Sport 4x4
    Everyone asks about it, to my knowledge no one has done it yet. This will be an ongoing thread in my attempt to replace the OEM wireless charging pad with something that actually works. Even if I fail my hope is someone with more experience can take my place to finish what I'm starting.

    9/14/17

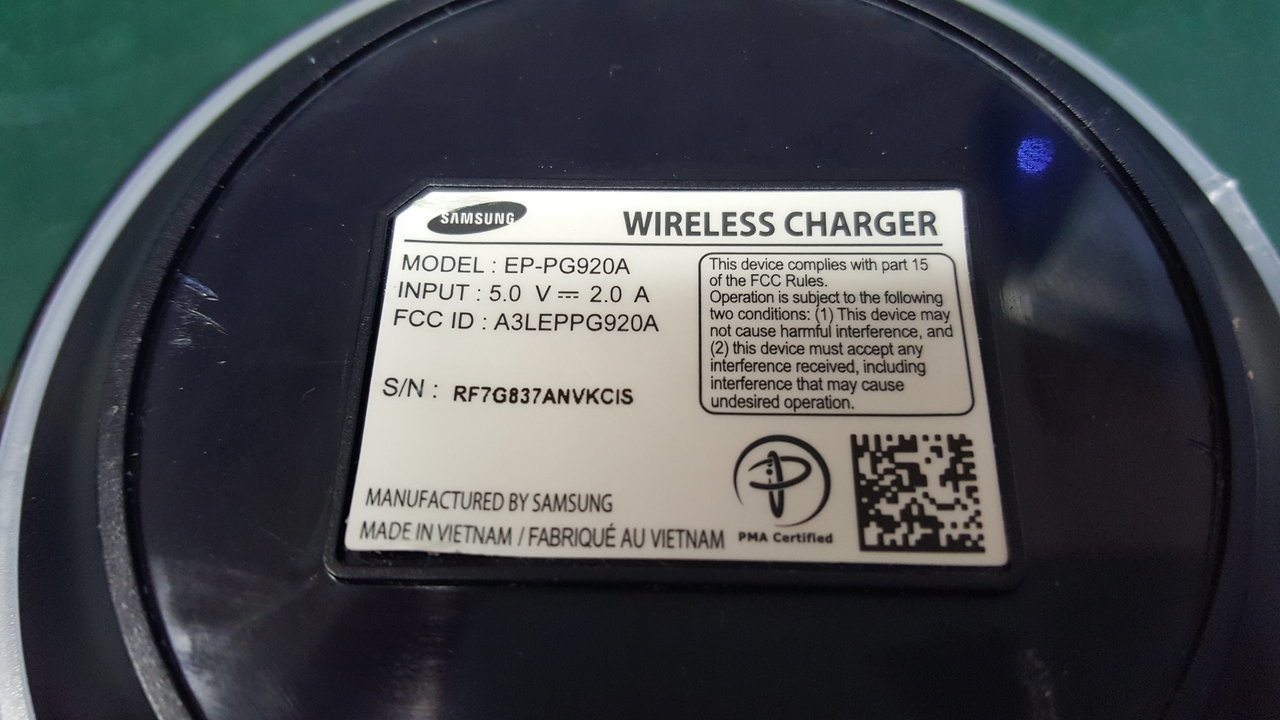

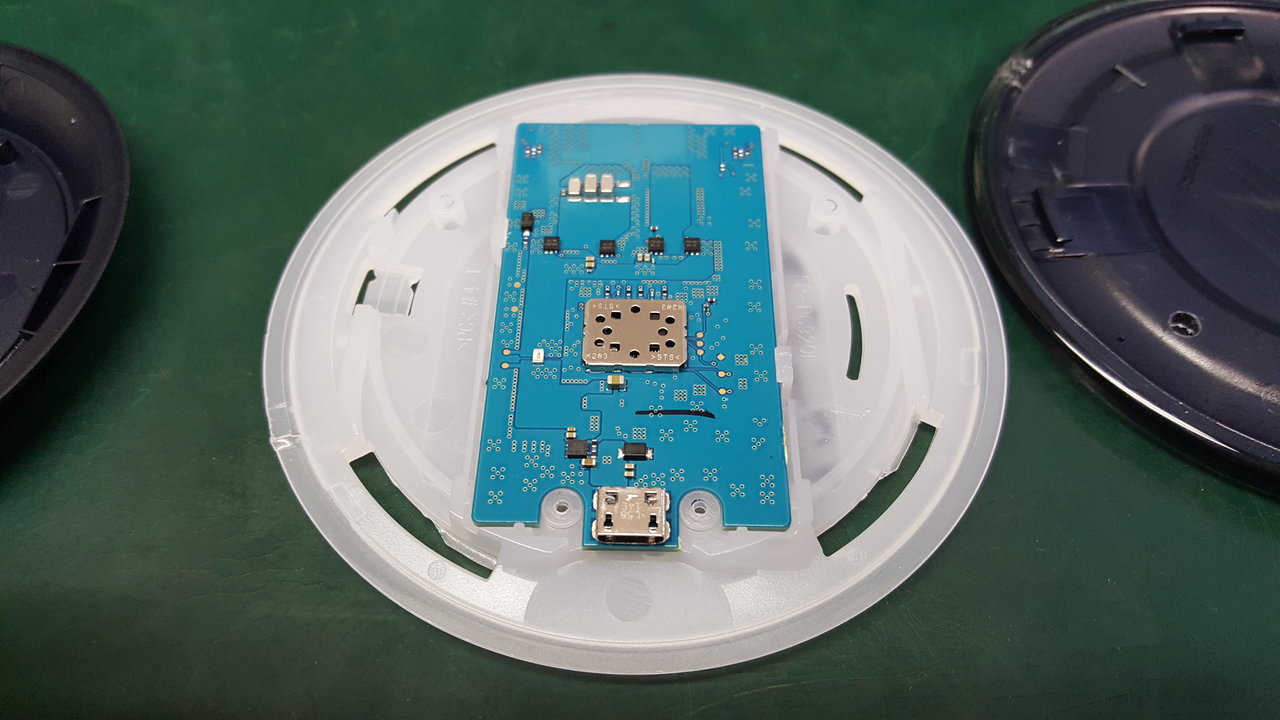

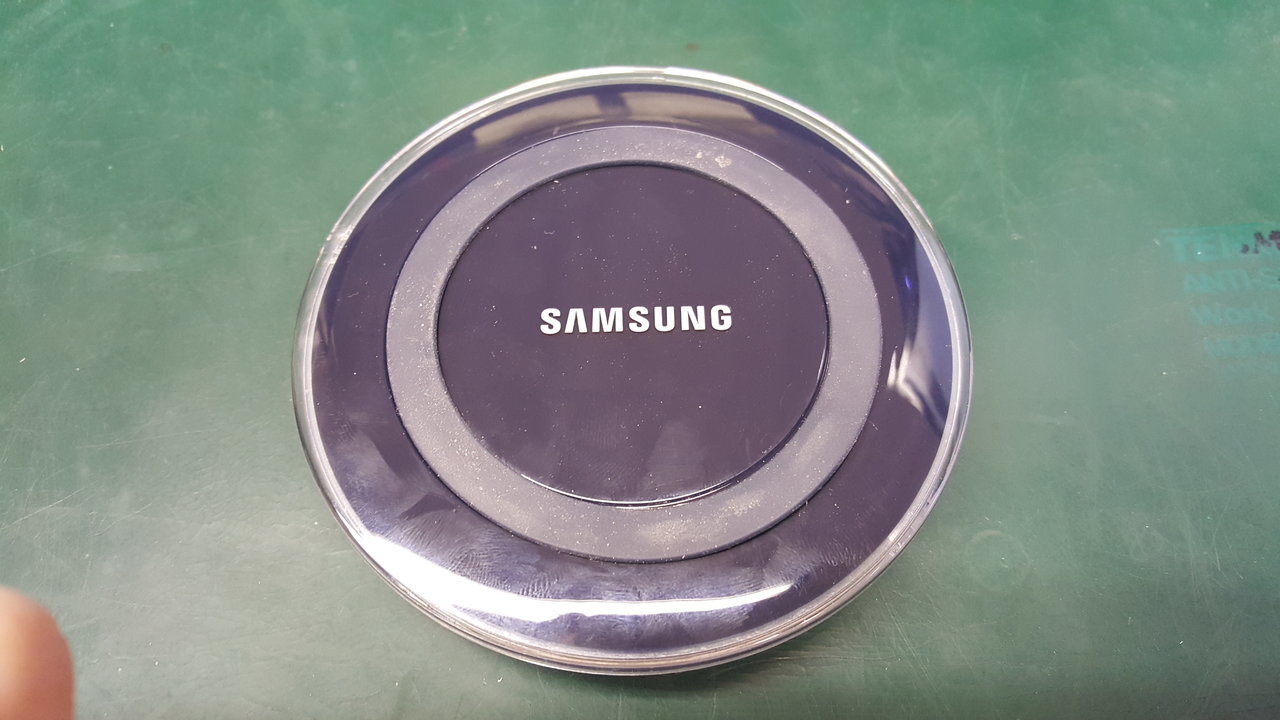

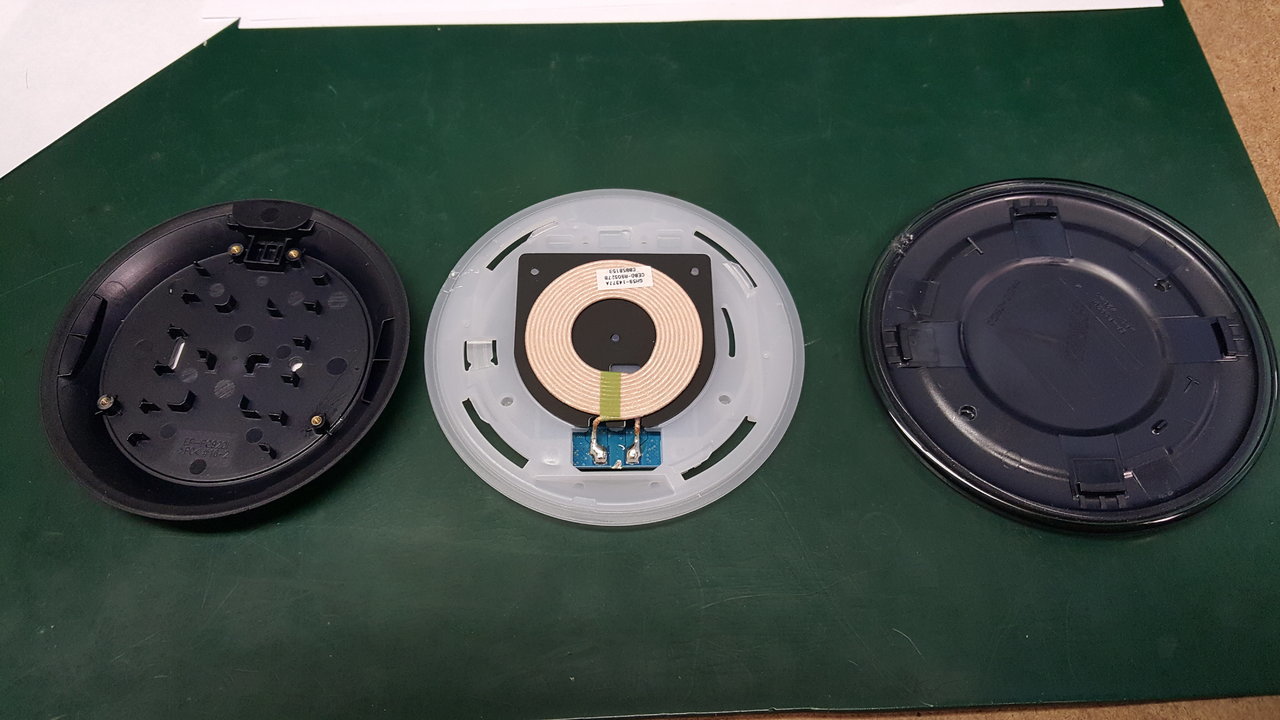

    I disassembled an old wireless charger that I bought a couple years ago. Depending on how well this goes I'll eventually use a newer model with fast charging capability. This model is the Samsung EP-PG920A. The input is 5v = 2.0a. I'll need to take a multi-meter to the existing circuit in the truck to find out what the voltage is. I may have to rig up some sort of voltage reducer or make a brand new circuit.

    20170914_092854.jpg 20170914_092922.jpg 20170914_092931.jpg 20170914_092904.jpg

  2. Sep 14, 2017 at 7:37 AM
    #2
    VangaSTL

    VangaSTL [OP] Well-Known Member

    Joined:
    Oct 27, 2015
    Member:
    #167889
    Messages:
    3,588
    Gender:
    Male
    First Name:
    Garrick
    St. Louis, MO
    Vehicle:
    2016 TRD Sport 4x4
    Update 9/26/17

    After much research and a lot help from @Broccoli I think I figured out how to remove the front console box. I plan on attempting the removal this weekend. Attached are the instructions to remove the Front Console Box


    Attached Files:

    Last edited: Sep 26, 2017
    Alesimo likes this.
  3. Sep 14, 2017 at 7:38 AM
    #3
    VangaSTL

    VangaSTL [OP] Well-Known Member

    Joined:
    Oct 27, 2015
    Member:
    #167889
