Question about A/C condensation drain.

Discussion in '2nd Gen. Tacomas' started by Taco Pete626, Sep 11, 2013.

  1. Sep 11, 2013 at 11:16 AM
    #1
    Taco Pete626

    Taco Pete626 [OP] Well-Known Member

    Joined:
    Dec 31, 2012
    Member:
    #94116
    Messages:
    157
    Gender:
    Male
    First Name:
    Peter
    Southern California
    Vehicle:
    2013 Regular Cab 5-spd
    - Undercover Flex tonneau cover - Pop N Lock tailgate lock - Weathertech DigitalFit floor liner - Sick Speed Ol' Skool white shift knob - Bench seat mod - Wiper mod - Cruise control mod
    Hello TW,

    I was checking my air filter the other day and I noticed that there was a drain tube sticking out of the firewall and dripping water all over this wire and into the frame. It is located on the right side of the firewall.
    [​IMG]

    I am concerned that eventually this wire is going to short out and/or the water that makes it inside the frame will eventually rust out. I think this tube is way too short and needs to be relocated. I can't help but wonder if this is the same for everyone else. Can you guys confirm this in your trucks ( I have a 2013 regular cab 5-spd)?

  2. Sep 11, 2013 at 11:19 AM
    #2
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,495
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    That wire is the O2 sensor wire. I would think there would be enough heat from the Cat to evaporate the water.

  3. Sep 11, 2013 at 11:23 AM
    #3
    Snowbrdr1220

    Snowbrdr1220 Well-Known Member

    Joined:
    Jul 26, 2012
    Member:
    #83456
    Messages:
    672
    Gender:
    Male
    PA
    Vehicle:
    13 DC TRD Off Road NBM
    My 2013 double cab off-road is the same way. I was also worried about rust from the water that drips out of it onto the frame, so ended up getting cans of fluid film and sprayed that whole area good as well as the rest of my frame. I plan on touching it up once a year.

  4. Sep 11, 2013 at 12:19 PM
    #4
    magnum922

    magnum922 Well-Known Member

    Joined:
    Dec 5, 2010
    Member:
    #47191
    Messages:
    130
    Gender:
    Male
    Vehicle:
    2011 DCLB 4.0 tow pkg 4x4
    My 2011 has started to surface rust from the inside of the frame from that drain line. Just put a 5/8 hose over it to drain it at the bottom. Dealer said its just surface rust thats normal. Have 14 k on the truck/garage kept/never seen snow. Also had a spot on one of the welds.

  5. Sep 11, 2013 at 12:49 PM
    #5
    TxFireman

    TxFireman Factory Pilot

    Joined:
    Sep 7, 2013
    Member:
    #112051
    Messages:
    560
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2013 DC-SB TRD-OR, tow package, entune/nav
    Good find. It isn't a major issue, but I'm sure many would prefer it didn't drip there. I have some spare hose handy and will probably try to divert it around as well. I just want to make sure the weight of the addition doesn't tear the boot loose where it comes through the firewall. I seems Toyota could have just added another foot or so to the line, instead of penny pinching.

  6. Sep 11, 2013 at 2:07 PM
    #6
    magnum922

    magnum922 Well-Known Member

    Joined:
    Dec 5, 2010
    Member:
    #47191
    Messages:
    130
    Gender:
    Male
    Vehicle:
    2011 DCLB 4.0 tow pkg 4x4
    The hose that comes out of the firewall is so thin and flimsy. I couldnt use a clamp . I put a 5/8 hose over it and tied the hose in a few different places as i routed it through the frame and made it come out of the frame below the motor. Driven it for a couple weeks now and the hose dosent move. Not a drop of water on the frame either.

  7. Sep 11, 2013 at 2:27 PM
    #7
    TxFireman

    TxFireman Factory Pilot

    Joined:
    Sep 7, 2013
    Member:
    #112051
    Messages:
    560
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2013 DC-SB TRD-OR, tow package, entune/nav
    Yeah, I looked at it and felt how thin it was, which is why I figured if I add the additional hose, I'm going to have to have a plan of attack to find good supports for it, like you did. I'd prefer the water went straight to the ground vs. running over this and through that.

  8. Sep 11, 2013 at 2:38 PM
    #8
    Evenflow

    Evenflow Well-Known Member

    Joined:
    Jul 15, 2013
    Member:
    #108344
    Messages:
    1,002
    Gender:
    Male
    First Name:
    Jason
    San Diego, CA
    Vehicle:
    06' DBCB SB 4x4
    Yes
    Yup...brilliant design huh :/ $6 at Pep Boys - they have butt style connectors for connecting hoses end to end, 2 small hose clamps and 2ft of hose will be long enough to run it back under the cab and dump below the frame. Just a couple of zip ties and it will look nice. I couldn't find anything to fit over it snug enough that I thought it would not vibrate off which is why I used the clamp set up. My truck had a ton of surface rust from that problem, the water was running a few feet down the frame and even inside the frame. Cleaning the rust inside the frame was not fun.

  9. Sep 12, 2013 at 11:02 AM
    #9
    Taco Pete626

    Taco Pete626 [OP] Well-Known Member

    Joined:
    Dec 31, 2012
    Member:
    #94116
    Messages:
    157
    Gender:
    Male
    First Name:
    Peter
    Southern California
    Vehicle:
    2013 Regular Cab 5-spd
    - Undercover Flex tonneau cover - Pop N Lock tailgate lock - Weathertech DigitalFit floor liner - Sick Speed Ol' Skool white shift knob - Bench seat mod - Wiper mod - Cruise control mod
    Thanks for the reply guys. There are some good ideas here to fix this. I can't believe Toyota designed it this way. I am glad I caught this early on.

  10. Sep 12, 2013 at 6:39 PM
    #10
    magnum922

    magnum922 Well-Known Member

    Joined:
    Dec 5, 2010
    Member:
    #47191
    Messages:
    130
    Gender:
    Male
    Vehicle:
    2011 DCLB 4.0 tow pkg 4x4
    I thought that one spot was bad. I think im going to paint the frame with rustoleum.

  11. Sep 12, 2013 at 6:41 PM
    #11
    08TacoTrD

    08TacoTrD Well-Known Member

    Joined:
    Oct 30, 2008
    Member:
    #10385
    Messages:
    750
    Gender:
    Male
    Vehicle:
    08 TRD Offroad
    Rear Differential Breather Extension, 4WD Light, Tailgate Pipe clamp, Fog lights on while High Beams on,2" Custom Rear Lift, Carrier Bearing flip 5100's and 883 OME Coils
    Simple enough to add an extension and drain it away from anything and no more worries.

  12. Sep 12, 2013 at 6:47 PM
    #12
    Dizo

    Dizo Well-Known Member

    Joined:
    Apr 8, 2013
    Member:
    #101676
    Messages:
    108
    Gender:
    Male
    First Name:
    Oliver
    North of 62°, Canada
    Vehicle:
    2005 DCLB TRD Sport
    Aux Audio-input, 5100's @ 1.75", 2" Wheeler's AAL, LED Underhood Lighting, Anytime ABS-Off Switch,
    If you drive your truck in the rain (?!?) you shouldn't be terribly worried about a little drip of water here and there. The wires and connectors are 'water resistant' so as long as you aren't submerging the whole front end for extended periods you should be fine.

    My truck is the same way and I can confirm that after 8 years of snowy roads and heavy rain that wire is working just fine.

  13. Sep 12, 2013 at 7:00 PM
    #13
    atebit

    atebit What's all this, then?

    Joined:
    Apr 23, 2008
    Member:
    #6146
    Messages:
    195
    Gender:
    Male
    The basement of the Alamo
    Vehicle:
    13 BR SR5 4x4 AC
    Maybe toyota is afraid that a longer hose is more likely to clog & back up into the cab? I had a Celica once that had that problem.

  14. Sep 12, 2013 at 7:18 PM
    #14
    Coupe

    Coupe Well-Known Member

    Joined:
    Feb 10, 2009
    Member:
    #13485
    Messages:
    1,172
    Gender:
    Male
    Houston, Texas
    Vehicle:
    08 X-Runner
    Lots baby!
    One of the first mod I made.

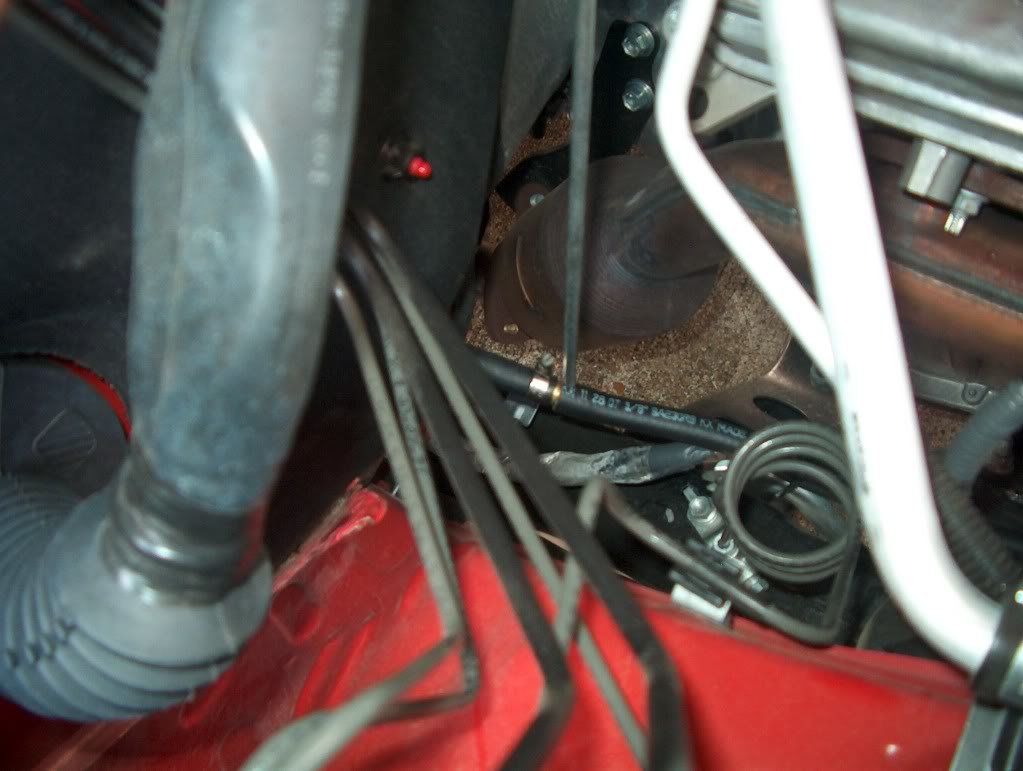

    I have my screw driver pointing to the hose.

    [​IMG]

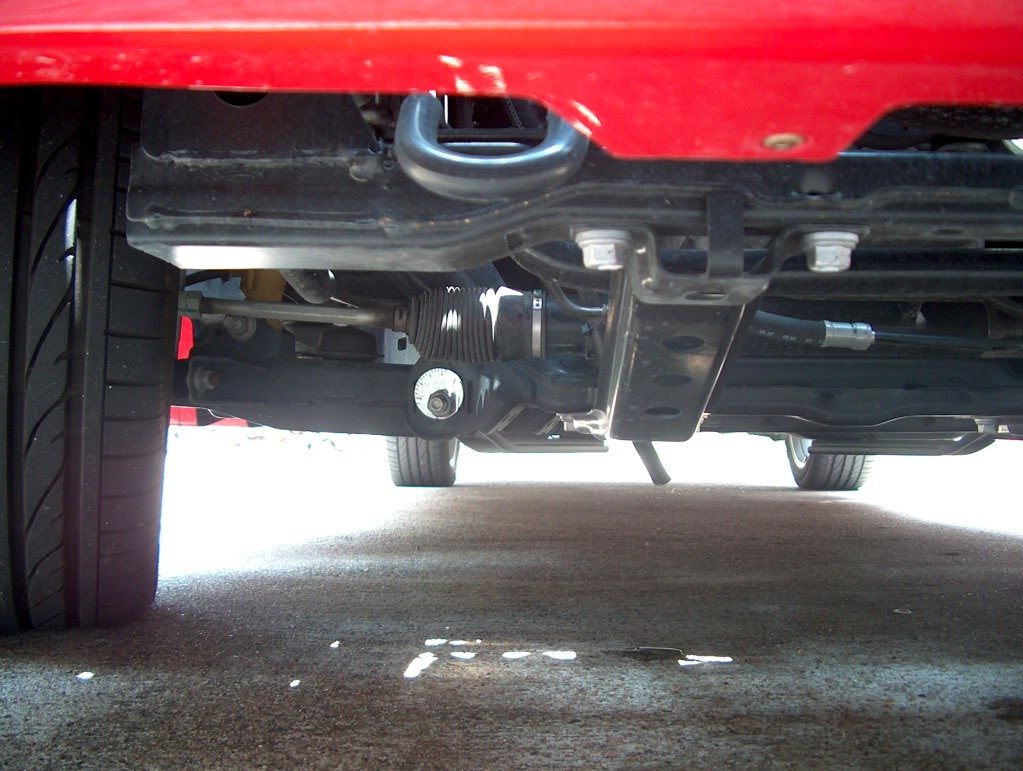

    In this pic, you can see the hose from under the truck.

    [​IMG]

  15. Sep 12, 2013 at 7:24 PM
    #15
    Evenflow

    Evenflow Well-Known Member

    Joined:
    Jul 15, 2013
    Member:
    #108344
    Messages:
    1,002
    Gender:
    Male
    First Name:
    Jason
    San Diego, CA
    Vehicle:
    06' DBCB SB 4x4
    Yes
    Come take a look at my truck if you want proof - the only rust on the entire chassis is from that AC condensation drain. I live in San Diego we get about 1" of rain per year pretty conclusive evidence that " a little drip of water " can do a ton of damage. It's not just a little drip it's a small puddle every time you park and when you live in a warm climate and run your AC every day it is water boarding for your frame...

  16. Sep 12, 2013 at 7:35 PM
    #16
    Taco Pete626

    Taco Pete626 [OP] Well-Known Member

    Joined:
    Dec 31, 2012
    Member:
    #94116
    Messages:
    157
    Gender:
    Male
    First Name:
    Peter
    Southern California
    Vehicle:
    2013 Regular Cab 5-spd
    - Undercover Flex tonneau cover - Pop N Lock tailgate lock - Weathertech DigitalFit floor liner - Sick Speed Ol' Skool white shift knob - Bench seat mod - Wiper mod - Cruise control mod
    Simple and easy fix, I like.

  17. Sep 12, 2013 at 7:37 PM
    #17
    TxFireman

    TxFireman Factory Pilot

    Joined:
    Sep 7, 2013
    Member:
    #112051
    Messages:
    560
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2013 DC-SB TRD-OR, tow package, entune/nav
    What size hose is that, Coupe?

    Agreed, same for south Texas. It pretty much means that every time the key is turned, you're going to have this water running down there, much of the "winter" too. If it can be avoided, then why wouldn't someone take a few minutes to do that?

  18. Sep 12, 2013 at 7:40 PM
    #18
    Taco Pete626

    Taco Pete626 [OP] Well-Known Member

    Joined:
    Dec 31, 2012
    Member:
    #94116
    Messages:
    157
    Gender:
    Male
    First Name:
    Peter
    Southern California
    Vehicle:
    2013 Regular Cab 5-spd
    - Undercover Flex tonneau cover - Pop N Lock tailgate lock - Weathertech DigitalFit floor liner - Sick Speed Ol' Skool white shift knob - Bench seat mod - Wiper mod - Cruise control mod
    I used my A/C a lot this year (especially the last couple of weeks with 100+ degree days) and after being parked for awhile there's quite a huge puddle of water under my truck. I could only imagine how much of it sits in the frame!

  19. Sep 12, 2013 at 7:51 PM
    #19
    Taco Pete626

    Taco Pete626 [OP] Well-Known Member

    Joined:
    Dec 31, 2012
    Member:
    #94116
    Messages:
    157
    Gender:
    Male
    First Name:
    Peter
    Southern California
    Vehicle:
    2013 Regular Cab 5-spd
    - Undercover Flex tonneau cover - Pop N Lock tailgate lock - Weathertech DigitalFit floor liner - Sick Speed Ol' Skool white shift knob - Bench seat mod - Wiper mod - Cruise control mod
    On my truck, the cat isn't close enough to the wire. After the engine has shut down for a few minutes, that wire is soaked. It's already discolored quite a bit.

  20. Sep 12, 2013 at 8:13 PM
    #20
    Dizo

    Dizo Well-Known Member

    Joined:
    Apr 8, 2013
    Member:
    #101676
    Messages:
    108
    Gender:
    Male
    First Name:
    Oliver
    North of 62°, Canada
    Vehicle:
    2005 DCLB TRD Sport
    Aux Audio-input, 5100's @ 1.75", 2" Wheeler's AAL, LED Underhood Lighting, Anytime ABS-Off Switch,
    I can also confirm that extending the hose simply wouldn't work in a colder climate because of freezing concerns. Yes, you rarely use your A/C when its cold out, but left over condensation can build up and some situations require A/C even in the cold.

    I'm sure in a desert environment this would be one of the biggest causes of rust on the truck, i'm not disagreeing with that. What I am disagreeing with is that this is an issue. If a truck can last 20 years up north in what we put them through, that one slightly rusty spot will not cause your frame to fail in that same timeframe. I'm doubtful that puddle would even start to cause moderate scaling after a decade.
