quick question with stereo wiring....pics...

Discussion in 'Audio & Video' started by Lunercrab, Mar 14, 2008.

  1. Mar 14, 2008 at 11:02 PM
    #1
    Lunercrab

    Lunercrab [OP] AKA "06tacosport"

    Joined:
    Feb 10, 2008
    Member:
    #4680
    Messages:
    605
    Gender:
    Female
    First Name:
    Beth
    Lehigh Valley area, PA
    Vehicle:
    2010 timberland mica dcab sport

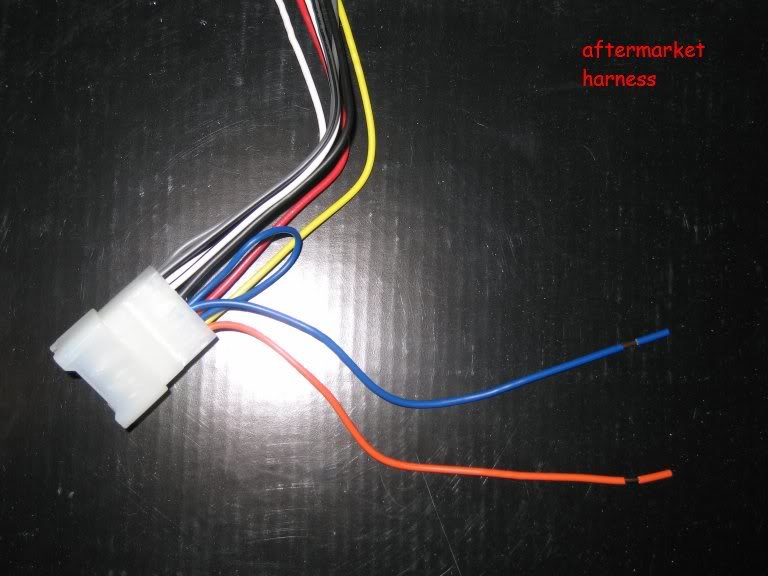

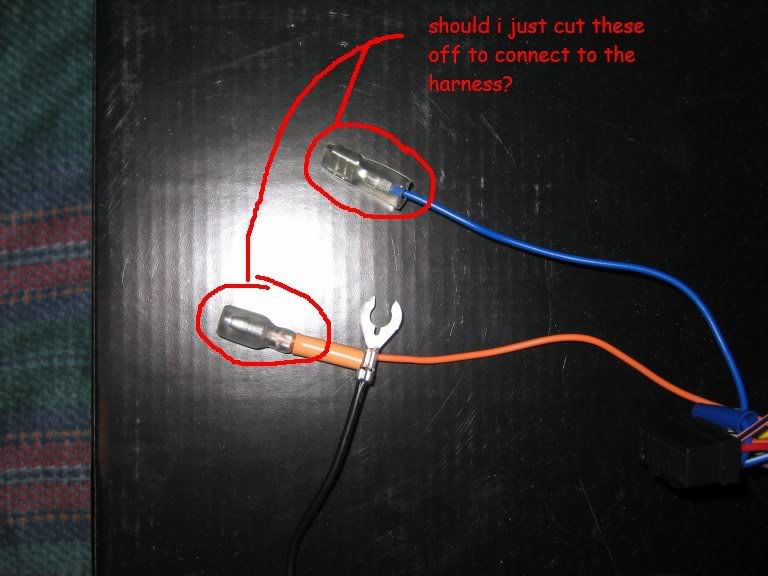

    Ok so i just bought the alpine x100 deck for my truck...now i have a few questions before i hook up the wires....on the aftermarket harness there is an orange (illum. wire), a dark blue(power antenna wire) and the black ground wire...ok so this dark blue and orange ones, do i have to connect them?...also the decks wires for these two came with two different wire plugs on the ends, should i just cut em' off and wire it to the harness that way?....also the black wire from the deck is made to get grounded by a screw, but shouldn't it connect directly to the black wire on the aftermarket harness?....thanks for your help...:)

    [​IMG]
    [​IMG]

  2. Mar 21, 2008 at 3:07 PM
    #2
    95tojo

    95tojo Roamer

    Joined:
    Mar 21, 2008
    Member:
    #5421
    Messages:
    97
    Gender:
    Male
    So IL
    Vehicle:
    '03 Prerunner
    hey man, i never hook up the illumination(orange) wire nor do i hook up the power antenna(blue) wire, just cap them off so that they don't touch anything . . . .

    also it is safe to put the ground from the radio and tie it into the ground from the factory harness ( black to black)

  3. Mar 22, 2008 at 11:21 AM
    #3
    95tojo

    95tojo Roamer

    Joined:
    Mar 21, 2008
    Member:
    #5421
    Messages:
    97
    Gender:
    Male
    So IL
    Vehicle:
    '03 Prerunner
    this is true, on some older decks there was only a blue wire, but now on all decks there is a blue/white (remote wire) that is used for this

    i know that my old pioneer did not have a blue/white wire


    you have to watch out though because on some of them your amp will only be on when the radio is on ie. when the power antenna is supposed to be out :rolleyes:



    anyways cap em off/ tape em up :D

  4. Mar 23, 2008 at 6:53 AM
    #4
    sooner07

    sooner07 1/2 man 1/2 amazing

    Joined:
    Feb 17, 2008
    Member:
    #4783
    Messages:
    1,400
    Gender:
    Male
    First Name:
    A A Ron
    DFW, Texas
    Vehicle:
    Debadged 2008 Rugged Trail
    Always working on the stereo, painted the front skid plate black to match the truck, debadged , toy tech ultimate lift kit, light racing UCAs, ARB bumper Looking into a supercharger and new exhaust.
    I also agree that you are fine to cap them with tape and not worry about using them. But I do tend to use the illumination wire when possible. It is just nice to be able to dim the H/U on a dark night on a long drive, imo.

    Another thing, ideally, you should use similar spade and bullet connectors or something rather than just twist splicing and covering with tape. Makes for a more professional install incase someone decides to steal your H/U. ;)


    Just my $.02

  5. Mar 23, 2008 at 9:52 AM
    #5
    Lunercrab

    Lunercrab [OP] AKA "06tacosport"

    Joined:
    Feb 10, 2008
    Member:
    #4680
    Messages:
    605
    Gender:
    Female
    First Name:
    Beth
    Lehigh Valley area, PA
    Vehicle:
    2010 timberland mica dcab sport
    Everything is hooked up an running...thanks guys...i did use the dimmer...it does help when the lights are on....so far it's a pretty nice deck....thanks again for your help

  6. Mar 23, 2008 at 5:31 PM
    #6
    95tojo

    95tojo Roamer

    Joined:
    Mar 21, 2008
    Member:
    #5421
    Messages:
    97
    Gender:
    Male
    So IL
    Vehicle:
    '03 Prerunner

    crimp caps FTW :p

  7. Apr 28, 2008 at 5:39 PM
    #7
    Idok

    Idok needs a chaperone

    Joined:
    Apr 8, 2008
    Member:
    #5833
    Messages:
    40



    i tried to do a sub install on my GF's xD today and coudnt find a blue/white wire??????

    its an 08 with the nicer pioneer unit...any ideas?

  8. Apr 28, 2008 at 8:54 PM
    #8
    95tojo

    95tojo Roamer

    Joined:
    Mar 21, 2008
    Member:
    #5421
    Messages:
    97
    Gender:
    Male
    So IL
    Vehicle:
    '03 Prerunner
    just use the ACC wire . . .

  9. Nov 12, 2009 at 10:34 PM
    #9
    car15

    car15 Well-Known Member

    Joined:
    Jul 31, 2009
    Member:
    #20435
    Messages:
    80
    Gender:
    Male
    AZ
    Vehicle:
    09 X-Runner
    2009 X-Runner

    I have a question regarding the illumination wiring on this nav unit. The installation instruction calls out for an orange/white wire to be hooked up to the head light switch (illumination (+)). On the HU unit itself there is a sticker that says orange/white to illumination (dimmer).

    On the Metra wiring harness with the large connector there is an orange/white wire labeled (dimmer) and on the small connector there is an orange/black wire but on the Metra instructions it is labeled orange (illumination).

    Can anyone help with this installation? This is my last wire to be hooked up and it is holding up my installation

    Thanks.....
