Rad/Front Body Mounts Shot

Discussion in '3rd Gen. Tacomas (2016+)' started by CanyonRunner, Jul 7, 2016.

  1. Jul 7, 2016 at 11:28 AM
    #1
    CanyonRunner

    CanyonRunner [OP] 100% PENETRATION

    Joined:
    Dec 3, 2015
    Member:
    #171316
    Messages:
    215
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2016 TRD 4X4 DCSB
    $$$ Money Pit $$$
    If you have a squeak, bang, clank, metalic-sound, ect coming from the front, most noticeably in slow speed parking-lot/off-road maneuvering, check only the very front two body mounts by the radiator.

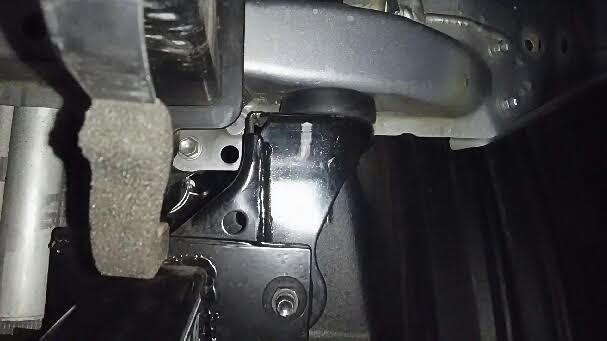

    Catch-up

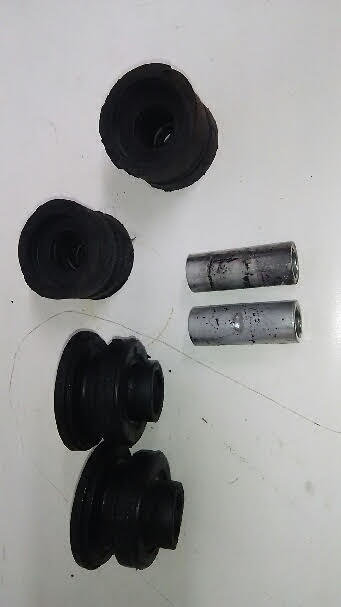

    OEM mounts shown, you can see the wear groove on the Driver-side metal sleeve that had also cut through rubber mount making contact with frame horn.

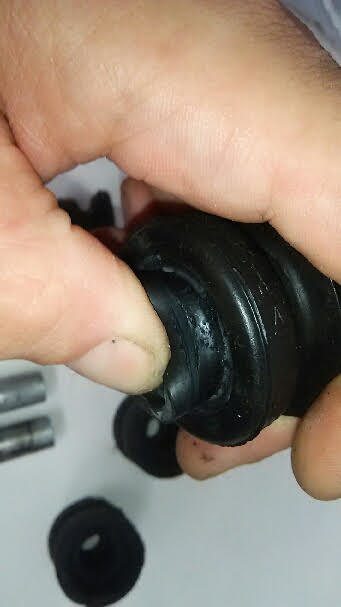

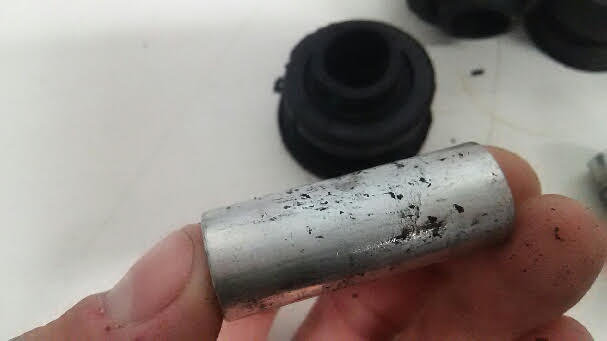

    Groove close-up Driver-side metal sleeve

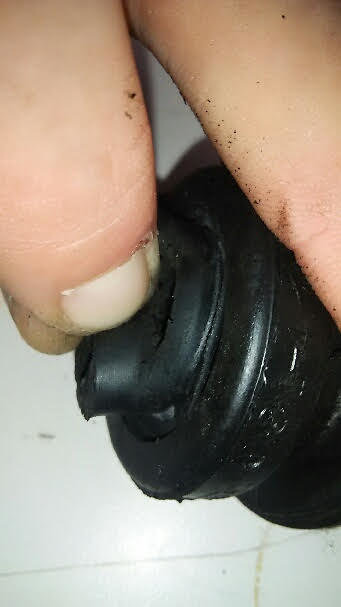

    Driver-side worn/cut completely through

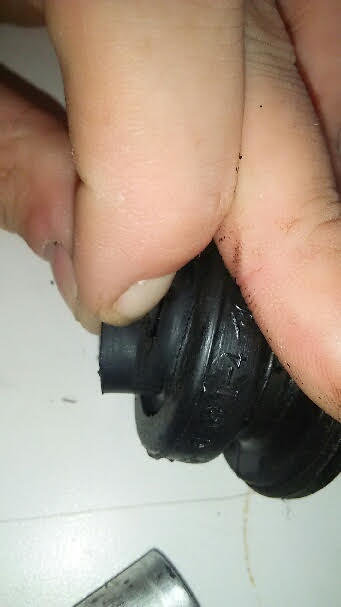

    Passenger-side almost completely through, significant wear line started

    New poly mounts installed

    I think the driver-side was worse from possibly the battery/front taco lean. The lean from D/P in the front with the new poly ones is almost non existent now, noticed OEM rubber was to soft and compressing more on driver than pass. To note: I am also running no sway-bar on kings if that makes a difference on forces at hand here?

    Noise's I was experiencing are 100% gone now and am F'n happy!

  2. Jul 7, 2016 at 11:32 AM
    #2
    CanyonRunner

    CanyonRunner [OP] 100% PENETRATION

    Joined:
    Dec 3, 2015
    Member:
    #171316
    Messages:
    215
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2016 TRD 4X4 DCSB
    $$$ Money Pit $$$
  3. Jul 7, 2016 at 12:28 PM
    #3
    RM61188

    RM61188 Drives a 4Runner on a tercel budget

    Joined:
    Oct 23, 2015
    Member:
    #167506
    Messages:
    124
    Gender:
    Male
    First Name:
    Rodney
    New Orleans
    Vehicle:
    2017 T4R TRD OFF ROAD
    Now this is what ive been looking for. Thanks a lot man

  4. Jul 7, 2016 at 12:54 PM
    #4
    bobrown14

    bobrown14 Well-Known Member

    Joined:
    Oct 3, 2015
    Member:
    #165752
    Messages:
    4,485
    Gender:
    Male
    First Name:
    Bob
    Philadelphia
    Vehicle:
    2.9 Gen - I am not a cunt
    Wheels tires sliders LED fogs VooDoo racks tail gate letters bed liner - suspension on the way....
    +1 thanks for sharing.. I have that rattle sound I can figure out where its coming from at low speed like >5mph... only one kit will do for this??

  5. Jul 8, 2016 at 3:31 PM
    #5
    RM61188

    RM61188 Drives a 4Runner on a tercel budget

    Joined:
    Oct 23, 2015
    Member:
    #167506
    Messages:
    124
    Gender:
    Male
    First Name:
    Rodney
    New Orleans
    Vehicle:
    2017 T4R TRD OFF ROAD

  6. Jul 8, 2016 at 3:33 PM
    #6
    RM61188

    RM61188 Drives a 4Runner on a tercel budget

    Joined:
    Oct 23, 2015
    Member:
    #167506
    Messages:
    124
    Gender:
    Male
    First Name:
    Rodney
    New Orleans
    Vehicle:
    2017 T4R TRD OFF ROAD
    Theres no way to access these things without taking a whole bunch of shit off. Am i right?

  7. Jul 8, 2016 at 4:45 PM
    #7
    splitbolt

    splitbolt Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    4,172
    Gender:
    Male
    Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    Initiative; you have it.

    Out of curiosity...
    How many miles did you have prior to the sound?
    Did you ever retorque before that?
    We're they abnormally crushed?

  8. Jul 8, 2016 at 5:31 PM
    #8
    RM61188

    RM61188 Drives a 4Runner on a tercel budget

    Joined:
    Oct 23, 2015
    Member:
    #167506
    Messages:
    124
    Gender:
    Male
    First Name:
    Rodney
    New Orleans
    Vehicle:
    2017 T4R TRD OFF ROAD
    Its on and off for me. Some days I hear it. Some days I don't. My dad and I looked for the core support mounts today, found them, and realized the whole inner fender needs to be removed to access them. Fortunately today im not hearing that chirping bird call like metal on metal squeak. So i gave up on it. Canyonrunner makes it seem as easy as removing the gas cap. Or am i just an idiot and looking at the wrong bolts?

  9. Jul 9, 2016 at 3:41 PM
    #9
    CanyonRunner

    CanyonRunner [OP] 100% PENETRATION

    Joined:
    Dec 3, 2015
    Member:
    #171316
    Messages:
    215
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2016 TRD 4X4 DCSB
    $$$ Money Pit $$$
    I have under 3k, I think the noise started around 1500 miles. Yes I retorqued a few times and lube, which did nothing. As you can see one was completely shot and the other was almost worn through as well, Which is why lube/tightening/loosening didn't do squat.

  10. Jul 9, 2016 at 3:43 PM
    #10
    CanyonRunner

    CanyonRunner [OP] 100% PENETRATION

    Joined:
    Dec 3, 2015
    Member:
    #171316
    Messages:
    215
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2016 TRD 4X4 DCSB
    $$$ Money Pit $$$
    Shit took 30 min for both sides, done. Didn't remove anything, remove nut on bottom, take bolt out top, there is room!

  11. Jul 9, 2016 at 8:11 PM
    #11
    RM61188

    RM61188 Drives a 4Runner on a tercel budget

    Joined:
    Oct 23, 2015
    Member:
    #167506
    Messages:
    124
    Gender:
    Male
    First Name:
    Rodney
    New Orleans
    Vehicle:
    2017 T4R TRD OFF ROAD
    Ok... I'm certain I'm getting to be a huge PITA right about now but i gotta ask a huge favor. Take a video of how you're looking at these bolts, like thick angle you're viewing from, to better help my apparently inept ass access them and install my $20 bushings. Actually even a few pics would work. Just make it obvious of where you're looking from. Please and thanks

    bulldog likes this.
  12. Jul 9, 2016 at 9:07 PM
    #12
    mrproduxn

    mrproduxn Well-Known Member

    Joined:
    Feb 22, 2013
    Member:
    #98175
    Messages:
    3,773
    Gender:
    Male
    First Name:
    steve
    Virginia DOD
    Vehicle:
    BBP 2016 TRD Sport Access Cab 2wd
    Mine started at 2800 and only lasted a few days. This time started around 4900 miles and continues weeks later at 5450 miles. I will absolutely investigate this tomorrow. I am not fixing it but would like to show dealer for reference. Is picture facing forward on passenger side or facing rearward on driver side.

  13. Jul 10, 2016 at 12:01 AM
    #13
    cheecha

    cheecha Active Member

    Joined:
    Feb 17, 2016
    Member:
    #178443
    Messages:
    25
    Gender:
    Female
    Guam
    I seem to be hearing this from the front passenger side when I go over bumps. Can you fellas please explain? Is it normal to hear some tuff rattling underneath. Its only a week old and its unusual for a new truck to be making rattling noises.Thanks for the help fellas, loving the 16, but this noise is bothersome.

  14. Jul 10, 2016 at 5:42 AM
    #14
    mrproduxn

    mrproduxn Well-Known Member

    Joined:
    Feb 22, 2013
    Member:
    #98175
    Messages:
    3,773
    Gender:
    Male
    First Name:
    steve
    Virginia DOD
    Vehicle:
    BBP 2016 TRD Sport Access Cab 2wd
    If you hear a rattle then I would stop at the dealer and see if your spare tire is anchored tight against frame. Possible running board loose. I think the main problem we have involves squeaks.

  15. Jul 10, 2016 at 4:39 PM
    #15
    bulldog

    bulldog Well-Known Member

    Joined:
    Nov 8, 2015
    Member:
    #169066
    Messages:
    1,078
    Gender:
    Male
    SW MO
    Vehicle:
    2016 DCSB OR
    MobTown Sliders Line-Xed RCI Aluminum Skid Clazzio Dark Gray Seat Covers 35% Tint Vinyl Tailgate Letters Undercover Elite Tonneau Apex Stealth Cali LED 31.5" w/upgrade OPT 7 harness and MicTuning Switch Homelink Autodim Compass RV Mirror 265/70 16 Falken Wildpeak AT3 W Tires 17' Pro Rigid Fog Lights 17' Pro Tail Lights OEM Roof Rack OEM Rubber Mats
  16. Jul 10, 2016 at 7:26 PM
    #16
    mrproduxn

    mrproduxn Well-Known Member

    Joined:
    Feb 22, 2013
    Member:
    #98175
    Messages:
    3,773
    Gender:
    Male
    First Name:
    steve
    Virginia DOD
    Vehicle:
    BBP 2016 TRD Sport Access Cab 2wd
    Just realized pic is prob with no air dam. Gotta drop mine to get same view. Seems like the right location of noise.

  17. Jul 13, 2016 at 2:53 PM
    #17
    mrproduxn

    mrproduxn Well-Known Member

    Joined:
    Feb 22, 2013
    Member:
    #98175
    Messages:
    3,773
    Gender:
    Male
    First Name:
    steve
    Virginia DOD
    Vehicle:
    BBP 2016 TRD Sport Access Cab 2wd
    Dealer did say they are aware of an upcoming flash for the transmission. Could be 2 weeks. Could be 2 months.

  18. Jul 14, 2016 at 3:17 PM
    #18
    mrproduxn

    mrproduxn Well-Known Member

    Joined:
    Feb 22, 2013
    Member:
    #98175
    Messages:
    3,773
    Gender:
    Male
    First Name:
    steve
    Virginia DOD
    Vehicle:
    BBP 2016 TRD Sport Access Cab 2wd
    Update. Dealer said Toyota will replace my passenger side body mount bushing. They said Toyota has seen one case of a misaligned radiator mount support failure from manufacturing. Really. Just one. Anyway I told the dealer to eliminate the risk and replace both. He really thought that was funny. No way. Not gonna happen. Thank Mr Toyota for saving the company another $10 part. So how long should the driver side last. It carries a little more weight than the passenger side.

  19. Jul 15, 2016 at 6:17 PM
    #19
    RM61188

    RM61188 Drives a 4Runner on a tercel budget

    Joined:
    Oct 23, 2015
    Member:
    #167506
    Messages:
    124
    Gender:
    Male
    First Name:
    Rodney
    New Orleans
    Vehicle:
    2017 T4R TRD OFF ROAD
    image.jpg Finally got it done. Wasn't fun removing the grill and bumper and getting the stock garbage ones out wasn't very easy. But the noise is gone and my ever escaping peace of mind is back for a little while longer

    datilderek, splitbolt and bulldog like this.
  20. Jul 15, 2016 at 6:31 PM
    #20
    splitbolt

    splitbolt Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    4,172
    Gender:
    Male
    Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    Can you say if it's part quality or improper installation that caused them to fail?
    I've heard it mentioned, some have been installed sideways(whatever that means) or have inconsistent bushing squash between mounts.
