Radio has no power

Discussion in '1st Gen. Tacomas (1995-2004)' started by Kevin99, Jun 20, 2018.

Page 2 of 2
  1. May 27, 2022 at 7:33 PM
    #21
    email_etran

    #21
    email_etran New Member

    Joined:
    May 27, 2022
    Member:
    #398114
    Messages:
    1
    Gender:
    Male

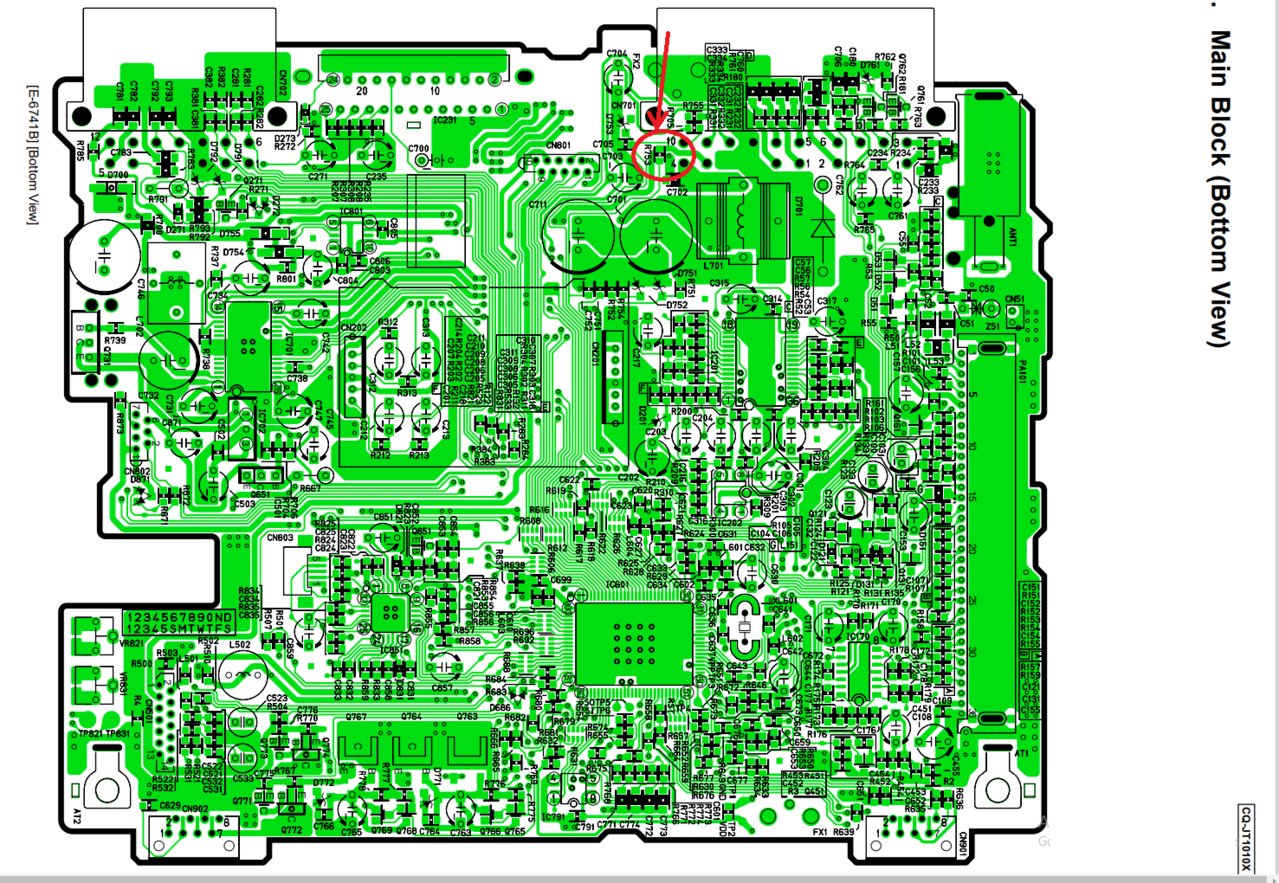

    ok, I found the schematic (search for 65638-04020 schematic), R753 is 27Kohm, 1/10W (very small). If you know circuiting, bigger wattage (like 1/4W) also ok. Good luck.


    Last edited: May 27, 2022
    email_etran, May 27, 2022
    #21
