Rago Fab Fog Light Brackets

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Hunter_Bick12, Apr 29, 2020.

  1. Apr 29, 2020 at 9:54 PM
    #1
    Hunter_Bick12

    Hunter_Bick12 [OP] Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220461
    Messages:
    268
    Gender:
    Male
    First Name:
    Bick
    Alabama
    Vehicle:
    2011 Black DCSB TX TRD Prerunner
    Update: Got everything I needed! Thanks to Rago Fab, they are great people to work with!

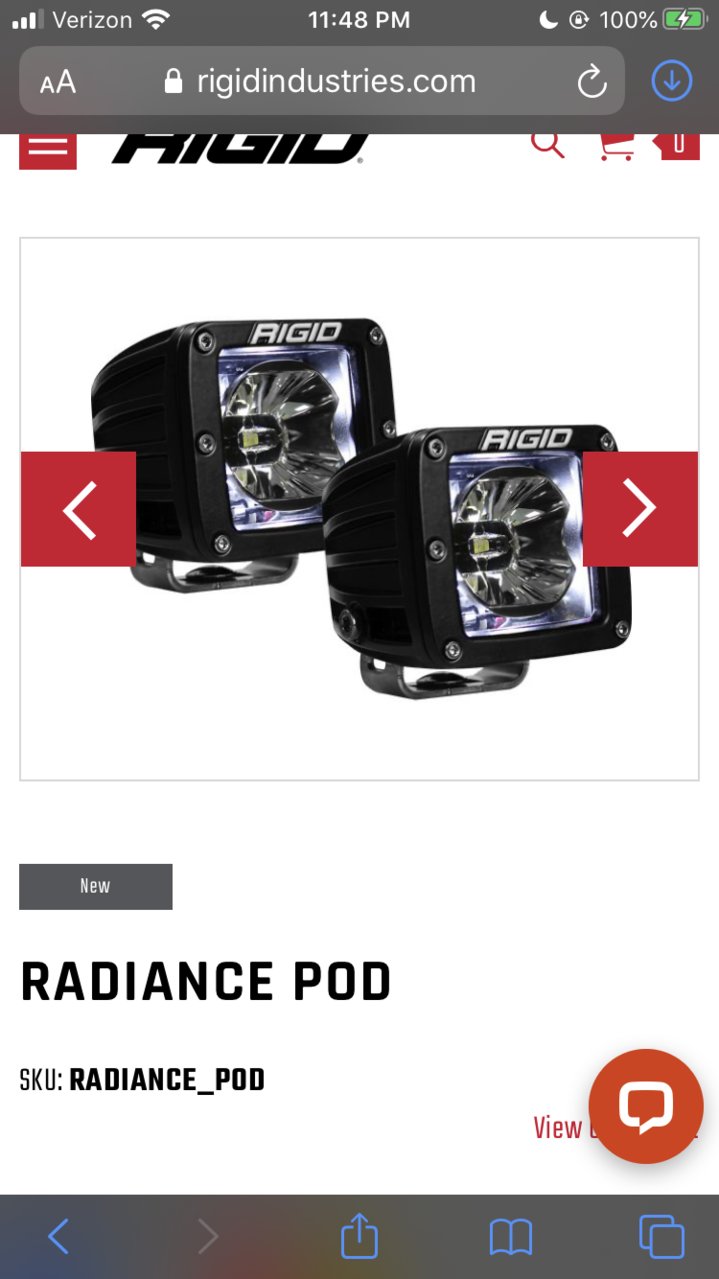

    Hey guys, I’m looking to get the Rigid pods listed below. I’m aware they would would likely be too bright to run on the road, but I’m getting them mainly for aesthetics and to run the backlight during the day. I’ve done some research on this and I do not believe the Cali Raised fog brackets are compatible with Rigid pods. However, I like that with the Cali Raised brackets you are still able to see the entire front of the Pod. I do not want the “Rigid” logo or the outer shell to be covered up by the bracket. I haven’t been able to tell if the Rigid brackets do this or not. Can anyone confirm or have any other suggestions? Thanks!


    Last edited: May 27, 2020
  2. Apr 30, 2020 at 12:18 AM
    #2
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,575
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Hunter_Bick12 [OP] likes this.
  3. Apr 30, 2020 at 4:25 AM
    #3
    Hunter_Bick12

    Hunter_Bick12 [OP] Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220461
    Messages:
    268
    Gender:
    Male
    First Name:
    Bick
    Alabama
    Vehicle:
    2011 Black DCSB TX TRD Prerunner
    This is exactly what I need, thanks man! Any ideas on wiring these things? I don’t really wanna spend $90 on Rigid two way switch harness, especially since the switches don’t look like the fit our 2nd gen switch spots

  4. Apr 30, 2020 at 5:34 AM
    #4
    SocalTaco15

    SocalTaco15 Well-Known Member

    Joined:
    Mar 9, 2015
    Member:
    #150536
    Messages:
    913
    Gender:
    Male
    First Name:
    Glen
    Socal, Orange County
    Vehicle:
    15 Prerunner, TRD Off Road, DCSB
    Bilstein 5100's, Heastrong Off-Road HS2 Coils, Wheelers 1-1/2" AAL, FJ Cruiser Wheels, Tail gate clamp, AVS Vent Visors, OEM Roof Rack, Color Matched Grill & Rear Bumper, Undercover Classic Tonneau, JBL sub, and WIndow Tint
    Hunter_Bick12 [OP] likes this.
  5. Apr 30, 2020 at 5:51 AM
    #5
    Hunter_Bick12

    Hunter_Bick12 [OP] Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220461
    Messages:
    268
    Gender:
    Male
    First Name:
    Bick
    Alabama
    Vehicle:
    2011 Black DCSB TX TRD Prerunner
    I looked on there, and all their wiring does look cheaper. Still not sure which one I need though.. like I said, I’m a dummy. Got a link? Thanks!

  6. Apr 30, 2020 at 3:41 PM
    #6
    Hunter_Bick12

    Hunter_Bick12 [OP] Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220461
    Messages:
    268
    Gender:
    Male
    First Name:
    Bick
    Alabama
    Vehicle:
    2011 Black DCSB TX TRD Prerunner
  7. Apr 30, 2020 at 3:54 PM
    #7
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,575
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Based on this radiance harness image I found:
    [​IMG]

    And this instruction sheet:
    [​IMG]

    It looks like the pods use crimp connectors on a pigtail to connect the lights. So you'd need attach an H10 connector the the red and black coming out of the back of the pod (like these) which would then plug into your OEM fog connector. The lights would then power on with the OEM fog switch. For the backlight, you could connect the white wire to a separate powered switch in the cab or tap it into your DRL to have it automatically come on with your DRLs, although that would also make the backlight function as an additional turn signal.

    Hunter_Bick12 [OP] likes this.
  8. May 1, 2020 at 3:58 AM
    #8
    DG92071

    DG92071 Well-Known Member

    Joined:
    Nov 29, 2019
    Member:
    #312004
    Messages:
    2,259
    Looks like the wiring is identical to Baja Designs dual mode harnesses.

    Hunter_Bick12 [OP] likes this.
  9. May 1, 2020 at 4:19 AM
    #9
    2013XSPX

    2013XSPX Well-Known Member

    Joined:
    Nov 29, 2015
    Member:
    #170975
    Messages:
    1,153
    Gender:
    Male
    First Name:
    Matt
    GA/FL Border
    Vehicle:
    2013 XSP-X
    Perfectly stock?

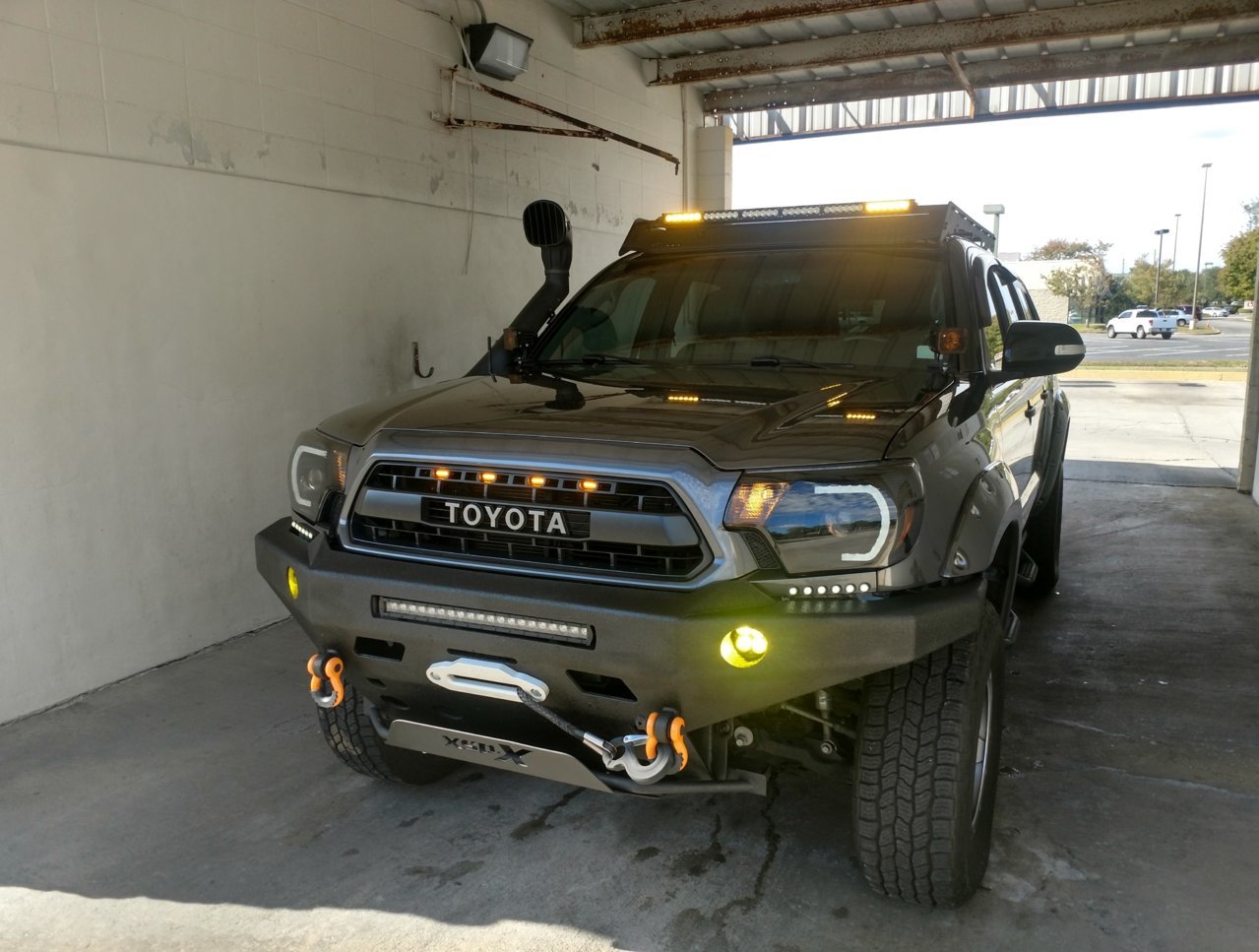

    Tacoma_Front_Clean_Nov2019.jpg You can run the accent light to almost anything. I have mine tied into my "Raptacoma" lights in the grill and to a separate switch in the cab.

  10. May 1, 2020 at 5:30 AM
    #10
    SocalTaco15

    SocalTaco15 Well-Known Member

    Joined:
    Mar 9, 2015
    Member:
    #150536
    Messages:
    913
    Gender:
    Male
    First Name:
    Glen
    Socal, Orange County
    Vehicle:
    15 Prerunner, TRD Off Road, DCSB
    Bilstein 5100's, Heastrong Off-Road HS2 Coils, Wheelers 1-1/2" AAL, FJ Cruiser Wheels, Tail gate clamp, AVS Vent Visors, OEM Roof Rack, Color Matched Grill & Rear Bumper, Undercover Classic Tonneau, JBL sub, and WIndow Tint
    pm them and they will tell you what you need.

  11. May 1, 2020 at 10:50 AM
    #11
    Hunter_Bick12

    Hunter_Bick12 [OP] Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220461
    Messages:
    268
    Gender:
    Male
    First Name:
    Bick
    Alabama
    Vehicle:
    2011 Black DCSB TX TRD Prerunner
    This is awesome, thanks for taking the time to explain this for me. However, I think I want to be able to turn the backlight in whenever I choose rather than wired up with something. Would ordering another oem switch allow me to do so with the wiring harness?
    Also, just out of curiosity, would wiring them to the dtrl make the backlight blink fast since it’s led, or no since the truck realizes there is a regular bulb still in place?

  12. May 1, 2020 at 11:01 AM
    #12
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,575
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    You could look at wiring to another OEM switch or using an aftermarket switch:
    https://www.ch4x4.com/product-category/push-series/toyota-push-switches/

    You wouldn't wire it to replace the DRL, as that will mess with your signals as well and not be acceptable for street use. I was suggesting adding it to the existing DRL circuit, so the DRL runs both. Being an LED backlight, the draw should be very low. You can confirm by finding the power specs. You could also use a relay to run it off the DRL so power draw is unaffected. Running it off the DRL would power the backlights on when the DRL is on, when you turn the headlights on the DRL is turned off and goes to the lower power filament of the DRL/signal bulb, so the backlight would turn off. However when signaling, the high power DRL filament is activated on flash, meaning your backlight on the turn side will also flash.

    DG92071 likes this.
  13. May 1, 2020 at 11:17 AM
    #13
    Hunter_Bick12

    Hunter_Bick12 [OP] Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220461
    Messages:
    268
    Gender:
    Male
    First Name:
    Bick
    Alabama
    Vehicle:
    2011 Black DCSB TX TRD Prerunner
    So, let me ask this since you obviously know a good bit about wiring. I want to be able to turn the backlights on whenever I want. So it seems an oem or aftermarket switch in the cab is the way to go for that. However, what if when my headlights are on as well as my in cab switch to have the backlights running, I wanted them to flash with blinker/dtrl? It seems this would be impossible because I would have to wire them to dtrl which would make them run no matter what unless headlights are on.

    Basically, I don’t want to wire to dtrl because I want them to run at night. However, I’d like to keep them as another turn signal. Too complicated? Lol

  14. May 1, 2020 at 1:34 PM
    #14
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,575
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Anything is possible but that certainly would be complicated. If you have the switch set to on and want them to flash as a signal, you need to wire a way for them to be shut off. The easiest way would be to wire a normal closed relay in-between your switch and the pod, and tie the relay to your DRL. A normal closed relay completes the circuit and when it receives power it interrupts the circuit. This means when the DRL is active, the power is cut from the pod. That would mean it won't work with your DRLs running, but would work at night with your headlights on, and during the day with your DRL off. With the headlights on and your switched turned to on, when the DRL activates as a signal and the relay would open, turning off the backlight. This would cause them to flash as a signal, but at the opposite time of the signal. That is when the signal is flashing the pod backlight is off, and when the signal is off the pod backlight is on.

    If you want to run them at any time the easiest thing to do would be to not bother with the signals.

    DG92071 and Hunter_Bick12 [OP] like this.
  15. May 1, 2020 at 1:44 PM
    #15
    Hunter_Bick12

    Hunter_Bick12 [OP] Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220461
    Messages:
    268
    Gender:
    Male
    First Name:
    Bick
    Alabama
    Vehicle:
    2011 Black DCSB TX TRD Prerunner
    I see, I will likely just wire to a switch in cab and not worry about the rest. Thanks for a lot for your help man, I really appreciate it!

    crashnburn80 likes this.
  16. May 6, 2020 at 7:02 AM
    #16
    Hunter_Bick12

    Hunter_Bick12 [OP] Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220461
    Messages:
    268
    Gender:
    Male
    First Name:
    Bick
    Alabama
    Vehicle:
    2011 Black DCSB TX TRD Prerunner
    Ordered from this site and now they are saying they don’t have the brackets and can’t get them.. any others? Thanks

  17. May 6, 2020 at 8:05 AM
    #17
    DG92071

    DG92071 Well-Known Member

    Joined:
    Nov 29, 2019
    Member:
    #312004
    Messages:
    2,259

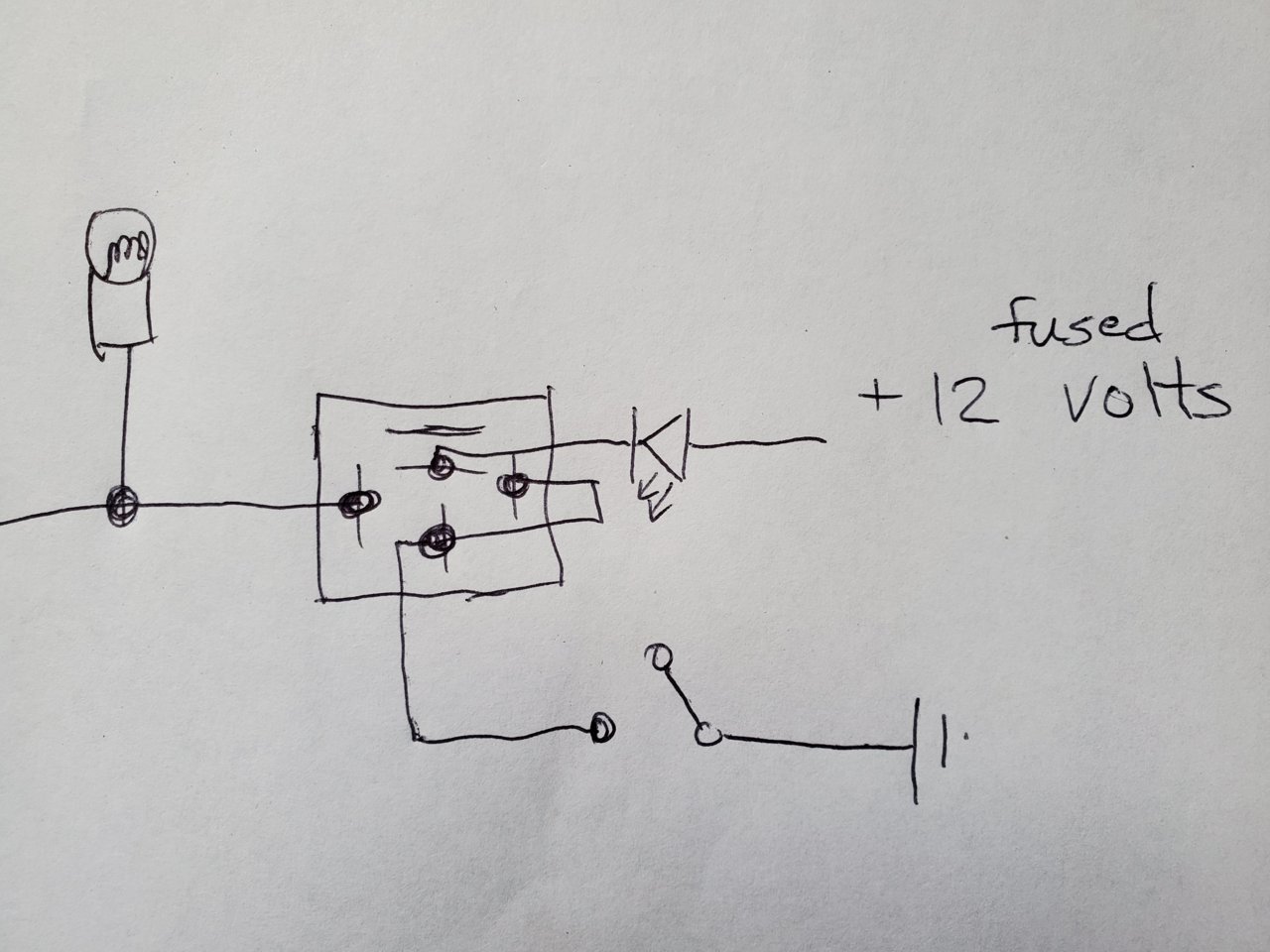

    My first reply had way too many parts that weren't even needed, lol.

    Second attempt.

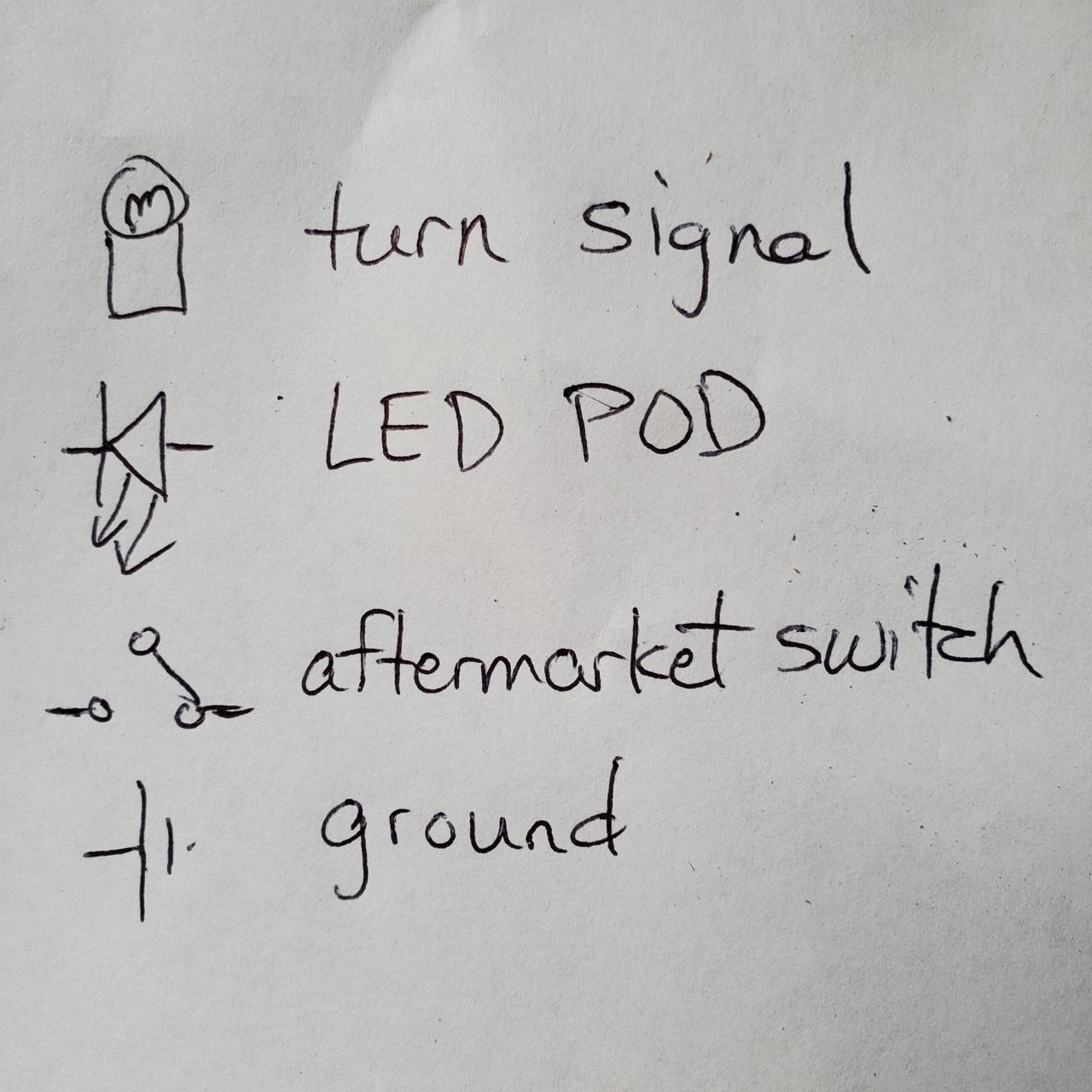

    Following @crashnburn80 's lead, second attempt, lmao still.
    Some symbols aren't "correct".

  18. May 6, 2020 at 9:11 AM
    #18
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,575
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Here is the link for Rago's site, the makers of the bracket, I'd contact them and ask. The page currently has a 404 error, but rather than listing an item as out of stock in-between production runs, they just take the pages down to prevent orders, resulting in a 404.
    2005-2011 Tacoma

  19. May 6, 2020 at 10:46 AM
    #19
    Hunter_Bick12

    Hunter_Bick12 [OP] Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220461
    Messages:
    268
    Gender:
    Male
    First Name:
    Bick
    Alabama
    Vehicle:
    2011 Black DCSB TX TRD Prerunner
    Contacted them and they aren’t making them anymore. -_-

  20. May 6, 2020 at 11:09 AM
    #20
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,575
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
