Raptor Grill from Ebay help wiring!

Discussion in '3rd Gen. Tacomas (2016+)' started by BraddaComa, Feb 3, 2019.

  1. Feb 3, 2019 at 1:19 PM
    #1
    BraddaComa

    BraddaComa [OP] New Member

    Joined:
    Jun 14, 2018
    Member:
    #256456
    Messages:
    4
    Gender:
    Male
    Hi I bought a raptor style grill from ebay and after doing some research im having a hard time figuring what ground connector end I need. I read a couple threads suggesting the use of a "add a fuse kit" and then fusing it into the fuse box. That is what im planning on doing for the red wire portion but for the black wire; what kind of ground connector do i need? Can someone link me the correct one?

    Here is the link to the grill:
    https://www.ebay.com/itm/233097131217

    As you can see, the wiring doesnt come with a end connector for the black and red wires.

  2. Feb 3, 2019 at 2:03 PM
    #2
    Ronzio

    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    1,536
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR

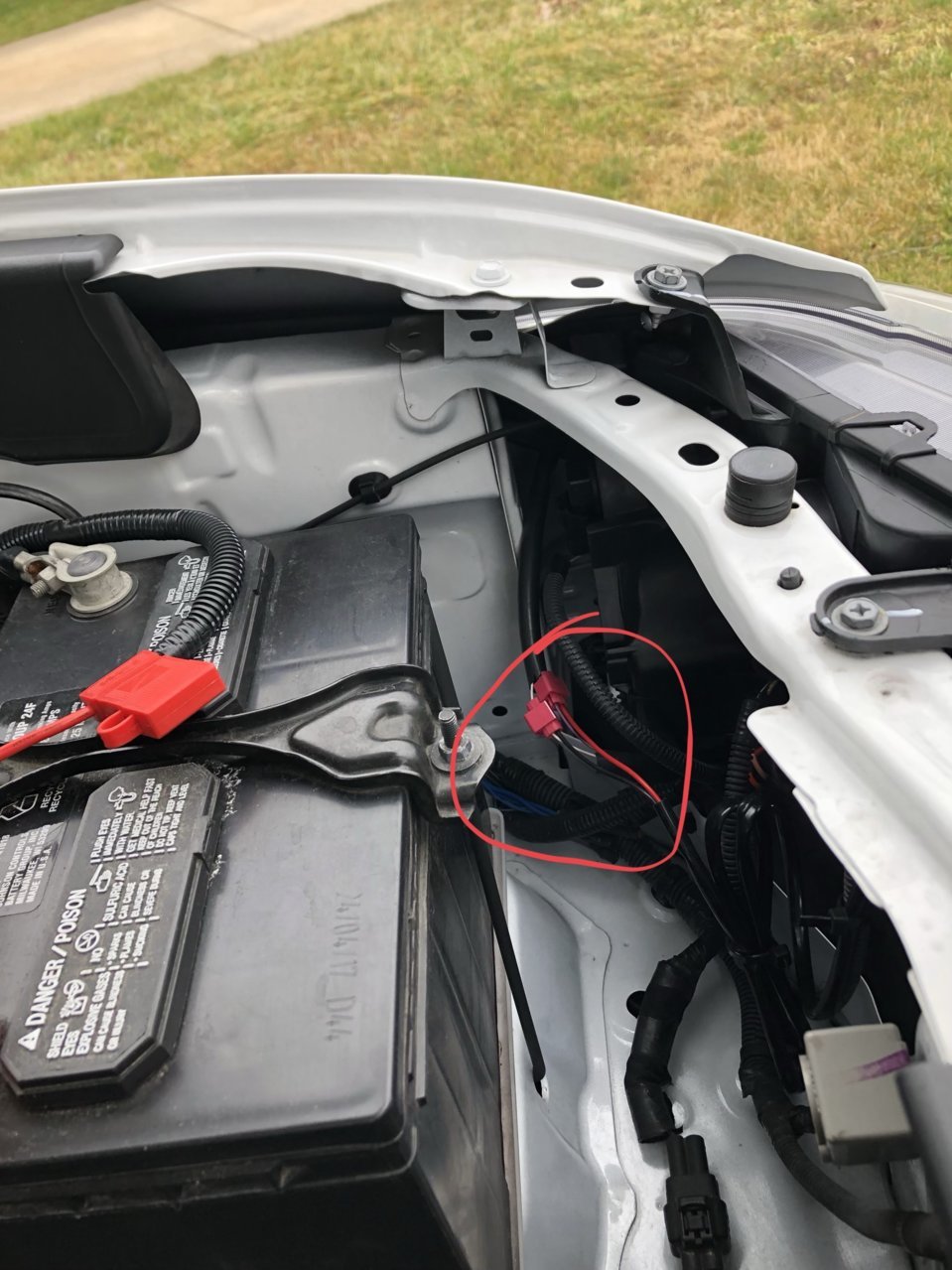

    Just tap the side parking lamp on your drivers side headlight....purple wire is positive and white wire is ground coming from the truck harness. See photo for clarity

  3. Feb 3, 2019 at 2:11 PM
    #3
    whatstcp

    whatstcp Well-Known Member

    Joined:
    Aug 3, 2018
    Member:
    #261584
    Messages:
    3,513
    Gender:
    Male
    IE, Ca
    Vehicle:
    2006 Tacoma Regular Cab 2.7l 4x4
    OEM Kings F/R non-adj. Icon AAL. Camburg UCA, Locked Offroad hydros rear, superbumps front
    https://www.ebay.com/itm/Heat-Shrin...c:g:DBMAAOSwMO9b0WmU:rk:2:pf:1&frcectupt=true

    Find a crimp terminal connector like in the kit listed above. Then just crimp with a cheap crimper from harbor freight, heat shrink it with cheap heat shrink and a cheap heat gun from harbor freight. Then just ground it to the body using a bolt that's already attached somewhere on the frame or body. It's a low amperage lighting circuit so grounding to body should be fine. That wire looks like 22ga wire as is already.

    As for power/hot wire, you can tap into the drl, or headlights, or somewhere in the fuse box. All depends on when you want the lights to turn on. Do you want them on with DRL, or headlights, or when its on accessories, or only when powered on, or only when the high beams are on. Then just tap into whatever circuit will provide power. I don't like using butt or those tap connectors that essentially slice into a wire so I chose to run mine on only when the low beams are on. So I made a harness to draw power from the low beam power circuit.

    It's all up to your imagination and what you want.

    Last edited: Feb 3, 2019
  4. Feb 3, 2019 at 8:15 PM
    #4
    BraddaComa

    BraddaComa [OP] New Member

    Joined:
    Jun 14, 2018
    Member:
    #256456
    Messages:
    4
    Gender:
    Male
    If I tap into the parking lights, will my raptor lights be on all the time?

  5. Feb 3, 2019 at 8:15 PM
    #5
    BraddaComa

    BraddaComa [OP] New Member

    Joined:
    Jun 14, 2018
    Member:
    #256456
    Messages:
    4
    Gender:
    Male
    Can I buy any ground O-ring and just attach it the black wire to the body frame?

    What is AWG?

    https://www.amazon.com/Baomain-Insu...QAP1SW99FC0&psc=1&refRID=62BXFXRC5QAP1SW99FC0

    this one listed talks about having 18-22 AWG...and this one below talks about a 4 GAUGE? What is a GAUGE? Sorry but im complete noob to all of this electrical stuff.

    https://www.amazon.com/SCOSCHE-X2RT...coding=UTF8&psc=1&refRID=FPT2EZYD2WKS2T96JKSN

    Just trying to figure out what type of O-groung ring connector will work for this project.

  6. Feb 3, 2019 at 8:17 PM
    #6
    ALI3N_123

    ALI3N_123 TTC #190

    Joined:
    Dec 10, 2017
    Member:
    #238195
    Messages:
    17,230
    Gender:
    Male
    First Name:
    Eric (Fez)
    McAllen, Texas
    Vehicle:
    2008 Basic Spam Taco
    Wixo likes this.
  7. Feb 3, 2019 at 8:27 PM
    #7
    Ronzio

    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    1,536
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR
    No they will be on when the parking lights are on since this is where your getting power from.

  8. Feb 4, 2019 at 2:58 PM
    #8
    Wixo

    Wixo Very Well-Known Member TTC#0175

    Joined:
    Dec 12, 2016
    Member:
    #204665
    Messages:
    2,192
    Gender:
    Male
    First Name:
    Mau
    Vehicle:
    '17 Tacoma TRD Off-Road Inferno
    I have them into the side markers, I think thats what their called. I told the guy to put them on the "cuartitos" aka the yellow one on the side. He did that and they're on when I turn my fog lights and night time lights.
