Raptor Light Mod

Discussion in 'Lighting' started by kd8bao, Feb 20, 2012.

  1. Feb 20, 2012 at 10:43 AM
    #1
    kd8bao

    kd8bao [OP] Well-Known Member

    Joined:
    Mar 29, 2011
    Member:
    #53990
    Messages:
    503
    Gender:
    Male
    First Name:
    Henry
    Cleveland
    Vehicle:
    11 Double Cab SR5 4x4
    Rear Camera Mod, Custom Center Console, Fog light anytime Mod, More to come

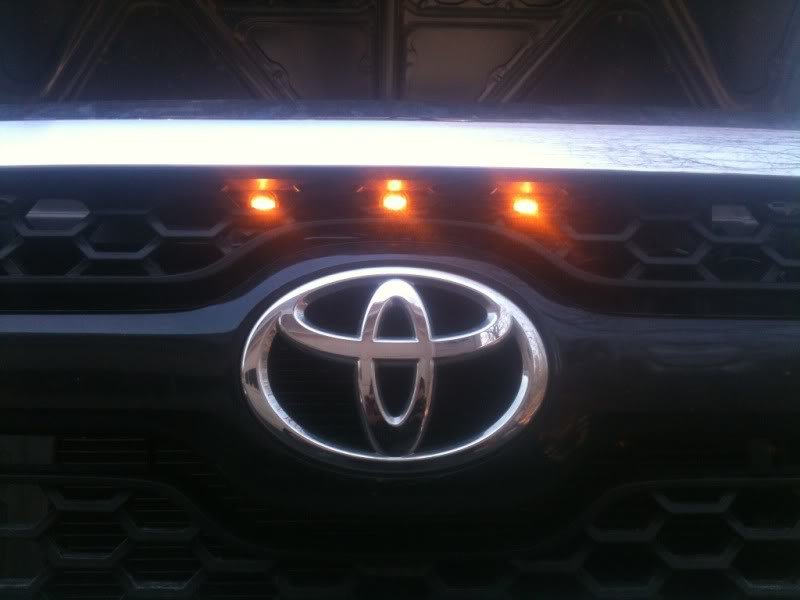

    I was looking through the forums and saw someone with a grille design that integrated the raptor light idea. So i ran with it and here is what I came up with.

    [​IMG]


    [​IMG]


    [​IMG]

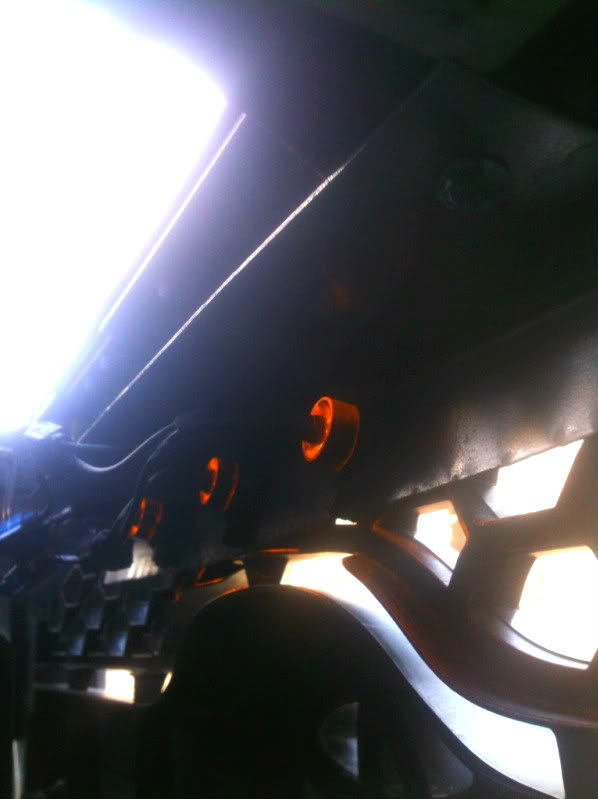

    So I had a peice of aluminum angle, 2"x1.25"x.032" about 14" long. I held it up behind the grille and marked out the honeycomb locations. Drilled out the 3/4" holes for the lights and mounted the lights in the angle. I wired all the lights together before putting it in the grille. I pulled the wire extension over to the driver side corner marker. and used splice taps to connect everything. I used 2 - 5/16" self drilling screws from the bottom and screwed into the two top grille braces. I opted for the marker lights to be the switch so they were not on all the time.

    Total time was about 2 hours and about $25.

    * * * * NOTE: The LEDs were wired with the black is hot and white for ground. Just test them before you wire them all together. * * * *

    Lemme know if your have any questions

    Link for the lights:

    http://www.ebay.com/itm/280811348908?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649
