Rear axle alignment off

Discussion in 'Suspension' started by ikataco, Jan 5, 2010.

  1. Jan 5, 2010 at 11:16 PM
    #1
    ikataco

    ikataco [OP] Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25702
    Messages:
    119
    Gender:
    Male
    Vehicle:
    06 DC Sport
    I'm posting this for an older friend.

    2005 DC Sport longbed Auto
    2.5 inch lift spacer front
    1 inch iron blocks rear w/o TSB
    17 x 9 rims w/ 285/70/17 Revo2s

    He went camping and when he returned he noticed the rear driver's side axle is much further back than the passenger side(see photos). He works at Firestone tire center. They put his Taco on the alignment rack & sure enough the rear is not within spec. While driving straight, his Taco looks like it is in a constant drift.

    He stated the techs at his work(Firestone) loosen the u-bolts, settled the suspension, & re-torqued. No change. Any ideas on the cause?

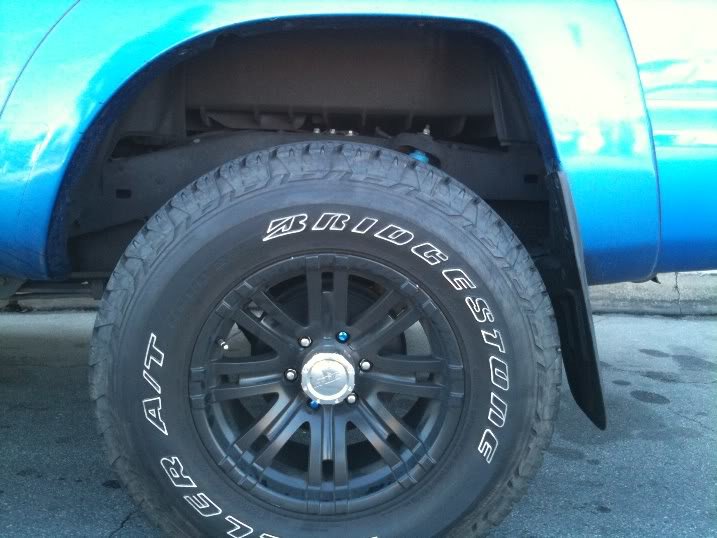

    passenger side OK
    [​IMG]

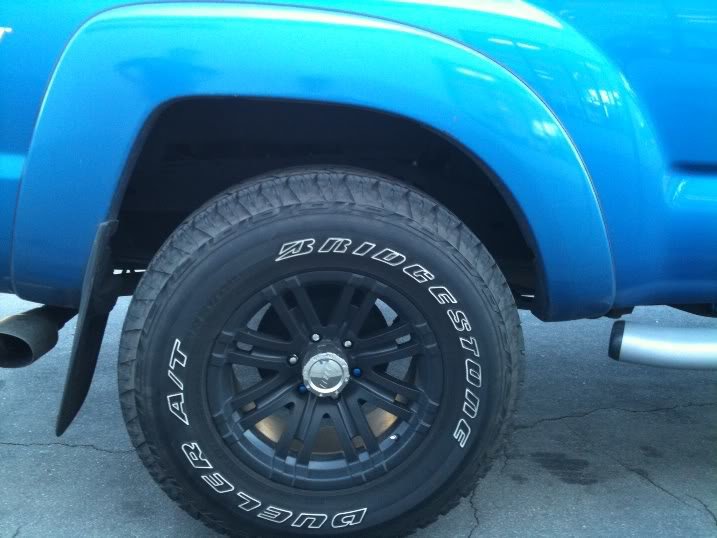

    Driver's side, axle sits further back.

    [​IMG]

  2. Jan 6, 2010 at 4:18 AM
    #2
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,641
    Gender:
    Male
    First Name:
    Rotorhead
    DC or New Jersey - Depends on the day....
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    Yeah....The axle wasn't bolted back up correctly after the blocks were installed.

    I had to use a hammer to fix mine.

  3. Jan 6, 2010 at 4:24 AM
    #3
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    11,923
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    Someone also stole 4 of your blue lugnuts or 2 of your chrome ones from each wheel.........& how much cheaper are blocks than AALs?

  4. Jan 6, 2010 at 8:05 AM
    #4
    Janster

    Janster Old & Forgetful

    Joined:
    Mar 25, 2007
    Member:
    #1138
    Messages:
    14,254
    Gender:
    Female
    First Name:
    Jandy
    Lancaster, PA
    Vehicle:
    2016 GMC Canyon SLT w/ LineX and....
    Not sure why this would be the problem, but thought I'd mention it anyway.

    Look at your leaf springs & shackles / position while at rest. They should be relatively in the same position on both sides.

  5. Jan 6, 2010 at 8:06 AM
    #5
    JimBeam

    JimBeam BECAUSE INTERNETS!! Moderator

    Joined:
    Apr 14, 2008
    Member:
    #5966
    Messages:
    41,801
    Gender:
    Male
    First Name:
    JB
    Vehicle:
    2014 DCSB TRD 4x4
    the problem is that the blue lug nuts arent symmetrical

  6. Jan 6, 2010 at 8:14 AM
    #6
    mjp2

    mjp2 Living vicariously though myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    17,765
    Gender:
    Male
    First Name:
    Milton Juevos Portimous II
    NJ
    Vehicle:
    '06 TRD Access Cab, v6, 6-speed
    Scaffolding and a painted grill
    Pull the center pins from the leaf packs and inspect. If the ubolts were loose then the pins can bend and even break.

  7. Jan 6, 2010 at 9:03 PM
    #7
    ikataco

    ikataco [OP] Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25702
    Messages:
    119
    Gender:
    Male
    Vehicle:
    06 DC Sport
    Thanks everyone, I've passed on the information to my friend.

  8. Jan 6, 2010 at 9:11 PM
    #8
    sachou

    sachou Well-Known Member

    Joined:
    Sep 30, 2009
    Member:
    #23554
    Messages:
    664
    Gender:
    Male
    First Name:
    Sam
    Richland, Washington
    Vehicle:
    2006 TRD Sport Acc Cab 4x4 V6 6spd
    First off, tell your friend he needs to get an account here so you don't have to do his problem solving for you!

    Second, I've been in his shoes before...but much more extreme:

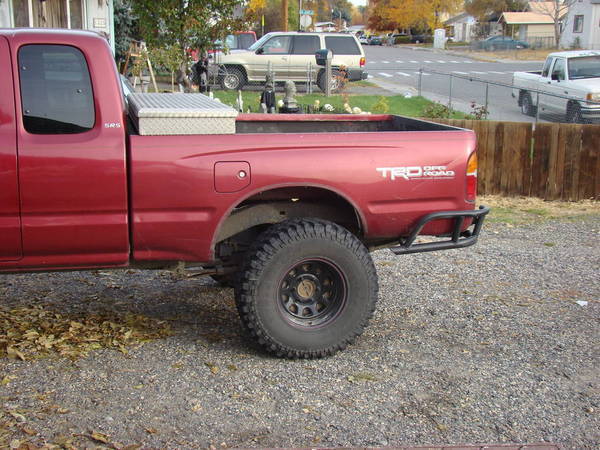

    [​IMG]

    I ran into a giant rock at 25+ mph. It sheared the centering pin and bent up the U-bolts a little bit. Not having enough money to afford the OME Dakar leaf packs, I just unbolted all 4 u-bolts, took apart the problem leaf pack, removed old center pin, used a nut and bolt I had lying around that fit perfect, and then put it back together.

    It still wasn't a perfect 100% aligned job, but it's supposed to be temporary anyways. My steering wheel is still not perfectly center when going in a straight line, but the U-bolts I put back on were still bent.

    Check the centering pin first to see if it's still straight.

    I would then try loosening all u-bolts, and then using ratchet straps hooked to something on the forward part of the truck to bring that side forward.

  9. Jan 7, 2010 at 5:28 PM
    #9
    silvertaco82

    silvertaco82 No way, get real

    Joined:
    Jul 22, 2009
    Member:
    #20033
    Messages:
    414
    Gender:
    Male
    First Name:
    Mike
    Bozeman, MT
    Vehicle:
    2010 AC TRD Sport 4x4
    TRD Seat Covers, Weathertech floor mats, Sockmonkey Decals, Pro Comp 6", 35" Nitto Trail Grapplers, 18x9 XD addicts, 20% tint, Kenwood Dnx 5120, 2 10" Kicker Shallow mount subs
    i went to alignment shop and they said i have the same problem. They said just this that the u bolts must have not been tightened back up all the way after i did the aal

  10. Jan 7, 2010 at 5:36 PM
    #10
    ikataco

    ikataco [OP] Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25702
    Messages:
    119
    Gender:
    Male
    Vehicle:
    06 DC Sport
    Damn! Did the rock hit the wheel, diff, or axle at 25mph?

  11. Jan 7, 2010 at 5:51 PM
    #11
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,180
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    Ugh, spacers/blocks.

    This is advertisement #1 on why if you're going to lift a vehicle, it needs to be done right with a suspension lift.

  12. Jan 8, 2010 at 11:40 AM
    #12
    sachou

    sachou Well-Known Member

    Joined:
    Sep 30, 2009
    Member:
    #23554
    Messages:
    664
    Gender:
    Male
    First Name:
    Sam
    Richland, Washington
    Vehicle:
    2006 TRD Sport Acc Cab 4x4 V6 6spd
    Just the wheel! Thank god for my beefy Mud-Terrains, if I had P rated tires they'd probably have punctured.

    If I had hit it just a few inches closer, I'd probably eff up the axle pretty bad...so good thing I only damaged the spring.

    x2

  13. Jan 8, 2010 at 4:04 PM
    #13
    jhodge83

    jhodge83 Any dog under 50# is a cat and cats are useless... Moderator

    Joined:
    Apr 27, 2007
    Member:
    #1432
    Messages:
    28,093
    Gender:
    Male
    First Name:
    Jamie
    Moncks Corner, SC
    Vehicle:
    09 Timberland Mica DC 4WD Sport
    wat?
    ummm....technically, a spacer/block lift is still suspension...its not a body lift. it may not be the ideal setting, but suspension none the less

  14. Jan 8, 2010 at 4:35 PM
    #14
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,641
    Gender:
    Male
    First Name:
    Rotorhead
    DC or New Jersey - Depends on the day....
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    And I had to same problem with my AAL...It was easy to fix. As I assume that the OPs problem will be.
