Rear Axle Upgrade Questions

Discussion in 'Solid Axle Suspension' started by viperstd, Jun 26, 2012.

  1. Jun 26, 2012 at 6:27 AM
    #1
    viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    Howdy.

    I have an 09 w/o a factory locker. I'm currently running 33" tires with a long-term plan of running 35s or 37s). It is a daily driver that hardly gets wheeled at the moment. It will get wheeled much more when I move!

    I think my next upgrade will be a locking diff for the rear of the truck (want an ARB / an on board air system). I've started pricing out the upgrade and it is leaving me wondering a few things.

    1) Upgrading the Toyo axle
    • 4.56 or 4.88 gears
    • ARB lockers
    • Truss?
    • $1,500-$2,000 ?

    2) Build a Dana44 or 60?
    • new wheels (or adapters)
    • new driveshaft/flange
    • getting the brakes/ABS to work somehow
    • still need a locker
    • rock anchor while on 33s ?
    • If I'm going this extreme...might as well link it...
    • might end up in the $5,000-$8,000 range, right?

    So, will a trussed toyo axle do what I want and should I save the money for upgrading the front (eventually) or do I start lighting my wallet on fire? I'm not ready to buy anything today.

    I am ready to start laying out the direction of the build so I can begin the planning and acquisition of parts.

    Thanks for any insight you can provide. Cheers.

  2. Jun 26, 2012 at 7:08 AM
    #2
    thegame

    thegame WUT?

    Joined:
    Mar 11, 2011
    Member:
    #52855
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Brian
    Bay area
    Vehicle:
    01 Prerunner -> 4wd IFS -> Dana 60 SAS
    All depends what your wheeling style is, are you heavy on the throttle? What type of wheeling do you plan to do? Rock crawling? Mud? Hill climbs?

  3. Jun 26, 2012 at 8:58 AM
    #3
    viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    Used to do trails in New Hampshire. Mix of jeepo trails and closed quarries. Plan is to move to Colorado as able... The dream is for an expo truck I can drive from Alaska down to the Andes and the Cape. I know the Taco isn't the ideal choice for that dream.

    I am not looking for a hardcore rock basher. I try to wheel w/o tearing up the trails, so I avoid bogging through the deep mud and hammering the skinny pedal.

    Thanks.

  4. Jun 26, 2012 at 10:22 AM
    #4
    thegame

    thegame WUT?

    Joined:
    Mar 11, 2011
    Member:
    #52855
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Brian
    Bay area
    Vehicle:
    01 Prerunner -> 4wd IFS -> Dana 60 SAS
    The Taco is a great choice for that, you just have to build it accordingly. I would keep the Toyota rear axle in that case. Since you just want an expo truck, keep the IFS to keep it comfortable and reliable, put 33's or 35's on, regear and call it done. I wouldn't personally throw 37's on IFS but I know the newer Taco's have a beefier front end than the older generation so 35's MAX. The ARB rear locker is reliable so no problems there. If you insist on trussing the Toyota axle, I wouldn't waste any time and call Brian at Diamond Axle and have him make you a complete replacement housing, you'll never have to worry about it again and IIRC a stock replacement Diamond rear housing is around $850.

    I would say go a little more extreme with a straight axle and 37's but personally, I think that is money you don't NEED to spend in order to do what you want to do with the truck.

  5. Jun 26, 2012 at 2:06 PM
    #5
    viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    I'll check out the Diamond housings...


    Based on their site, it looks like a diamond housing will gain me ~0.75" of clearance. I assume the tubes are much thicker than stock.
    Can someone explain the real world impact of full float vs semi-float? Are the diamond axles setup for full float (tubes carry all of the load) and the stock is semi float (axles carry load)... or?
    I don't insist on trussing an axle; I'm used to seeing it on a lot of built crawlers and 'runners and have come to associate it with strength. Is there a reason to not truss the factory axle (paper thin metal that will burn through perhaps?)? Is there a reason the diamonds aren't trussed?

    In my heart I would love to do a SAS and run a D60 rear, a D60 front out of a new 450, and 37s, but when I start totaling up that bill and cross the $15,000 mark, I start to think I should just buy a Defender 110 and pimp that out instead. (I've wanted a 110 for a long time!).

    Cheers!

  6. Jun 26, 2012 at 5:00 PM
    #6
    battlescars

    battlescars Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,427
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    03' 5-lug DD Prerunner
    I would say go with 4.56 and a locker for 35's. I have one on my truck and it doesn't tear through tires on the street. It locks up only when you apply gas, so as long as you're not punching the gas around corners you will be happy with it.

    Semi floater is basically what you have right now minus the brake drums. The axle shafts support the weight at the ends along with the bearings.

    Full floater works kind of like your front end where the shafts slide through a spindle or snout allowing the pressure to rest on the bearings and snout which puts less stress on the axle shafts. This helps from shearing under torque and load from off-roading.

    There are still a few options for the semi floater if you don't want to put a lot of coin into a FF such as mentioned earlier; axle truss and custom chromolly axle shafts.

    Now you can upgrade your stock axle to become an FF with a conversion bracket, snouts, and custom shafts but it's not worth going that route when you can spend a bit more, get a stronger housing and build it with whatever parts you want.

  7. Jun 26, 2012 at 5:08 PM
    #7
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    9" D60 or 14 bolt gets my vote

    sucks blowing up your rear end

  8. Jun 26, 2012 at 5:30 PM
    #8
    viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    I can do that for $4.99 at TacoHell too. :D

  9. Jun 26, 2012 at 6:18 PM
    #9
    viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    For comparison, does anyone know the wall thickness and material of the stock housing and Diamond housing?

    Does anyone sell a pre-fit truss for the stock axle?

  10. Jun 26, 2012 at 7:48 PM
    #10
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,659
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
    Stock housing? Like 1/4". Diamond is 3/8" or customized. Trusses really dont do as much as you think, unless you are doing KOH races.

  11. Jun 26, 2012 at 9:19 PM
    #11
    erisman33

    erisman33 Crawlin Over 1 Rock At A Time

    Joined:
    Jun 27, 2011
    Member:
    #58965
    Messages:
    55
    Gender:
    Male
    Pismo/Mendocino
    Vehicle:
    1995 Ton'd Taco
    1 Tons with 4 Wheel Disc
    If your plan is run 37's and the biggest you want to run, I would go to the junk pull a tacoma 6 lug rear end for lets say 200 bucks ( probably on the high side) Buy Some chromo's from trail gear for 300 bucks buy whatever gears you want. I would run 4.88 if you want to dd with 37 or 5.29 if you want power but you want pull more than 65 at 3200 rpm's with a stock case with a ( 3.4 v6). Buy a decent locker and build it all with new seals and bearing and throw that bad boy in. If your not going to be jumping your truck or running 40's i wouldnt buy a diamond housing or rock aussult housing. Just my 2 cents which aint very much.

    Hopefully all the info on here will get you educated and make the right choice for what you wanna run.:D

  12. Jun 26, 2012 at 10:21 PM
    #12
    thegame

    thegame WUT?

    Joined:
    Mar 11, 2011
    Member:
    #52855
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Brian
    Bay area
    Vehicle:
    01 Prerunner -> 4wd IFS -> Dana 60 SAS
    Stock housings are MUCH thinner than 1/4". If they were that thick, you wouldn't need a truss. If I had to guess, stock housings are 1/8" thick which isn't much. Probably why you see a lot of crushed axle housings right at the spring perch on first generation Tacos.

  13. Jun 27, 2012 at 11:57 AM
    #13
    viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    So, can a Diamond housing be setup for for FF and still use the stock internals? (maybe upgraded CrMo shafts)? If it can, will it be closing in on D60 strength but w/ Toyo clearance?

    Can I use the stock wheels/spindles/etc?

    Again, I appreciate the help and lack of flaming everyone. I've done a bit of IFS/IRS work but never had an occasion to build an axle. FWIIW, I'm mechanically competent (built a few motors, motorcycles, do my own automotive work, used to do a bit of CAD/CAM, and welding), but I am just now learning about solid axle stuff.

    :cheers:

  14. Jun 27, 2012 at 6:40 PM
    #14
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,659
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
    To come close to a d60 in strength you need to at least run a LC third member. Or a 14bolt or a d60.

    Stock internals are junk because they are so small. Just because you have a thicker axle housing, doesn't mean you will have a stronger axle.


    Also, I was just guessing on the size wall. Too small for my taste.

  15. Jun 27, 2012 at 8:48 PM
    #15
    erisman33

    erisman33 Crawlin Over 1 Rock At A Time

    Joined:
    Jun 27, 2011
    Member:
    #58965
    Messages:
    55
    Gender:
    Male
    Pismo/Mendocino
    Vehicle:
    1995 Ton'd Taco
    1 Tons with 4 Wheel Disc
    AMEN BROTHER...... :D I rather have a stock housing and chromo's than a built housing and stock internals.... :D its cheaper TOOO

  16. Jun 28, 2012 at 6:25 AM
    #16
    viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    I guess I'm trying to ask if a Diamond housing setup for FF, CrMo shafts, and Nitro gears will be in the D60 range.

    I would like to stay close to the stock width. I consider these trucks to be pretty wide already.

    I found these diagrams for reference.

    Dana 60 Full Float [​IMG]


    Semi Float
    [​IMG]

    So, based on what I'm seeing

  17. Jun 28, 2012 at 6:54 AM
    #17
    erisman33

    erisman33 Crawlin Over 1 Rock At A Time

    Joined:
    Jun 27, 2011
    Member:
    #58965
    Messages:
    55
    Gender:
    Male
    Pismo/Mendocino
    Vehicle:
    1995 Ton'd Taco
    1 Tons with 4 Wheel Disc
    Yes it would be close..... Another idea is to get a 14 bolt out of a suburban which is ff and 63 inch wms to wms.. do new outter and disc brakes and then its strong and simple.

    Drawback is clearance but like Wfo concepts will shave the housing to gain clearance.

    Many options out there for a 14bolt

  18. Jun 28, 2012 at 9:17 AM
    #18
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,927
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Evan shaved you wont be close to the clearance a Toyota diff has.

    OP: Based on what you say your needs/use is, put in some gears and an ARB and be done with it. You wont have any issues.

  19. Jun 28, 2012 at 11:00 AM
    #19
    viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    yeah, I've spent the day reading up on it and considering everyone's advice, and I can't see any reason to upgrade to a D60 or 14 bolt.

    It seems like a diamond housing, CrMo shafts, and ECGS built 4.56/ARB 3rd looks like a winning combination to me. I will gain 0.75" of pumpkin clearance instead of loosing 2+" which is like running a ~5" bigger tire.

    Anyone know if a Hilux uses the same Axle as a Taco? That would make getting replacements parts OCONUS much easier.

  20. Jun 28, 2012 at 11:18 AM
    #20
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,927
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Screw the diamond and the shafts. Not necessary.

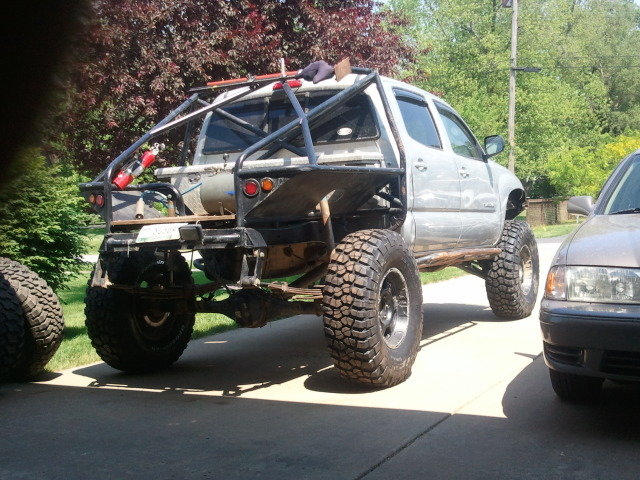

    [​IMG]

    4.56's, ARB, 37's, stock shafts, stock housing
