Rear Diff was enganged accidentally at car wash

Discussion in '2nd Gen. Tacomas (2005-2015)' started by henrytoddaeQ, Nov 17, 2014.

  1. Nov 17, 2014 at 7:47 PM
    #1
    henrytoddaeQ

    henrytoddaeQ [OP] Member

    Joined:
    Nov 17, 2014
    Member:
    #142588
    Messages:
    8
    Gender:
    Male
    2014 4x4 OFFROAD

    Yesterday my girlfriend took my truck to get detailed at the car wash and I guess one of the detailers hit the A-TRAC button because today when I started my truck up the rear diff light was flashing.

    I asked my girlfriend if she saw the light blinking yesterday and she said she didn't remember. From what I have read the rear differintial won't engage unless you're in 4-lo and neutral. However, I've also read some people say that it will engage if pressed when going 5mph or below.

    Assuming that the A-TRAC button was pressed when it was being cleaned (turned off, in park), does that mean it didn't engage? I live pretty far from the car wash, and if it was drivin with the ATRAC engaged then I'm sure it's FUD.

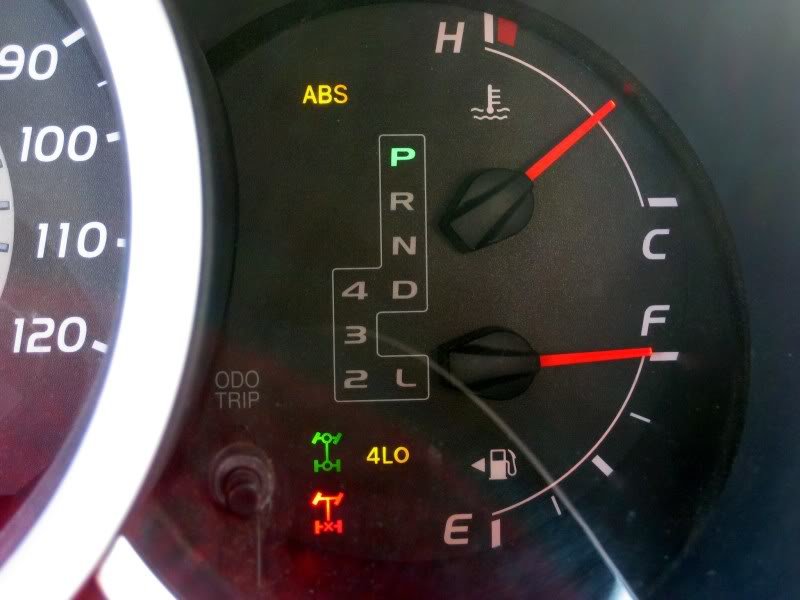

    The only light that was on was the red one and it was blinking (from this picture which isn't mine - I got it online as a reference)


    Last edited: Nov 17, 2014
  2. Nov 17, 2014 at 7:57 PM
    #2
    Adamar85

    Adamar85 Well-Known Member

    Joined:
    Mar 2, 2014
    Member:
    #124372
    Messages:
    715
    Gender:
    Male
    First Name:
    Adam
    Baker City, OR
    Vehicle:
    16 F150 Supercrew FX4
    ATRAC has nothing to do with the locker.... The locker has a separate button. So unless in 4 lo, which your dash does show in the picture and the locker button was pushed as well, which it appears to be from your pic.

  3. Nov 17, 2014 at 7:59 PM
    #3
    henrytoddaeQ

    henrytoddaeQ [OP] Member

    Joined:
    Nov 17, 2014
    Member:
    #142588
    Messages:
    8
    Gender:
    Male
    Thanks for your help!

    Actually, that picture was pulled off the internet as a reference. The only light that was on was the red one and it was flashing. So, I would have to have it in 4-low and have the locker on for it to engage? Okay, phew.

  4. Nov 17, 2014 at 8:03 PM
    #4
    Adamar85

    Adamar85 Well-Known Member

    Joined:
    Mar 2, 2014
    Member:
    #124372
    Messages:
    715
    Gender:
    Male
    First Name:
    Adam
    Baker City, OR
    Vehicle:
    16 F150 Supercrew FX4
    Yep, they make it almost fool proof, almost... I'm sure someone has broke one still. But yeah, 4 low, then engage locker as needed.

  5. Nov 17, 2014 at 8:07 PM
    #5
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    47,906
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi


    Sounds like the 4WD dial has been switched to 4LO , no ?

  6. Nov 17, 2014 at 8:11 PM
    #6
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,902
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    Did your rear tires squeal like a tortured cat at every sharp turn? Or bad hopping in turns? Since you didn't mention it, its safe to say that the locker wasn't engaged. Even is it was, tire wear is your only real concern unless you were loaded up heavily on dry pavement, which could cause breakage that you could not be oblivious to.

  7. Nov 17, 2014 at 8:11 PM
    #7
    henrytoddaeQ

    henrytoddaeQ [OP] Member

    Joined:
    Nov 17, 2014
    Member:
    #142588
    Messages:
    8
    Gender:
    Male
    The dial was set to 2 lo when I started my truck and saw the light flashing.

  8. Nov 17, 2014 at 8:12 PM
    #8
    henrytoddaeQ

    henrytoddaeQ [OP] Member

    Joined:
    Nov 17, 2014
    Member:
    #142588
    Messages:
    8
    Gender:
    Male
    No, I just started up the truck and was backing out from my parking space when I saw the light blinking.

    My girlfriends the one who took it yesterday and parked it last night (which I'm assuming is when it was pressed at the car wash). I wasn't hauling anything thankfully.

  9. Nov 17, 2014 at 8:15 PM
    #9
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    47,906
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

    Doesn't hitting ATRAC illuminate an ATRAC light though rather than flashing the 4LO icon ?

  10. Nov 17, 2014 at 8:16 PM
    #10
    Adamar85

    Adamar85 Well-Known Member

    Joined:
    Mar 2, 2014
    Member:
    #124372
    Messages:
    715
    Gender:
    Male
    First Name:
    Adam
    Baker City, OR
    Vehicle:
    16 F150 Supercrew FX4
    When you hit ATRAC, it kicks on a couple lights. But it only does it if you're in 4wd

  11. Nov 17, 2014 at 8:17 PM
    #11
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    47,906
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

    I see

    Thanks

  12. Nov 17, 2014 at 8:17 PM
    #12
    henrytoddaeQ

    henrytoddaeQ [OP] Member

    Joined:
    Nov 17, 2014
    Member:
    #142588
    Messages:
    8
    Gender:
    Male
    Okay, sorry. My termonology was off.

    So, the button that was pressed was called "REAR DIFF" (parallell to the steering wheel). Just went downstairs to double check.

    And the dial was set to H2 (like it normally is)

  13. Nov 17, 2014 at 8:21 PM
    #13
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    47,906
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

    No worries , that was my fault .

    Yep , I went nose blind

  14. Nov 17, 2014 at 8:23 PM
    #14
    Mr Ribby

    Mr Ribby Well-Known Member

    Joined:
    Sep 20, 2014
    Member:
    #138738
    Messages:
    201
    Gender:
    Male
    First Name:
    Andrew
    NW Indiana
    Vehicle:
    2013 "Baja"
    Pioneer DvD double din, pioneer 5way front door speakers, kicker 3 way rear door speaker
    ATRAC will not come on unless your going super slow, it has a mph limit on it sort of speak. Along with the Rear Dif lock, it will continue to flash until you get down around crawling speed and then will engage when in 4wd. Don't worry I have done the exact same thing. From my understanding in 2h the rear dif cant engage at all.

  15. Nov 17, 2014 at 8:25 PM
    #15
    Mr Ribby

    Mr Ribby Well-Known Member

    Joined:
    Sep 20, 2014
    Member:
    #138738
    Messages:
    201
    Gender:
    Male
    First Name:
    Andrew
    NW Indiana
    Vehicle:
    2013 "Baja"
    Pioneer DvD double din, pioneer 5way front door speakers, kicker 3 way rear door speaker
    Hmm, maybe someone would should fab a flip up cover to cover these switches that says "Don't Touch!" would be really handy when wifes or GFs drive truck around, or anyone else for that matter.

  16. Nov 17, 2014 at 8:26 PM
    #16
    henrytoddaeQ

    henrytoddaeQ [OP] Member

    Joined:
    Nov 17, 2014
    Member:
    #142588
    Messages:
    8
    Gender:
    Male
    Yeah, that was my first thought. I wondered why these buttons were so easilly accessable (kids playing around, accidently hitting something when your leg)

  17. Nov 17, 2014 at 8:27 PM
    #17
    henrytoddaeQ

    henrytoddaeQ [OP] Member

    Joined:
    Nov 17, 2014
    Member:
    #142588
    Messages:
    8
    Gender:
    Male
    That makes me feel a lot better. I didn't think that they would have something so easily able to destroy your truck so easily accessable. But, I still wasn't sure.

  18. Nov 17, 2014 at 8:28 PM
    #18
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,902
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    You'll be just fine then.

    Welcome to the site.:cheers:

  19. Nov 17, 2014 at 8:29 PM
    #19
    henrytoddaeQ

    henrytoddaeQ [OP] Member

    Joined:
    Nov 17, 2014
    Member:
    #142588
    Messages:
    8
    Gender:
    Male
    Thank you for all of your help!

  20. Nov 18, 2014 at 3:00 AM
    #20
    jmaack

    jmaack Well-Known Member

    Joined:
    Jun 9, 2014
    Member:
    #131634
    Messages:
    4,861
    Gender:
    Male
    First Name:
    Justin
    Helena Alabama
    Ome, Sqeak free dakars, arms, skids, sliders.
    My wife drove mine to work the other day. That night on interstate called and asked what that flashing light was.

    She was looking for foglights and pressed dif lock button. Good thing they have safeguards least on 4wd ones.
