Rear pinion seal replacement

Discussion in '1st Gen. Tacomas (1995-2004)' started by 043RZ, Apr 5, 2015.

  1. Apr 5, 2015 at 3:25 PM
    #1
    043RZ

    043RZ [OP] Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53381
    Messages:
    402
    Gender:
    Male
    First Name:
    Matt
    Spring Grove, PA
    Vehicle:
    2004 Tacoma SR5
    6" Fabtech Lift, OME Dakar leaf springs, BudBuilt Traction Bar, 15" American Racing Wheels, 5.29 Nitro Gears, 35" BFGs AT, Pioneer 200 Watt Stereo, 6x8 Pioneer speakers, Raised Front and Rear Diff Breathers, Deck Plate Mod, Red Interior Underglow, Red Exterior Underglow, Cool White LED Rock Lights,
    Today i replaced my rear pinion seal and i have two questions to ask. First i made sure to tick mark everything to make reassembly easier and to put everything back to exactly how they came apart. I even measured the pinion preload before and after. Here is where im a little confused.

    ****ALSO I HAVE A SOLID SPACER IN THE REAR**** NO CRUSH SLEEVE

    In the pictures below you can see that i marked the pinion nut and companion flange to exactly where it was and counted the number of turns it took to take the nut completely off (11 turns). I measured the pinion preload and that was around 6-7 inch lbs. I dissembled everything, put some high temp grease on the seal lips and gear oil on the yoke, installed the new seal and then put everything back together. Went to measure the preload and now it measures slightly above 10 inch lbs???

    Also, when i put the seal in, towards the top (picture on the bottom) it looks like a little bit of the rubber got pinched and im wondering if this is going to cause a problem down the road? Im pretty sure its my OCD kicking in again, but id like some advice as to what could cause the preload to be that off when everything went back together the same way.

    I test drove it for a few miles and stopped in between to take a look and feel. No leaks, no noise and the pinion bearing is not getting hot. As far as i know a job well done but the seal and preload have me uneasy.

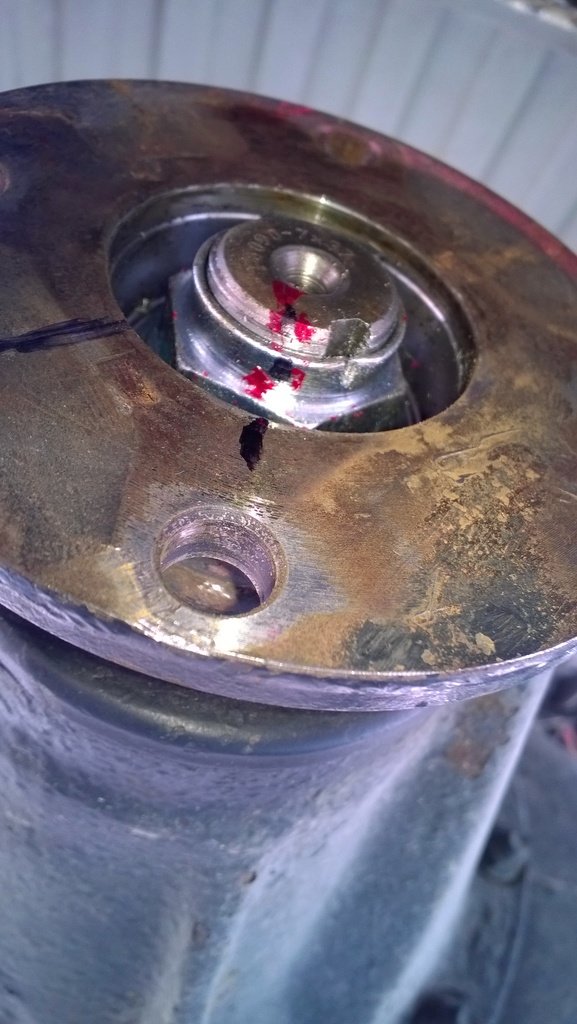

    BEFORE DISASSEMBLED

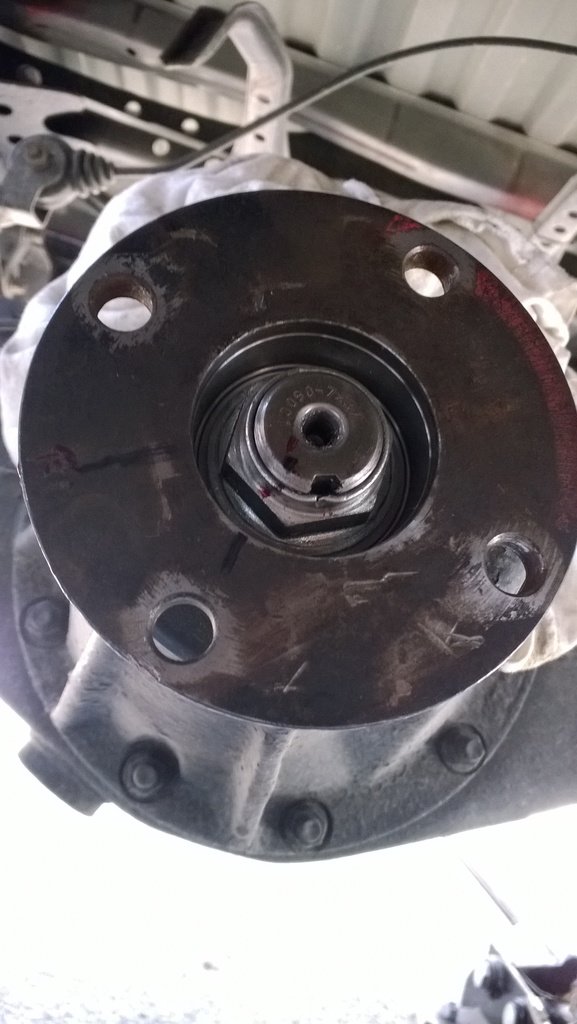

    AFTER REASSEMBLED

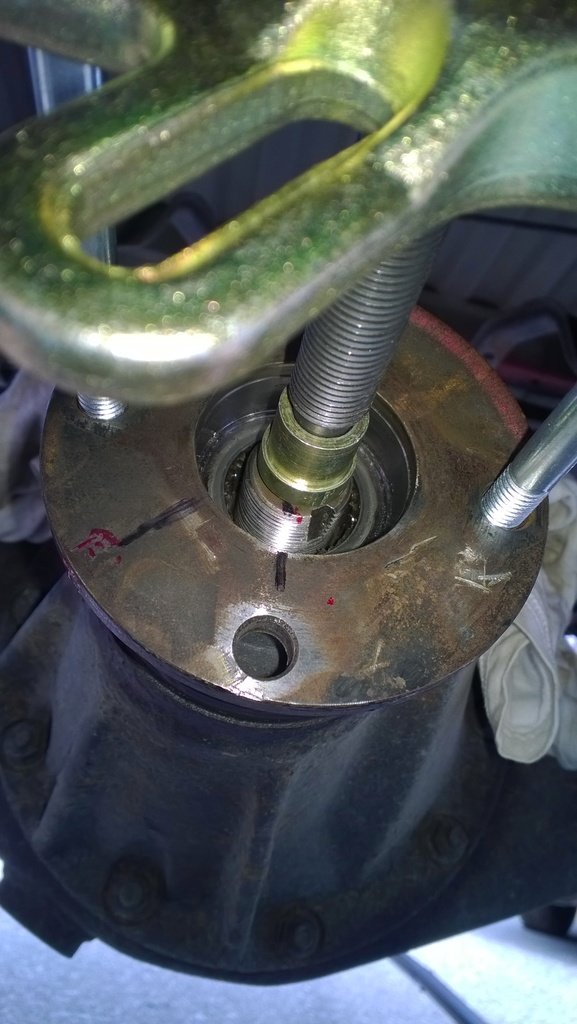

    PULLING THE FLANGE OUT

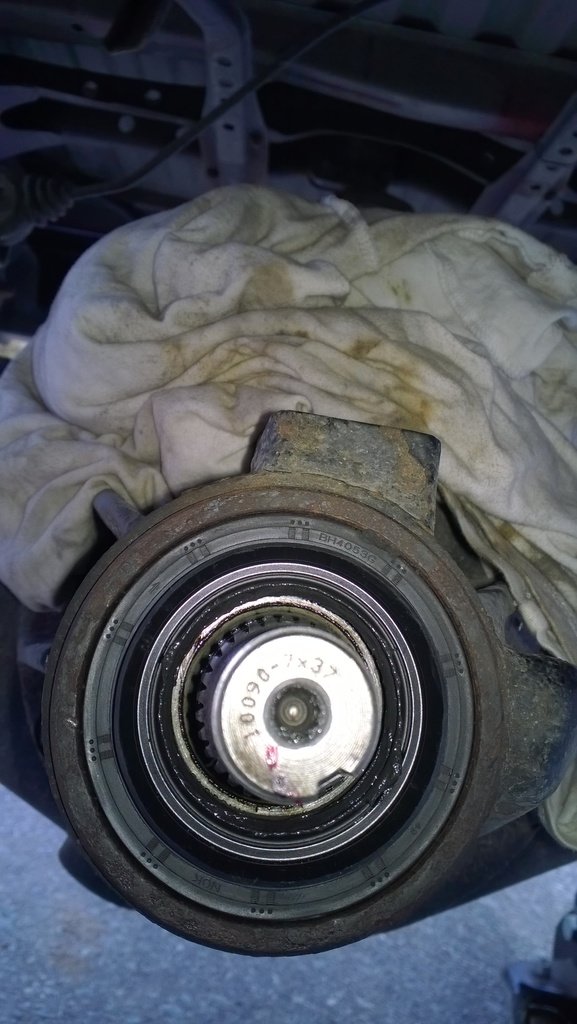

    SEAL RUBBER, LOOK TO THE UPPER RIGHT ABOVE THE LETTERING

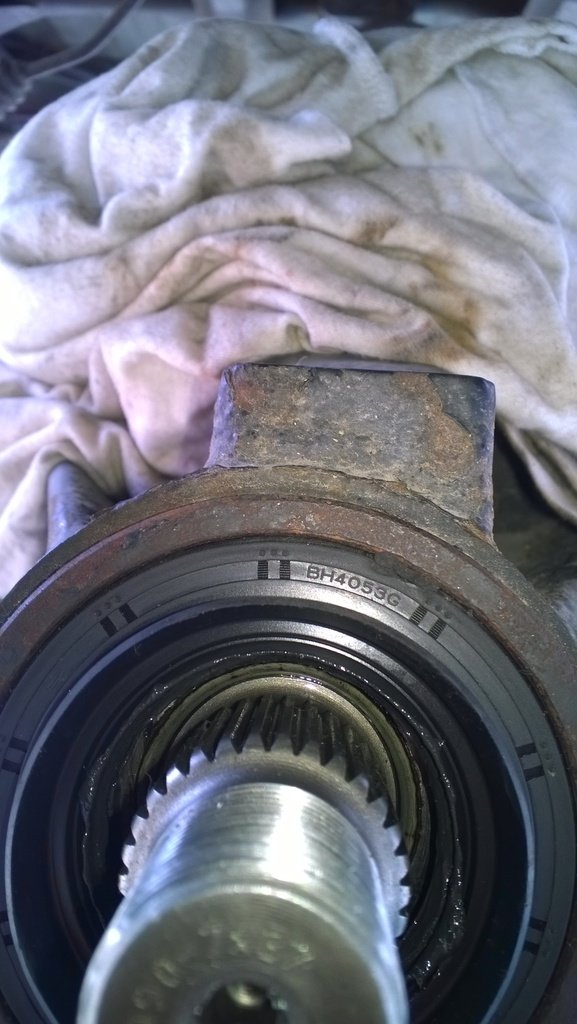

    ANOTHER PICTURE

    Last edited: Apr 5, 2015
  2. Apr 5, 2015 at 3:59 PM
    #2
    bubbabud

    bubbabud Well-Known Member

    Joined:
    Mar 31, 2015
    Member:
    #152184
    Messages:
    275
    Gender:
    Male
    First Name:
    Bob
    Tonopah AZ
    Vehicle:
    13 tacoma TRD Off road.ARE shell no rust anywhere period.
    2 in spacer lift front 2, in AAL rear [tundra leaf] , flip up tow mirrors, ARE shell electric brake controller and cooper ATP 265/r70x16 tires on stock TRD wheels
    The rubber appears to be on the outer edge of the seal if its not leaking not to worry
    As to the extra pre load could lust be the tighter seal dragging on the yoke surface if its not causing bearing heat once again not to worry.

  3. Apr 5, 2015 at 4:04 PM
    #3
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,448
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    I haven't looked up the specs on these 3rds lately, but I think 10in lb is within spec. If there are no obvious signs of trouble I'd roll with it. These guys say 14-17 on a new setup, but that's with factory crush sleeve:

    http://www.drivetrainspecialists.com/setup-specs

    My guess? Bearing wear had dropped the preload a couple in-lb from the original assembly and when you torqued it back up things snugged up a bit. I really wouldn't worry.

  4. Apr 5, 2015 at 4:27 PM
    #4
    043RZ

    043RZ [OP] Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53381
    Messages:
    402
    Gender:
    Male
    First Name:
    Matt
    Spring Grove, PA
    Vehicle:
    2004 Tacoma SR5
    6" Fabtech Lift, OME Dakar leaf springs, BudBuilt Traction Bar, 15" American Racing Wheels, 5.29 Nitro Gears, 35" BFGs AT, Pioneer 200 Watt Stereo, 6x8 Pioneer speakers, Raised Front and Rear Diff Breathers, Deck Plate Mod, Red Interior Underglow, Red Exterior Underglow, Cool White LED Rock Lights,
    Thanks for the reply guys. That helps, ill keep an eye on it for the first few hundred miles. But like I said the housing where the pinion bearing is doesn't get hot, just warm and there is no play at all. That outer pinion seal rubber pissed me off a little, but I was to far ahead to pull it back out without destroying it.

    Last edited: Apr 5, 2015
  5. Apr 5, 2015 at 7:31 PM
    #5
    Whitfield

    Whitfield Well-Known Member

    Joined:
    Mar 21, 2009
    Member:
    #14979
    Messages:
    313
    Gender:
    Male
    Central Virginia
    Vehicle:
    99 TRD X-cab on 35's / 96 X-cab on 33's
    Selling my 96 Tacoma to fund the FJ80 build up.
    Looks like a job well done!

    With a solid spacer and shims between the bearings I do not think you will have much effect on pinion bearing preload. With the solid space preload is adjusted by installing or removing shims between the inner and outer bearing. Also pinon bearing preload is generally measure with out the ring gear in place ~ just turning only the pinion. (By pics it looks like it is still installed in the axle)

    The little pinched rubber on the seal od is not an issue.

  6. Apr 5, 2015 at 10:44 PM
    #6
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    19,907
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
  7. Apr 11, 2015 at 12:22 PM
    #7
    TimsTaco

    TimsTaco Well-Known Member

    Joined:
    Apr 4, 2014
    Member:
    #127000
    Messages:
    235
    Gender:
    Male
    First Name:
    Tim
    Moncton, NB
    Vehicle:
    07 DCLB SR5 Sandstone Metallic
    OEM Fog lights, headache rack, work lights, Tailgate Theft Deterrent (hose clamp), Tailgate Reinforcement, Roll'n'Lock tonneau cover
    Did you need to buy a new nut?

  8. Apr 11, 2015 at 1:43 PM
    #8
    043RZ

    043RZ [OP] Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53381
    Messages:
    402
    Gender:
    Male
    First Name:
    Matt
    Spring Grove, PA
    Vehicle:
    2004 Tacoma SR5
    6" Fabtech Lift, OME Dakar leaf springs, BudBuilt Traction Bar, 15" American Racing Wheels, 5.29 Nitro Gears, 35" BFGs AT, Pioneer 200 Watt Stereo, 6x8 Pioneer speakers, Raised Front and Rear Diff Breathers, Deck Plate Mod, Red Interior Underglow, Red Exterior Underglow, Cool White LED Rock Lights,
    Nope was able to reuse it. It only had a few thousand miles on it since the gear swap.

  9. Apr 11, 2015 at 7:26 PM
    #9
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    19,907
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Is there any indication why it started leaking with so few miles?

    Mine started throwing a little oil, but only at highways speed, about 6-7 months (less than 5,000 miles) after the re-gear. It does not leak when parked or when I drive around town.

    Do you have to Toyota part number for the seal you used?

    edit: nvm, I see that you have the 8.4 diff, wouldn't be the same seal.

    Last edited: Apr 11, 2015
  10. Apr 11, 2015 at 8:47 PM
    #10
    043RZ

    043RZ [OP] Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53381
    Messages:
    402
    Gender:
    Male
    First Name:
    Matt
    Spring Grove, PA
    Vehicle:
    2004 Tacoma SR5
    6" Fabtech Lift, OME Dakar leaf springs, BudBuilt Traction Bar, 15" American Racing Wheels, 5.29 Nitro Gears, 35" BFGs AT, Pioneer 200 Watt Stereo, 6x8 Pioneer speakers, Raised Front and Rear Diff Breathers, Deck Plate Mod, Red Interior Underglow, Red Exterior Underglow, Cool White LED Rock Lights,
    I thought the same thing as far as the mileage goes and the leaking. Mine had about 10000 on it before it started leaking. And like yours only leaked at highway speeds. My thought... Possibly when the gears were being installed and set up, the constant pushing in and pulling out from setting backlash/pinion depth and preload could have nicked the seal. So far no leaking as of yet, fingers crossed

  11. Apr 11, 2015 at 8:58 PM
    #11
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    19,907
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Hmm, that could be it. Its annoying none the less. Good to hear your seal is holding.

    Another question, what is the puller you used to pull out the flange? I didn't realize a puller was needed to get that flange off.

  12. Apr 11, 2015 at 9:25 PM
    #12
    License2Ill

    License2Ill Woke like a Coma Toyota Tacoma

    Joined:
    May 20, 2012
    Member:
    #79174
    Messages:
    2,175
    Gender:
    Male
    First Name:
    Ian
    It's a dry heat thou, AZ
    Vehicle:
    2004 SC'd 5VZ DC 5spd 4x4 TRD.GOV
    Bailing wire & Duct tape
    Did you go 4.56 or 4.88? I went thru hell getting the correct seal after po did 4.88's.

  13. Apr 11, 2015 at 9:39 PM
    #13
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    19,907
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    I have the 4.88 Nitros with the 29 spline and a solid spacer.

    Which diff do you have? 8.0 or 8.4?

  14. Apr 11, 2015 at 9:59 PM
    #14
    License2Ill

    License2Ill Woke like a Coma Toyota Tacoma

    Joined:
    May 20, 2012
    Member:
    #79174
    Messages:
    2,175
    Gender:
    Male
    First Name:
    Ian
    It's a dry heat thou, AZ
    Vehicle:
    2004 SC'd 5VZ DC 5spd 4x4 TRD.GOV
    Bailing wire & Duct tape
    Mine's an 8". TRD, factory locker.
    Anywho, mine was pissing oil at hwy speed. Not sure the complete issue that involved it, but after a-many-a-calls, one of the diff guys in my area managed to narrowed down the proper seal to being a 2wd seal. The 4.10 stock seal was extremely out of spec on the 4.88's.
    I couldn't have an oem seal delivered in a convenient manner, so I used a napa one. Still holding strong after 10000mi.

    Toyota p/n was 90311-38047

  15. Apr 11, 2015 at 11:49 PM
    #15
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    19,907
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Really? That is quite interesting.

    When I asked my local stealership for a replacement seal, 90311-38047 is the correct one based on the vin#. However, the one in the diff now is 90311-41009 based on the 29 spline pinon.

  16. Apr 12, 2015 at 5:58 AM
    #16
    043RZ

    043RZ [OP] Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53381
    Messages:
    402
    Gender:
    Male
    First Name:
    Matt
    Spring Grove, PA
    Vehicle:
    2004 Tacoma SR5
    6" Fabtech Lift, OME Dakar leaf springs, BudBuilt Traction Bar, 15" American Racing Wheels, 5.29 Nitro Gears, 35" BFGs AT, Pioneer 200 Watt Stereo, 6x8 Pioneer speakers, Raised Front and Rear Diff Breathers, Deck Plate Mod, Red Interior Underglow, Red Exterior Underglow, Cool White LED Rock Lights,
    I used a steering wheel puller, it worked great.

    You will need a puller to remove the companion flange. Dont use a hammer for this

  17. Apr 12, 2015 at 6:08 AM
    #17
    043RZ

    043RZ [OP] Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53381
    Messages:
    402
    Gender:
    Male
    First Name:
    Matt
    Spring Grove, PA
    Vehicle:
    2004 Tacoma SR5
    6" Fabtech Lift, OME Dakar leaf springs, BudBuilt Traction Bar, 15" American Racing Wheels, 5.29 Nitro Gears, 35" BFGs AT, Pioneer 200 Watt Stereo, 6x8 Pioneer speakers, Raised Front and Rear Diff Breathers, Deck Plate Mod, Red Interior Underglow, Red Exterior Underglow, Cool White LED Rock Lights,
    The 90311-380417 is the current one I just put in. Not sure what the other seal part# was, I didn't bother to look lol. I do know that the original seal that was used and started leaking was the one out of the nitro rebuild kit. I'm not sure if they use OEM seals from Toyota or not in the kits?

    I also didn't know the seal number was based on the final drive ratio... Interesting as I would have thought they were all the same and the only difference would be if you had the 8.0 or 8.4 rear

  18. Apr 12, 2015 at 9:51 AM
    #18
    License2Ill

    License2Ill Woke like a Coma Toyota Tacoma

    Joined:
    May 20, 2012
    Member:
    #79174
    Messages:
    2,175
    Gender:
    Male
    First Name:
    Ian
    It's a dry heat thou, AZ
    Vehicle:
    2004 SC'd 5VZ DC 5spd 4x4 TRD.GOV
    Bailing wire & Duct tape
    Interesting in deed.

    The 38047 p/n was dealership quoted as being a 5 lug pinion seal.

  19. Apr 12, 2015 at 4:01 PM
    #19
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    19,907
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Part of the issue is that Toyota made a change in the middle of the '02 model year. You guys are '04s so your factory setups would not be affected by this.

    According to the dealership parts guy, TRD's with the 8" diff built after 1/2002 came with the -41009 seal. And, at least for '02 models, TRD's built before that date came with the -38047 seal.

    To add to my confusion, the build date for my truck is 11/2001. If what the dealership is telling me is correct, mine should have come with the -38047 seal but it did not. Just Differentials, the place that did my re-gear are telling me the seal they used was the -41009. This is the seal that is throwing oil. They insist that it is the correct one for my diff and the -38047 is not corect becasue it is for a 27 spline pinion.

    I have seen the two seals side by side and they are definitely different. :(

  20. Apr 12, 2015 at 4:47 PM
    #20
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    19,907
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    FWIW, this is a website I have used to help me identify Toyota part numbers. This site narrows it down based on your vin# and also your frame code. You can also search by part numbers.

    http://www.toyodiy.com/parts/

    According to this site, both of those seals will work for my truck. :confused:
