Rear plate bumper blueprints!

Discussion in '1st Gen. Tacomas (1995-2004)' started by toy02ota, Jan 17, 2011.

  1. Jan 17, 2011 at 5:02 PM
    #1
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,060
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado

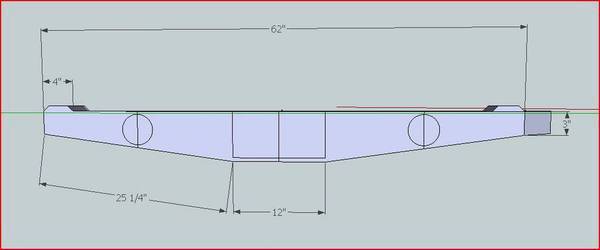

    I've been thinking about testing my welding skills by building myself a rear bumper. I made some designs awhile ago that were less than impressive. I redid my design. Tell me what you all would change. The appendage thingy off the right side is a wrap around I may or may not include. The holes are for 4" lights and the box is the license plate slot.

    [​IMG]

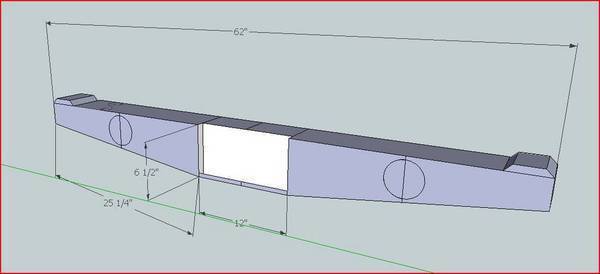

    Better view of wrap around.
    [​IMG]

  2. Jan 17, 2011 at 5:05 PM
    #2
    johnw

    johnw Well-Known Member

    Joined:
    May 18, 2009
    Member:
    #17381
    Messages:
    7,181
    Gender:
    Male
    First Name:
    john
    orlando florida
    Vehicle:
    06 prerunner v-6 4.0L 4 door
    well you asked for specs..... 06 trd sport speedway blue V-6 4.0 camburg lift spindles extended travel icons total chaos lowers allpro 4" leaf pack 17" xd hoss rims 305/65/17 mickey thompson baja atz Allpro hybrid bumper with 3 kragen HID lights color matched headlights grill craft grill AFE stage 3 CAI wicked flow muffler under cover bed cap inside i have..... wet okole real tree camo seat cover blue oznium dome light stealth sub box with 2 10" kicker comp subs kicker 400 watt amp weathertech floor mats
    that looks cool what program did you use?

  3. Jan 17, 2011 at 5:05 PM
    #3
    747

    747 function > form

    Joined:
    Jan 27, 2008
    Member:
    #4465
    Messages:
    3,000
    Gender:
    Male
    Vehicle:
    1st Gen.
    :popcorn: do it...looks bada$$!

  4. Jan 17, 2011 at 5:08 PM
    #4
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,060
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    I used Google SketchUp 8. It's actually a pretty decent program once you get the tools right. Plus it's free :cool:

  5. Jan 17, 2011 at 5:21 PM
    #5
    NoMallCrawlTaco

    NoMallCrawlTaco © "HELL FUCK YEAH!" © COPYRIGHT FOR MY PROTECTION!

    Joined:
    Dec 7, 2010
    Member:
    #47315
    Messages:
    416
    Gender:
    Male
    Arizona
    4" Camburgs Icon AAL 3 Pac BLHM Tacoshi Grill More to come...
    what is the height at center?

  6. Jan 17, 2011 at 5:22 PM
    #6
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,060
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    6 1/2". The license plate is 12" wide by 6" tall.

  7. Jan 17, 2011 at 6:39 PM
    #7
    takaya49

    takaya49 Pacific Rim Mushrooms

    Joined:
    May 27, 2008
    Member:
    #6909
    Messages:
    232
    Gender:
    Male
    First Name:
    Brent
    Vancouver BC
    Vehicle:
    tacos
    Fox C/O long travel shox with resi, piggy back fox rears, TC UCA's, ICON AAL, Addicts/17 toyo MT, Mr. Marv set up,
    let us know how it turns out!! Id love to do both front and rear and looking for measurements of the front..

  8. Jan 17, 2011 at 6:47 PM
    #8
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,977
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D60 F/R
    SAS.. Need I say more.
    Might be better if you didn't allow for the 6" length of the license plate and made it only around 4-5" Stock bumper is roughly the same, and most after market bumpers have added rear clearance.

  9. Jan 17, 2011 at 8:16 PM
    #9
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,060
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    If the license plate is 12"x6" how would it being 4-5" work? The measurement I got from my stock bumper showed it being nearly 8" in the center where the plate is.

  10. Jan 17, 2011 at 8:50 PM
    #10
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,977
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D60 F/R
    SAS.. Need I say more.
    Just forget what I said... Looks good. :thumbsup:

    Also, relocation of plate, or hitch style adapter for the plate, is how it would fit.

  11. Jan 18, 2011 at 12:22 PM
    #11
    fireman_343

    fireman_343 Ultimate TRD

    Joined:
    Aug 11, 2010
    Member:
    #41536
    Messages:
    333
    Gender:
    Male
    First Name:
    Brian
    Columbus, OHIO
    Vehicle:
    05 TRD Dlb Cab
    Viper Alarm, XD Series Wheels, Pioneer touch screen radio/nav system.
    Looks sweet

  12. Jan 18, 2011 at 12:30 PM
    #12
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    16,762
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    :popcorn:I want to see it on the truck. One thing I would do is put some sort of guard behind the lights to block rocks form hitting your lights when your flying down the trail.

  13. Jan 18, 2011 at 3:06 PM
    #13
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,060
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    Oh it will Definitely have protection for the lights. I am going to make access doors held on with wing nuts or something to go behind the lights to keep rocks and shit from screwing them up. I plan on making it out of 3/16" and the reinforcements will be 3/8".

  14. Jan 18, 2011 at 3:14 PM
    #14
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,060
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado

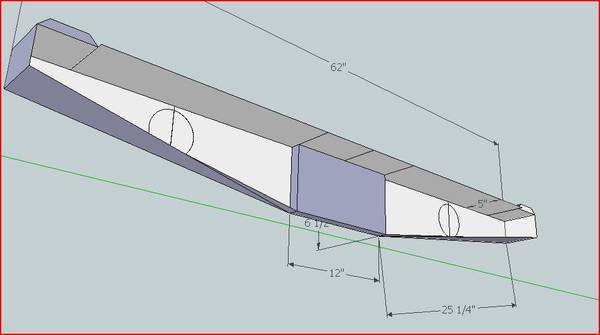

    Final Designs! (for now :eek:)

    [​IMG]

    under side view
    [​IMG]

    I decided to leave the wrap around off because ultimately it was just extra metal, fabrication, and potential headaches. And if I decide that I want them the design is super simple and they can be added.

  15. Jan 18, 2011 at 3:51 PM
    #15
    arif

    arif Member

    Joined:
    Dec 27, 2010
    Member:
    #48284
    Messages:
    6
    Gender:
    Male
    First Name:
    Adam
    Washington, New Zealand, Mammoth Lakes, Ca
    Vehicle:
    Silver 04 v6 access cab 4X4 SR5
    Looks pretty sweet. I have often thought of doing this aswell. Stoked to see some pictures.

  16. Jan 18, 2011 at 3:55 PM
    #16
    Taco Sos

    Taco Sos Well-Known Member

    Joined:
    Jan 2, 2011
    Member:
    #48612
    Messages:
    70
    Gender:
    Male
    Culpeper, VA
    Vehicle:
    2001 Tacoma DC TRD 4x4
    Bilstein 5100s in front, 265/75/16 BFG A/T, Grey Wire Mod, Deck Palte Mod, Tint, Clarion Head Unit, Infiniti Speakers, Dual 4 channel amp
    I really like that design. Good work!! Have you thought about adding any D-ring shackles?

  17. Jan 18, 2011 at 4:51 PM
    #17
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,060
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    Yeah they will be on there. Between the lights on either side :D

  18. Mar 15, 2011 at 8:50 AM
    #18
    Gr8WhiteTaco

    Gr8WhiteTaco bishes love my haircut

    Joined:
    Dec 28, 2008
    Member:
    #11964
    Messages:
    2,286
    Gender:
    Male
    First Name:
    Aaron
    Knoxville, TN
    Vehicle:
    SOLD 02 Double Cab TRD 4x4
    2005 Mazda 3S hatchback
    Dude that is SWEET! I would love to see a wrap around version on my truck.

  19. Mar 15, 2011 at 9:03 AM
    #19
    achirdo

    achirdo I Weld!

    Joined:
    Apr 7, 2010
    Member:
    #34819
    Messages:
    10,266
    Gender:
    Male
    First Name:
    Adam
    North DFW
    Vehicle:
    06 dodge ram 3500 5.9 cummins
    Now all you have to do is figure out how your are going to mount it! I can get pics from my truck that has a steel rear bumper if needed...

  20. Mar 15, 2011 at 3:26 PM
    #20
    toy02ota

    toy02ota [OP] Local TW dissenter

    Joined:
    Feb 15, 2010
    Member:
    #31439
    Messages:
    1,060
    Gender:
    Male
    First Name:
    Matt
    Brownsville, TN
    Vehicle:
    2005 Chevy Silverado
    Well build it! Haha I'll let you be the guinea pig of my design :p

    That'd be great! I've been trying to figure out how to securely mount it. Don't want it coming off going down the interstate or something!
