Rear Quarter Window Latch Fix

Discussion in '1st Gen. Tacomas (1995-2004)' started by Rusty White Taco, May 25, 2011.

  1. May 25, 2011 at 7:56 AM
    #1
    Rusty White Taco

    Rusty White Taco [OP] Active Member

    Joined:
    Jul 14, 2010
    Member:
    #40173
    Messages:
    41
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    04 4x4 Xtra Cab TRD Offroad SR5
    Debadged, Front 5100s at 2.5, 1" rear shackle lift, 5125s in the rear, trimmed exhaust pipe
    As many 1st gen xtra cab owners have, I have had issues with the rear quarter window latch. The plastic arm is not terribly strong and tends to break, and one of mine was broken. I couldn't bring myself to spend $30 to buy the factory replacement because there's nothing that tells me the new one won't break too.

    So, I looked for a more permanent solution, and came across someone who makes a billet replacement. Unfortunately, the guy did not return my calls (despite the fact that he's local to me and I offered to bring cash whenever it was convenient for him). He has a website with a store, but if he won't return calls, there's no way I'm going to provide him with my credit card. That aside, there were reports that his part didn't always work well, so that was further motivation to stay away from him. Here's a thread about the billet replacement and the guy: http://www.tacomaworld.com/forum/1st-gen-tacomas/103220-access-cab-1-4-glass.html

    Anyway, with the above in mind, I set out to make a replacement part out of steel. Here's what I did:

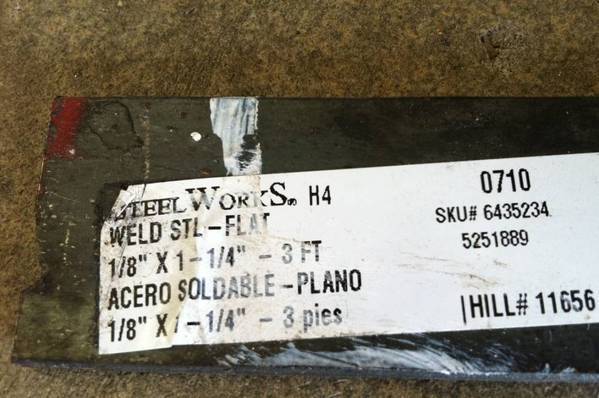

    Took a piece of scrap steel I had in the garage (1 1/4" x 1/8") and cut it to length. Unfortunately, I only had 1/8" steel and the original plastic arm is 3/8", but I went for it anyway (hoping that 1/8" would work):
    [​IMG]

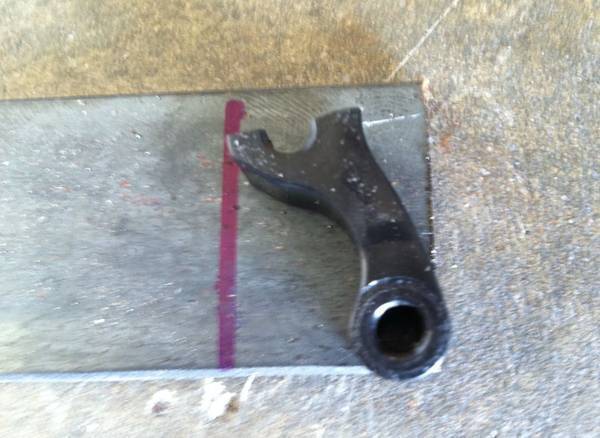

    Took the broken arm and traced around it to set the general shape:
    [​IMG]

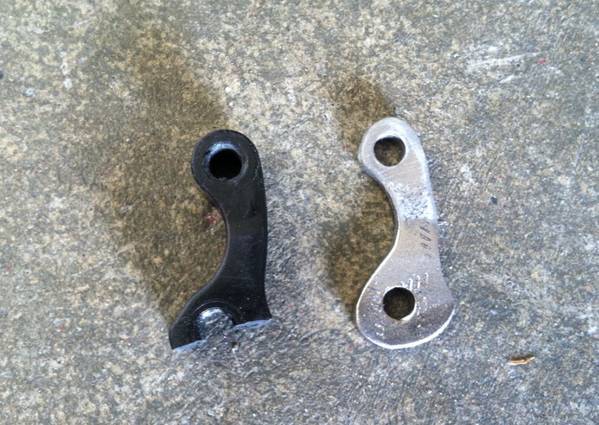

    Cut, grinded, and filed the steel until it matched the original and then drilled two 11/64" holes for the pins (I didn't take pictures of the refining of the shape because I wasn't terribly confident it would actually work):
    [​IMG]
    [​IMG]

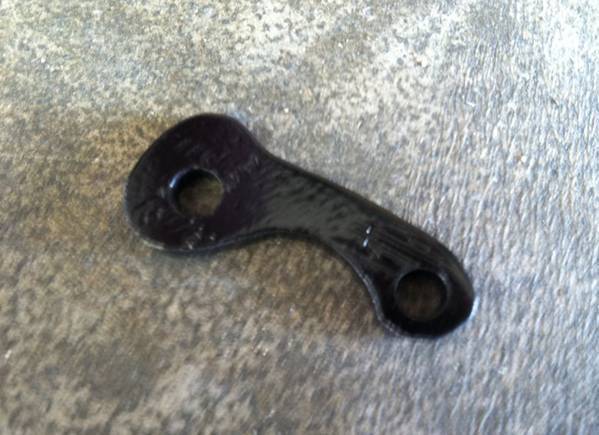

    Painted it:
    [​IMG]

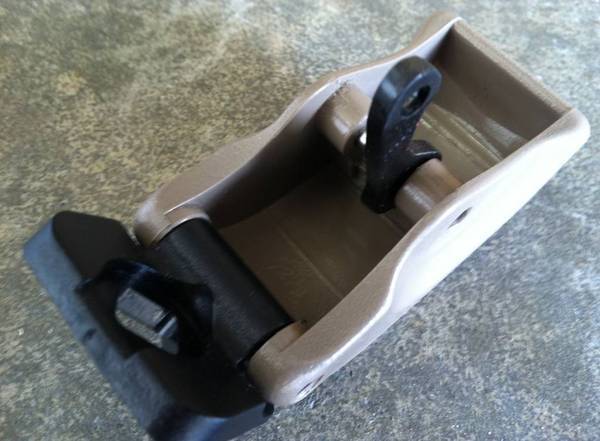

    Test fit it:
    [​IMG]

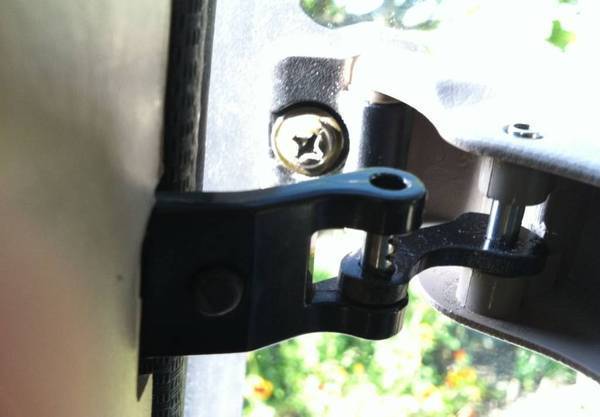

    Installed it:
    [​IMG]

    It worked the first time. It was a perfect fit.

    I just thought I'd share a solution that can be accomplished with about $0.25 in parts (steel) and some elbow grease...
