RedArc Tow Pro Elite install in 2nd Gen

Discussion in 'Towing' started by 1 Bored Clerk, Jul 12, 2020.

  1. Jul 12, 2020 at 5:44 PM
    #1
    1 Bored Clerk

    1 Bored Clerk [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112786
    Messages:
    1,999
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    '13 4x4 AC TRD OR
    I recently bought a small trailer for dirt bikes and home projects. Silly considering I own a truck but my truck can no longer do truck stuff because it's a camper now. I got my small trailer with trailer brakes because long downhills with my loaded truck already tax the brakes (going to upgrade to 4runmer front brakes this year). So I need a brake controller. The Tow Pro Elite from RedArc looked like the solution that fit best for me. Mainly the simple install and seamless integration.

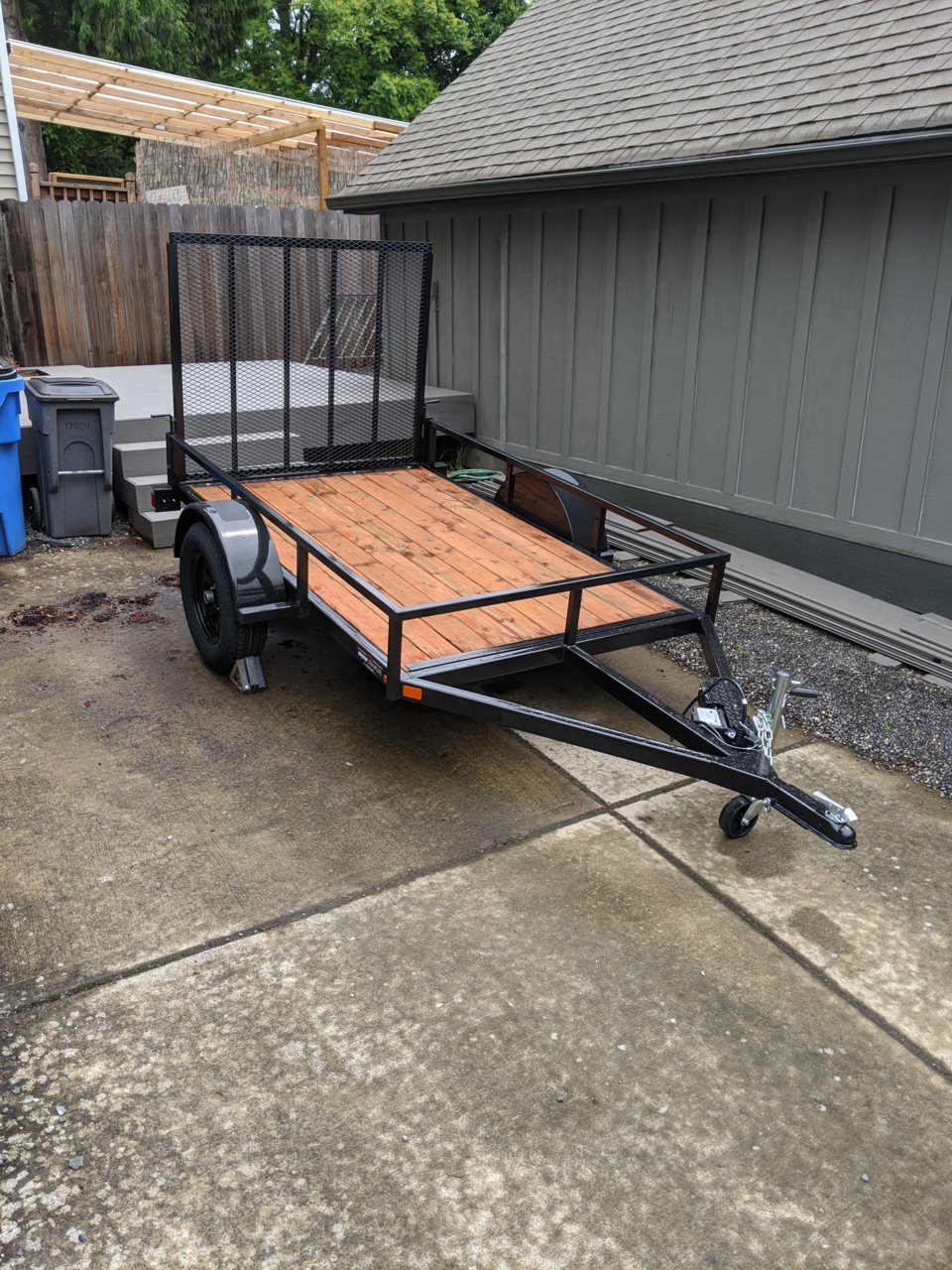

    Here's the trailer
    Iron Eagle 5x8. 2825lb payload capacity. 3500lb axle with electric trailer brakes. Have already used it quite a lot for dirt bikes and concrete and rented tools. It's great! Love the drop down ramp.

    I started the brake controller install today

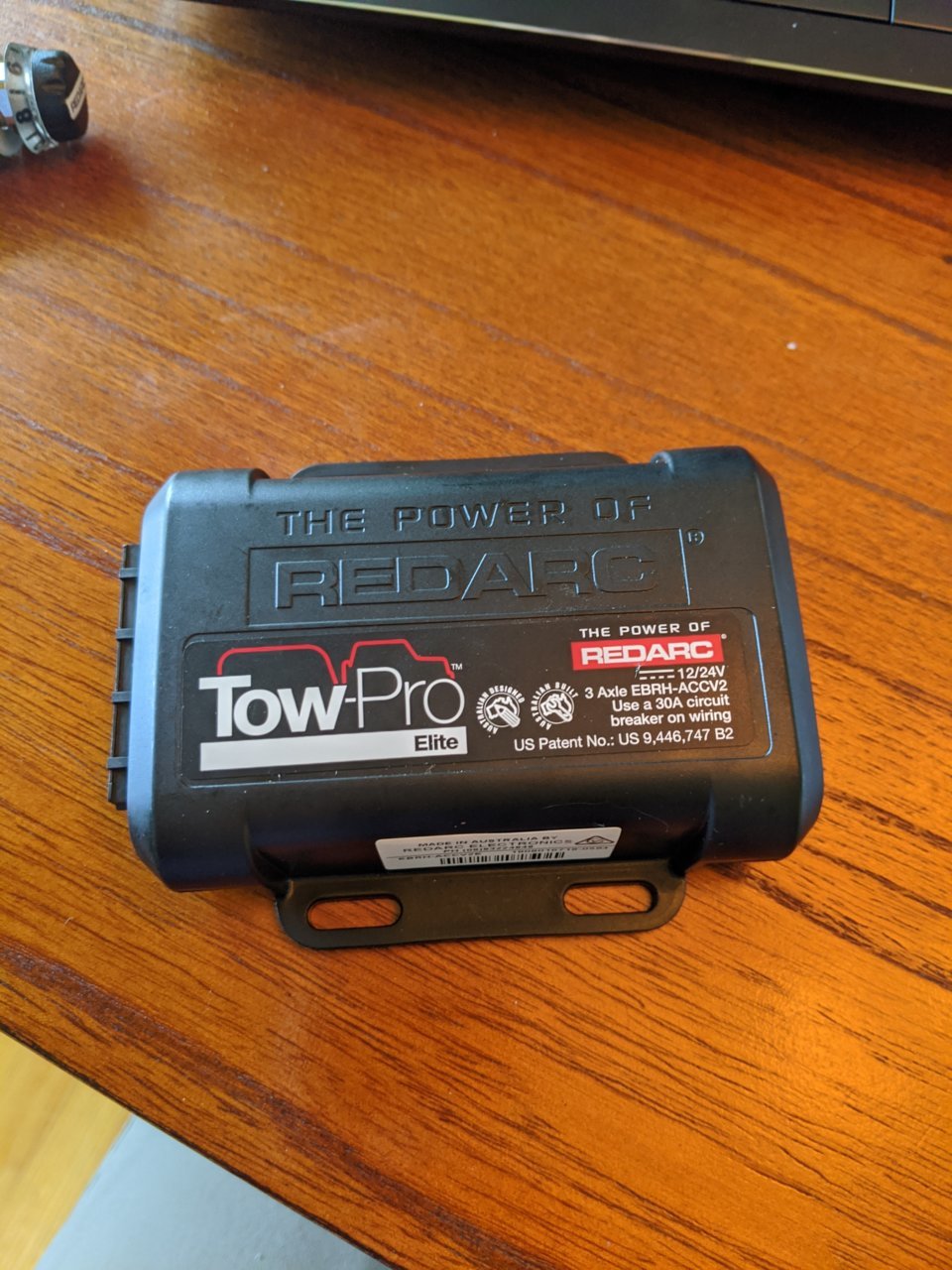

    Main brain. This gets hidden under the dash.

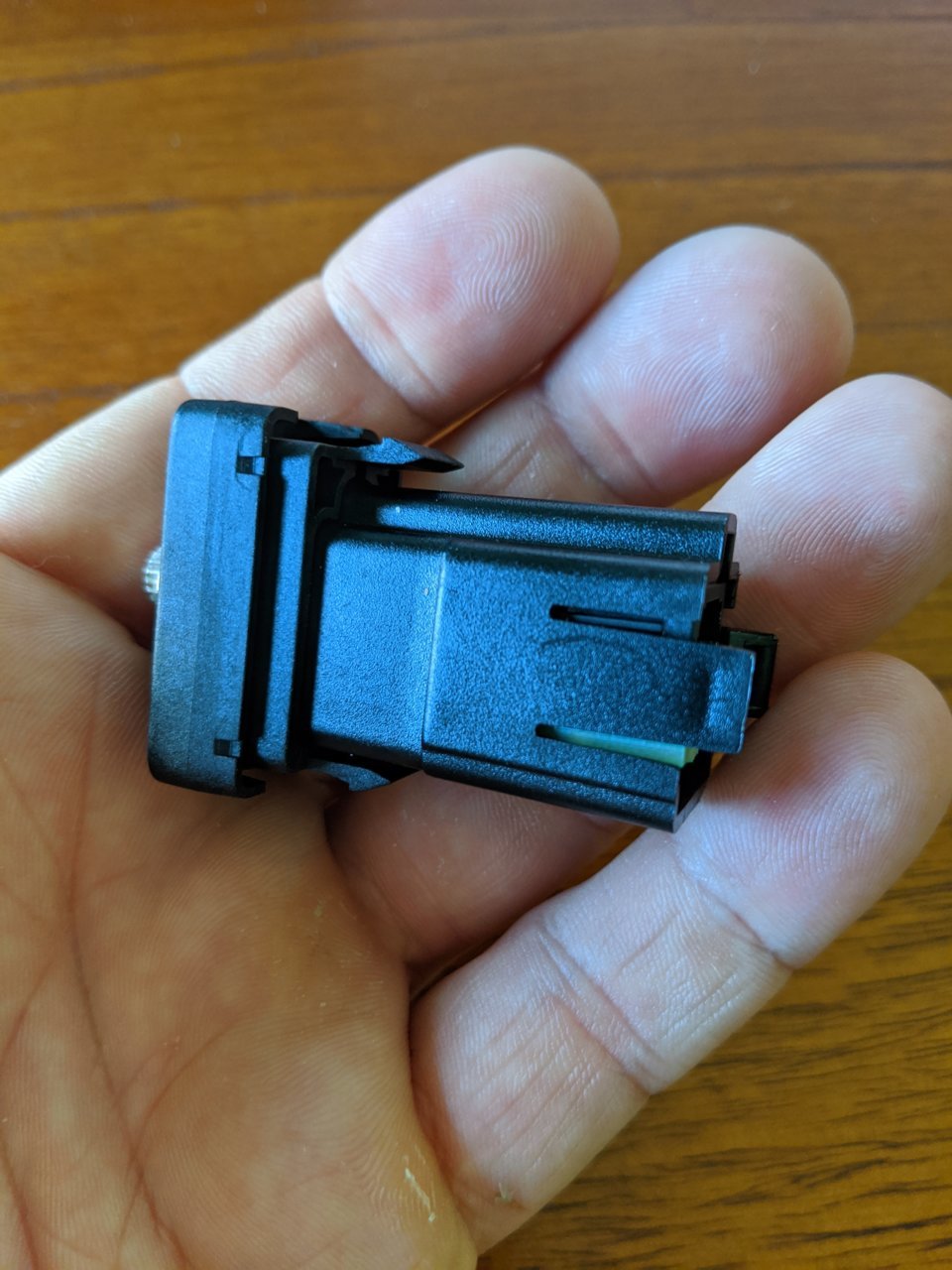

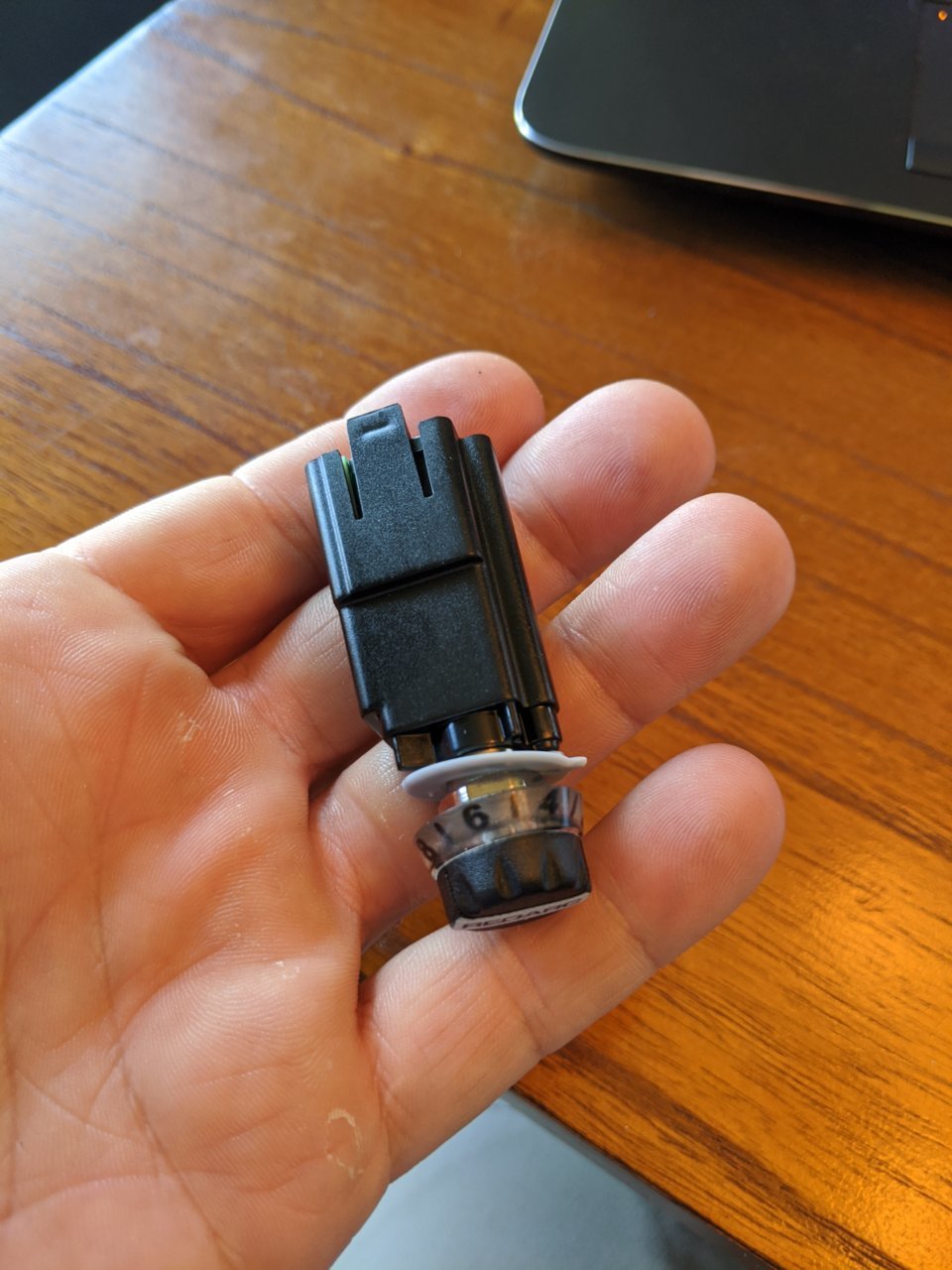

    This is the control interface. The only thing you see or touch is the small knob.

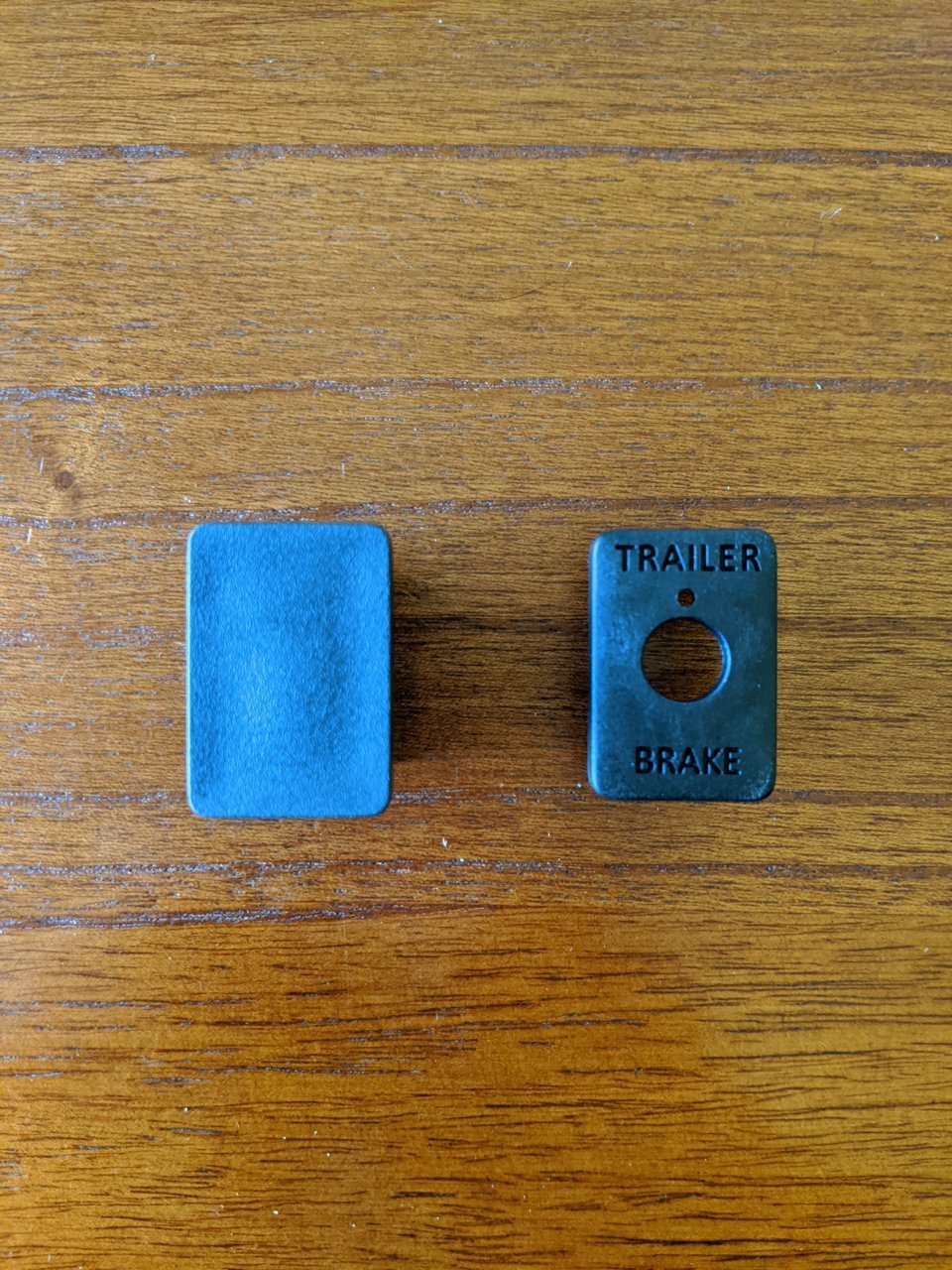

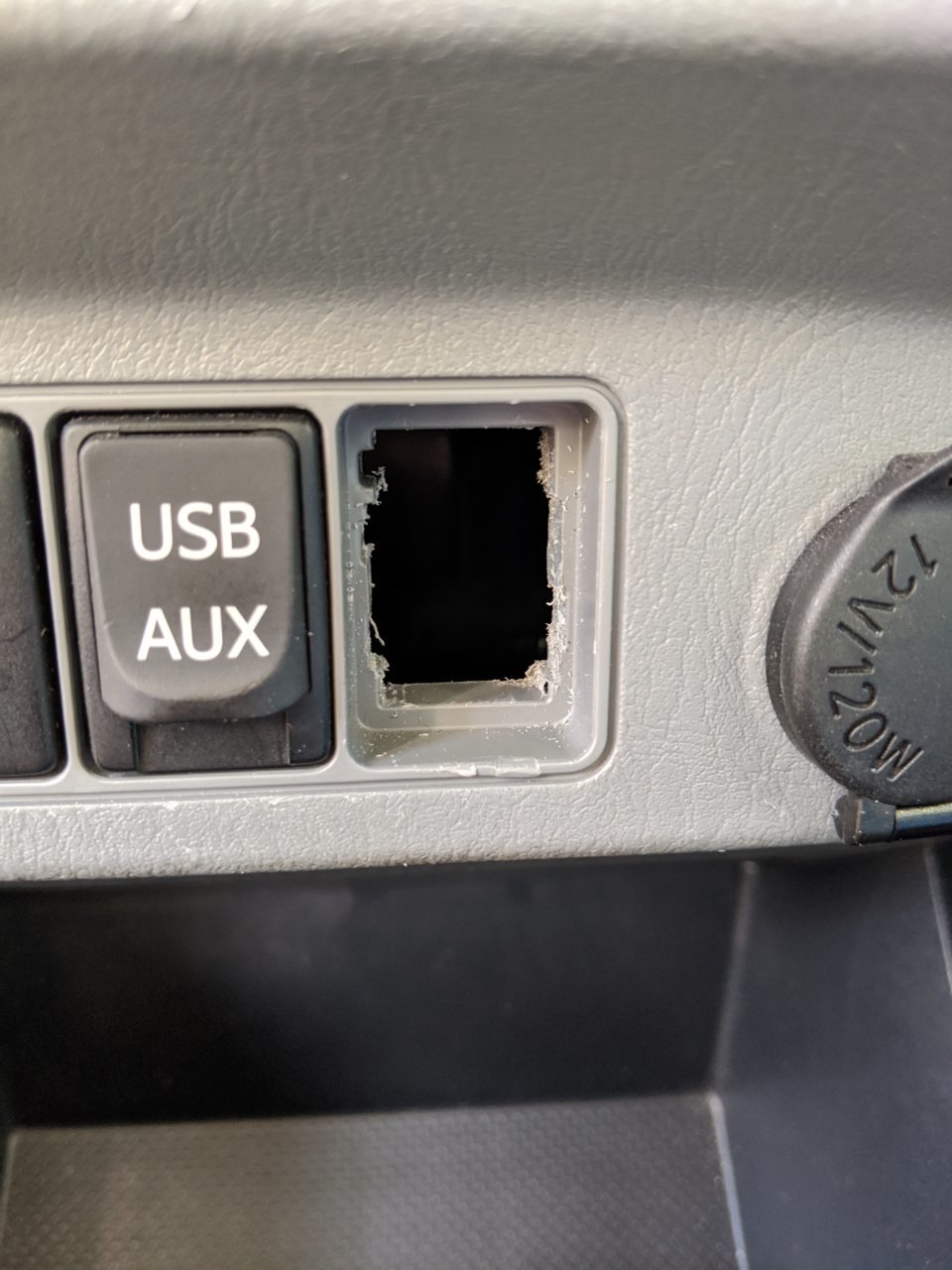

    I wanted to mount the control interface in one of the unused switch plate locations under the climate controls on my 2013 TRD OR. RedArc sells a switch mount that slots right in place and it's already designed to accept the Tow Pro Elite interface. Saves me time customizing the switch blank. That would have been a sucky job as there is a lot of plastic that would need to be removed.

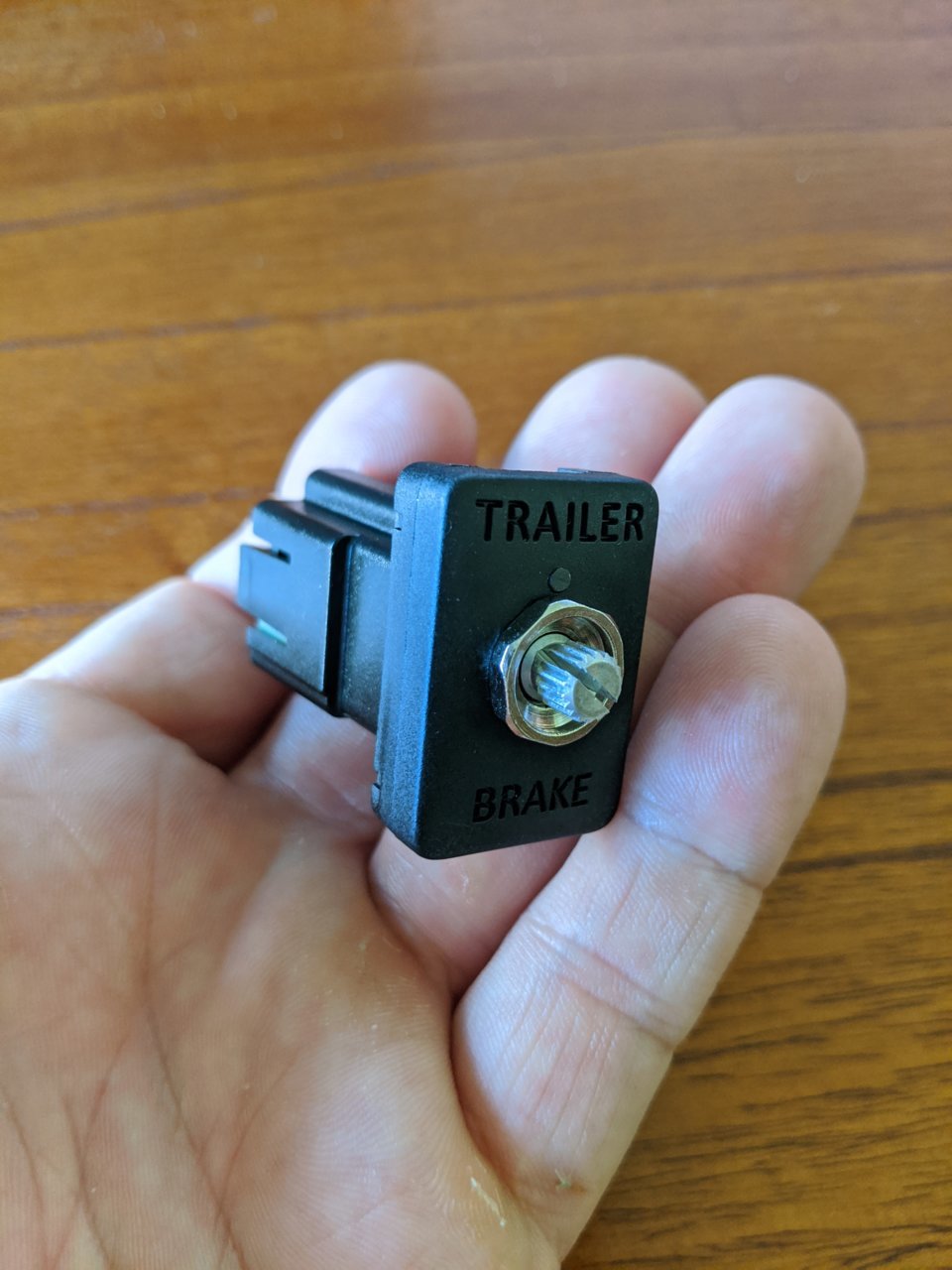

    See! Nice exact fit.

    You do have to widen the opening back inside the recess a little for the body of the controller to slide through. Not much though. This sort of looks hack in the photo but that's mostly the fuzziness of files plastic and the fact that the edge of the plastic was notched and I didnt need to file that much off. I did the minimum.

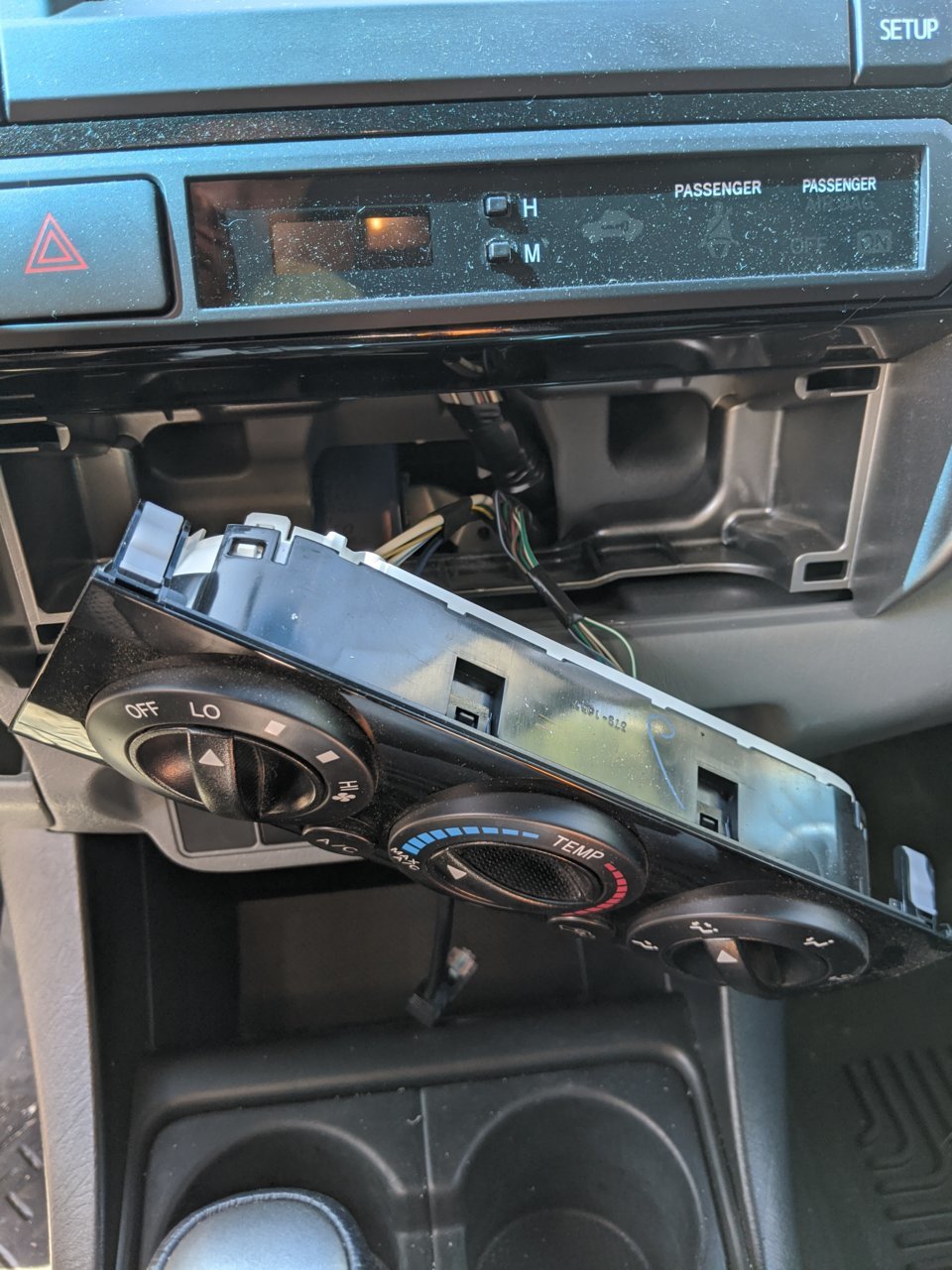

    Running the RJ45 style cable to the driver's area was a little but of a hassle. There is a lot of interfering plastic in the area. Plenty of room behind the switches but not much room to pass anything through to the left. Removing the climate control panel (super easy) gave me a better view. Going up and to the left saw the cable going right through a natural opening into the driver side dash area.

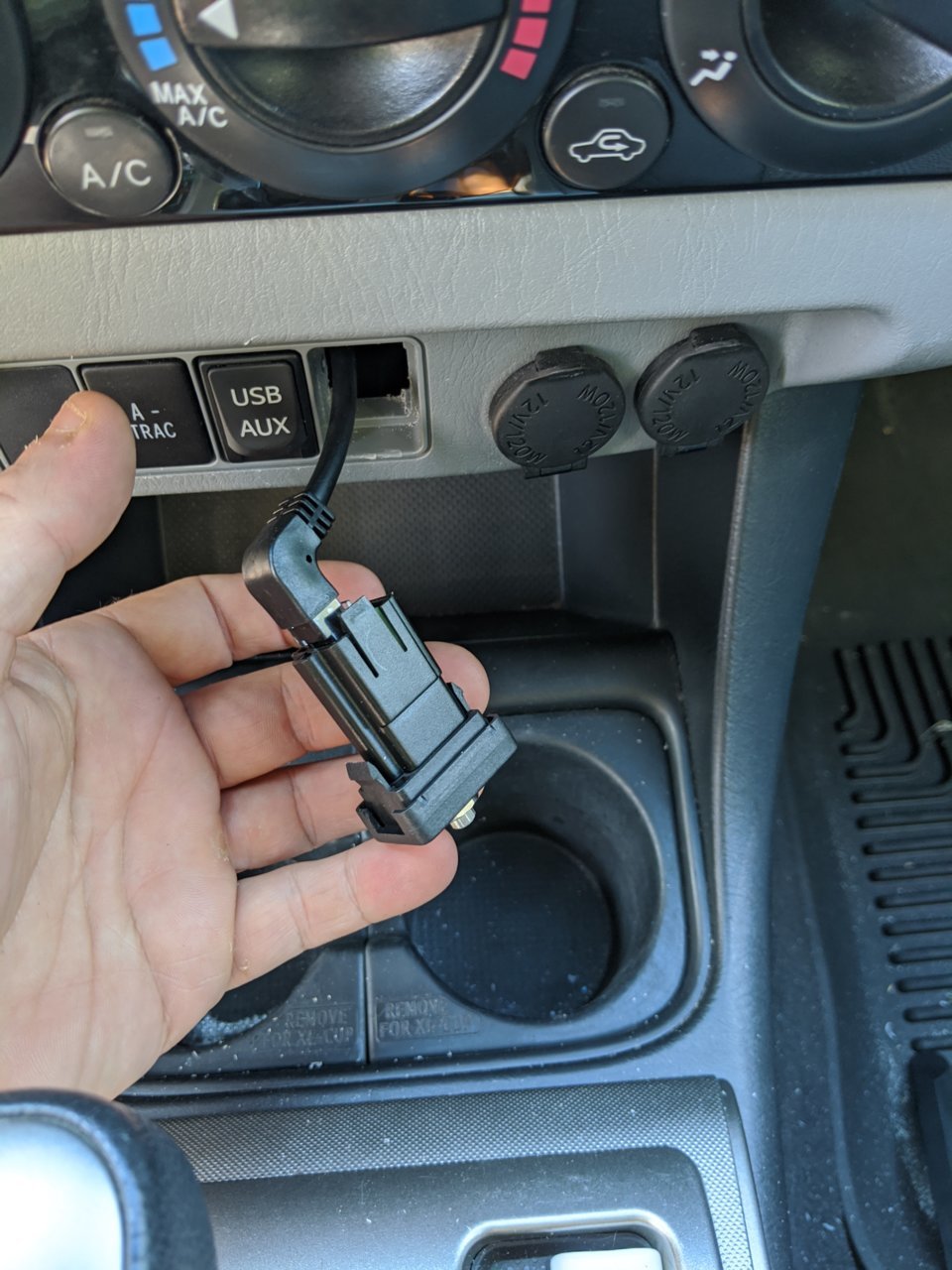

    Hook up the cable to the controller and snap it in place.

    Now turn the shaft of the adjuster know fully counter-clockwise before pushing the knob on. Zero gotta be at zero!

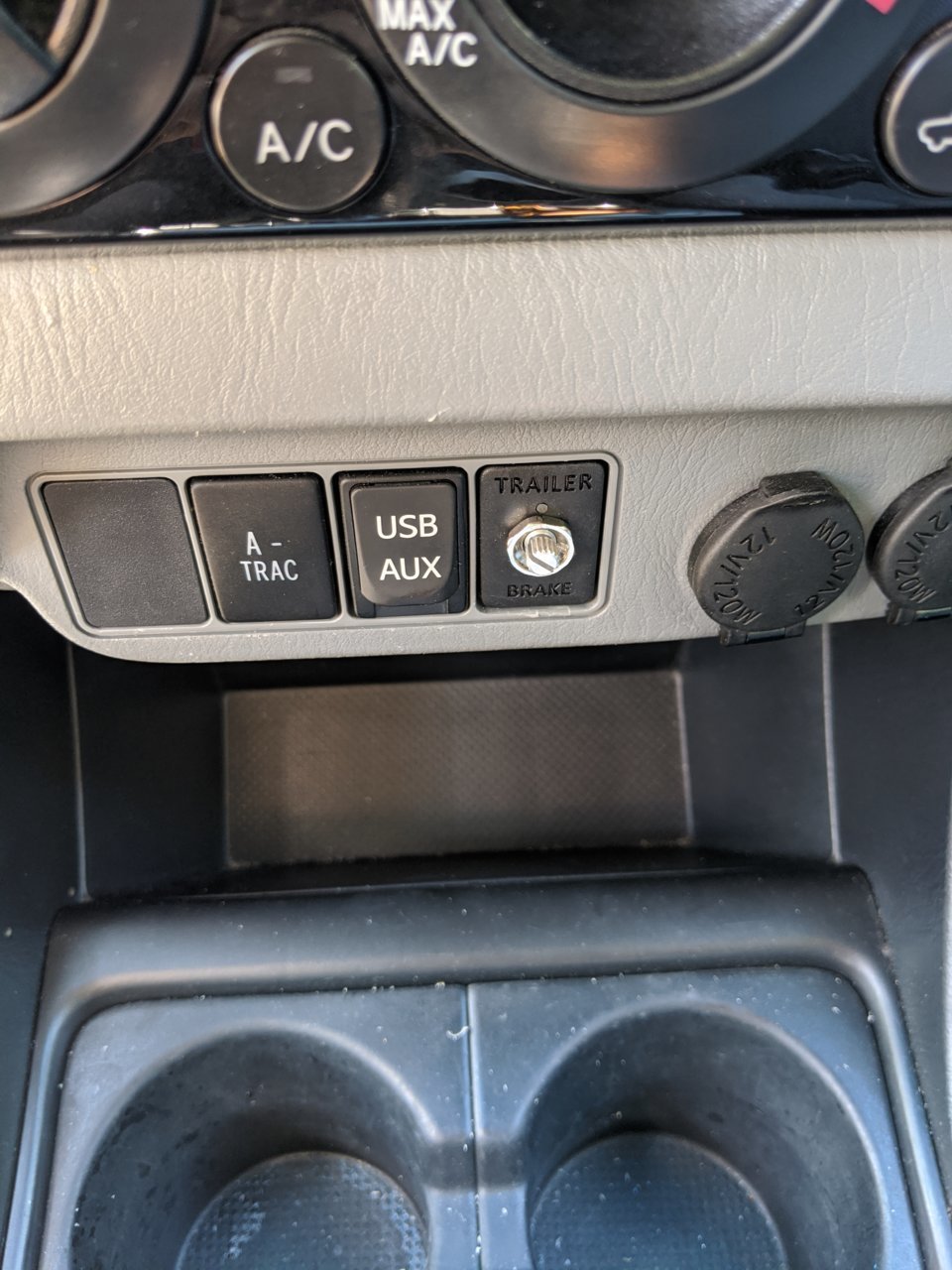

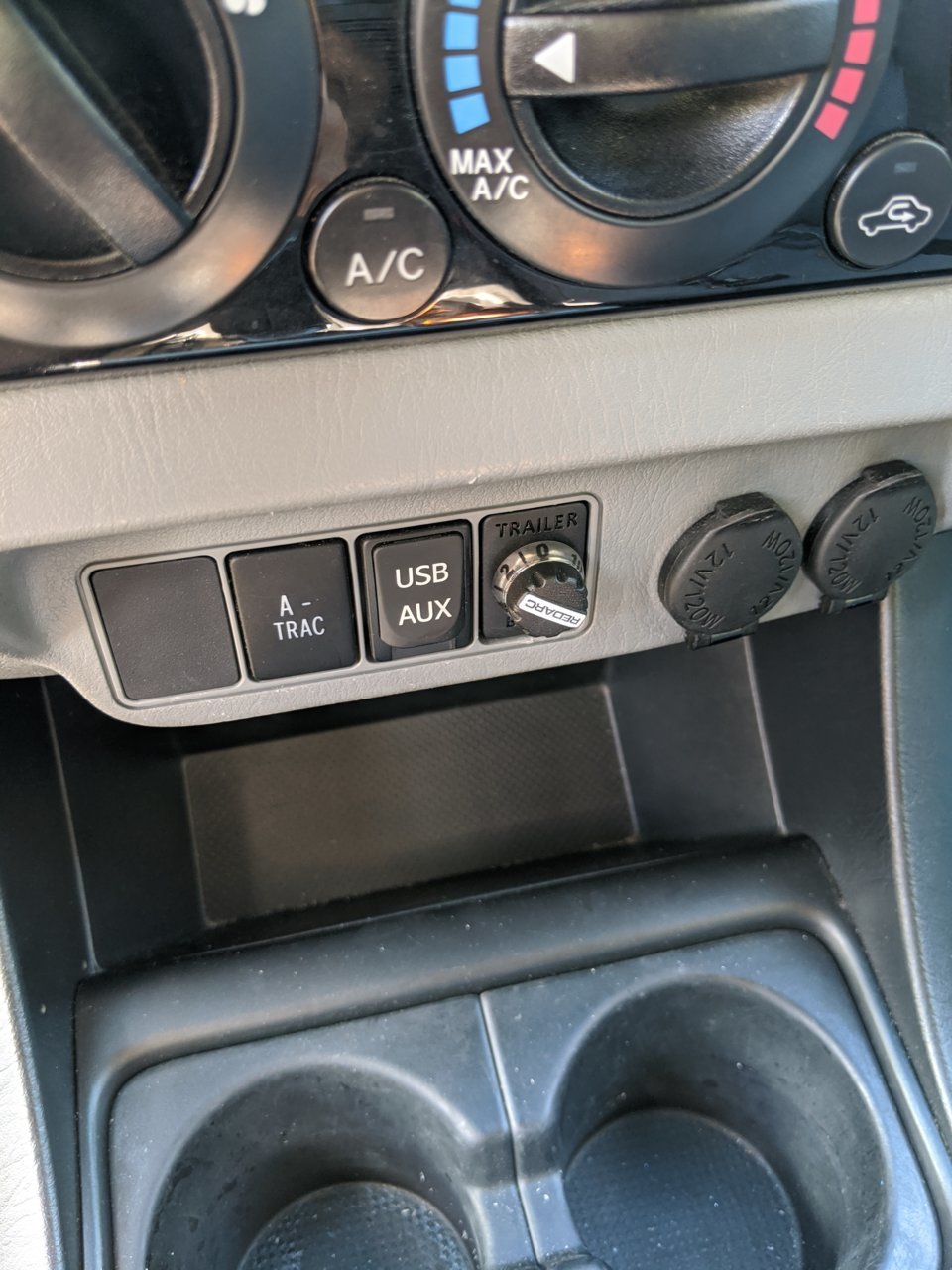

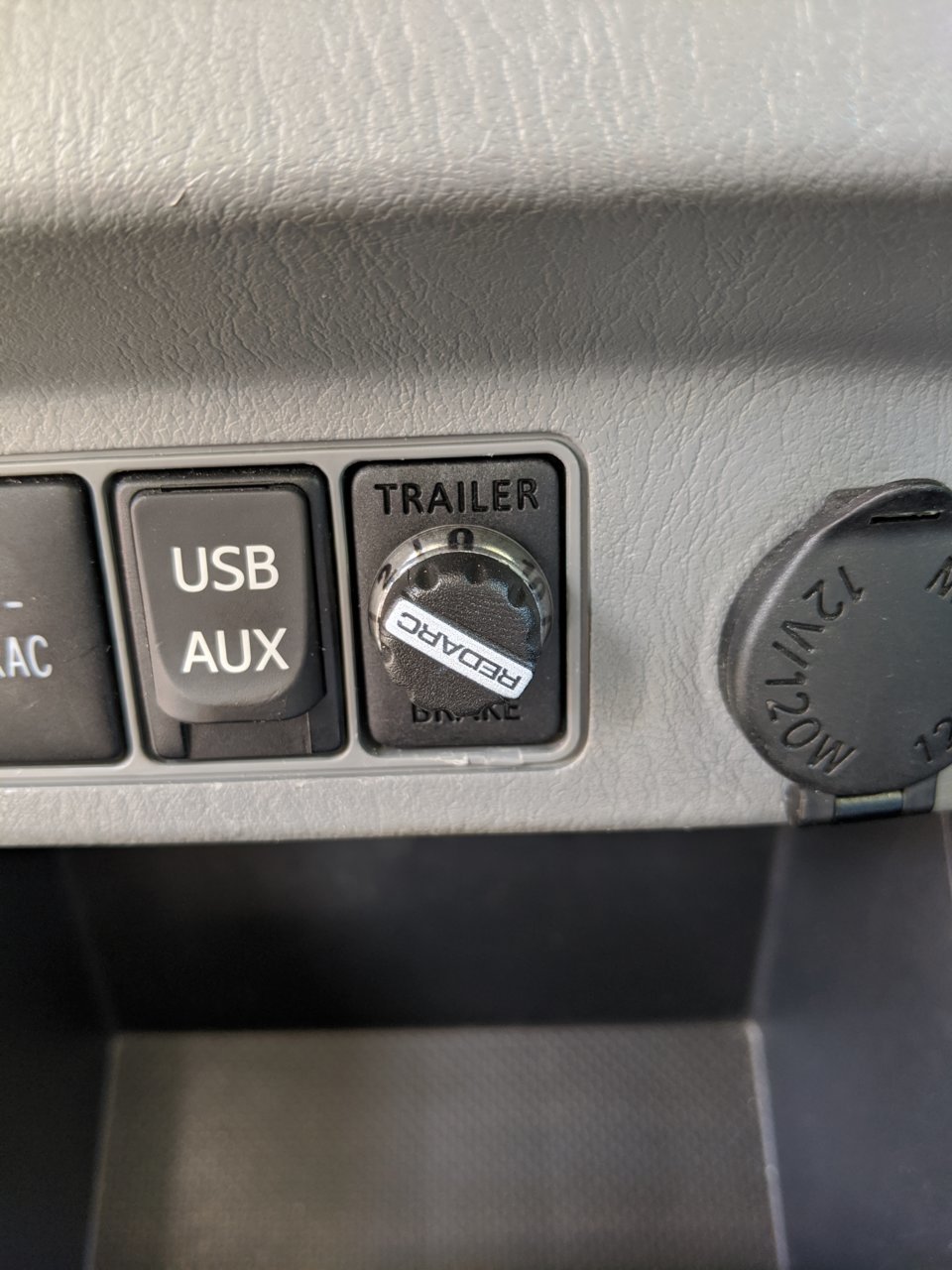

    Boom! Control interface installed.

    Looks good to me.

    Next up is the main brain and it's wiring. I need to find a suitable location under the dash then get the wiring dialed. The Tow Pro came with the wiring and plug for its end and I bought a vehicle specific plug/wiring from Tekonsha for the vehicle side. Should be easy. Hopefully I'll get that done tomorrow.

    Last edited: Jul 19, 2020
    Heyyo_Friday, po35042 and SC3 like this.
  2. Jul 16, 2020 at 5:50 PM
    #2
    GT3North

    GT3North Well-Known Member

    Joined:
    Oct 21, 2018
    Member:
    #270182
    Messages:
    117
    Nice install. Love that controller.

    1 Bored Clerk[OP] likes this.
  3. Jul 16, 2020 at 5:59 PM
    #3
    Babybluetaco

    Babybluetaco Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275343
    Messages:
    1,834
    Gender:
    Male
    First Name:
    Austin
    Monroe, North Carolina
    Vehicle:
    09 5 lug
    Subd. Wanting to put brakes on my 6.5x10


    GT3North and 1 Bored Clerk[OP] like this.
  4. Jul 16, 2020 at 7:38 PM
    #4
    1 Bored Clerk

    1 Bored Clerk [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112786
    Messages:
    1,999
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    '13 4x4 AC TRD OR
    I've got another project brewing that will require some dash disassembly so I'm kind of waiting for that the finish this up. Soon!

    Babybluetaco[QUOTED] likes this.
  5. Jul 19, 2020 at 3:57 PM
    #5
    1 Bored Clerk

    1 Bored Clerk [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112786
    Messages:
    1,999
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    '13 4x4 AC TRD OR

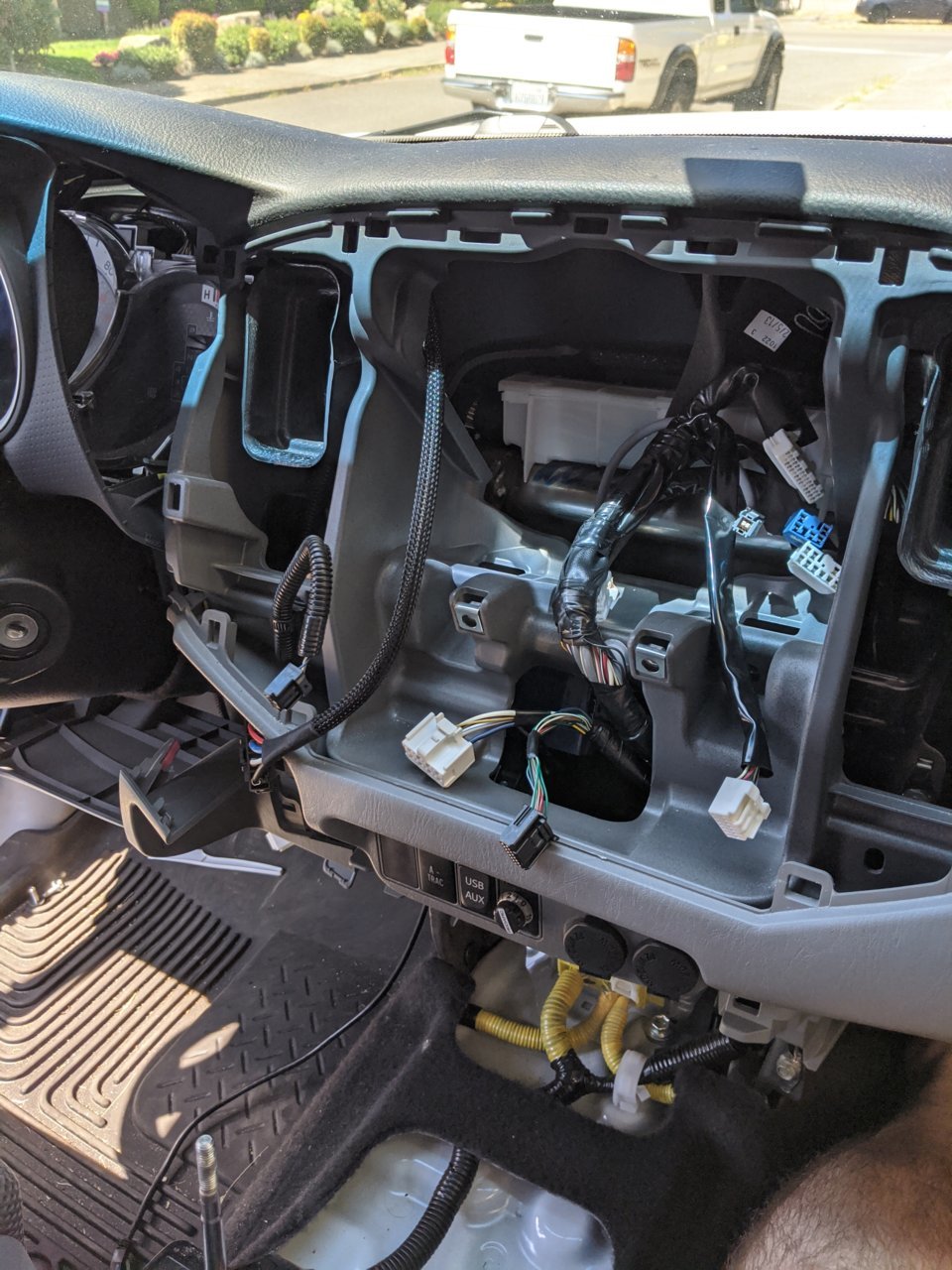

    So, I tore copious amounts of my interior apart looking for a reasonable place to mount the brains of the controller. There isn't much space anywhere that didn't seem to either compromise access to other OEM components or expose the controller to high heat (transmission tunnel).

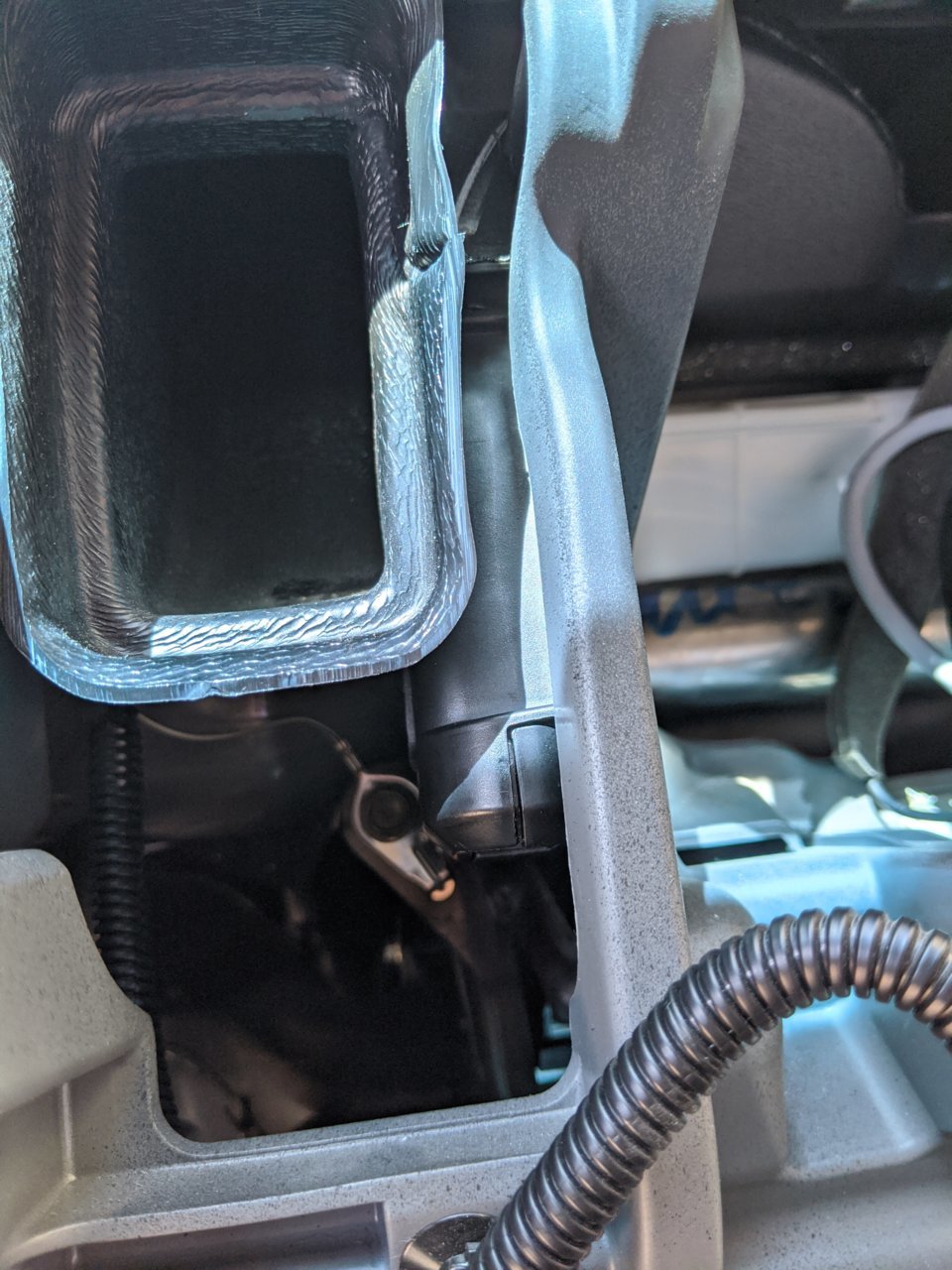

    We're going to focus on this area. There are pickets of space that fit the controller perfectly. One on each side of the stereo.

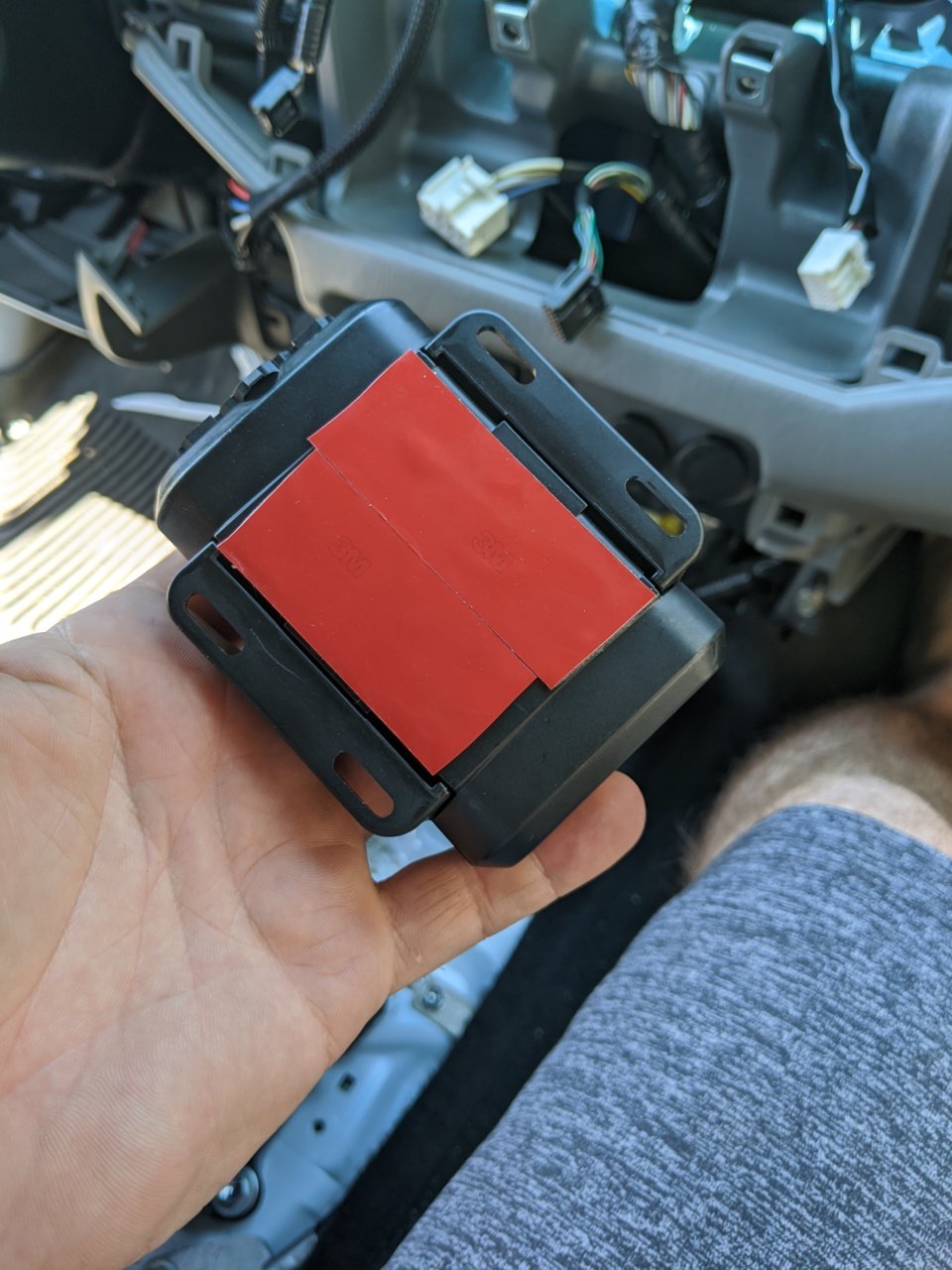

    Two strips of VHB tape on the backside...

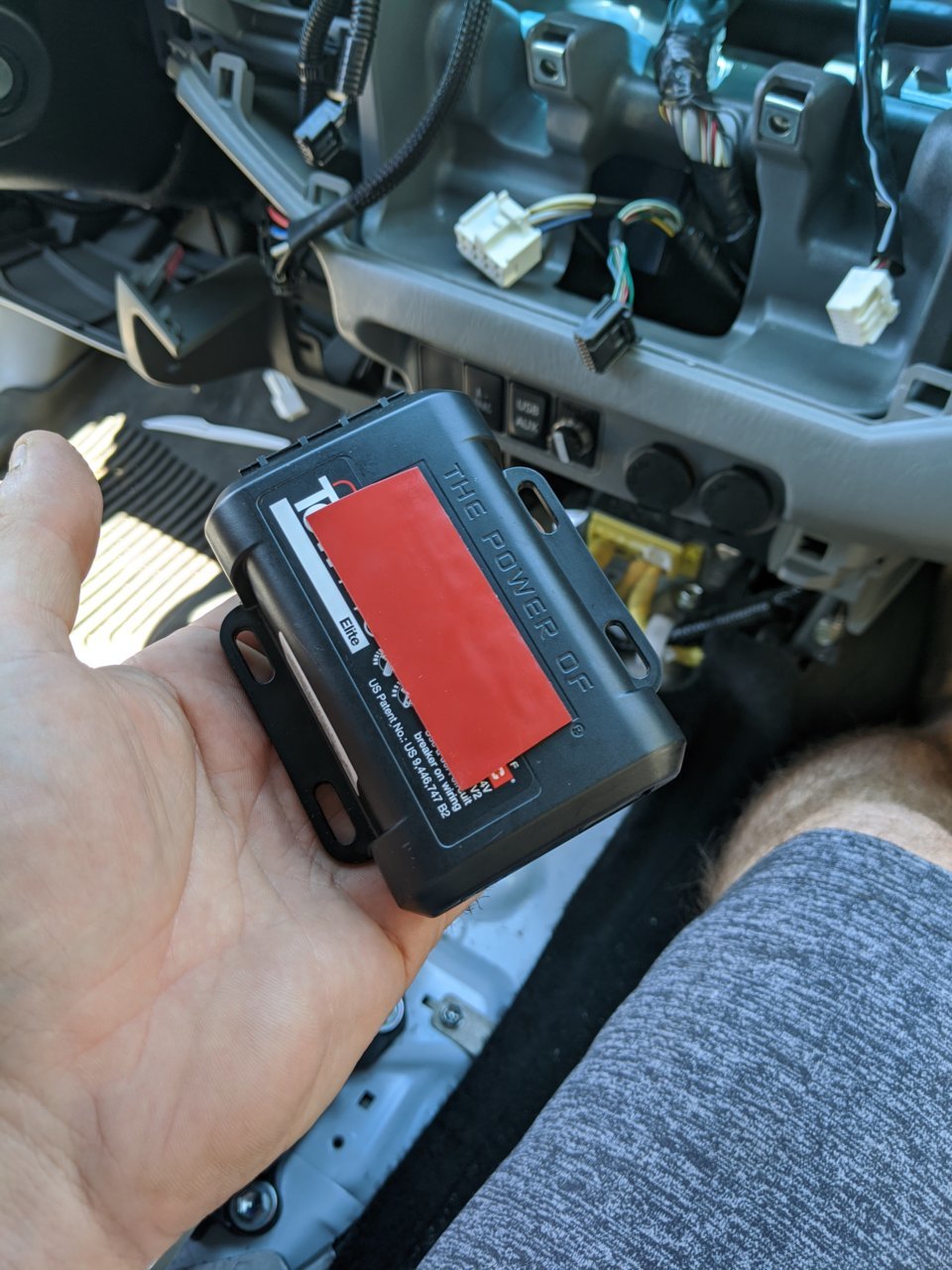

    One on the front side.

    Slide the controller into this space. It's tough because the available space is the same width as the controller with tape on both sides. And now both sides are very sticky. I was able to get it worked in there and it appears very secure as it's always under a small bit of pressure. If you're confused about where this space is, here's a quick description: between the wall of the radio slot in the dash and the HVAC outlet to the left of the radio.

    I used a Tekonsha adapter that plugs right into the factory trailer brake plug on 2nd gen Tacoma's that are equipped with the tow package, which my 2013 TRD OR is. That pigtail terminates in bare wire ends. The plug that came with the RedArc also terminates in bare wire. And both plugs terminate with the same color wires in the same wire gauge...convenient! A little butt connector action with some heat shrink and loom sleeve for good measure and you have a nice harness. I left it full length and ended up with about 8" more length than I needed but that was easy to loop and ziptie to a metal bracket. I ran the wiring up over the top of everything just under the dash cover. Easy and plenty of room. The RJ45 plug ran up from the switch I had already installed earlier up where the 4wd selector is. Also much too long so I wound it up and ziptied it to the harness for the 4wd selector.

    This looks really complicated but it takes about 10 minutes to access all of the wiring and components once you're familiar with how it goes together. This was the best location I could find that allowed ready access to the plugs as well as wire routing.

    Now I just need to let the ol girl learn her orientation then do some towing! I've actually been towing really often lately. One load of 40 bags of concrete would have been excellent to see the effects of the trailer brakes. Next time!

    Last edited: Jul 19, 2020
    Heyyo_Friday and po35042 like this.
  6. Jul 30, 2020 at 9:30 PM
    #6
    po35042

    po35042 Well-Known Member

    Joined:
    Apr 10, 2020
    Member:
    #324342
    Messages:
    253
    Gender:
    Male
    First Name:
    Patrick
    Tuscaloosa, AL
    Vehicle:
    2012 SR5 4x4 ACab with Old Man Package, MT, 2.7L, Spruce Mica
    Camper Shell w/roof rack, Bed stiffeners, Step Bars
    Thanks for this, Great write up and pics. I have been eyeballing the same controller.

    1 Bored Clerk[OP] likes this.
  7. Jul 30, 2020 at 10:13 PM
    #7
    1 Bored Clerk

    1 Bored Clerk [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112786
    Messages:
    1,999
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    '13 4x4 AC TRD OR
    So far so good with the controller and install. I like how integrated it appears and it keeps the interior of the truck looking clean and free of clutter.

  8. Apr 30, 2021 at 9:30 PM
    #8
    stickyTaco

    stickyTaco Fuck Cancer

    Joined:
    Dec 11, 2012
    Member:
    #92904
    Messages:
    5,736
    Gender:
    Male
    First Name:
    Zack
    Reno/Tahoe
    Vehicle:
    '12 DCSB TRD-OR
    Fox/Dakar with Relentless goodies and stuff
    Thanks for the writeup. Mine is going in this weekend hopefully.

    1 Bored Clerk[OP] likes this.
  9. Oct 23, 2022 at 6:27 AM
    #9
    Moto_dj

    Moto_dj Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245360
    Messages:
    107
    Michigan
    Vehicle:
    2012 White Tacoma TRD
    Nice install! I have this controller as well and have been very happy with it...been working great for a few years now.

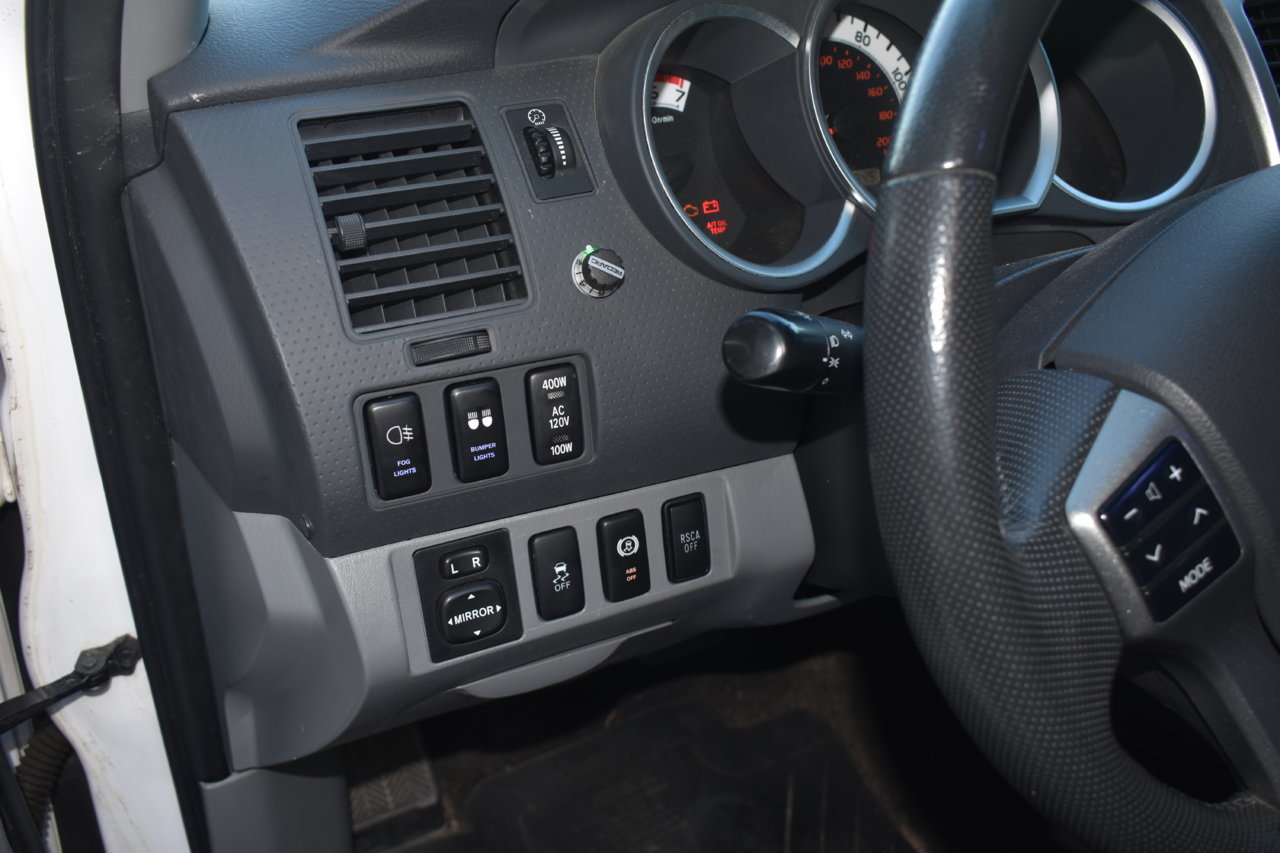

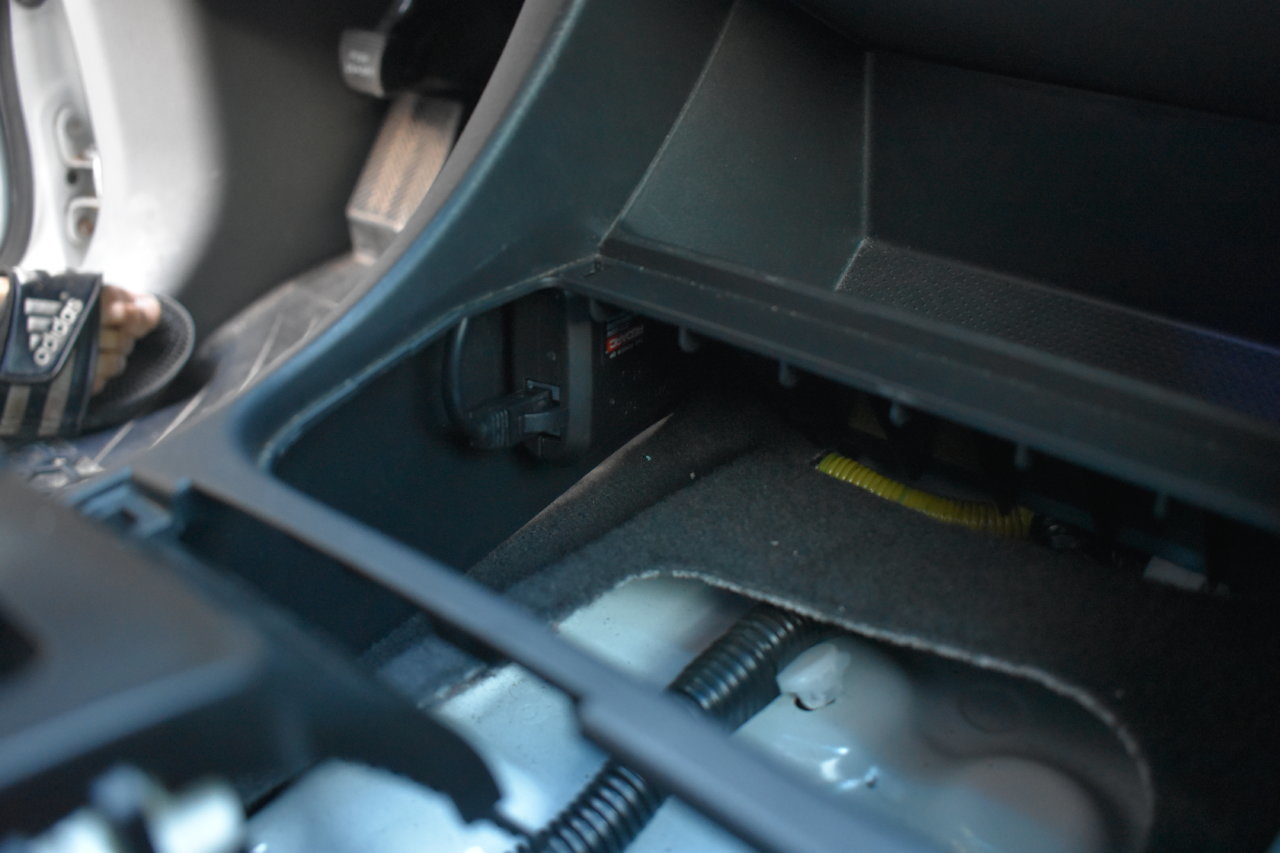

    Installed mine in a little different spot because I didn't want to take up a switch blank.



    Naveronski and 1 Bored Clerk[OP] like this.
  10. Dec 4, 2022 at 6:03 PM
    #10
    clenkeit

    clenkeit Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    2,262
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport

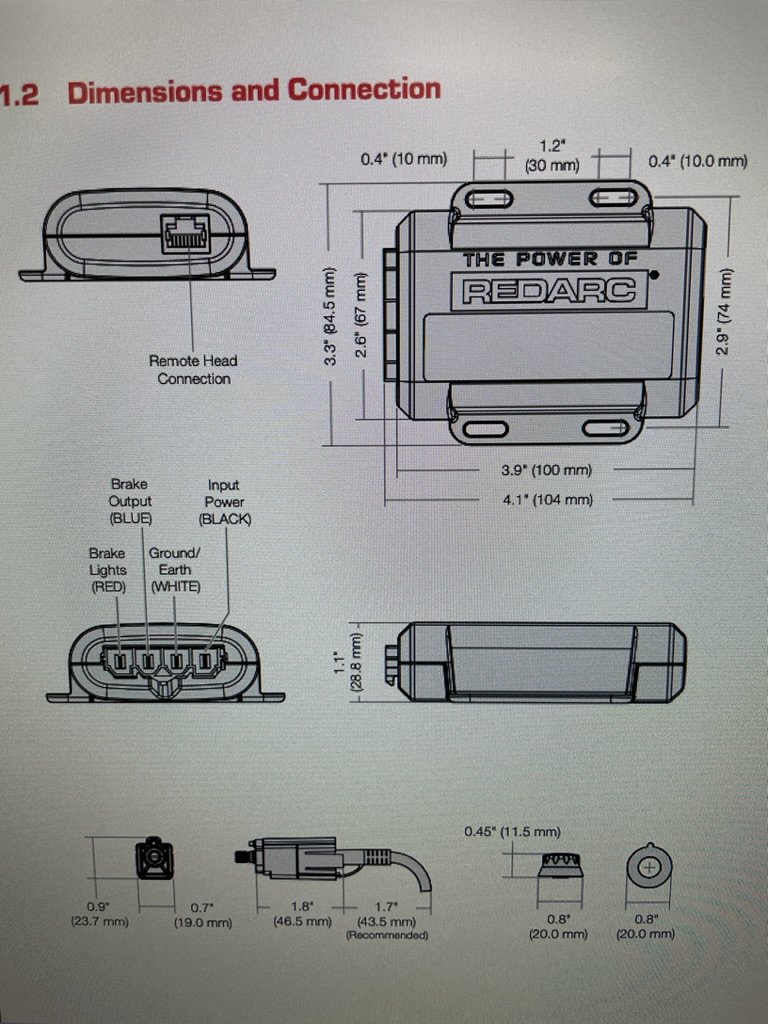

    Haven't seen many other 2nd gen installs of the RedArc so figured I would add an update here for how I'm doing mine. I bought my RedArc second hand from a 3rd gen owner and it included the wiring harness which I wasn't sure if it was going to be compatible with my 2nd gen or not. It wasn't.

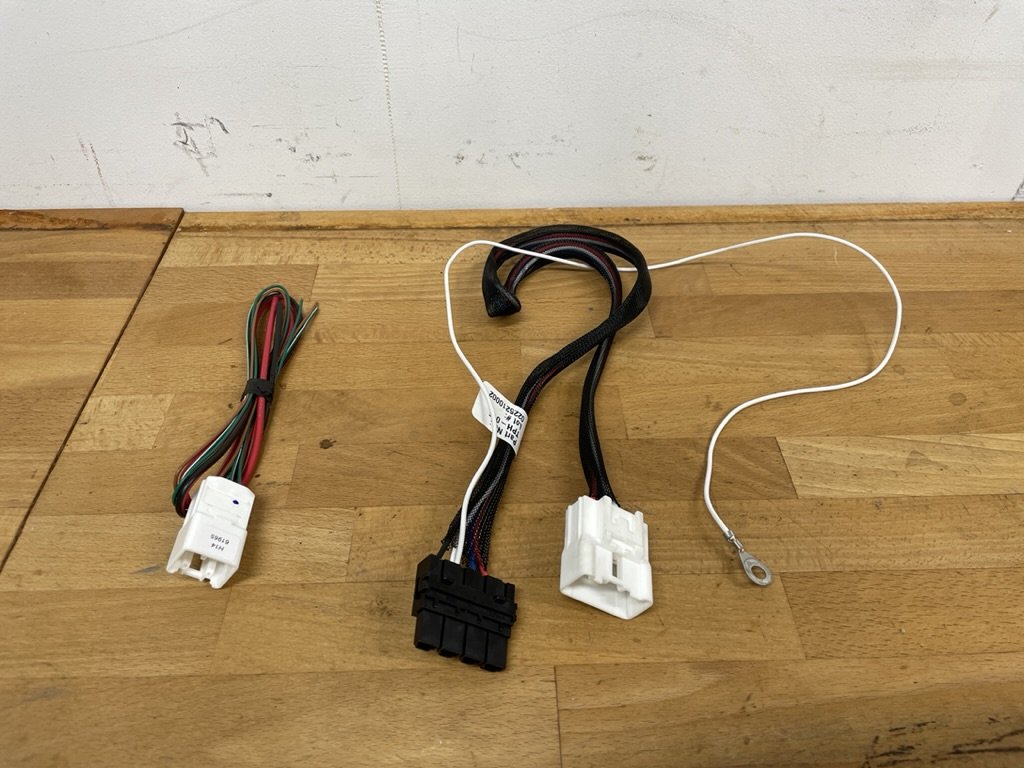

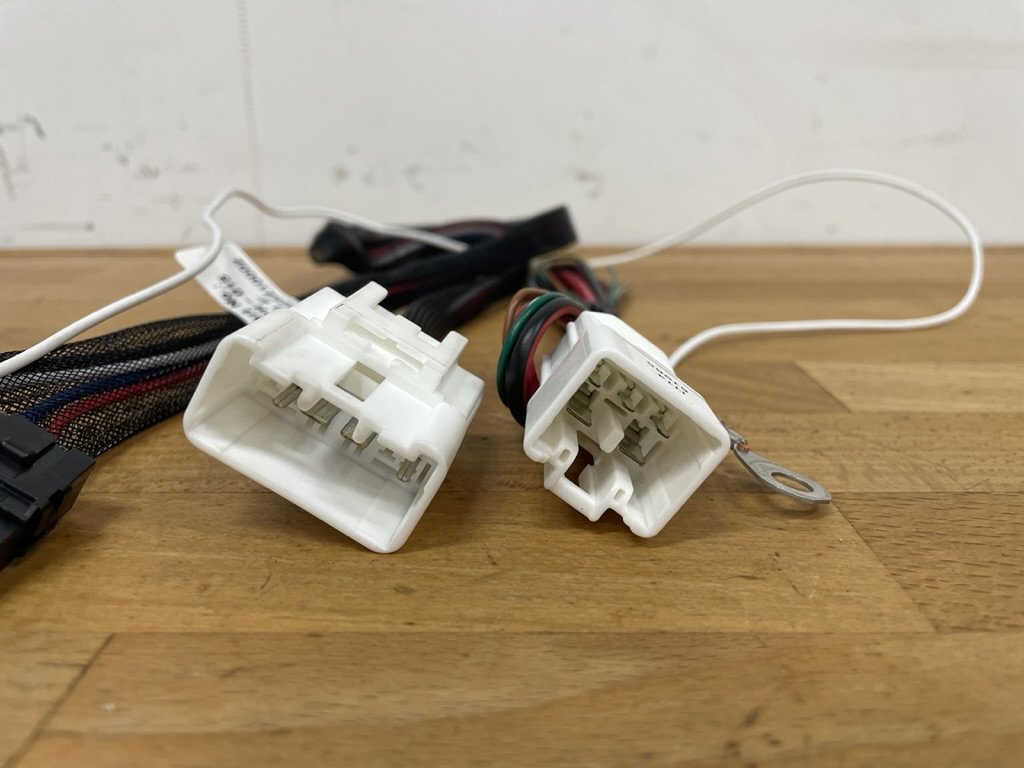

    On the left is the OEM 2nd Gen Tacoma trailer brake wiring harness (p/n 82132-0C010) that comes with tow pkg equipped vehicles. On the right is the RedArc wiring harness for a 3rd gen. As you can see, the connectors (the white ones) are a completely different style, so there's no way the harness for the RedArc is going to plug into a 2nd gen.

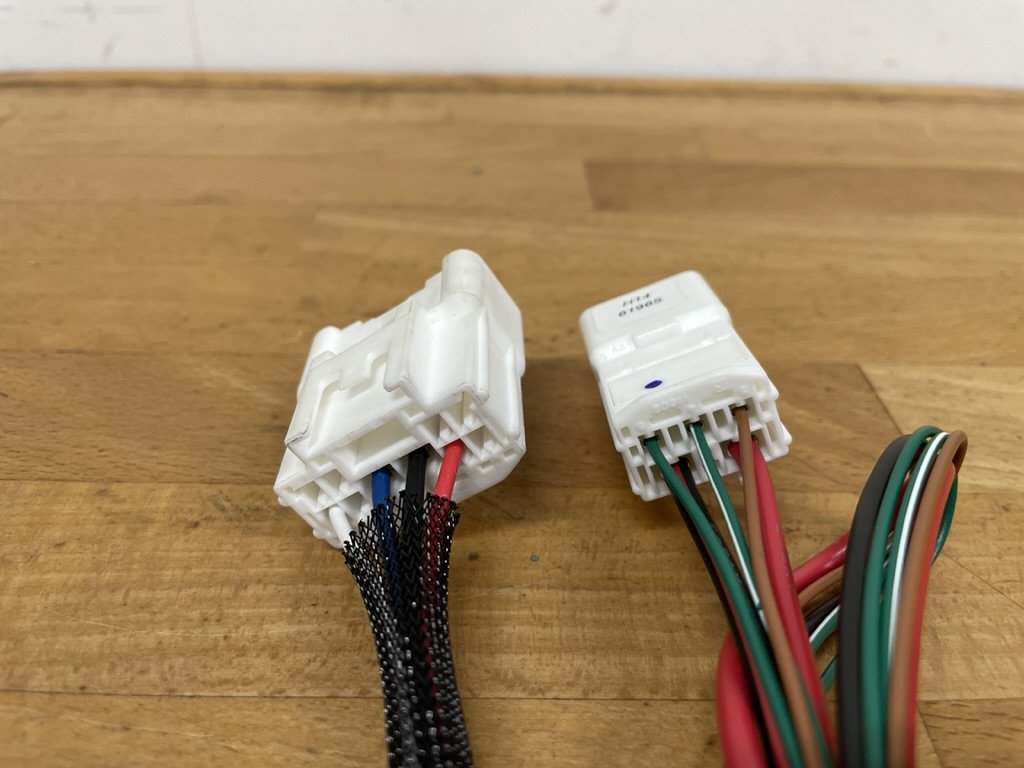

    Here's another close up. 3rd Gen (RedArc harness) on the left, 2nd gen (OEM harness) on the right.



    But, luckily the pins used are identical and it's just the connector that differs. Which means you can easily swap and re-pin these connectors. In order to do so, start by disconnecting the "lock" mechanism holding the pins in place. Both connectors have the same style. Just put a small screwdriver or pick into the recess, as shown, to pop up the "lock". This piece doesn't come out, it just pops up ~2-3mm.

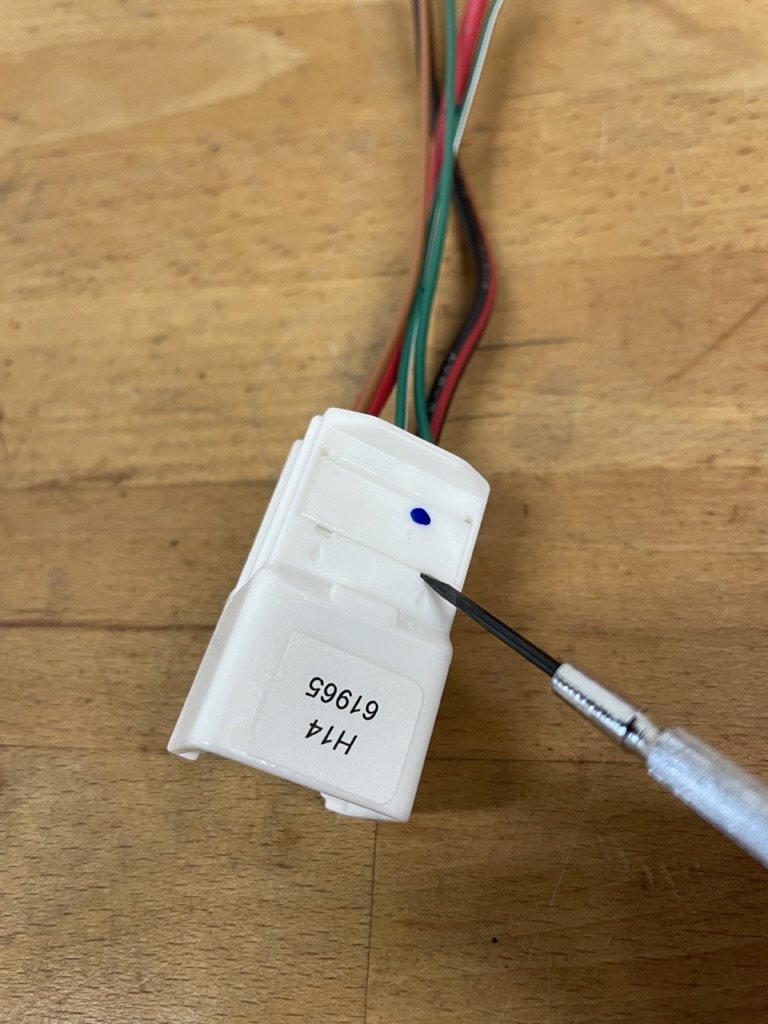

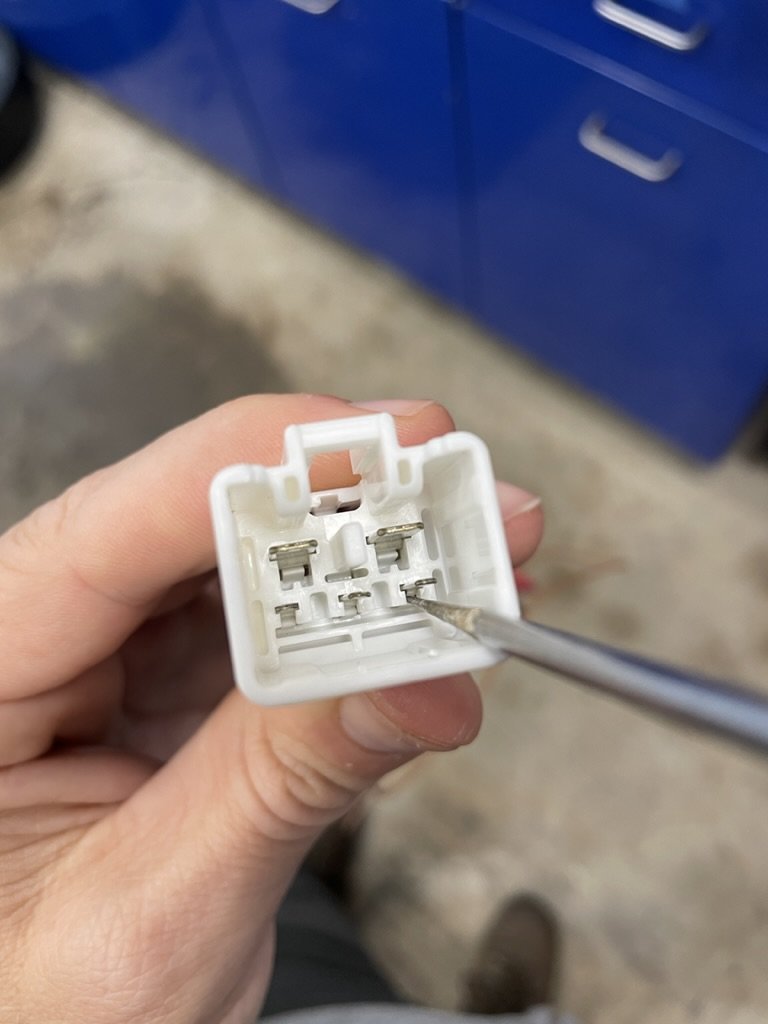

    Next, remove the pins themselves. Similarly, use a pick or small screwdriver to bend back the little tab which holds each pin in place. Same concept for both the smaller and larger pins.

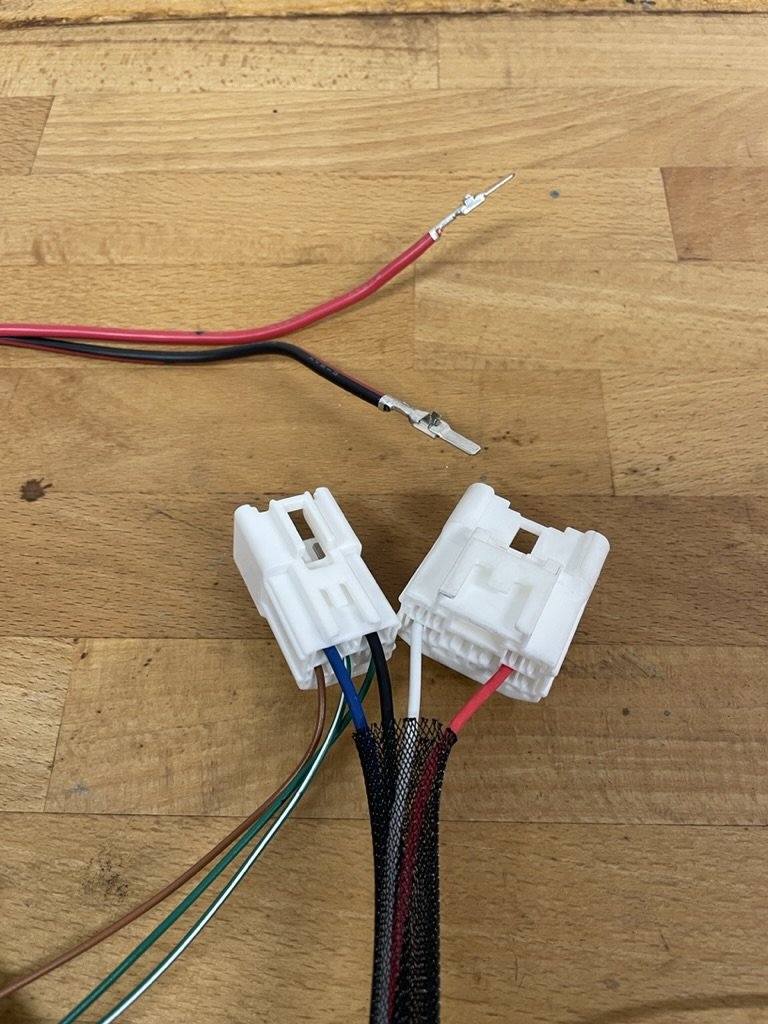

    Then, you just swap it over. In order to make sure I didn't make a mistake I would de-pin one wire and then re-pin it rather than removing all wires at once. Here's what it looked like after I'd swapped two pins over to the 2nd gen connector. The two wires/pins (red and black) you see above the connectors are the two which I removed from the 2nd gen connector and you can see I moved 2 wires from the RedArc harness over to the 2nd gen connector. The wire colors don't match, as you can see here, so I used some wiring diagrams (see below) to ensure I was putting the pins in the right locations.

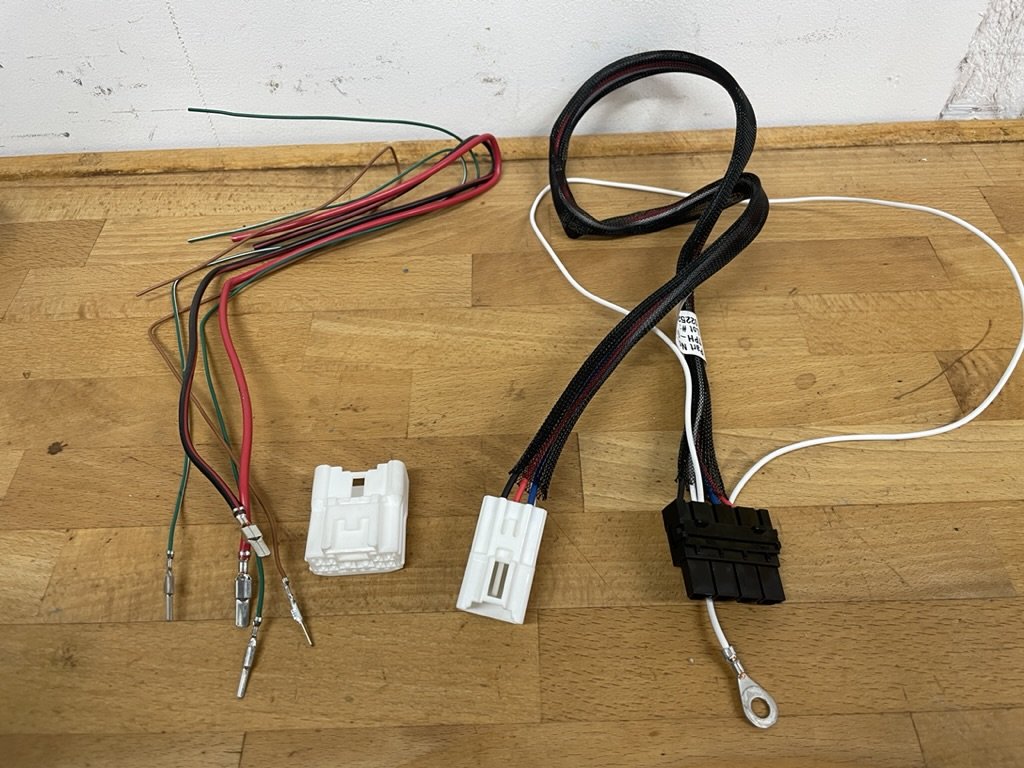

    Once all pins were swapped over I was left with the 2nd gen connector now attached to the RedArc harness, a lone 3rd gen connector and all of the wiring from my OEM 2nd gen harness adapter.


    So there you have it. If you have your factory trailer brake wiring harness adapter you can buy the 3rd gen ready kit from RedArc, make this simple modification and you've got a plug and play setup with no cutting or splicing of wires.

    Heyyo_Friday likes this.
  11. Dec 4, 2022 at 6:14 PM
    #11
    Heyyo_Friday

    Heyyo_Friday Will post memes for truck parts

    Joined:
    Nov 7, 2020
    Member:
    #346074
    Messages:
    327
    Gender:
    Male
    First Name:
    Derek
    Dfw, texas
    Vehicle:
    2014 DCSB SR5 V6
    CSF T4R/FJ radiator
    You're an absolute God for figuring this out. This is going to save me so much time whenever I get around to buying a control. Thank you:bowdown:

    Naveronski and clenkeit[QUOTED] like this.
  12. Dec 4, 2022 at 6:32 PM
    #12
    EMR

    EMR Well-Known Member

    Joined:
    May 13, 2009
    Member:
    #17171
    Messages:
    475
    Gender:
    Male
    So Cal.
    Vehicle:
    2012 Tx Pro
    Nice write up. I love my Redarc brake controller. Honestly the hardest part was finding the darn plug hidden in the OEM harness under the dash.

  13. Feb 1, 2023 at 8:03 PM
    #13
    roary_tubbs

    roary_tubbs Active Member

    Joined:
    Feb 12, 2017
    Member:
    #210403
    Messages:
    32
    Gender:
    Male
    Oklahoma City, OK
    Vehicle:
    2011 White Toyota Tacoma TRD
  14. Feb 1, 2023 at 8:36 PM
    #14
    1 Bored Clerk

    1 Bored Clerk [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112786
    Messages:
    1,999
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    '13 4x4 AC TRD OR
    I think I bought mine from ETrailer.com. there is the controller, the wiring harness to connect to the factory Toyota tow package, and the little knov surround that fits in a Toyota switch blank. That knob surround came directly from RedArc I think. It's been a while.

  15. Feb 2, 2023 at 8:29 AM
    #15
    mic_sierra

    mic_sierra Toshiba HDDVD is the future

    Joined:
    Nov 30, 2021
    Member:
    #383480
    Messages:
    1,107
    Gender:
    Male
    Elsewhere
    Vehicle:
    '21 DCSB TRD Sport 4x4 Auto
    For those with a 3rd Gen here is my Redarc Tow pro Elite writeup w/ pics. `10,000 miles towing full time without issue.

  16. Feb 2, 2023 at 10:01 AM
    #16
    clenkeit

    clenkeit Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    2,262
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport
    If you get the harness for the 3rd gen directly from RedArc then you can do the modification I outlined in my post (assuming you have the factory trailer brake adapter that came with your truck or bought it separately). I bought mine used but it's exactly the same as the kit you can get from Redarc with the 3rd gen specific wiring.

    If you buy the adapter from Etrailer which 1 Bored Clerk mentioned then you'll need to splice that harness into generic wiring harness that comes with the RedArc.

  17. Feb 6, 2023 at 7:19 PM
    #17
    roary_tubbs

    roary_tubbs Active Member

    Joined:
    Feb 12, 2017
    Member:
    #210403
    Messages:
    32
    Gender:
    Male
    Oklahoma City, OK
    Vehicle:
    2011 White Toyota Tacoma TRD
    Thanks! Where did you put the brown and green wires? Are those no longer needed?

  18. Feb 7, 2023 at 7:34 AM
    #18
    clenkeit

    clenkeit Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    2,262
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport
    ALL wires were removed from the original 2nd gen tow harness and are not used/needed. This includes Red, Blk/Red, Grn, Grn/Wht, & Brn.

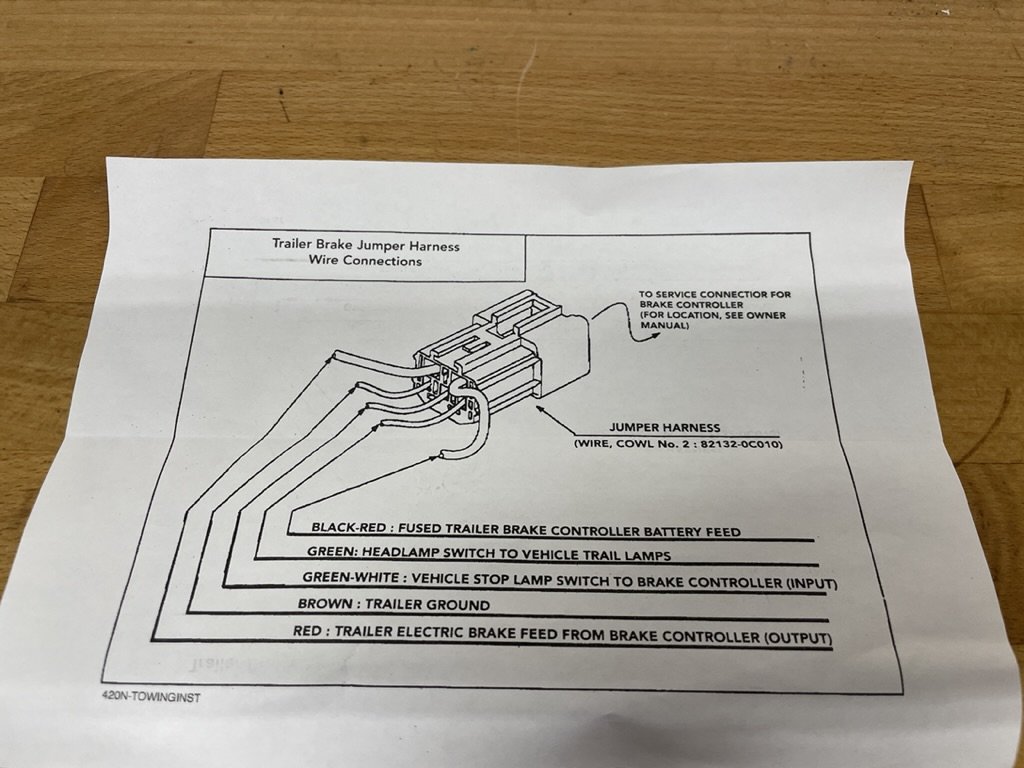

    Wire Color from RedArc ---connects to---> Terminal from 2nd Gen Plug (original wire color):
    BLK (Input Power) ---> BLK/RED (Battery Feed)
    BLU (Brake Output) ---> RED (Feed from Brake Controller)
    RED (Brake Lights) ---> GRN/WHT (Stop Lamp Switch)
    WHT (Ground) ---> BRN (Trailer Ground)
    n/a (unused) ---> GRN (Headlamp switch)

    I'm not terribly familiar with trailers or trailer brakes so the GRN (headlamp switch) wire was a bit baffling to me. I don't understand why the trailer brake system would involve the headlight switch at all as the brakes should function the same regardless of whether the headlights were on or off. The only thing I can think is that the OEM wire harness is setup for a controller which has a lighted screen/display which is designed to dim when the headlights are turned on the same way your head unit will dim when the lights are turned on. Either way, the Redarc I installed did not require this 5th wire.

  19. Feb 10, 2023 at 8:41 AM
    #19
    roary_tubbs

    roary_tubbs Active Member

    Joined:
    Feb 12, 2017
    Member:
    #210403
    Messages:
    32
    Gender:
    Male
    Oklahoma City, OK
    Vehicle:
    2011 White Toyota Tacoma TRD
    Thanks for taking the time to write this up. I actually found a wiring harness from Redarc for the 2nd gen Tacoma. I also bought their mounting bracket and mounted the brain under my cup holder. Was real easy the part that took the longest was taking off all the plastic.

  20. Feb 10, 2023 at 9:57 AM
    #20
    clenkeit

    clenkeit Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    2,262
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport
    Do you have any more info/pics or part numbers? When I was looking before there weren't any 2nd gen specific parts available from Redarc.
