Reese wiring harness question

Discussion in 'Technical Chat' started by bunkerboy, Mar 3, 2013.

  1. Mar 3, 2013 at 10:11 AM
    #1
    bunkerboy

    bunkerboy [OP] Well-Known Member

    Joined:
    Dec 1, 2011
    Member:
    #68024
    Messages:
    72
    Gender:
    Male
    Gainesville, FL
    Vehicle:
    2014 Prerunner

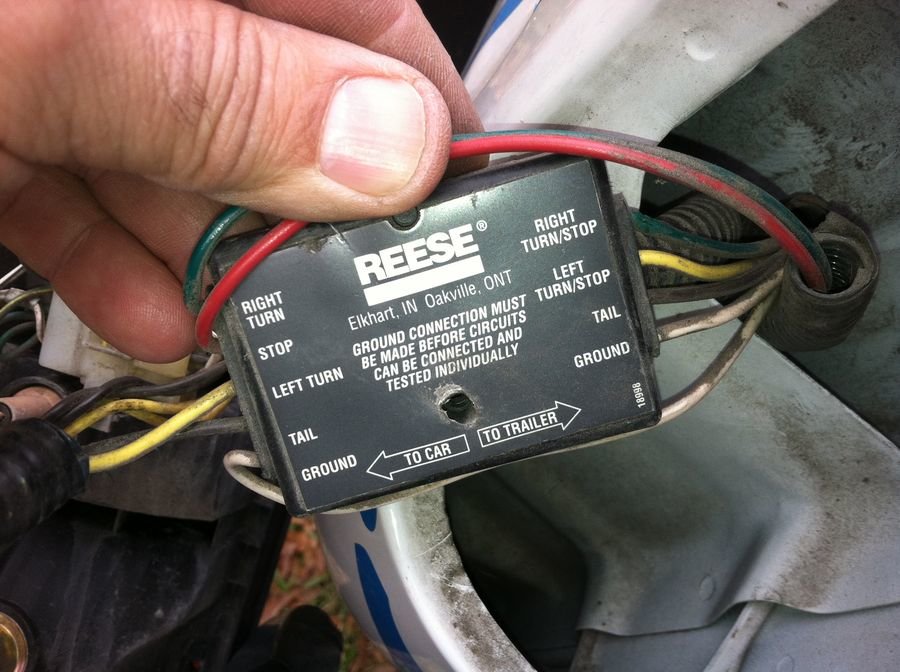

    What's this doohicky? My right trailer brake light doesn't work and this is the reason why. Can I just bypass it or does it do something important enough to buy a whole new harness?

    [​IMG]

  2. Mar 3, 2013 at 10:25 AM
    #2
    A3umph

    A3umph Well-Known Member

    Joined:
    Nov 29, 2012
    Member:
    #92070
    Messages:
    424
    Gender:
    Male
    First Name:
    Steve
    outside of KCMO
    Vehicle:
    '12 Tacoma Access Cab TRD OR
    That's your converter to take the separate turn signal and brake lights from your truck and making it work with the single filment of the trailer turn/brake light. You will need to wire another one in its place.

  3. Mar 3, 2013 at 10:36 AM
    #3
    bunkerboy

    bunkerboy [OP] Well-Known Member

    Joined:
    Dec 1, 2011
    Member:
    #68024
    Messages:
    72
    Gender:
    Male
    Gainesville, FL
    Vehicle:
    2014 Prerunner
    Damn, not what I was hoping to hear. So if I just cut and direct-connect the green wire from "RIGHT TURN" to "RIGHT TURN/STOP" ... what's it do, screw up the voltage or something?

    How readily available are these harnesses anyway? Mine came with the truck when I bought it.

  4. Mar 3, 2013 at 10:50 AM
    #4
    A3umph

    A3umph Well-Known Member

    Joined:
    Nov 29, 2012
    Member:
    #92070
    Messages:
    424
    Gender:
    Male
    First Name:
    Steve
    outside of KCMO
    Vehicle:
    '12 Tacoma Access Cab TRD OR
  5. Mar 3, 2013 at 10:55 AM
    #5
    joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,066
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    If you disconnect the "stop" and both "right turn" and "left turn" wires on the car side, then wire the car side "stop" directly to BOTH the left and right "stop/turn" wires on the trailer side, that will get you brake lights on the trailer. That may be enough for now, eh?:) Otherwise, they sell those converters in just about every NAPA I've been to. They come in custom fit with direct plug in to your truck, or with just that box and some splice connectors. The ones that you have to splice are probably only $20.

  6. Mar 3, 2013 at 11:26 AM
    #6
    bunkerboy

    bunkerboy [OP] Well-Known Member

    Joined:
    Dec 1, 2011
    Member:
    #68024
    Messages:
    72
    Gender:
    Male
    Gainesville, FL
    Vehicle:
    2014 Prerunner
    Okay I understand, thanks! I think I'll start calling around for a converter, especially if I can buy just that and not the whole harness.

    Any idea what the actual name of that converter is, so I can sound intelligent when I'm asking the parts guy?

  7. Mar 3, 2013 at 11:30 AM
    #7
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Scour eBay... much cheaper than buying from a local RV supply house.

    But it is what it is... it's a trailer turn signal/brake light convertor.

  8. Mar 3, 2013 at 11:31 AM
    #8
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,614
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    Trailer light adapter or trailer wiring adapter.

    For any trailer with more than simply two bulbs, you want one that draws power directly from the battery.

  9. Mar 3, 2013 at 11:34 AM
    #9
    bunkerboy

    bunkerboy [OP] Well-Known Member

    Joined:
    Dec 1, 2011
    Member:
    #68024
    Messages:
    72
    Gender:
    Male
    Gainesville, FL
    Vehicle:
    2014 Prerunner
    I just found an image of one on Reese's site. They simply call it a "taillight converter". Who'd have guessed.:D

    Off to the parts store!
