Relentless Fabrication - 05+ Tacoma Modular Bed Rack

Discussion in 'Relentless Fabrication' started by RelentlessFabrication, Sep 19, 2018.

  1. Sep 19, 2018 at 3:45 PM
    #1
    RelentlessFabrication

    RelentlessFabrication [OP] relentlessfabrication.com Vendor

    Joined:
    Sep 12, 2018
    Member:
    #266012
    Messages:
    374
    Sparks, NV
    Are you looking for the ultimate bed rack for your Tacoma? Look no further!


    Relentless Fabrication - 2005+ Tacoma Modular Bed Rack


    Our modular bed rack has been in development for over 2 years of design and thorough testing to ensure our customers receive a rack that will be trouble free and solid for years of hard offroad use! The sheet metal nature of this bed rack system allows for unlimited mounting possibilities. We offer a generous number of holes and mount patterns pre-cut to mount your favorite accessories but if you find you want to mount something unique it is as simple as adding a few new mounting holes or brackets of your own.


    [​IMG]


    Mount popular items with ease such as:

    Roof top tents- we include slotted holes on all 3 cross rails to line up with popular tent rail mount spacing.

    Rotopax- Our racks include several rotopax mount hole patterns conveniently located in every link bar of the rack.

    Traction boards- We offer optional brackets that bolt on to our link bars so you can mount Tred Pro's or Maxtrax boards to the side of your rack.

    Hi lift jacks, shovels, axes, etc!- Add some quick fists or bolt in some studs and secure your needed tools!


    [​IMG]


    The details:

    Rack sits 12" high over bed rails...
    We chose this height as it is the minimum that would allow us to fit Rotopax and Traction boards on the sides, while keeping the tent down enough to not catch much wind on the highway and also give a reasonable amount of cargo room under the rack in the truck bed.

    Manufactured from 12ga Laser cut and CNC brake formed steel, with 3/16" thick mount plates.
    These materials allow for a very very strong rack, but keeps the weight reasonable as to not impact your trucks cargo capacity too much.


    Mounts to the truck with no modifications necessary!
    Our rack mounts to the factory bed side tie down tracks with 12 grade 8 bolts and T-nuts. Only tools required to assemble and mount rack is a pair of 9/16" sockets/wrenches. In total the rack is solidly held together with 80 grade-8 3/8" bolts and nyloc nuts to keep the rack tight and solid over years of use.


    Modular rack system
    The bolt together nature of this rack makes it easier to ship than welded tubular racks and cargo bars, and also allows the rack to be broken down into the smaller pieces for storage during the winter months if it is not needed on the truck. Easily fits on a shelf in your garage. The modular nature also means that 1 person can assemble and mount it on the truck. Approx weight, complete is 80lbs.


    Notes: NOT Tonneau cover compatible. Tonneau must be removed for installation.
    Rack ships broken down for easier shipping and will require assembly.



    [​IMG]


    **Availability:

    Racks are made in periodic batches approximately 25 racks at a time. We will update stock numbers as we have racks available, but racks can still be ordered while 'back ordered' is listed as a form of pre-ordering a rack from our next batch manufactured. DO NOT assume racks are in stock for immediate shipping unless we have been contacted and specifically stated we have racks in stock.

    Bare rack manufacturing time is 4-6 weeks when 'back ordered' is listed, powder coat adds 2 to 3 weeks additional.



    ORDER HERE



    Relentless Fabrication
    www.relenlessfabrication.com

    Voodoo36 and MotoEd like this.
  2. Sep 20, 2018 at 1:28 PM
    #2
    RelentlessFabrication

    RelentlessFabrication [OP] relentlessfabrication.com Vendor

    Joined:
    Sep 12, 2018
    Member:
    #266012
    Messages:
    374
    Sparks, NV
  3. Sep 22, 2018 at 12:07 AM
    #3
    El Duderino

    El Duderino Obviously, you're not a golfer.

    Joined:
    Dec 29, 2015
    Member:
    #173469
    Messages:
    12,941
    Gender:
    Male
    First Name:
    Jeremy
    HI->PNW
    Vehicle:
    16 MGM Sport 4x4 DCSB & 19 nautical blue SR5 premium 4x4
    Stuff, things, this, an ADS
    Can’t wait to order this when I move to the mainland

  4. Sep 27, 2018 at 11:17 AM
    #4
    RelentlessFabrication

    RelentlessFabrication [OP] relentlessfabrication.com Vendor

    Joined:
    Sep 12, 2018
    Member:
    #266012
    Messages:
    374
    Sparks, NV
    Reach out if you have any questions :thumbsup:

    - be Relentless
    www.relentlessfabrication.com

  5. Sep 27, 2018 at 11:20 AM
    #5
    RelentlessFabrication

    RelentlessFabrication [OP] relentlessfabrication.com Vendor

    Joined:
    Sep 12, 2018
    Member:
    #266012
    Messages:
    374
    Sparks, NV
  6. Sep 27, 2018 at 11:36 AM
    #6
    El Duderino

    El Duderino Obviously, you're not a golfer.

    Joined:
    Dec 29, 2015
    Member:
    #173469
    Messages:
    12,941
    Gender:
    Male
    First Name:
    Jeremy
    HI->PNW
    Vehicle:
    16 MGM Sport 4x4 DCSB & 19 nautical blue SR5 premium 4x4
    Stuff, things, this, an ADS
  7. Sep 27, 2018 at 11:48 AM
    #7
    Baja Designs

    Baja Designs ENTER: "BDForums" coupon for your forum discount! Vendor

    Joined:
    Jan 8, 2015
    Member:
    #145889
    Messages:
    2,382
    Gender:
    Male
    San Marcos, CA
    El Duderino likes this.
  8. Oct 13, 2018 at 6:19 PM
    #8
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    23,236
    Gender:
    Male
    First Name:
    Brent
    Southern New Mexico
    Vehicle:
    2018 Tacoma TRD Off Road 4x4
    @RelentlessFabrication when you say it's 12" above the bed rails is that how much room there is between the top of the truck bed rails and the bottom of the bed rack bars? Trying to figure out exactly how much room I would have underneath the rack.

  9. Oct 13, 2018 at 6:22 PM
    #9
    El Duderino

    El Duderino Obviously, you're not a golfer.

    Joined:
    Dec 29, 2015
    Member:
    #173469
    Messages:
    12,941
    Gender:
    Male
    First Name:
    Jeremy
    HI->PNW
    Vehicle:
    16 MGM Sport 4x4 DCSB & 19 nautical blue SR5 premium 4x4
    Stuff, things, this, an ADS
    Measure from you bed to the rails and then add 12”

  10. Oct 13, 2018 at 6:24 PM
    #10
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    23,236
    Gender:
    Male
    First Name:
    Brent
    Southern New Mexico
    Vehicle:
    2018 Tacoma TRD Off Road 4x4
    Do you have this bed rack? Trying to make sure that the 12" is based on the inside height, not the height of the top of the bed rack over the rails. Trying to account for the thickness of the bed rack bars.

  11. Oct 13, 2018 at 6:29 PM
    #11
    El Duderino

    El Duderino Obviously, you're not a golfer.

    Joined:
    Dec 29, 2015
    Member:
    #173469
    Messages:
    12,941
    Gender:
    Male
    First Name:
    Jeremy
    HI->PNW
    Vehicle:
    16 MGM Sport 4x4 DCSB & 19 nautical blue SR5 premium 4x4
    Stuff, things, this, an ADS
    I believe it’s to the bottom of the top bar.

    PcBuilder14 likes this.
  12. Oct 14, 2018 at 7:07 PM
    #12
    Ayeele

    Ayeele Well-Known Member

    Joined:
    Mar 14, 2017
    Member:
    #213267
    Messages:
    1,685
    Gender:
    Male
    Houston, Tx
    Vehicle:
    18 TRD Pro, 01 DCSB TRD OR 4x4
    Any military discount? Out of all the racks out there, this one definitely looks worth it. You guys took your time to design it. I want it

  13. Oct 15, 2018 at 8:28 AM
    #13
    HIghlande2

    HIghlande2 Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216802
    Messages:
    1,442
    Gender:
    Male
    First Name:
    Chris
    Wilmington, NC
    Vehicle:
    15 DCSB Sport
    Little of this and a little of that
    @PcBuilder14

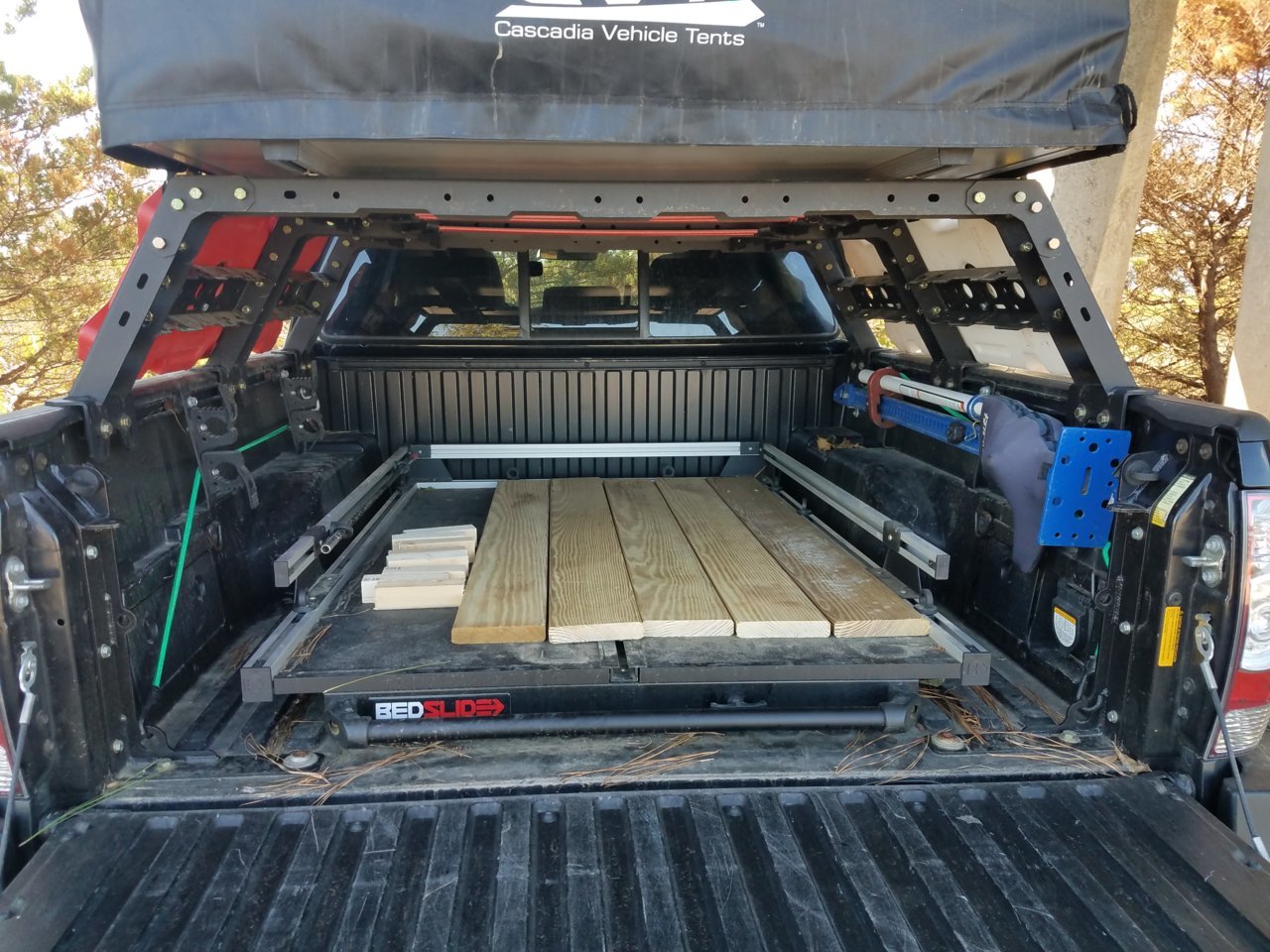

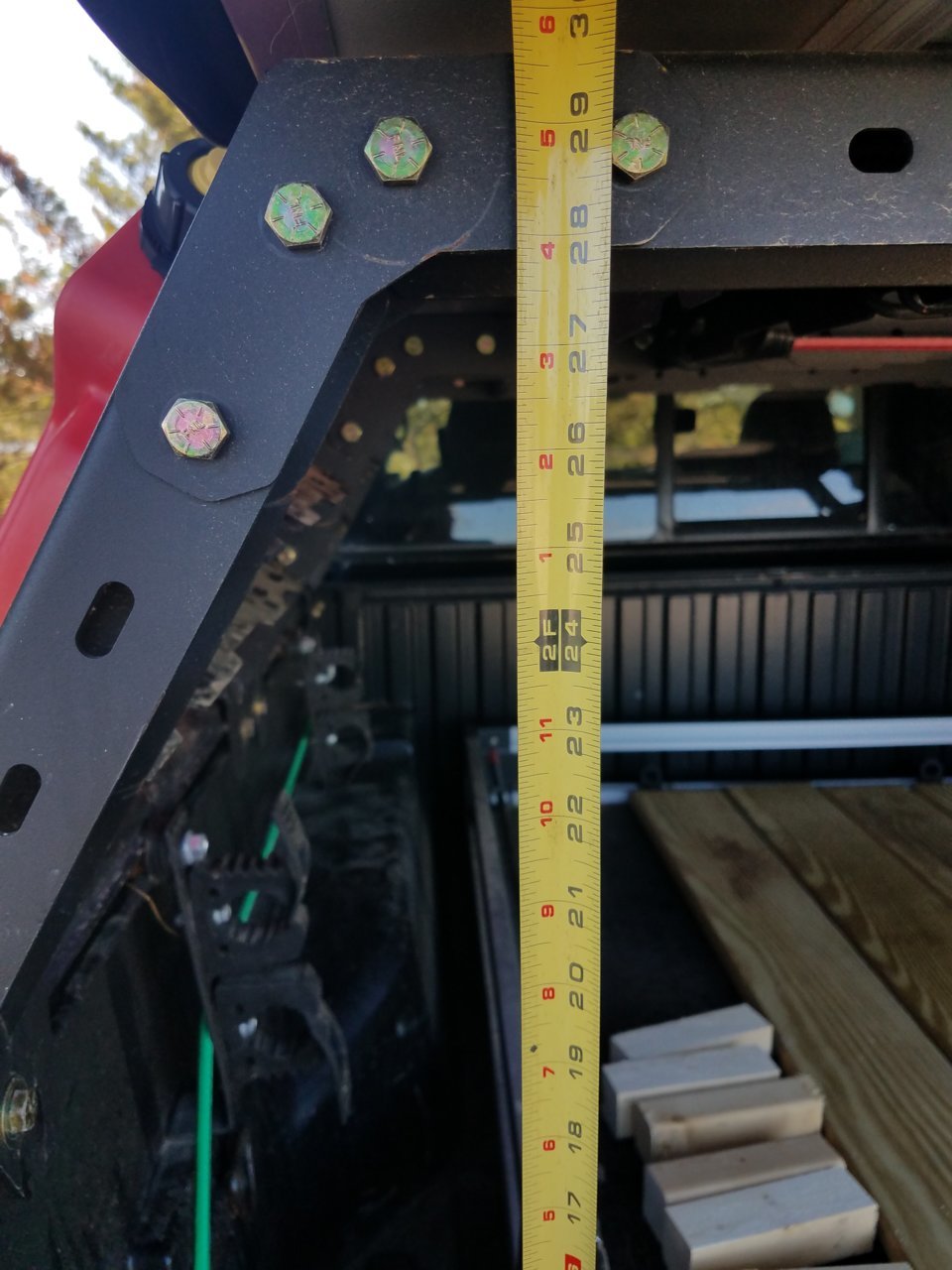

    Roughly about 28" clearance from the bed to the bottom of the rack.


    Hopefully this is what you're asking about.

    PcBuilder14 likes this.
  14. Oct 15, 2018 at 8:40 AM
    #14
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    23,236
    Gender:
    Male
    First Name:
    Brent
    Southern New Mexico
    Vehicle:
    2018 Tacoma TRD Off Road 4x4
    Awesome! Exactly what I was trying to figure out. Thanks!

    HIghlande2 likes this.
  15. Oct 15, 2018 at 9:57 AM
    #15
    RelentlessFabrication

    RelentlessFabrication [OP] relentlessfabrication.com Vendor

    Joined:
    Sep 12, 2018
    Member:
    #266012
    Messages:
    374
    Sparks, NV

    Thanks for helping out @HIghlande2 :cool:

    Relentless Fabrication
    www.relentlessfabrication.com

    HIghlande2 likes this.
  16. Oct 15, 2018 at 11:40 AM
    #16
    RelentlessFabrication

    RelentlessFabrication [OP] relentlessfabrication.com Vendor

    Joined:
    Sep 12, 2018
    Member:
    #266012
    Messages:
    374
    Sparks, NV
  17. Oct 19, 2018 at 1:21 PM
    #17
    sprjr

    sprjr @tacqito on IG

    Joined:
    Oct 5, 2018
    Member:
    #268456
    Messages:
    65
    First Name:
    Stephen
    Florida
    Vehicle:
    2018 Black Tacoma SR5
    ✅Tepui Tent + Relentless Bed Rack ✅Discoverer A/T + AR Black Wheels ✅SSO LoPro Bumper + Smittybilt X20 Winch ✅Dash MultiMount + Glovebox Organizer ✅Window Tint ✅TacoVinyl Raptor Grille + Smoked Lights ✅Decked Bed Storage System ✅TacomaBeast LED Head & Taillights ✅Black on Black on Black
    Is there a TW discount? This looks like the rack for me after discovering it here and reading up on it. A few months out on a cross country drive and need a place to put the tent!

  18. Oct 22, 2018 at 11:34 AM
    #18
    RelentlessFabrication

    RelentlessFabrication [OP] relentlessfabrication.com Vendor

    Joined:
    Sep 12, 2018
    Member:
    #266012
    Messages:
    374
    Sparks, NV
    There sure is! Code tw10off (save $10 on any order) at checkout on our website. Or mention your username when calling in to order.

    Relentless Fabrication
    www.relentlessfabrication.com

  19. Nov 8, 2018 at 3:32 PM
    #19
    RelentlessFabrication

    RelentlessFabrication [OP] relentlessfabrication.com Vendor

    Joined:
    Sep 12, 2018
    Member:
    #266012
    Messages:
    374
    Sparks, NV
    Project Recon likes this.
  20. Nov 8, 2018 at 3:44 PM
    #20
    HIghlande2

    HIghlande2 Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216802
    Messages:
    1,442
    Gender:
    Male
    First Name:
    Chris
    Wilmington, NC
    Vehicle:
    15 DCSB Sport
    Little of this and a little of that
