Relocating 7 Pin Trailer Harness

Discussion in '2nd Gen. Tacomas (2005-2015)' started by FL4x4Taco, Jun 30, 2009.

  1. Jun 30, 2009 at 5:45 AM
    #1
    FL4x4Taco

    FL4x4Taco [OP] Well-Known Member

    Joined:
    May 24, 2009
    Member:
    #17595
    Messages:
    323
    Gender:
    Male
    Ok, yes I've searched about how this is done etc. I have a new idea/question for us all. We seem to brainstorm well.. I'd like to relocate the factory Toyota harness to the left of the license plate. I've seen a lot of folks doing a aftermarket item that is intended to be surface mounted. I'd prefer to use the factory toyota unit. Ideas?

  2. Jun 30, 2009 at 6:06 AM
    #2
    trd2001

    trd2001 Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12416
    Messages:
    64
    Gender:
    Male
    Simi Valley
    Vehicle:
    08 Double Cab Long Bed 4x4 Sport
    OME 884 TSB Springs Firestone Airbags
    I just drilled a hole witha hole saw, and used two new bolts with locking nuts. It is stable enough.

  3. Jun 30, 2009 at 6:08 AM
    #3
    Hounddog

    Hounddog Active Member

    Joined:
    Apr 11, 2008
    Member:
    #5916
    Messages:
    26
    Calgary, Alberta
    Vehicle:
    '08 taco
  4. Jun 30, 2009 at 6:11 AM
    #4
    Hounddog

    Hounddog Active Member

    Joined:
    Apr 11, 2008
    Member:
    #5916
    Messages:
    26
    Calgary, Alberta
    Vehicle:
    '08 taco

    Any chance you could show off your work with a few pics of your finished result? :)

  5. Jun 30, 2009 at 6:14 AM
    #5
    FL4x4Taco

    FL4x4Taco [OP] Well-Known Member

    Joined:
    May 24, 2009
    Member:
    #17595
    Messages:
    323
    Gender:
    Male
    trd2001- yes, please take some pics andshow off your work. One other issue I have is when you cut a hole in the bumper, you now have the edges which are not chrome dipped or painted. Did you paint the exposed metal edge? I'm thinking about some HD Paint???

  6. Jun 30, 2009 at 7:20 AM
    #6
    BeachBoy

    BeachBoy Well-Known Member

    Joined:
    Apr 10, 2009
    Member:
    #15819
    Messages:
    657
    Gender:
    Male
    VT & QC
    Vehicle:
    '09 DC LB Sport+Leather
    Icon Extended COs / Camburg UCA / ATX Predator Teflon / Mickey Thompson MTZ / Color-Matched emblems / All-Pro Bumper & skids / Stubbs HD-SKO / Alcans custom leafs / U-Bolt flip / Icon rear resi shocks / Rear Bumper
    I used tie wraps and attached it to the bumper, until I get a new rear bumper.

    This is the stupidest place to put the harness for a truck that is meant to leave the pavement.

  7. Jun 30, 2009 at 10:09 AM
    #7
    Mandy3206

    Mandy3206 Well-Known Member

    Joined:
    Jun 4, 2009
    Member:
    #18031
    Messages:
    281
    Gender:
    Male
    San Juan PR
    Vehicle:
    Sand Pearl Black 06 6spd DC SB TRD OR Moded
    I relocated mine without drilling, I saw someone did this mod in TN and since I had some SS flat stock laying around I made me this.

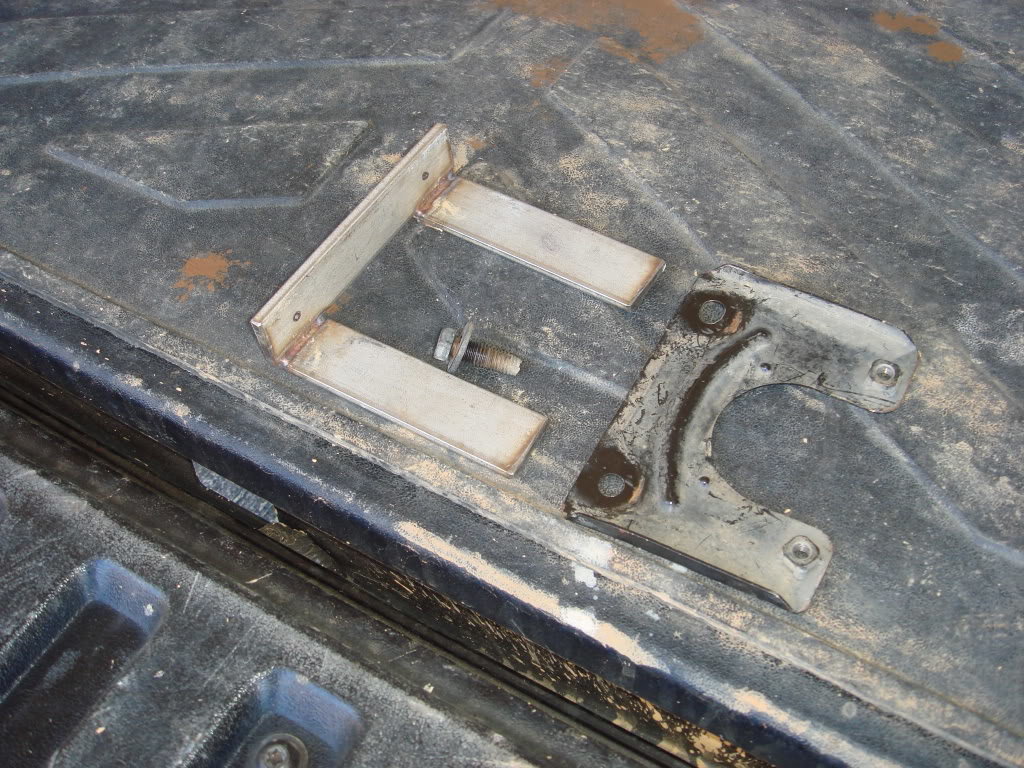

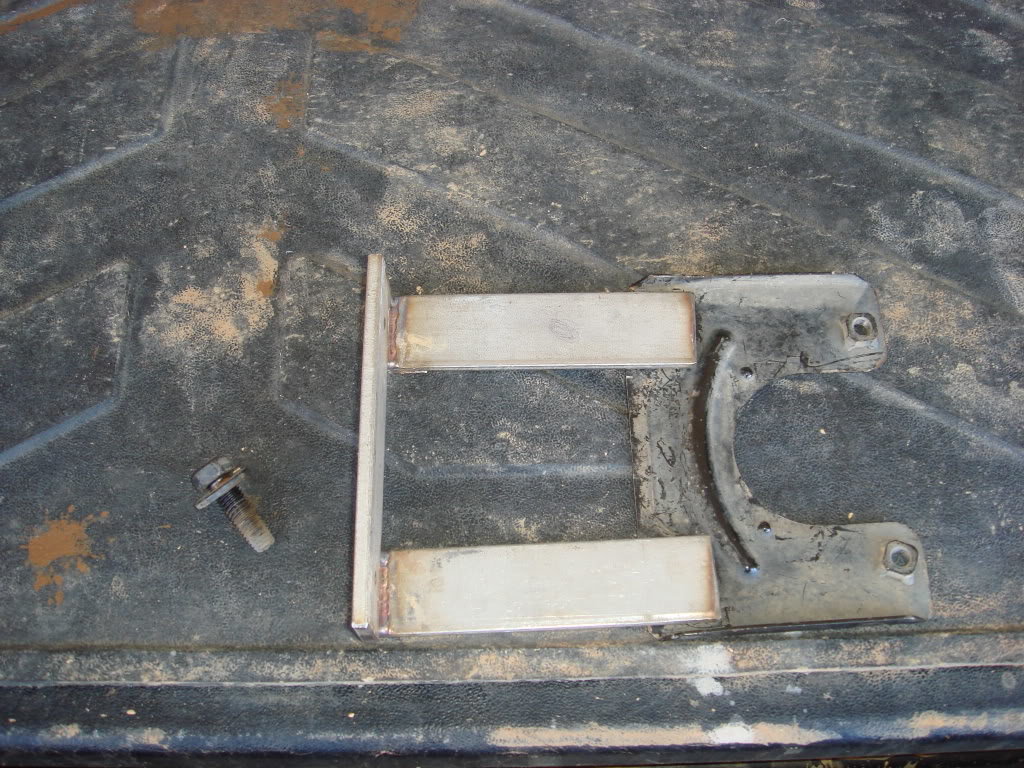

    This pics of the bracket were taken when it was being made last yr, I'll take some of it installed and post them later, the idea was to swing the OEM bracket back up between the spare and the hitch cross member.



    [​IMG]


    [​IMG]

  8. Jun 30, 2009 at 12:37 PM
    #8
    FL4x4Taco

    FL4x4Taco [OP] Well-Known Member

    Joined:
    May 24, 2009
    Member:
    #17595
    Messages:
    323
    Gender:
    Male
    yeah, gotta see some pics to get the idea.

  9. Jun 30, 2009 at 1:04 PM
    #9
    Mandy3206

    Mandy3206 Well-Known Member

    Joined:
    Jun 4, 2009
    Member:
    #18031
    Messages:
    281
    Gender:
    Male
    San Juan PR
    Vehicle:
    Sand Pearl Black 06 6spd DC SB TRD OR Moded

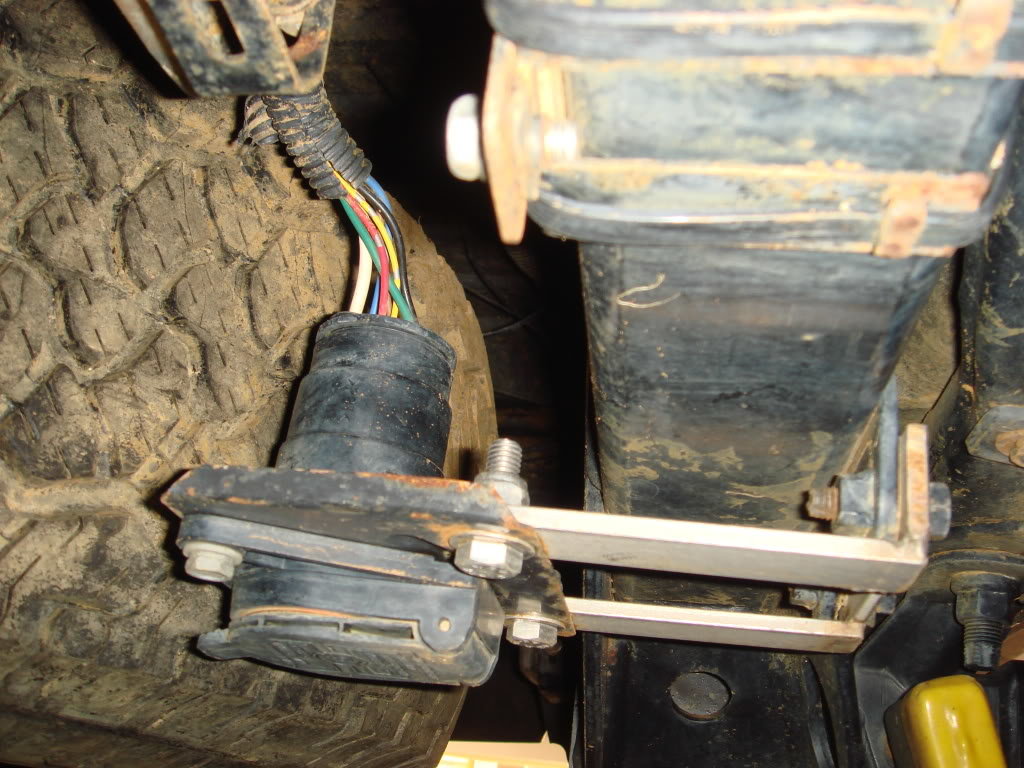

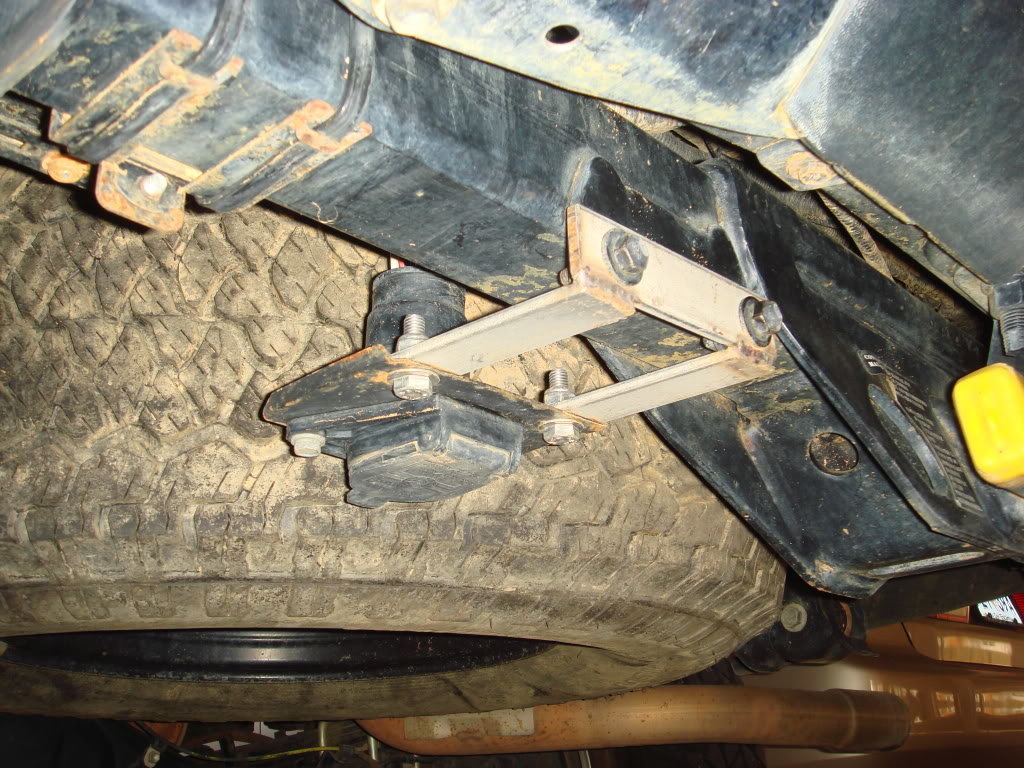

    Here we go

    [​IMG]

    [​IMG]

  10. Jun 30, 2009 at 9:52 PM
    #10
    trd2001

    trd2001 Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12416
    Messages:
    64
    Gender:
    Male
    Simi Valley
    Vehicle:
    08 Double Cab Long Bed 4x4 Sport
    OME 884 TSB Springs Firestone Airbags

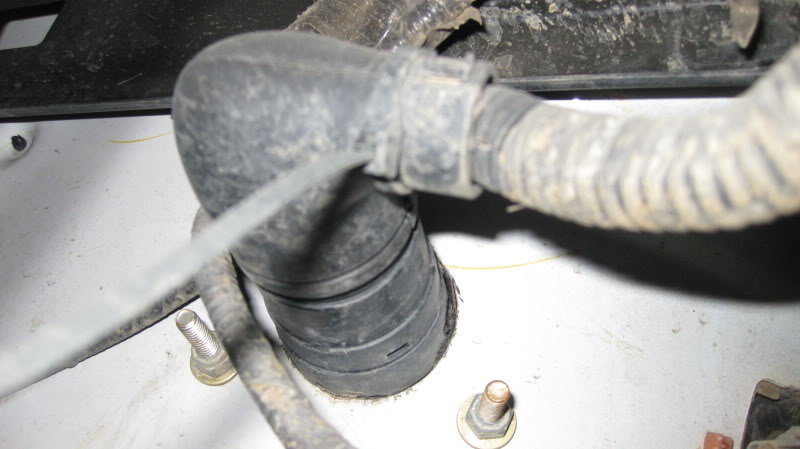

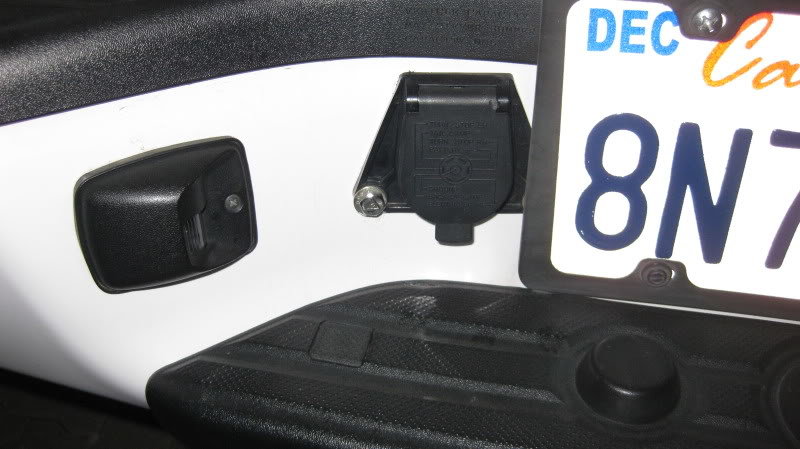

    Here is what i did. I did mess up when I was drilling ( should not of had those cold ones ). Its a bit off, at least its straight (Looks off in the picture) . I tried to put it on the flat area close to the plate. I did not want to get rid of the light in the bumper as I have seen elsewhere. I just applied touch up paint where i drilled. I had had it for a year.

    I got hit at work by a Honda Civic in my work parking lot yesterday. If it was still on the bottom, it would of been done.

    [​IMG]
    [​IMG]

  11. Jul 1, 2009 at 4:12 AM
    #11
    FL4x4Taco

    FL4x4Taco [OP] Well-Known Member

    Joined:
    May 24, 2009
    Member:
    #17595
    Messages:
    323
    Gender:
    Male
    Bingo. that's what i'm doing this weekend hopefully. Thanks!!

  12. Jul 1, 2009 at 4:47 AM
    #12
    is it windy yet?

    is it windy yet? Well-Known Member

    Joined:
    May 27, 2009
    Member:
    #17715
    Messages:
    46
    Gender:
    Male
    Kingston On
    Vehicle:
    '07 TRD Speedway blue
    extang trifecta tonneau, tinted windows, side step bars, sill plates, bug deflector, TRD exhaust, K&N filter, carbon fiber CD surround, tow kit, it's a Canadian truck so the TSB 4 leaf springs and bilstiens were done at the factory, vent visors, ipod adapter, and weather tech mats.

    I like this location best of all. Thanks for the idea. I don't like to look at the wire box at all, I rarely tow anything.

    Ron

  13. Apr 6, 2012 at 2:41 PM
    #13
    PS78

    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    5,925
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread
    I have to thank you OP for the great idea. Went to Ace hardware last night and picked up 2 L brackets with holes pre drilled. Had to widen the 2 holes closest to the hitch to use the OEM bolts. Painted them black and bought 2 black bolts and nuts for the new location of the 7 pin. Works well, took no time at all. I was worried about dropping the spare tire but the 7 pin is out of the way so the spare will drop like normal.

    AWESOME WORK!!!

  14. Apr 6, 2012 at 3:16 PM
    #14
    clcoyle

    clcoyle Well-Known Member

    Joined:
    Sep 12, 2011
    Member:
    #63371
    Messages:
    200
    Gender:
    Male
    Gonna do this one.

  15. Apr 6, 2012 at 3:22 PM
    #15
    dfrugia

    dfrugia Well-Known Member

    Joined:
    Feb 1, 2012
    Member:
    #71884
    Messages:
    431
    Gender:
    Male
    First Name:
    Goose
    Roswell, NM
    Vehicle:
    2012 DC TRD OFF RD 4X4
    Running boards w/steps, Weathertechs
    Sub'd

  16. Apr 6, 2012 at 3:42 PM
    #16
    tango down

    tango down Policy Ninja

    Joined:
    Oct 17, 2011
    Member:
    #65363
    Messages:
    575
    Gender:
    Male
    First Name:
    jeff
    peoples republik of IL
    Vehicle:
    12 Taco DCSB TRD Off Road
    LED interior, rail mounted ammo cans
    i like that below the truck / spare tire location the best.

    im doing it

  17. Apr 6, 2012 at 3:54 PM
    #17
    300rem7

    300rem7 Well-Known Member

    Joined:
    Nov 9, 2010
    Member:
    #45918
    Messages:
    277
    Gender:
    Male
    Arlington, Texas
    Vehicle:
    2011 TRD Offroad 4x4
  18. Sep 20, 2012 at 1:50 PM
    #18
    PS78

    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    5,925
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread

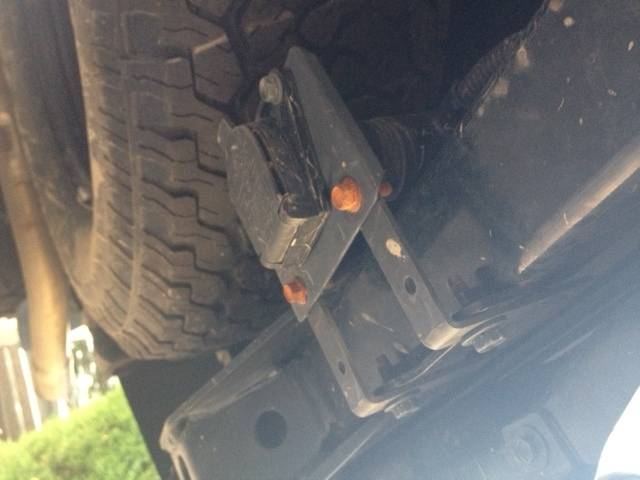

    After 6 months i need to get some new bolts, this time ill use ones that wont rust

    [​IMG]

  19. Sep 20, 2012 at 4:52 PM
    #19
    Atomic47

    Atomic47 Well-Known Member

    Joined:
    Aug 27, 2011
    Member:
    #62429
    Messages:
    230
    Gender:
    Male
    First Name:
    Denis
    Manitoba, Canada
    Vehicle:
    08 V6 4x4 TRD Sport
    Leveling kit, AAL, air-ride, Rear diff breather mod, Illuminated 4wd Switch, 4 more D rings, fog lights anytime, 7 pin relocate, Coca-Cola mod, TRD Off-Road hook, Weathertechs, secret custom cargo light, 09 lower dash panel, heated seats, GROM audio with blutooth
