Remote Start Wiring Pictorial

Discussion in 'Technical Chat' started by hookedontronics, Jan 10, 2012.

  1. Jan 10, 2012 at 7:14 AM
    #1
    hookedontronics

    hookedontronics [OP] Well-Known Member

    Joined:
    Jan 6, 2010
    Member:
    #28863
    Messages:
    2,783
    Gender:
    Male
    First Name:
    Jake
    Glenville, NY
    Vehicle:
    2010 DC Off Road 4x4
    Icon extended travel 3.5" front coilovers, DSM UCAs, TSB leaf pack w/ wheelers AAL, All Pro U-bolt flip kit, Walker Evans 2.0 rear shocks, 18" XD Monster rims, Nitto trail grappler 285/65R18 Tires, Color matched grill, Grillcraft, Kragen HIDs, Carling switches, my bed light mod, diff drop, Alpine IVA-W505, JL Audio C5 componets and coaxials, JL 300/4 and 250/1 amps and JL stealthbox, wheathertechs, avs vent visors, toyota bed x-tender, alcantara center console cover and door pocket covers, console vault, color matched mirrors, heated mirrors, etc etc etc
    Yesterday i had a local guy install a python 580 for me. He made this thread on the12volt.com i've copied it here. I've seen a lot of question here lately on remote starters and installs. I've done a lot of custom audio in the past but didn't want to mess with a remote start on my truck the first time around by myself. This should help people looking for what specific wires and connectors they will need to hook up to do do this install. FYI the python 580 is the same as the viper 5301. This guy has been doing installs for 7 years and this took about 4 hours to compelete start to finish, we spent a little bit of time shooting the shit but just saying even for a professional, installed, this is no quick job.

    http://www.the12volt.com/installbay/forum_posts.asp~TID~130004~PN~1


    Vehicle: 2010 Toyota Tacoma Automatic
    Starter: Python 580
    Bypass: Key-Override-All (Fortin)

    Disassembly:
    - Remove Door sill panel and driver kick panel

    - Pop off small plastic "door" on right side of knee bolster and remove (2) 10mm bolts on either side of bolster

    Click for full-size image (1024 x 768)
    [​IMG]

    - Remove (3) 10mm bolts on metal support bracket. Lift up and out to remove bracket.

    Click for full-size image (1024 x 768)
    [​IMG]

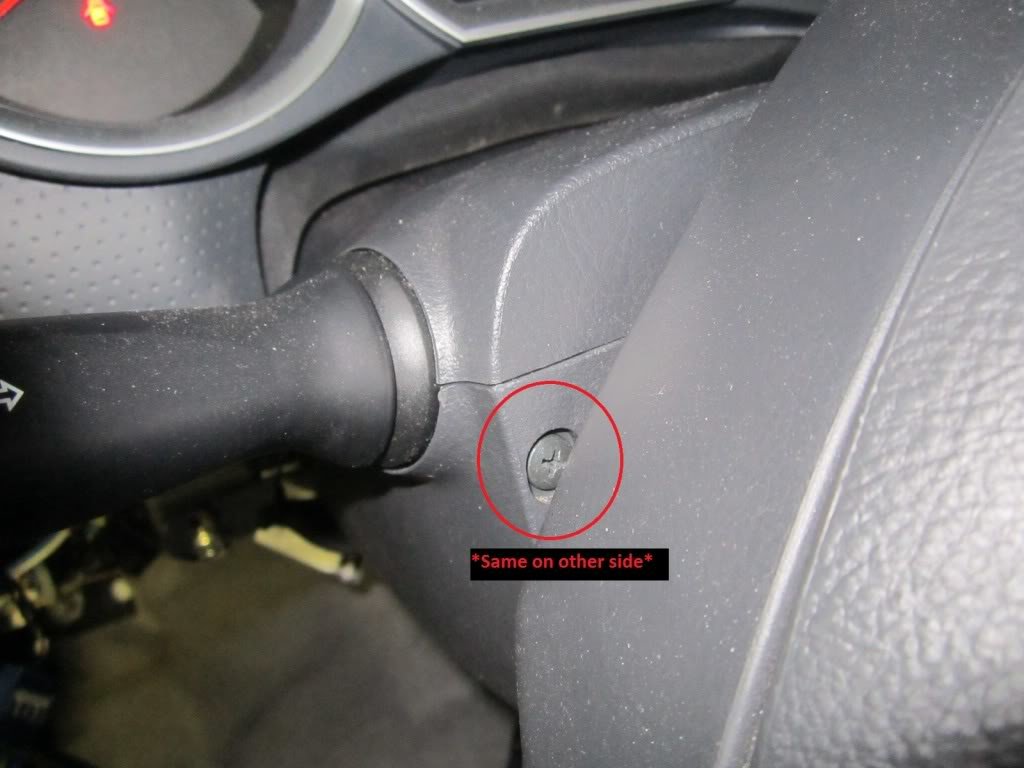

    - Remove (2) Phillips head screws behind steering wheel and remove lower steering column plastic.

    Click for full-size image (1024 x 768)
    [​IMG]

    Installation:
    - Main ignition harness at ignition switch

    Click for full-size image (1024 x 768)
    [​IMG]

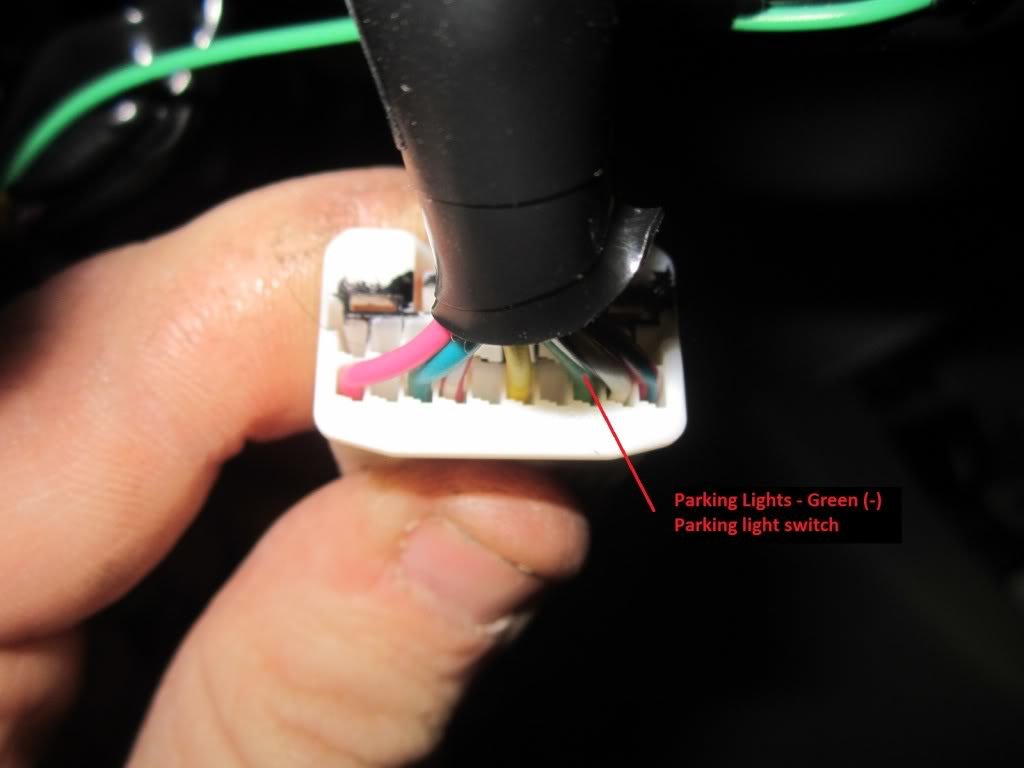

    - Parking lights (-) at light switch

    Click for full-size image (1024 x 768)
    [​IMG]

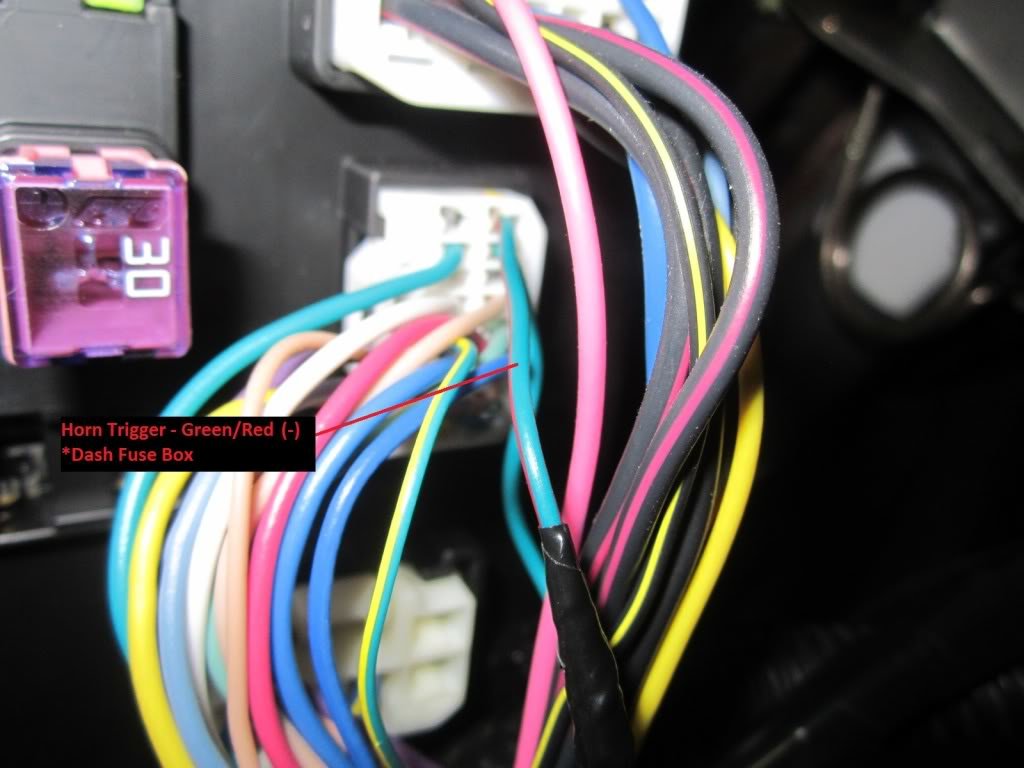

    - Brake switch and horn at front of fuse panel

    Click for full-size image (1024 x 768)
    [​IMG]

    Click for full-size image (1024 x 768)
    [​IMG]

    - Door locks found in Driver Kick panel coming from driver door.

    Click for full-size image (1024 x 768)
    [​IMG]

    - Keysense at ignition switch

    Click for full-size image (1024 x 768)
    [​IMG]

    - Data wires found at ignition switch

    Click for full-size image (1024 x 768)
    [​IMG]

    No pictured:
    - Tach signal found at OBD connector
    - Hood pin was added for installation.

  2. Jan 17, 2012 at 11:30 AM
    #2
    prae

    prae Well-Known Member

    Joined:
    May 14, 2009
    Member:
    #17222
    Messages:
    154
    Gender:
    Male
    Calgary, AB
    Vehicle:
    06 4x4 SR5 BSP DCLB
    Bilstein 5100s, eibach springs, AAL, TRD anthracite FJC rims, PIAA Fogs, Pace-Edwards hard rolling tonneau
    thanks for sharing!

  3. Aug 10, 2012 at 3:19 AM
    #3
    SpecialED

    SpecialED Active Member

    Joined:
    Sep 7, 2009
    Member:
    #22412
    Messages:
    39
    Gender:
    Male
    First Name:
    Ed
    Southtern MD (Chuck County)
    Vehicle:
    06' Tacoma Double Cab
    N/A
    Very nice write up! Thanks!

  4. Dec 5, 2012 at 3:20 PM
    #4
    RubberDucky

    RubberDucky Well-Known Member

    Joined:
    Jun 12, 2012
    Member:
    #80576
    Messages:
    47
    Gender:
    Male
    First Name:
    Dillon
    North Pole, AK
    Vehicle:
    2010 Sport SR5 LB
    Stereo install.
    Thank you for this! I also have a 2010 Tacoma and I am wondering how to tell whether or not I need a Bypass. If I do I will buy the same one you did, it only requires 1 key and I only have 1! Haha!

    Thanks!

  5. Dec 5, 2012 at 6:34 PM
    #5
    Jones

    Jones Well-Known Member

    Joined:
    Aug 10, 2008
    Member:
    #8460
    Messages:
    239
    Gender:
    Male
    Texas DFW
    Vehicle:
    06 SSM Prerunner TRD-OFFROAD
    Front: 5100@1.75 with SR5 coils; Rear: 5100 and 1.5 Toytec aal; Tires: Hankook 265/75R16 RF08 ATM; Wheels: powdercoated off-road wheels with FJ TRD center caps
    The red flashing car with the key inside it, next to the clock, if you have this flashing light you will need a bypass. There is also a dot on your key or a G on the key for some years then you have the immobilizer and will need a bypass for the remote start.

    [​IMG]

  6. Dec 6, 2012 at 12:41 AM
    #6
    RubberDucky

    RubberDucky Well-Known Member

    Joined:
    Jun 12, 2012
    Member:
    #80576
    Messages:
    47
    Gender:
    Male
    First Name:
    Dillon
    North Pole, AK
    Vehicle:
    2010 Sport SR5 LB
    Stereo install.
    I had always wondered what that was. Now that I know, I need to figure out what bypass to purchase. Hopefully it will work in -50 and it will be easy to install! I don't need anything making this more complicated than it already is. Which is very complicated considering my lack of experience in this area.

    I like the looks of the key override all. Anything I need to know before buying one? I have the dot key, not the G. It comes preloaded for the Taco?

  7. Dec 6, 2012 at 11:50 AM
    #7
    Jones

    Jones Well-Known Member

    Joined:
    Aug 10, 2008
    Member:
    #8460
    Messages:
    239
    Gender:
    Male
    Texas DFW
    Vehicle:
    06 SSM Prerunner TRD-OFFROAD
    Front: 5100@1.75 with SR5 coils; Rear: 5100 and 1.5 Toytec aal; Tires: Hankook 265/75R16 RF08 ATM; Wheels: powdercoated off-road wheels with FJ TRD center caps
    I used the Xpress PKALL in my 06. It was the easiest part of the install. The Fortin and the PKALL look to be identical if not the exact same with different labels on them.

    I would get one that is already flashed if ordering online and one that does not require a key to stay in the truck to work.
