Remove and replace your scratched up instrument cluster plexiglass

Discussion in '3rd Gen. Tacomas (2016+)' started by Blazingbluesport, Jul 30, 2017.

  1. Jul 30, 2017 at 10:31 AM
    #1
    Blazingbluesport

    Blazingbluesport [OP] Well-Known Member

    Joined:
    Dec 1, 2015
    Member:
    #171181
    Messages:
    1,441
    Gender:
    Male
    The OC!
    Vehicle:
    2016 TRD Sport 4x4 double cab.

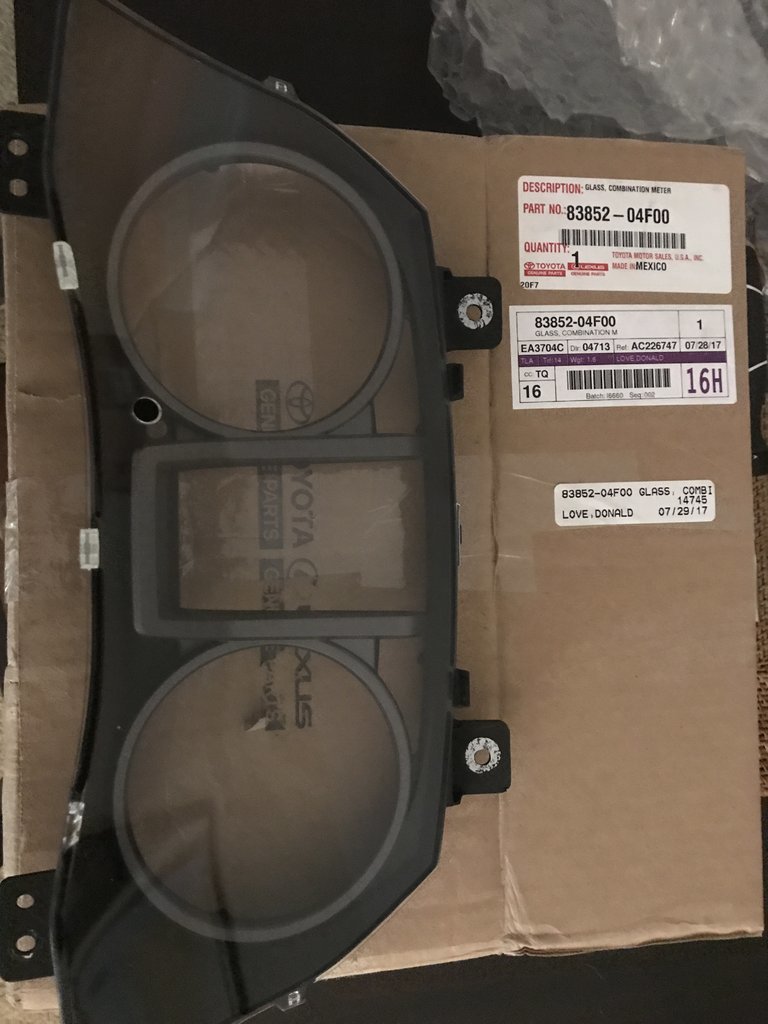

    I got tired of seeing the stupid amount of scratches on my instrument cluster plexiglass, so I decided to swap it out. IMG_2911.jpg
    It was $30 which I guess isn't too bad considering how much I have spent on other things for this truck.
    It was pretty simple took me about 20 minutes taking my time and being careful.
    First thing is to remove the trim bezels that go around you instrument cluster and head unit. Very simple lower your steering wheel down as low as it will go. Starting at the instrument cluster side of each bezel get your fingers behind as best you can and pull sharply but gently straight toward you. They are not held in by screws just clips.

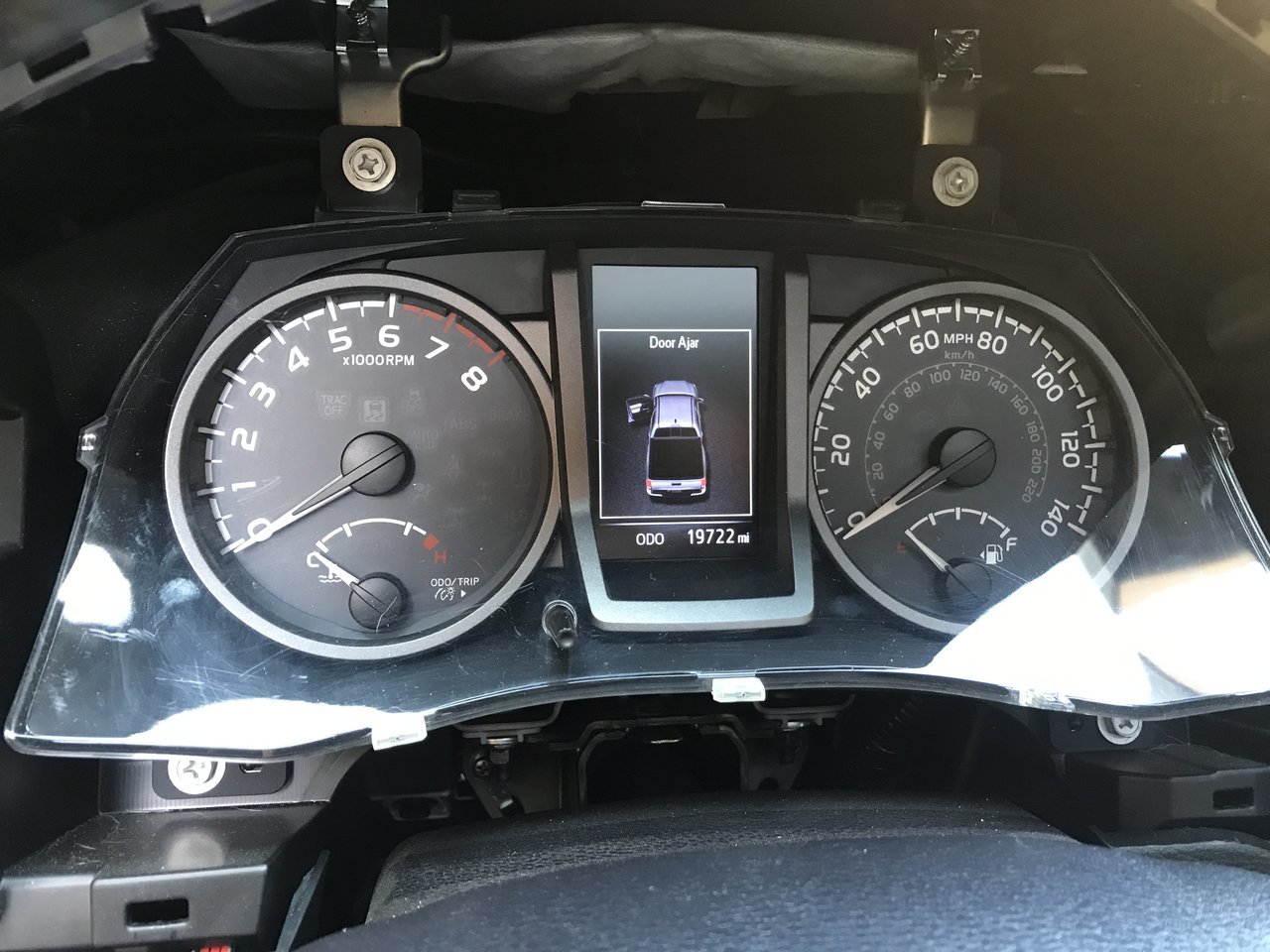

    Once you have the bezals off you are left with this. IMG_2910.jpg
    Use a large Phillips head and unscrew the four screws.
    The entire instrument cluster will come out.

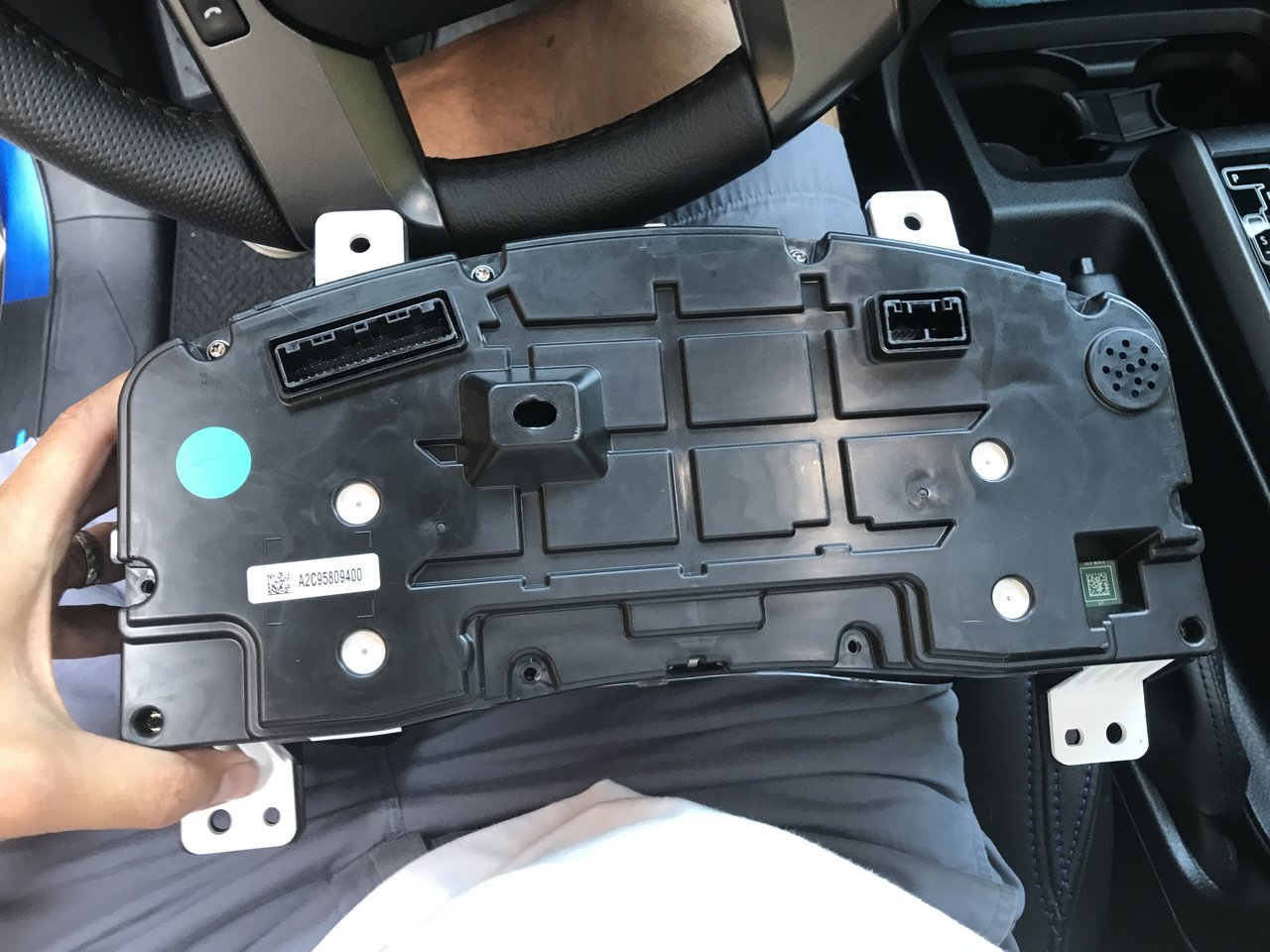

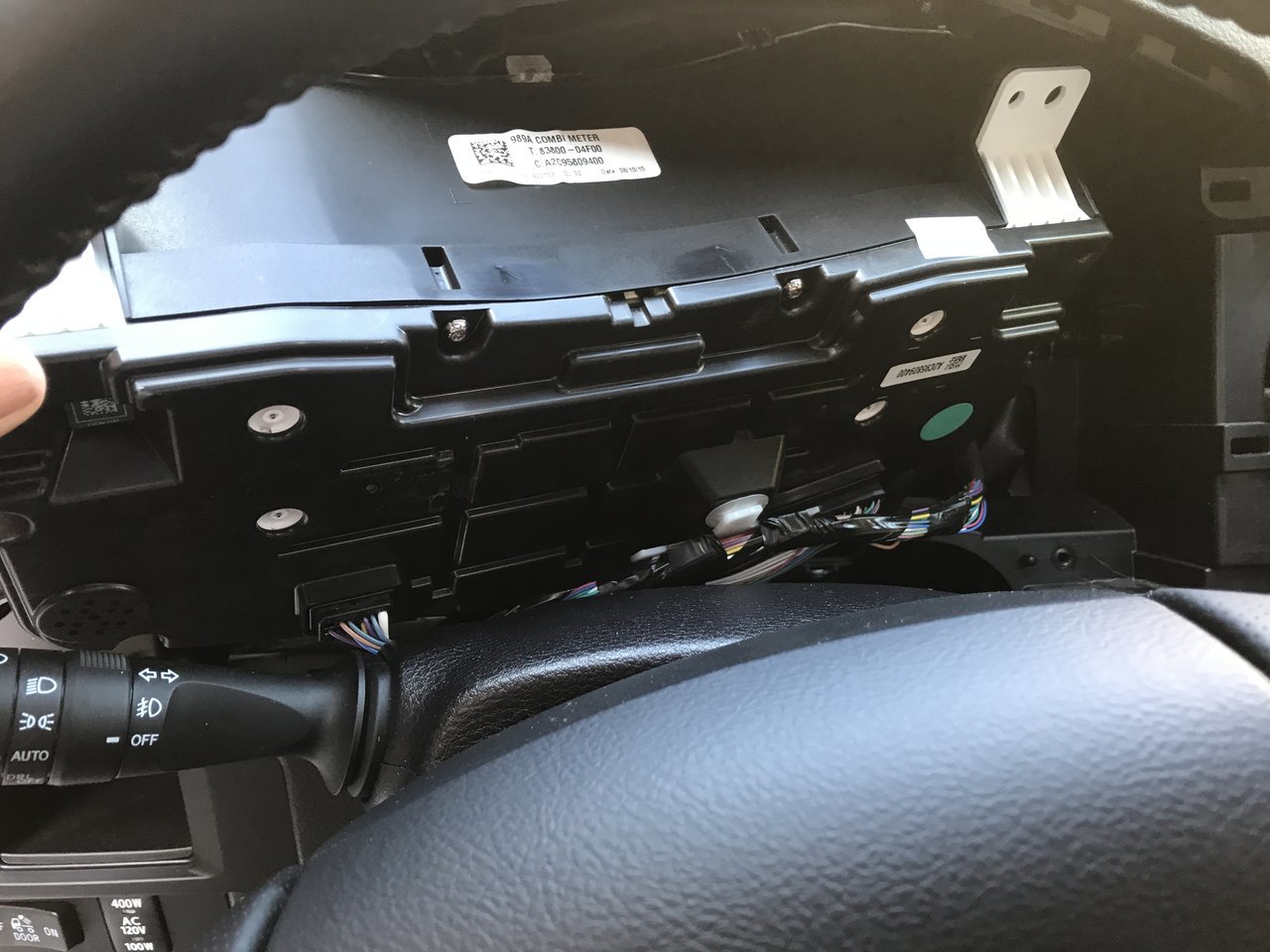

    There are two electronic connections that unclip easily. The center white clip has no wires attached and is just there to keep the wiring harness in place, gently pull it out. And you end up with IMG_2913.jpg

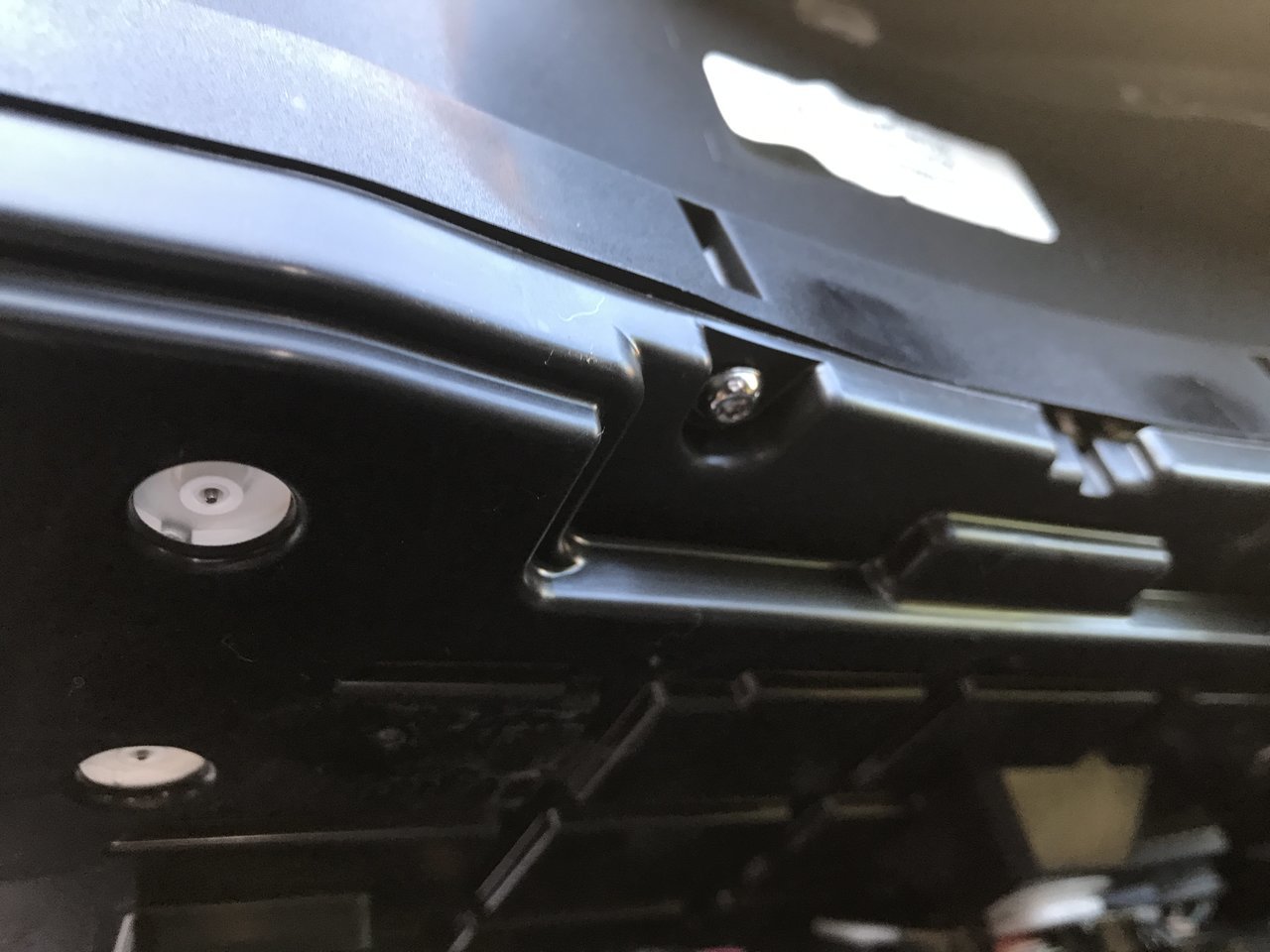

    There are half a dozen small screws that you need a #15 star bit to unscrew. IMG_2914.jpgThat's it lift the old plexiglass assembly off and reverse the process. I kept the protective film that comes on the new one until after I had installed the unit back inplace and before I put the bezels back on.
    I figured this gives me my old one to practice putting 3m protective film on and if it works out okay I'll do it to the new one.IMG_2915.jpg If not I will make a point never ever ever to touch the plexiglass on the new one except for with compressed air. I'll edit this later after my 3m film comes and how that worked out.

    Toynado, aposey89, Arianna and 26 others like this.
  2. Jul 30, 2017 at 11:11 AM
    #2
    Hobbs

    Hobbs Un-Known Member

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    2,736
    Gender:
    Male
    on U.S. Route 395 in California.
    Vehicle:
    2016 TRD Off Road AC, AT, QuickSand
    Subbed for part number.

  3. Jul 30, 2017 at 11:12 AM
    #3
    Unchained 5150

    Unchained 5150 Well-Known Member

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    37,943
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    It's on the box

    Synergy001, JaCado, SLO/TACO and 4 others like this.
  4. Jul 30, 2017 at 11:14 AM
    #4
    Unchained 5150

    Unchained 5150 Well-Known Member

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    37,943
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    [​IMG]

    vprgts, JaCado, scottalot and 2 others like this.
  5. Jul 30, 2017 at 11:16 AM
    #5
    Hobbs

    Hobbs Un-Known Member

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    2,736
    Gender:
    Male
    on U.S. Route 395 in California.
    Vehicle:
    2016 TRD Off Road AC, AT, QuickSand
    Yes, that's why I subscribed to the thread.

  6. Jul 30, 2017 at 11:18 AM
    #6
    Unchained 5150

    Unchained 5150 Well-Known Member

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    37,943
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Ah sorry about that I thought maybe you just didn't see it brother.

  7. Jul 30, 2017 at 11:18 AM
    #7
    Hobbs

    Hobbs Un-Known Member

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    2,736
    Gender:
    Male
    on U.S. Route 395 in California.
    Vehicle:
    2016 TRD Off Road AC, AT, QuickSand
    No Worries!

    GaryLaurenLogan and rjbiii like this.
  8. Jul 30, 2017 at 11:19 AM
    #8
    Hoangde

    Hoangde Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    599
    Thanks :thumbsup:

  9. Jul 30, 2017 at 11:21 AM
    #9
    the_dau

    the_dau Well-Known Member

    Joined:
    Jul 24, 2016
    Member:
    #192803
    Messages:
    998
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2017 Inferno TRD OR DCSB
    good to know we can get them separately. mine's scratched up too

  10. Jul 30, 2017 at 11:21 AM
    #10
    Bob_S

    Bob_S Well-Known Member

    Joined:
    Apr 27, 2017
    Member:
    #217533
    Messages:
    46
    Gender:
    Male
    Vehicle:
    2016 TRD OR 4x4 DCSB
    None yet
    Thanks...Great job!, Where did you get the part from, dealer or somewhere else?

    GaryLaurenLogan likes this.
  11. Jul 30, 2017 at 11:30 AM
    #11
    Lost In The Woods

    Lost In The Woods Well-Known Member

    Joined:
    Jul 11, 2016
    Member:
    #191800
    Messages:
    915
    Gender:
    Male
    First Name:
    Eric
    Buckley, WA
    Vehicle:
    16 DCSB TRD Off Road
    An unusually high amount of pinstriping.
    Same reason.:thumbsup:

    Marky808, GaryLaurenLogan and Hobbs like this.
  12. Jul 30, 2017 at 11:33 AM
    #12
    CascadianKid

    CascadianKid Active Member

    Joined:
    Dec 9, 2016
    Member:
    #204470
    Messages:
    33
    Gender:
    Male
    First Name:
    Colby
    Olympic Peninsula
    Vehicle:
    2017 MGM DCSB Sport
    Thanks for posting this!! Made the mistake of using a microfiber on mine...

  13. Jul 30, 2017 at 11:36 AM
    #13
    Blazingbluesport

    Blazingbluesport [OP] Well-Known Member

    Joined:
    Dec 1, 2015
    Member:
    #171181
    Messages:
    1,441
    Gender:
    Male
    The OC!
    Vehicle:
    2016 TRD Sport 4x4 double cab.
    Local dealer. Took them a day to get it in.

    GaryLaurenLogan and Bob_S like this.
  14. Jul 30, 2017 at 11:39 AM
    #14
    Blazingbluesport

    Blazingbluesport [OP] Well-Known Member

    Joined:
    Dec 1, 2015
    Member:
    #171181
    Messages:
    1,441
    Gender:
    Male
    The OC!
    Vehicle:
    2016 TRD Sport 4x4 double cab.
    I think more than a few of us made the mistake of using a microfiber on it. It's clearly made out of cheapest worst plexiglass they could find. Another quality control issue by the number of folks who seem to experience it.

  15. Jul 30, 2017 at 11:42 AM
    #15
    whopper

    whopper 2016 MGM 4x4 double cab

    Joined:
    Jun 18, 2011
    Member:
    #58464
    Messages:
    1,346
    Gender:
    Male
    First Name:
    wayne
    north carolina
    Vehicle:
    2016 tacoma double cab 4x4 MGM
    On going
    Just ordered mine

    GaryLaurenLogan likes this.
  16. Jul 30, 2017 at 11:47 AM
    #16
    Hoangde

    Hoangde Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    599
    @gunny1005
    Order from Gunny1005. He can get you a good price to your door

    Last edited: Jul 30, 2017
  17. Jul 30, 2017 at 11:51 AM
    #17
    Johnny0

    Johnny0 Well-Known Member

    Joined:
    Oct 23, 2011
    Member:
    #65706
    Messages:
    75
    Gender:
    Male
    Los Angeles
    Vehicle:
    08 prerunner
    bone stock
    you can try the super fine polish used on paint with a foam pad - it takes out all the scratches and is much cheaper

    Dirtboy2009 and wrx_alex like this.
  18. Jul 30, 2017 at 11:55 AM
    #18
    desertrunner24

    desertrunner24 Shepherd @thy church of @ODNAREM

    Joined:
    Oct 30, 2016
    Member:
    #201101
    Messages:
    2,744
    Gender:
    Male
    First Name:
    Jake
    Fresno , CA
    Vehicle:
    06 TRDORAC Prerunner
    5/3 lift on 33s. trd intake, tbs, headers, and mbrp cat back. 13 steering wheel and headlight/turn signal switch swap. l.e.d bed light. maxtracs, ADS extended travel coilovers, camburg uca, dakar leaf packs, fox 2.0. Scs sr8 matte bronze w/295/70/17 Cooper st maxx. Fog light anytime mod with caliraised led 2x2 pods
    I'm wondering the same thing? My 06 has lasted 11 years and only use microfiber towels on it and it's not scratched up at all

    wrx_alex, EB Group and PapaBear like this.
  19. Jul 30, 2017 at 12:05 PM
    #19
    Blazingbluesport

    Blazingbluesport [OP] Well-Known Member

    Joined:
    Dec 1, 2015
    Member:
    #171181
    Messages:
    1,441
    Gender:
    Male
    The OC!
    Vehicle:
    2016 TRD Sport 4x4 double cab.
    Unfortunately it's got a slight curve to it so it's not like you could get a piece of glass cut, and the plexiglass seems to be attached to the rest of the assembly by an adhesive so you would screw it up trying to take it apart. I am cautiously optimistic the 3M protective film works.

  20. Jul 30, 2017 at 12:09 PM
    #20
    ppham444

    ppham444 Well-Known Member

    Joined:
    Mar 28, 2010
    Member:
    #34175
    Messages:
    1,843
    Gender:
    Male
    First Name:
    Phuong
    Portland, OR
    Vehicle:
    2010 Double cab 4X4 TRD Sport with JBL
    Redline Tuning hood struts, tinted windows, FX-R HID projector retrofit headlights, AMP power steps
    Maybe try spraying on clear plasti dip?
