Replacement back-up camera

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Connormc11, Sep 16, 2017.

  1. Sep 16, 2017 at 5:46 PM
    #1
    Connormc11

    Connormc11 [OP] Jangler

    Joined:
    Nov 19, 2013
    Member:
    #116879
    Messages:
    387
    Gender:
    Male
    First Name:
    Connor
    Norfolk VA
    Vehicle:
    2010 DCSB TRD-Offroad
    Alright tacoma world I need some help. I just broke the backup camera. Can I get any cheap Amazon replacement and just splice it Into the exisiting four pin connector? I have it mounted on my swingout so it can be any camera I just want to reuse the existing wiring. Is this more complicated than I think? Any sugestions on cameras? I have the version where it displays in rearview mirror.

  2. Sep 16, 2017 at 5:56 PM
    #2
    Doogz

    Doogz Well-Known Member

    Joined:
    Apr 23, 2017
    Member:
    #217122
    Messages:
    765
    Gender:
    Male
    First Name:
    Bryce
    Western MA
    Vehicle:
    2009 MGM AC
    yep..
    IIRC the oem camera is 6v, aftermarket will be 12v. But the coax output should be the same. Don't know if that helps.

  3. Sep 16, 2017 at 5:58 PM
    #3
    Connormc11

    Connormc11 [OP] Jangler

    Joined:
    Nov 19, 2013
    Member:
    #116879
    Messages:
    387
    Gender:
    Male
    First Name:
    Connor
    Norfolk VA
    Vehicle:
    2010 DCSB TRD-Offroad
    Sounds like I might have to run separate power for camera but should should be able to splice into stock video input wires.

    Doogz likes this.
  4. Sep 16, 2017 at 6:15 PM
    #4
    Connormc11

    Connormc11 [OP] Jangler

    Joined:
    Nov 19, 2013
    Member:
    #116879
    Messages:
    387
    Gender:
    Male
    First Name:
    Connor
    Norfolk VA
    Vehicle:
    2010 DCSB TRD-Offroad
    What i really need is if anyone has the wiring diagram for the camera so I know which wire does what I can't find it.

  5. Sep 16, 2017 at 7:36 PM
    #5
    Connormc11

    Connormc11 [OP] Jangler

    Joined:
    Nov 19, 2013
    Member:
    #116879
    Messages:
    387
    Gender:
    Male
    First Name:
    Connor
    Norfolk VA
    Vehicle:
    2010 DCSB TRD-Offroad
    Found what i needed. so now i just need to find a 6v camera...


    Attached Files:

  6. Sep 16, 2017 at 7:39 PM
    #6
    Justinlhc

    Justinlhc Not looking for a relationship

    Joined:
    Jul 7, 2015
    Member:
    #158945
    Messages:
    3,574
    Or you could run the 6v input into a relay that sends a 12v output to your new camera. In case you can't locate the proper 6v camera...

  7. Sep 16, 2017 at 7:42 PM
    #7
    Connormc11

    Connormc11 [OP] Jangler

    Joined:
    Nov 19, 2013
    Member:
    #116879
    Messages:
    387
    Gender:
    Male
    First Name:
    Connor
    Norfolk VA
    Vehicle:
    2010 DCSB TRD-Offroad

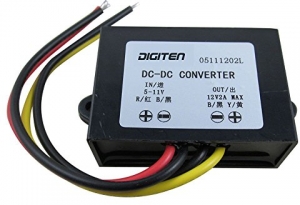

    yea it seems like OEM is the only viable option for a 6v camera and it is still way cheaper to buy a 6v to 12v converter and camera then just a 6 volt camera.

  8. Sep 16, 2017 at 7:45 PM
    #8
    Justinlhc

    Justinlhc Not looking for a relationship

    Joined:
    Jul 7, 2015
    Member:
    #158945
    Messages:
    3,574
    Those cheap ass license plate mounted cameras are garbage anyways. Make sure you buy one with the proper orientation so it transmits the way you want. Some have a wire you can cut to reverse the image if being used as a backup. I bought a tiny ~5/8" camera and drilled a hole into my bumper for it that worked pretty well. I could see the hitch ball from it so it was perfect.

  9. Sep 16, 2017 at 7:50 PM
    #9
    Doogz

    Doogz Well-Known Member

    Joined:
    Apr 23, 2017
    Member:
    #217122
    Messages:
    765
    Gender:
    Male
    First Name:
    Bryce
    Western MA
    Vehicle:
    2009 MGM AC
    yep..
    Maybe it will work with just bypassing the power from the harness and using a 12v lead from the reverse light to new camera?

    Justinlhc likes this.
  10. Sep 16, 2017 at 7:51 PM
    #10
    Connormc11

    Connormc11 [OP] Jangler

    Joined:
    Nov 19, 2013
    Member:
    #116879
    Messages:
    387
    Gender:
    Male
    First Name:
    Connor
    Norfolk VA
    Vehicle:
    2010 DCSB TRD-Offroad
  11. Sep 16, 2017 at 7:56 PM
    #11
    Justinlhc

    Justinlhc Not looking for a relationship

    Joined:
    Jul 7, 2015
    Member:
    #158945
    Messages:
    3,574
  12. Sep 16, 2017 at 7:58 PM
    #12
    Connormc11

    Connormc11 [OP] Jangler

    Joined:
    Nov 19, 2013
    Member:
    #116879
    Messages:
    387
    Gender:
    Male
    First Name:
    Connor
    Norfolk VA
    Vehicle:
    2010 DCSB TRD-Offroad
    Agreed, but i don't see that piece as a complicated piece of hardware especially if i add some silicone to it like i do with most cheap electronic items i put out in the elements. guess the only way is to find out.

  13. Sep 16, 2017 at 9:02 PM
    #13
    Doogz

    Doogz Well-Known Member

    Joined:
    Apr 23, 2017
    Member:
    #217122
    Messages:
    765
    Gender:
    Male
    First Name:
    Bryce
    Western MA
    Vehicle:
    2009 MGM AC
    yep..
    I'd definitely be interested in seeing your final setup. My oem camera also failed and I have an aftermarket in a separate location. Ideally I want to fix up the original location with a new setup.

  14. Sep 16, 2017 at 9:19 PM
    #14
    Connormc11

    Connormc11 [OP] Jangler

    Joined:
    Nov 19, 2013
    Member:
    #116879
    Messages:
    387
    Gender:
    Male
    First Name:
    Connor
    Norfolk VA
    Vehicle:
    2010 DCSB TRD-Offroad
    yea i have it a bit easier since i cant put it in the tailgate handle anymore due to my tire carrier so im not limited by OEM camera.

  15. Sep 23, 2017 at 1:42 PM
    #15
    Connormc11

    Connormc11 [OP] Jangler

    Joined:
    Nov 19, 2013
    Member:
    #116879
    Messages:
    387
    Gender:
    Male
    First Name:
    Connor
    Norfolk VA
    Vehicle:
    2010 DCSB TRD-Offroad
    ok. so i bought a camera that had a four pin connector, but when i cut it off it only had three wires... I'm assuming positive negative and a trigger wire?? ill attach some pictures and see if you electrical gurus could help figure out witch wires go where.

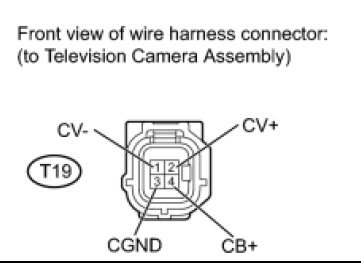

    Truck Pin Connector:

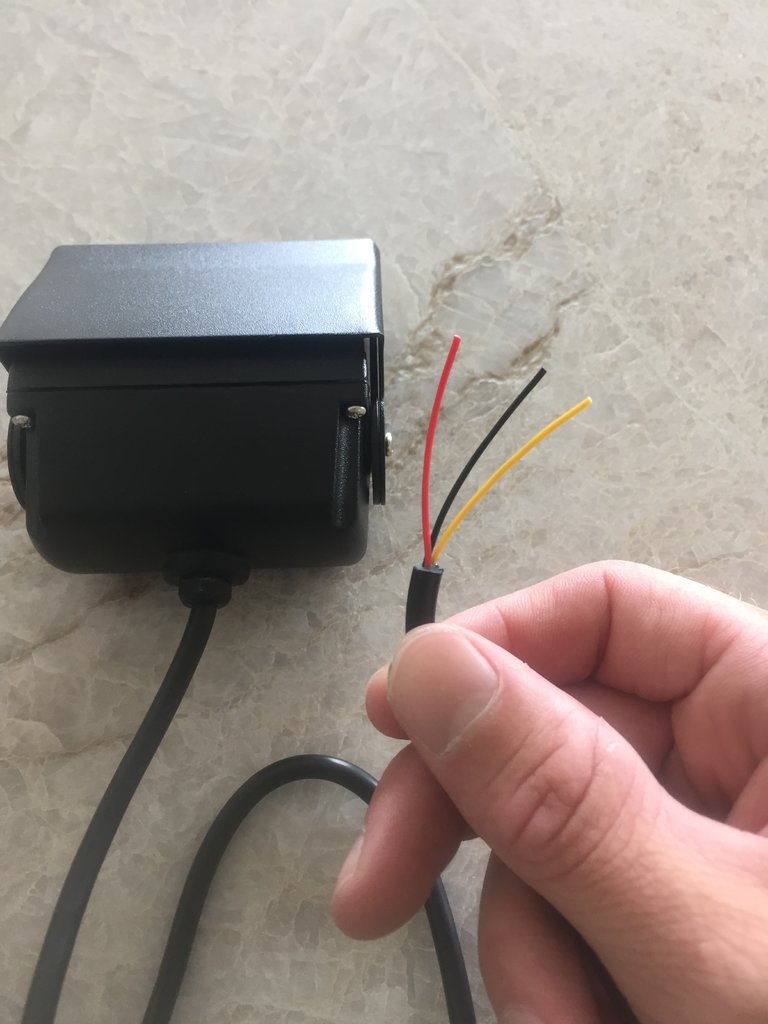

    Camera:


  16. Sep 23, 2017 at 3:09 PM
    #16
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    935
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 280+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod. Heated seats
    Yellow is video out I'd say. Yellow is the standard color for video on pretty much all electronic devices

  17. Sep 23, 2017 at 3:22 PM
    #17
    Connormc11

    Connormc11 [OP] Jangler

    Joined:
    Nov 19, 2013
    Member:
    #116879
    Messages:
    387
    Gender:
    Male
    First Name:
    Connor
    Norfolk VA
    Vehicle:
    2010 DCSB TRD-Offroad
    Yea i agree but i dont know which pin it goes to on the truck harness.

    My guess is:

    Yellow -> CB+
    Red -> CV+
    Black -> CV- and CGND

  18. Sep 23, 2017 at 4:33 PM
    #18
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    935
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 280+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod. Heated seats
    Red is cb+, black cgnd, yellow cv+. Don't worry about cv-. That connection was most likely broken to avoid ground loops.
    B+ is positive 12 volts. Cgnd is ground
