Retrax ProMX installed. Lots of pics

Discussion in '3rd Gen. Tacomas (2016+)' started by toyota808, Jul 16, 2016.

  1. Jul 16, 2016 at 1:11 AM
    #1
    toyota808

    toyota808 [OP] Member

    Joined:
    Jul 5, 2016
    Member:
    #191325
    Messages:
    10
    Gender:
    Male
    First Name:
    Sean
    Vehicle:
    2016 DCSB TRD Sport

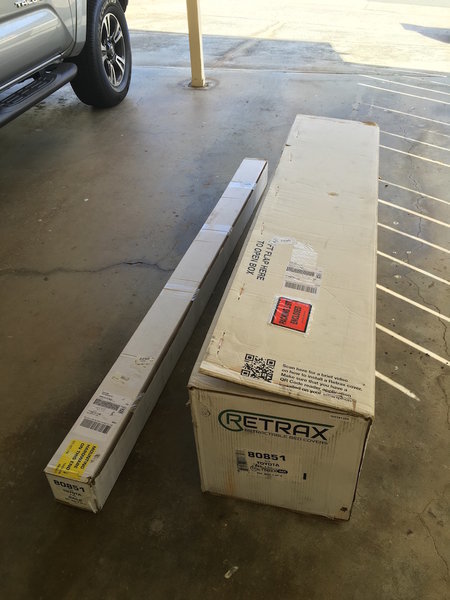

    I got home from work today and it was like christmas in July! My Retrax ProMX is finally here and I get to move my tools from my backseat to the bed.


    Before I go any further, I want to give a huge mahalo to Morrie at ************************. I was shopping around for Retrax ProMX for several weeks until I found his website. His prices were the best and he charges actual costs of shipping, not the $150-200 gouging prices others wanted to charge me because I'm in Hawaii. I will definitely recommend ************************ to anyone that is looking for a cover. Especially bradas in Hawaii, shipping is a huge issue here.

    Ok enough backstory, back to the install. Retrax came with specific instructions for 2016 tacoma. First you have to remove the header rail in the bed.

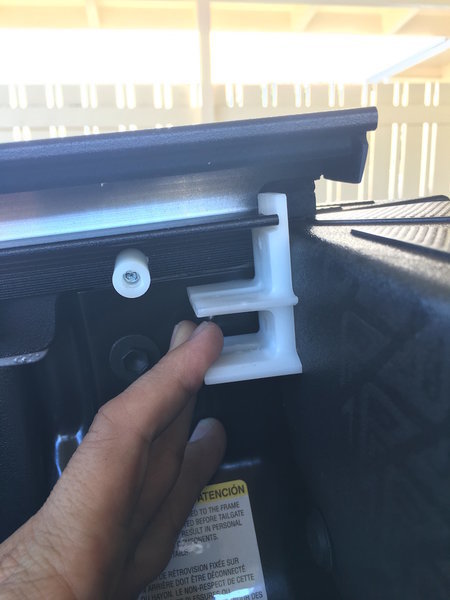

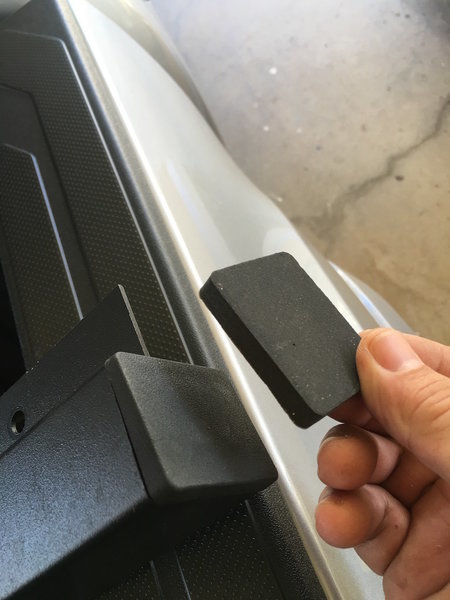

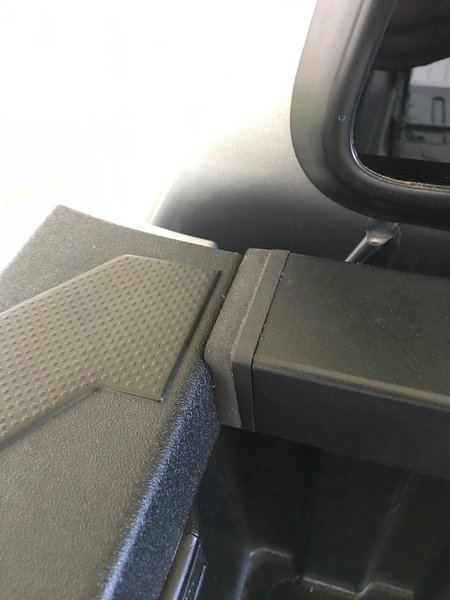

    Stick the included foam seal on the ends and replace the header.

    It completely seals the front of the bed.

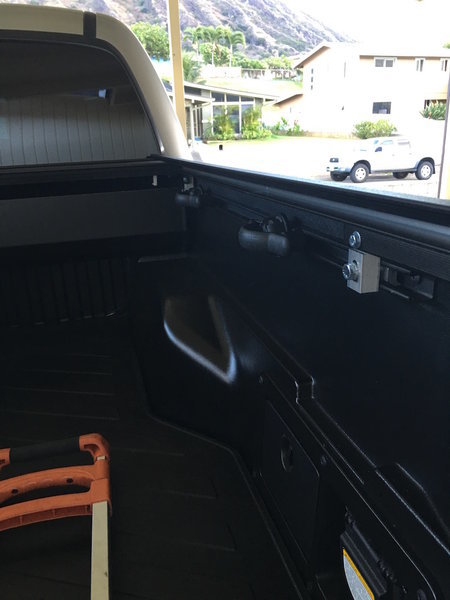

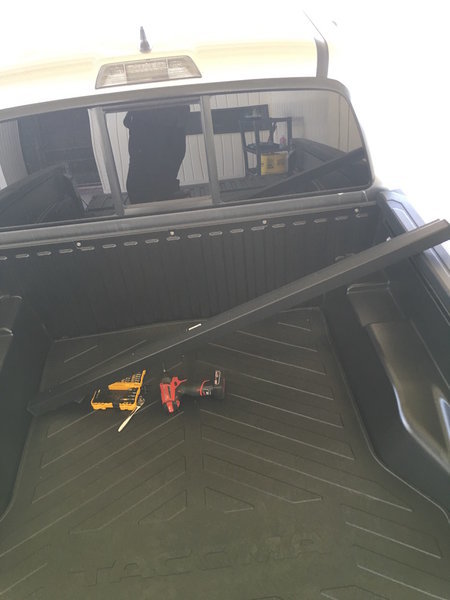

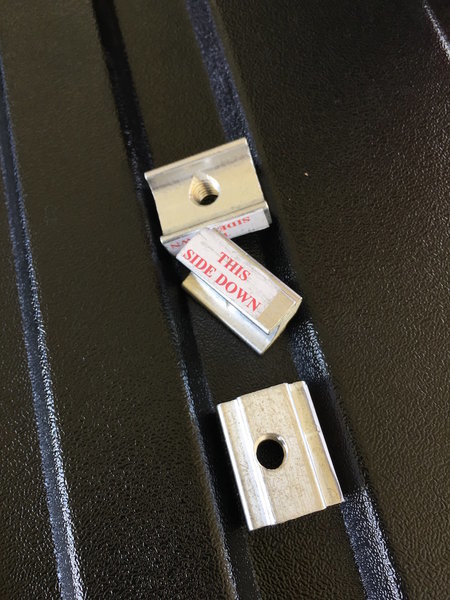

    Next, slide 2 mounting cleats into the track system. The holes in the cleats are off centered but it is idiot proof with stickers showing the bottom lol.

    Btw, if you want to use the factory tie downs with the cover, now is the time to install them. Put the factory tie down between the two mounting cleats. The factory tie down will not fit once the Retrax is installed. I found out the hard way...

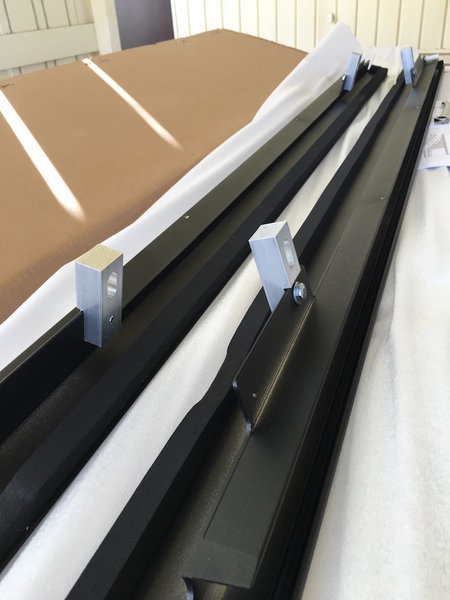

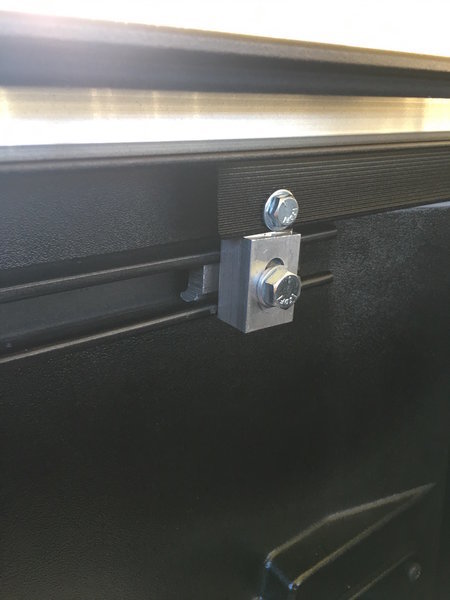

    Next, mount 2 aluminum spacers to the rails. This is what you will be bolting to the mounting cleats in the track.

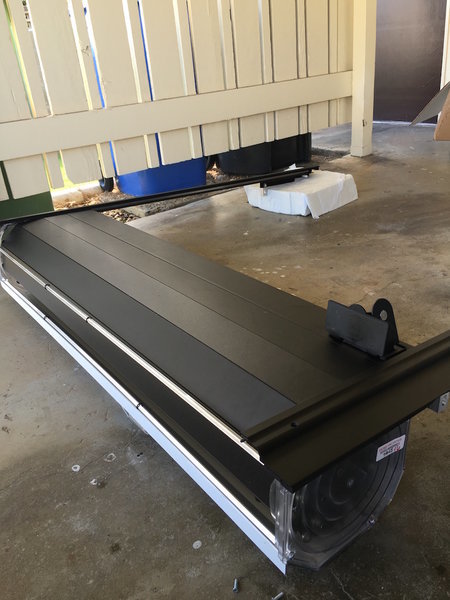

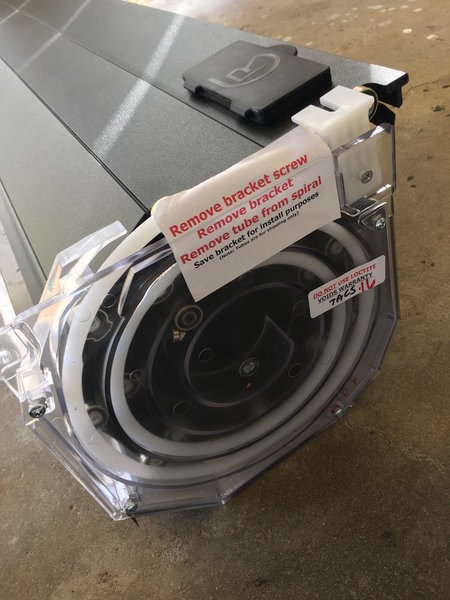

    Once that is done you are ready to work on the canister. Remove the white shipping bracket and tubes. Keep the shipping bracket handy as you will use that soon.

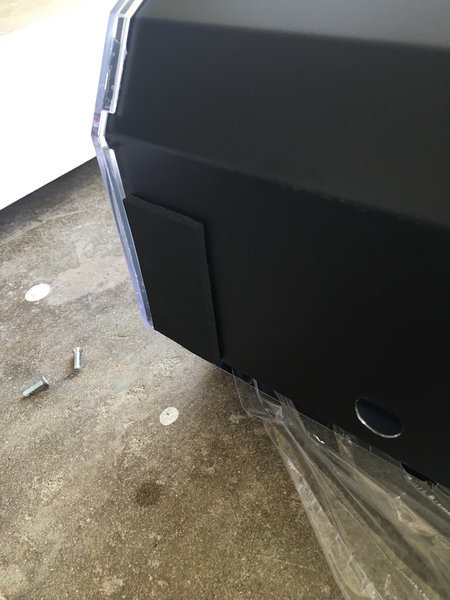

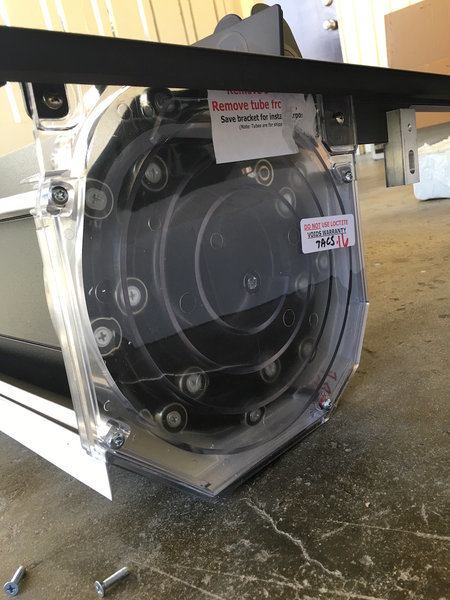

    Flip the canister over and apply these foams on the bottom of the canister. I really don't know why its required as it doesn't hit anything in the bed. But they were in the instructions so I installed them anyways.

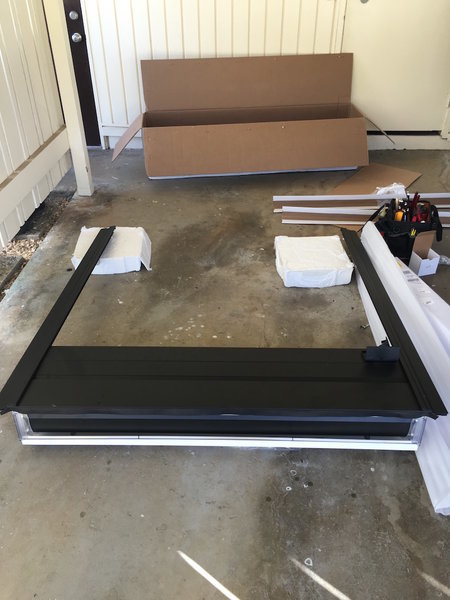

    Next, time to install the rails to the canister. Slide the rails on and fasten with 2 screws.

    I used the packing foam to give it some leverage. Once the rails are on, install the front cover with 2 allen head screws.

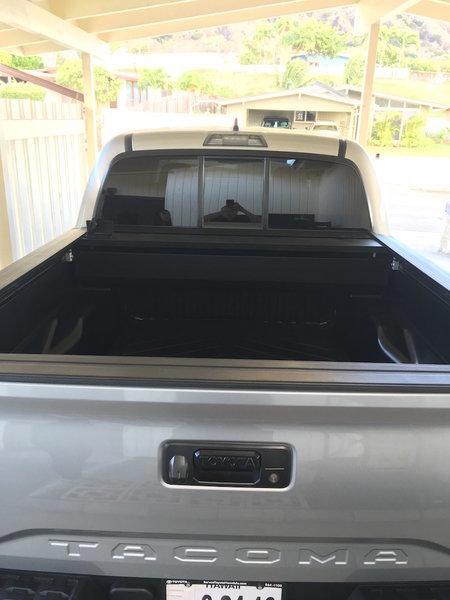

    Here is a pic of fully installed unit.

    My neighbor came home just as I was done with the rails. I called him over and asked him to carry it onto the bed. It isn't heavy but very awkward to carry by yourself. Once you have the canister on the bed, slide the rails back towards the tailgate until it hits the shipping bracket. It'll leave 1/8" gap between the rails and tailgate.

    Mount the canister side rails onto the track. I sat on the rails while tightening to smash the weather seal. Measure 3 points along the rail and make sure they are within 1/16". It comes with several shims for adjustments but my rails were on the money at 52 7/16" so I tighten them all down and tested the cover for smooth operation.

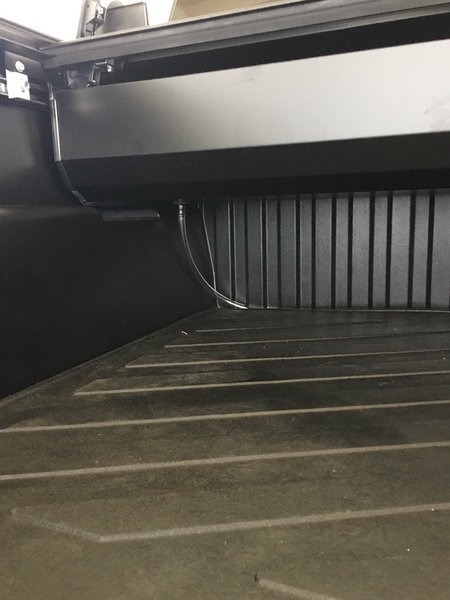

    Now time for the drain tubes. I'm still not sure where I want to drill for the tubes so I left them draining into the bed for now.

    All done.

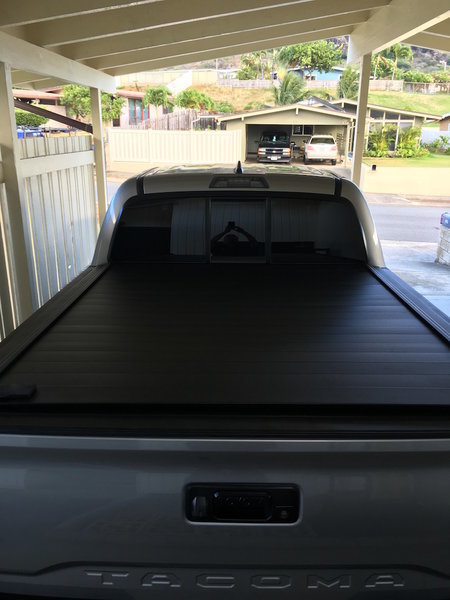

    Here it is with the cover closed.

    It took me just over an hour for the install while stopping to take pictures for this review. Retrax ProMX is just awesome. I drove around for a while with the rear window open and the cover is dead silent. On the way back home it started to rain so drove around a bit more to test the water tightness. Open the tailgate to only find a trickle of water next to the tailgate which is good enough for me.

    Let me know if you guys got any questions. I'll try to answer as much as I can and also I'll update after some use.

    Thanks for reading. Until my next mod...

    Last edited: Jul 16, 2016
  2. Jul 17, 2016 at 7:29 PM
    #2
    MannyS

    MannyS Well-Known Member

    Joined:
    Aug 20, 2015
    Member:
    #162263
    Messages:
    1,305
    Republic of Texas
    Good stuff. I had Retrax units on two gen2's over the years and never had an issue with these units.

  3. Jul 17, 2016 at 8:34 PM
    #3
    Joe23

    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    11,252
    Gender:
    Male
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    whats the security like with them?
    is it more so just to cover stuff in the bed from getting wet or could it actually protect your stuff from being stolen?

  4. Jul 18, 2016 at 3:23 AM
    #4
    TheGunSlinger

    TheGunSlinger Well-Known Member

    Joined:
    Jul 4, 2016
    Member:
    #191180
    Messages:
    144
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2016 Inferno Taco TRD Sport
    Could you post the size it takes up in the bed? I've been looking into getting this or the rollnlock and just seeing which ones takes up least amount of space.

  5. Jul 18, 2016 at 5:47 AM
    #5
    MannyS

    MannyS Well-Known Member

    Joined:
    Aug 20, 2015
    Member:
    #162263
    Messages:
    1,305
    Republic of Texas
    The retractor is 11"X11". The retractor size was my only complaint about a Retrax. It does lock and it is pretty water tight.

  6. Jul 18, 2016 at 6:32 AM
    #6
    forty2

    forty2 Well-Known Member

    Joined:
    Aug 21, 2015
    Member:
    #162379
    Messages:
    1,393
    Cascadia
    Vehicle:
    2016 DCSB OR 6MT
    Just a heads up here, but it doesn't. There's a rather large hole outside of the foam under the side rails on either side facing the cab. They are pretty hard to see with the plastic side caps in place.

  7. Jul 18, 2016 at 11:19 AM
    #7
    toyota808

    toyota808 [OP] Member

    Joined:
    Jul 5, 2016
    Member:
    #191325
    Messages:
    10
    Gender:
    Male
    First Name:
    Sean
    Vehicle:
    2016 DCSB TRD Sport
    I bought the cover to keep things locked up. I think it's pretty secure with the cover and tailgate both locked. It'll take some effort to break into my bed.

    Joe23 likes this.
  8. Jul 18, 2016 at 11:20 AM
    #8
    toyota808

    toyota808 [OP] Member

    Joined:
    Jul 5, 2016
    Member:
    #191325
    Messages:
    10
    Gender:
    Male
    First Name:
    Sean
    Vehicle:
    2016 DCSB TRD Sport
    Th
    Thanks for the heads up. We had some pretty bad rain last few days. I'll go check if any water got in there.

  9. Jul 18, 2016 at 11:26 AM
    #9
    toyota808

    toyota808 [OP] Member

    Joined:
    Jul 5, 2016
    Member:
    #191325
    Messages:
    10
    Gender:
    Male
    First Name:
    Sean
    Vehicle:
    2016 DCSB TRD Sport
    The canister is 11"X11" but the cover doesn't retract all the way. It sticks out another inch past the canister when fully open. The canister also rests on the wheel well so you got about 6" below the canister.

  10. Aug 2, 2016 at 10:41 AM
    #10
    robbielight

    robbielight paintball is life.

    Joined:
    Jun 13, 2016
    Member:
    #189527
    Messages:
    65
    Gender:
    Male
    First Name:
    robbie
    Norco, CA
    Vehicle:
    2016 TRD OR 4x4 DC SB M/T
    Bilsteins 5100s Falken Wildpeaks 33's
    After installation did the side rails sit flush onto the bed? I just installed mine and it sits about a lil under a cm up because of the foam in between. In the videos ive seen it sat flush.

  11. Aug 2, 2016 at 6:36 PM
    #11
    toyota808

    toyota808 [OP] Member

    Joined:
    Jul 5, 2016
    Member:
    #191325
    Messages:
    10
    Gender:
    Male
    First Name:
    Sean
    Vehicle:
    2016 DCSB TRD Sport
    Mine is the same. All the pictures I've seen looked flush but mine is about 1/4" off the truck. At least they don't leak.

    We just had tropical storm Darby come through here last week and the cover didn't leak a drop. I'm very happy with the cover so far and I don't think I'm gonna drill the bed for drain tubes.

  12. Sep 2, 2019 at 6:57 PM
    #12
    Babaghan

    Babaghan New Member

    Joined:
    Sep 2, 2019
    Member:
    #304070
    Messages:
    2
    Gender:
    Male
    First Name:
    Raymond
    Vehicle:
    2019 Toyota Tacoma TRD OR
    None yet. First will be rock sliders.
    I have a 2019 Tacoma TRD OR and I want this Retrax cover and I want to fasten a ARB or Dometic fridge at the back near the tailgate on a slider. Height space may or will be an issue. What is the height between the bed floor and the underside of the cover? As I understand, the bed height is 19 inches. I guess another way to ask the question is, how much space does the Retrax cover eat up? Or do we lose any height space at all? Is there a height gain? Oh, and on a side note, this is my first and probably first of many posts.

  13. Sep 2, 2019 at 8:24 PM
    #13
    Dr. Emmett Brown

    Dr. Emmett Brown Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794
    Gotta get someone to stand on the rail when you bolt it to the bed side tracks. The bracket is slotted so theres play up and down. Mine used to sit flush before I added my bedrack so now it doesn't sit flush no matter what cuz of the rack feet.

    Babaghan likes this.
  14. Sep 2, 2019 at 8:25 PM
    #14
    Dr. Emmett Brown

    Dr. Emmett Brown Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275320
    Messages:
    1,794
    Pretty sure it doesn't eat up any space on mine. The rails that it runs on are about an inch higher than the bed rail so it's pretty flush

    Babaghan likes this.
  15. Sep 3, 2019 at 12:03 PM
    #15
    Babaghan

    Babaghan New Member

    Joined:
    Sep 2, 2019
    Member:
    #304070
    Messages:
    2
    Gender:
    Male
    First Name:
    Raymond
    Vehicle:
    2019 Toyota Tacoma TRD OR
    None yet. First will be rock sliders.
    Therefore if I have 19 inches of height before installing the RetraxPro XR, I will have at least 19 inches of height after the install. Thanks. Now I just need to contact ARB or whoever and get specifications of the combined height with their fridge and fridge slider so I don't go over 19 inches.

  16. Sep 20, 2019 at 3:30 PM
    #16
    ujacobm

    ujacobm Well-Known Member

    Joined:
    Jan 10, 2017
    Member:
    #207147
    Messages:
    64
    Gender:
    Male
    First Name:
    Jake
    I had the Retrax ProMX on my 2012 TRD OR. Over the security and ability to lock the position of the cover wherever I wanted to on the rail. Solid build/construction. IMG_6476.jpg

  17. Sep 20, 2019 at 4:28 PM
    #17
    daks

    daks Juzt for Shitz

    Joined:
    Jan 12, 2018
    Member:
    #241060
    Messages:
    1,606
    Gender:
    Male
    Hammertown,Canada
    Vehicle:
    2017-TRD-Sport DCSB
    Ongoing
    CAUTION:

    If you drill on the driver side drain hole using the existing drain hole there as a start point....

    The gas tank fill tube is almost right underneath. (on the shortbed not the longbed)

    Couple people nicked the filler tube when the drilled it out and didn't know until the truck through a code for the evap system.

  18. Sep 20, 2019 at 5:04 PM
    #18
    Tallwalker

    Tallwalker Too tall to hide, too old to run.

    Joined:
    Jul 3, 2019
    Member:
    #298213
    Messages:
    111
    Gender:
    Male
    An alternative to going through the floor of the bed is through the cab side bulkhead. On my F250 there were some nice 1” robber grommets that I went through without having to drill. Having them up keeps you from hitting the tubes when you slide things all the way in. Also shorter path out.

  19. Jun 8, 2020 at 1:43 PM
    #19
    plim11

    plim11 Member

    Joined:
    May 26, 2020
    Member:
    #329421
    Messages:
    22
    Gender:
    Male
    California
    Vehicle:
    2019 tacoma trd offroad 4x4
    any mpg difference with the retrax?

  20. Feb 1, 2021 at 4:13 PM
    #20
    dand

    dand You can't see me

    Joined:
    Sep 25, 2011
    Member:
    #64083
    Messages:
    3,504
    Gender:
    Male
    First Name:
    Dan
    SE VA
    Vehicle:
    2020 MBM TRD Offroad MT
    1st stage commencing
    Great post.
    I just ordered a Pro Mx too. Got a great price so I had to order.
