Retrofit and BHLM Headlights

Just picked up a used set of these with diode dynamic switchback side markers. Can anyone tell me how the side markers wire up?

Thanks!



Blue wedge connector goes in place of your stock side marker bulb.

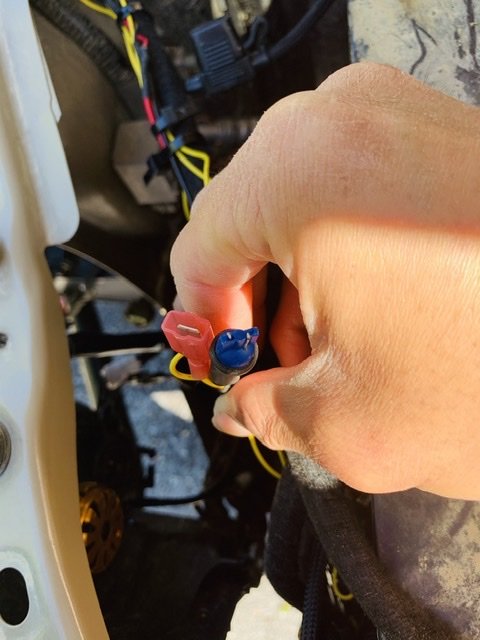

yellow wire gets tapped into your positive turn signal wire.



ok, thanks. That’s what I thought. Just wasn’t sure what to tap the yellow wire to. Much appreciated.



If you’re on the fence about it getting retrofits or BHLM, @no vtec 4me does top notch work and would highly recommend sending your headlights in for an upgrade! Retrofits, bhlm, amber turns/covers.



Interested but have a few questions. Sent you a pm.

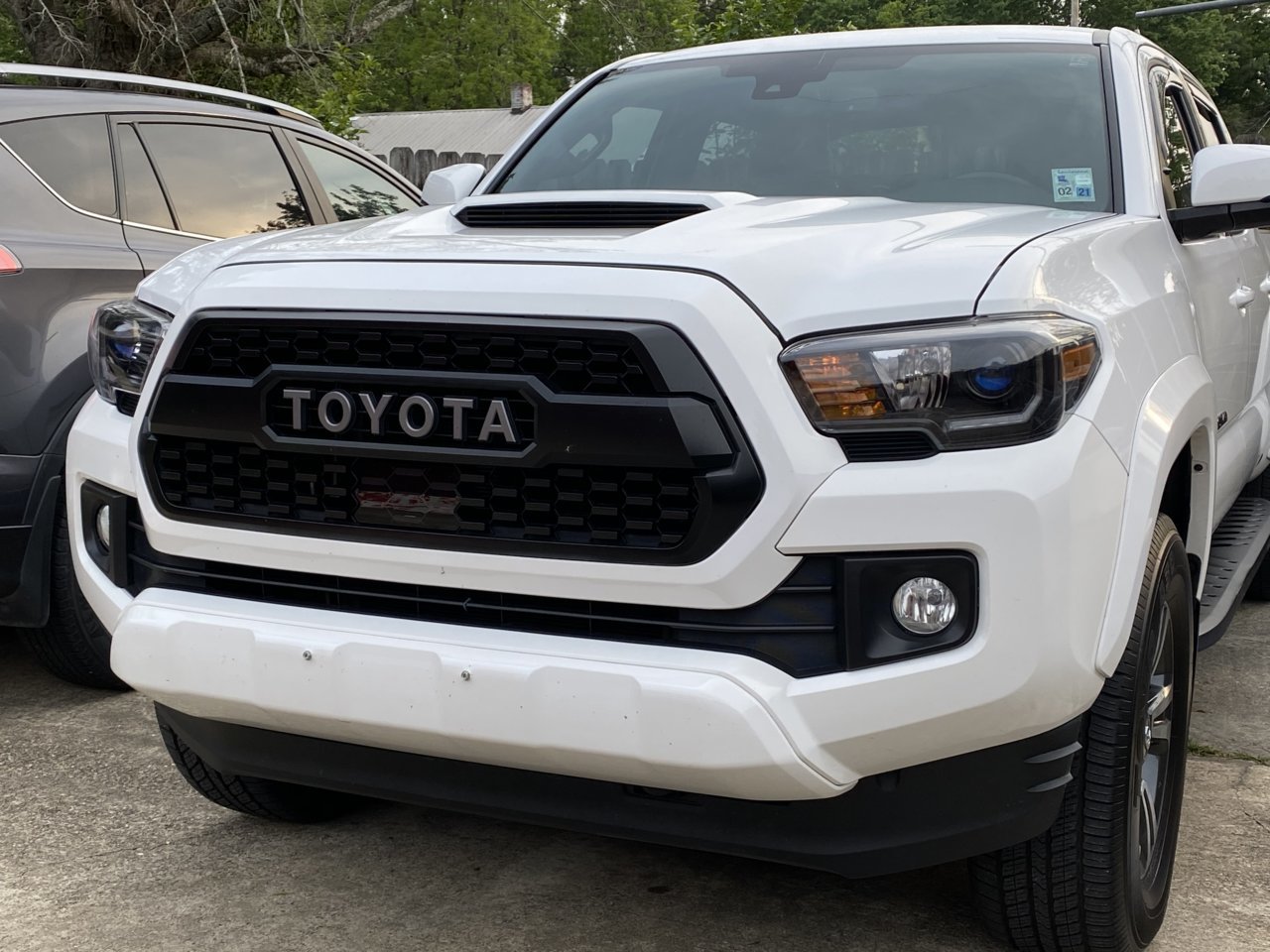

I echo these comments on @no vtec 4me ...and your taste in Super White Tacomas!



You have excellent taste in vehicles. What year is the S2000?



Thank you...S2K is a 2005.



Nice AP2! 2004 or 2005? I have an '08 White/Red sitting in the garage.



I’ve got an excellent set of 2018 TRD Sport headlights for sale taken off with less than 5,000 miles on the truck. Great option if you’d like to have an extra set to have Kevin retrofit for you without sacrificing your stockers. $375 shipped in the lower 48. Hit me up if you’d like pictures.

p.s. posted with Kevin’s approval.



Hey everybody. I'm kind of in a pinch here. I need a quick response on the wiring diagram for headlights that have been retrofitted and have both the switchback diode dynamics DRLs along with the halo lights. There's wires coming out of the headlight assembly but they're not marked as to which is which. Does anyone have a wiring diagram that they could shoot out ASAP?



A picture of which wires would be helpful



Two male connectors. I got 30 minutes to figure this out if someone can help.

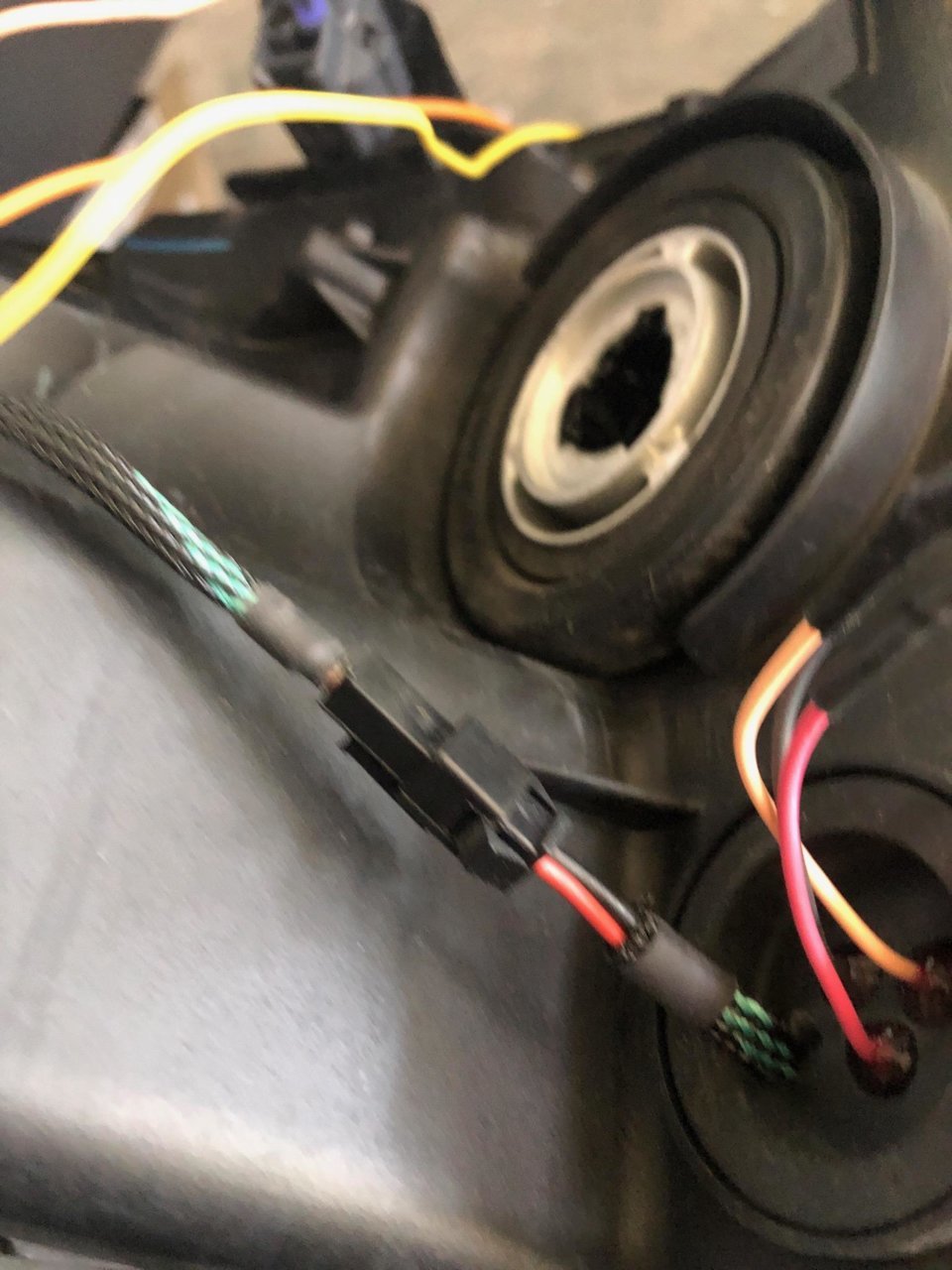

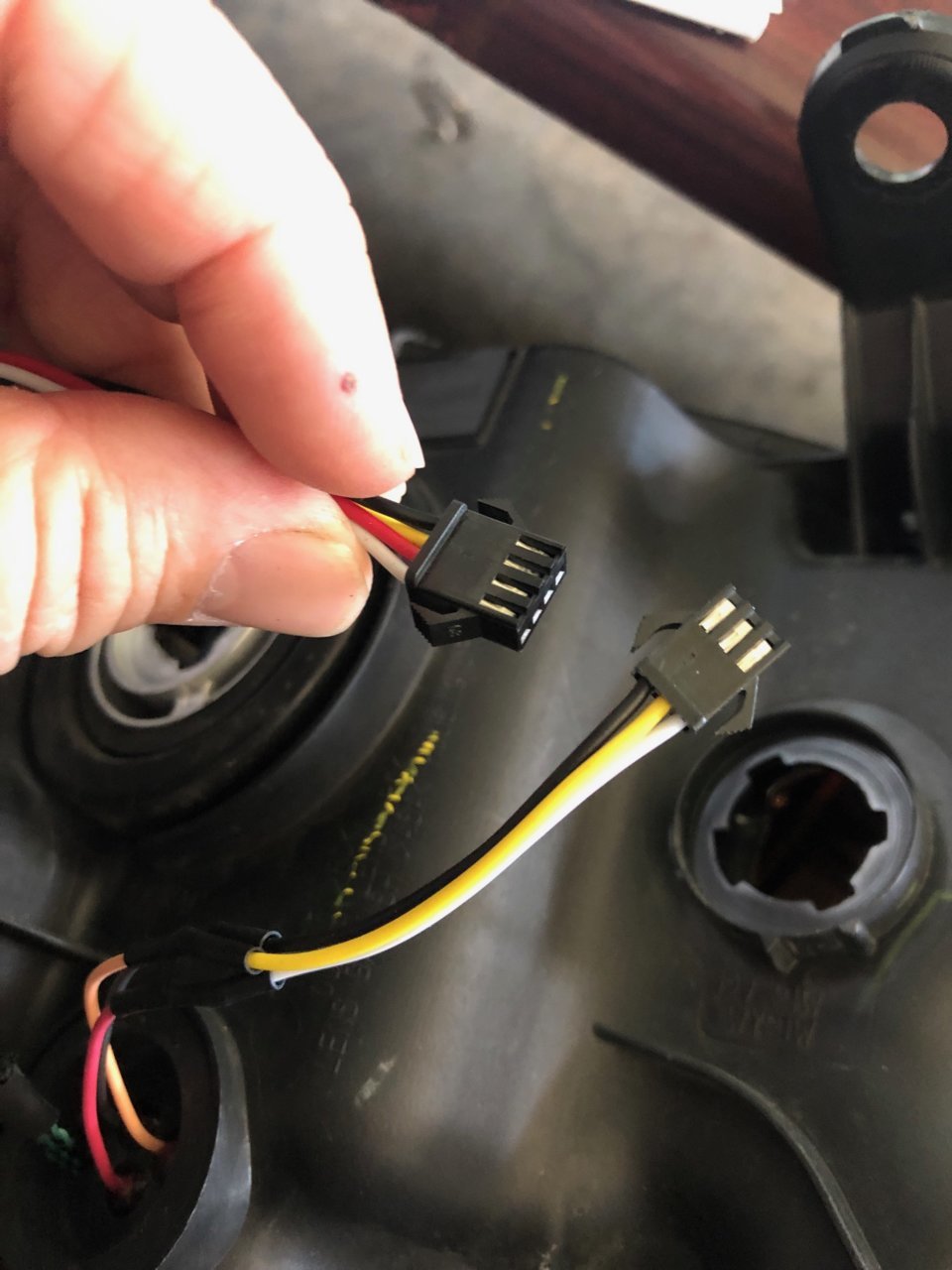

So it's the yellow black and white one that I can't figure out. What goes where?



I got 30 minutes here before the bomb goes off, which wires do I cut and splice to the turn signal?



There’s a LED driver that goes in between those 2 plugs. DO NOT PLUG THEM
TOGETHER



Found them. Buried at the bottom of a very large box. Thanks Meso.



Hello, I was wondering what the current wait time for a set of standard BHLM would be? More specifically if there is a current queue?



Not entirely sure what the current wait time is but there is indeed a queue. If you read the first post you’ll see it, along with all the other information you’ll need to place an order. You’ll see my name is first on the list



Thanks Kev!
