Retrofit Headlight Washer Jet on Tacoma

Discussion in '3rd Gen. Tacomas (2016+)' started by BountyOR_VF2, May 9, 2019.

Page 1 of 4
  1. May 9, 2019 at 3:40 PM
    #1
    BountyOR_VF2

    #1
    BountyOR_VF2 [OP] "If in doubt, flat out!"

    Joined:
    Feb 13, 2017
    Member:
    #210511
    Messages:
    466
    Gender:
    Male
    NorCal Bay Area
    Vehicle:
    2017 WHITE TRD TCSB OR
    Hello TW, I just did this mod lately and I like it a lot. Some people might not agree on the way it looks but hey that’s just me, I like the OG style Offroad truck from the ’80s and ’90s that has a Headlamp washer.


    The old school LC80 and Mitsubishi Pajero/Montero or even the Land Rover has this headlamp washer as a standard feature, and nowadays if you getting a high-end Lexus LX, GX or LC200 you can still have this feature comes with the truck. So why not put this back to our Tacoma?

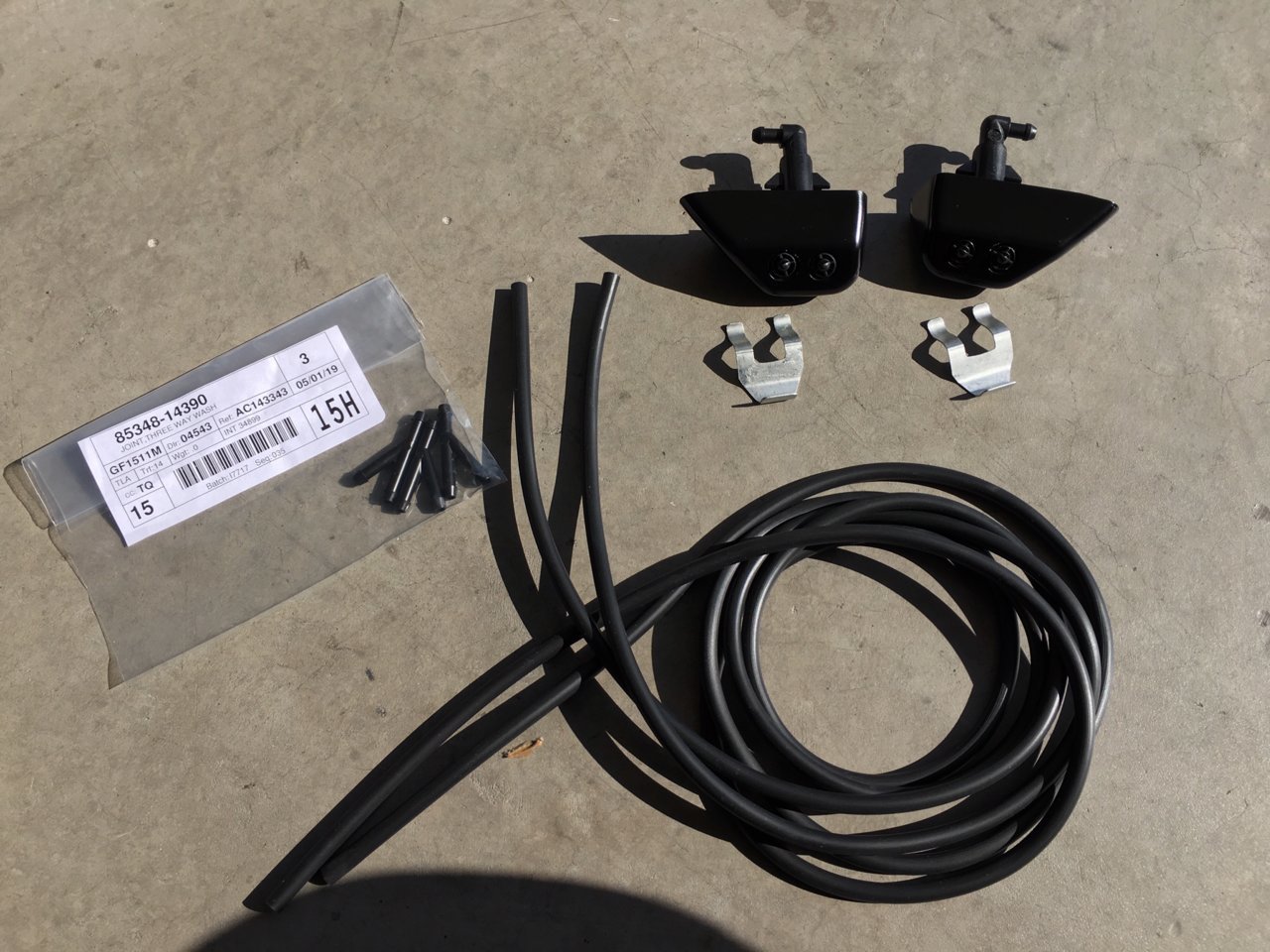

    Here’s the list of materials I bought. if you find something better then it is great.

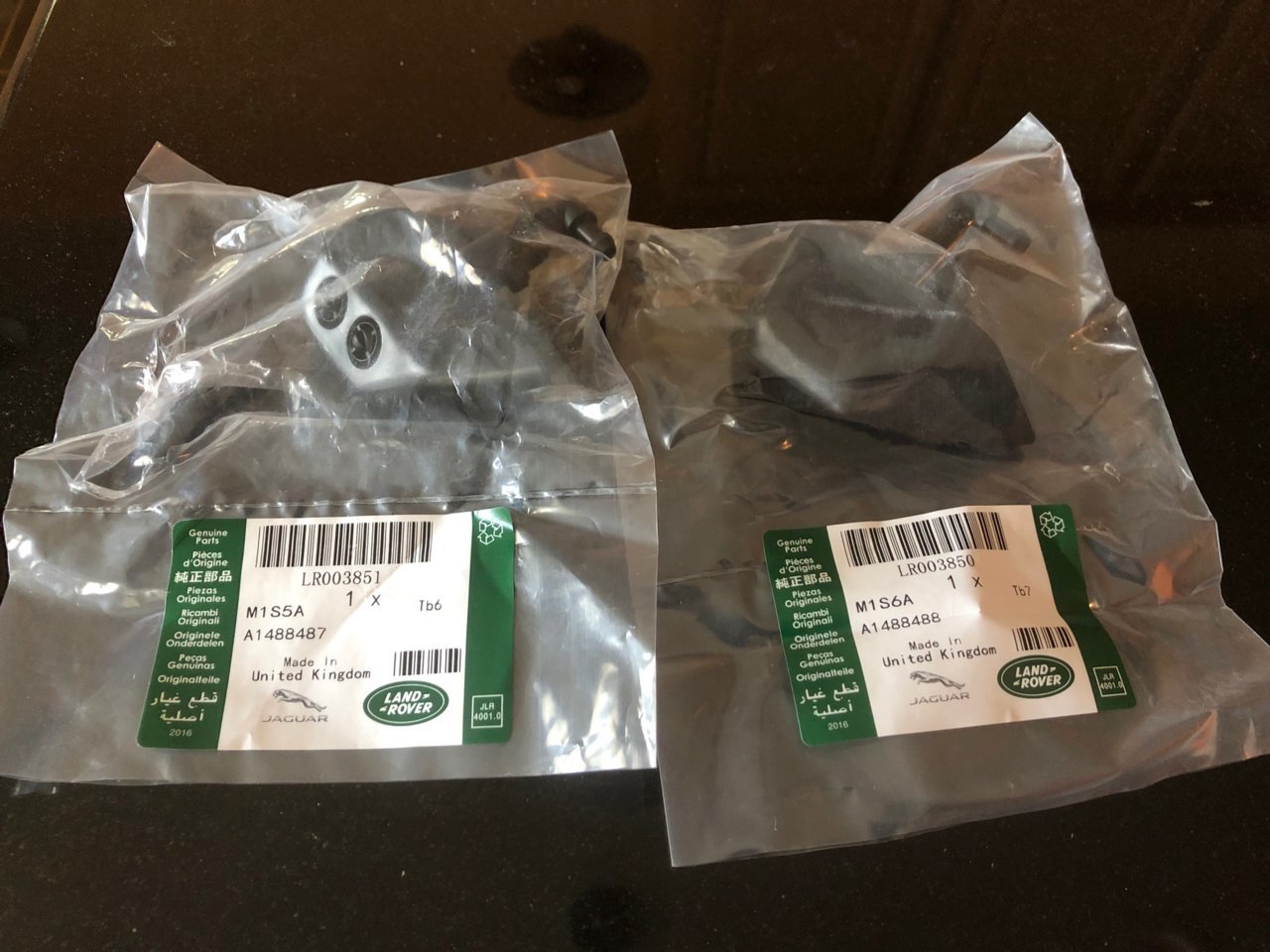

    Headlamp Headlight Washer Jet Sprayer Nozzle Pair Fit for Land Rover LR2 08-13
    $35 Headlamp Headlight Washer Jet Sprayer Nozzle Pair Fit for Land Rover LR2 08-13
    https://www.ebay.com/itm/Headlamp-H...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649


    New Pair Headlamp Washer Nozzle Clip Fits Land Rover LR2 LR3 LR4 2.0L 3.0L
    $7 New Pair Headlamp Washer Nozzle Clip Fits Land Rover LR2 LR3 LR4 2.0L 3.0L
    https://www.ebay.com/itm/New-Pair-H...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649


    6mm Windshield Washer Fluid Hose Tube Repair Kit, includes 2 pieces of 59" hose
    $7 6mm Windshield Washer Fluid Hose Tube Repair Kit, includes 2 pieces of 59" hose
    https://www.ebay.com/itm/6mm-Windsh...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649
    $12 OTUAYAUTO Wiper Washer Windshield Check Valve - for Toyota, Scion, Lexus - Replaces OEM #: 85321-28020, Spray Jet Kit (pack of 2)
    OTUAYAUTO Wiper Washer Windshield Check Valve - for Toyota, Scion, Lexus - Replaces OEM #: 85321-28020, Spray Jet Kit (pack of 2)

    https://www.amazon.com/gp/product/B07PWZFP6F/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1


    TOYOTA OEM Wiper Washer-Windshield-Washer Hose Y-connector 8534814390
    $5 TOYOTA OEM Wiper Washer-Windshield-Washer Hose Y-connector 8534814390
    https://www.ebay.com/itm/TOYOTA-OEM...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

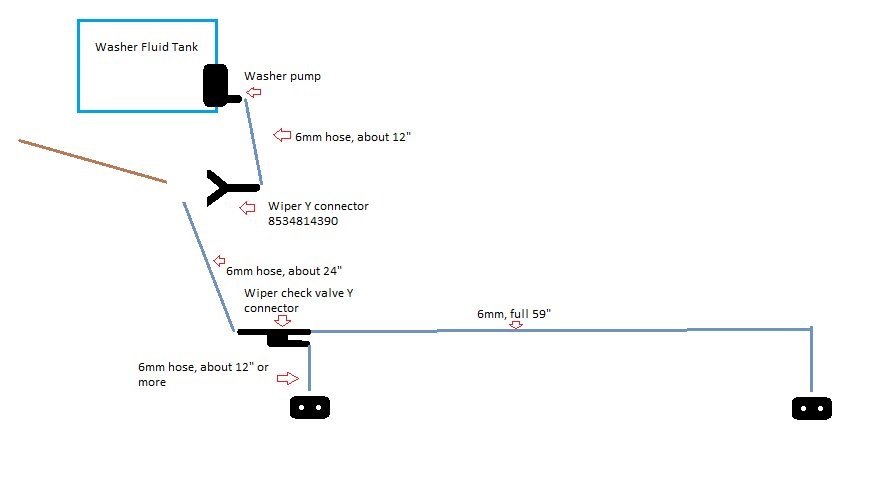

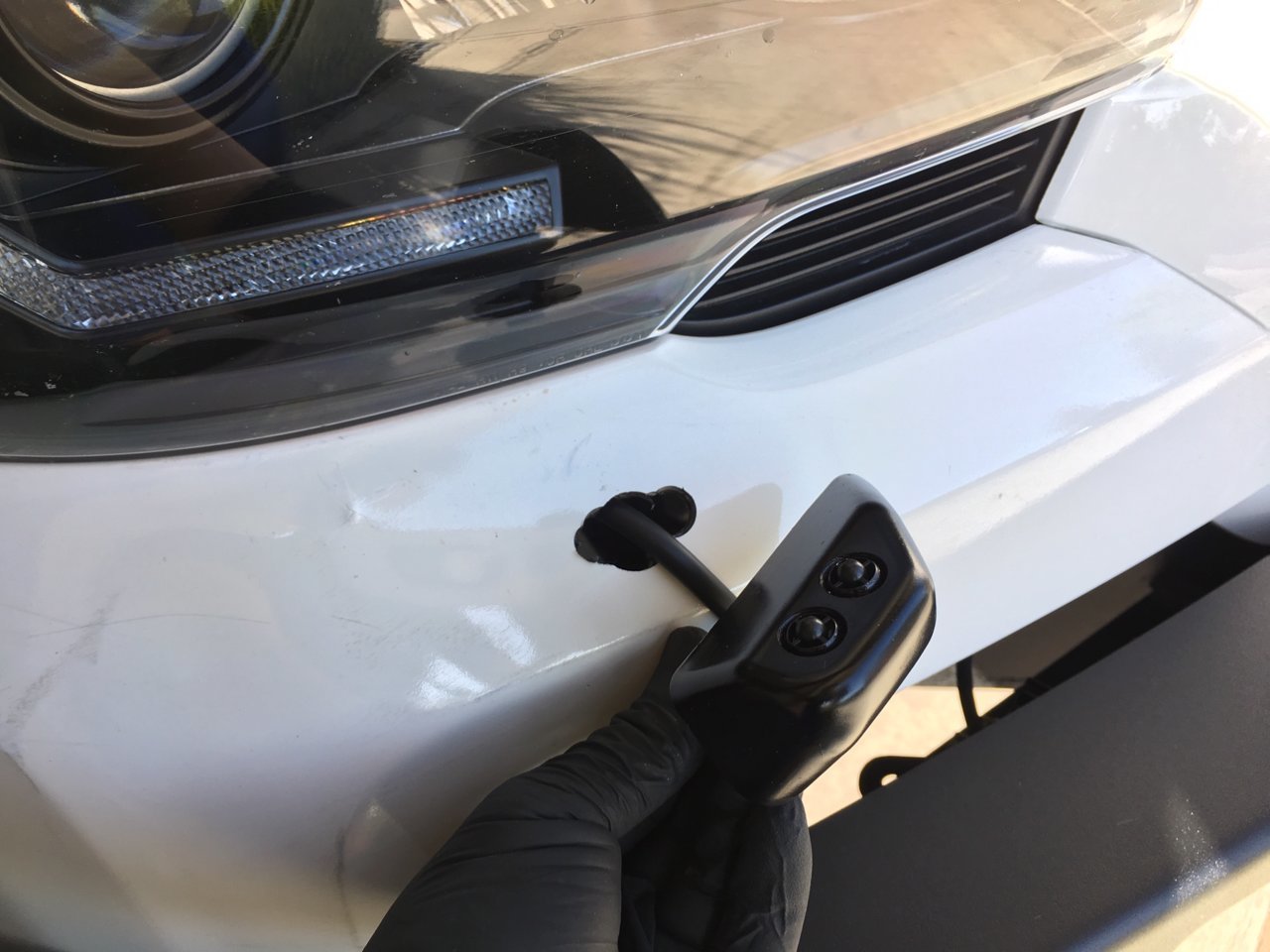

    1. Cut the hold with a Step drill bit that fit perfect for the Washer jet fixture, you can choose the one I use, or you can buy something else and maybe more creative.
    2. Remove the two 10 mm bolts that hold the Washer Fluid tank.
    3. Carefully pull tank up until you can see the washer pump at the bottom of the tank. Disconnect the 2 pins connector.
    4. Pull the entire Washer fluid tank up, let it sit on top of the air intake. (I recommend you guys empty the washer fluid tank first, that way it is much easier and less messy with water spread everywhere.
    5. Pull the factory 6 mm washer hose out from the pump.
    6. Cut a 12” 6 mm washer hose you bought from Amazon or eBay, insert that to the water pump outlet.
    7. Connecting the hose with the Toyota Y-connector 8534814390, insert the factory hose to the hood, and insert another precut 6mm hose to another Y connector.
    8. Insert precut 6mm hose to the Y connector, and to the Headlight washer fixture *That Land rover fixture is about 8mm, but it will fit with the 6mm hose.
    9. Insert another 59” (Full length) hose to the driver side of the headlight washer fixture.
    10. Secure all the necessary hardware for your washer jet, in my case, it is the Washer nozzle clip right underneath the bumper skin.
    11. Reconnecting everything back to the washer fluid tank, and the two pins connector.
    12. Fill the tank with water, test it, and here you have a perfect headlight washer for your truck, and now get ready for mud!

    (Note) Since the washer fluid tank pump is always open, it is required to have a check valve install for the hose below the water level, otherwise, it will empty the tank overnight.




    https://www.instagram.com/p/BxMHmwJBFdZ/?utm_source=ig_web_copy_link

    upload_2019-5-9_15-37-37 (2).jpg

    Last edited: May 9, 2019
    BountyOR_VF2, May 9, 2019
    #1
    ajmogen, =JSG=, TacoManOne and 24 others like this.
  2. May 9, 2019 at 4:20 PM
    #2
    caribe makaira

    #2
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    1,233
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

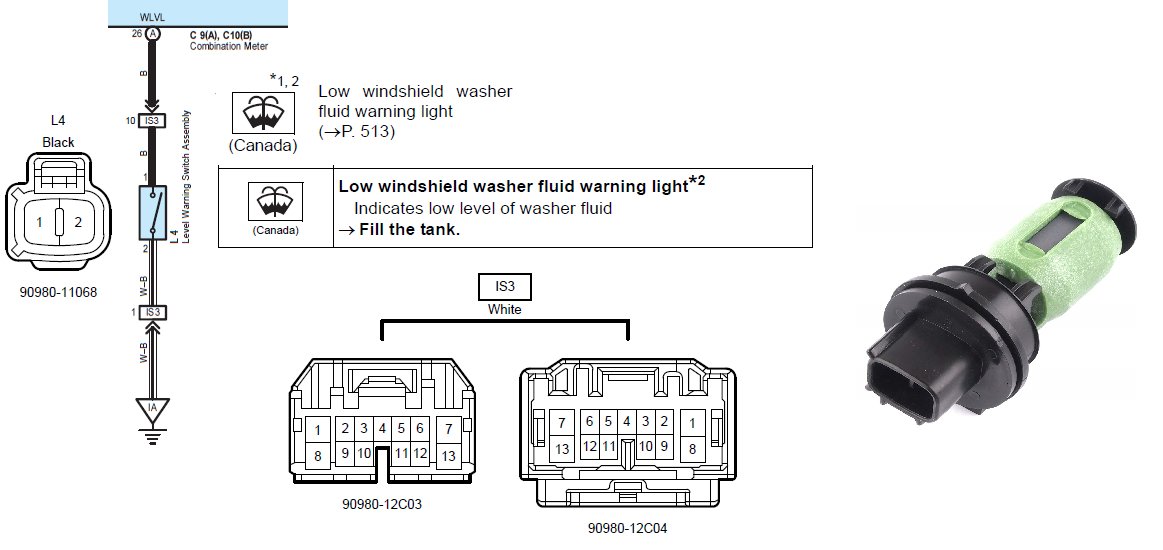

    Now get the Canadian version of the washer tank, it has the fluid level sensor so ya don't run out...
