Retrofit splash shields

Discussion in '2nd Gen. Tacomas (2005-2015)' started by inwood customs, Apr 4, 2017.

  1. Apr 4, 2017 at 6:09 PM
    #1
    inwood customs

    inwood customs [OP] Roaming potato

    Joined:
    Sep 11, 2016
    Member:
    #197024
    Messages:
    4,563
    First Name:
    Dave
    Vehicle:
    2006 v6 potato bugTuRD
    K&n, flowmaster, plastidip, chipped, hids, daves
    Since my skirts/shields that cover the exhaust manifold and engine bay area were falling apart and 1 was missing, this guy here had just the thing.
    https://www.tacomaworld.com/threads/splash-guards-precut.477766/

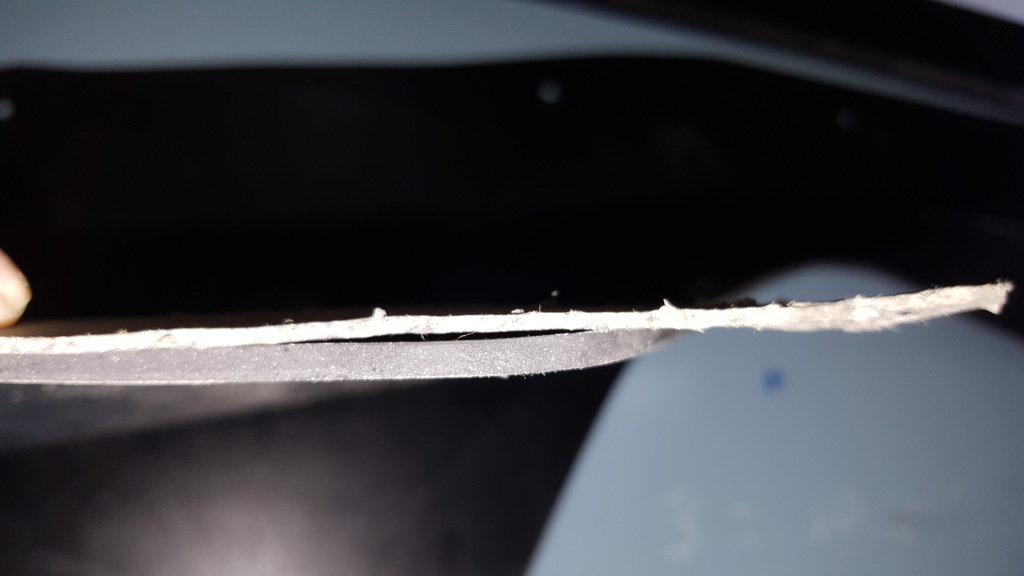

    STOCK is on top, custom shield is on the bottom

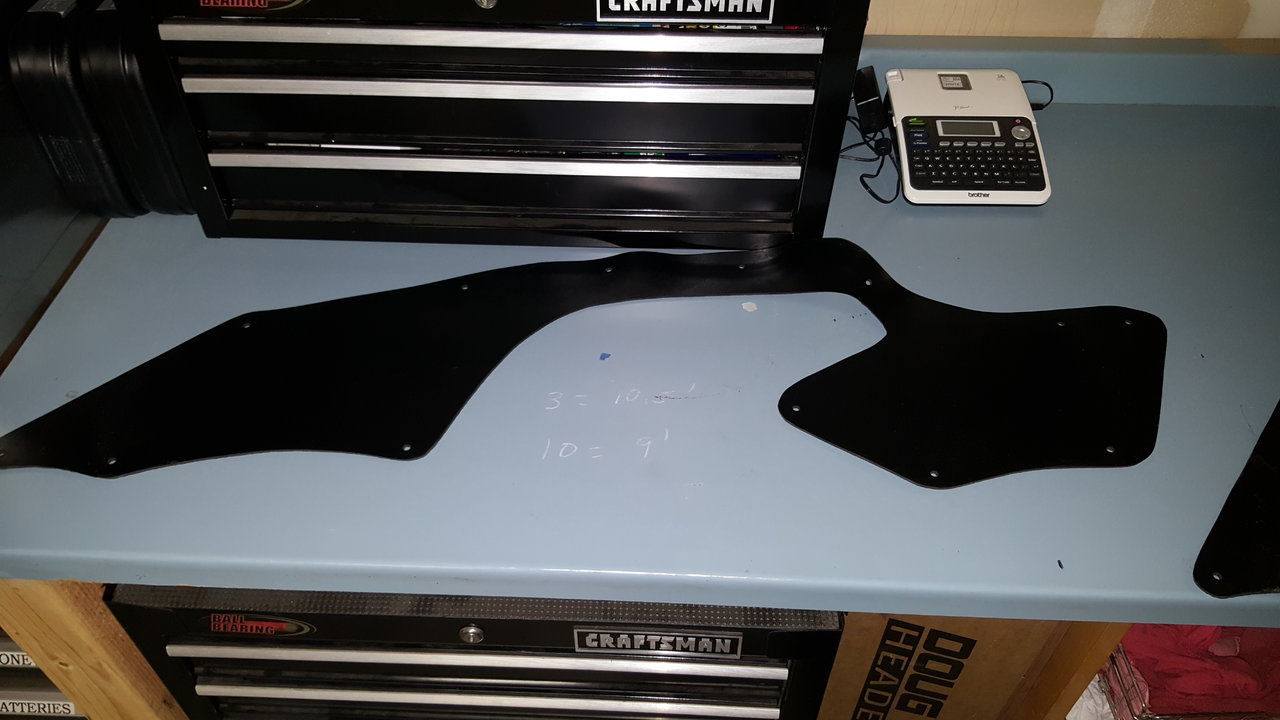

    another view of the product

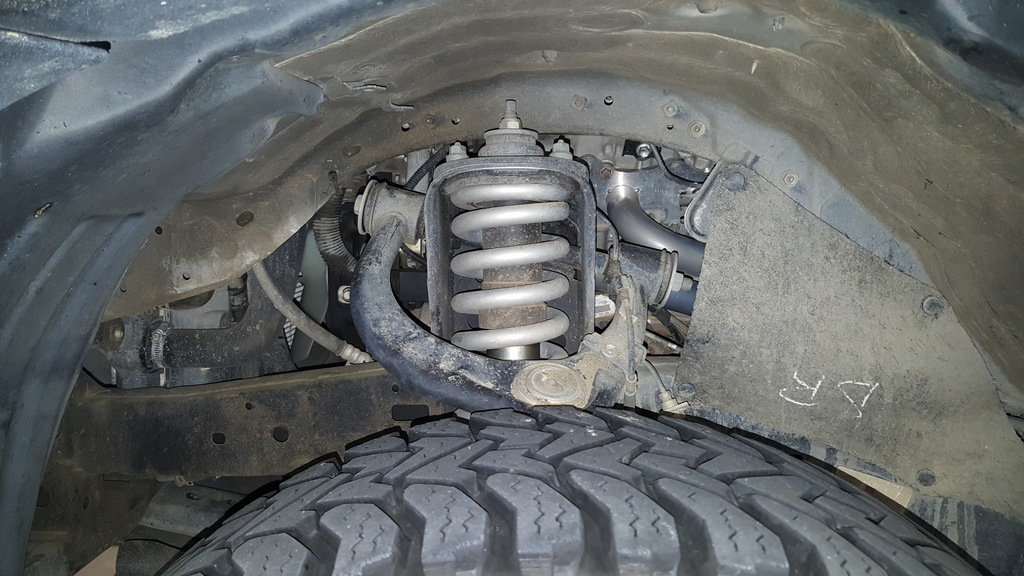

    BEFORE, I only had the 1 on the driver side as I said

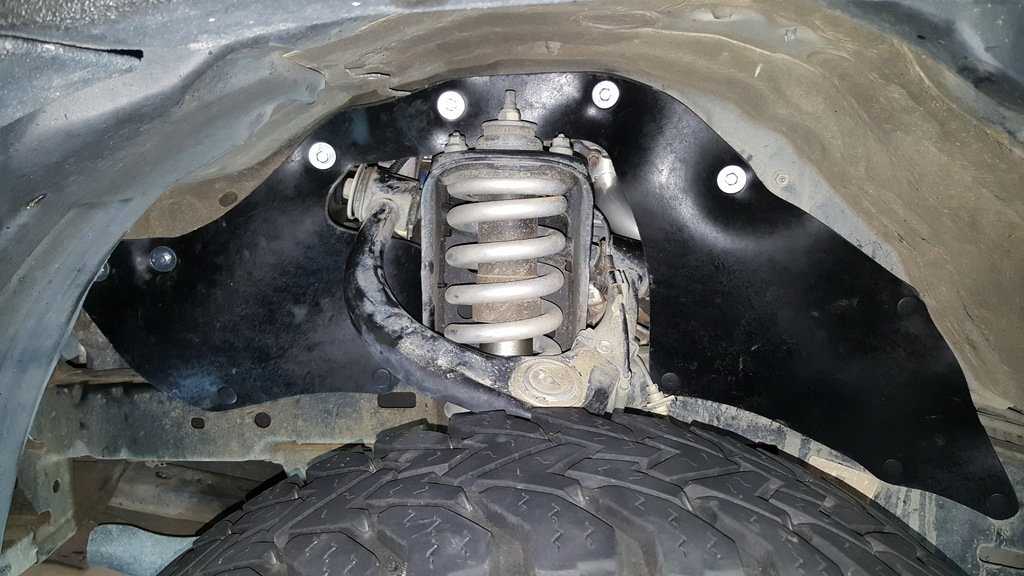

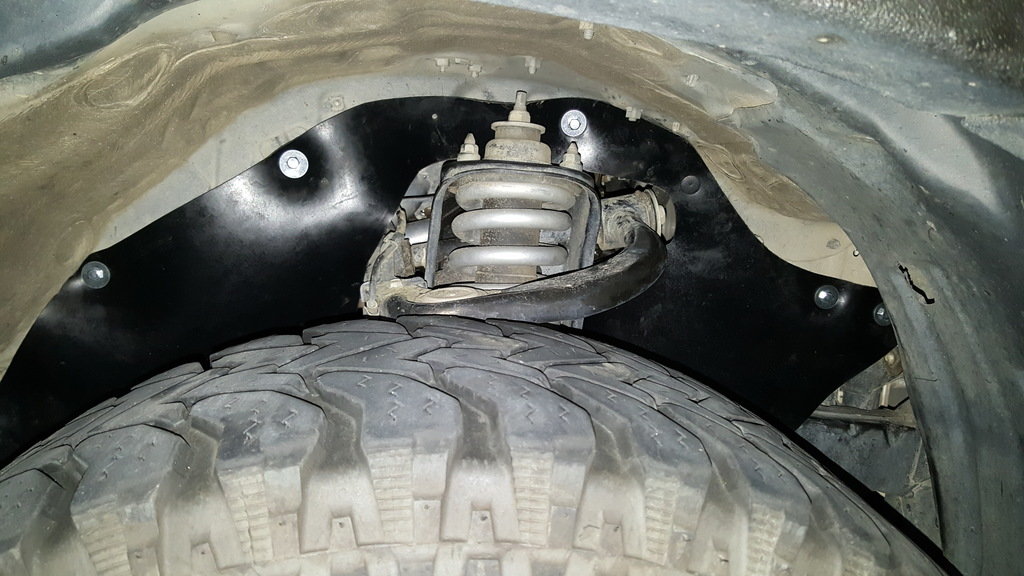

    AFTER.... (driver side)

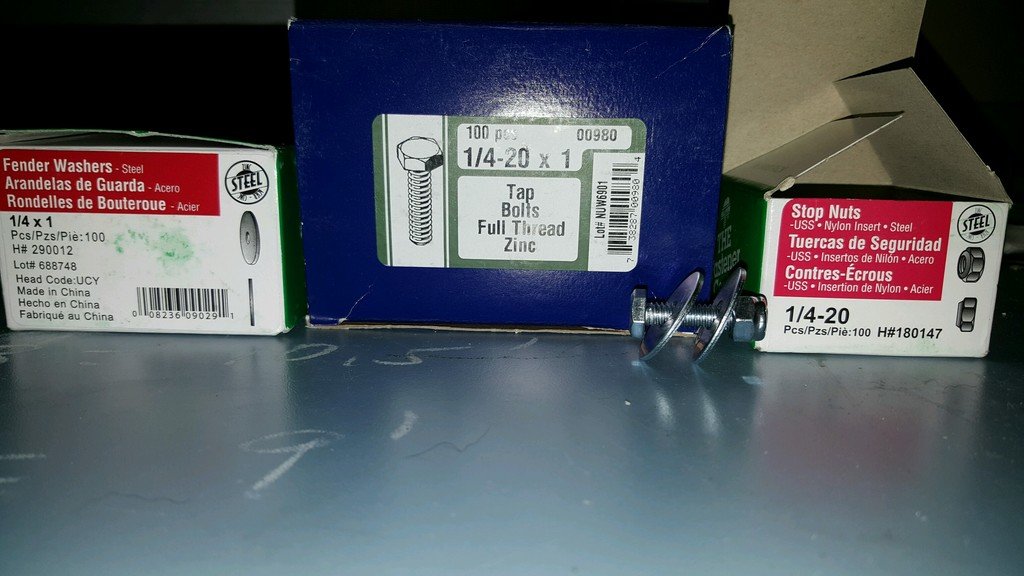

    heres the hardware I sourced from Amazon
    These new shields are HEAVY (4lbs shipped), so I used bolts, fender washers and nylocks to support the TOP of them since this supports weight. I used clips on the bottom for easy access since they dont carry weight and your dealing with FRAME holes on most of the bottom slots (try getting a nut and washer in the rail) :)

    $28 shipped

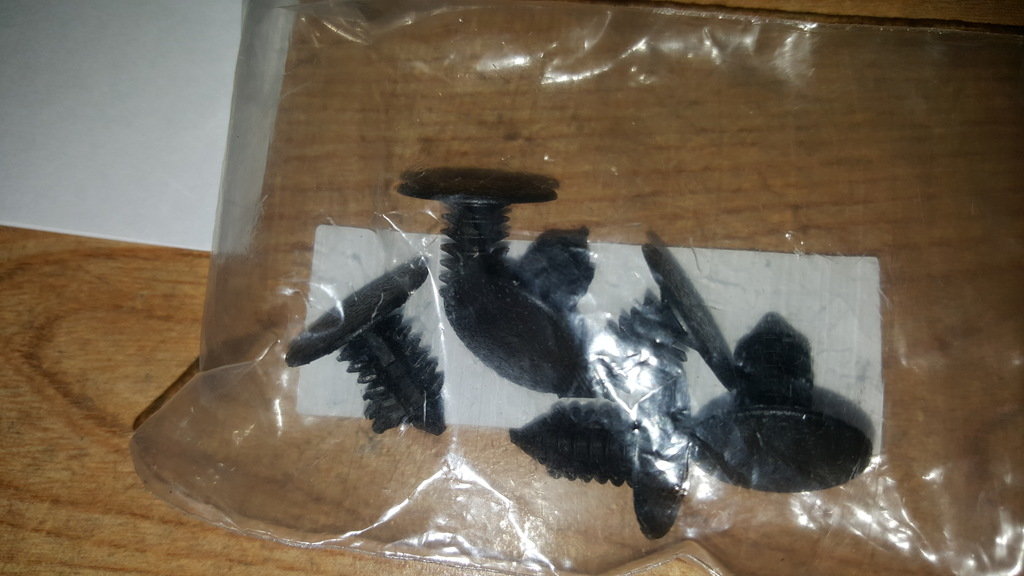

    bottom clips sourced from amazon
    "uxcell Car 8mm Hole Black Plastic Rivets Bumper Door Fastener Clips 20Pcs"
    $7 shipped
    (obviously whats left AFTER I installed)
    I also used the clips for the 1 hole that holds the shield to the strut area.

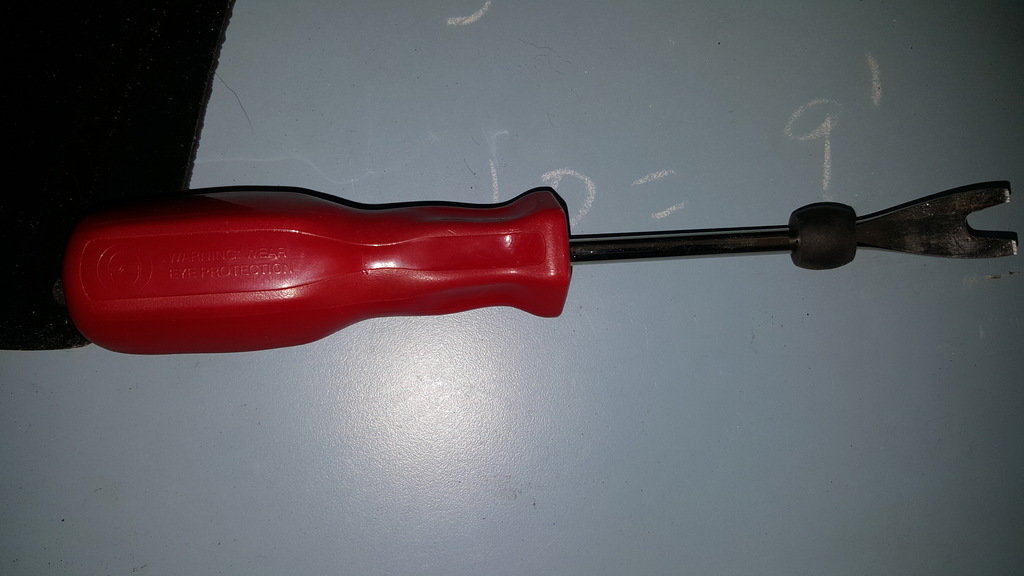

    maybe not essential, but its a great tool
    "Lisle 35260 Plastic Fastener Remover"
    $12 shipped, amazon


    Start by raising the front of the truck to allow the wheels to droop using jack stands to bear the weight of the truck.

    Then start removing old shields, and place the new ones in place. Start fastening the top CENTER area and work your way to the ends.

    Use a washer on each side like I have pictured.
    1 to keep the shields from tearing by providing a large surface area, and another on the other side of the bolt to butt up against the trucks panels. (I hope that makes sense).

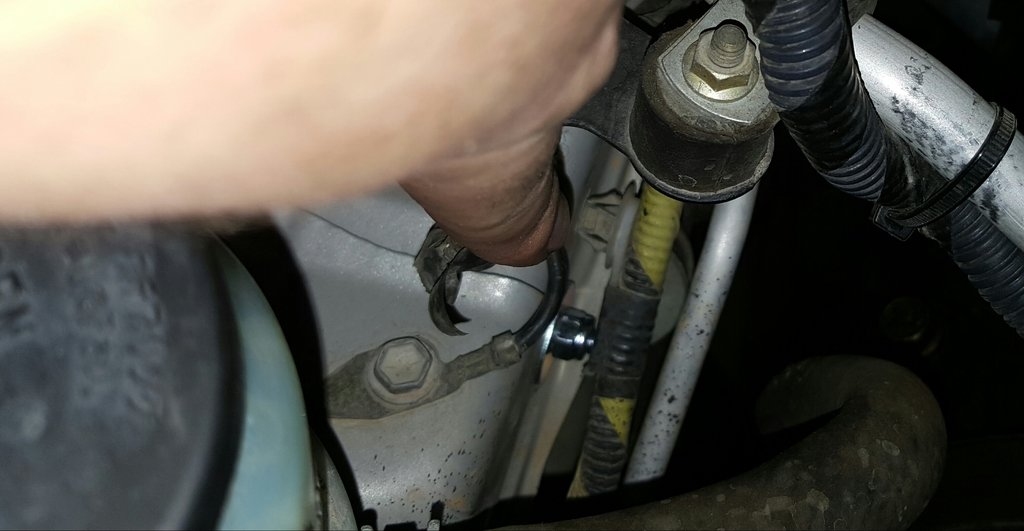

    Passenger side I had to use a clip on the hole at about 2 oclock, because theres a wire bundle pretty close to being rubbed by the bolt on the engine bay side.
    HERE
    I have a 2006 TRD offroad.... you may or may NOT have this problem.

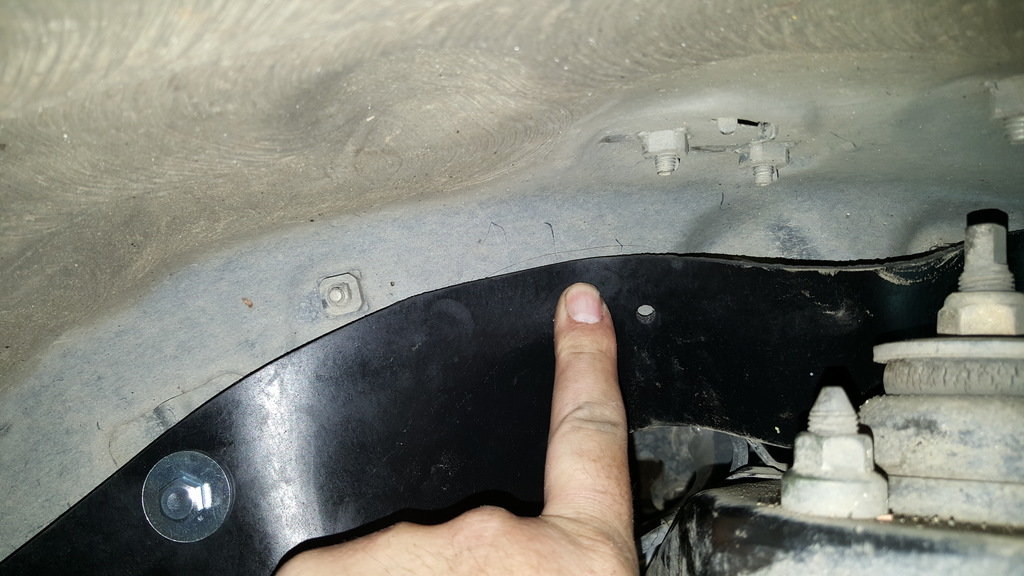

    Also passenger side, this spot has no hole in the trucks wheel well to anchor to... AGAIN, could be trim model specific.

    Tools used: (just what I happend to use, YMMV and Im going off of memory here)

    Air ratchet (nobody likes to snug nylocks by hand)
    ratchet:
    1/4" for a few tight spaces

    open/box 11mm or.............. (7/16) if using same hardware I have listed
    an open end will be needed on 1 or 2 areas iirc

    either a helper, or long arms and a few LONG extensions for your ratchets.

    rivet/clip tool

    sockets: 11mm or 7/16 again if u got the same hardware I listed


    I THINK thats it.



    I suggest using SOME kind of alternative clips for the bottom section like I have listed, as the OEM clips will NOT work, they are too short IMHO to hold. There was no satisfactory "click" when I tried to secure them with the custom shields. Your money, your truck tho. Will there be mechanical damage? maybe not....... but at the least, them flopping around may start tearing remaining support areas due to stress.

  2. Apr 4, 2017 at 6:15 PM
    #2
    ChadsPride

    ChadsPride Tacoma Owner & Enthusiast

    Joined:
    Nov 26, 2014
    Member:
    #143119
    Messages:
    116,209
    Vehicle:
    Sponsored by TacomaWorld.com
    Excellent write up!! I'm going to attempt to get mine on this weekend.

    Last edited: Apr 4, 2017
  3. Apr 4, 2017 at 6:20 PM
    #3
    inwood customs

    inwood customs [OP] Roaming potato

    Joined:
    Sep 11, 2016
    Member:
    #197024
    Messages:
    4,563
    First Name:
    Dave
    Vehicle:
    2006 v6 potato bugTuRD
    K&n, flowmaster, plastidip, chipped, hids, daves
    thanks man.........Im pretty tired (didnt sleep well), so i apologize for any grammar or spelling errors...
    Any other pics requested I can take care of tomorrow, both vehicles are in garage and its about dinner time

    mattgecko and ChadsPride like this.
  4. Apr 4, 2017 at 6:49 PM
    #4
    mattgecko

    mattgecko The LED Lighting Guy. MattGeckoLEDs.com

    Joined:
    Jul 5, 2011
    Member:
    #59337
    Messages:
    12,831
    Gender:
    Male
    First Name:
    Matt
    South San Jose, CA
    Vehicle:
    2011 DCSB O.R. 4wd TRD Super Charged
    Nice write up. One of these days I'll get to installing mine.

  5. Apr 4, 2017 at 7:21 PM
    #5
    inwood customs

    inwood customs [OP] Roaming potato

    Joined:
    Sep 11, 2016
    Member:
    #197024
    Messages:
    4,563
    First Name:
    Dave
    Vehicle:
    2006 v6 potato bugTuRD
    K&n, flowmaster, plastidip, chipped, hids, daves
    Thanks, it was an afterthought. My buddy has yet to install his, and i sent him some pointers via text while i was starting the install. He happend to say "nice writeup"... so it clicked and i figured i should share.
    Not a big writeup person, so hopefully its goodnuff

    mattgecko and ChadsPride like this.
  6. Apr 6, 2017 at 8:06 AM
    #6
    cnote4l

    cnote4l Gear Tech Customs Vendor

    Joined:
    Jul 19, 2015
    Member:
    #159851
    Messages:
    830
    Gender:
    Male
    First Name:
    Cody
    Jax Beach, FL
    Vehicle:
    08 Silverback TRD
    Fox coilovers, Maxtrac spindles, Skyjack Nitro Shocks, 3" Rear Springs, 20" XD Grenades 32" Toyo Open Country AT2
    Nice install bro! Your before & after looks like night & day. Glad you used the panel popper it makes the install so much easier and going with the Christmas tree clips does give that "clicking satisfaction". Would love to see it on the streets from afar, bet it looks a lot cleaner in the wheelwells now. Overall, great job

    :thumbsup:

    ChadsPride likes this.
  7. Apr 6, 2017 at 8:12 AM
    #7
    cnote4l

    cnote4l Gear Tech Customs Vendor

    Joined:
    Jul 19, 2015
    Member:
    #159851
    Messages:
    830
    Gender:
    Male
    First Name:
    Cody
    Jax Beach, FL
    Vehicle:
    08 Silverback TRD
    Fox coilovers, Maxtrac spindles, Skyjack Nitro Shocks, 3" Rear Springs, 20" XD Grenades 32" Toyo Open Country AT2
    Chad!! Hope you had a nice vacation the other week

    :plane:

    :tumbleweed:

    ChadsPride likes this.
  8. Apr 6, 2017 at 8:16 AM
    #8
    ChadsPride

    ChadsPride Tacoma Owner & Enthusiast

    Joined:
    Nov 26, 2014
    Member:
    #143119
    Messages:
    116,209
    Vehicle:
    Sponsored by TacomaWorld.com
    Thanks a bunch! Honeymoon was AMAZING!!!

    Already planning our 10yr back in Maui haha.

    Can't wait to get these puppies on this weekend!!!

    cnote4l likes this.
  9. Apr 6, 2017 at 8:52 AM
    #9
    cnote4l

    cnote4l Gear Tech Customs Vendor

    Joined:
    Jul 19, 2015
    Member:
    #159851
    Messages:
    830
    Gender:
    Male
    First Name:
    Cody
    Jax Beach, FL
    Vehicle:
    08 Silverback TRD
    Fox coilovers, Maxtrac spindles, Skyjack Nitro Shocks, 3" Rear Springs, 20" XD Grenades 32" Toyo Open Country AT2
    Good to hear man!!

    Should consider a group buy to Maui....sure a buncha us would love to go too...LOL

    ChadsPride likes this.
  10. Apr 6, 2017 at 1:00 PM
    #10
    inwood customs

    inwood customs [OP] Roaming potato

    Joined:
    Sep 11, 2016
    Member:
    #197024
    Messages:
    4,563
    First Name:
    Dave
    Vehicle:
    2006 v6 potato bugTuRD
    K&n, flowmaster, plastidip, chipped, hids, daves
    Thank you sir.
    Ill work on that pic, looks kinda snotty outside right now (some dark clouds)

    cnote4l, ChadsPride and mattgecko like this.
