Retrofit wiring harness

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Perfuseme, Mar 25, 2017.

  1. Mar 25, 2017 at 5:47 PM
    #1
    Perfuseme

    Perfuseme [OP] Well-Known Member

    Joined:
    Feb 16, 2016
    Member:
    #178419
    Messages:
    303
    Gender:
    Male
    First Name:
    Rick

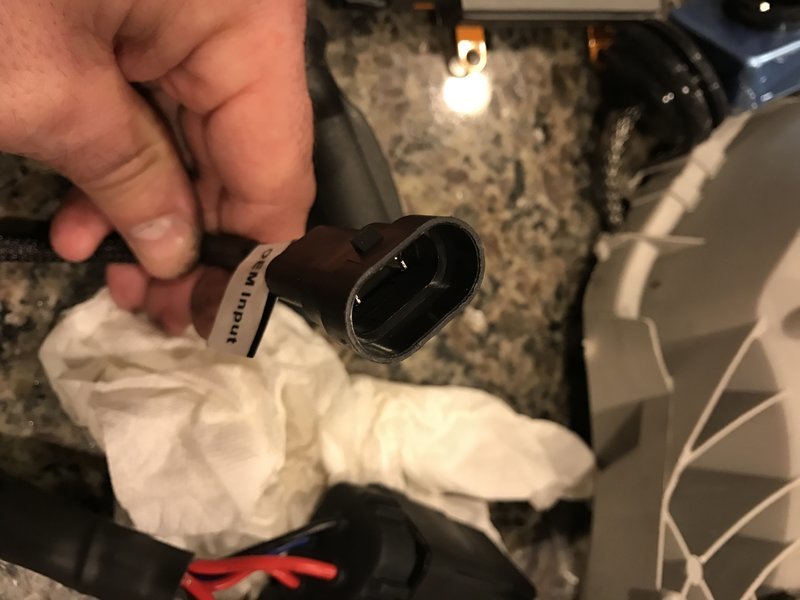

    I'm trying to finish up my retrofits but the wiring harness is thrown me. I know where everything goes except for this "OEM input" as labeled by TRS. This plug does not match my OEM inputs.

    Now, the RGB demon eyes are going to pose a whole new issue, not obvious where those go either.

    Also not obvious where the wires for solenoid (high/low beam) plug in, but first thing is first.


  2. Mar 25, 2017 at 6:03 PM
    #2
    Perfuseme

    Perfuseme [OP] Well-Known Member

    Joined:
    Feb 16, 2016
    Member:
    #178419
    Messages:
    303
    Gender:
    Male
    First Name:
    Rick
  3. Mar 25, 2017 at 6:27 PM
    #3
    Perfuseme

    Perfuseme [OP] Well-Known Member

    Joined:
    Feb 16, 2016
    Member:
    #178419
    Messages:
    303
    Gender:
    Male
    First Name:
    Rick
    So, it's the wrong damn harness! I need the H4/9003 and this is something else. I don't know if I ordered wrong or what....no wonder I couldn't figure out where the plug for shields go.
