ROCKER SWITCH HELP!!

Discussion in 'Lighting' started by THROUGHITALLDUDE, Sep 13, 2011.

  1. Sep 13, 2011 at 10:00 AM
    #1
    THROUGHITALLDUDE

    THROUGHITALLDUDE [OP] Someone didnt put the tailgate down!

    Joined:
    Aug 2, 2009
    Member:
    #20562
    Messages:
    1,515
    Gender:
    Male
    First Name:
    Jeff
    Southern California
    Vehicle:
    2005 Silver Tacoma
    285-75-17 Definity ATs - 16'' Chrome Moto Metal 951s - 4'' Maxtrac spindles - Rear Icon Progressive Leaf Pack - Magnaflow exhaust - Aftermarket LED Taillights - BHLM - Custom Wet Okle Seat Covers - Moog Tire Rods - US Spec Ipod - K&N High Flow Filter - Daytime Running Lights - TRD Skid Plate - Grillcraft - Hellas Mounted behind the grill

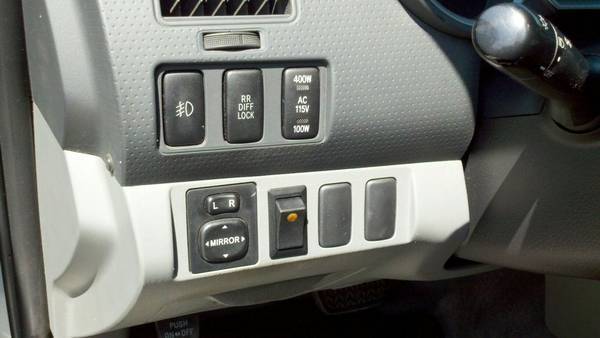

    Hey guys so I bought a switch for my hellas behind my grills from oznium http://www.oznium.com/scion-switch-led/tech they look great and work. BUT once I connected the battery the little light in the switch is illuminated and stay illuminated it doesnt turn off even when the truck is off because I have it hooked up to my battery. I wanted to see if this is my bad or the switches bad I have fuses where they should be and every also. If I leave it could this drain my battery or is it not big enough to drain my battery??

  2. Sep 13, 2011 at 10:13 AM
    #2
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,974
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    The switch shouldn't be taking power directly from the battery. You should find a jumper wire from a circuit that is only on when the ignition is on and run that to a relay. Run power from the battery to the relay that way everything shuts off when the ignition turns off.

  3. Sep 13, 2011 at 10:13 AM
    #3
    NYCO

    NYCO ┌∩┐‹(ಠ_ಠ)›┌∩┐

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    16,176
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    if the switch has a light on it, there should be a separate wire that would get connected to an AC source that will draw power only when the key is turned...

  4. Sep 13, 2011 at 10:14 AM
    #4
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,974
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    not for that switch, that switch only has 3 prongs based on the wiring diagram you linked to.

  5. Sep 13, 2011 at 10:16 AM
    #5
    NYCO

    NYCO ┌∩┐‹(ಠ_ಠ)›┌∩┐

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    16,176
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches

    didn't click on the link..you're right

  6. Sep 13, 2011 at 10:17 AM
    #6
    NYCO

    NYCO ┌∩┐‹(ಠ_ಠ)›┌∩┐

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    16,176
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    so the light stays on even when the switch is "off"?

  7. Sep 13, 2011 at 10:19 AM
    #7
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,974
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    :popcorn:

    doesn't sound like it should, but I don't like that wiring diagram on Oznium's site. There are much better ways to hook up lights!

  8. Sep 13, 2011 at 10:21 AM
    #8
    NYCO

    NYCO ┌∩┐‹(ಠ_ಠ)›┌∩┐

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    16,176
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    yea it shouldn't but almost sounds like his is....

    the relay option is a great way to make sure it isn't powered when the key is off

  9. Sep 13, 2011 at 10:22 AM
    #9
    THROUGHITALLDUDE

    THROUGHITALLDUDE [OP] Someone didnt put the tailgate down!

    Joined:
    Aug 2, 2009
    Member:
    #20562
    Messages:
    1,515
    Gender:
    Male
    First Name:
    Jeff
    Southern California
    Vehicle:
    2005 Silver Tacoma
    285-75-17 Definity ATs - 16'' Chrome Moto Metal 951s - 4'' Maxtrac spindles - Rear Icon Progressive Leaf Pack - Magnaflow exhaust - Aftermarket LED Taillights - BHLM - Custom Wet Okle Seat Covers - Moog Tire Rods - US Spec Ipod - K&N High Flow Filter - Daytime Running Lights - TRD Skid Plate - Grillcraft - Hellas Mounted behind the grill
    I have a relay and the whole nine yards the only thing I did not do is splice into any of my trucks wiring because I would like to be able to turn them on and off with the truck off but I am just worried this light is going to drain my battery while its sitting on

  10. Sep 13, 2011 at 10:27 AM
    #10
    NYCO

    NYCO ┌∩┐‹(ಠ_ಠ)›┌∩┐

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    16,176
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    oh ok...

    still seems odd how the light stays on when the switch is off...doesn't seem right

    do your hellas turn on and off properly?

  11. Sep 13, 2011 at 10:30 AM
    #11
    THROUGHITALLDUDE

    THROUGHITALLDUDE [OP] Someone didnt put the tailgate down!

    Joined:
    Aug 2, 2009
    Member:
    #20562
    Messages:
    1,515
    Gender:
    Male
    First Name:
    Jeff
    Southern California
    Vehicle:
    2005 Silver Tacoma
    285-75-17 Definity ATs - 16'' Chrome Moto Metal 951s - 4'' Maxtrac spindles - Rear Icon Progressive Leaf Pack - Magnaflow exhaust - Aftermarket LED Taillights - BHLM - Custom Wet Okle Seat Covers - Moog Tire Rods - US Spec Ipod - K&N High Flow Filter - Daytime Running Lights - TRD Skid Plate - Grillcraft - Hellas Mounted behind the grill
    Ya everything runs perfect....I think its really odd I called the company cause I think it has to do with the switch but she didnt sound like she knew anything about lights and said it sounds like I am getting too much power and I was like thats not possible I have a fuse between the battery and the switch if that was the case I would blow my fuse

  12. Sep 13, 2011 at 10:36 AM
    #12
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,974
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    You might have too much power for the switch. Are you running power from the battery directly to the switch and then out to the lights? You mentioned you have a relay somewhere in there, where is that located within the wiring diagram?

  13. Sep 13, 2011 at 10:39 AM
    #13
    THROUGHITALLDUDE

    THROUGHITALLDUDE [OP] Someone didnt put the tailgate down!

    Joined:
    Aug 2, 2009
    Member:
    #20562
    Messages:
    1,515
    Gender:
    Male
    First Name:
    Jeff
    Southern California
    Vehicle:
    2005 Silver Tacoma
    285-75-17 Definity ATs - 16'' Chrome Moto Metal 951s - 4'' Maxtrac spindles - Rear Icon Progressive Leaf Pack - Magnaflow exhaust - Aftermarket LED Taillights - BHLM - Custom Wet Okle Seat Covers - Moog Tire Rods - US Spec Ipod - K&N High Flow Filter - Daytime Running Lights - TRD Skid Plate - Grillcraft - Hellas Mounted behind the grill
    I have a relay that came with the hellas the only thing running to my switch is power ground and lights. I ran a little crap switch from autozone for the past month and it worked as it should I liked this for the more oem look but I cant imagine this one handles less power than the autozone one could it??

  14. Sep 13, 2011 at 11:07 AM
    #14
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,974
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    I think you have a defective switch. If it worked perfectly fine with a cheap switch and now that LED won't turn off, somethings either wrong with your wiring or the switch is messed up internally. If you're confident in your wiring, the switch is the culprit.

  15. Sep 13, 2011 at 11:26 AM
    #15
    Scooter

    Scooter Canadian Member

    Joined:
    Oct 6, 2008
    Member:
    #9750
    Messages:
    577
    Gender:
    Male
    Manitoba, Canada
    Vehicle:
    08 Double Cab TRD Sport Short Box
    Pop n Lock Power Tailgate Lock, Bak Flip Tonneau Cover, Factory DLR installed, Defrost with A/C Off, EZ Down Tailgate Damper, Code Alarm Security System with Remote Starter, Rear Spring TSB, Ming rust proofing & paint treatment, 3M fabric protector, Cargo Mat, Scanguage II, DYI Illuminated 4X4 Switch, Versa-Gate box extender & cargo divider, Toyota Roof Rails, Grom USB Audio adapter with bluetooth, LED Bed lights, OEM Backup Camera with LCD Display Mirror
    I am guessing, and take no responsibility for any damage caused by my analysis, since I'm not there to test out your switch or circuit. However, based on the information you have provided, I believe you have wired your switch as shown in my schematic below. This is the way the supplier suggest you wire it.


    This causes the pilot light to be on all the time. What you need to do is to wire it as shown below. That way, the pilot light is in parallel with your for lights, and will function as an indicator light, turning on only when the fog lights are on. This is essentially swapping terminals 2, and 3.


    Good luck, and I hope this helps. Again, please note my disclaimer above. I am only working with what limited information I have.

  16. Sep 13, 2011 at 11:32 AM
    #16
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,974
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    The indicator light is prewired within the switch though. I think your diagram is correct however the switch internals should shut the indicator light off when the accessory is off. Based on that diagram, there's no way to shut the indicator light off.

    OP, try this, switch the leads from #2 and #3 on the switch.

  17. Sep 13, 2011 at 11:33 AM
    #17
    Scooter

    Scooter Canadian Member

    Joined:
    Oct 6, 2008
    Member:
    #9750
    Messages:
    577
    Gender:
    Male
    Manitoba, Canada
    Vehicle:
    08 Double Cab TRD Sport Short Box
    Pop n Lock Power Tailgate Lock, Bak Flip Tonneau Cover, Factory DLR installed, Defrost with A/C Off, EZ Down Tailgate Damper, Code Alarm Security System with Remote Starter, Rear Spring TSB, Ming rust proofing & paint treatment, 3M fabric protector, Cargo Mat, Scanguage II, DYI Illuminated 4X4 Switch, Versa-Gate box extender & cargo divider, Toyota Roof Rails, Grom USB Audio adapter with bluetooth, LED Bed lights, OEM Backup Camera with LCD Display Mirror
    I'm afraid I posted my reply before I was finished. Please see my edited post # 15 above.

  18. Sep 13, 2011 at 11:39 AM
    #18
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,974
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Don't wire your lights like this... that wiring diagram runs what should be a ground for the switch into the hot wire for the lights...

    Try what I said and switch the terminals 2 and 3 (wouldn't be the first time a manufacturer's wiring diagram was incorrect). That may solve your problem or you have a defective switch and there's not a lot you can do about it.

    Edit: nvm, you deleted your diagram...

  19. Sep 13, 2011 at 11:49 AM
    #19
    THROUGHITALLDUDE

    THROUGHITALLDUDE [OP] Someone didnt put the tailgate down!

    Joined:
    Aug 2, 2009
    Member:
    #20562
    Messages:
    1,515
    Gender:
    Male
    First Name:
    Jeff
    Southern California
    Vehicle:
    2005 Silver Tacoma
    285-75-17 Definity ATs - 16'' Chrome Moto Metal 951s - 4'' Maxtrac spindles - Rear Icon Progressive Leaf Pack - Magnaflow exhaust - Aftermarket LED Taillights - BHLM - Custom Wet Okle Seat Covers - Moog Tire Rods - US Spec Ipod - K&N High Flow Filter - Daytime Running Lights - TRD Skid Plate - Grillcraft - Hellas Mounted behind the grill
    I fixed it guys the company's diagram they sent me had the power line and the lamp line switched I called them and the guy told me to flip them works like a charm =) heres a pic thanks for helping too[​IMG]

  20. Sep 13, 2011 at 11:51 AM
    #20
    Scooter

    Scooter Canadian Member

    Joined:
    Oct 6, 2008
    Member:
    #9750
    Messages:
    577
    Gender:
    Male
    Manitoba, Canada
    Vehicle:
    08 Double Cab TRD Sport Short Box
    Pop n Lock Power Tailgate Lock, Bak Flip Tonneau Cover, Factory DLR installed, Defrost with A/C Off, EZ Down Tailgate Damper, Code Alarm Security System with Remote Starter, Rear Spring TSB, Ming rust proofing & paint treatment, 3M fabric protector, Cargo Mat, Scanguage II, DYI Illuminated 4X4 Switch, Versa-Gate box extender & cargo divider, Toyota Roof Rails, Grom USB Audio adapter with bluetooth, LED Bed lights, OEM Backup Camera with LCD Display Mirror
    Glad it all worked out. I also fixed my schematic diagram on post #15. It was originally wrong, and the pilot light would have never lit, as it would have had 12 V on both leads.
