Rocker switch help

Discussion in 'Lighting' started by WYJH22, Mar 12, 2020.

  1. Mar 12, 2020 at 12:42 PM
    #1
    WYJH22

    WYJH22 [OP] Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253309
    Messages:
    153
    Gender:
    Male
    First Name:
    Cody
    Wyoming
    Vehicle:
    2011 Toyota Tacoma TRD Sport DC LB V6
    ARB Deluxe Bull Bar OME Nitrocharger Sport Shocks OME 886 Coil OME Deaver Single AAL American Racing AR 172 Baja Wheels Falken Wildpeak AT3W Spyder Auto Projector Headlights Baja Design Squadron-R Sport Baja Design S8, 20" Light Bar Saddleman Saddle Blanket Seat Covers Weather Tech All-Weather Floor Mats
    So I recently bought a pair of LP6 Pros and they're awesome. I'm trying to put in a different switch that is a 6 pin 3 position switch that has a red led indicator. The switch that came with the harness is a 3 position 6 pin toggle with no led indicator. The issue I'm having is the LED light is on when the switch is off but when I turn the lights on high or low the led goes off. I tried switching the pins around seeing of maybe I had something switched around but I can't seem to get it to work. Hoping someone might have a solution. Here is the switch I'm trying to use.
    https://www.amazon.com/dp/B07R4XPZP8/ref=cm_sw_r_sms_apa_i_UfNAEb7FAXVSP

  2. Mar 13, 2020 at 4:33 PM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,505
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  3. Mar 13, 2020 at 4:42 PM
    #3
    jowybyo

    jowybyo Mobtown Offroad

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    4,922
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    42 Designs Catch Can Mobtown Offroad Ribbed Tailgate Skin Mobtown Offroad Tailgate Cap Mobtown Offroad Locking Storage Doors Mobtown Offroad Utility Bed Bars (Prototype)
    The LED is internally wired. It should come on in both the up and down position and be off in the middle.

  4. Mar 14, 2020 at 7:54 AM
    #4
    WYJH22

    WYJH22 [OP] Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253309
    Messages:
    153
    Gender:
    Male
    First Name:
    Cody
    Wyoming
    Vehicle:
    2011 Toyota Tacoma TRD Sport DC LB V6
    ARB Deluxe Bull Bar OME Nitrocharger Sport Shocks OME 886 Coil OME Deaver Single AAL American Racing AR 172 Baja Wheels Falken Wildpeak AT3W Spyder Auto Projector Headlights Baja Design Squadron-R Sport Baja Design S8, 20" Light Bar Saddleman Saddle Blanket Seat Covers Weather Tech All-Weather Floor Mats
    Yeah that's what I thought too. I'm just taking my truck next week to a guy that just does electrical stuff on vehicles.

  5. Mar 14, 2020 at 9:42 AM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,505
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Do it yourself...


  6. Mar 14, 2020 at 10:30 AM
    #6
    WYJH22

    WYJH22 [OP] Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253309
    Messages:
    153
    Gender:
    Male
    First Name:
    Cody
    Wyoming
    Vehicle:
    2011 Toyota Tacoma TRD Sport DC LB V6
    ARB Deluxe Bull Bar OME Nitrocharger Sport Shocks OME 886 Coil OME Deaver Single AAL American Racing AR 172 Baja Wheels Falken Wildpeak AT3W Spyder Auto Projector Headlights Baja Design Squadron-R Sport Baja Design S8, 20" Light Bar Saddleman Saddle Blanket Seat Covers Weather Tech All-Weather Floor Mats
    Yeah I tried that too and and it still wasn't working the right way.

  7. Mar 14, 2020 at 10:42 AM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,505
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Last try...;)


  8. Mar 14, 2020 at 10:49 AM
    #8
    WYJH22

    WYJH22 [OP] Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253309
    Messages:
    153
    Gender:
    Male
    First Name:
    Cody
    Wyoming
    Vehicle:
    2011 Toyota Tacoma TRD Sport DC LB V6
    ARB Deluxe Bull Bar OME Nitrocharger Sport Shocks OME 886 Coil OME Deaver Single AAL American Racing AR 172 Baja Wheels Falken Wildpeak AT3W Spyder Auto Projector Headlights Baja Design Squadron-R Sport Baja Design S8, 20" Light Bar Saddleman Saddle Blanket Seat Covers Weather Tech All-Weather Floor Mats
    I'll give it a shot

  9. Mar 14, 2020 at 1:20 PM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,505
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Detail:

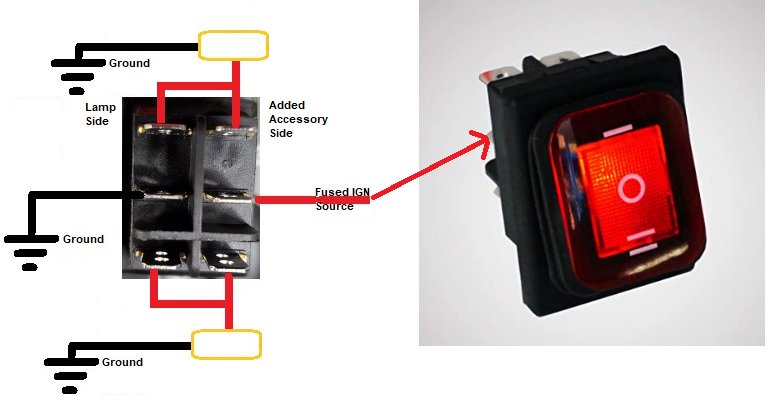

    So you don't run a wire back from the lights to the switch.

  10. Mar 14, 2020 at 1:22 PM
    #10
    WYJH22

    WYJH22 [OP] Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253309
    Messages:
    153
    Gender:
    Male
    First Name:
    Cody
    Wyoming
    Vehicle:
    2011 Toyota Tacoma TRD Sport DC LB V6
    ARB Deluxe Bull Bar OME Nitrocharger Sport Shocks OME 886 Coil OME Deaver Single AAL American Racing AR 172 Baja Wheels Falken Wildpeak AT3W Spyder Auto Projector Headlights Baja Design Squadron-R Sport Baja Design S8, 20" Light Bar Saddleman Saddle Blanket Seat Covers Weather Tech All-Weather Floor Mats
    Okay, I'll try this one after work too

  11. Mar 16, 2020 at 9:59 AM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    3,505
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  12. Mar 16, 2020 at 3:20 PM
    #12
    WYJH22

    WYJH22 [OP] Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253309
    Messages:
    153
    Gender:
    Male
    First Name:
    Cody
    Wyoming
    Vehicle:
    2011 Toyota Tacoma TRD Sport DC LB V6
    ARB Deluxe Bull Bar OME Nitrocharger Sport Shocks OME 886 Coil OME Deaver Single AAL American Racing AR 172 Baja Wheels Falken Wildpeak AT3W Spyder Auto Projector Headlights Baja Design Squadron-R Sport Baja Design S8, 20" Light Bar Saddleman Saddle Blanket Seat Covers Weather Tech All-Weather Floor Mats
    Hey sorry for the delayed response, but no dice.

  13. Mar 16, 2020 at 7:53 PM
    #13
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    6,395

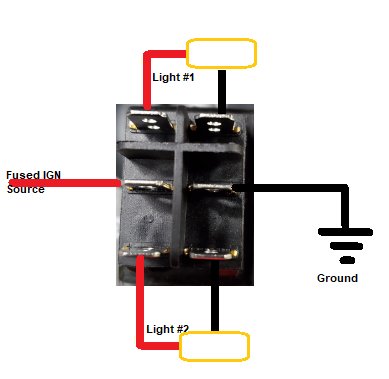

    Did you pay attention to that plastic crossbar on the back of the switch? Pics 2,3,and 4 are backwards from pic 1.

  14. Mar 17, 2020 at 6:52 AM
    #14
    WYJH22

    WYJH22 [OP] Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253309
    Messages:
    153
    Gender:
    Male
    First Name:
    Cody
    Wyoming
    Vehicle:
    2011 Toyota Tacoma TRD Sport DC LB V6
    ARB Deluxe Bull Bar OME Nitrocharger Sport Shocks OME 886 Coil OME Deaver Single AAL American Racing AR 172 Baja Wheels Falken Wildpeak AT3W Spyder Auto Projector Headlights Baja Design Squadron-R Sport Baja Design S8, 20" Light Bar Saddleman Saddle Blanket Seat Covers Weather Tech All-Weather Floor Mats
    Yes
