Rocker Switch wiring question

Discussion in '1st Gen. Tacomas (1995-2004)' started by jammer, Jan 17, 2017.

  1. Jan 17, 2017 at 11:35 AM
    #1
    jammer

    jammer [OP] 2003 Toyota PreRunner 3.4L

    Joined:
    Jan 23, 2014
    Member:
    #121272
    Messages:
    481
    Gender:
    Male
    First Name:
    Ben
    Bentonville, AR
    Vehicle:
    2003 Silver Tacoma PreRunner
    Bilstein 5100's front / 5125's rear

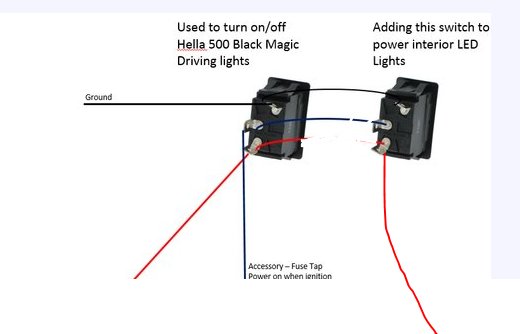

    Below is how I currently have the Hella 500 lights wired up. Using a Toyota fog light switch (Part #00550-35976) to power on/off. I plan on adding another Toyota fog light switch next to it to power on/off some interior led lights.
    For the second switch, can I run a wire for each connection over from the first switch?
    Thanks for your help.


    Last edited: Jan 17, 2017
  2. Jan 17, 2017 at 11:41 AM
    #2
    98tacoma27

    98tacoma27 is going full "Ben" Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    57,424
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+295k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED), 2006 F350 King Ranch 6.0L
    Some stuff. Not a lot, just some.
    You don't want the red wire connected on the right switch. That wire should go to your interior lights.

  3. Jan 17, 2017 at 11:43 AM
    #3
    98tacoma27

    98tacoma27 is going full "Ben" Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    57,424
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+295k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED), 2006 F350 King Ranch 6.0L
    Some stuff. Not a lot, just some.
    Like this...


  4. Jan 17, 2017 at 11:44 AM
    #4
    jammer

    jammer [OP] 2003 Toyota PreRunner 3.4L

    Joined:
    Jan 23, 2014
    Member:
    #121272
    Messages:
    481
    Gender:
    Male
    First Name:
    Ben
    Bentonville, AR
    Vehicle:
    2003 Silver Tacoma PreRunner
    Bilstein 5100's front / 5125's rear
    Good catch. That will be going to the Interior LED Lights. I'll edit the pic.
    d

  5. Jan 17, 2017 at 12:41 PM
    #5
    Caligula

    Caligula It's the COVFEFE

    Joined:
    Sep 14, 2010
    Member:
    #43228
    Messages:
    2,093
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    2000 Ext. Cab Prerunner 2.7L
    The fuses are on the ground side? Shouldn't it be fuse>relay>switch>ground? I suppose it ultimately doesnt matter, just goes against typical practice, to have the breaker after the load.

  6. Jan 17, 2017 at 12:42 PM
    #6
    98tacoma27

    98tacoma27 is going full "Ben" Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    57,424
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+295k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED), 2006 F350 King Ranch 6.0L
    Some stuff. Not a lot, just some.
    Wire color means nothing

  7. Jan 17, 2017 at 12:44 PM
    #7
    Caligula

    Caligula It's the COVFEFE

    Joined:
    Sep 14, 2010
    Member:
    #43228
    Messages:
    2,093
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    2000 Ext. Cab Prerunner 2.7L
    Ehh ok.

  8. Jan 17, 2017 at 1:31 PM
    #8
    Wulf

    Wulf If specified, this will replace the title that dis

    Joined:
    Jan 30, 2015
    Member:
    #147523
    Messages:
    10,335
    First Name:
    Jake
    Saudi Aurora
    Vehicle:
    amocaT 69
    Trail damage
    Though the diagram has a poor color choice it is fused on the positive and fine as it is.

  9. Jan 17, 2017 at 1:39 PM
    #9
    paranoid56

    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    2,953
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    yea fuse the Pos off the battery and you should be fine.

  10. Jan 17, 2017 at 2:10 PM
    #10
    jammer

    jammer [OP] 2003 Toyota PreRunner 3.4L

    Joined:
    Jan 23, 2014
    Member:
    #121272
    Messages:
    481
    Gender:
    Male
    First Name:
    Ben
    Bentonville, AR
    Vehicle:
    2003 Silver Tacoma PreRunner
    Bilstein 5100's front / 5125's rear
    Appreciate the help guys
