Roof Light Wiring

Discussion in 'Lighting' started by prdltakid, Feb 8, 2015.

  1. Feb 8, 2015 at 10:10 PM
    #1
    prdltakid

    prdltakid [OP] Dick Richards III

    Joined:
    Apr 8, 2010
    Member:
    #34882
    Messages:
    31
    Gender:
    Male
    First Name:
    Dick
    Kaneohe, Oahu, HI
    Vehicle:
    08 4x4 5spd Tacoma
    Recently bought a Carr Roof Light bar for my truck. The install for that is the easy part. My questions is, does anyone have any good ideas for wiring the lights coming off the top of the cab. I thought about drilling four separate hole for the lights. If anyone has any better ideas, please let me know. Thanks.

  2. Feb 9, 2015 at 10:22 AM
    #2
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    How are you planning to wire the lights? i.e. all four to one switch or some other variation.

    i don't see the need to put 4 holes in the roof, maybe one if you really have to.

  3. Feb 9, 2015 at 10:22 AM
    #3
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    have you had your windshield replaced recently?

  4. Feb 9, 2015 at 2:13 PM
    #4
    boogie3478

    boogie3478 Tacomaholic & Hollywood

    Joined:
    Oct 12, 2014
    Member:
    #140179
    Messages:
    25,550
    Gender:
    Male
    Northern Virginia
    Vehicle:
    14 TRD Off-Road V6
    All the mods
    Most of those roof light bars have brackets made for them that attach to the channels on the sides of the windshield. I wouldn't recommend drilling holes into your roof...

  5. Feb 9, 2015 at 2:24 PM
    #5
    NightProwler

    NightProwler Well-Known Member

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    3,356
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    '01 Prerunner, '03 cbr600rr, '09 R1, '03 cbr954rr

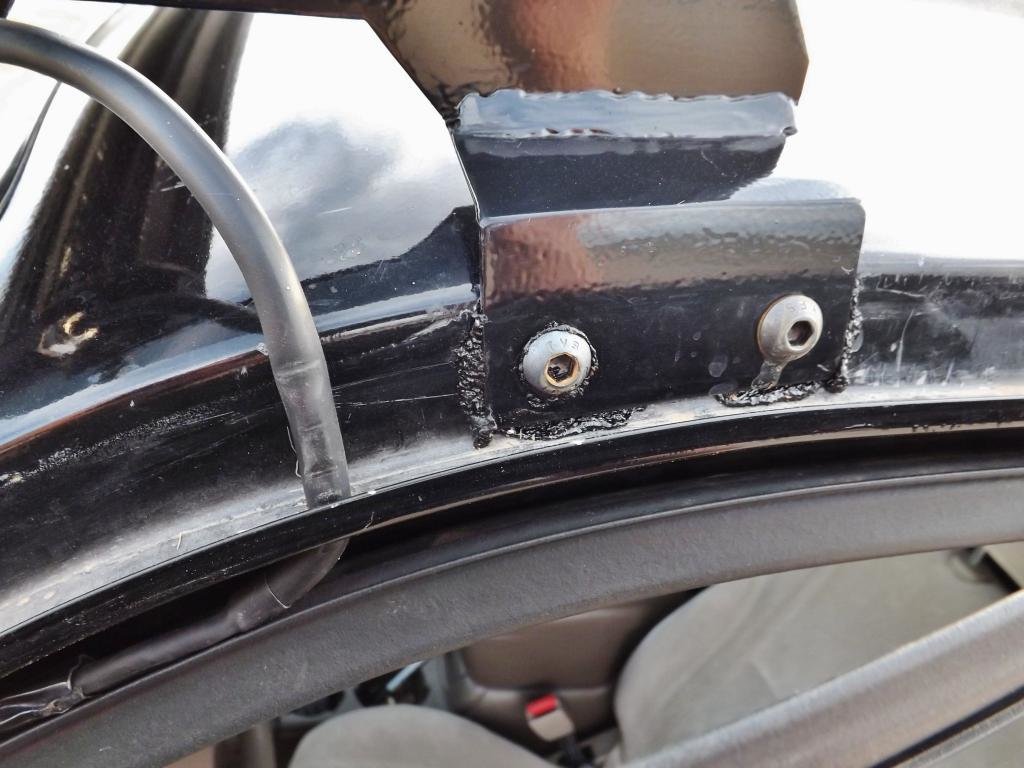

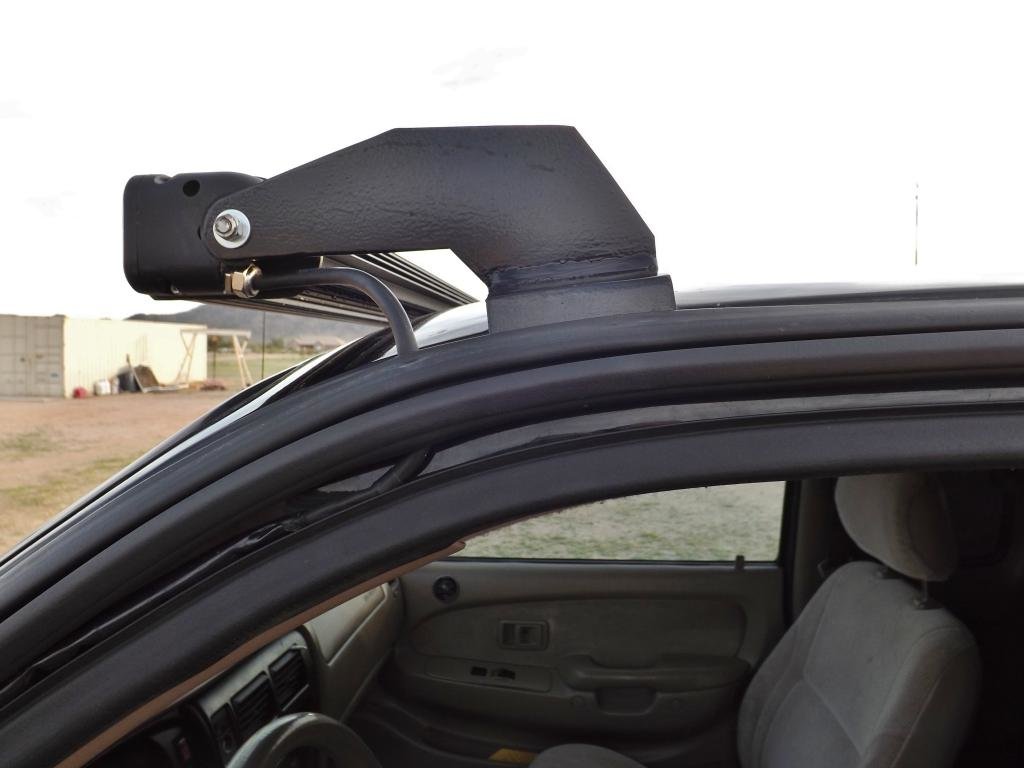

    If you have a rain gutter on the inside of door frame, you could drill a hole in that, feed the wires through, run down the weather stripping down to where the fender meets hood, into your engine bay, then into the can through the firewall grommet. I did this for my light bar wiring.


  6. Feb 9, 2015 at 9:18 PM
    #6
    prdltakid

    prdltakid [OP] Dick Richards III

    Joined:
    Apr 8, 2010
    Member:
    #34882
    Messages:
    31
    Gender:
    Male
    First Name:
    Dick
    Kaneohe, Oahu, HI
    Vehicle:
    08 4x4 5spd Tacoma
    It's a Carr light bar with the gutter less mounting brackets. I plan on wiring all four lights into one switch. I ordered the KC double wiring kit to be able to do that. I'll take a look to see how it's all gonna fit together and post pictures. Don't feel very comfortable drilling four holes so hopefully one off to the side will work.

  7. Feb 10, 2015 at 2:00 AM
    #7
    NightProwler

    NightProwler Well-Known Member

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    3,356
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    '01 Prerunner, '03 cbr600rr, '09 R1, '03 cbr954rr
    Right I know what bar yer talking about. But you should still be able to route the wires a similar way like I did with the led bar. If the wires are skinny enough, you may just be able to run them down the weather stripping on top. I'm not sure if the 2nd gens have a rain gutter like 1st gens or not. I assume they do. But a hole in there could easily be do-able. It's outside the cab so it shouldn't leak water. Just seal it up with something if you want anyways. Idk I'd have to see pics to elaborate further with your setup. But yer right, last thing you wanna do is drill holes into the cab.

  8. Feb 10, 2015 at 6:25 PM
    #8
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,194
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    The fantastic part about 2nd gens is there is a nice fat channel that runs right down the side of the windshield on either side. My recommendation is consolidate all your wires to a single skinny loom and run them down this channel. If you search around on the forum for LED bar installs and how people have run their wires (same way I ran my wires) you should find some pictures of what I'm talking about.

    You will basically just run your wires to the start of the windshield channel where it meets the roof, then tuck the wires into the channel nice and snug like, run them all the way down this channel until you meet the plastic trim piece against the windshield, run the wires under that and now you are in the engine bay.

    That way no drilling, no holes, no chance of leaks, and you are left with a clean install.

  9. Feb 10, 2015 at 10:55 PM
    #9
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    this is not true... early 2nd gen tacomas didn't have that type of channel seal. not sure which year toyota switched. i ran into this issue when i had my windshield replaced recently. the windshield guy had to double check that he had the right seal.

  10. Feb 11, 2015 at 7:04 AM
    #10
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,194
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    Interesting. So no side channel in the windshield of earlier 2nd gens? Bummer cause it makes routing wires easy as hell.

  11. Feb 13, 2015 at 9:15 AM
    #11
    Icepuck72

    Icepuck72 Well-Known Member

    Joined:
    Jul 9, 2011
    Member:
    #59563
    Messages:
    1,795
    Gender:
    Male
    First Name:
    Mark
    Richmond, VA
    Vehicle:
    2006 DC TRD
    OME 885's, Dakars, TRD Trail Edition Wheels, 285x75x16 Goodyear Duratracs, Magnaflow 12256 muffler, Fog Light mod, 2 Baby seats
    Yep, my '06 does not have this channel. I'm going to have to figure this out.

    Looks like I can run some wire next to the windshield??

  12. Dec 17, 2015 at 8:57 PM
    #12
    Maximus

    Maximus Well-Known Member

    Joined:
    Jun 18, 2011
    Member:
    #58482
    Messages:
    1,684
    Gender:
    Male
    North Bay
    Vehicle:
    11 Tacoma TRD OR 4x4
    Icon Suspension with CDCV, SPC Light Racing UCAs, Wheeler's 3 Leaf AAL, Wheeler's Superbumps, sPod SE BAMF Sliders, All-Pro Skids, AFE Drop in filter, Magnaflow Exhaust, RCI Aluminum LCA Skids, BAMF Bed Brackets, 4X Innovations Rear Bumper, FX-R Retrofit Headlights with Philips 4300k, Custom Nestah Edition Firestik AM/FM Antenna, Famous Fab Hood brackets, FrontRunner SlimLine 2 Roof Rack, Mob Town Offroad tailgate reinforcement plate, Ram A pillar mount, Anti-Dark hood lights, Lots of LED lights,
    Would you mind posting a picture of how you routed your wires? I would also like to know what kind of wire loom/sleeve you used, as well. Thanks.

  13. Dec 18, 2015 at 1:44 PM
    #13
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,194
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    Took some quick pictures:



    I didn't use any wire loom or anything, the wire already has an extremely thick jacket on it, but I've seen pics of people use the woven style loom. As the wire enters under the plastic cowl piece it goes right into the engine bay.

  14. Dec 18, 2015 at 2:57 PM
    #14
    Maximus

    Maximus Well-Known Member

    Joined:
    Jun 18, 2011
    Member:
    #58482
    Messages:
    1,684
    Gender:
    Male
    North Bay
    Vehicle:
    11 Tacoma TRD OR 4x4
    Icon Suspension with CDCV, SPC Light Racing UCAs, Wheeler's 3 Leaf AAL, Wheeler's Superbumps, sPod SE BAMF Sliders, All-Pro Skids, AFE Drop in filter, Magnaflow Exhaust, RCI Aluminum LCA Skids, BAMF Bed Brackets, 4X Innovations Rear Bumper, FX-R Retrofit Headlights with Philips 4300k, Custom Nestah Edition Firestik AM/FM Antenna, Famous Fab Hood brackets, FrontRunner SlimLine 2 Roof Rack, Mob Town Offroad tailgate reinforcement plate, Ram A pillar mount, Anti-Dark hood lights, Lots of LED lights,
    Thank you. That is perfect fit and looks very clean. Unfortunately my Rigid Industries wiring harness is a little different and will require a wire loom of some kind.

  15. Dec 18, 2015 at 3:01 PM
    #15
    Mademan925

    Mademan925 Senor Taco

    Joined:
    Nov 7, 2012
    Member:
    #90668
    Messages:
    7,604
    Gender:
    Male
    First Name:
    Nick
    Discovery Bay, CA
    Vehicle:
    2014 4x4 TRD OFFROAD DCSB
    enough to go over stuff

    This is what I did on mine for the side lights on my roof rack

  16. Dec 18, 2015 at 6:13 PM
    #16
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,194
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    Hmmm, I've used one of their harnesses before. Does it have the thick PVC jacket on it? One option could be to remove that if it is that way and get some heat shrink to replace it so it's not as bulky. Then if you want add some low profile woven loom for extra protection.

    Basically just removing the portion of jacket on the wires running up to the light bar and leaving the rest.

    At least that's what I'd do. I was lucky enough to have a LED bar with a 3-4ft strand of wiring to work with.

    If the Rigid harness could fit in the gap you could just use some dabs of silicone sealant to hold it in place too maybe.

  17. Dec 18, 2015 at 9:04 PM
    #17
    Maximus

    Maximus Well-Known Member

    Joined:
    Jun 18, 2011
    Member:
    #58482
    Messages:
    1,684
    Gender:
    Male
    North Bay
    Vehicle:
    11 Tacoma TRD OR 4x4
    Icon Suspension with CDCV, SPC Light Racing UCAs, Wheeler's 3 Leaf AAL, Wheeler's Superbumps, sPod SE BAMF Sliders, All-Pro Skids, AFE Drop in filter, Magnaflow Exhaust, RCI Aluminum LCA Skids, BAMF Bed Brackets, 4X Innovations Rear Bumper, FX-R Retrofit Headlights with Philips 4300k, Custom Nestah Edition Firestik AM/FM Antenna, Famous Fab Hood brackets, FrontRunner SlimLine 2 Roof Rack, Mob Town Offroad tailgate reinforcement plate, Ram A pillar mount, Anti-Dark hood lights, Lots of LED lights,
    Yes, it does come with the PVC jacket on it. I will be cutting the two wires out of the jacket and placing it in a braided loom of some sort. I'm mainly concerned about UV damage and rotting.

    With the two wires and a braided loom, I hope it will look as seamless as yours. What kind of silicone sealant did you use?
