Runing wiring above the windshield

Discussion in '2nd Gen. Tacomas (2005-2015)' started by doghair, Jun 24, 2017.

  1. Jun 24, 2017 at 6:33 PM
    #1
    doghair

    doghair [OP] Well-Known Member

    Joined:
    Jun 7, 2013
    Member:
    #105780
    Messages:
    341
    Gender:
    Male
    Phoenix
    Vehicle:
    2013 Single Cab 4x4
    I want to run a power cable from the rear view mirror over to the A pillar. Any hints to the easiest way? Does not seem like an easy tuck and I thought I'd ask before going all honey badger on it.

    Thanks all,

  2. Jun 24, 2017 at 7:12 PM
    #2
    iLLogics

    iLLogics Well-Known Member

    Joined:
    Jul 24, 2015
    Member:
    #160191
    Messages:
    78
    Gender:
    Male
    First Name:
    Jason
    Eastvale Ca.
    Vehicle:
    2007 Access Cab OR
    You should be able to pull down gently on the front of the head liner and tuck the cable in behind it. I have a Mic wire for my blue tooth and the cable for my remote start antenna ran up from the a-piller to the rear view mirror. I recall it being a pretty simple job. Hardest part was removing the a pillar cover and even that was easy.

    GSHEP4, JoefromPTC and 12TRDTacoma like this.
  3. Jun 24, 2017 at 7:30 PM
    #3
    doghair

    doghair [OP] Well-Known Member

    Joined:
    Jun 7, 2013
    Member:
    #105780
    Messages:
    341
    Gender:
    Male
    Phoenix
    Vehicle:
    2013 Single Cab 4x4
    Come for the food, stay for the info. :thumbsup:

  4. Jun 25, 2017 at 7:29 AM
    #4
    hotrod53

    hotrod53 Well-Known Member

    Joined:
    Aug 22, 2013
    Member:
    #110971
    Messages:
    1,206
    Gender:
    Male
    First Name:
    Lynd
    Pittsburgh, PA
    Vehicle:
    ‘14 DCLB Sport, ‘18 TCH, ‘13 TCH
    Weathertech floor liners moded to hold OEM floor mats, weathertech vent visors, Toyota bed mat, LEER 100XL cap, hood gasket mod to stop whistling.
    I had to run my temp sensor wire across the headliner and down the A pillar for my Gentex mirror. No problem, easy job.

  5. Jun 25, 2017 at 7:30 AM
    #5
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    45,782
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    I had to tuck some wires back there for a dash cam, and it was very easy. Just sorta shoved it up in there.

  6. Jun 25, 2017 at 2:57 PM
    #6
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,824
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    the other option besides shoving wires up into the headliner lip is unfasten the A-pillar cover, unfasten and remove the overhead visor, and unfasten the overhead console and take it down. If you have SRS there is also a little puck on the driver side headliner you can unbolt (it also helps hold headliner in place).

    Now you have some more leeway in bringing that corner of the headliner down for a more professional wiring run. Either way both get the job done.

  7. Jun 25, 2017 at 10:30 PM
    #7
    TxFireman

    TxFireman Factory Pilot

    Joined:
    Sep 7, 2013
    Member:
    #112051
    Messages:
    1,139
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2013 DC-SB TRD-OR, tow package, entune/nav
    I have my ultragauge mounted on the windshield next to my rearview and I just went under the dash to the A pillar (removed cover) and then tucked into the front of the headliner to the mount. Super easy and it never tries coming out. As noted the front of the headliner is a little stubborn to get under but it will go. Once you can get under the lip up front it's easy. But it will hold well once released. The wire is only visible where it comes out and goes to the mount, and since I mounted mine up high, it's only visible is you look for it.

  8. Jun 27, 2017 at 9:43 PM
    #8
    StreetTiresJay

    StreetTiresJay Well-Known Member

    Joined:
    Feb 20, 2016
    Member:
    #178812
    Messages:
    512
    Gender:
    Male
    First Name:
    Jay
    British Columbia Canada
    Vehicle:
    '16 Taco TRD Sport DBLcab Alpine White 6M
    Wife in passenger seat, not driver seat :)

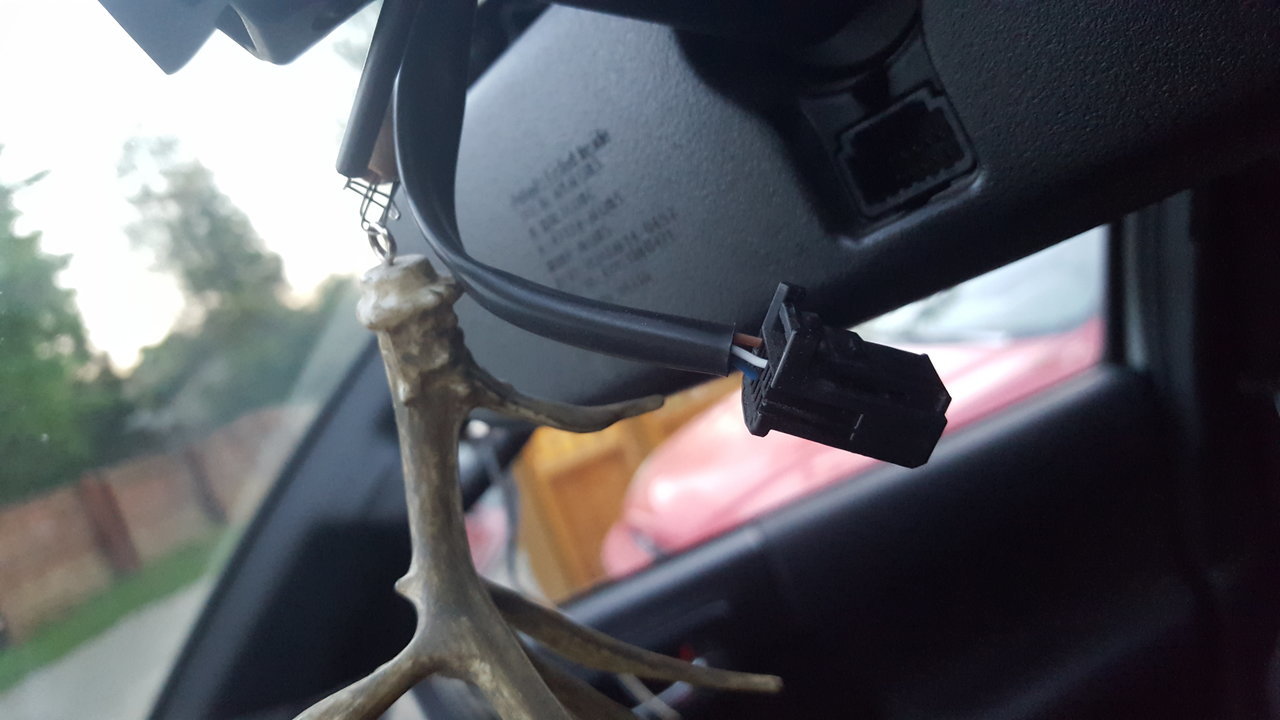

    This is my 3rd gen Tacoma rearview mirror. Its got power and ground but I have no volt meter. Anyone know what wires to tap for my dash cam? I was going to tuck the cable up around the windshield sil also but decided to buy a wiring harness for the camera with an inline fuse. Then I was looking for power and I figured this would be best. Wouldn't be robbing much power from the rearview mirror at all

    Also I'm not sure if the 2nd Gen tacos have powered rearview mirrors or not. Anyone got any ideas?

  9. Jun 27, 2017 at 10:20 PM
    #9
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    45,782
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    I know this doesn't help since it's unavailable, but check this out.

    https://www.amazon.com/dp/B01AYS4JZ4/_encoding=UTF8?coliid=IS0B3M8JRCCN2&colid=17OHKZGZRVGYR

    Also check and see what voltage your camera runs on. Most run at 5v, so you'd need a hardwiring kit that reduces voltage.

  10. Jun 27, 2017 at 10:35 PM
    #10
    StreetTiresJay

    StreetTiresJay Well-Known Member

    Joined:
    Feb 20, 2016
    Member:
    #178812
    Messages:
    512
    Gender:
    Male
    First Name:
    Jay
    British Columbia Canada
    Vehicle:
    '16 Taco TRD Sport DBLcab Alpine White 6M
    Wife in passenger seat, not driver seat :)
    I've got all of that :D thankfully! But zero knowledge about wiring and much fear of damaging my new truck... That's a Fancy product... Not sure how it would connect to the rearview mirror specifically, but I really would love to get a hold of a wiring diagram for the 2016 rearview mirror harness.. no clue where to find that info tho

  11. Jun 28, 2017 at 1:55 AM
    #11
    bigtotoro

    bigtotoro Well-Known Member

    Joined:
    Dec 4, 2016
    Member:
    #203976
    Messages:
    73
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD Pro, Barcelona Red
    I'm also trying to figure this out, Jay.
    According to documentation on ChiltonDIY, you can test the electrochromic mirror by doing this:

    "Connect the positive (+) lead of the battery to terminal 6 (IG) and negative (-) lead to terminal 3 (E)."
    "Attach black-colored tape to the forward sensor to prevent it from sensing light."
    "Shine an electric light on the mirror. Check that the mirror surface changes from bright to dark."


    So I'm assuming terminal 6 (upper row, far right) is +12v and terminal 3 (upper row, 3rd from left) is ground. But I wasn't able to confirm with my multi-meter... seems like I couldn't get the leads deep enough into the connector to actually make a circuit. And I have no idea what the remaining terminal 10 does (bottom row, 3rd from left).

    I'd also like to get a wiring pigtail with a connector that will mate with this one so I don't alter any original wiring, but Google is pretty much useless so far. Please let me know if you find anything out.

    StreetTiresJay likes this.
  12. Jun 28, 2017 at 5:53 AM
    #12
    StreetTiresJay

    StreetTiresJay Well-Known Member

    Joined:
    Feb 20, 2016
    Member:
    #178812
    Messages:
    512
    Gender:
    Male
    First Name:
    Jay
    British Columbia Canada
    Vehicle:
    '16 Taco TRD Sport DBLcab Alpine White 6M
    Wife in passenger seat, not driver seat :)
    There are these little pin sleeves that press into the empty pins. I was thinking of pressing my power and ground into the empty pins and jumping them over to existing power and ground respectively... However I haven't got a clue which wire does what haha. And I haven't had any luck finding the wiring diagram for that... I'll be posting in 3rd gen for an answer on this because there are some service techs on here I'm sure!
