Rust on Frame with A/C drain mod fix

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Uptown2k, Aug 3, 2016.

  1. Jun 25, 2018 at 2:04 PM
    #341
    TXTaco13

    TXTaco13 Taco/T4R Enthusiast

    Joined:
    Aug 25, 2013
    Member:
    #111175
    Messages:
    6,964
    Gender:
    Male
    Dallas, Texas
    Vehicle:
    4TH GEN V8 4X4 T4R
    '83 CJ7 '19 MT 07
    How long were your zip ties?

  2. Jun 26, 2018 at 8:54 AM
    #342
    Omizee

    Omizee Well-Known Member

    Joined:
    Feb 26, 2018
    Member:
    #245697
    Messages:
    243
    Gender:
    Male
    First Name:
    Omar
    Vehicle:
    2018 TRD SPORT
    LED lighting inside and out bed cover
    18"

    Shmody and TXTaco13[QUOTED] like this.
  3. Jul 1, 2018 at 7:43 AM
    #343
    bfenne

    bfenne Active Member

    Joined:
    Jun 11, 2018
    Member:
    #256123
    Messages:
    25
    Big thanks to the first to share and all contributers. I am a previous 2nd gen owner who went through hell with Toyota due to frame rust. Water under the bride and now in a 3rd gen. That said better to be safe than pissed off down the road. I did not reinvent the wheel as many have shared cool options. This was my second Mod after my bed mat if you can even call that a Mod...lol

    1. This is a "Anyone Can Do Mod"
    2. You can do this Mod 100% from underneath the truck (was feeling lazy and did not turn wheel to remove splash guard)...lol
    3. I kept it simple. Tried to keep the most natural routing with most vertical exit for best flow. I live in Northeast and did not want freezing issues from moisture lock in bends, flat run areas and long runs also.



    Found at my local ACE Hardware store in loose hardware area

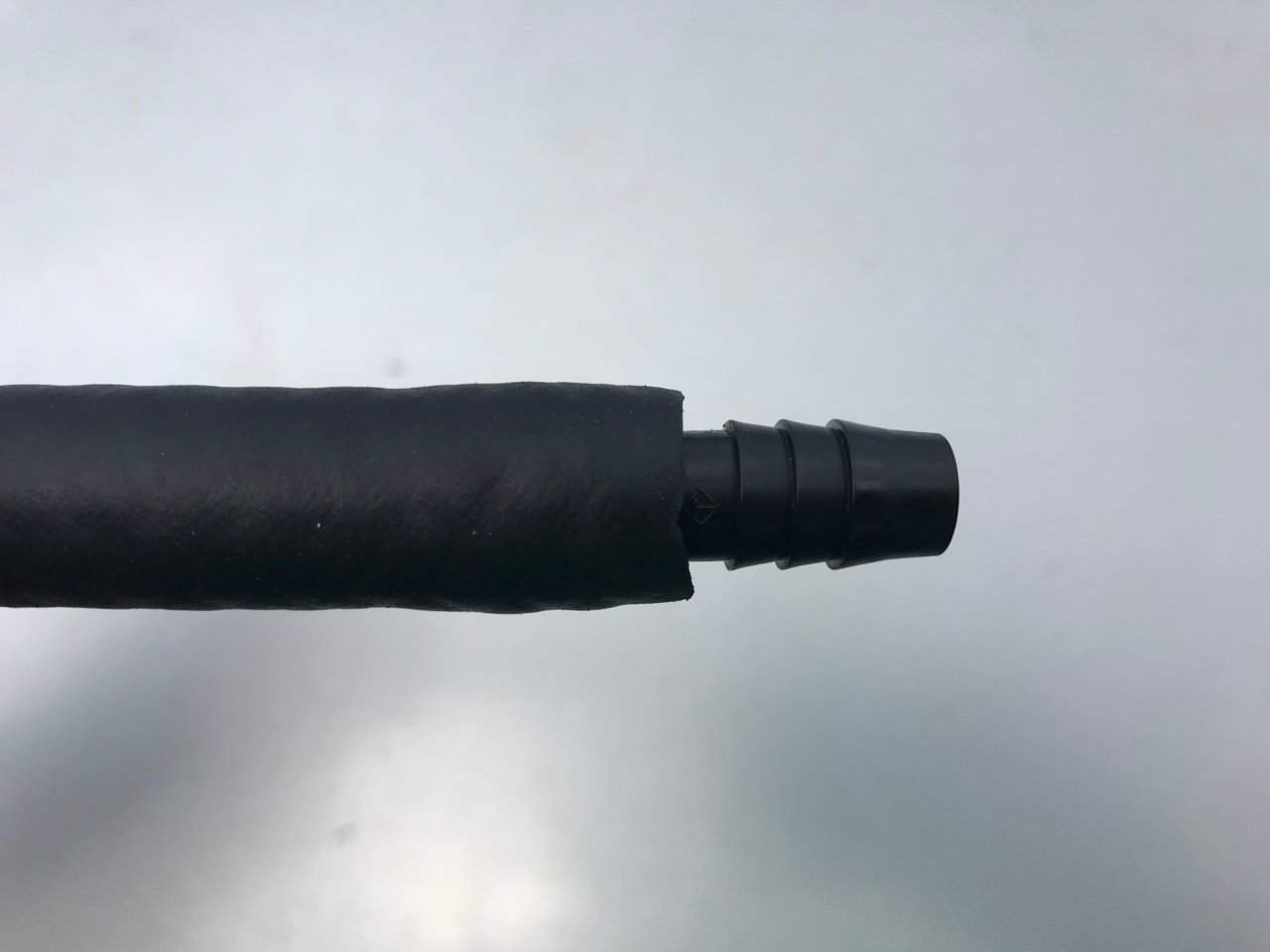

    Plastic tubing splice

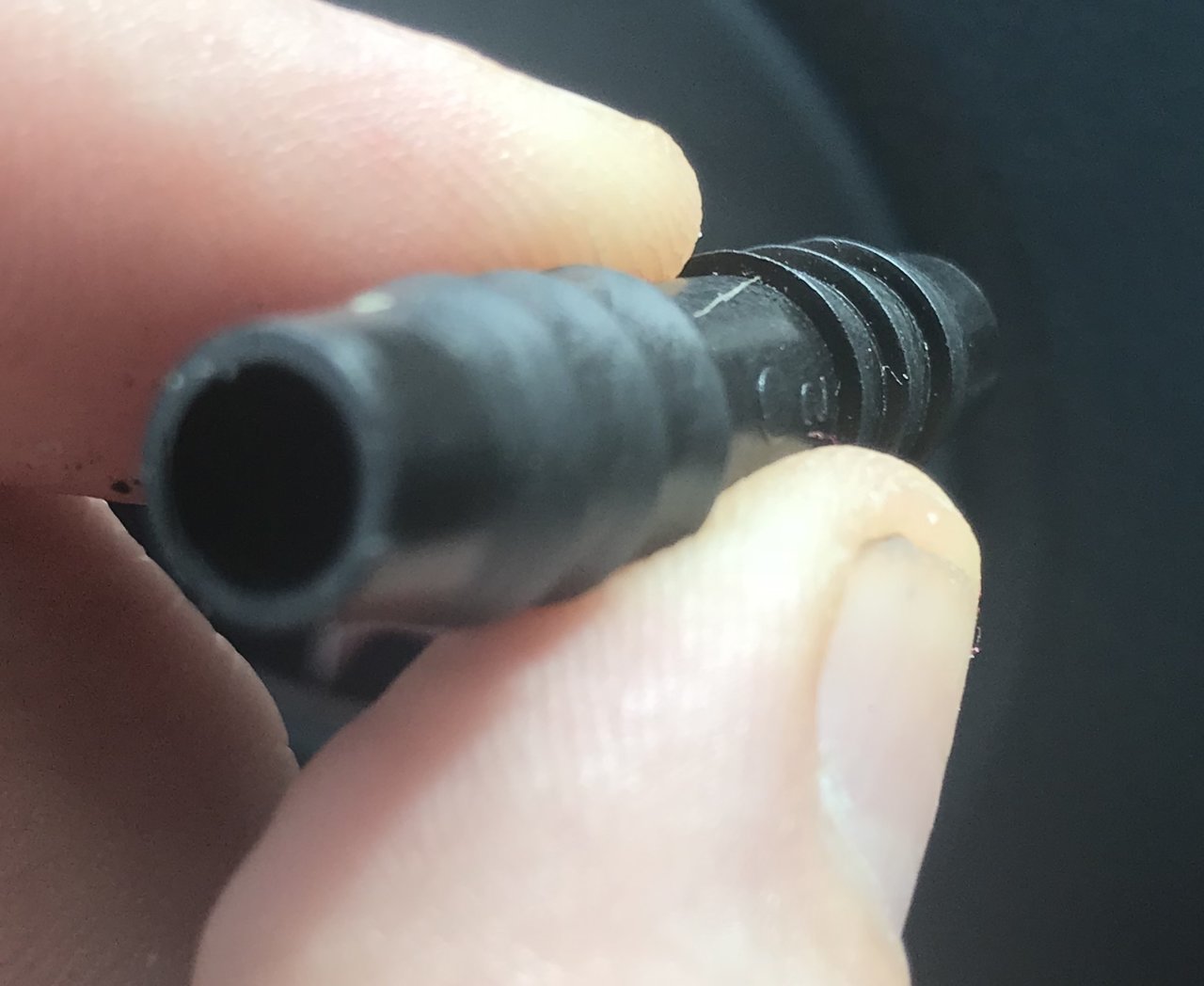

    Inserted in to 3/8 I.D. rubber tube 3ft long. Very snug fit.

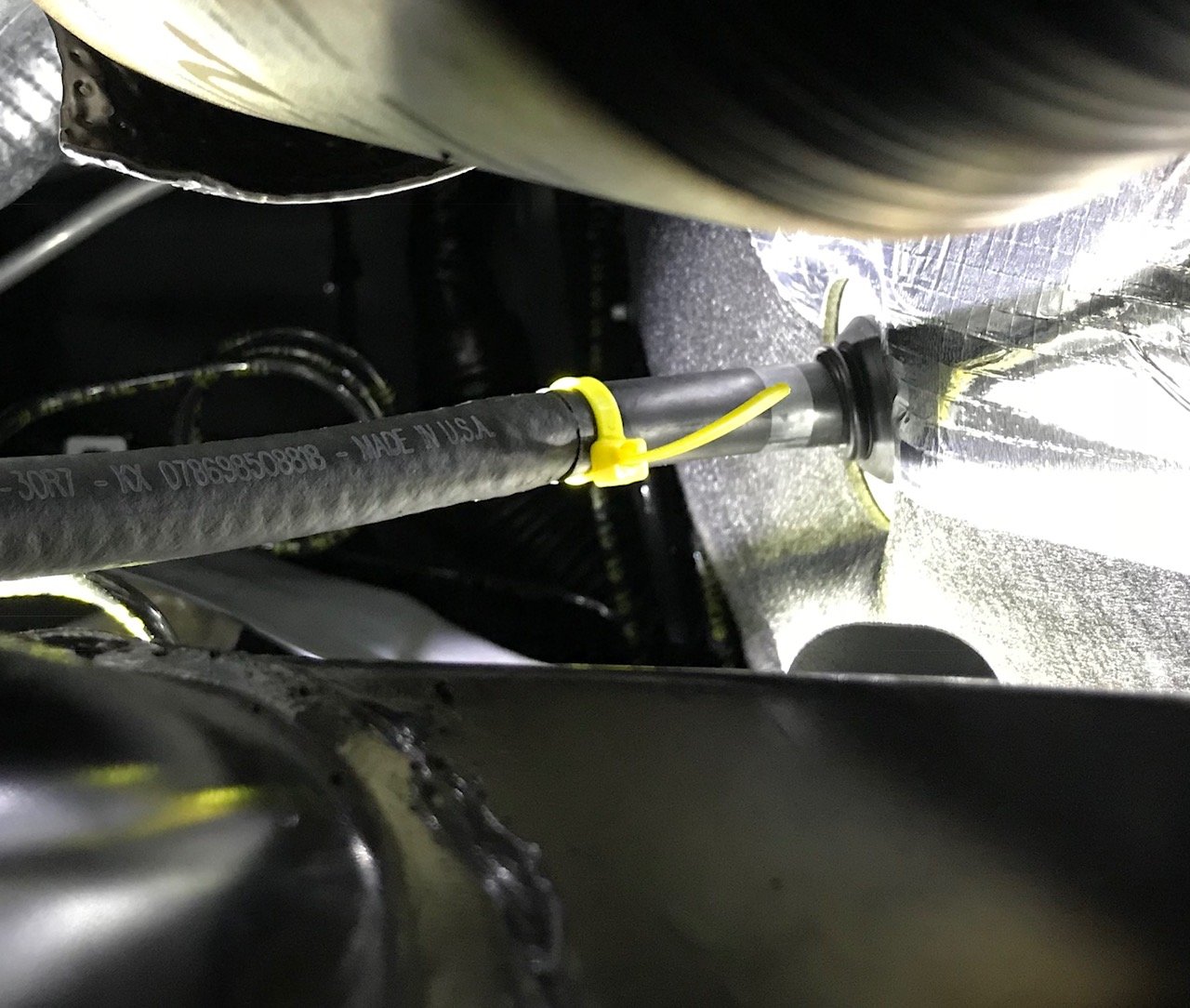

    Make sure you have it pitched slightly greater than factory so gravity does its thing but try not kink the firewall grommet. (Photo looking up from underneath)

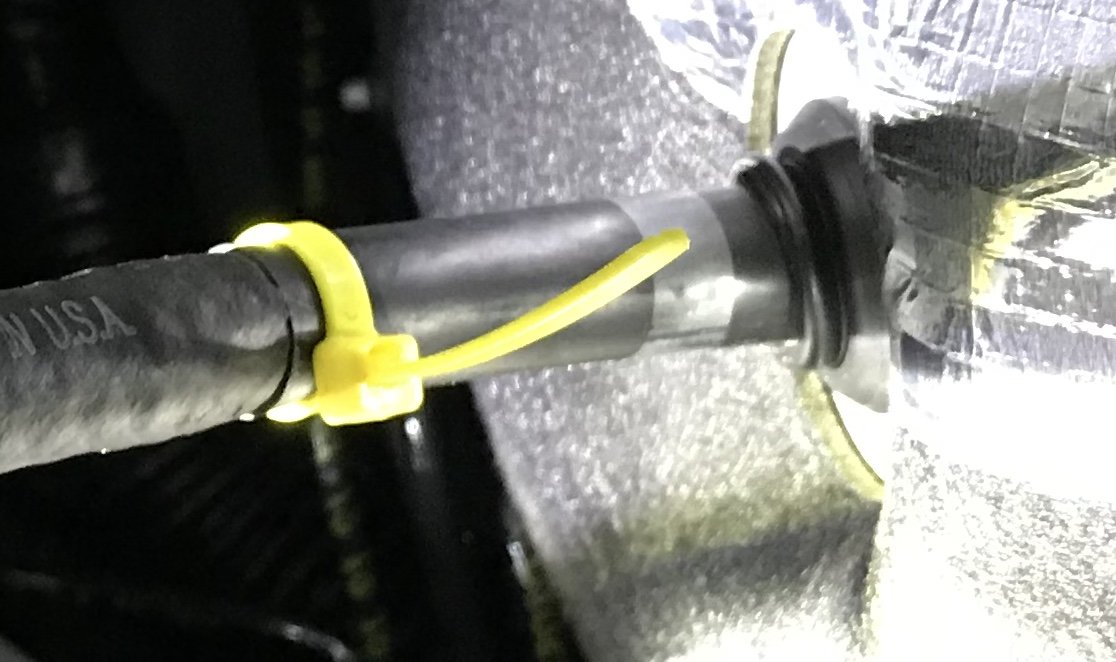

    I used a quick release tie wrap on the vehicle side drain tubing for ease of removal. Note: the I.D. is larger than 3/8 and why it requires a means of securing.
    Mating the two can be accomplished from underneath the truck. There is space just forward of the cross member to get your arm up to the drain. (Photo looking up from underneath)

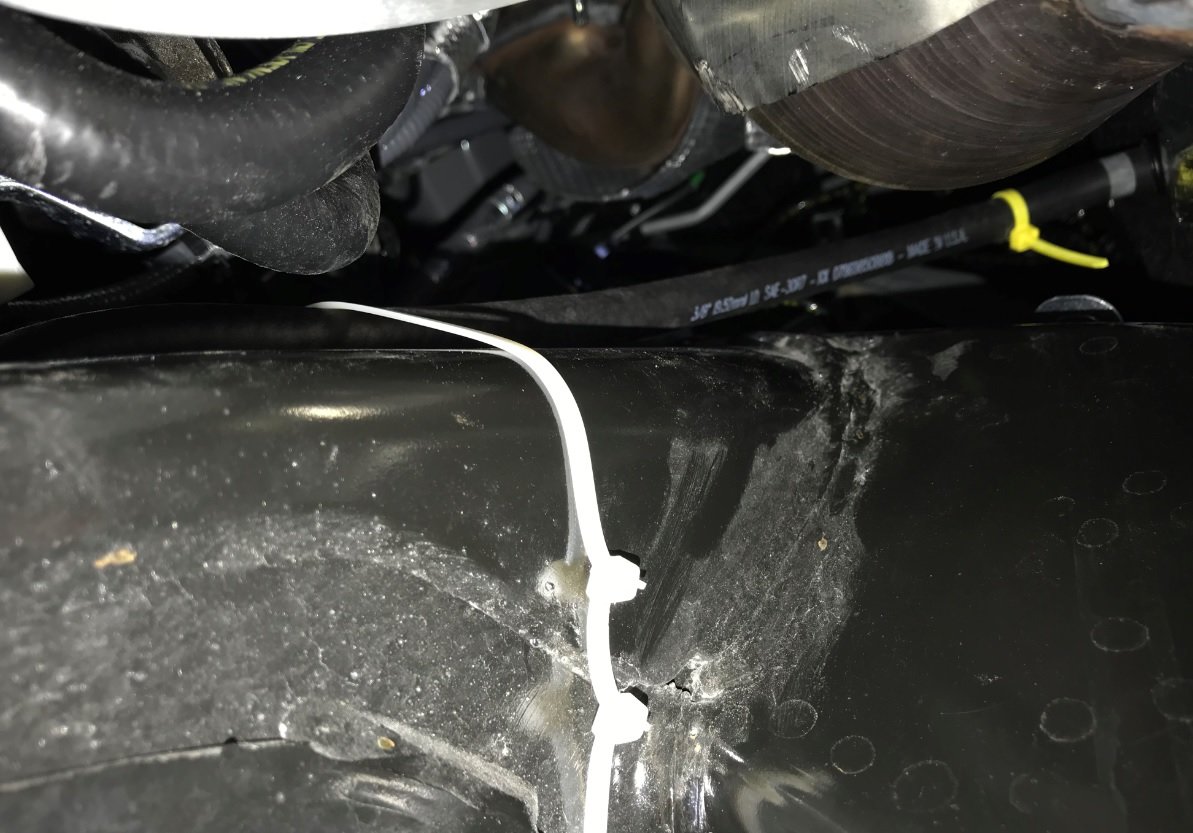

    Routing and securing with no interference. I ran out of black zip ties. (Photo from underneath)

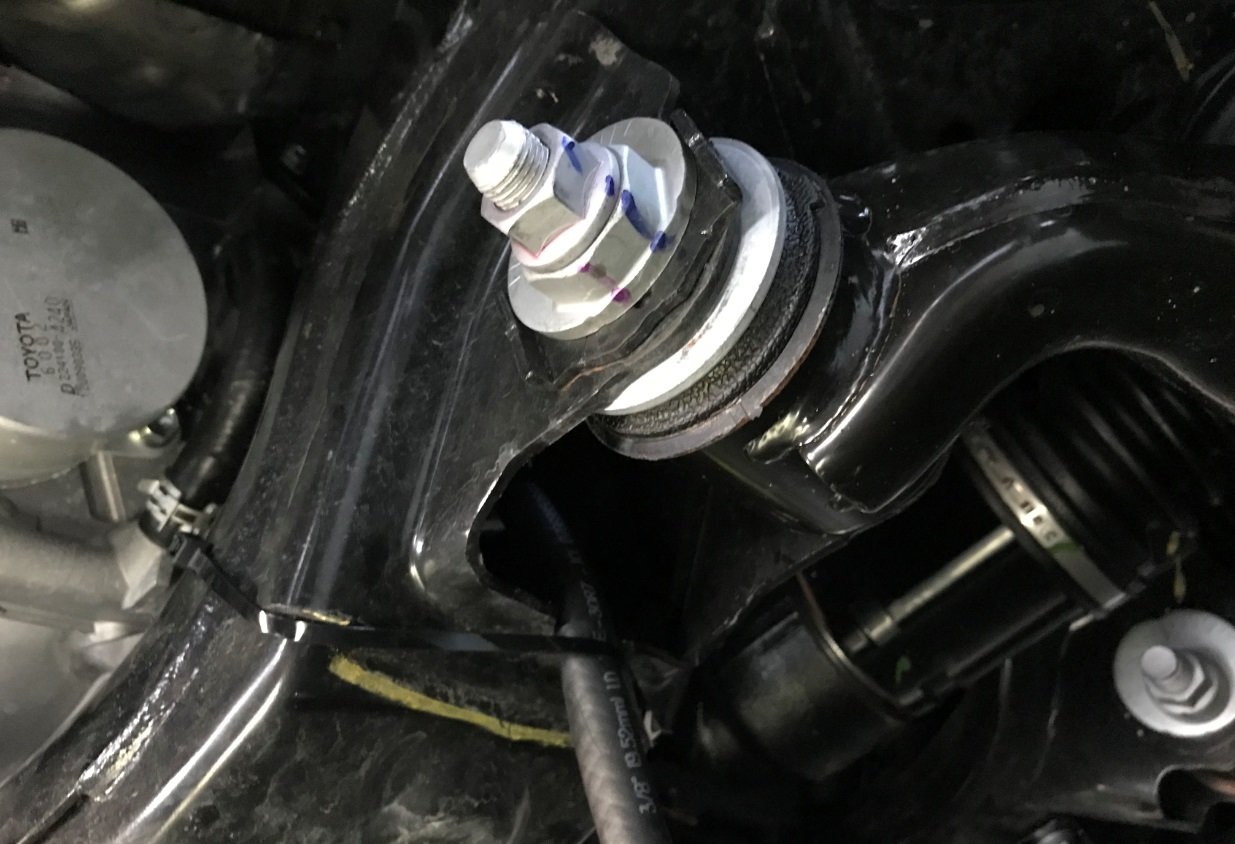

    Cross member pass through hole. (Photo from underneath)

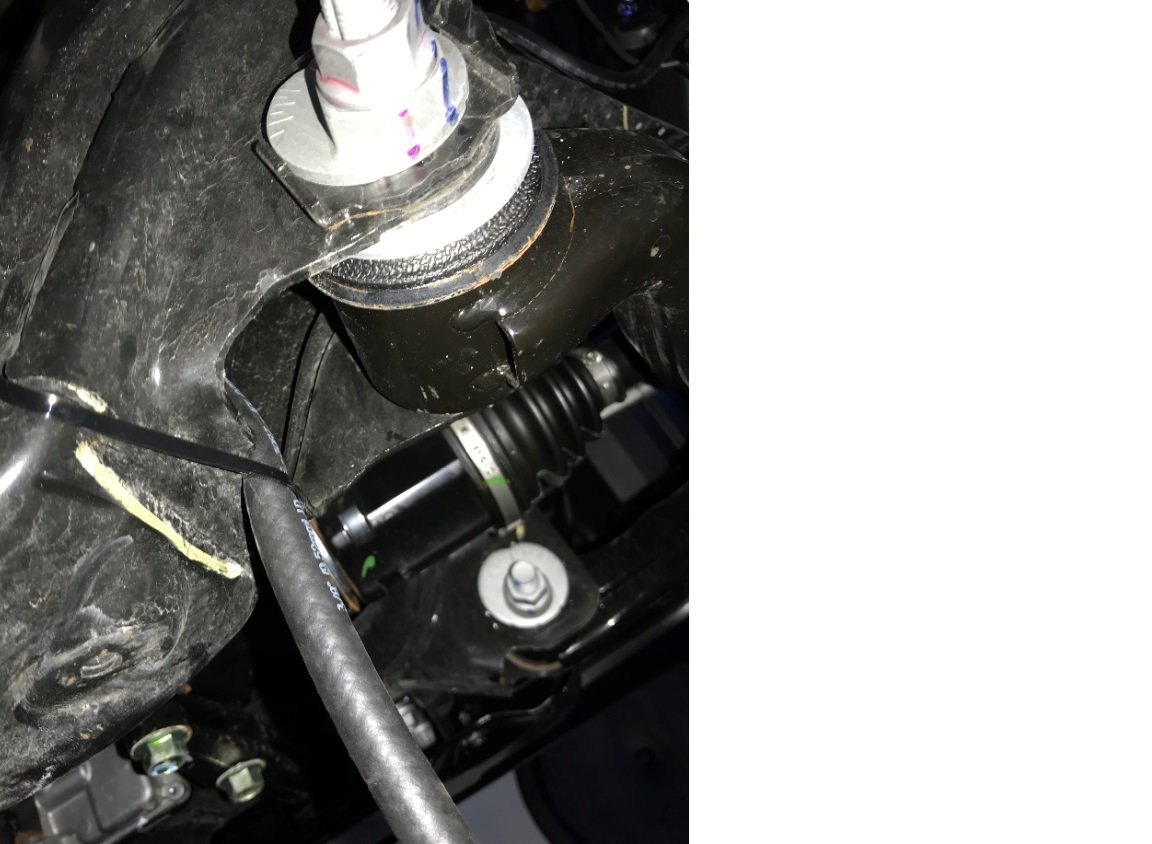

    Cross member pass through recess for tubing to sit in and zip tie location. (Photo from underneath)

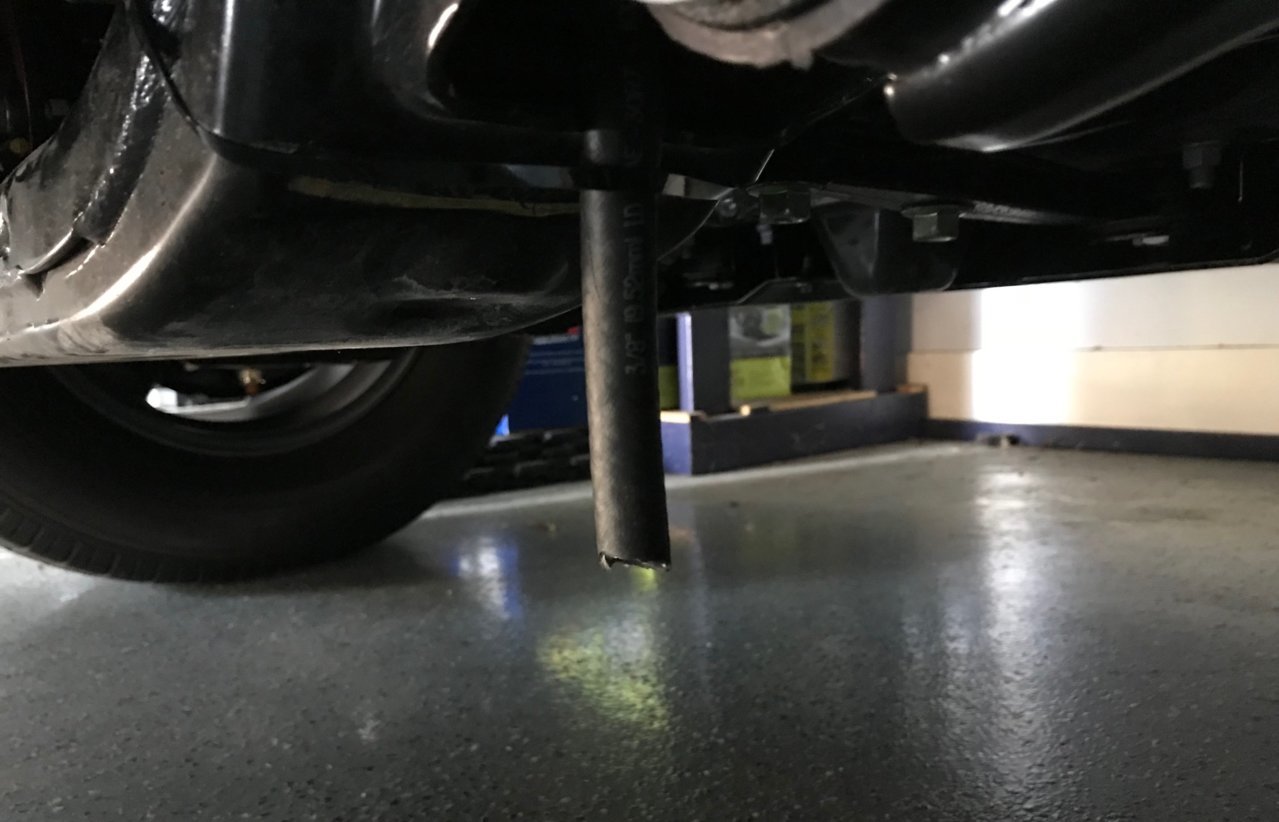

    This picture is deceiving as the tube does not hang that low. 1.5 to 2 inch below cross member. I routed my drain in as straight and direct path possible. (Photo from side)

    Hope that adds a little value to a great thread.

    Last edited: Jul 1, 2018
    McHale, CusterFan, Toms 17 and 5 others like this.
  4. Jul 1, 2018 at 10:40 AM
    #344
    Riding Dirty

    Riding Dirty Sinner; saved by grace

    Joined:
    May 27, 2016
    Member:
    #188065
    Messages:
    2,391
    Vehicle:
    Before: '16 TRD OR 4x4 AC QS//After: 17 T4R Pro 040
    PlastiDip
    May I also suggest you get that truck done with fluid film or krown? That will help your new truck not rust away like your previous truck did.

    bfenne[QUOTED] likes this.
  5. Jul 5, 2018 at 1:02 PM
    #345
    AltaTacoma

    AltaTacoma Well-Known Member

    Joined:
    Jun 20, 2018
    Member:
    #256938
    Messages:
    69
    Vehicle:
    2018 BRM Tacoma TRD Off Road
    Has anyone had any issues with the line getting blocked up in the winter? My concern would be with water/mud from the road freezing up in there during the nice long winters up in Canada.

  6. Jul 5, 2018 at 4:21 PM
    #346
    bentetres

    bentetres Member

    Joined:
    Jun 10, 2018
    Member:
    #255989
    Messages:
    24
    Gender:
    Male
    i think with the amount of heat coming from the manifold it wont freeze. Ill keep an eye for mine

  7. Jul 15, 2018 at 6:20 PM
    #347
    Tacoma Surf Chewy

    Tacoma Surf Chewy Well-Known Member

    Joined:
    Jul 10, 2018
    Member:
    #258878
    Messages:
    59
    Gender:
    Male
    Vehicle:
    2017 Tacoma SR Access cab
    Wheels,tires, alarm, LEDs, base cannon stereo upgrade and everything else you can think of!
    I fixed mine today...got a male to male 3/8 hose connector...plugged into the hose from firewall and the other side plugged into 18" 3 /8 rubber fuel hose...ran it down and secured it with a zip tie..works great but I'm thinking of zip ties in the 2 connections or hose clamps...but for now all is good...total cost 7$

    CementTRDOffRoad and StayinStock like this.
  8. Jul 16, 2018 at 10:05 AM
    #348
    Zoop

    Zoop Well-Known Member

    Joined:
    Oct 27, 2016
    Member:
    #200797
    Messages:
    470
    Thanks OP! Easy mod with awesome results for the trucks lifespan. For those wondering about winter weather, I just cut the exit end at a 45 degree angle to keep an open channel while stopping road grime from blocking up the end. I think it'll be fine but if I have an issue after next winter I'll post up the solution.

    Last edited: Jul 18, 2018
    Tinma, Norsemanvike and StayinStock like this.
  9. Jul 27, 2018 at 11:14 AM
    #349
    BOMBS

    BOMBS Well-Known Member

    Joined:
    Jun 22, 2018
    Member:
    #257154
    Messages:
    1,339
    Gender:
    Male
    Vehicle:
    2017 Black Tacoma TRD Off Road
    Just out of curiosity, has anyone tried spraying Boeshield T-9 on the frame in the general area where the water would drip down on?

  10. Jul 29, 2018 at 3:25 PM
    #350
    twest38

    twest38 Member

    Joined:
    Jul 28, 2018
    Member:
    #260829
    Messages:
    16
    Gender:
    Male
    First Name:
    Tim
    Vehicle:
    2018 Tacoma TRD off road
    If this is such a problem, why doesn't Toyota fix this potential issue? Hell, I just bought a 2018 TRD off-road. Now I have top craw under this rig to modify an AC runoff drain on a ~40,000 dollar vehicle?
    Am I missing something here?

  11. Jul 29, 2018 at 3:43 PM
    #351
    FrenchiesTaco

    FrenchiesTaco Well-Known Member

    Joined:
    Jul 14, 2018
    Member:
    #259360
    Messages:
    45
    Gender:
    Male
    First Name:
    Kevin
    NJ
    Vehicle:
    2018 Inferno Sport
    Great write up, did mine today, 450 miles on the truck. Hoping to keep this truck for a long time.

  12. Jul 29, 2018 at 4:44 PM
    #352
    BSFord

    BSFord Well-Known Member

    Joined:
    Jun 7, 2018
    Member:
    #255785
    Messages:
    1,422
    Gender:
    Male
    Vehicle:
    2018 TRD Sport 4x4
    Clazzio PVC Seat Covers Dashcam install TRD Pro Grill MESO Total Tail Stage 1 Tailgate Lock vled total interior light upgrade TRD Pro Shift knob N2 Designs Autostart w/ smart phone module
    You don't have to do anything...

    CusterFan likes this.
  13. Jul 29, 2018 at 4:58 PM
    #353
    EdgeCrusher

    EdgeCrusher Well-Known Member

    Joined:
    Feb 14, 2017
    Member:
    #210532
    Messages:
    1,008
    Gender:
    Male
    Chicagoland
    Vehicle:
    '16 OR DCSB Fully Loaded
    You are missing that its completely not necessary. My unmodified 2016 has no rust.

    oldnorske and Toms 17 like this.
  14. Jul 29, 2018 at 5:50 PM
    #354
    twest38

    twest38 Member

    Joined:
    Jul 28, 2018
    Member:
    #260829
    Messages:
    16
    Gender:
    Male
    First Name:
    Tim
    Vehicle:
    2018 Tacoma TRD off road
    OK... Thanks. I was thinking "WHAT". Thanks for the clarification

  15. Jul 31, 2018 at 5:21 AM
    #355
    Spider171

    Spider171 Well-Known Member

    Joined:
    Jan 29, 2018
    Member:
    #242793
    Messages:
    123
    Gender:
    Male
    Vehicle:
    18 Trd Off-road Cement LB
    Now does anyone have a funky smell from their a/c? I was told they don’t drain so well and there’s a kit to spray and neutralize it?

  16. Jul 31, 2018 at 5:29 AM
    #356
    Cup o' Joe

    Cup o' Joe Well-Known Member

    Joined:
    Jul 25, 2018
    Member:
    #260496
    Messages:
    66
    Gender:
    Male
    First Name:
    Keith
    Southern California
    Vehicle:
    2018 Tacoma SR Plain Jane Magnetic Grey
    Couldn't have said it better myself!

    Spider171 likes this.
  17. Jul 31, 2018 at 6:28 AM
    #357
    bshammer0

    bshammer0 Well-Known Member

    Joined:
    Nov 6, 2016
    Member:
    #201655
    Messages:
    3,363
    Gender:
    Male
    First Name:
    Brandon
    Nashville, TN
    Vehicle:
    2017 DCSB TRD OR 4x4
    Prinsu, TruckCovers USA, Coverking, OVTuned
    This works wonders.


    https://www.amazon.com/Genuine-Subaru-SOA868V9315-Climate-Cleaning/dp/B00TSGYKIU

    I tried a couple of other things including Lysol and Frigi Fresh but they seemed to just temporarily mask the smell with a strong chemical odor but within a week or two the smell would return. I did this a month ago now and with heavy A/C use I am getting no odors whatsoever. Also recommend picking up cheap carbon cabin filters. Seems to do much better than the KN or OEM ones i've used.

    CusterFan likes this.
  18. Aug 5, 2018 at 12:24 PM
    #358
    jerick1976

    jerick1976 Member

    Joined:
    Jul 11, 2018
    Member:
    #259016
    Messages:
    17
    Gender:
    Male
    First Name:
    Jon
    Bone Boring Stock
    My frame didn't have a weld in the area where the water was hitting the frame but all the same I opted to route the drain. I happened to have a Volvo power steering suction hose kicking around that fit the bill nicely. After you trim off a 180 degree bend it fits just like it was made to go there.

    https://www.amazon.com/URO-Parts-30645081-Suction-Steering/dp/B0066SMEKY


    I'll skip the pics on mating the hoses together since there are already pics out there. Using this hose I was able to route the it down through a brake line loop to keep it away from the exhaust. I held it in place with a 12' zip tie and routed the hose out the lettering in the splash guard. All I had to do was trim the material between the letters and the hose slipped right in. Now the splash guard is holding the hose tightly preventing it from rubbing on the frame.

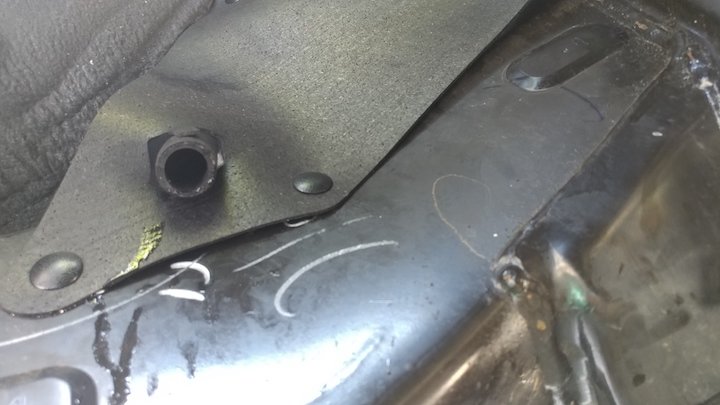

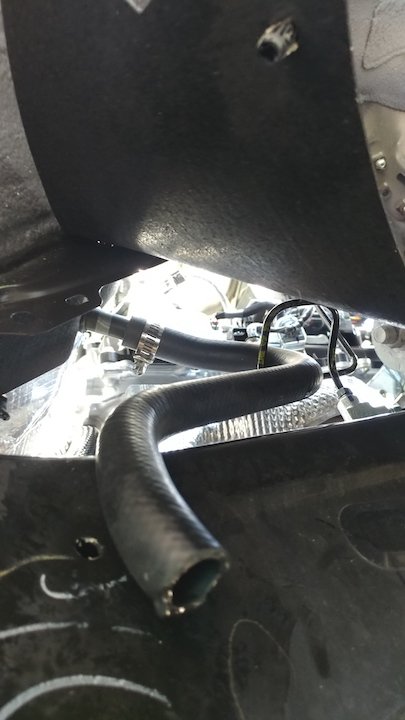

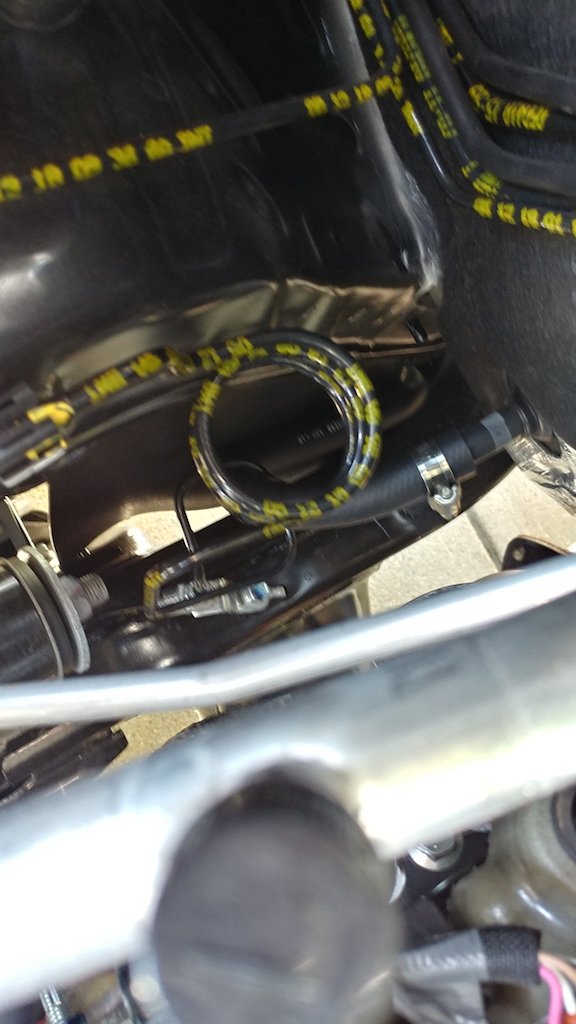

    exposed_hose.jpg top view.jpgexit_point.jpg

  19. Aug 5, 2018 at 1:36 PM
    #359
    jerick1976

    jerick1976 Member

    Joined:
    Jul 11, 2018
    Member:
    #259016
    Messages:
    17
    Gender:
    Male
    First Name:
    Jon
    Bone Boring Stock
    regarding the why do it question, the issue isn't the water when it comes out of the drain. The issue is where it travels and eventually sits to fester. I saw the water exiting all down my frame when I shut the truck off so I opted to do the mod and dump the water out where it won't sit and work on the frames paint and welds. I will be adding that copper fitting and screen though. Nice idea that one.

  20. Aug 6, 2018 at 12:53 PM
    #360
    Tacomattt

    Tacomattt Well-Known Member

    Joined:
    Jul 29, 2018
    Member:
    #260970
    Messages:
    127
    Run the heater hose back instead of forward so it isn’t affected by air pressure at high speeds that could allow your condensate (water) to be pushed back into the truck.
