S/C setup questions

Discussion in 'Performance and Tuning' started by mosscla, Mar 10, 2016.

  1. Mar 10, 2016 at 7:18 AM
    #1
    mosscla

    mosscla [OP] Member

    Joined:
    Oct 24, 2015
    Member:
    #167535
    Messages:
    9
    Gender:
    Male
    First Name:
    Clayton
    Vehicle:
    07 SW Tacoma TRD Sport Crew Cab MT
    Not sure yet

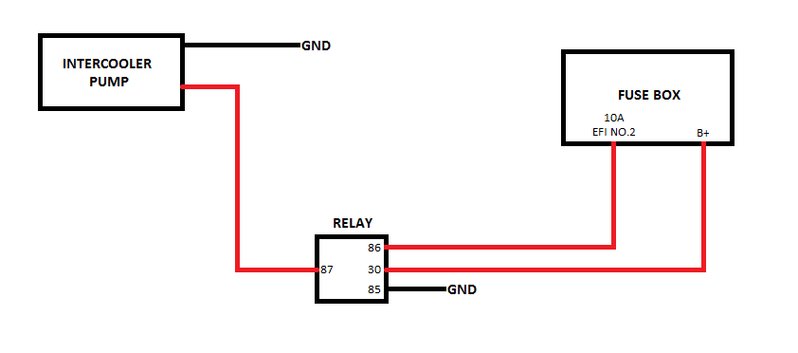

    Just bought a used TRD supercharger kit that is pretty much complete. It was missing the intercooler pump relay harness. No big deal, I can make one pretty easily. From what I gather this is the correct wiring for the relay harness.
    Can anyone confirm? PS. Excuse my poor Microsoft Paint skills haha.

  2. Mar 11, 2016 at 10:57 AM
    #2
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,094
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    yeah you just need an on with ignition 12v to switch the relay. The EFI fuse will work, but might have the side effect of turning the pump on every 4 hours or so during a systems check when the truck is off.... not a big deal.

  3. Mar 11, 2016 at 11:47 AM
    #3
    Vassily28

    Vassily28 Well-Known Member

    Joined:
    Nov 24, 2011
    Member:
    #67629
    Messages:
    423
    Gender:
    Male
    Quebec, Quebec, Canada
    Vehicle:
    11 TRD SPORT 4x4 Quadcab LB
    TRD supercharger with 2.85" URD stealth pulley and OEM FPR mod. URD fuel pump upgrade, URD TB plate adapter 70mm, FJ/4 runner 70 mm Throttle body, URD exhaust cam gears URD performance thermostat TRD CAI 1st gen. with custom cover (coupe), ProDry S + Filter skin, Doug thorley long tube headers, URD spec U exhaust Icon LT 2.5 front coilover, Timbren front bumpstops, Total Choas UCA, Deaver custom leafpack 3 inch. lift, Icon 2.5 VS series rear resishocks, Timbren rear bumpstops, ARB front bumper with WARN 8500 lbs winch,Hella 500 blackmagic, AVID rear bumper, Allpro front IFS skid + Trans. skid + Transfercase skid. Total chaos LCA skid, SS braided brake line, URD O2 sims, URD MAF controller, Wetokole front seatcovers, Innovate MTX-L, MTX-D AFR and boost gage.
    If it can be useful for you.


    Attached Files:

  4. Mar 15, 2016 at 11:49 PM
    #4
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,669
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    That's what it does anyways lol. Scares the shit out of me when I'm wrenching on something and it kicks on suddenly.

    12TRDTacoma likes this.
  5. Mar 15, 2016 at 11:54 PM
    #5
    12TRDTacoma

    12TRDTacoma Ocean TRD

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    14,165
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Tacoma
    Supercharged
    Yeah i freaks me the fuck out all the time. Lol. I can't stand it.

  6. Mar 16, 2016 at 8:28 AM
    #6
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,094
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    ^ then move the 12v from the EFI tap to the AC/DC relay (brown wire in my fog light any time mod). That 12v source is a true only on with ignition source.

    tacooh likes this.
  7. Mar 16, 2016 at 12:13 PM
    #7
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,669
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    Meh, would rather leave it where Toyota intended. Its not an inconvenience

  8. Mar 28, 2016 at 8:16 PM
    #8
    mosscla

    mosscla [OP] Member

    Joined:
    Oct 24, 2015
    Member:
    #167535
    Messages:
    9
    Gender:
    Male
    First Name:
    Clayton
    Vehicle:
    07 SW Tacoma TRD Sport Crew Cab MT
    Not sure yet

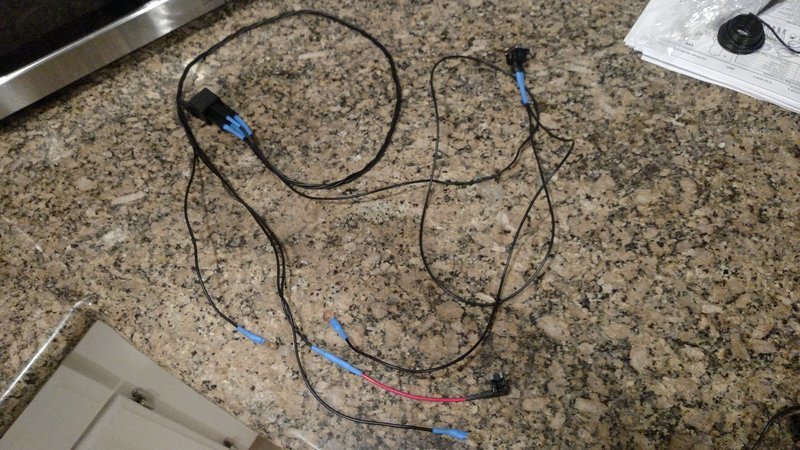

    Finally finished my relay harness!

  9. Apr 2, 2016 at 6:29 PM
    #9
    Hot Tacoma Blown

    Hot Tacoma Blown Well-Known Member

    Joined:
    Jul 23, 2012
    Member:
    #83241
    Messages:
    432
    Gender:
    Male
    NewYork
    Vehicle:
    05 4×4 tacoma
    Super charged,urd u - conn computer 7th injector, headers, pipe bomb y pipe,high flow exhaust.etc....
    Good job.And yes working on a external fuel filter( not in tank) urdusa.Scares the hell out of you when the damn intercooler pump kicks on then I need to go pee

  10. Apr 2, 2016 at 7:20 PM
    #10
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,669
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    That fuckin intercooler pump lol. Scared the shit out of me the first few times i was elbow deep wrenchingon something and it kicked on
