Saggy ass

Discussion in '2nd Gen. Tacomas (2005-2015)' started by T@com@Steve, Jun 1, 2018.

Page 2 of 3
  1. Jun 1, 2018 at 10:57 AM
    #21
    HolyHandGrenade

    #21
    HolyHandGrenade NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,799
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff

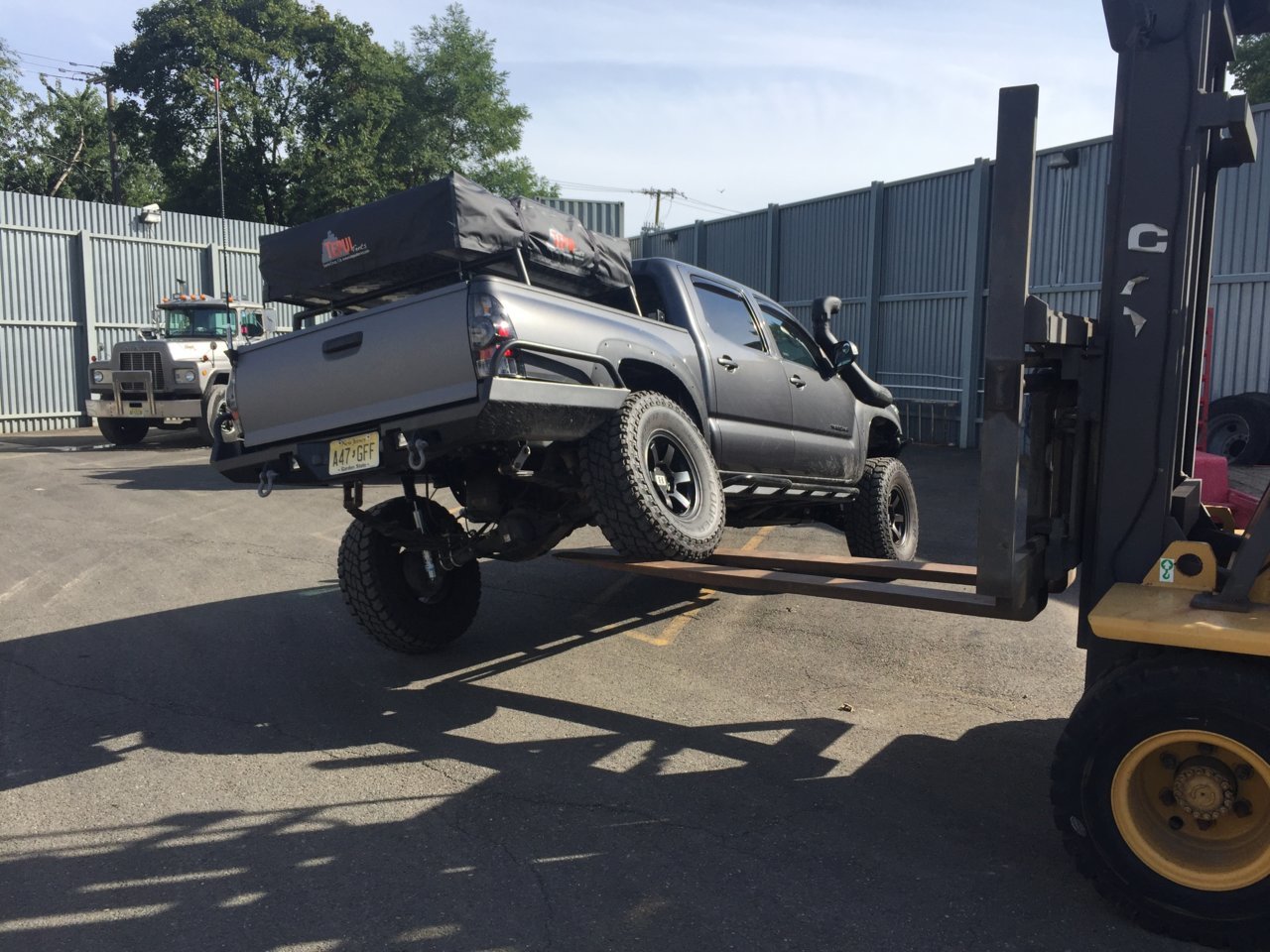

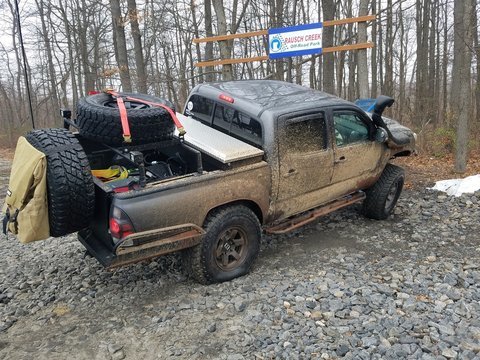

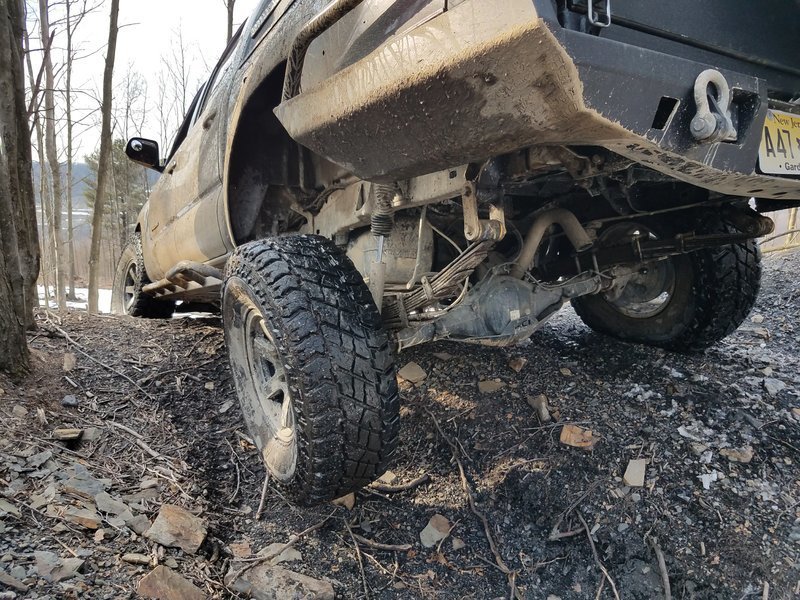

    A couple for the “Dakars don’t flex” crowd :D


    HolyHandGrenade, Jun 1, 2018
    #21
    airsavage, Caboverpete, Blackout14 and 2 others like this.
  2. Jun 1, 2018 at 12:27 PM
    #22
    T@com@Steve

    #22
    T@com@Steve [OP] Well-Known Member

    Joined:
    Apr 14, 2015
    Member:
    #153198
    Messages:
    1,259
    Gender:
    Male
    First Name:
    Steve
    Sarasota, Florida
    Vehicle:
    15 4x4 DCLB
    Patched headliner, loud rack, too much shit in the bed
    I honestly couldn’t tell you?
    Cap-#175
    Drawers-#150
    Cargoglide-#115
    Tools-#200

    640 pounds roughly?

    T@com@Steve, Jun 1, 2018
    #22
    Manfred likes this.
  3. Jun 1, 2018 at 4:31 PM
    #23
    rollin904

    #23
    rollin904 Feather Slinger

    Joined:
    Apr 11, 2011
    Member:
    #54724
    Messages:
    2,348
    Gender:
    Male
    First Name:
    TJ
    Greenville, SC
    Vehicle:
    '14 DCSB 4x4
    My dakars seem pretty flat even with just my cap weight on the truck, which is probably less than 200 lbs. @HolyHandGrenade sorry to get off topic but did you weld those guards on the fender portion of your rear bumper or they came with it?

    rollin904, Jun 1, 2018
    #23
  4. Jun 1, 2018 at 4:47 PM
    #24
    HolyHandGrenade

    #24
    HolyHandGrenade NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,799
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    Brute Force Bumper. It comes with them. I’ve had them on trees and rocks many times. Very glad they’re there.

    HolyHandGrenade, Jun 1, 2018
    #24
  5. Jun 1, 2018 at 4:51 PM
    #25
    HolyHandGrenade

    #25
    HolyHandGrenade NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,799
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    @Blackout14 ,doesn’t @redman have your leafs?

    Maybe he can chime in on lift numbers. I know they flex well.

    HolyHandGrenade, Jun 1, 2018
    #25
    Blackout14 and Manfred like this.
  6. Jun 1, 2018 at 4:57 PM
    #26
    Manfred

    #26
    Manfred Well-Known Member

    Joined:
    Jun 25, 2014
    Member:
    #132699
    Messages:
    2,246
    Gender:
    Male
    First Name:
    Manfred
    Great White North
    Vehicle:
    2010 DCLB
    All of them
    Was about to invest in a Dakar pack. Would probably have a bed drawer in full-time and a cap so from what I'm reading @Blackout14 is offering something more resilient ?

    Manfred, Jun 1, 2018
    #26
    Blackout14 likes this.
  7. Jun 1, 2018 at 5:34 PM
    #27
    HolyHandGrenade

    #27
    HolyHandGrenade NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,799
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    I wasn’t commenting on your comment. I was just staying away from the debate lol

    HolyHandGrenade, Jun 1, 2018
    #27
    Blackout14 likes this.
  8. Jun 4, 2018 at 1:47 PM
    #28
    T@com@Steve

    #28
    T@com@Steve [OP] Well-Known Member

    Joined:
    Apr 14, 2015
    Member:
    #153198
    Messages:
    1,259
    Gender:
    Male
    First Name:
    Steve
    Sarasota, Florida
    Vehicle:
    15 4x4 DCLB
    Patched headliner, loud rack, too much shit in the bed
    @geekhouse23, or anyone else in the know. If I add the
    $82 D29XL Leaf Spring
    D29XL leaf, I have to take my Dakars completely apart right? Grind all the rivets off and reinstall the alignment hangers?

    T@com@Steve, Jun 4, 2018
    #28
  9. Jun 4, 2018 at 1:51 PM
    #29
    Jrazzle

    #29
    Jrazzle Well-Known Member

    Joined:
    Feb 27, 2016
    Member:
    #179559
    Messages:
    146
    Denver, CO
    No. you can leave the main leaf in place.

    Follow this step:
    - jack up vehicle, unload the axle
    - disconnect ubolts
    - place a large c clamp on the middle of the leaf
    - remove center pin
    - remove retainer bolts on the spring
    - remove c clamp and drop the lower leafs
    - install up to two AAL under main spring
    - install clamp and install center pin
    - put everything back together.

    you may or may not need longer u bolts and center pin.

    Jrazzle, Jun 4, 2018
    #29
    T@com@Steve[QUOTED][OP] and geekhouse23 like this.
  10. Jun 4, 2018 at 1:53 PM
    #30
    geekhouse23

    #30
    geekhouse23 The "Liftman" - @DrFunker

    Joined:
    Jul 14, 2013
    Member:
    #108251
    Messages:
    15,707
    Gender:
    Male
    Vehicle:
    2GMGMDCSB4WDTRDFTMFW!! TL;DR
    mostly stock, grocery gettin' Prius

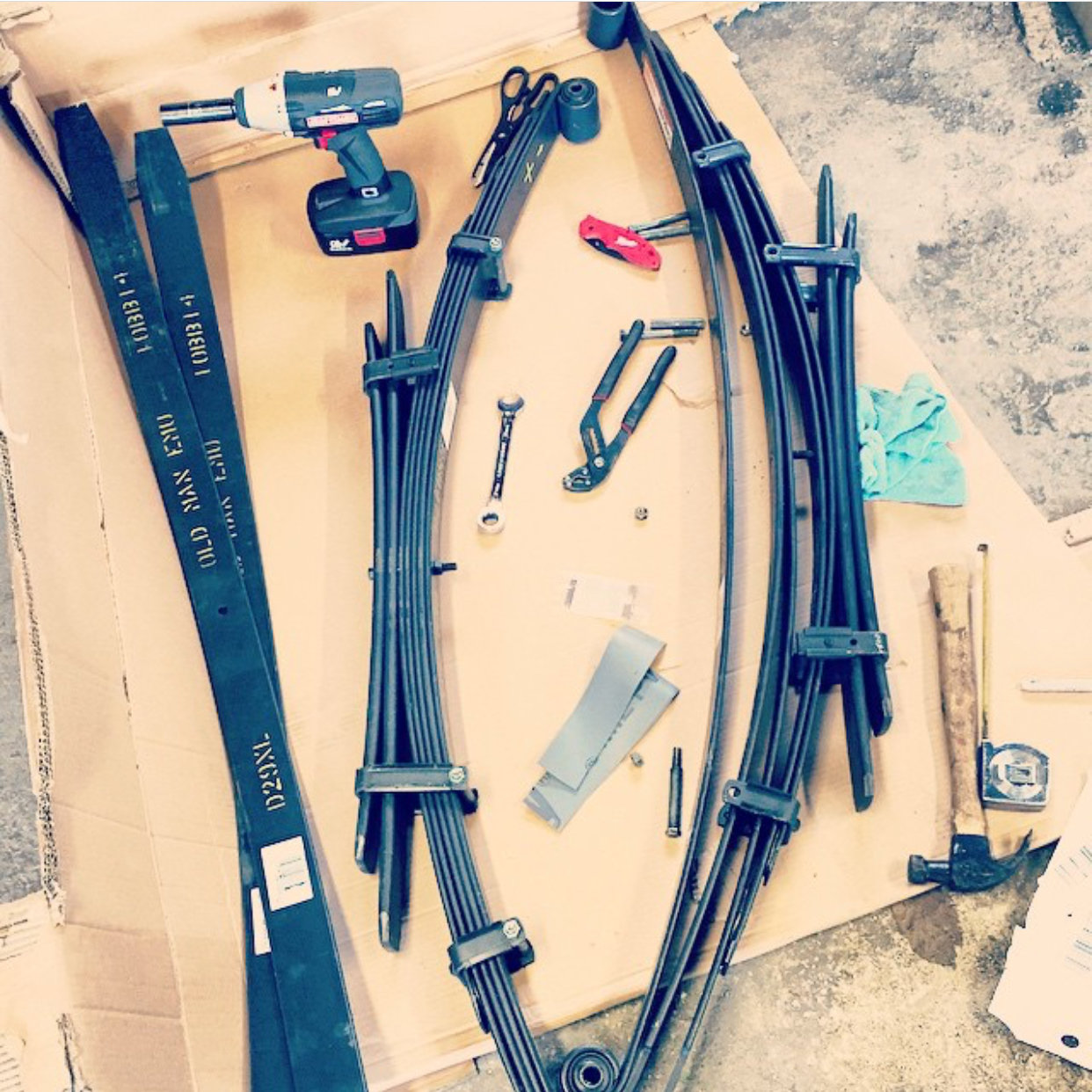

    Pics from when we did my brother's. MUCH easier if you do it off the truck or before installing:


    Same center pin is reused and the AAL slips between the second and third leaf from the top IIRC.

    geekhouse23, Jun 4, 2018
    #30
    T@com@Steve[QUOTED][OP] likes this.
  11. Jun 4, 2018 at 1:56 PM
    #31
    Jrazzle

    #31
    Jrazzle Well-Known Member

    Joined:
    Feb 27, 2016
    Member:
    #179559
    Messages:
    146
    Denver, CO
    Yes, i've only done them on the vehicle and found it to be SUPER easy because you can use the jack and axle to align everything and then youre not fighting with clamps ;)

    But yes, align the leafs in order of length. One thing you will notice is the lack of anti-friction plates on the AAL. you can install them if you wish. its just a little more laborious and really not worth it unless youre super anal
    $14 Dorman 31067 Rear Leaf Spring Inserts Compatible with Select Models, 2 Pack
    https://www.amazon.com/Dorman-31067-Leaf-Spring-Insert/dp/B000TYU0FM

    all you have to do is drill a small retaining hole in the ends of the leaf. you'll need 4 total if you do two AAL's

    Jrazzle, Jun 4, 2018
    #31
    T@com@Steve[OP] likes this.
  12. Jun 4, 2018 at 1:58 PM
    #32
    T@com@Steve

    #32
    T@com@Steve [OP] Well-Known Member

    Joined:
    Apr 14, 2015
    Member:
    #153198
    Messages:
    1,259
    Gender:
    Male
    First Name:
    Steve
    Sarasota, Florida
    Vehicle:
    15 4x4 DCLB
    Patched headliner, loud rack, too much shit in the bed
    I see! I was afraid the aal would hit the rivet on the leaf above it when flexed.
    Ok cool!! Thanks!

    T@com@Steve, Jun 4, 2018
    #32
    geekhouse23[QUOTED] likes this.
  13. Jun 5, 2018 at 6:25 AM
    #33
    T@com@Steve

    #33
    T@com@Steve [OP] Well-Known Member

    Joined:
    Apr 14, 2015
    Member:
    #153198
    Messages:
    1,259
    Gender:
    Male
    First Name:
    Steve
    Sarasota, Florida
    Vehicle:
    15 4x4 DCLB
    Patched headliner, loud rack, too much shit in the bed
    This is a dumb question, but how can I tell if my pack is a HD? I bought mine used and that is just what I was told.

    T@com@Steve, Jun 5, 2018
    #33
  14. Jun 5, 2018 at 6:44 AM
    #34
    geekhouse23

    #34
    geekhouse23 The "Liftman" - @DrFunker

    Joined:
    Jul 14, 2013
    Member:
    #108251
    Messages:
    15,707
    Gender:
    Male
    Vehicle:
    2GMGMDCSB4WDTRDFTMFW!! TL;DR
    mostly stock, grocery gettin' Prius
    Numbers on the leaf packs :notsure:

    geekhouse23, Jun 5, 2018
    #34
  15. Jun 5, 2018 at 7:00 AM
    #35
    T@com@Steve

    #35
    T@com@Steve [OP] Well-Known Member

    Joined:
    Apr 14, 2015
    Member:
    #153198
    Messages:
    1,259
    Gender:
    Male
    First Name:
    Steve
    Sarasota, Florida
    Vehicle:
    15 4x4 DCLB
    Patched headliner, loud rack, too much shit in the bed
    I should have mentioned, the packs are so dirty and rusty I can’t read the #’s. Haha

    T@com@Steve, Jun 5, 2018
    #35
    geekhouse23 likes this.
  16. Jun 5, 2018 at 7:15 AM
    #36
    geekhouse23

    #36
    geekhouse23 The "Liftman" - @DrFunker

    Joined:
    Jul 14, 2013
    Member:
    #108251
    Messages:
    15,707
    Gender:
    Male
    Vehicle:
    2GMGMDCSB4WDTRDFTMFW!! TL;DR
    mostly stock, grocery gettin' Prius
    Perhaps they can just send you their order receipt?

    geekhouse23, Jun 5, 2018
    #36
  17. Jun 5, 2018 at 3:26 PM
    #37
    HolyHandGrenade

    #37
    HolyHandGrenade NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,799
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    Isn’t just determined by how many leafs are in the pack?

    How many do you have?

    HolyHandGrenade, Jun 5, 2018
    #37
  18. Jun 6, 2018 at 6:10 AM
    #38
    Slvr14tacoma

    #38
    Slvr14tacoma Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222390
    Messages:
    621
    Gender:
    Male
    Mid travel
    Do you have any idea how much the bedslide weighs having put it in there? Have a similar box and would make things alot easier but maybe your box is built really stout

    Slvr14tacoma, Jun 6, 2018
    #38
  19. Jun 6, 2018 at 6:22 AM
    #39
    Tylerh147

    #39
    Tylerh147 Well-Known Member

    Joined:
    Oct 9, 2015
    Member:
    #166265
    Messages:
    177
    Gender:
    Male
    First Name:
    Tyler
    Chattanooga, Tennessee
    Vehicle:
    2007 DCSB TRD OR 4x4
    5100s, 885s, Icon AAL
    why's your snorkel intake backwards?

    Tylerh147, Jun 6, 2018
    #39
    geekhouse23 likes this.
  20. Jun 6, 2018 at 6:22 AM
    #40
    geekhouse23

    #40
    geekhouse23 The "Liftman" - @DrFunker

    Joined:
    Jul 14, 2013
    Member:
    #108251
    Messages:
    15,707
    Gender:
    Male
    Vehicle:
    2GMGMDCSB4WDTRDFTMFW!! TL;DR
    mostly stock, grocery gettin' Prius
    That's how the cool kids do it..

    geekhouse23, Jun 6, 2018
    #40
