Sander's Trailer Build and BS

Discussion in 'Other Builds' started by sander1036, Jun 5, 2015.

  1. Jun 5, 2015 at 4:17 PM
    #1
    sander1036

    sander1036 [OP] Well-Known Member

    Joined:
    Mar 28, 2011
    Member:
    #53870
    Messages:
    5,053
    Gender:
    Male
    First Name:
    Steve
    Snack Food Capital of the World
    Vehicle:
    02 SR5 TRD Double Cab 4x4
    THULE Roof Rack, Color matched grille w/ GrilleCraft, Toytec Ultimate, 33 x 12.5 Duratracs, Bushwacker Cut Out Flares, Cvt Mt Shasta, Cvt Awning, LEER Cap
    Here we go......

    Just put the order in for axles, hubs, brakes, and suspension parts, thanks etrailer..... Free shipping!!! :yes:
    Working on a material list for the frame right now, looking to get a quote for metal on that in the following days.

    How she sits today:







    Up to Date Design:



    Early design:

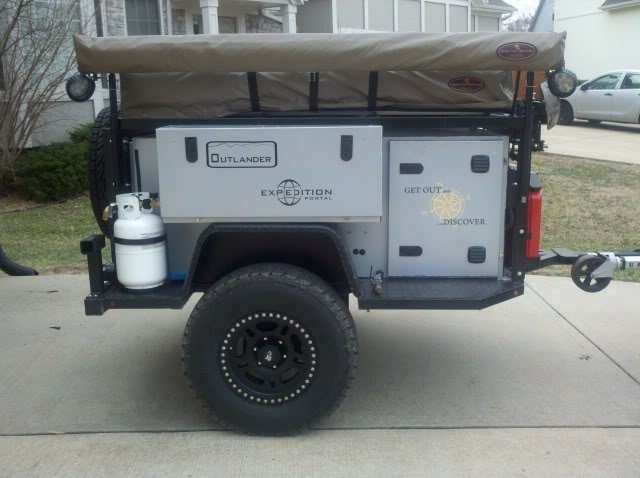

    Inspiration from this

    [​IMG]

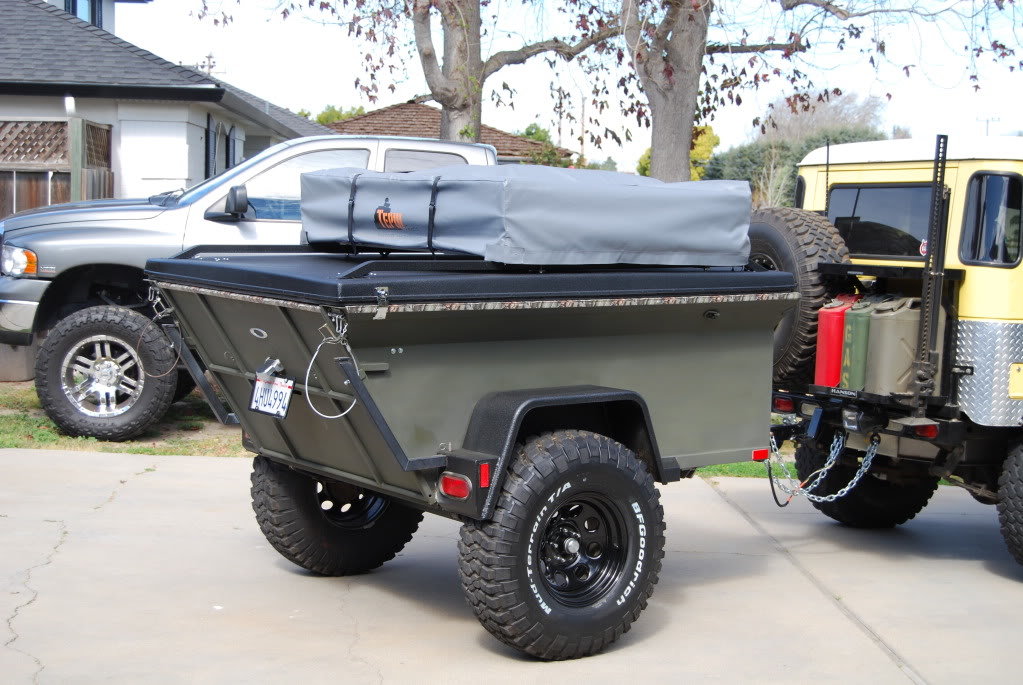

    Saw this and decided I liked the departure angle

    And also liked this for the tool box and side access to box

    Quick sketch of newest design:




    As of now frame layout overall length will be shorter due to me wanting to angle the rear up.


    Redesign: (June 6, 2015)








    With Mt Shasta dimensions:







    Last edited: Jul 10, 2016
    V5ioV likes this.
  2. Jun 5, 2015 at 4:17 PM
    #2
    sander1036

    sander1036 [OP] Well-Known Member

    Joined:
    Mar 28, 2011
    Member:
    #53870
    Messages:
    5,053
    Gender:
    Male
    First Name:
    Steve
    Snack Food Capital of the World
    Vehicle:
    02 SR5 TRD Double Cab 4x4
    THULE Roof Rack, Color matched grille w/ GrilleCraft, Toytec Ultimate, 33 x 12.5 Duratracs, Bushwacker Cut Out Flares, Cvt Mt Shasta, Cvt Awning, LEER Cap
    Legal information:

    Lighting:
    http://www.nhtsa.gov/cars/rules/standards/conspicuity/trlrpstr.html


    Registering in PA quoted from pirate4x4:
    http://www.pirate4x4.com/forum/tow-rigs-trailers/950188-homemade-trailer-title-pa.html
    When you register your homemadetrailer in Pennsylvania, or one made from a kit, there are several registration steps. Take four color photos, one of each side of the trailer. With these photos, be sure to include the chains attached to the tow hitch, and of the lighting present on the trailer.

    Complete an MV-1, Application for Certificate of Title, and Form MV-426, Application for Reconstructed or Specially Constructed Vehicle.

    You'll also need to submit a Bill of Sale and documents that prove ownership. These documents could include a certificate of title, the manufacturer's certificate or origin, salvage certificate, and receipts for all major components.

    The title fee for homemade trailers is $22.50, plus you'll need to pay sales tax, and the appropriate trailerregistration fee. The annual registration fees for trailers weighing:

    3,000 lbs. or less―$6
    3,001 lbs. to 10,000 lbs.―$12
    10,001 lbs. or more―$27
    You may register trailers 10,000 pounds or less for one to five years at a time.

    MV-426
    http://www.dmv.state.pa.us/pdotforms/mv_forms/mv-426b.pdf

    Titleing Process for PA
    http://www.dot3.state.pa.us/pdotforms/fact_sheets/Specially_Constructed_Vehicle.pdf

    More registration info
    http://www.dmv.org/pa-pennsylvania/other-types-of-vehicles.php

    Inspection Info:
    http://www.pacode.com/secure/data/067/chapter175/subchapGtoc.html

    Last edited: Jun 7, 2015
    V5ioV likes this.
  3. Jun 5, 2015 at 4:18 PM
    #3
    sander1036

    sander1036 [OP] Well-Known Member

    Joined:
    Mar 28, 2011
    Member:
    #53870
    Messages:
    5,053
    Gender:
    Male
    First Name:
    Steve
    Snack Food Capital of the World
    Vehicle:
    02 SR5 TRD Double Cab 4x4
    THULE Roof Rack, Color matched grille w/ GrilleCraft, Toytec Ultimate, 33 x 12.5 Duratracs, Bushwacker Cut Out Flares, Cvt Mt Shasta, Cvt Awning, LEER Cap
    Trailer parts list:

    Paint
    http://www.paintscratch.com

    Max coupler
    http://store.adventuretrailers.com/products/Max-Coupler.html

    Etrailer stuff:
    Timbren Heavy-Duty Axle-Less Trailer Suspension - 4" Lift Spindle - Off-Road Tires - 3,500 lbs
    https://www.etrailer.com/p-ASR35HDS02.html

    10" Nev-R-Adjust Electric Brake Assembly for 3.5K Axles - LH
    https://www.etrailer.com/p-23-468.html
    10" Nev-R-Adjust Electric Brake Assembly for 3.5K Axles - RH
    https://www.etrailer.com/p-23-469.html

    Trailer Hub and Drum Assembly - 3,500-lb Axles - 6 on 5-1/2 - E-Z Lube
    https://www.etrailer.com/p-84656UC3-EZ.html

    Single Axle Trailer Fender - Jeep Style - 16 Gauge Steel - 13" to 15" Wheels - Qty 1
    https://www.etrailer.com/p-J101936.html

    Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Sidewind - 15" Lift - 5,000 lbs
    https://www.etrailer.com/p-PS1401440303.html

    Engager Trailer BreakAway Kit with Charger and Tester
    https://www.etrailer.com/p-20099.html

    Sealed, 6-1/2" Oval LED Trailer Turn Signal and Parking Light, Flange Mount, 10 Super Diode
    https://www.etrailer.com/p-STL78AB.html

    Sealed, 6-1/2" Oval LED Trailer Stop, Turn and Tail Light, Flange Mount, 10 Super Diode
    https://www.etrailer.com/p-STL78RB.html

    Sealed, 2" Round, LED Trailer Clearance and Side Marker Light, Flange Mount, 5 Diode - Amber
    https://www.etrailer.com/Trailer-Lights/Optronics/MCL52AB.html

    Valterra R8048 8" x 16" x 48" ABS Water Tank
    http://www.amazon.com/gp/product/B002N5JBVY/ref=oh_details_o00_s01_i00?ie=UTF8&psc=1

    Door Hinges
    http://www.hardwaresource.com/hinge...-hinges/welding-hinge-with-grease-fitting-1-2

    Door handles
    http://www.etrailer.com/Enclosed-Tr...tml?feed=npn&gclid=CNPAs9fvoMYCFYI-aQodDLsAfQ

    Total so far around $1500 without materials or wheels and tires.

    Last edited: Aug 20, 2015
    V5ioV likes this.
  4. Jun 5, 2015 at 4:18 PM
    #4
    sander1036

    sander1036 [OP] Well-Known Member

    Joined:
    Mar 28, 2011
    Member:
    #53870
    Messages:
    5,053
    Gender:
    Male
    First Name:
    Steve
    Snack Food Capital of the World
    Vehicle:
    02 SR5 TRD Double Cab 4x4
    THULE Roof Rack, Color matched grille w/ GrilleCraft, Toytec Ultimate, 33 x 12.5 Duratracs, Bushwacker Cut Out Flares, Cvt Mt Shasta, Cvt Awning, LEER Cap
    Parts list: 6/28/15

    Steel Tubing (Frame) $168


    Tongue Box and Hitch Receivers $405


    Max Coupler $240


    Suspension and Brakes $930

    Last edited: Jun 28, 2015
  5. Jun 5, 2015 at 4:23 PM
    #5
    sander1036

    sander1036 [OP] Well-Known Member

    Joined:
    Mar 28, 2011
    Member:
    #53870
    Messages:
    5,053
    Gender:
