Scion T10015 radio install

Discussion in '1st Gen. Tacomas (1995-2004)' started by 00_5VZ, Dec 16, 2019.

  1. Dec 16, 2019 at 7:18 PM
    #1
    00_5VZ

    00_5VZ [OP] Well-Known Member

    Joined:
    Jun 24, 2017
    Member:
    #222322
    Messages:
    200
    Gender:
    Male
    First Name:
    Rob
    Thornton, CO
    Vehicle:
    2004 double cab TRD impulse red pearl
    TRD S/C, Deck plate mod, gray wire mod, 2 low mod, magnaflow cat back exhaust
    I want to start by apologizing, this is my first how-to write up on Tacomaworld, and I didn’t take photos of everything. If there are any questions, feel free to ask and I will answer them to the best of my abilities.

    So I recently decided it was time to bring my truck stereo into the 21st century. I knew I wanted Bluetooth, CD player, and USB/AUX ports; but most of all I wanted an OEM look, which is easier said than done. I had been eying some pioneer double din stereos, but then I stumbled down the path of installing Scion stereos in land cruisers and thought “I could do that!”. I started reading into different features of each Scion stereo, from CD player, to Bluetooth, to preouts for an amplifier. And then I stumbled on the T10015 head unit


    The Scion T10015 head unit was available in 2012-2015 Scion Xb, Fr-s, and iQ. It was the optional unit, featuring a CD player, HD radio capabilities, double din with touch screen, Bluetooth and optional add on for navigation... and that’s the reason I picked this unit, it had everything I wanted plus the option for navigation.

    I picked up the head unit off eBay for $80. And I picked up the necessary adapters from my dealership.

    if you want to do this install, there are some adapters that will be needed

    PT546-00120-AD. This is the antenna adapter and is the only 100% necessary adapter to install the radio

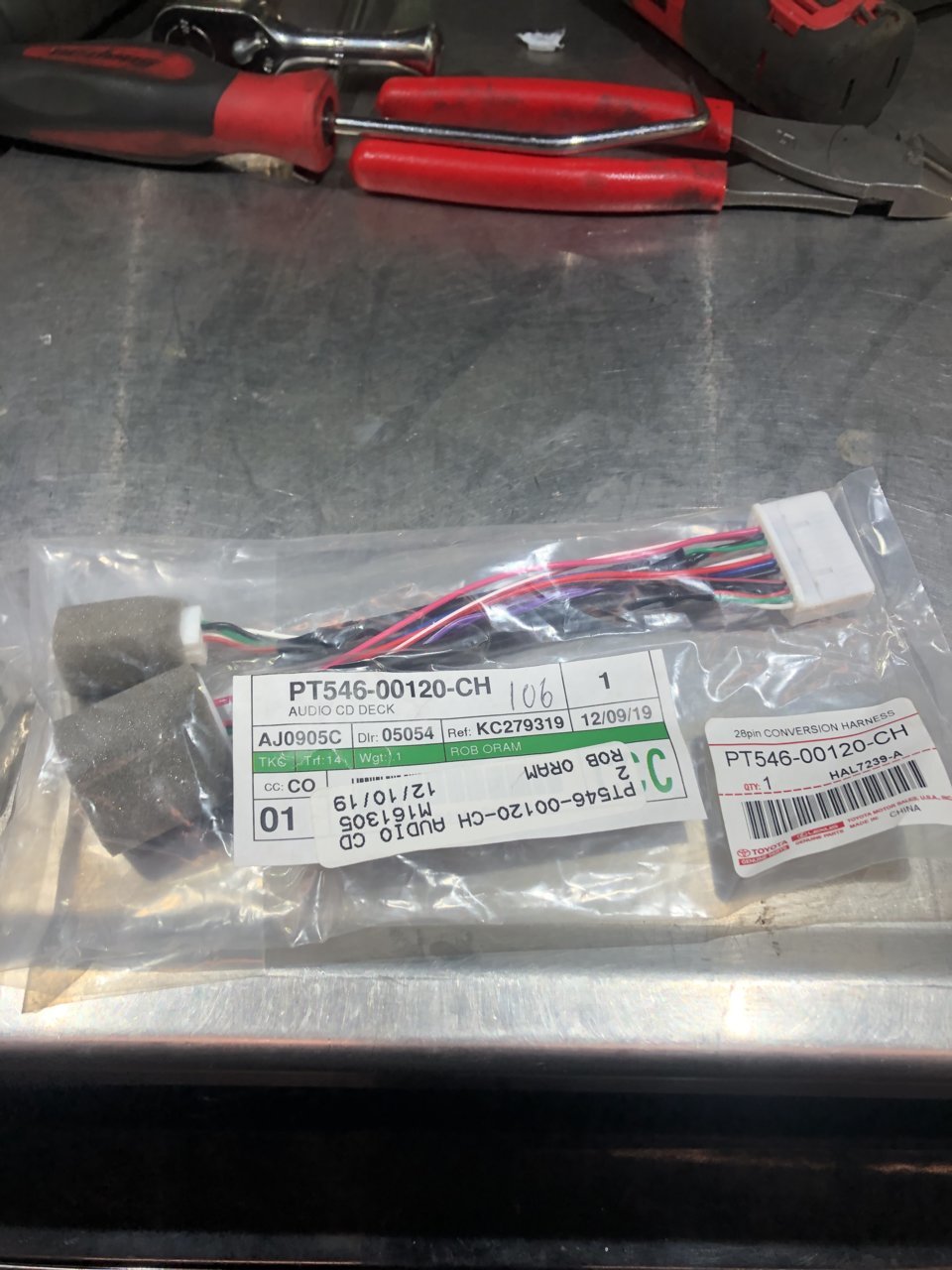

    PT546-00120-CH. this is the 28 pin to 20 pin adapter, this is necessary if you want to add the Bluetooth microphone for phone operation.

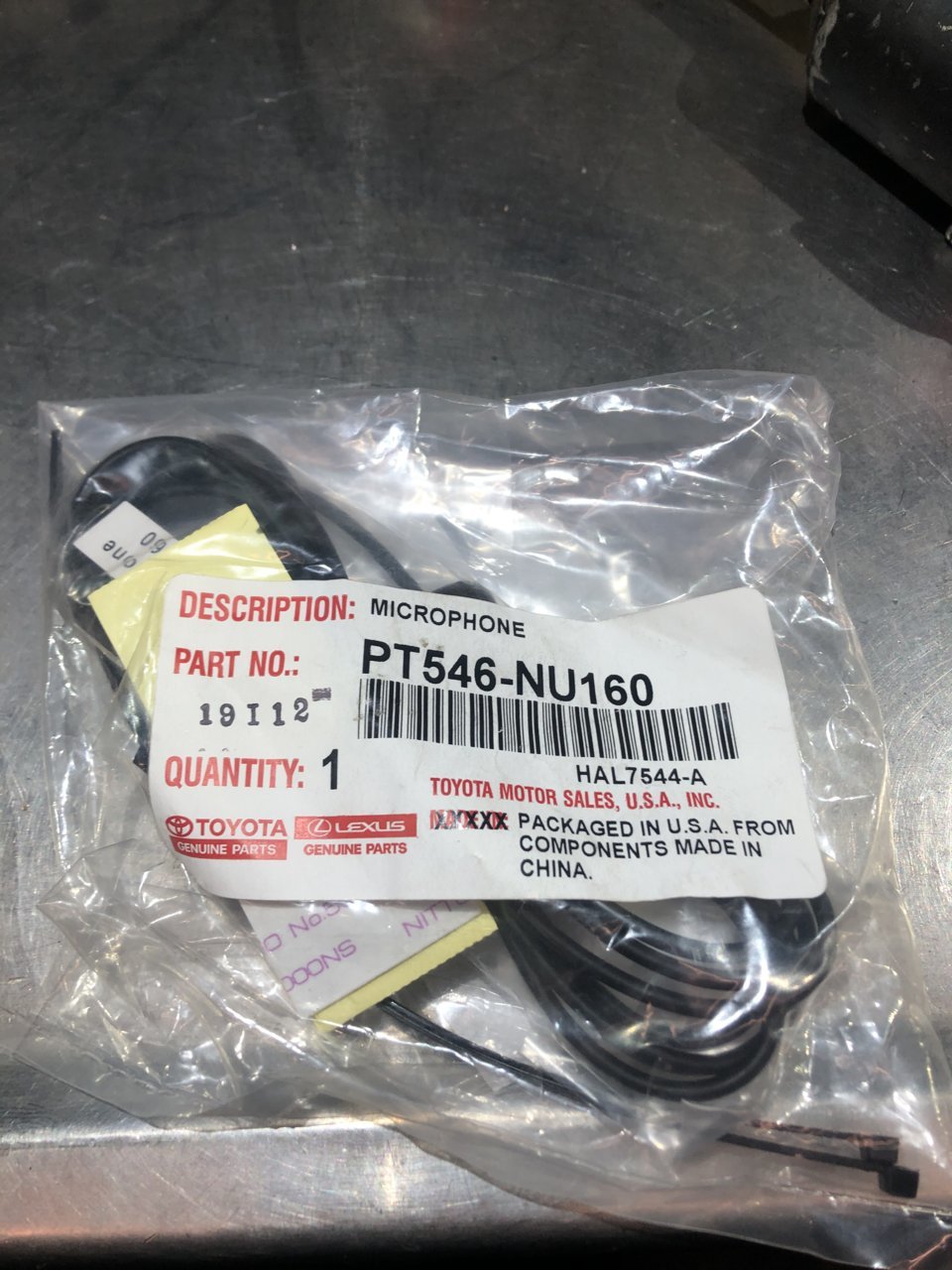

    PT546-NU160. This is the Bluetooth microphone.


    Now the hard part. In order to install this radio, Cutting of the dash and trimming the stereo bezel is required.

    Now I’m not going to go over stereo removal because I feel it has been discussed enough and there are enough videos on YouTube about it

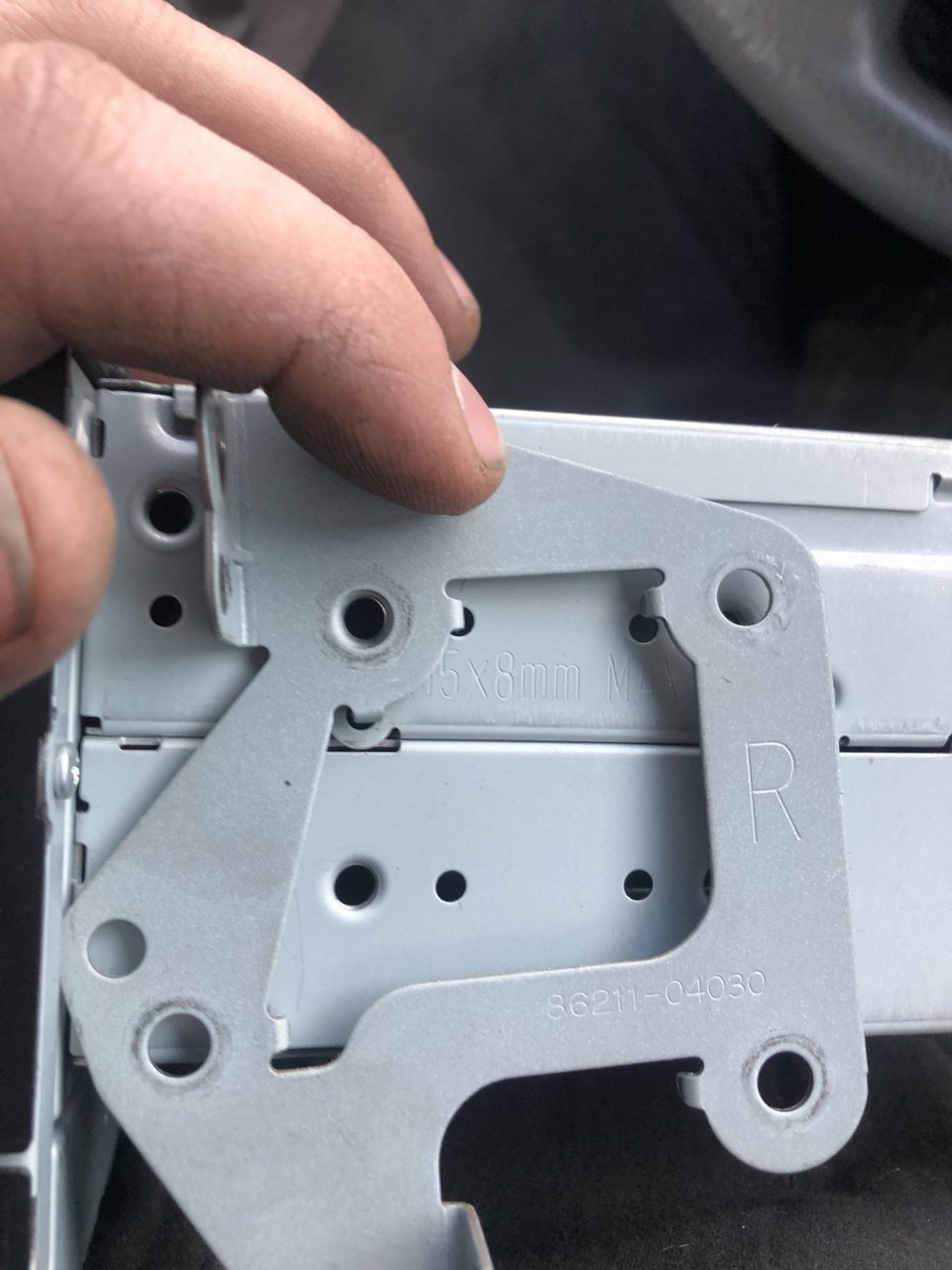

    1. Remove the stock mounting brackets from the factory radio. Before installing, one part of the radio bracket needs to be trimmed down to install it on the T10015 radio.


    2. install the antenna adapter onto the stereo. It plugs into the radio in 2 different connectors and is pretty self explanatory.

    3. Install the 28 pin to 20 pin adapter harness. again, pretty self explanatory cause it will only plug into one connector

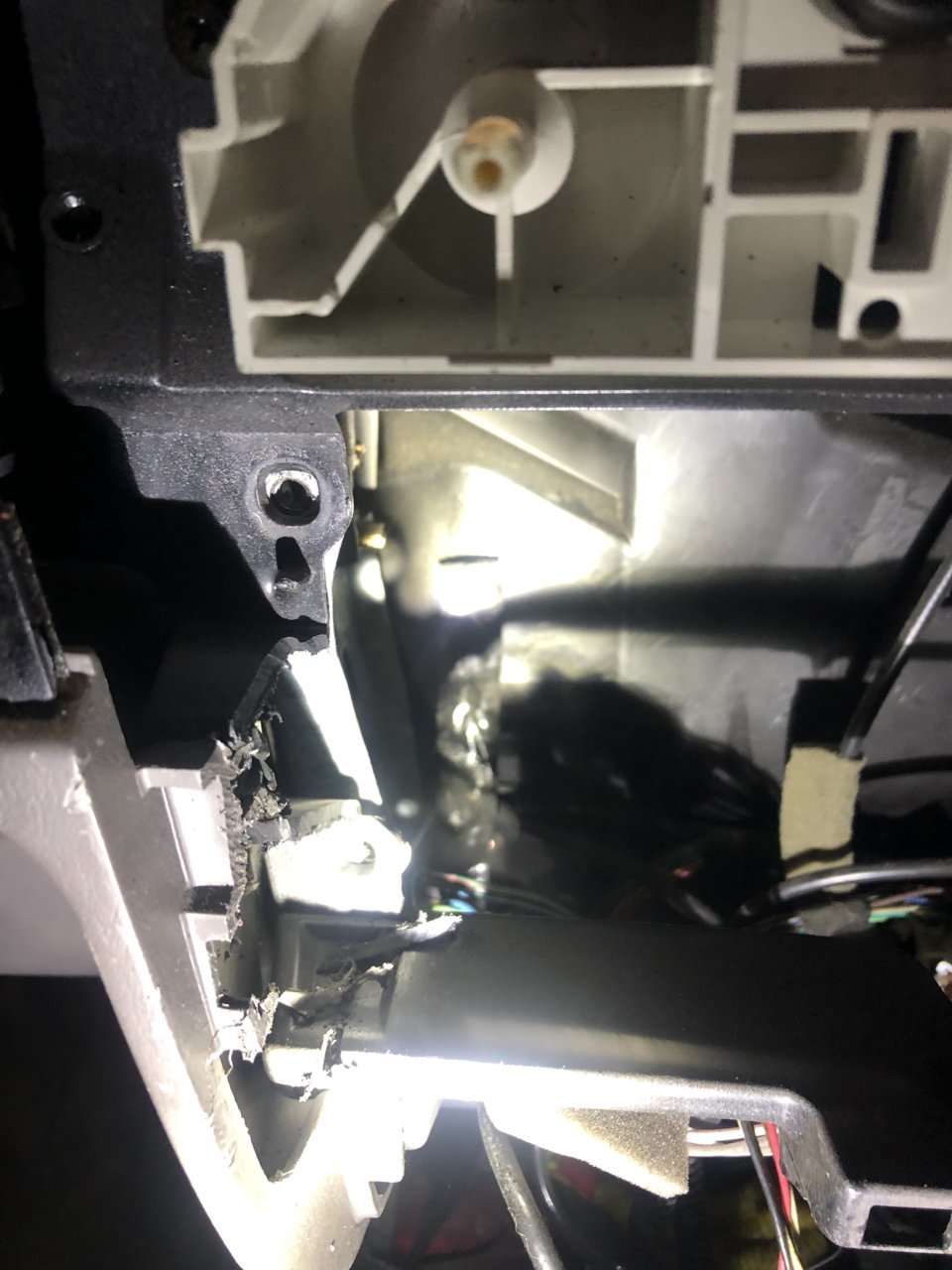

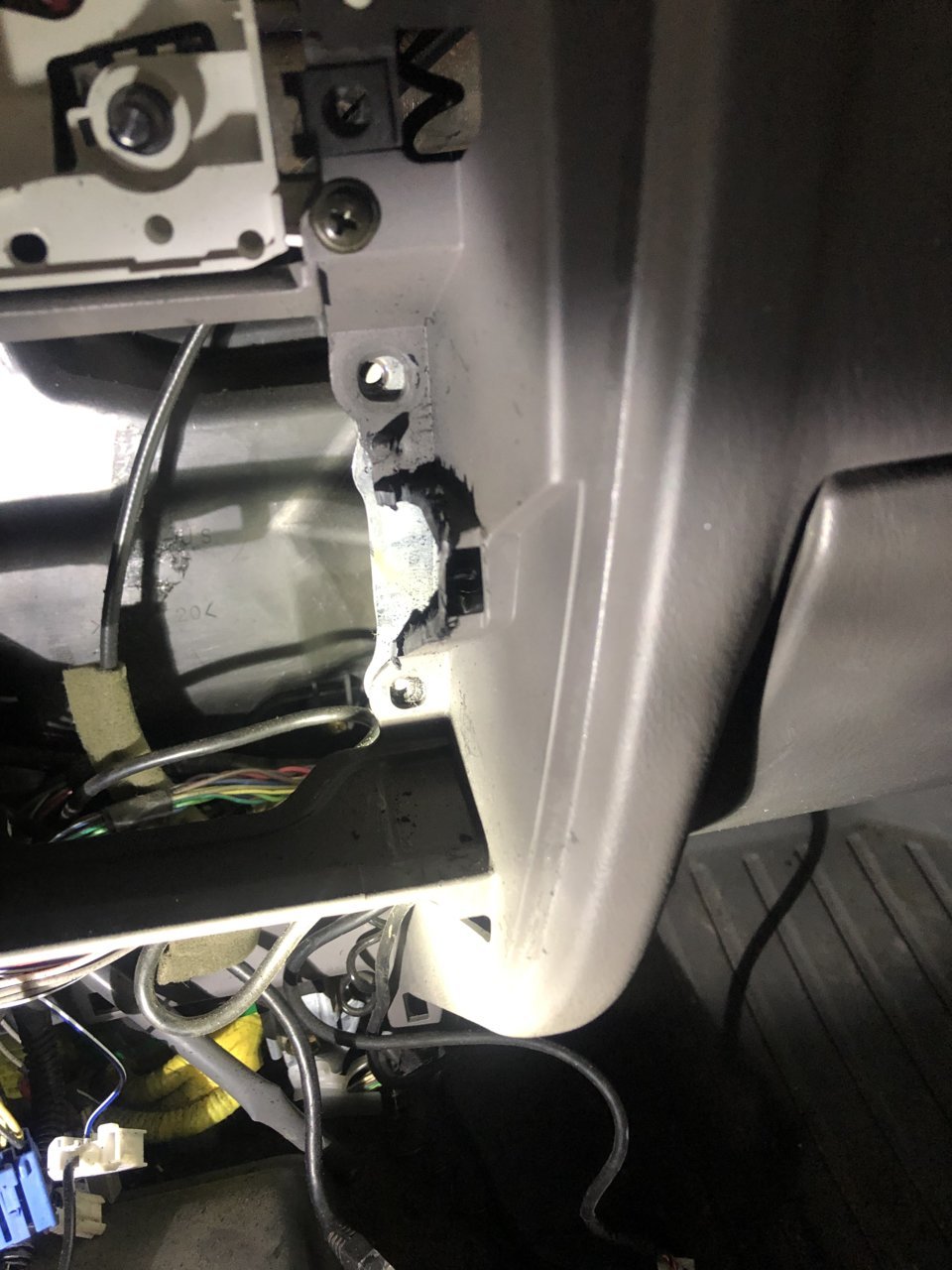

    4. trim the dash. The T10015 stereo has a wider faceplate than the stock radio, and this is necessary for install. I used a cut off wheel on a 90 degree angle grinder. Take care when doing the drivers side, as you end up cutting through a metal dash clip, causing sparks to fly.

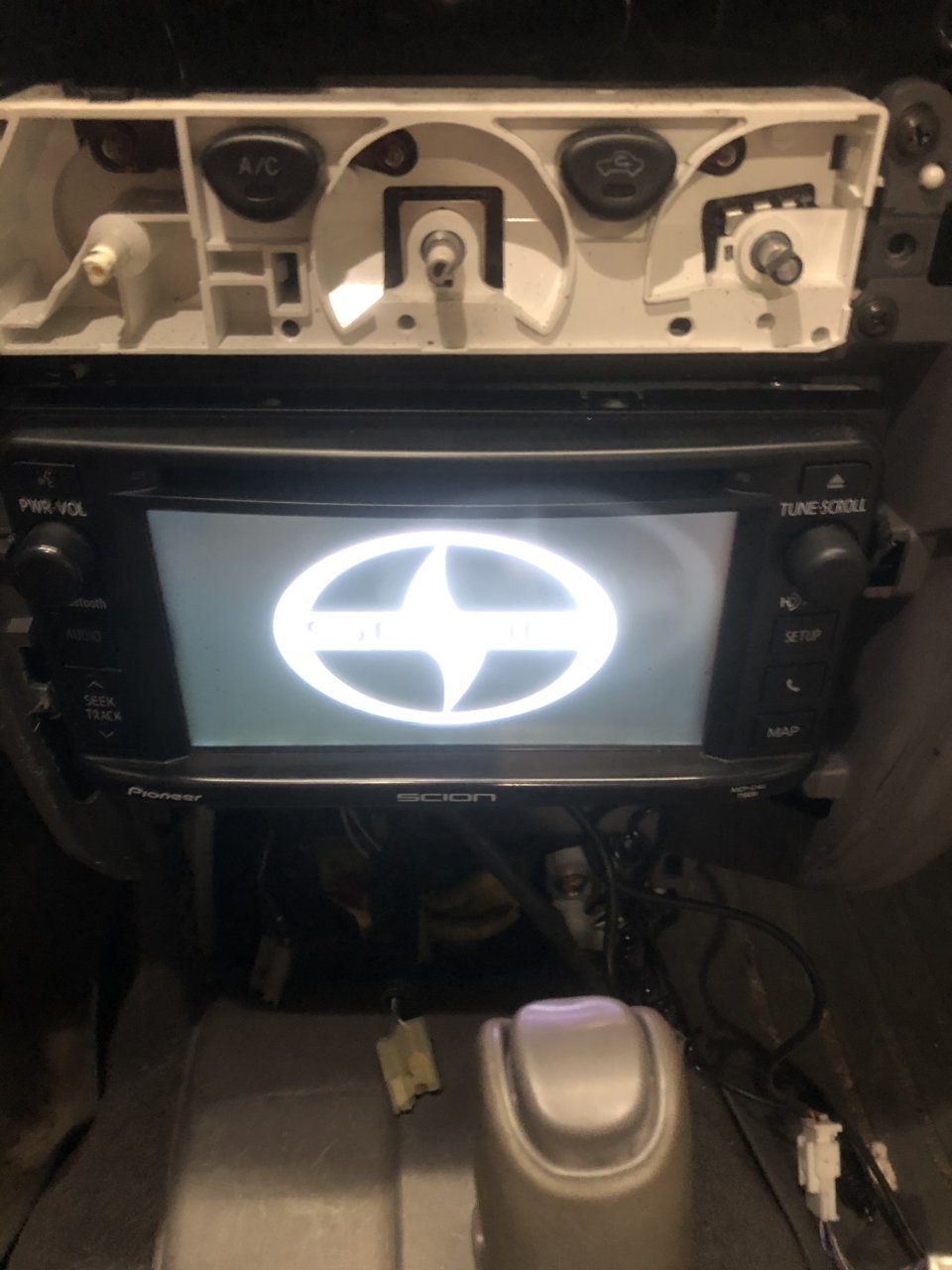

    5. install the radio. Make sure after connecting all the connectors, pull the harnesses down toward the airbag Ecu. It’s an incredibly tight fit between the back of the stereo and the hvac box. It is incredibly difficult to start the mounting bolts, I was only able to install the top left and bottom right bolts.


    6. Mount the Bluetooth microphone. I mounted mine on the steering column, and ran the wire behind the clock and connected it into the small connector of the 28-20 pin harness.

    7. trim the stereo bezel. The stock stereo is 7 inches wide. The T10015 is 7 3/4 inches. You need to remove 3/8 on each side. The top and bottom have enough clearance, so trimming is not necessary on the top and bottom. Make sure to remove the metal clip from the driver side next to the stereo opening.

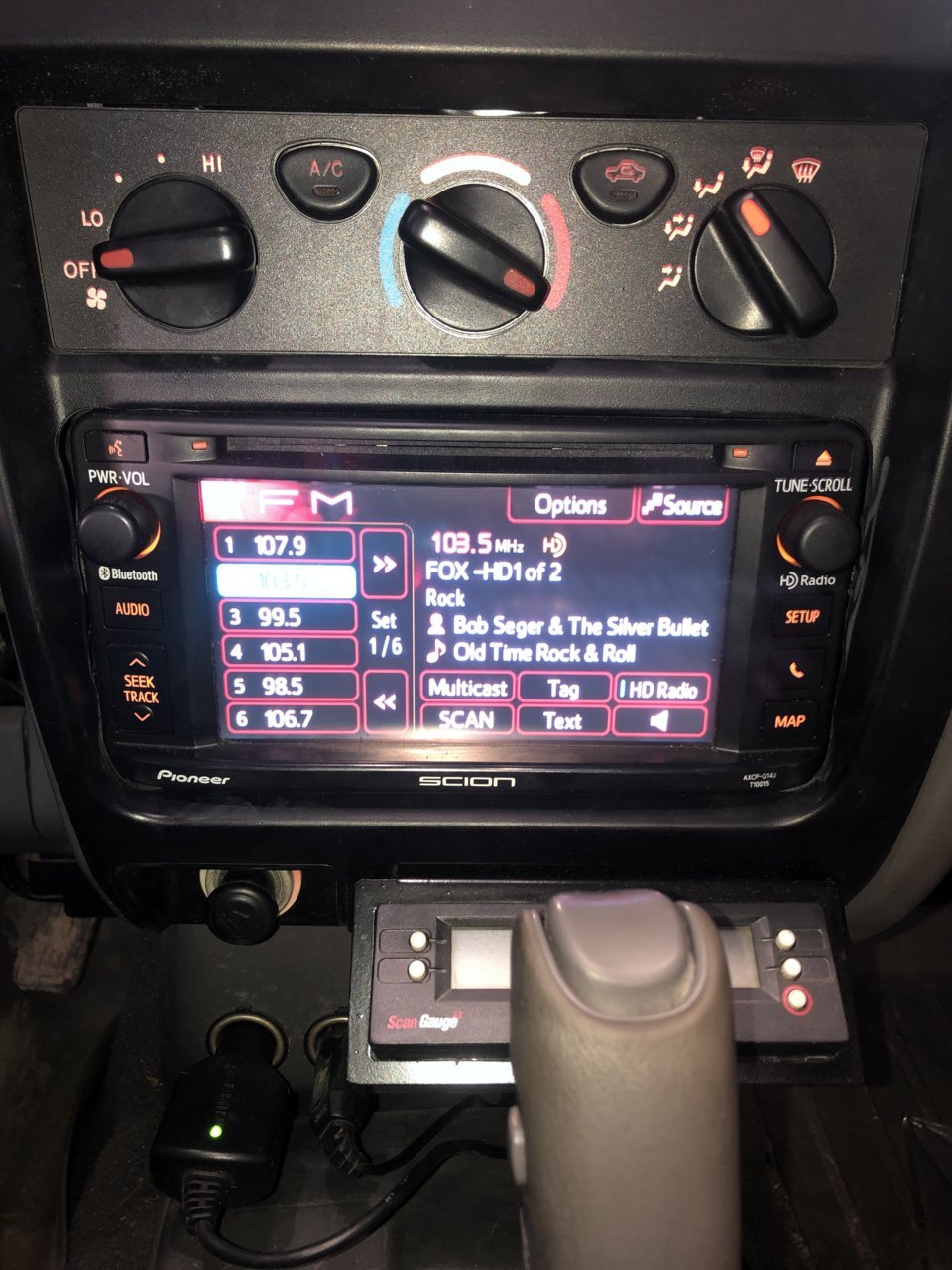

    and there you have it!! Finish assembling the dash and enjoy.


    I’m still sorting out USB/AUX adapters for the stereo and will update as soon as I figure those out. I will also update the thread if and when I install navigation.

    R242, Hamer95USA and 1oldgoat like this.
  2. Dec 16, 2019 at 7:20 PM
    #2
    PennSilverTaco

    PennSilverTaco On the spectrum...

    Joined:
    Jul 15, 2014
    Member:
    #134007
    Messages:
    27,626
    Gender:
    Male
    First Name:
    Charlie
    Central Bucks, PA
    Vehicle:
    2010 RC auto 5-lug
    Are these backup camera compatible?

  3. Dec 16, 2019 at 7:22 PM
    #3
    00_5VZ

    00_5VZ [OP] Well-Known Member

    Joined:
    Jun 24, 2017
    Member:
    #222322
    Messages:
    200
    Gender:
    Male
    First Name:
    Rob
    Thornton, CO
    Vehicle:
    2004 double cab TRD impulse red pearl
    TRD S/C, Deck plate mod, gray wire mod, 2 low mod, magnaflow cat back exhaust
    yes they are. Another thing I will sort out later and add to the thread if and when I do it

    tony2018 and PennSilverTaco like this.
  4. Dec 16, 2019 at 7:26 PM
    #4
    PennSilverTaco

    PennSilverTaco On the spectrum...

    Joined:
    Jul 15, 2014
    Member:
    #134007
    Messages:
    27,626
    Gender:
    Male
    First Name:
    Charlie
    Central Bucks, PA
    Vehicle:
    2010 RC auto 5-lug
    If my Pioneer head unit dies, I might go back to a Toyota OEM unit. Do you know of any place I can circumvent state sales tax if I buy an OEM Toyota/Scion head unit? Crutchfield narc'd me out to the Commonwealth of Pennsylvania for a $325 Pioneer stereo I purchased in March 2018, and I got a bill for the sales tax when I filed my tax return in April 2019. Needless to say, I will not be doing business with Crutchfield in the near future...

  5. Dec 16, 2019 at 7:28 PM
    #5
    00_5VZ

    00_5VZ [OP] Well-Known Member

    Joined:
    Jun 24, 2017
    Member:
    #222322
    Messages:
    200
    Gender:
    Male
    First Name:
    Rob
    Thornton, CO
    Vehicle:
    2004 double cab TRD impulse red pearl
    TRD S/C, Deck plate mod, gray wire mod, 2 low mod, magnaflow cat back exhaust
    I don’t, sorry.

    PennSilverTaco likes this.
  6. Dec 16, 2019 at 7:28 PM
    #6
    PennSilverTaco

    PennSilverTaco On the spectrum...

    Joined:
    Jul 15, 2014
    Member:
    #134007
    Messages:
    27,626
    Gender:
    Male
    First Name:
    Charlie
    Central Bucks, PA
    Vehicle:
    2010 RC auto 5-lug
    Did you buy that Scion radio online or privately?

  7. Dec 16, 2019 at 7:29 PM
    #7
    00_5VZ

    00_5VZ [OP] Well-Known Member

    Joined:
    Jun 24, 2017
    Member:
    #222322
    Messages:
    200
    Gender:
    Male
    First Name:
    Rob
    Thornton, CO
    Vehicle:
    2004 double cab TRD impulse red pearl
    TRD S/C, Deck plate mod, gray wire mod, 2 low mod, magnaflow cat back exhaust
    I bought it off eBay. It came from a junkyard in Salt Lake City.

    PennSilverTaco likes this.
  8. Dec 16, 2019 at 7:31 PM
    #8
    PennSilverTaco

    PennSilverTaco On the spectrum...

    Joined:
    Jul 15, 2014
    Member:
    #134007
    Messages:
    27,626
    Gender:
    Male
    First Name:
    Charlie
    Central Bucks, PA
    Vehicle:
    2010 RC auto 5-lug
    Did you have to pay sales tax? My problem isn't paying sales tax; Amazon collects sales tax at the time of the sale, but Crutchfield only reports the purchase to your home state, which results in your home state tacking on interest, and that's what annoys me.

  9. Dec 16, 2019 at 7:33 PM
    #9
    00_5VZ

    00_5VZ [OP] Well-Known Member

    Joined:
    Jun 24, 2017
    Member:
    #222322
    Messages:
    200
    Gender:
    Male
    First Name:
    Rob
    Thornton, CO
    Vehicle:
    2004 double cab TRD impulse red pearl
    TRD S/C, Deck plate mod, gray wire mod, 2 low mod, magnaflow cat back exhaust
    I have no clue, probably did. Colorado is pretty shitty about sales tax

    PennSilverTaco likes this.
  10. Dec 16, 2019 at 7:34 PM
    #10
    PennSilverTaco

    PennSilverTaco On the spectrum...

    Joined:
    Jul 15, 2014
    Member:
    #134007
    Messages:
    27,626
    Gender:
    Male
    First Name:
    Charlie
    Central Bucks, PA
    Vehicle:
    2010 RC auto 5-lug
    And this head unit does in fact have built-in Bluetooth, USB, etc? iPod compatible?

  11. Dec 16, 2019 at 7:37 PM
    #11
    00_5VZ

    00_5VZ [OP] Well-Known Member

    Joined:
    Jun 24, 2017
    Member:
    #222322
    Messages:
    200
    Gender:
    Male
    First Name:
    Rob
    Thornton, CO
    Vehicle:
    2004 double cab TRD impulse red pearl
    TRD S/C, Deck plate mod, gray wire mod, 2 low mod, magnaflow cat back exhaust
    It does as I said in the first post, it has Bluetooth, and is USB/AUX capable, but I need to sort out the needed adapters for that. It’s also navigation capable if you have the extension module and the gps antenna

    PennSilverTaco likes this.
  12. Dec 16, 2019 at 7:41 PM
    #12
    JasonLee

    JasonLee Hello? I'm a truck.

    Joined:
    May 9, 2014
    Member:
    #129454
    Messages:
    3,365
    Gender:
    Male
    First Name:
    Jason
    Gold Hill, CO
    Vehicle:
    2003 DCSB TRD 4x4
    Let me know if you need any help with the wiring diagram/etc... I can read and decipher wiring diagrams for days, but what holds me up is not having a garage/shop to work on my own stuff.

    PennSilverTaco likes this.
  13. Dec 16, 2019 at 7:42 PM
    #13
    PennSilverTaco

    PennSilverTaco On the spectrum...

    Joined:
    Jul 15, 2014
    Member:
    #134007
    Messages:
    27,626
    Gender:
    Male
    First Name:
    Charlie
    Central Bucks, PA
    Vehicle:
    2010 RC auto 5-lug
    It makes me happy when I see people modernizing older trucks instead of dropping fifty grand on new ones!

    Hamer95USA likes this.
  14. Dec 16, 2019 at 7:44 PM
    #14
    00_5VZ

    00_5VZ [OP] Well-Known Member

    Joined:
    Jun 24, 2017
    Member:
    #222322
    Messages:
    200
    Gender:
    Male
    First Name:
    Rob
    Thornton, CO
    Vehicle:
    2004 double cab TRD impulse red pearl
    TRD S/C, Deck plate mod, gray wire mod, 2 low mod, magnaflow cat back exhaust
    Thanks Jason! From what I found there are adapters that plug right into the back of the stereo and have like rca outputs for a backup camera. I’m gonna look into it more.

  15. Dec 16, 2019 at 7:50 PM
    #15
    1oldgoat

    1oldgoat Active Member

    Joined:
    Aug 29, 2017
    Member:
    #228414
    Messages:
    36
    Gender:
    Male
    Vehicle:
    '99 Regular Cab 4x4
    Camper top, Custom platform with drawers & trays underneath.
    Thanks for the write up! I have been looking to update my 99 taco (AM_FM cassette!) and had no idea the Scion unit would fit that well. Still checking options on Amazon & crutchfield since I want navigation and backup camera as well.

  16. Dec 16, 2019 at 7:58 PM
    #16
    Empty_Lord

    Empty_Lord Wallet abuser

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    15,432
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    2001 Tacoma, 2005 Tundra, 2006 Corolla and Avalon
    Almost 300k! Doug Thorley headers magnaflow cats & cat-back airaid intake tube color matched grille and mirrors front icon coilovers rear icon absorbers with deaver leafs total chaos upper control arms fj trail team wheels with 265/75r16 cooper discoverer st maxx Soon to be built engine with supercharger soon to be built a340f
  17. Dec 16, 2019 at 7:59 PM
    #17
    00_5VZ

    00_5VZ [OP] Well-Known Member

    Joined:
    Jun 24, 2017
    Member:
    #222322
    Messages:
    200
    Gender:
    Male
    First Name:
    Rob
    Thornton, CO
    Vehicle:
    2004 double cab TRD impulse red pearl
    TRD S/C, Deck plate mod, gray wire mod, 2 low mod, magnaflow cat back exhaust
    Empty_Lord likes this.
  18. Dec 17, 2019 at 11:25 AM
    #18
    adamdsgn

    adamdsgn Well-Known Member

    Joined:
    Sep 21, 2018
    Member:
    #266956
    Messages:
    149
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2003 Tacoma Double-Cab - TRD/4x4
    Question... Why didn't you just buy a compatible aftermarket DD touchscreen head unit with bluetooth, maps, etc. already included. I read thru the original post and see no benefit (other than maybe the cost) to the Scion head unit especially with all of the trimming required...

    Tim7902 likes this.
  19. Dec 17, 2019 at 3:40 PM
    #19
    Phessor

    Phessor Hiding Out!

    Joined:
    Feb 15, 2014
    Member:
    #123156
    Messages:
    1,768
    Gender:
    Male
    Smallville, AZ
    Vehicle:
    1998 TRD
    Wanna Be Expedition Rig...
    I am intrigued with this idea, except for the added cost of navigation software.

  20. Dec 17, 2019 at 6:12 PM
    #20
    00_5VZ

    00_5VZ [OP] Well-Known Member

    Joined:
    Jun 24, 2017
    Member:
    #222322
    Messages:
    200
    Gender:
    Male
    First Name:
    Rob
    Thornton, CO
    Vehicle:
    2004 double cab TRD impulse red pearl
    TRD S/C, Deck plate mod, gray wire mod, 2 low mod, magnaflow cat back exhaust
    As I said in my first post I wanted a stereo that looked OEM. As a Toyota technician OEM look and function were important to me

    Phessor likes this.
