SCS RAY10 Group Buy and Initial Release!

Mine is only 265 75 16 and I took the mud flaps off. Look like you gonna need a cabin chop in the future.



The customer pays whatever UPS charges us. The discounted rates that we receive gets passed to you guys. We make absolutely no money off of shipping and for the most part, we take a $8-10 hit for each order. It's based on your actual zip code and not a flat fixed rate. The farther away from CA you are, the higher the shipping cost.



Whenever you step up to 33" tall tire, it will rub your cab mount area.

Here's your solution.
https://www.tacomaworld.com/threads/3rd-gen-2016-cab-mount-chop-plates.399153/



Lol about as far away as i can get lol

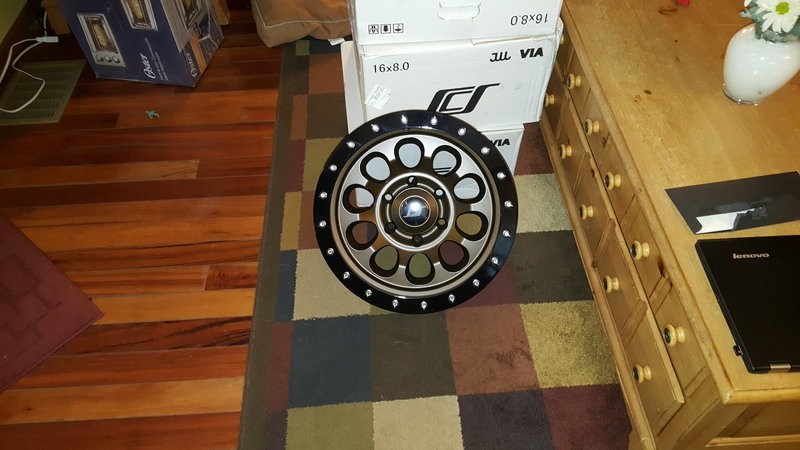

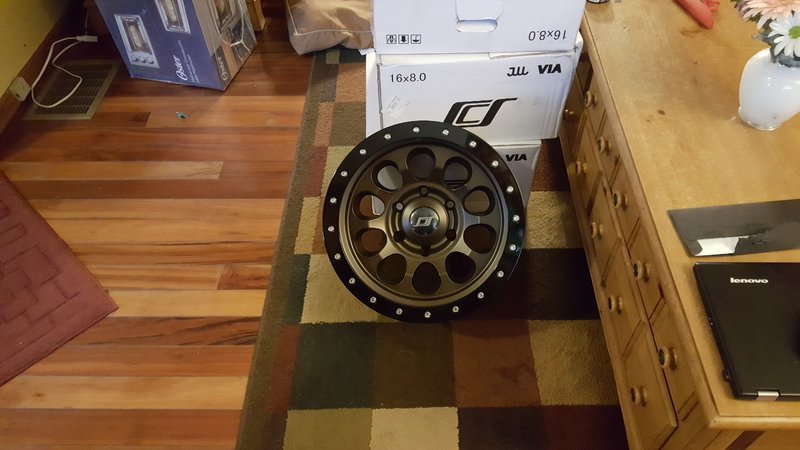

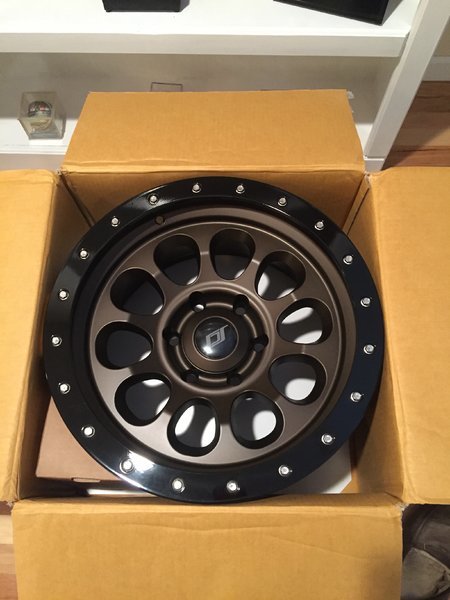

just got my 16 inch bronze with silver bolts. LOVE this wheel. I will be sure to upload my pics mounted with the cooper maxx 255's i just ordered. that should be this friday. My total set up will be pyrite mica DCSBOR with full 3" OME front and back. Ill update on rub and what not. Again, this GB was spot on the best. thanks vin! Great Product!



Awesome, thanks Vin!



Love them. They make the truck look way aggressive.



Probably has more to do with the offset than the width. Kind of both, but probably more of how far out they sit in relationship to the axis the wheel turns on.

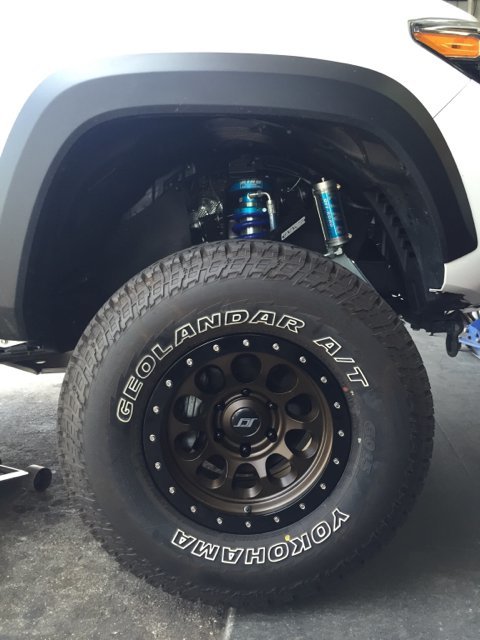

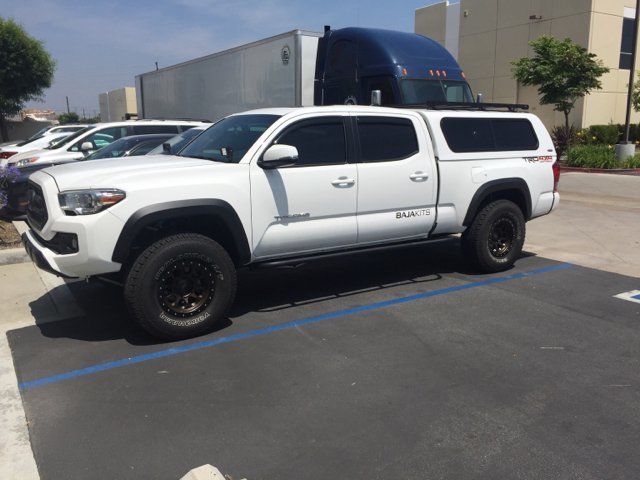

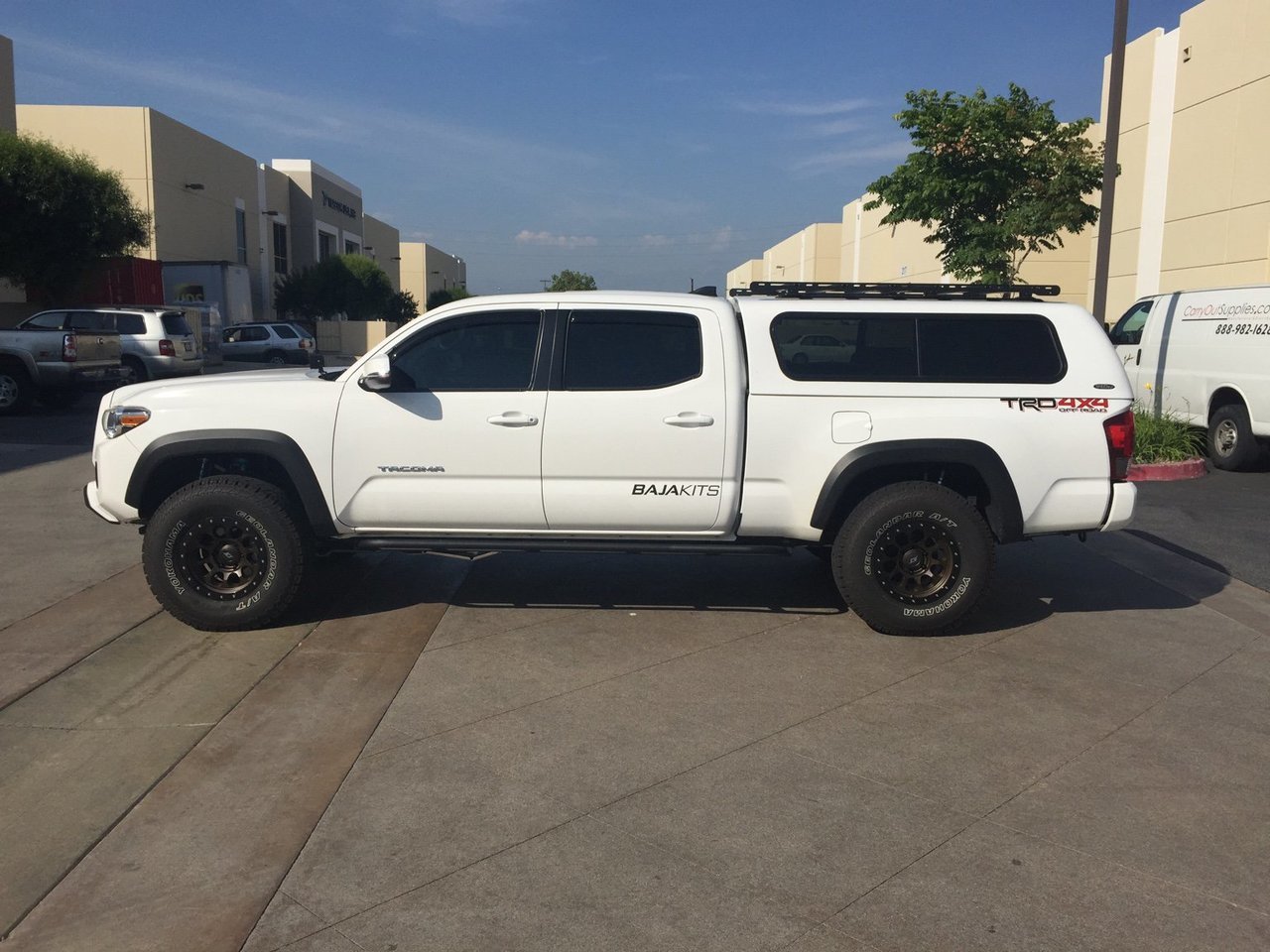

Got them installed about an hour and half ago.

Truck is loaded up to now go to Lone Star Toyota Jamboree!

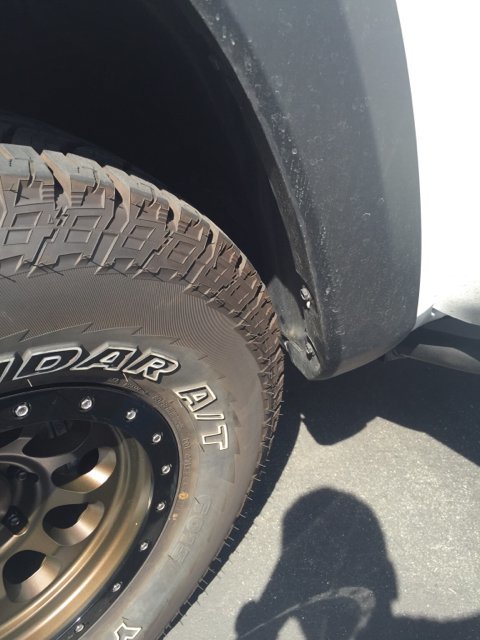

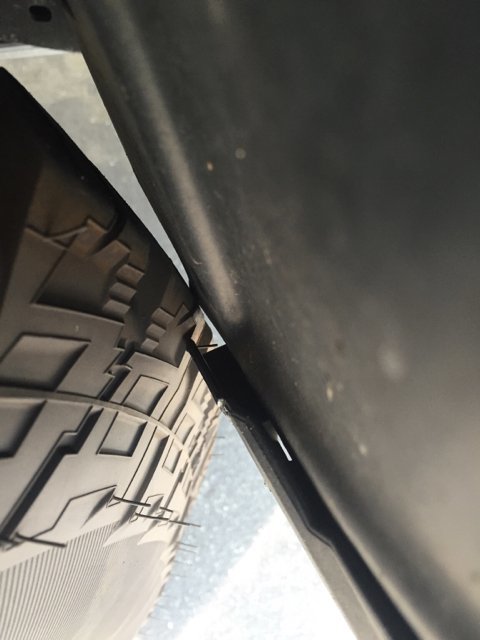

The 32s rub on the front a little bit when cornering, but got a lift on the way.



Nothing a little self-correcting can't solve.



Yup. thats the route we going



I plan on doing some this weekend!



Great look on the MGM with Gunmetal! I also appreciate your roof rack. Very clean and practical. Now just need to find a way to put an LED bar in there.



I have a 30" heretic lightbar on the front of the rack. Works really well.



Who made the roof rack itself?



Prinsu Design



So this may have been answered or a thread somewhere that I can't find, but can someone explain the terminology for wheels (offset, backspacing, etc.) to me and what the spec are on these Ray10s? I just want to know before they arrive Monday if I still need to run my spacers...

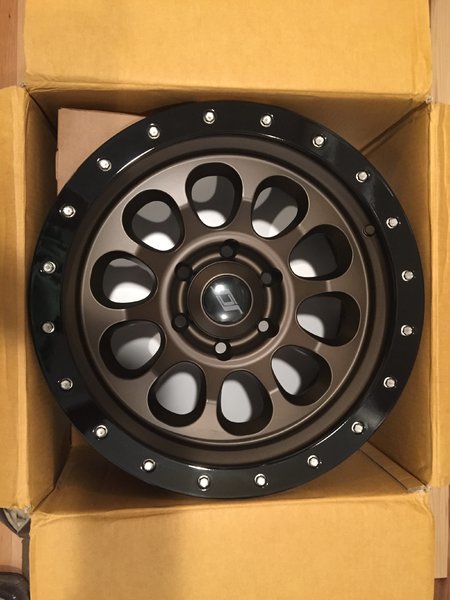

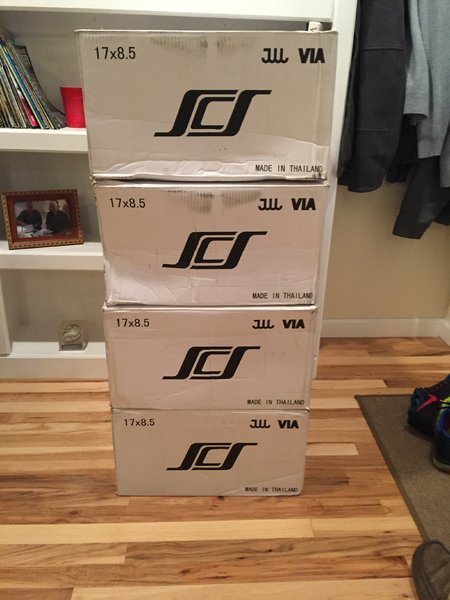

Look what showed up at the house this morning!!!

Getting put on tomorrow at 8am. I'll put up some before and after shots installed tomorrow.

Thanks Vin @SCSPerformance, these things are beautiful and the packaging is top notch. As you can see the UPS guy wasnt very easy with them, still in perfect condition though! Couldnt be happier. That SCS sticker is going on the truck!



Here's a good primer with illustrations (my other ride is an FJ)...
http://www.fjcruiserforums.com/foru...ack-spacing-offset-explained-illustrated.html

and the Ray specs are....

Size: 16 x 8
Bolt Pattern: 6 x 5.5
Hubcentric: Yes
Backspacing: 4.00”
Offset: -12mm
Max Load: 2200lbs
Weight: 21.5lbs

Size: 17 x 8.5
Bolt Pattern: 6 x 5.5
Hubcentric: Yes
Backspacing: 4.30”
Offset: -10mm
Max Load: 2200lbs
Weight: 24lbs



I dont think the spacers will be necessary. I thought the same thing when I got my Fuel's put on. The backspacing on these put the tires about 1/2"-1" outside the fender line. Give or take on those numbers, thats just looking at it with my eye.
