SCUBA MOD - Relocating Front & Rear Diff, Tranny, Transfer Case and E-Locker Breather

Discussion in 'Off-Roading & Trails' started by Shadow-Warrior, Sep 24, 2008.

  1. Jun 13, 2011 at 5:51 PM
    #41
    barlowrs

    barlowrs Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    597
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    Think of what happens when the plastic fan blades hit water (non compressible).....yup, you can EASILY throw a blade. Even if you only throw one blade, your fan is now unbalanced wich will not work well. For deep crossings you want to shut the fan off. Easy way is if you have an electric fan, its just a switch. If you have belt fan, you need to remove the belt to get the fan off the drive.

  2. Jun 13, 2011 at 6:29 PM
    #42
    Erik

    Erik That smells like pure gasoline

    Joined:
    Feb 26, 2011
    Member:
    #51865
    Messages:
    182
    Gender:
    Male
    First Name:
    Erik
    Nashua, NH
    Vehicle:
    10'TRD off-road
    Shrockworks bumper+ IFS skid, 4xInnovations rock sliders, Toytec Bilstein/Eibach 5100 @ 2.5", 3" All-pro leaf pack w/Bilstein 5100, PIAA 510SMR, PIAA 1500, Python LC3 2-way Auto-start, Fog lights on w/Parking lights, ATRAC Hack, Diff breather mod
    lol... The answer was more obvious than I anticipated... Did not realize I had a belt driven fan.

  3. Jun 13, 2011 at 6:42 PM
    #43
    TanSR5x4

    TanSR5x4 Hold my beer and watch this

    Joined:
    Jul 24, 2010
    Member:
    #40669
    Messages:
    1,002
    Gender:
    Male
    First Name:
    William
    Houston TX
    Vehicle:
    00 Tacoma SR5 4x4
    Deckplate mod, black KC slimlight fogs, hurculined bed, NRA sticker mod, painted rear chrome bumper black, black fender flares and front grill surround, HIDs, All-pro rear leafs and UCAs, Eibach coilovers, billys all around, flat black pro comps, 31x10.5x15 BFG KM2s
    also i heard better MPGs with an electric fan

    anyone do a write up or anything about installing them?

    btw i still havent gotten my tanny or t-case vents rerouted. they are just so damn hard to get to!

  4. Jun 13, 2011 at 7:36 PM
    #44
    barlowrs

    barlowrs Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    597
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    haha yeah, this is one thing MANY ppl overlook. At the end of the day, the best thing you can do is avoid deep crossings. No matter what you do, our gas engines do not like it much. All this should be more of a preventative thing for a "just in case" scenario rather than going out and trying to be a submarine.

  5. Jan 16, 2012 at 2:53 PM
    #45
    RedTaco2134

    RedTaco2134 Well-Known Member

    Joined:
    Jun 15, 2008
    Member:
    #7324
    Messages:
    773
    Gender:
    Male
    First Name:
    Scott
    Portland, Or
    Vehicle:
    08 Long Bed TRD Sport
    285/70/17 Goodyear BFG KM2's, Revtek 3" lift. TSB rear and Blistein 5100's http://www.cardomain.com/ride/3097063
    Great mod!

  6. Jan 16, 2012 at 4:58 PM
    #46
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.

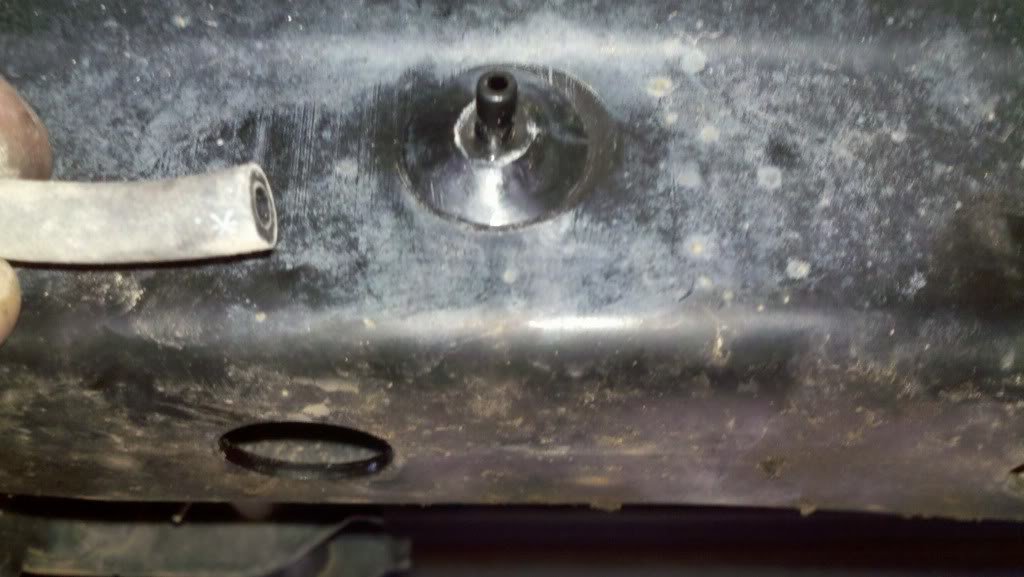

    I might add we DO have a e-locker motor breather. It goes into a crossmember above the diff.

    As of now I've done nothing with mine. I've submerged it plenty of times with no water contamination. None-the-less...

    [​IMG]

  7. May 16, 2012 at 4:16 PM
    #47
    Deathcure

    Deathcure Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74498
    Messages:
    223
    Gender:
    Male
    First Name:
    Chris
    Wheeling WV
    Vehicle:
    12 Tacoma Off Road
    sub for later

  8. Sep 25, 2012 at 2:58 PM
    #48
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    10,691
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Vehicle:
    The "Big Nig"
    Lifted, Locked, Armored. Ready To Wheel.
    subbed

  9. Sep 26, 2012 at 4:39 PM
    #49
    gmcuajo

    gmcuajo Well-Known Member

    Joined:
    Sep 23, 2012
    Member:
    #87521
    Messages:
    64
    Gender:
    Male
    Puerto Rico
    Just -sylvania ZXE on head & fog lights -the tires
    Does the stock breather have something to prevent the water entering? What I mean is if you go into a high pond, or cross a high place with water, for just like one time for some seconds do you really need to do this? The stock breather should have something...

  10. Sep 26, 2012 at 5:51 PM
    #50
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,969
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    This is what's confusing for people... the muddy water does NOT enter through the one way vent (it really isn't a breather, as it only lets air out).

    When you drive into water with a hot differential, the temperature change creates a vacuum inside the diff. The water (muddy or not) will suck into the differential past the axle seals...

    The solution is to break any vacuum from being created, and a breather (2 way vent) mounted higher than any water crossing level allows air to fill in instead of water. THIS IS THE SAME THING TOYOTA DOES FOR THE FRONT DIFFERENTIAL, and that is what we do to the back with the mod.

    I think I made it very easy to do with the photos I posted... see link in my sig, below...

  11. Sep 26, 2012 at 7:54 PM
    #51
    gmcuajo

    gmcuajo Well-Known Member

    Joined:
    Sep 23, 2012
    Member:
    #87521
    Messages:
    64
    Gender:
    Male
    Puerto Rico
    Just -sylvania ZXE on head & fog lights -the tires
    Thanks man! That's true... Help a lot!

  12. Jun 17, 2013 at 10:30 AM
    #52
    YOTA LOVER

    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    3,870
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    3" OME lift (HD), LR UCAs, All-Pro Sliders, All-Pro APEX Front Bumper w/PIAA 530 Fogs, All-Pro Skidplate, 1" diff drop, vent visors, OCTaco Braided Lines, baby seat (forward-facing)
    Genius thread OP! Sub'd, rep'd, nominated for a Nobel Prize.

  13. Jun 20, 2013 at 4:34 AM
    #53
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    513
    Gender:
    Male
    First Name:
    Chris
    Chesapeake Bay
    Vehicle:
    09 TRD Offroad
    Billies + AAL, Breather housing mod, TruXport Tonneau Cover, Custom Wood Rear Seat Extender, Firestone Dest A/T's, Swing Case
    So, does anyone see a problem with tying all the hoses together with "T" parts, and running them all up to one breather (the specter one).

    Would sudden pressure from one part cause air contamination to another before escaping out of the breather?

    Or, would it be better to just run all hoses independently to their own breathers?

  14. Jun 20, 2013 at 4:50 AM
    #54
    monstertaco12

    monstertaco12 Quack Addict

    Joined:
    Apr 25, 2012
    Member:
    #77636
    Messages:
    341
    Gender:
    Male
    Louisiana
    Vehicle:
    2012 Taco TRD Off Road
    If anyone needs the bracket for this mod and doesnt want to dremmel one out I can laser cut and bend it and ship it to you. Free you just pay for shipping!

  15. Jun 20, 2013 at 7:56 AM
    #55
    YOTA LOVER

    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    3,870
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    3" OME lift (HD), LR UCAs, All-Pro Sliders, All-Pro APEX Front Bumper w/PIAA 530 Fogs, All-Pro Skidplate, 1" diff drop, vent visors, OCTaco Braided Lines, baby seat (forward-facing)
    Hells yeah! PM'd

  16. Jun 20, 2013 at 9:23 AM
    #56
    cdj1

    cdj1 Well-Known Member

    Joined:
    Apr 16, 2013
    Member:
    #102185
    Messages:
    1,300
    Gender:
    Male
    First Name:
    Clint
    Portsmouth, VA
    Vehicle:
    97 Tacoma
    King Extended travel coilovers, 5100 Shocks, Daystar shackles,OME Leaf Springs,255/85/16, front diff drop, RAT skid plates, 4.56 gears, LSD in rear, Aussie locker in the front, Front Range Offroad twin sticks, trail gear/ Bash Fab rear bumper, elite off road front bumper and sliders, warn m8000 winch, in cab winch control
    PM'd :D

  17. Jun 21, 2013 at 8:30 AM
    #57
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    513
    Gender:
    Male
    First Name:
    Chris
    Chesapeake Bay
    Vehicle:
    09 TRD Offroad
    Billies + AAL, Breather housing mod, TruXport Tonneau Cover, Custom Wood Rear Seat Extender, Firestone Dest A/T's, Swing Case
    Anyone? Seems it would look cleaner to have them all in one breather.

  18. Jun 21, 2013 at 8:37 AM
    #58
    YOTA LOVER

    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    3,870
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    3" OME lift (HD), LR UCAs, All-Pro Sliders, All-Pro APEX Front Bumper w/PIAA 530 Fogs, All-Pro Skidplate, 1" diff drop, vent visors, OCTaco Braided Lines, baby seat (forward-facing)
    IMO I think you'd be alright to do that, you'd just need to take care in planning out the fitting sizes to ensure they all flowed together seamlessly. I'm doing my breathers this summer and will take a long hard look at the cleanest and efficient way to route everything.

  19. Jun 21, 2013 at 8:37 AM
    #59
    Raoul Duke

    Raoul Duke Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91623
    Messages:
    161
    Gender:
    Male
    First Name:
    CJ
    Vancouver, Canada
    Vehicle:
    TRD O/R Pyrite
    retrofit/bhlm, CB, System, color match grill, debadge, TRD wheels
  20. Jun 21, 2013 at 8:40 AM
    #60
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,980
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    I'm not sure if it would matter or not, but I'd want separate breathers. When you drop a hot differential or transmission into cold water, they rapidly cool and can create a decent amount of suction, granted it's only a short burst but still, I wouldn't want them sucking against each other. Say your one breather filter gets plugged, now it impacts everything, not just one part. When breathers get plugged and there is a vacuum in the differential, they will relieve the pressure somehow. If the breather is plugged, there is a potential to pull water in past the seals. If you do tie them together, I'd use a very large breather so there is really no chance of it getting plugged. Also, where they tie together, make sure you step up in pipe size each time a new line ties in for the same reason.
