Setup for 1000 lbs loads?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Imageoguy, May 31, 2014.

  1. May 31, 2014 at 6:54 PM
    #1
    Imageoguy

    Imageoguy [OP] Well-Known Member

    Joined:
    Sep 16, 2012
    Member:
    #87053
    Messages:
    169
    Gender:
    Male
    Gatineau, Qc, Canada
    Vehicle:
    2012 DCLB SR5
    Full OME suspension (885 front springs, Dakar leaf pack + OME shocks) + D29XL extra leaf + 3 deg. shim + RideRite airbags
    OK, so I know that this is not recommended and I should get a full size but that is simply not an option for me for a few reasons so please spare me the "get a bigget truck" answer.

    I regularly carry about 1000 lbs/1200 lbs in the bed of my Taco. I have the full OME setup and airbags, usually aired-up to about 55 PSI. The ride is a bit bumpy, especially going at 50 on pothole and washboard infested forestry roads (which I do quite often). Are there a few members here that carry heavy loads on a regular basis that could suggest a good setup? I'm thinking of adding the D29XL to my leafpack but wondering if I should also change the shocks for something a bit more aggressive.

  2. May 31, 2014 at 7:33 PM
    #2
    moondeath

    moondeath The answer to divorce...... Tequila!

    Joined:
    Jan 8, 2011
    Member:
    #48948
    Messages:
    5,840
    Gender:
    Male
    First Name:
    Chris
    Pa, Carlisle
    Vehicle:
    2013 TRD Sport DCLB 4x4
    5100 @ 1.75", 1.5" Icon Progressive 3 leaf, Procomp Wheels, Grill Thin Lip (Custom Car Grills Mod), Access Tonneau Cover, Pop & Lock Tailgate Electronic Lock PL8521
    I don't personally have them, but lots of guys are using dakars for heavier loads. Don't be worried about 1000-1200lbs of payload. Your within the rated amount.

  3. May 31, 2014 at 7:39 PM
    #3
    zscott

    zscott Well-Known Member Vendor

    Joined:
    Jul 16, 2013
    Member:
    #108365
    Messages:
    3,734
    Gender:
    Male
    First Name:
    Zach
    Utah
    Vehicle:
    13 DCSB Off-Road 4x4
    When I am camping I have a good amount of weight in the bed. A shell, roof top tent, camping gear, fuel, water, and a fridge all start to add up. I have the dakars with the hd add a leaf and I have been satisfied with it. Also it happens often that I leave stuff in the truck for a few days after camping till I get the motivation to unload or I just leave it packed till the next trip if it is close so I have some decent miles with all that weight it there. The truck is our only vehicle and daily driver.

  4. May 31, 2014 at 8:13 PM
    #4
    qnyla

    qnyla Well-Known Member

    Joined:
    Feb 2, 2010
    Member:
    #30604
    Messages:
    1,309
    Gender:
    Male
    NM
    Vehicle:
    2006 & 2016 DCSB TRD Off Road 6-Speed
    I have hauled 1000+ lbf of gravel with Dakars without issue.

  5. May 31, 2014 at 8:18 PM
    #5
    ffdawson

    ffdawson Woodsman

    Joined:
    May 9, 2011
    Member:
    #56362
    Messages:
    2,608
    Gender:
    Male
    Penngrove
    Vehicle:
    08 Tacoma Rugged Trail 6spd
    Kings, Armor, big taaaarrrs
    I've got the dakar's as well, and with a full load of camping gear I notice I could use some assistance. I carry a ton of shit, plus with a full size spare, HI-LIFT and 6 gal of fuel on the rear swing out I'm hanging a lot of weight in the rear. On our last trip to Moab I was all over the bump stops in the rear. I'm going to add the AAL and see if that helps.

  6. May 31, 2014 at 10:06 PM
    #6
    OZ-T

    OZ-T You chose ... poorly

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    47,228
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
  7. May 31, 2014 at 10:19 PM
    #7
    BrettBretterson

    BrettBretterson Wild Ginger

    Joined:
    Apr 2, 2010
    Member:
    #34449
    Messages:
    1,150
    Gender:
    Male
    Bothell, WA
    Vehicle:
    06 DCSB TRD OR 4x4
    5100's
    If you haven't already, you might want to try lowering the pressure in your airbags. The bags are designed to support 25lbs per psi. So at 1000lbs, you should be running 40psi, and 48psi at 1200lbs. 55psi(1375lbs) would be pretty bouncy with 1000lbs, though not far off at 1200lbs.

    You've probably already messed with different pressure settings, but thought I would suggest it just in case.

  8. Jun 1, 2014 at 4:53 AM
    #8
    boomer6

    boomer6 Well-Known Member

    Joined:
    Apr 22, 2011
    Member:
    #55337
    Messages:
    508
    Gender:
    Male
    First Name:
    John
    TN
    Vehicle:
    Tacoma TRD Offroad
    disabled DRLs disabled seat belt chime disabled the key in the ignition with door open buzzer Installed Illuminated 4wd switch circuit board Marker lights Flashing with turn signals Toggle switch ABS Disable Fog Lights on AnyTime Mod Changed to Yellow bulbs in the Fog Lights Converted interior lights to leds Installed oem roof rack Installed Firestone Ride Rite Air Bags and Daystar Cradles for the air bags Added oil catch can Relentless Tailgate Protector installed
    Might check out DayStar Cradles....makes the airbags kinda free floating. I have firestone air bags and think the ride is better with the cradles. I dont carry the weight you do, just another idea you might check out.

  9. Jun 1, 2014 at 6:25 AM
    #9
    Imageoguy

    Imageoguy [OP] Well-Known Member

    Joined:
    Sep 16, 2012
    Member:
    #87053
    Messages:
    169
    Gender:
    Male
    Gatineau, Qc, Canada
    Vehicle:
    2012 DCLB SR5
    Full OME suspension (885 front springs, Dakar leaf pack + OME shocks) + D29XL extra leaf + 3 deg. shim + RideRite airbags
    When I mention 1000 lbs in the bed that doesn't count the passengers and cargo I might have in the back seat or my weight or fuel. Just to give an example of what I carry about 1/3 of the time, it includes an ATV, a 350 lbs truck deck, a couple chainsaws, 5 gal. fuel tank, sometimes 100 lbs of rock samples and a few other small items totaling about 150 lbs. I probably have more than 1000 lbs as you mention, might even be pushing 1400 lbs. This would be fine on paved roads with recommended pressure in the bags but on forestry roads, it`s a lot rougher. I even add up to 65 PSI to not bottom-out too much in some instances. I'm looking for a more progressive rate if possible, something that just doesn't bottom.

    I`ll probably try the D29XL first to see how that feels. I always have my truck deck on anyways so the ride probably wont be too stiff with the rest unloaded.

    Last edited: Jun 1, 2014
  10. Jun 1, 2014 at 6:34 AM
    #10
    Imageoguy

    Imageoguy [OP] Well-Known Member

    Joined:
    Sep 16, 2012
    Member:
    #87053
    Messages:
    169
    Gender:
    Male
    Gatineau, Qc, Canada
    Vehicle:
    2012 DCLB SR5
    Full OME suspension (885 front springs, Dakar leaf pack + OME shocks) + D29XL extra leaf + 3 deg. shim + RideRite airbags
    I thought about those but I'm really worried about ice buildup and rocks getting in there. With the amount of dirt roads I'm travelling on lately, the odds of something landing in the cradle is pretty high (did 800 miles last week). I don't think it would do anything to the load capacity either.

  11. Jun 1, 2014 at 6:39 AM
    #11
    Imageoguy

    Imageoguy [OP] Well-Known Member

    Joined:
    Sep 16, 2012
    Member:
    #87053
    Messages:
    169
    Gender:
    Male
    Gatineau, Qc, Canada
    Vehicle:
    2012 DCLB SR5
    Full OME suspension (885 front springs, Dakar leaf pack + OME shocks) + D29XL extra leaf + 3 deg. shim + RideRite airbags
    Nope, the 1050 lbs payload rating on the side of my door doesn't include passenger or fuel, I'm way above the rated amount. Plus as mention, I travel a lot on rough terrain at high speed. I'm really pushing this truck to it's limits.

  12. Jun 1, 2014 at 7:37 AM
    #12
    ffdawson

    ffdawson Woodsman

    Joined:
    May 9, 2011
    Member:
    #56362
    Messages:
    2,608
    Gender:
    Male
    Penngrove
    Vehicle:
    08 Tacoma Rugged Trail 6spd
    Kings, Armor, big taaaarrrs
    Have you considered an aggressively suspended trailer? Something small and maneuverable but able to carry the atv and gear? There are some pretty beefed trailers available, certainly capable of 50 mph on rutted dirt roads...

  13. Jun 1, 2014 at 9:10 AM
    #13
    AWorthyOpponent

    AWorthyOpponent Member Caught Off Road

    Joined:
    Aug 22, 2011
    Member:
    #62164
    Messages:
    2,967
    Gender:
    Male
    First Name:
    Dan
    Palm Beach County, Florida
    Vehicle:
    2013 MGM DCLB TRD SPORT 4x4
    TRD Catback Exhaust
    This is what I would do...even with a ton of mods, there's still going to be considerable wear and tear on the truck...a trailer would help alleviate that, and give you a decent ride in the meantime.

  14. Jun 1, 2014 at 10:41 AM
    #14
    moondeath

    moondeath The answer to divorce...... Tequila!

    Joined:
    Jan 8, 2011
    Member:
    #48948
    Messages:
    5,840
    Gender:
    Male
    First Name:
    Chris
    Pa, Carlisle
    Vehicle:
    2013 TRD Sport DCLB 4x4
    5100 @ 1.75", 1.5" Icon Progressive 3 leaf, Procomp Wheels, Grill Thin Lip (Custom Car Grills Mod), Access Tonneau Cover, Pop & Lock Tailgate Electronic Lock PL8521
    I thought you meant total capacity. If your worried about the trucks marked capacity, you're not going to increase that with a different suspension.

  15. Jun 2, 2014 at 6:06 PM
    #15
    Imageoguy

    Imageoguy [OP] Well-Known Member

    Joined:
    Sep 16, 2012
    Member:
    #87053
    Messages:
    169
    Gender:
    Male
    Gatineau, Qc, Canada
    Vehicle:
    2012 DCLB SR5
    Full OME suspension (885 front springs, Dakar leaf pack + OME shocks) + D29XL extra leaf + 3 deg. shim + RideRite airbags
    I sometimes follow ATV trails with my Taco for work (which is one of the reasons why I don't have a full size), having a trailer would make it that much more difficult to turn around or backing up for a mile.

    Also some of the equipment I use for mineral exploration is pretty expensive, I have about 100 grand worth of electronic equipment in the truck sometimes so I prefer not putting it in a trailer.

    As for the wear and tear on my Taco, I get $1.20/mile from my clients (cleared about 1000$ in the last 2 weeks), they like using me cause I'm able to cover a lot of ground quickly and efficiently with the way I'm setup. As mentioned, I'll try the extra Dakar leaf to see how it performs. If not perfect, it should at least smooth out my ride a bit.

  16. Jun 2, 2014 at 6:20 PM
    #16
    fab1

    fab1 Active Member

    Joined:
    Jun 1, 2014
    Member:
    #131025
    Messages:
    29
    Gender:
    Male
    sydney
    Vehicle:
    hilux dual cab
    Out of curiosity guys, what are your trucks rated to carry over there in the bed? Here in Australia all trucks/utes are rated for a full 1tonne/2200lb.

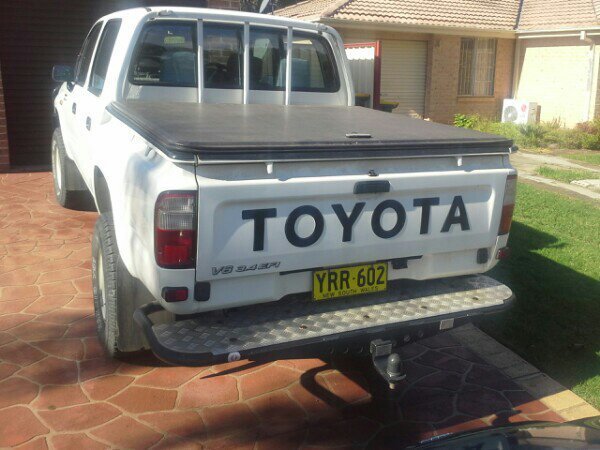

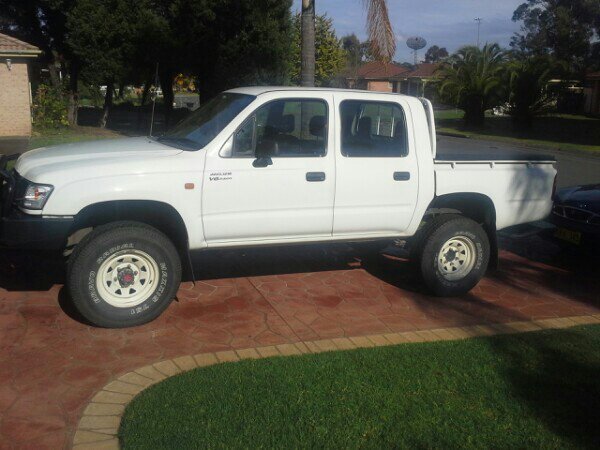

    This is my hilux with 1 tonne of gravel in the bed, the rear suspension barely drops and is all stock standard from factory.juju9ada_a686587aaf5f837b895da2f02358d65a1785165f.jpge9y4ypag_e2708856f84a6e8feda4c91a8bcec73d3007a71f.jpgTo the op adding helper leaves to the rear leafs will help stiffen your rear end.

  17. Jun 2, 2014 at 8:03 PM
    #17
    MarkH

    MarkH Well-Known Member

    Joined:
    Aug 24, 2013
    Member:
    #111055
    Messages:
    158
    Gender:
    Male
    First Name:
    Mark
    San Jose, CA
    Vehicle:
    13 PreRunner TRD Off Road
    I have a rack and shell, and pretty much always have work tools in the truck. On the stock springs it was hitting the bump stops quite a bit. I added the Wheelers HD AAL to the stock springs and the truck rides much better, and almost never bottoms out. It lifted the rear about 2 inches.
