Show me your winch solenoid relocation!

Discussion in 'Technical Chat' started by Jake.A, Jun 7, 2017.

  1. Jun 7, 2017 at 9:09 PM
    #1
    Jake.A

    Jake.A [OP] Well-Known Member

    Joined:
    Jun 13, 2014
    Member:
    #131916
    Messages:
    313
    Gender:
    Male
    California
    Vehicle:
    2014 Tacoma TRD Sport
    Alright guys looking for some pics of solenoid relocation setups. If you can, post pics of your winch/bumper setup and how you relocated your solenoid. Any info helps! Thanks :cheers:

  2. Jun 8, 2017 at 1:38 AM
    #2
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    14,306
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    I have moved a few to inside the cab for other people.

    No big deal just making some new cables to run to the winch

    Jake.A [OP] likes this.
  3. Jun 8, 2017 at 6:42 AM
    #3
    Jake.A

    Jake.A [OP] Well-Known Member

    Joined:
    Jun 13, 2014
    Member:
    #131916
    Messages:
    313
    Gender:
    Male
    California
    Vehicle:
    2014 Tacoma TRD Sport
    I never thought of that..I was thinking most people run it inside engine bay.

  4. Jun 8, 2017 at 12:27 PM
    #4
    slander

    slander Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    8,301
    Gender:
    Male
    Hickory, NC
    Vehicle:
    02 Tacoma, fixed with curse words.

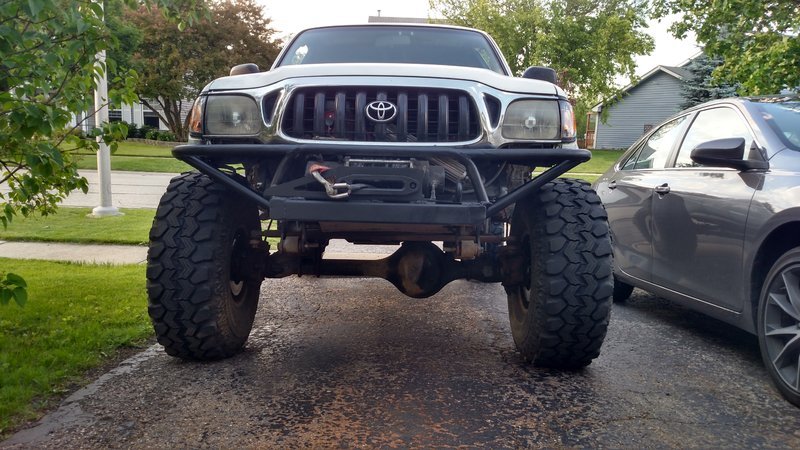

    IMG_20170529_181144738_HDR.jpg Right behind my grill. Zoom in and you will see it on the pax side.

    Last edited: Jun 8, 2017
    bj4203 and Jake.A [OP] like this.
  5. Jun 8, 2017 at 12:29 PM
    #5
    Greensystemsgo

    Greensystemsgo 1 owner with clean car fox.

    Joined:
    Jun 13, 2011
    Member:
    #58216
    Messages:
    3,691
    Gender:
    Male
    First Name:
    Dirty Nickers
    Peoria, AZ
    Vehicle:
    18 year old black taco...
    Bone Stock.
    No pics, but i put it in my plate bumper, in the passenger side void. It is tucked up underneath to where the only real room is to plug in the remote if need need be. But even then i put a switch in the cab, tapped in inside the housing so I can run both the cab switch or the outside control module without much grief.

    Jake.A [OP] likes this.
  6. Jun 8, 2017 at 1:04 PM
    #6
    Jake.A

    Jake.A [OP] Well-Known Member

    Joined:
    Jun 13, 2014
    Member:
    #131916
    Messages:
    313
    Gender:
    Male
    California
    Vehicle:
    2014 Tacoma TRD Sport
    Thanks for the replies guys. I'm about to install my front bumper next week with my winch and was curious as to how others were running their setup. I'll post pics of my setup once said and done.

  7. Jun 8, 2017 at 1:14 PM
    #7
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,159
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    for 1st gen tacomas?

    I have a 3rd gen 4runner - similar enough. This is where I placed mine, perfect fit - no need to move the battery.


  8. Jun 8, 2017 at 1:22 PM
    #8
    Jake.A

    Jake.A [OP] Well-Known Member

    Joined:
    Jun 13, 2014
    Member:
    #131916
    Messages:
    313
    Gender:
    Male
    California
    Vehicle:
    2014 Tacoma TRD Sport
    Not looking for any gen in particular. More or less looking for ideas on setups. The mod bug is real :sick:

  9. Jun 12, 2017 at 10:16 AM
    #9
    2BeersPlease

    2BeersPlease Well-Known Member

    Joined:
    Jan 22, 2017
    Member:
    #208304
    Messages:
    5,240
    Gender:
    Male
    Just installed a winch and relocating the solenoid is required. Winch wouldn't fit in ARB bumper with the solenoid attached.

    Ran across this post on the topic of battery terminals and noticed a winch controller socket on a black box mounted next to the battery (in an unbelievably clean engine bay). Looks like a custom bracket/mount. Very clean.

    https://www.tacomaworld.com/threads...atteries-and-therminals.467807/#post-14038581

    Maybe @Dirty Pool would be willing to share a little more on his excellent solution. :fingerscrossed:

    Jake.A [OP] likes this.
  10. Jun 12, 2017 at 11:09 AM
    #10
    Jake.A

    Jake.A [OP] Well-Known Member

    Joined:
    Jun 13, 2014
    Member:
    #131916
    Messages:
    313
    Gender:
    Male
    California
    Vehicle:
    2014 Tacoma TRD Sport
    That does indeed look like a winch controller socket. Interesting and awesome idea! x2 for sharing his solution! @Dirty Pool

  11. Jun 13, 2017 at 12:13 PM
    #11
    Dirty Pool

    Dirty Pool ONE PING ONLY

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,191
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    Thanks folks, I did a write up in the 1st gen section but the title is not very searchable.

    It actually describes two methods. One for an Optima and it's successor a Diehard/Odyssey.
    The Optima had a "t-slot" on each end where the carrying strap hooks in. I put a bolt/washer out the back of the control box to hold it captive in this slot and ran a long hose clamp around the battery to stop any wiggling. The box would not go anywhere without the clamp but it would wiggle a bit. The Diehard set up is a combo battery box/control mount, no movement of anything possible.

    https://www.tacomaworld.com/threads...1400-battery-tray-winch-control-mount.317309/

    2BeersPlease likes this.
  12. Jun 13, 2017 at 1:15 PM
    #12
    2BeersPlease

    2BeersPlease Well-Known Member

    Joined:
    Jan 22, 2017
    Member:
    #208304
    Messages:
    5,240
    Gender:
    Male
    Thanks for the info. Looks like a good solution. Is that box from the winch or is it a modified ABS enclosure of some sort?

    EDIT: Never mind. I see it better in the thread you linked.

  13. Jun 13, 2017 at 4:11 PM
    #13
    Ritchie

    Ritchie Well-Known Member

    Joined:
    Dec 24, 2012
    Member:
    #93649
    Messages:
    1,933
    Gender:
    Male
    San Diego (North County)
    Vehicle:
    RC Step side Pre-runner
    2.7 w/auto, 4WU 3 link, F & R Diamonds, ARB's F/R w/ Yukon 5.29's, Inchworm 4.7 Lefty, Deavers, ARB OBA, Schrockworks up front.

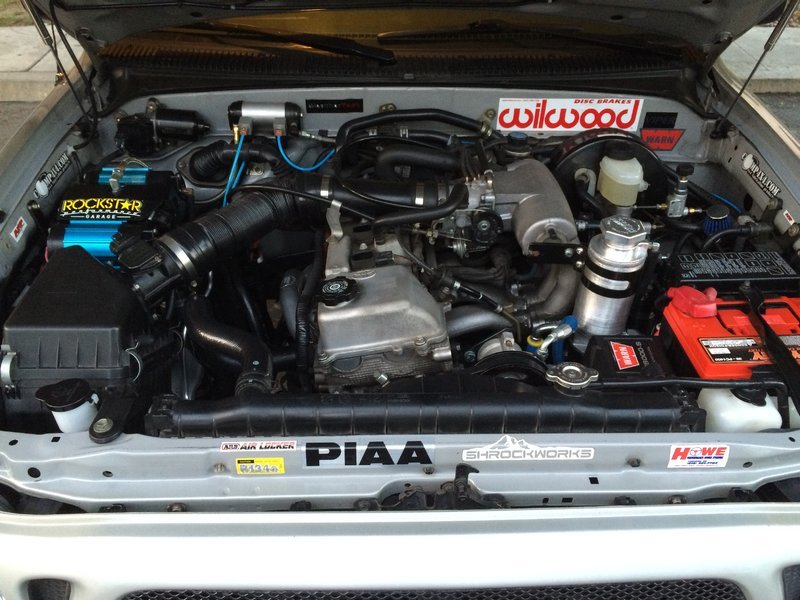

    Mine is next to the battery. The wireless remote is between the air box and fender.

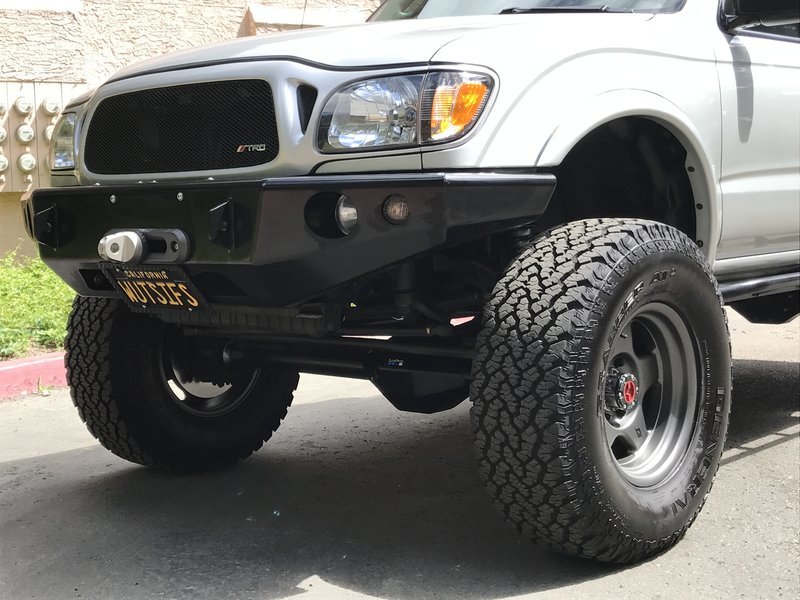

    Here is the bumper:


    erice likes this.
  14. Jun 29, 2017 at 11:03 AM
    #14
    Jake.A

    Jake.A [OP] Well-Known Member

    Joined:
    Jun 13, 2014
    Member:
    #131916
    Messages:
    313
    Gender:
    Male
    California
    Vehicle:
    2014 Tacoma TRD Sport

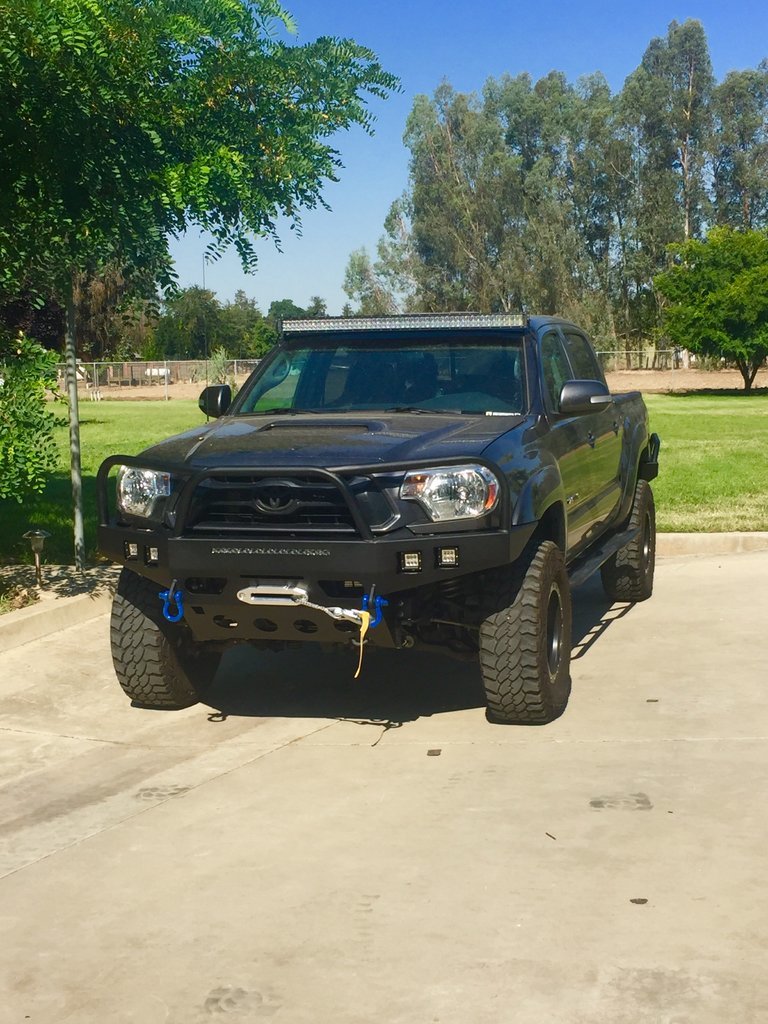

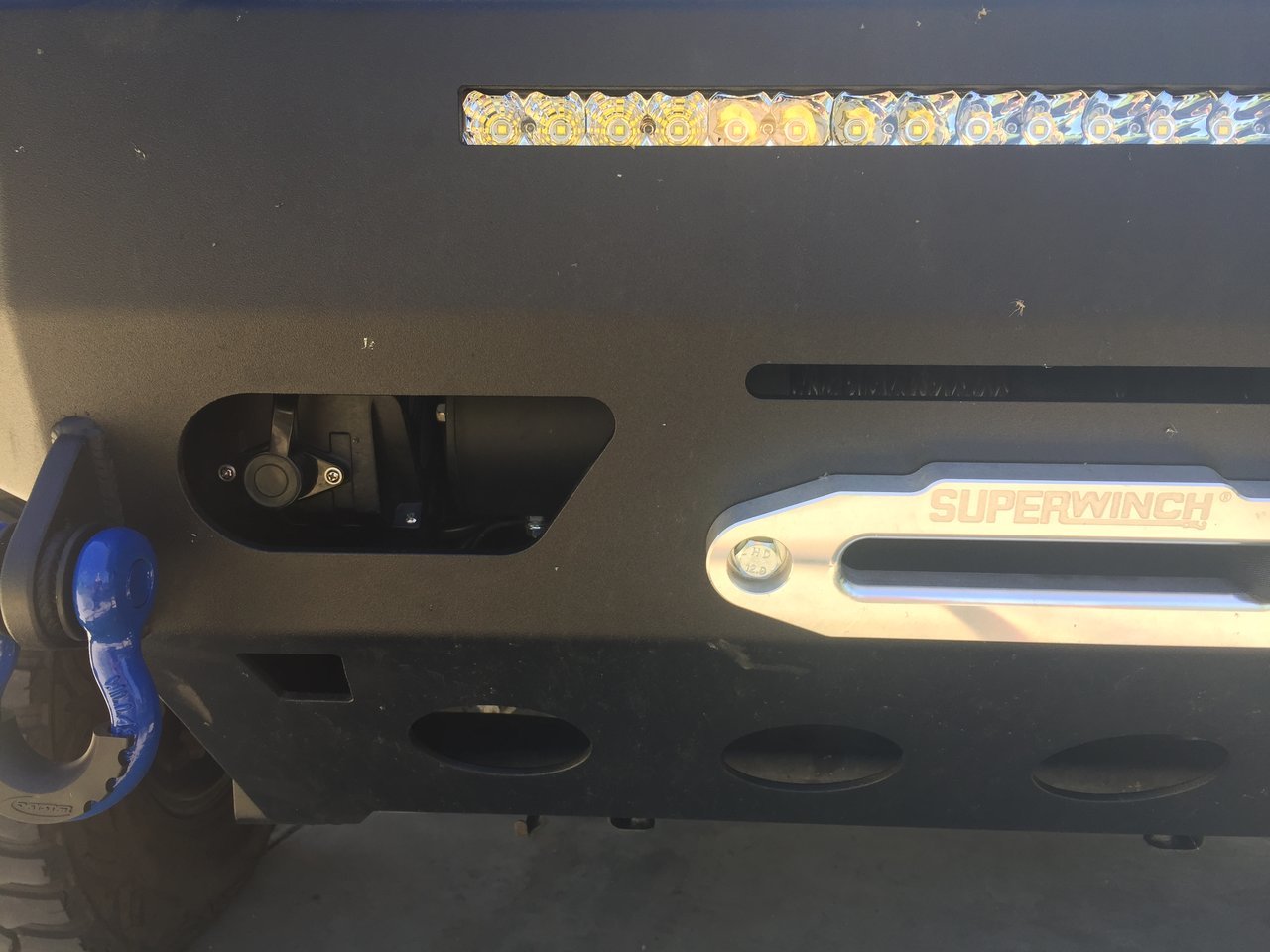

    Here is where I ended up putting mine. Had to make a custom mounting plate to mount it but overall I'm happy with it. Thanks for all the input! :)

  15. Aug 22, 2017 at 9:46 PM
    #15
    PreRunnerMan

    PreRunnerMan Well-Known Member

    Joined:
    Jun 4, 2014
    Member:
    #131299
    Messages:
    358
    Gender:
    Male
    First Name:
    Alex
    SoCal, Whittier
    Vehicle:
    White 2010 PreRunner SR5
    ADS Coilovers LR UCAs Bilstein shocks in the rear Dakar Leaf Pack CMC 287/70/17 BFG K02s
    Is this a pelfreybilt bumper Jake? if so did you have issues fitting the super winch fairlead bolts in the providing mounting holes in the bumper? if so what size bolt did you end up using?

  16. Aug 22, 2017 at 9:58 PM
    #16
    Jake.A

    Jake.A [OP] Well-Known Member

    Joined:
    Jun 13, 2014
    Member:
    #131916
    Messages:
    313
    Gender:
    Male
    California
    Vehicle:
    2014 Tacoma TRD Sport
    I'm running a Brute Force Fab plate bumper and I didn't have any issues fitting the fairlead bolts in. To my knowledge pelfreybilt runs standard fairlead bolt mounting holes for their bumpers as well. Hope this helps!

  17. Aug 22, 2017 at 10:01 PM
    #17
    PreRunnerMan

    PreRunnerMan Well-Known Member

    Joined:
    Jun 4, 2014
    Member:
    #131299
    Messages:
    358
    Gender:
    Male
    First Name:
    Alex
    SoCal, Whittier
    Vehicle:
    White 2010 PreRunner SR5
    ADS Coilovers LR UCAs Bilstein shocks in the rear Dakar Leaf Pack CMC 287/70/17 BFG K02s
    The pre-drilled hole is just a tad to small so I need to buy a smaller bolt with some washers and a nut to hold the fairlead in place, or just buy the pelfreybilt fairlead
