Show off your aux fuse panels.

Discussion in 'Lighting' started by Newlife, Dec 29, 2013.

  1. Aug 18, 2015 at 3:01 PM
    #201
    Up2NoGood

    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    I hate when that happens lol

  2. Aug 18, 2015 at 3:06 PM
    #202
    pruchai

    pruchai KAMA3

    Joined:
    May 8, 2014
    Member:
    #129398
    Messages:
    1,788
    Gender:
    Male
    First Name:
    Igor
    San Diego, CA
    Vehicle:
    '14 TRD TX Baja
    Not enough...

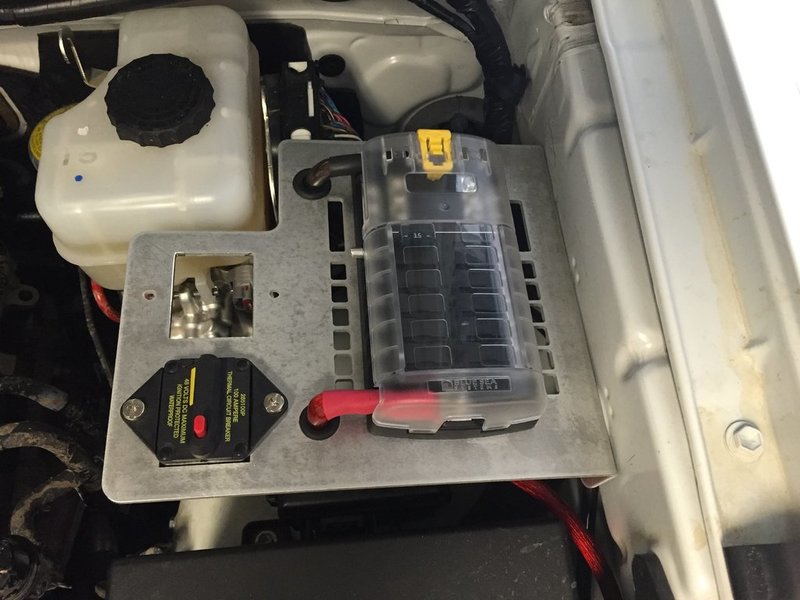

    Going to wire up some stuff to it in the next few days


    ready6delta, Sgt.Tee, Toynado and 2 others like this.
  3. Aug 18, 2015 at 3:10 PM
    #203
    weldo

    weldo Well-Known Member

    Joined:
    Oct 15, 2014
    Member:
    #140423
    Messages:
    1,337
    Gender:
    Male
    First Name:
    Mike
    Pittsburgh, pa
    Vehicle:
    2014 base ac 2.7 5-speed 4x4
    Nice mount! I like the holes for the wires, very clean. Watch out for sharp edges though.

  4. Aug 18, 2015 at 3:13 PM
    #204
    pruchai

    pruchai KAMA3

    Joined:
    May 8, 2014
    Member:
    #129398
    Messages:
    1,788
    Gender:
    Male
    First Name:
    Igor
    San Diego, CA
    Vehicle:
    '14 TRD TX Baja
    Not enough...
    Thanks! I file them down a little. Already cut myself. haha
    A member here designed the mount and Pelfreybuilt makes them.

  5. Aug 18, 2015 at 3:14 PM
    #205
    weldo

    weldo Well-Known Member

    Joined:
    Oct 15, 2014
    Member:
    #140423
    Messages:
    1,337
    Gender:
    Male
    First Name:
    Mike
    Pittsburgh, pa
    Vehicle:
    2014 base ac 2.7 5-speed 4x4
    cool!

  6. Aug 25, 2015 at 9:25 AM
    #206
    Shmellmopwho

    Shmellmopwho Well-Known Member Vendor

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    11,682
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff

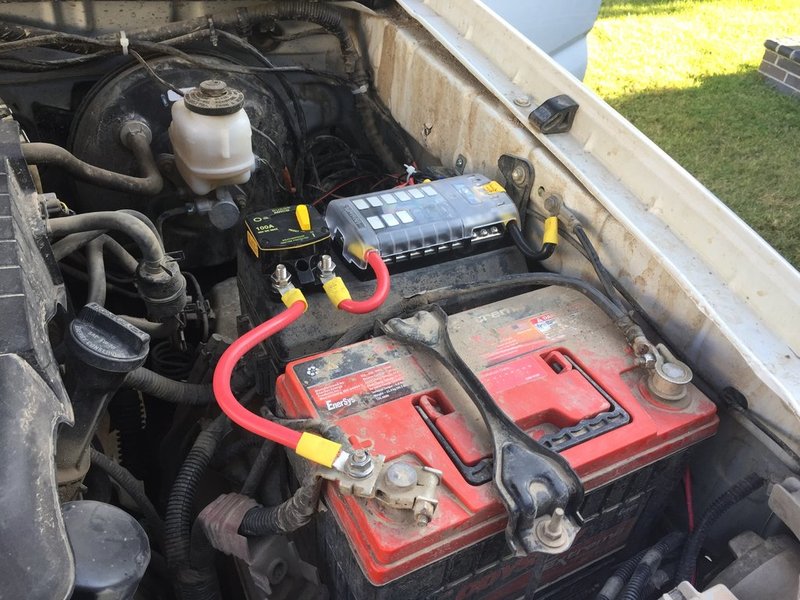

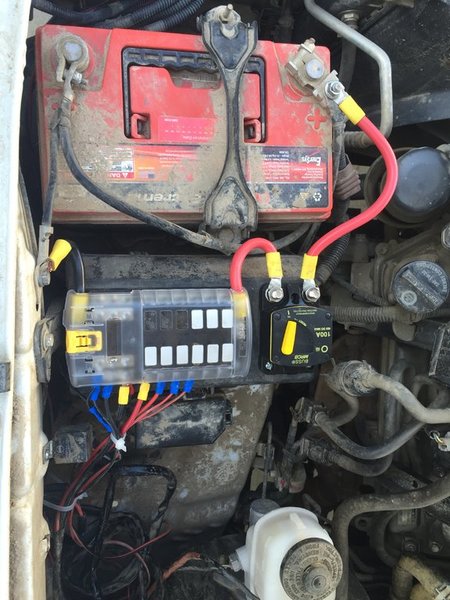

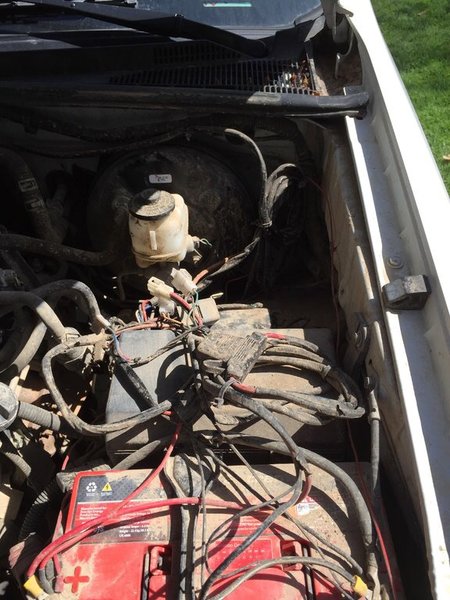

    Yesterday got home from work early and decided to tackle this job. Not as clean as some other people's but I was happy with the way that it turned out. Very glad to get rid of the rats nest!! By the way I know I need to wash my engine bay haha. Went from this rats nest


    TO THIS


  7. Aug 25, 2015 at 9:36 AM
    #207
    Maximus

    Maximus Well-Known Member

    Joined:
    Jun 18, 2011
    Member:
    #58482
    Messages:
    1,678
    Gender:
    Male
    North Bay
    Vehicle:
    11 Tacoma TRD OR 4x4
    Icon Suspension with CDCV, SPC Light Racing UCAs, Wheeler's 3 Leaf AAL, Wheeler's Superbumps, sPod SE BAMF Sliders, All-Pro Skids, AFE Drop in filter, Magnaflow Exhaust, RCI Aluminum LCA Skids, BAMF Bed Brackets, 4X Innovations Rear Bumper, FX-R Retrofit Headlights with Philips 4300k, Custom Nestah Edition Firestik AM/FM Antenna, Famous Fab Hood brackets, FrontRunner SlimLine 2 Roof Rack, Mob Town Offroad tailgate reinforcement plate, Ram A pillar mount, Anti-Dark hood lights, Lots of LED lights,
    I see you already purchased the rubber grommets for the battery cables. What's your long term solution for the other holes? Mine are still abrasive after filing.

  8. Aug 25, 2015 at 12:04 PM
    #208
    weldo

    weldo Well-Known Member

    Joined:
    Oct 15, 2014
    Member:
    #140423
    Messages:
    1,337
    Gender:
    Male
    First Name:
    Mike
    Pittsburgh, pa
    Vehicle:
    2014 base ac 2.7 5-speed 4x4
    Dude! I think you get the "most improved" award! What a difference! It's so nice to have some organization in your accessory wiring. Some of the stuff I've seen could easily pass as factory oem! When I did my wiring I went nuts with wire loom. Looks professional and adds a bit of protection.

    Stryker420 likes this.
  9. Aug 25, 2015 at 12:44 PM
    #209
    Shmellmopwho

    Shmellmopwho Well-Known Member Vendor

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    11,682
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
    Haha thanks bro! I really appreciate the kind words. I totally agree with you about the organization. Everything needs its place! Totally adds protection too like you said!

  10. Aug 25, 2015 at 1:45 PM
    #210
    pruchai

    pruchai KAMA3

    Joined:
    May 8, 2014
    Member:
    #129398
    Messages:
    1,788
    Gender:
    Male
    First Name:
    Igor
    San Diego, CA
    Vehicle:
    '14 TRD TX Baja
    Not enough...
    I'll probably just get some vacuum tubes, cut into small pieces, stick them in the holes and just feed wires through them. Should be good for a while. As long as they stay put and don't move, the wires will be OK

  11. Aug 25, 2015 at 1:48 PM
    #211
    Poindexter

    Poindexter Well-Known Member

    Joined:
    Mar 5, 2015
    Member:
    #150193
    Messages:
    398
    Gender:
    Male
    north of Denali
    Vehicle:
    15 V6 auto 4x4 mag gray
    Basetaco, yes a main breaker or fuse between the battery and sub panel.

    On my truck I dont expect to ever draw more than 500 watts at a time, so i get away with 4ga main wire and a 50 amp fuse between battery and sub-panel.

    Do have a list of accy's you are sure you want? Another list of accy's that would be nice?

  12. Aug 25, 2015 at 1:59 PM
    #212
    pruchai

    pruchai KAMA3

    Joined:
    May 8, 2014
    Member:
    #129398
    Messages:
    1,788
    Gender:
    Male
    First Name:
    Igor
    San Diego, CA
    Vehicle:
    '14 TRD TX Baja
    Not enough...
    Because you can just flip the breaker and cut power of all of your aftermarket devices.

  13. Aug 25, 2015 at 2:01 PM
    #213
    SMKYTXN

    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,040
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    You'll need an inline fuse or circuit breaker on your main power line to the distribution block. It's your choice as to whether you want the fuse or the circuit breaker.

    If you overload the system the circuit breaker will trip. At that point you can remove/repair the faulty accessory and reset the breaker.

    I also run a breaker so I can kill power to my NSA when not in use.

    PinnaclePete likes this.
  14. Aug 25, 2015 at 2:07 PM
    #214
    PinnaclePete

    PinnaclePete I am what I am

    Joined:
    Jun 2, 2014
    Member:
    #131126
    Messages:
    4,185
    Gender:
    Male
    First Name:
    Pete
    Central AR
    Vehicle:
    '14 Sport DCLB Pyrite, 2015 DCSB Barcelona Limited
    SwitchPros 9100, Flip Pac, Stealth 6 Bronze, Toyo 255/80/17, MTO Tailgate Skin, RCI read diff plate, StopTech slotted disc and pads, OME 885 w/ NitroChargers, OME HD LeafPacks, SOS Rear bumper with swingout, BAMF Bolt-on Sliders, Rear diff breather, OEM roof racks, ECG perforated grill, BAMF behind grill light bar bracket with PIAA 510 4" yellow spots, US OffRoad bumper, Engo 9k winch, WeatherTech window vents and floor mats, Wet Okle seat covers, RedLine hood struts, Anti Dark hood lights, Baja amber light pods, Lamin-X amber flood covers, amber FlyEyes, Jumpers amber LEDs, Salix glovebox and center console organizer, MagLite mounted, shop made bed mount tool boxes, LogRite bed mount bottle opener
  15. Aug 25, 2015 at 2:14 PM
    #215
    Up2NoGood

    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    The same principle can be applied to a vehicle. Also some boxes are rated for 100 amps as an example yet the total devices may add up to over 100 amps. Some people do this knowing they won't ever have EVERY accessory running at the same time, but the main breaker will ensure you don't go over the boxes rating by accident.

    SMKYTXN likes this.
  16. Aug 25, 2015 at 2:18 PM
    #216
    SMKYTXN

    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,040
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    That is true, the fuses will protect the distribution panel if the accessory shorts out. What you're forgetting is the battery/alternator to distribution panel. If your battery shorts out you'll blow up your distribution block. Hopefully the fuses blow and you save your accessories. You also run the fuse/circuit breaker to limit the amps feeding into the block.

    Yup, you need to protect any distribution panel (including the NSA), with a fuse or circuit breaker. I run a 150 amp breaker, which is less than what the NSA can handle, just to be on the safe side.

  17. Aug 25, 2015 at 7:31 PM
    #217
    weldo

    weldo Well-Known Member

    Joined:
    Oct 15, 2014
    Member:
    #140423
    Messages:
    1,337
    Gender:
    Male
    First Name:
    Mike
    Pittsburgh, pa
    Vehicle:
    2014 base ac 2.7 5-speed 4x4
    I thought about skipping the breaker as well. Realistically it would probably be some extraordinary circumstance that would trip it. But at about $30 it's well worth the insurance to protect all your hard work in wiring.

  18. Sep 23, 2015 at 3:57 PM
    #218
    DesertDunes

    DesertDunes Well-Known Member

    Joined:
    Jun 6, 2015
    Member:
    #156878
    Messages:
    872
    Gender:
    Male
    First Name:
    Cole
    Coachella Valley. CA
    Vehicle:
    2012 Super White Tacoma TRD OR DCSB
    Overland Stuff
    Question... So last night I ended up ordering a Blue Sea fuse box 12 and a circuit breaker. I just realized that the circuit breaker that I ordered is 120A not 100A. If I go ahead and install the 120A breaker will I have a problem? I know that the block has an max amperage at 100A... The only things that I currently plan on wiring into the box will be a 50" bar (300w), bed lights (2 x 18w), and camp lights (3 x 30w). Even running all of those at the same time I'll only be pulling 35.5A

    If its going to be any sort of problem, then when it gets here in a few days I'll just return it and order a 100A or 80A to replace it

  19. Sep 23, 2015 at 4:26 PM
    #219
    theblindchicken

    theblindchicken Well-Known Member

    Joined:
    Mar 13, 2014
    Member:
    #125243
    Messages:
    152
    Gender:
    Male
    First Name:
    Christian
    Long Beach
    Vehicle:
    '74 K10
    HID's, LED Dash swap, LED reverse lights, 15"x10" 5 slot mags, sliding rear window, 20gal aux. DS fuel tank,
    You wouldnt want to run the 120 amp since it has a higher rating than the fuse box. The fuse box would fail and potentially catch fire before the breaker would even trip.

    If you had a breaker that was rated the same or lower than the fuse box, you woukd be in the clear. Currently, its wouldnt be safe or wise to run it even if you are pulling way below the maximum rating.

    It would similar to running too small of wire to your accessory. Would the accessory be powered? Most likely, but is it safe or even logical to do? Not at all.

  20. Sep 23, 2015 at 4:30 PM
    #220
    Up2NoGood

    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    You could put a 100 amp in line fuse before the blue sea box, but the right way to fix it is to return the breaker you got and get a 100 amp unit.
