Show off your aux fuse panels.

Discussion in 'Lighting' started by Newlife, Dec 29, 2013.

  1. Dec 29, 2013 at 8:33 PM
    #1
    Newlife

    Newlife [OP] Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    5,384
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    Underdog
    iPad mini 2 w/ retina in dash, Alpine amp and subs, avs window visors, 3" omelift with bastard pack, full synthetic fluid swap, 15% tint all over, debadged all the way around.,two cree led pods near windshield,50'' up top, and pods in lower bumper , Katzkins grey and barracuda red leather interior all around. Wrangler MTR's 35" . American out law buckshot 16x9. Bruteforce Fab rear bumper. SOS concepts front bumper. Engo 10000s winch And a bunch of other money tied up in it,
    Since there's so many threads about it why not compile them and if someone likes one that person can contact the person that made it. So let's see them.

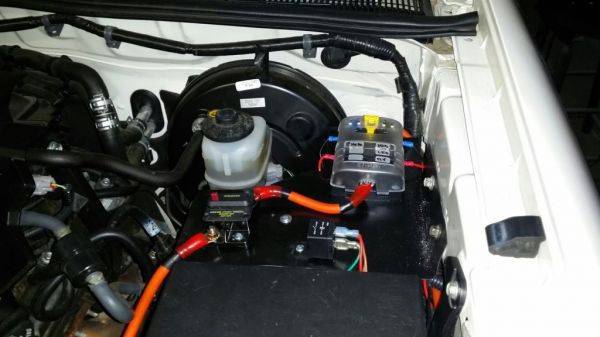

    [​IMG]

    Blue sea 5025 panel
    Bussman 100amp breaker
    0 gauge wire

    Powering hids
    4 Off road lights

    adding three led bars
    12v constant hot power
    And possible cb

    Last edited: Dec 29, 2013
  2. Jan 3, 2014 at 2:07 PM
    #2
    Newlife

    Newlife [OP] Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    5,384
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    Underdog
    iPad mini 2 w/ retina in dash, Alpine amp and subs, avs window visors, 3" omelift with bastard pack, full synthetic fluid swap, 15% tint all over, debadged all the way around.,two cree led pods near windshield,50'' up top, and pods in lower bumper , Katzkins grey and barracuda red leather interior all around. Wrangler MTR's 35" . American out law buckshot 16x9. Bruteforce Fab rear bumper. SOS concepts front bumper. Engo 10000s winch And a bunch of other money tied up in it,
    Well this was a fail

  3. Jan 4, 2014 at 8:33 AM
    #3
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    508
    Gender:
    Male
    First Name:
    Jason
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5speed I4
    Fog lights, Heated mirrors with OEM switch, Heated seats, Cab sound deadening, Lighted 4x4 switch, URD short shifter, Rear backup camera, 2012 rear view mirror with compass, outdoor temperature and backup video mirror, Leer 100XL camper shell
    LOL. :D I've started threads like that before.

    I am putting together an aux fuse/relay box but it's going to take a few weeks before I get all the parts. I want to power my heated seats, heated side mirror and fog lights off of it.

    I actually found a Bussman automotive fuse/relay box off of Mouser.ca for cheaper than I can get a Blue Sea fuse box. Will look a lot better too as it's all enclosed in one, as opposed to the Blue Sea which would still force you to have a bunch of unsightly wires, going to and from the relays, on the outside of the box.

  4. Jan 4, 2014 at 8:36 AM
    #4
    Poolstick

    Poolstick Well-Known Member

    Joined:
    Apr 27, 2013
    Member:
    #102980
    Messages:
    223
    Gender:
    Male
    I was thinking about trying to buy one some where, but am struggling to find anyone who makes one for the 2nd gen 6 speed (clutch cylinder thingy gets in the way).

    I may just end up making one out of lexan, but I don't have the heat gun to bend it and I'd almost rather just pay someone to do the work for me as far as that goes.

  5. Jan 4, 2014 at 8:42 AM
    #5
    Newlife

    Newlife [OP] Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    5,384
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    Underdog
    iPad mini 2 w/ retina in dash, Alpine amp and subs, avs window visors, 3" omelift with bastard pack, full synthetic fluid swap, 15% tint all over, debadged all the way around.,two cree led pods near windshield,50'' up top, and pods in lower bumper , Katzkins grey and barracuda red leather interior all around. Wrangler MTR's 35" . American out law buckshot 16x9. Bruteforce Fab rear bumper. SOS concepts front bumper. Engo 10000s winch And a bunch of other money tied up in it,
    Man just get creative. It's honestly easy once you have an idea.

  6. Jan 4, 2014 at 8:47 AM
    #6
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,701
    Gender:
    Male
    .
    Two pairs of Hellas in the front
    Two pairs of KC's in the back
    LED lighting in the grill
    LED lights inside the shell
    12v power bus feed for switches inside cab

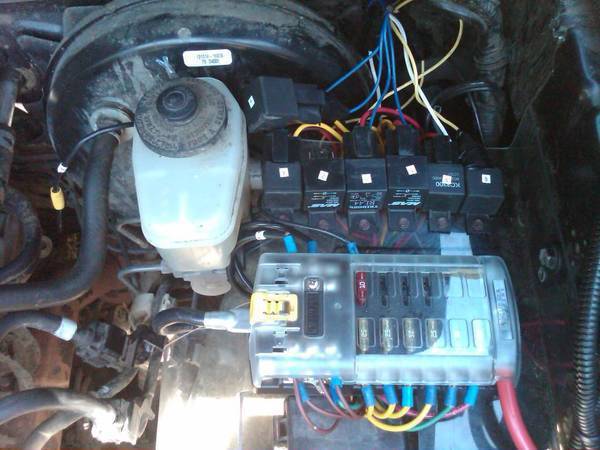

    [​IMG]

  7. Jan 4, 2014 at 7:11 PM
    #7
    Ryan DCFS

    Ryan DCFS New guy

    Joined:
    Feb 25, 2012
    Member:
    #73605
    Messages:
    672
    Gender:
    Male
    First Name:
    Ryan
    East Bay Area
    Vehicle:
    09 DC long bed TRD silver streak


    Sounds like a busman RTMR... I'm currently working on a similar project.

  8. Jan 4, 2014 at 7:26 PM
    #8
    VE7OSR

    VE7OSR 'interfering with Darwin since 1990'

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    2,843
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Front Suspension: Revtek 3" lift replaced with -> OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Rear Suspension: Revtek blocks replaced with -> All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, PIAA bulbs, LED bulbs all around, modified flasher unit for LEDs Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. Metal Tech Sliders w/ kickout and dimple die filler plates. swaybar relocate blocks (build my own)
    Last edited: Jan 4, 2014
  9. Jan 4, 2014 at 10:24 PM
    #9
    Ryan DCFS

    Ryan DCFS New guy

    Joined:
    Feb 25, 2012
    Member:
    #73605
    Messages:
    672
    Gender:
    Male
    First Name:
    Ryan
    East Bay Area
    Vehicle:
    09 DC long bed TRD silver streak
  10. Jan 4, 2014 at 10:34 PM
    #10
    Newlife

    Newlife [OP] Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    5,384
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    Underdog
    iPad mini 2 w/ retina in dash, Alpine amp and subs, avs window visors, 3" omelift with bastard pack, full synthetic fluid swap, 15% tint all over, debadged all the way around.,two cree led pods near windshield,50'' up top, and pods in lower bumper , Katzkins grey and barracuda red leather interior all around. Wrangler MTR's 35" . American out law buckshot 16x9. Bruteforce Fab rear bumper. SOS concepts front bumper. Engo 10000s winch And a bunch of other money tied up in it,
    So where do you plan on mounting all of your grounds as well as your relay grounds?

    My blue sea has a negative bus built in,

  11. Jan 4, 2014 at 11:03 PM
    #11
    Ryan DCFS

    Ryan DCFS New guy

    Joined:
    Feb 25, 2012
    Member:
    #73605
    Messages:
    672
    Gender:
    Male
    First Name:
    Ryan
    East Bay Area
    Vehicle:
    09 DC long bed TRD silver streak
    The RTMR can be ordered bussed, partially bussed, or not bussed. I'm probably going to get the partially bussed (10 fuses bussed, 5 relays not bussed) and I'll have the relay coils externally jumped/bussed together to a ground lug.

    My grounds for accessories will depend on location, and I'll probably run a negative bus into the cab for lighted switches.

    Last edited: Jan 4, 2014
  12. Jan 4, 2014 at 11:11 PM
    #12
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    508
    Gender:
    Male
    First Name:
    Jason
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5speed I4
    Fog lights, Heated mirrors with OEM switch, Heated seats, Cab sound deadening, Lighted 4x4 switch, URD short shifter, Rear backup camera, 2012 rear view mirror with compass, outdoor temperature and backup video mirror, Leer 100XL camper shell
    Thanks for the info. Can you confirm that is the relay you use for the panel?

  13. Jan 4, 2014 at 11:33 PM
    #13
    Ryan DCFS

    Ryan DCFS New guy

    Joined:
    Feb 25, 2012
    Member:
    #73605
    Messages:
    672
    Gender:
    Male
    First Name:
    Ryan
    East Bay Area
    Vehicle:
    09 DC long bed TRD silver streak
  14. Jan 4, 2014 at 11:36 PM
    #14
    Yotamac

    Yotamac Well-Known Member

    Joined:
    Mar 30, 2013
    Member:
    #100909
    Messages:
    727
    Gender:
    Male
    First Name:
    Ze
    562
    Vehicle:
    07 PreRunner
    Billie 5100's all around, MaxTrac spindles, 1.5" AAL's, Hankook DynaPro Mud Terrain 285/70/17"s on Procomp 7089's, Satoshi grille mod, Blacked Out Headlights
    Last edited: Jan 5, 2014
  15. Jan 4, 2014 at 11:53 PM
    #15
    VE7OSR

    VE7OSR 'interfering with Darwin since 1990'

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    2,843
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Front Suspension: Revtek 3" lift replaced with -> OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Rear Suspension: Revtek blocks replaced with -> All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, PIAA bulbs, LED bulbs all around, modified flasher unit for LEDs Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. Metal Tech Sliders w/ kickout and dimple die filler plates. swaybar relocate blocks (build my own)
  16. Jan 5, 2014 at 1:26 AM
    #16
    Ryan DCFS

    Ryan DCFS New guy

    Joined:
    Feb 25, 2012
    Member:
    #73605
    Messages:
    672
    Gender:
    Male
    First Name:
    Ryan
    East Bay Area
    Vehicle:
    09 DC long bed TRD silver streak
    It's 35A switched, 20A continuous. It's dpst, so it's rated for 20A through the NC coil-cold circuit, 35A through the NO coil-hot (switched on) circuit.

  17. Jan 5, 2014 at 8:32 AM
    #17
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    508
    Gender:
    Male
    First Name:
    Jason
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5speed I4
    Fog lights, Heated mirrors with OEM switch, Heated seats, Cab sound deadening, Lighted 4x4 switch, URD short shifter, Rear backup camera, 2012 rear view mirror with compass, outdoor temperature and backup video mirror, Leer 100XL camper shell
  18. Jan 5, 2014 at 10:12 AM
    #18
    VE7OSR

    VE7OSR 'interfering with Darwin since 1990'

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    2,843
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Front Suspension: Revtek 3" lift replaced with -> OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Rear Suspension: Revtek blocks replaced with -> All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, PIAA bulbs, LED bulbs all around, modified flasher unit for LEDs Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. Metal Tech Sliders w/ kickout and dimple die filler plates. swaybar relocate blocks (build my own)

    Switched rating is the maximum in-rush current the contacts can handle, typically when turning on inductive loads such as motors. This rating is only momentary. (less than one second) Continuous rating is the maximum current the relay can handle once the contact remains in its desired state.

    for resistive loads such as lighting, you don't have to worry about the switching current rating, only the continuous. Both the Normally Closed and the Normally Open contacts are rated the same.

    Last edited: Jan 5, 2014
  19. Jan 5, 2014 at 12:34 PM
    #19
    Ryan DCFS

    Ryan DCFS New guy

    Joined:
    Feb 25, 2012
    Member:
    #73605
    Messages:
    672
    Gender:
    Male
    First Name:
    Ryan
    East Bay Area
    Vehicle:
    09 DC long bed TRD silver streak
    http://www.waytekwire.com/datasheet/75725.pdf

    This data sheet shows two different current ratings for the normally open circuit and the normally closed circuit.

    (Kinda into semantics now, because I'm going to use the SPST, 35A micro relays.)

  20. Jan 5, 2014 at 12:44 PM
    #20
    Ryan DCFS

    Ryan DCFS New guy

    Joined:
    Feb 25, 2012
    Member:
    #73605
    Messages:
    672
    Gender:
    Male
    First Name:
    Ryan
    East Bay Area
    Vehicle:
    09 DC long bed TRD silver streak
