Show off your aux fuse panels.

Discussion in 'Lighting' started by Newlife, Dec 29, 2013.

  1. llibrm

    llibrm Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83890
    Messages:
    546
    Gender:
    Male
    First Name:
    Bill
    Convection Oven, Az
    Vehicle:
    TRD DC OR
    Pelfreybilt Aluminum Bumper, Spidertrax wheel spacers, 4x4 illuminated switch, Cobra 75 w/ 3' Firestick, 2M/ 70cm Radio w/ Diamond NR770HB, Pelfreybilt bed bar
    What is the bolt size for the two mounting holes on the inner fender?

    Thanks

  2. PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    19,700
    Gender:
    Male
    First Name:
    Brent
    Missouri
    Vehicle:
    2003 Tacoma TRD/SR5 4x4
    Suspension: Front - Bilstein 5100's/Eibach coils Rear - All Pro Expo Leafs/Rear Icon Remote Reservoir Shocks Wheels & Tires: 33x12.50x15 KM2's/Summit Racing 85 Black 8 Series Wheels/15x8/3.75" Backspacing [U]Armor:[/U] - [URL="http://www.tacomaworld.com/forum/relentless-fabrication/152694-just-released-re
    Just got my relay/fuse block. Not sure when I'll install it.

    This thing looks awesomely built and I can't wait to put it to use!

    You have the power and ground wire coming from the box, as well as one extra wire that can be used as a 12 volt source to power your switches.

    [​IMG]
    DSC_0002 (4) by PcBuilder14, on Flickr







    These are the five sets of wires for each relay. The bigger wire is the one you connect to your accessory. The smaller wire is the control wire that you connect to your switch.

    [​IMG]
    DSC_0004 (4) by PcBuilder14, on Flickr







    Each relay has a 30amp fuse. The 15amp fuse is for that extra wire that you can use for the switches 12 volt source. The other 4 blank fuse holders can be used for any non-relayed device such as a cb radio.

    [​IMG]
    DSC_0006 (3) by PcBuilder14, on Flickr







    Here you can see the extra wire, it's blurry, but it's there haha

    [​IMG]
    DSC_0007 (4) by PcBuilder14, on Flickr







    Once you've seen all of that, this should look pretty understandable to you. The green blanks that are between each red wire are used for the 4 extra blank fuse space on the box.

    [​IMG]
    DSC_0009 (4) by PcBuilder14, on Flickr

  3. tri2hunt

    tri2hunt Well-Known Member

    Joined:
    Mar 12, 2013
    Member:
    #99551
    Messages:
    100
    Gender:
    Male
    First Name:
    Micah
    Moscow, Idaho
    Vehicle:
    2012 DCSB 4x4
    ^^^^ Can you please let me know where you got this??
    I really want to get the same thing...
    Thank you very much!!

  4. PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    19,700
    Gender:
    Male
    First Name:
    Brent
    Missouri
    Vehicle:
    2003 Tacoma TRD/SR5 4x4
    Suspension: Front - Bilstein 5100's/Eibach coils Rear - All Pro Expo Leafs/Rear Icon Remote Reservoir Shocks Wheels & Tires: 33x12.50x15 KM2's/Summit Racing 85 Black 8 Series Wheels/15x8/3.75" Backspacing [U]Armor:[/U] - [URL="http://www.tacomaworld.com/forum/relentless-fabrication/152694-just-released-re
  5. Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    43,625
    Gender:
    Male
    CA
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP

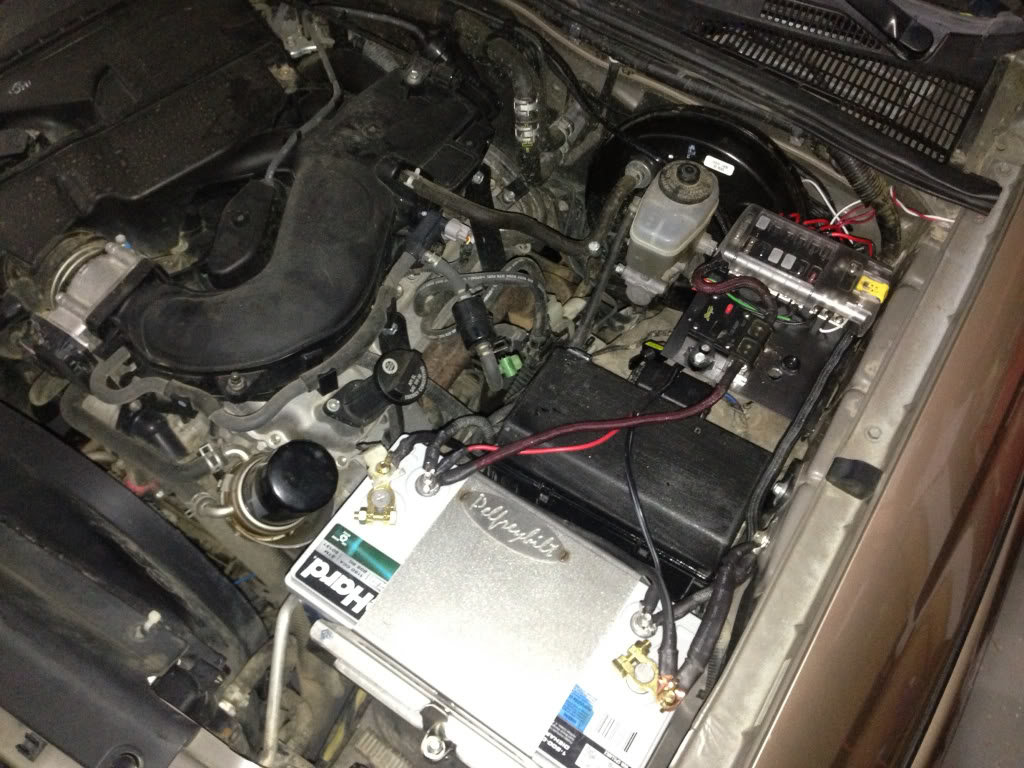

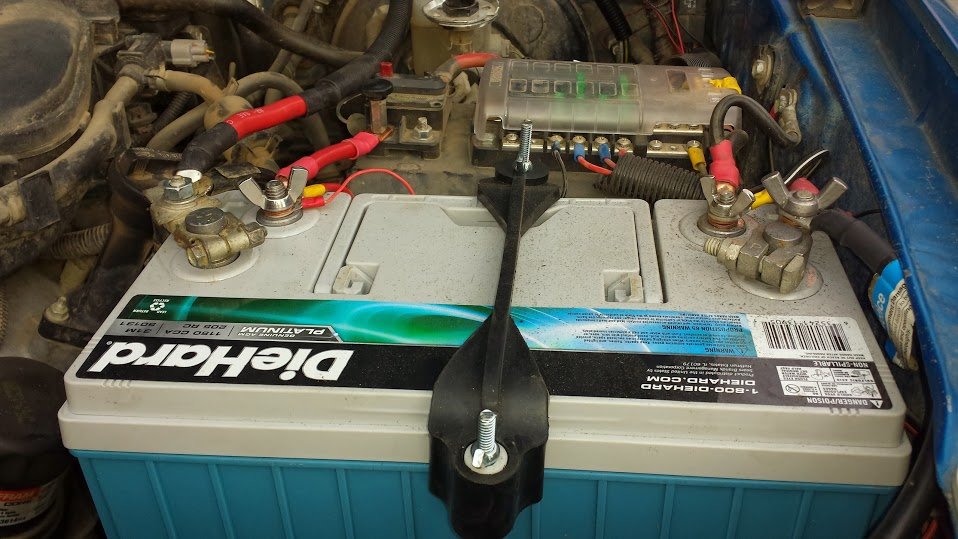

    here is mine [​IMG]

  6. tri2hunt

    tri2hunt Well-Known Member

    Joined:
    Mar 12, 2013
    Member:
    #99551
    Messages:
    100
    Gender:
    Male
    First Name:
    Micah
    Moscow, Idaho
    Vehicle:
    2012 DCSB 4x4
  7. 12thmanhawkfan

    12thmanhawkfan Well-Known Member

    Joined:
    Mar 13, 2013
    Member:
    #99628
    Messages:
    310
    Gender:
    Male
    First Name:
    Robby
    Bellingham, WA
    Vehicle:
    Access Cab 6-speed
    5100's all around, Old Man Doug Leafs, 285/75/16 Duratracks,Home made satoshi grill, Hella 700s, dipped badges and wheels, Leer canopy w/ yakima racks, Midland CB, Hold Fast Fab IFS skid, BAMF sliders

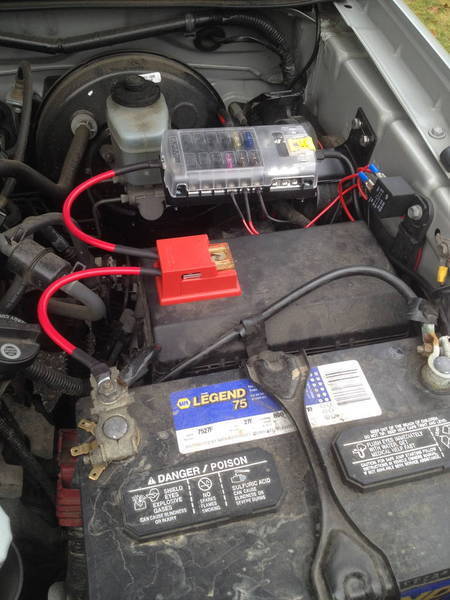

    Here's mine. Blue sea fuse block on a home made mount protected by an 80 amp Maxi fuse.
    [​IMG]

  8. lawless

    lawless Well-Known Member

    Joined:
    Aug 31, 2010
    Member:
    #42551
    Messages:
    910
    Gender:
    Male
    First Name:
    Lawson
    Seattle
    ready to wire up bed lights, hood lights, led bar, rock lights, and rear lights.


    [​IMG]

  9. paranoid56

    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    949
    Gender:
    Male
    San Diego
    Vehicle:
    0 double cab taco

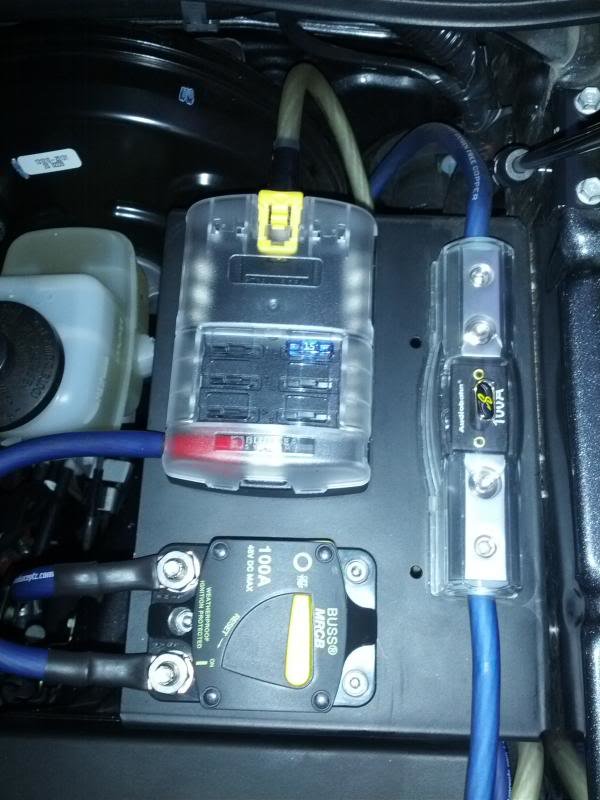

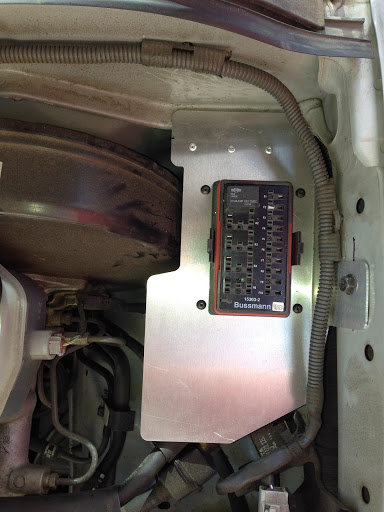

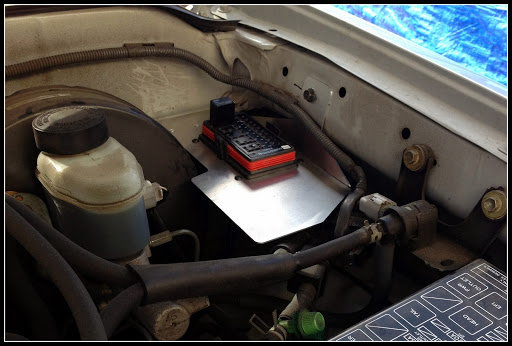

    heres mine. also using the bussmann stup.
    [​IMG]

    [​IMG]

  10. penguins_cc

    penguins_cc Well-Known Member

    Joined:
    Aug 18, 2010
    Member:
    #41874
    Messages:
    2,066
    Gender:
    Male
    First Name:
    Will
    Bellevue, WA
    Vehicle:
    Timberland Mica Limo!
    Perkins Performance Sliders, Warn 9000, Brute Force Fab front & rear bumper, OME/Dakar lift, full ATO skids and hi-lift mount, satoshi, Wet Okoles, illuminated 4x4 switch, Diff Breather.
    Has anybody installed an aux fuse panel inside the cab? Been looking around but don't see any such examples...

  11. JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    2,762
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
    There's someone that put his Blue Sea under the center console. Is have to search to find it. Give me a min.

  12. abarber11

    abarber11 Well-Known Member

    Joined:
    Jul 16, 2012
    Member:
    #82790
    Messages:
    67
    Gender:
    Male
    First Name:
    Alex
    SD
    Vehicle:
    11 OR PreRunner DC

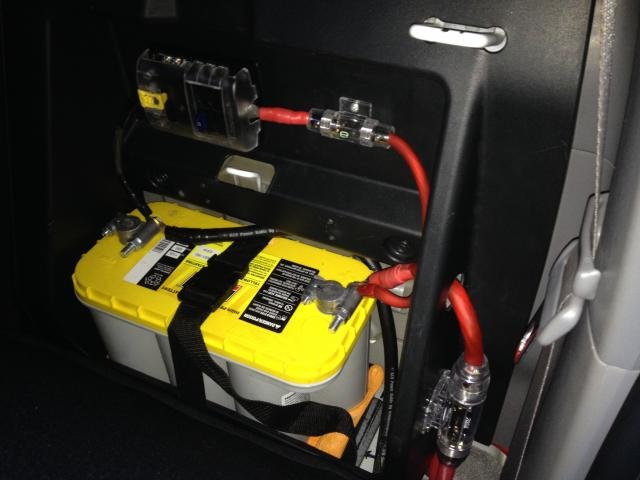

    Mines in the cab behind the rear driver side passenger seat in a DCSB. Its hooked up to my aux battery that also lives behind that seat. Recently put a 100amp bussman circuit breaker in the place of that small in-line fuse so it looks a little different now.

    [​IMG]

  13. penguins_cc

    penguins_cc Well-Known Member

    Joined:
    Aug 18, 2010
    Member:
    #41874
    Messages:
    2,066
    Gender:
    Male
    First Name:
    Will
    Bellevue, WA
    Vehicle:
    Timberland Mica Limo!
    Perkins Performance Sliders, Warn 9000, Brute Force Fab front & rear bumper, OME/Dakar lift, full ATO skids and hi-lift mount, satoshi, Wet Okoles, illuminated 4x4 switch, Diff Breather.
    Fantastic, thanks Alex. That's where I was thinking of installing mine, with an aux group 31 battery installed in my toolbox.

    The center console sounds like it has potential, but I have a Console Vault so I am still curious to see an example of where it was installed.

  14. JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    2,762
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
    Will this is the one I saw
    Username Pepe98

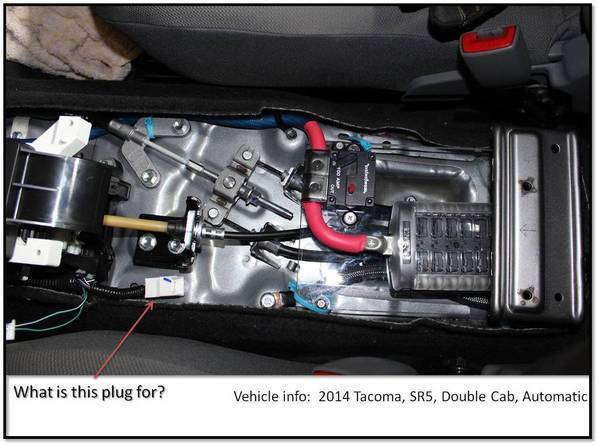

    [​IMG]

    [​IMG]

  15. penguins_cc

    penguins_cc Well-Known Member

    Joined:
    Aug 18, 2010
    Member:
    #41874
    Messages:
    2,066
    Gender:
    Male
    First Name:
    Will
    Bellevue, WA
    Vehicle:
    Timberland Mica Limo!
    Perkins Performance Sliders, Warn 9000, Brute Force Fab front & rear bumper, OME/Dakar lift, full ATO skids and hi-lift mount, satoshi, Wet Okoles, illuminated 4x4 switch, Diff Breather.
    Thanks Justin! That's a pretty tight fit and it would be kind of difficult checking/replacing fuses. I'm thinking I'll explore the back seat option further. Thanks again guys :)

  16. SMKYTXN

    SMKYTXN If it can't be overdone it's not worth doing

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    7,465
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    ARC 8000

    [​IMG]

    [​IMG]

  17. BBell

    BBell Well-Known Member

    Joined:
    Nov 29, 2013
    Member:
    #117554
    Messages:
    134
    Gender:
    Male
    First Name:
    B
    Northwest
    Vehicle:
    13 Tacoma TX
    2013 Tacoma TX 4.0 6 Speed Manual Volant CAI and air scoop Volant throttle body spacer DigiFit Weathertech Kevlar Seat Covers - Grey Interior LEDs Fab Fours PreRunner Bumper Body Armor Rock Sliders Painted radiator Rigid Industries 3x3 D2's DTL lighting kit Rigid Grill and 20" SLR2 light bar Plasti- badges Plasti- front grille surround Plasti- rear bumper MATT black rear taillights Night Raider rear LED light bar :D
    No, it's a big help to us newbies with grandious ideas. Where did you find you hardware and did you build a step by step thread on this install?
    I've purchased some of my lighting, and working up the funds for additional, but I was sitting here thiking last night "I can't splice!! WTF do I need to do!?" And BAM Tacomaworld. Thanks man.

  18. JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    2,762
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
  19. VanCity4x

    VanCity4x Out fer a Rip eh Bud

    Joined:
    Aug 1, 2011
    Member:
    #60970
    Messages:
    1,368
    Gender:
    Male
    First Name:
    DJ
    BC
    Vehicle:
    05 TRD OR Prerunner 4x4
    Prerunner conversion FJ TCase Locked front & rear 4.56 gears Brute Force Hybrid Dirty 5's See build thread

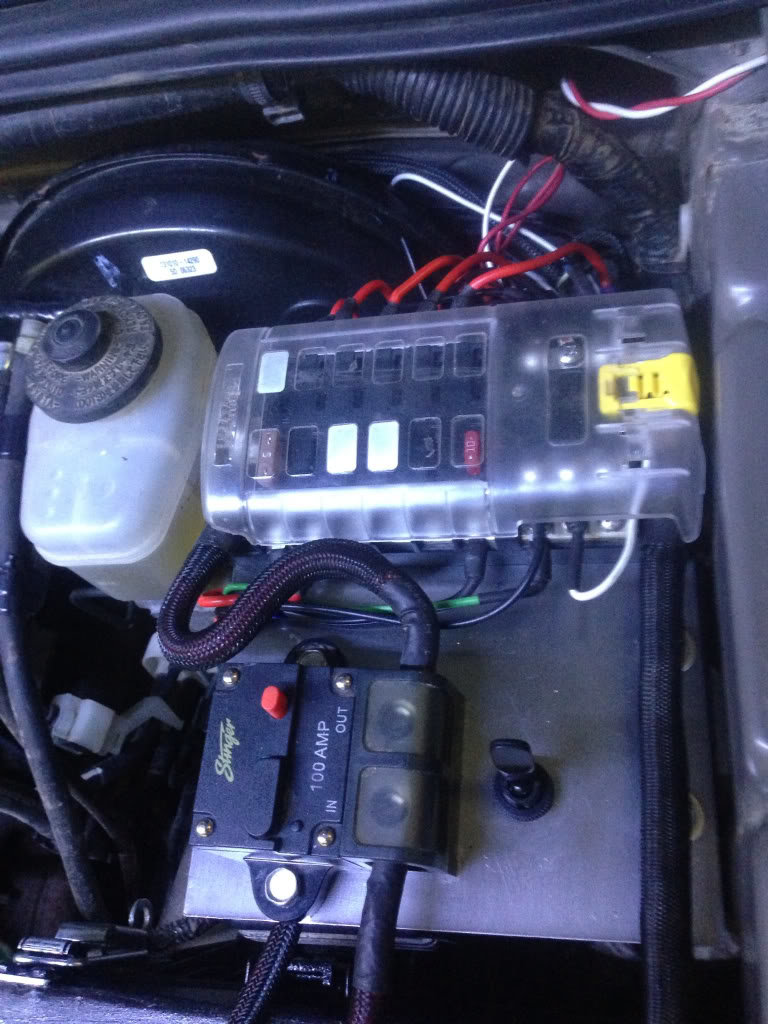

    Blue sea 12
    Stinger 100a breaker
    6 12v relays
    4ga wire to battery
    10ga wire to relays/lights

    [​IMG]


    [​IMG]

    Relays are mounted on bottom side, under the fusebox. Did a few designs and this was the most functional for me. Relay terminals are easy to access but still hidden and securely mounted.

  20. Carrionman

    Carrionman Well-Known Member

    Joined:
    Feb 28, 2014
    Member:
    #124249
    Messages:
    485
    Gender:
    Male
    First Name:
    James
    Eastern NC
    Vehicle:
    2013 4x4 v6
    well shit I thought I was the only one to think of stashing the blue sea 12 back there :)
