Show off your aux fuse panels.

Discussion in 'Lighting' started by Newlife, Dec 29, 2013.

  1. Jun 16, 2018 at 7:48 AM
    #581
    Lugnut42

    Lugnut42 Member

    Joined:
    Apr 30, 2018
    Member:
    #252108
    Messages:
    24
    Gender:
    Male
    Ontario
    Vehicle:
    2016 DCLB-TRDSport
    LUND 5" Steele Oval SideSteps
    I get it scott. Thank you sir. My search continues. I'll let ya'll know how I make out....

  2. Jun 16, 2018 at 7:48 AM
    #582
    Lugnut42

    Lugnut42 Member

    Joined:
    Apr 30, 2018
    Member:
    #252108
    Messages:
    24
    Gender:
    Male
    Ontario
    Vehicle:
    2016 DCLB-TRDSport
    LUND 5" Steele Oval SideSteps
    Cool Jason. Thanks.!

  3. Jul 6, 2018 at 6:49 AM
    #583
    mrjoshyman

    mrjoshyman Well-Known Member

    Joined:
    Dec 26, 2016
    Member:
    #205750
    Messages:
    181
    Gender:
    Male
    First Name:
    Josh
    For those of you running your aux fuse panel off of the auxillary dual battery, can you show the location of where you protected the fuse box with either 100 A fuse of circuit breaker? Matt from OGE recommended it be no more than 8-12 inches from the battery. Since the circuit breaker comes to be mounted and that seems like a more popular option I'm curious how y'all have been doing that...

  4. Jul 6, 2018 at 7:11 AM
    #584
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    13,778
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5

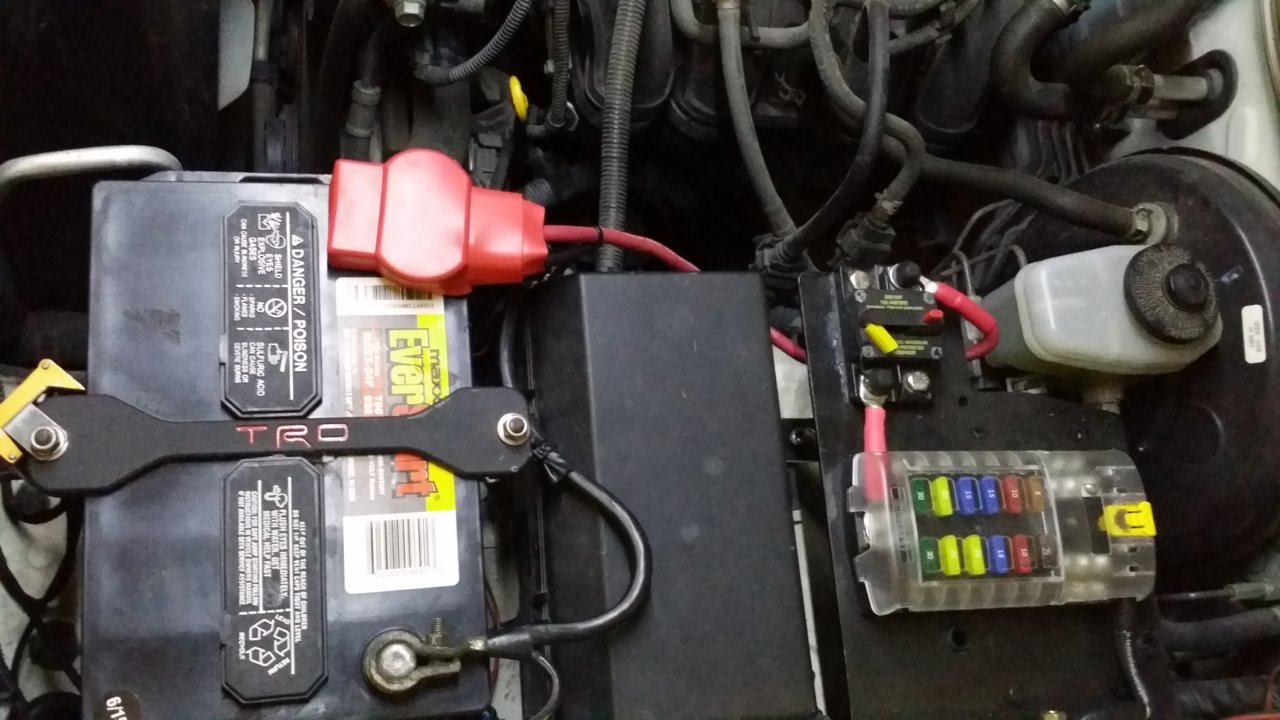

    Nothing that fancy, not running air compressor, not running dual batteries and only 1 set of lights running off it right now...............(pic is before lights hooked up)


    lynyrd3 and robssol like this.
  5. Jul 11, 2018 at 10:50 AM
    #585
    ZRXDean

    ZRXDean Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149845
    Messages:
    405
    Gender:
    Male
    Langhorne PA
    Vehicle:
    DCLB - Pabst Metallic
    OME 885, Billstein 5100, Deaver 2" AAL, ARE CX Cap, Go Rhino Dominator steps
    Stryker420 likes this.
  6. Jul 11, 2018 at 12:06 PM
    #586
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    32,342
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I think most people just use an ign keyed trigger wire for the relays instead of a solenoid for the whole fuse panel.

  7. Jul 11, 2018 at 12:11 PM
    #587
    ZRXDean

    ZRXDean Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149845
    Messages:
    405
    Gender:
    Male
    Langhorne PA
    Vehicle:
    DCLB - Pabst Metallic
    OME 885, Billstein 5100, Deaver 2" AAL, ARE CX Cap, Go Rhino Dominator steps
    So run the power for the switches to a switched source in the cab fuse box and then run the switch to the relay? I'm a newb at this and there's clearly some parts I'm not getting!

    Essentially if the switch doesn't have power then it can't trip the relay - eliminating the risk of leaving something on when I turn the truck off?

  8. Jul 11, 2018 at 9:20 PM
    #588
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    3,484
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Exactly. There are things that I want to be able to run without ignition on and those get powered straight from the rtmr.

  9. Jul 12, 2018 at 4:28 AM
    #589
    ZRXDean

    ZRXDean Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149845
    Messages:
    405
    Gender:
    Male
    Langhorne PA
    Vehicle:
    DCLB - Pabst Metallic
    OME 885, Billstein 5100, Deaver 2" AAL, ARE CX Cap, Go Rhino Dominator steps
    Makes sense - thanks. If I run the entire aux box with a solenoid I'd lose the ability to run anything without the truck being on.... Thanks!

    Stryker420 likes this.
  10. Jul 14, 2018 at 2:17 AM
    #590
    inthebed

    inthebed Well-Known Member

    Joined:
    Oct 20, 2014
    Member:
    #140737
    Messages:
    109
    Vehicle:
    2010 Tacoma TRD Off-Road Prerunner
    It's not needed because the relays you'll find will have an option to turn them on/off with the ignition if you wire them properly.

  11. Jul 14, 2018 at 8:28 AM
    #591
    paranoid56

    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,137
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    it will depends on what his end goal is. if he doesnt want any of that aux fuse box powered when the car is off then he will need a high powered relay. I dont think i would use a old school solenoid, as they make some nicer ones.

  12. Jul 14, 2018 at 8:37 AM
    #592
    ZRXDean

    ZRXDean Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149845
    Messages:
    405
    Gender:
    Male
    Langhorne PA
    Vehicle:
    DCLB - Pabst Metallic
    OME 885, Billstein 5100, Deaver 2" AAL, ARE CX Cap, Go Rhino Dominator steps
    I think I want the option to run stuff while the truck is off - on board air maybe - roof rack lights. I would want driving/bumper lights switched though.

  13. Jul 14, 2018 at 8:38 AM
    #593
    paranoid56

    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,137
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    then he is right, just run the wire (short wire) from the battery to the circuit breaker to your fuse block. from there you will setup your relays and allow them to be triggered if the car is on or off

    ZRXDean likes this.
  14. Jul 14, 2018 at 11:24 AM
    #594
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    3,484
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...

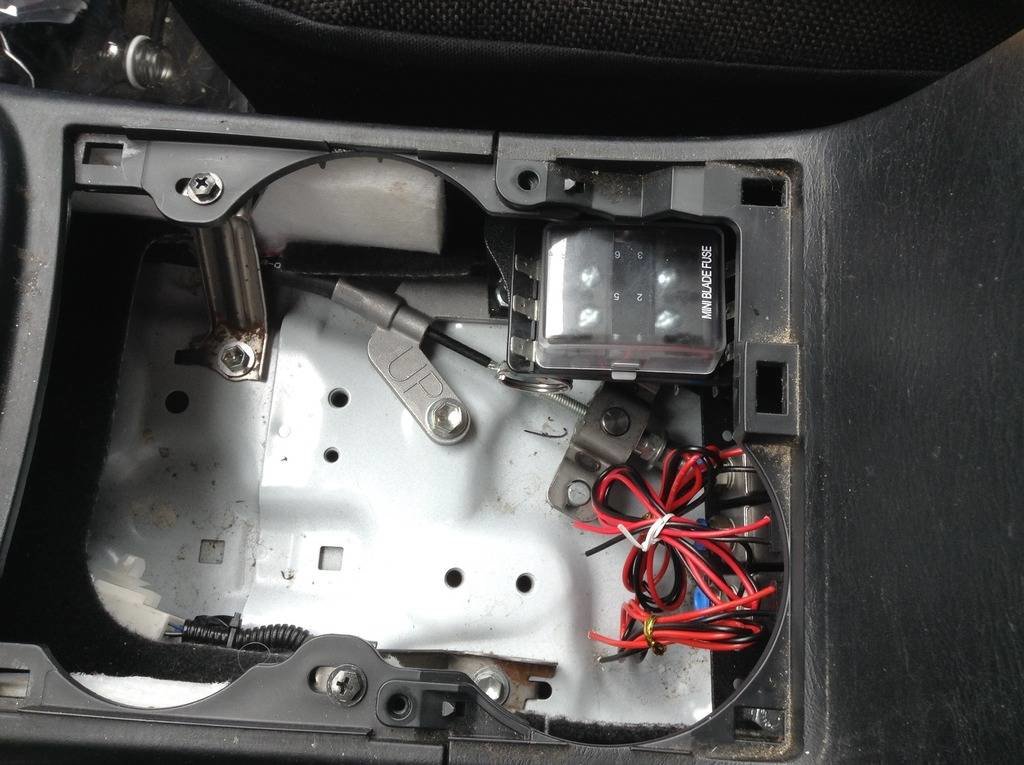

    Since I want to have power ports that are always hot I'll be using the 12v socket line to feed a separate aux fuse box that's ignition only for low power items so I don't need a fuse tap. It's located under the cup holders in my 5m. I removed the clips and filed down the rear tab to make it easier to pull out but it still snaps in securely enough. I like that spot as you don't need to be a contortionist to access it or see it.1305942E-8EA9-45BF-B3AB-49C1F13CD6E1_zps_a264a21ddd5cf306ebd74728dba67a18afc28dcd.jpg

    frankfrankly and Papadave418 like this.
  15. Jul 14, 2018 at 11:34 AM
    #595
    Doogz

    Doogz Well-Known Member

    Joined:
    Apr 23, 2017
    Member:
    #217122
    Messages:
    768
    Gender:
    Male
    First Name:
    Bryce
    Western MA
    Vehicle:
    2009 MGM AC

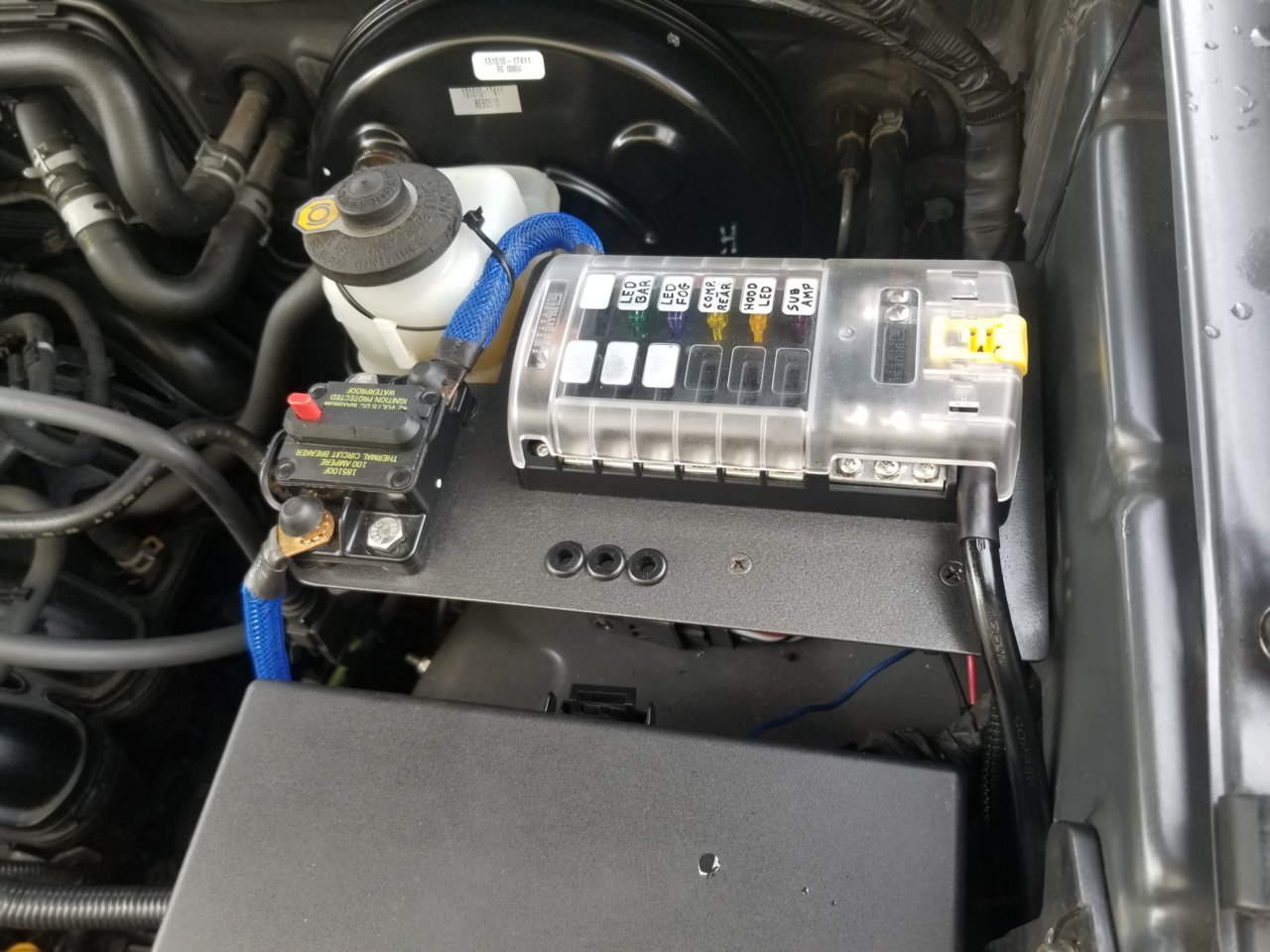

    yep..
    Some nice setups here.

    Still need to wire up another panel in the bed cubby.


    E-Paz 732NJ, lynyrd3 and VE7OSR like this.
  16. Jul 18, 2018 at 9:24 AM
    #596
    HawaiianSON

    HawaiianSON Blood makes the grass grow

    Joined:
    Jul 1, 2017
    Member:
    #222826
    Messages:
    315
    Gender:
    Male
    First Name:
    Nasty
    San Diego by way of HILO, HI
    Vehicle:
    2015 white DCLB
    Kustom54lighting /bruteofrce/brushed BRONZE
  17. Jul 18, 2018 at 9:27 AM
    #597
    HawaiianSON

    HawaiianSON Blood makes the grass grow

    Joined:
    Jul 1, 2017
    Member:
    #222826
    Messages:
    315
    Gender:
    Male
    First Name:
    Nasty
    San Diego by way of HILO, HI
    Vehicle:
    2015 white DCLB
    Kustom54lighting /bruteofrce/brushed BRONZE
  18. Jul 23, 2018 at 7:01 PM
    #598
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    10,726
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel
    Just double checking to make sure I have this right. I've got a pelfrey aux fuse plate, blue sea fuse box and am adding a breaker. The breaker gets rated for the maxium the box can handle correct? Which the one I have is the 2 banks of 6 circuits rated at 30amp / circuit.

  19. Jul 23, 2018 at 7:11 PM
    #599
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    3,484
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Yes, the breaker is for the fuse box but not for the sum of all the 30A circuits it can hold. Each box has a max amp rating, that's the rating the breaker should have. The Bussman rtmr is 80A and one of the Blue Seas models is 100A.

    rob1208 and m603holden like this.
  20. Jul 26, 2018 at 10:26 AM
    #600
    ZRXDean

    ZRXDean Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149845
    Messages:
    405
    Gender:
    Male
    Langhorne PA
    Vehicle:
    DCLB - Pabst Metallic
    OME 885, Billstein 5100, Deaver 2" AAL, ARE CX Cap, Go Rhino Dominator steps

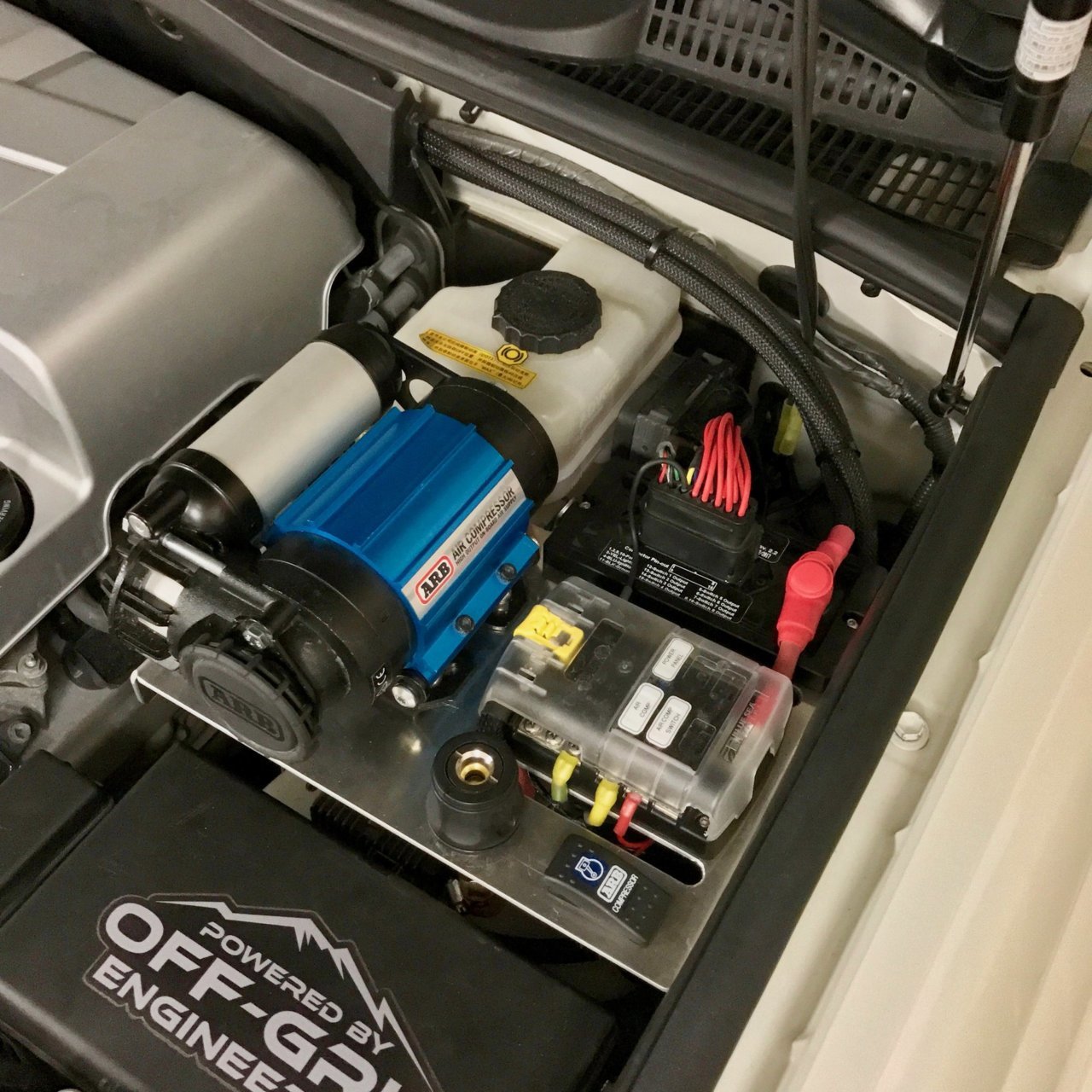

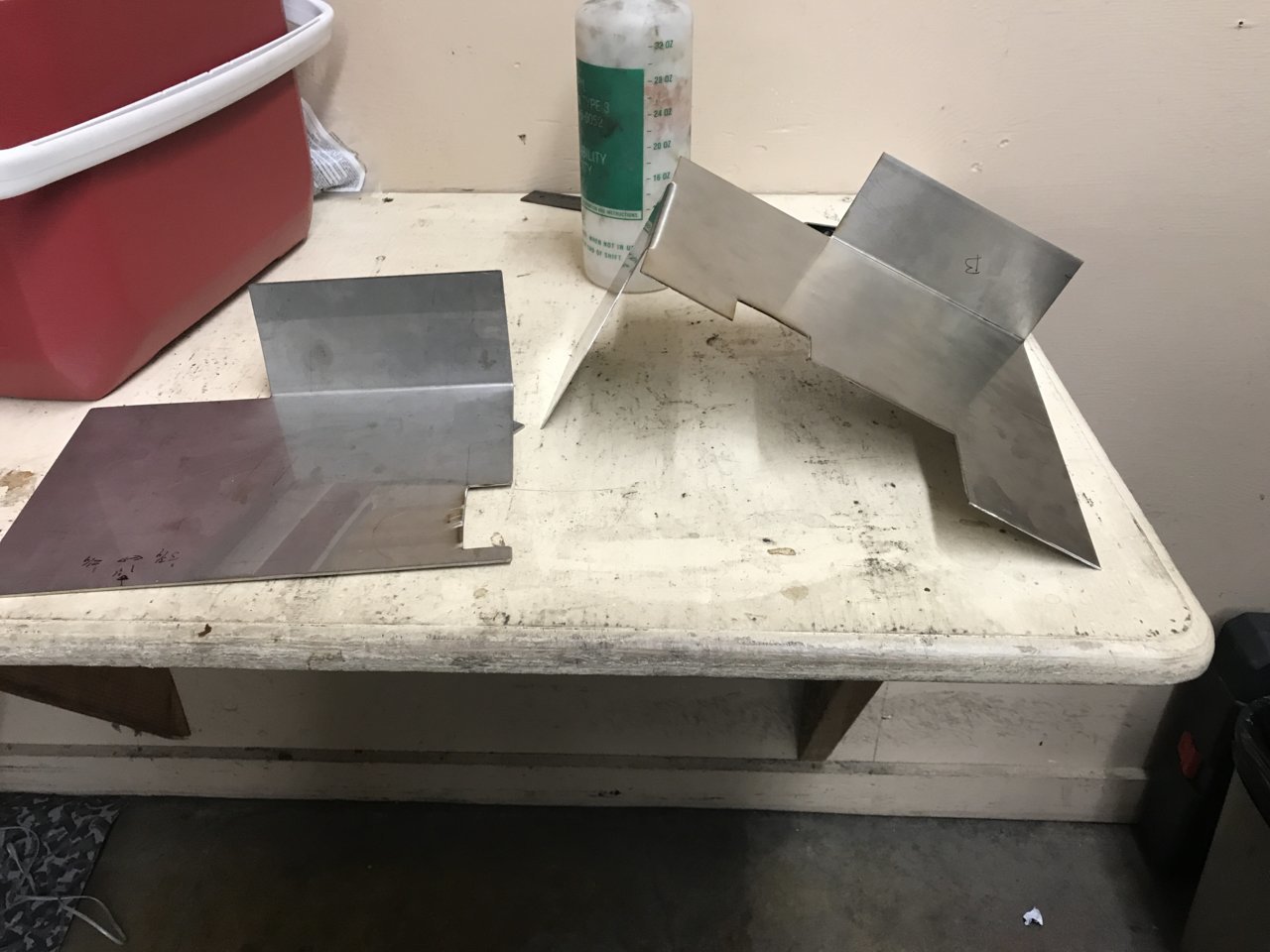

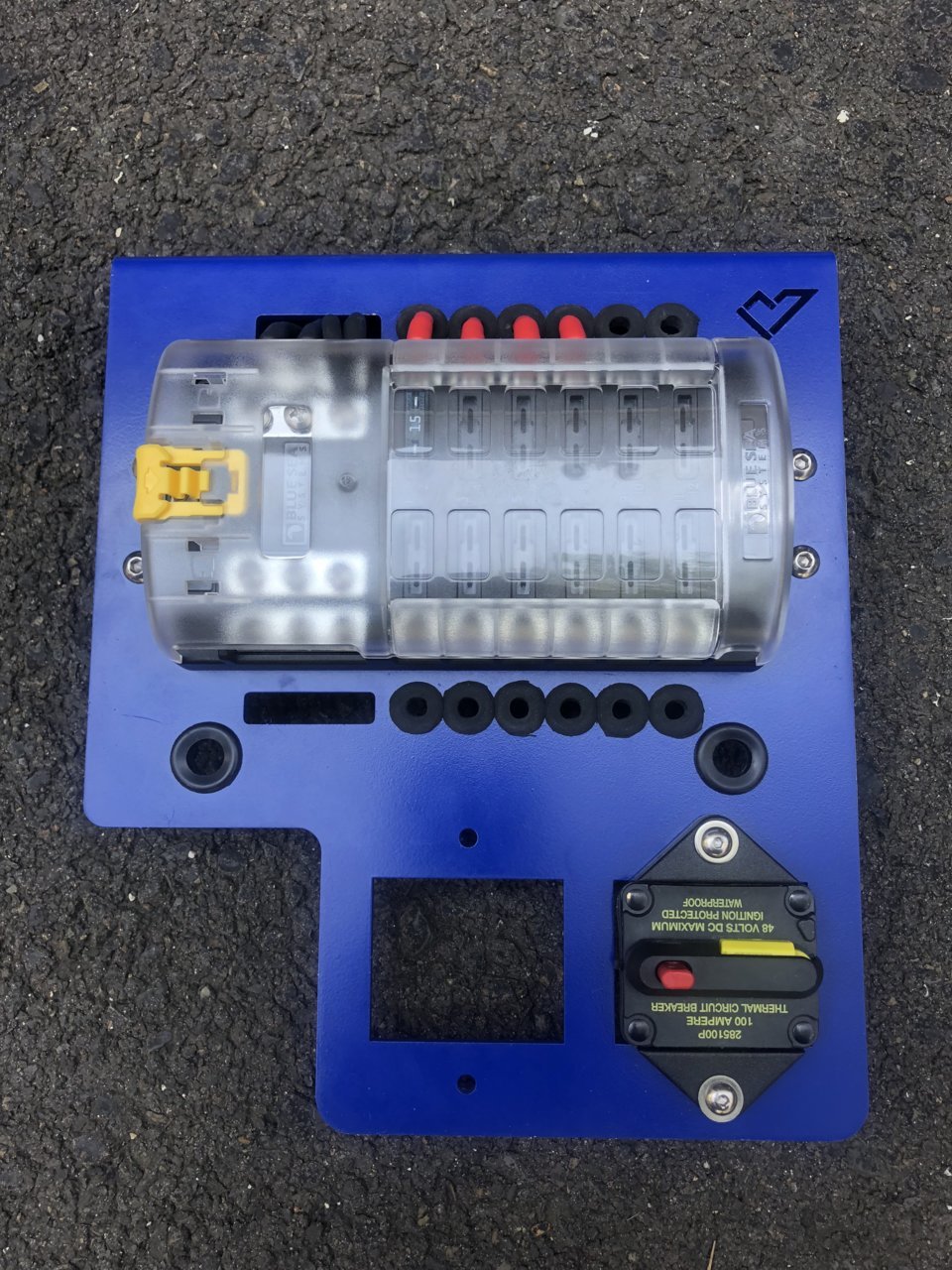

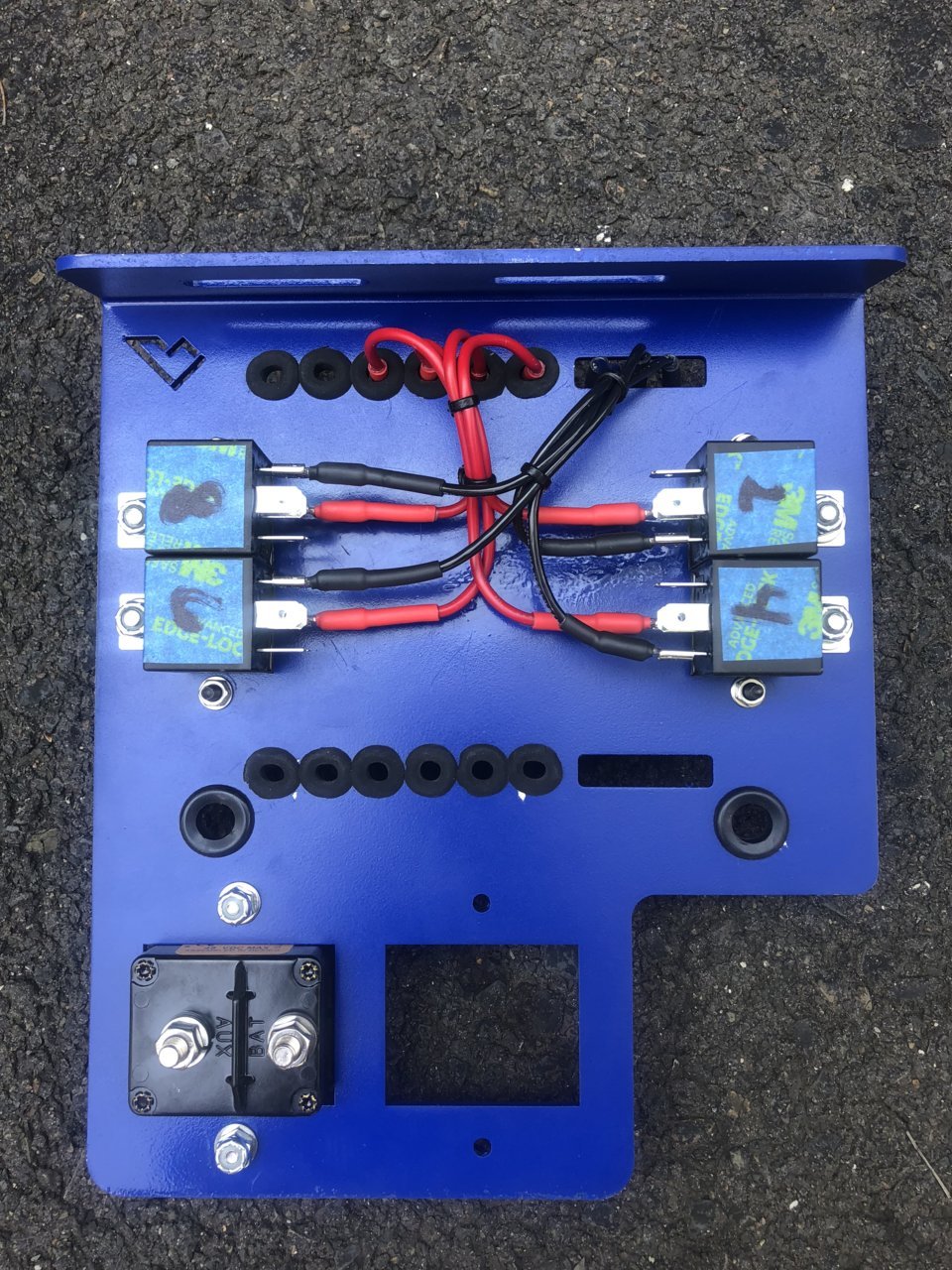

    Just about done. Have to make the 4awg ground and positive cables and connect them but overall happy so far. Thanks to ALL for the inspiration, ideas and help!

    Anyone know the bolt size to mount the panel to the fender well?

    1F3F1DF1-69D1-4288-AD9D-0472CB53F3CE.jpg E1E29648-9419-4D92-9B8B-865550778F92.jpg

    DartFrog, lynyrd3, chrslefty and 3 others like this.
