Show off your aux fuse panels.

Thanks. Been avoiding the hardware stores cause they have been limiting access which results in waiting in lines outside but maybe I’ll run over to ace and see what they have



Harbor freight has a good variety pack too



Good suggestion! HF is across town, and Ace is right down the road, so I forget about them for little things.



I got mine from McMaster

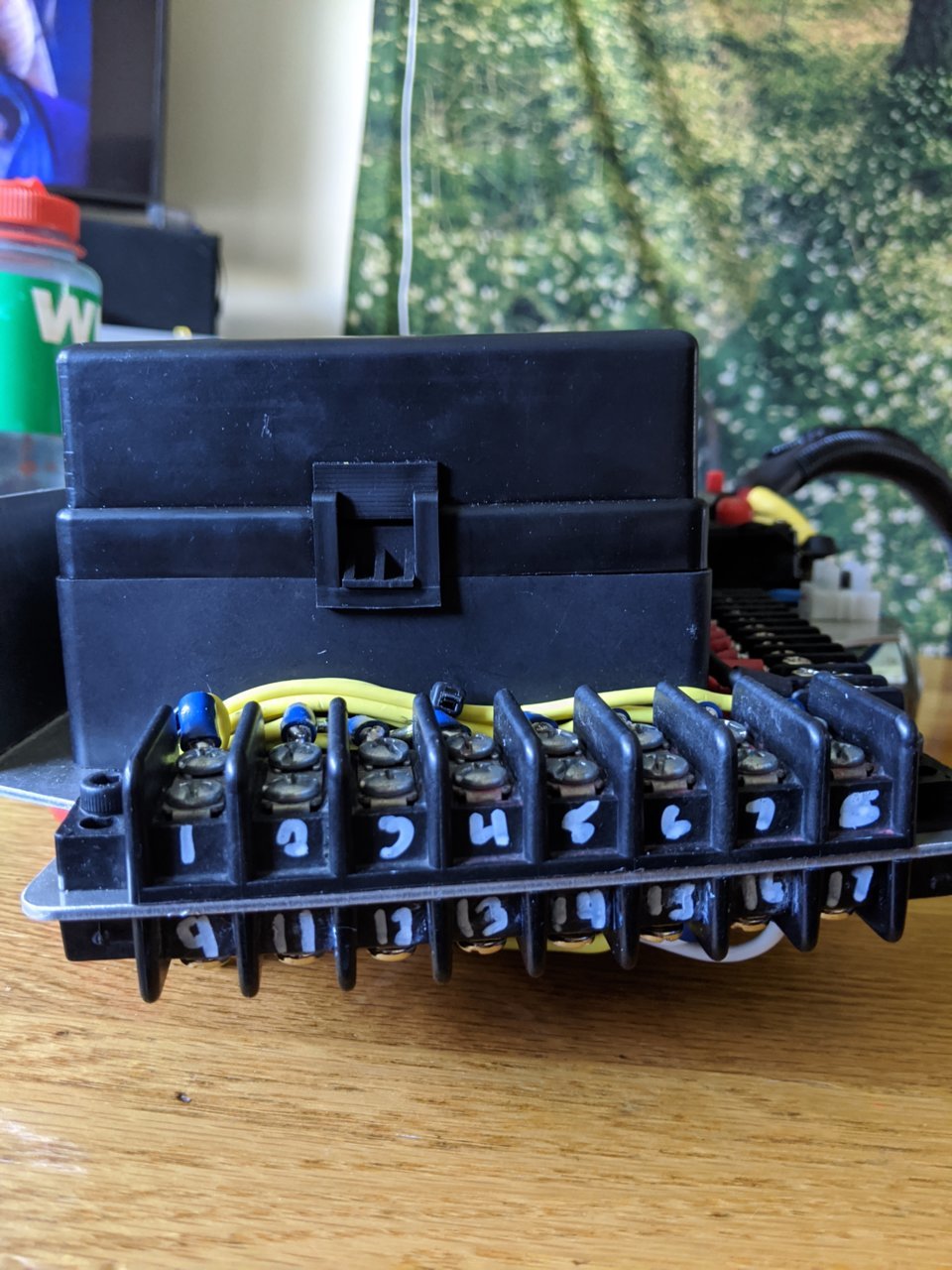

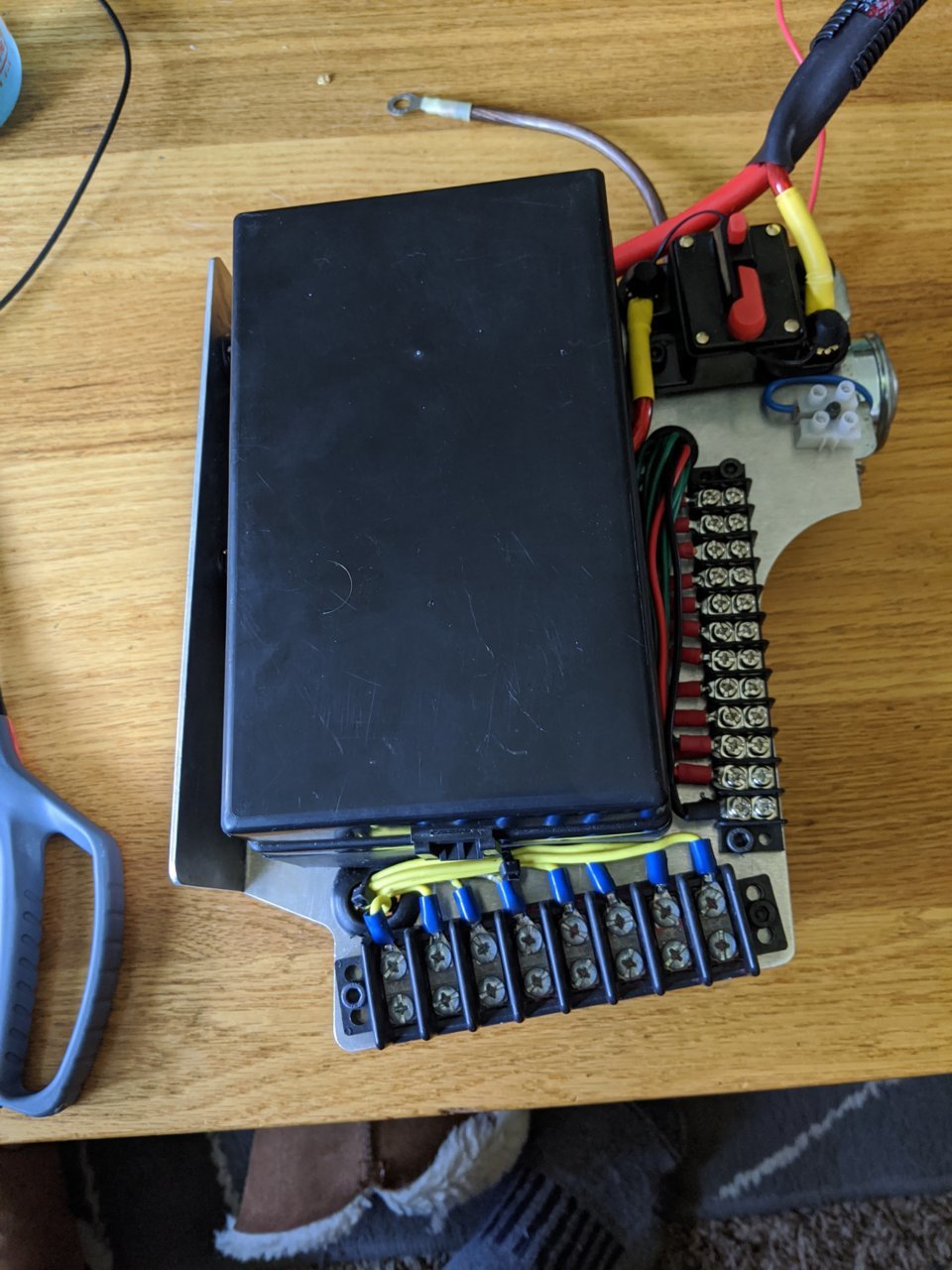

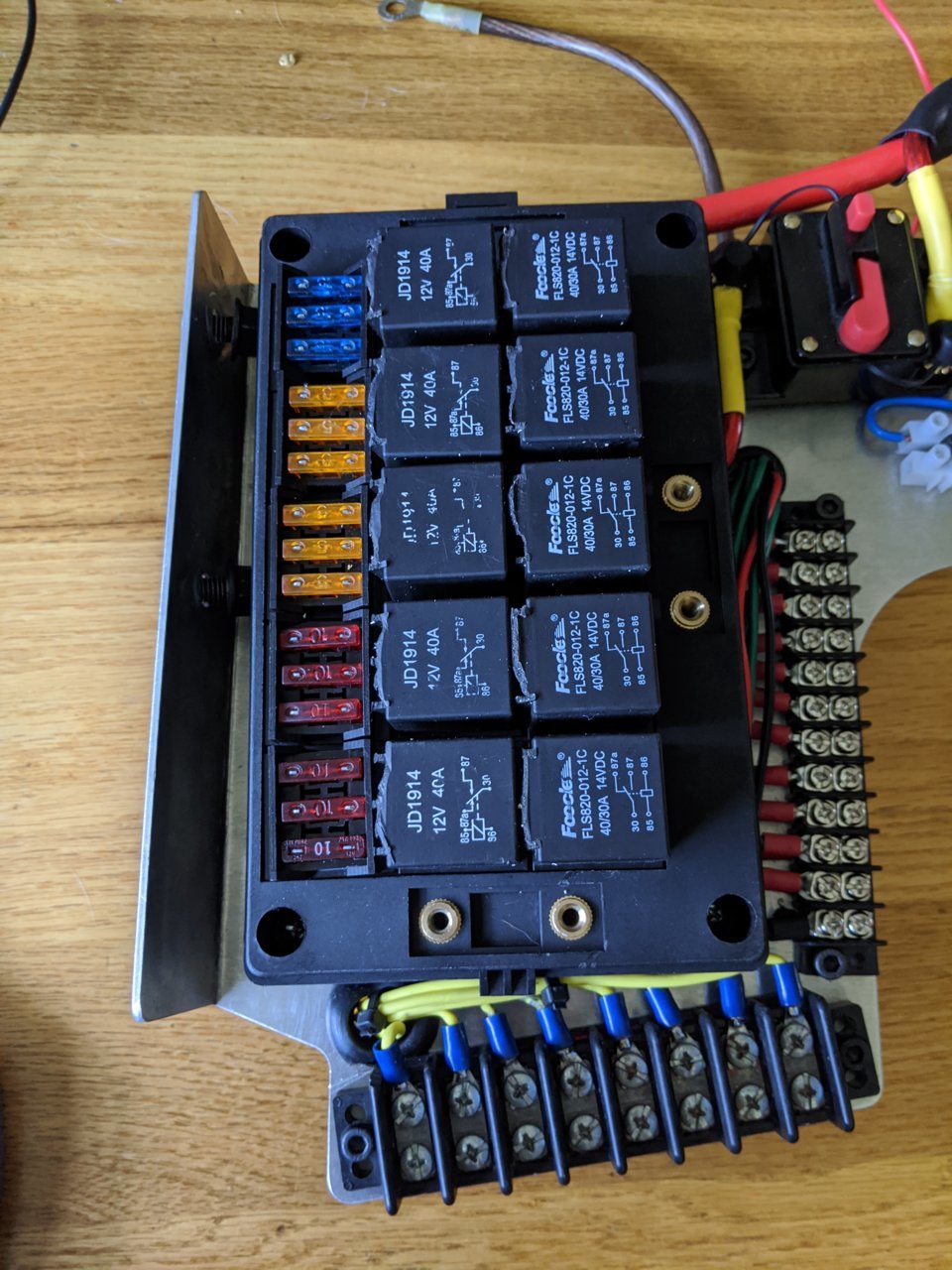

Almost done building my panel. Doing it "the right way" this time. 10 relay circuits, 8 extra fused circuits (5 switched with key on, 3 always on), and my dual battery solenoid and fuse. Plenty of room for growth. Just waiting on a few more parts so I can install it and run all my wires.

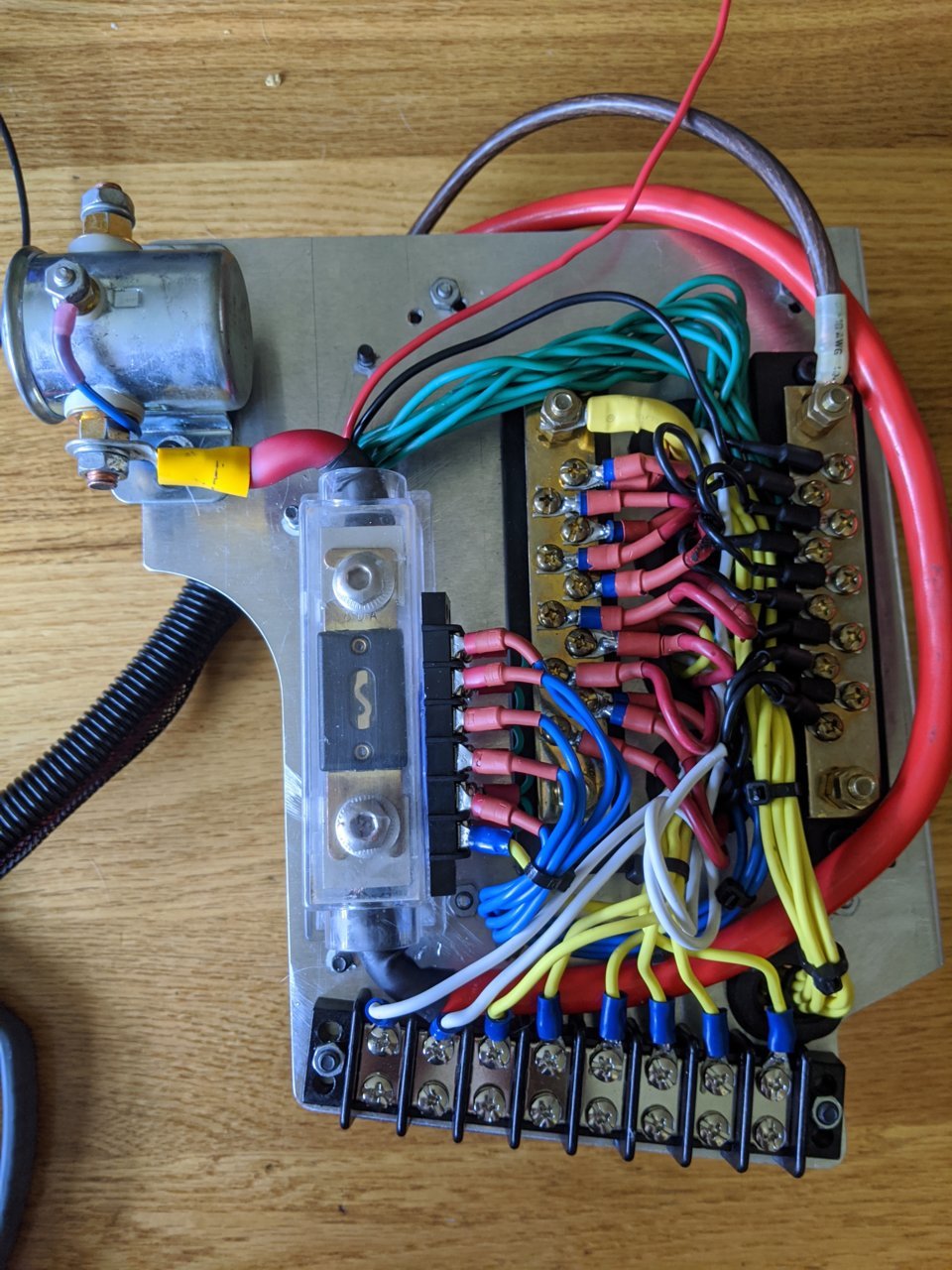

Is your ground buss cable the same gauge as your B+ cable? Looks like you have two positives and one is much bigger than the ground buss cable. If you’re planning on grounding to the chassis then you’ll need to upgrade the chassis to B- cable to handle all the current that you’re adding.



Yes, the positive and ground cable for the fuse panel are both the same size (4awg) the large red cable is for my second battery system. The ground cable for this system is not involved on the fuse panel.

There is a lot going on on this panel and hard to really see everything from the photos



Sounds like you have it covered.

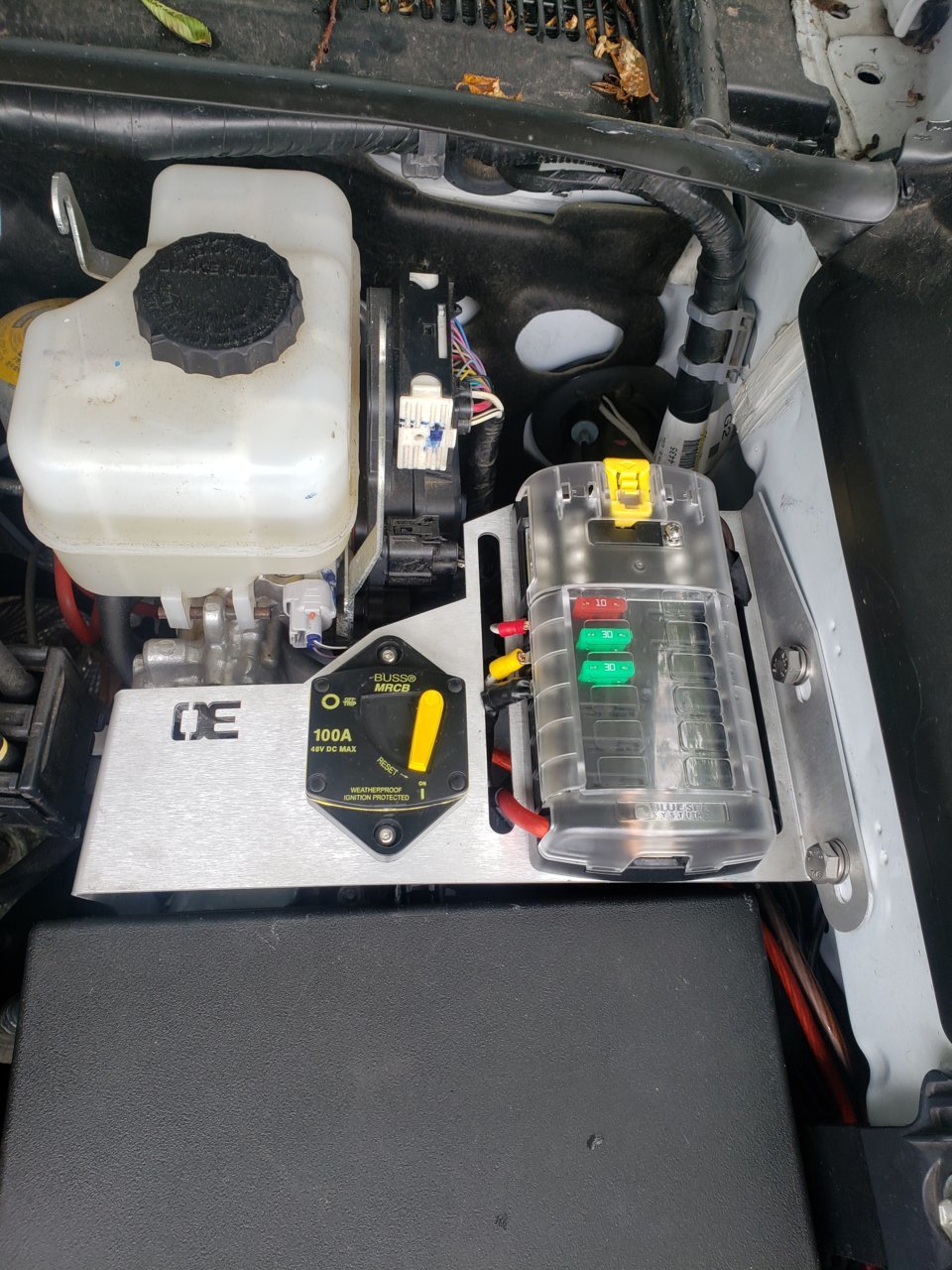

Just put in a setup from Overland Equipped yesterday.



I am about to do mine as well! Did you run any buss bars or relays?



Nope, I only have one relay which is on the harness for my light bar. The install was just connecting the battery to the breaker, putting the ground on the fender, and then moving my CB, bed lights, and light bar wiring to the fuse block.



Damn I should've seen this thread before buying my fusebox.



I got this from www.TacomaPros.com



Currently assembling my aux panel. Just waiting for a few waterproof connections, wires/ cables, and the circuit breakers since the pandemic made even getting nuts and bolts difficult to get a hold of

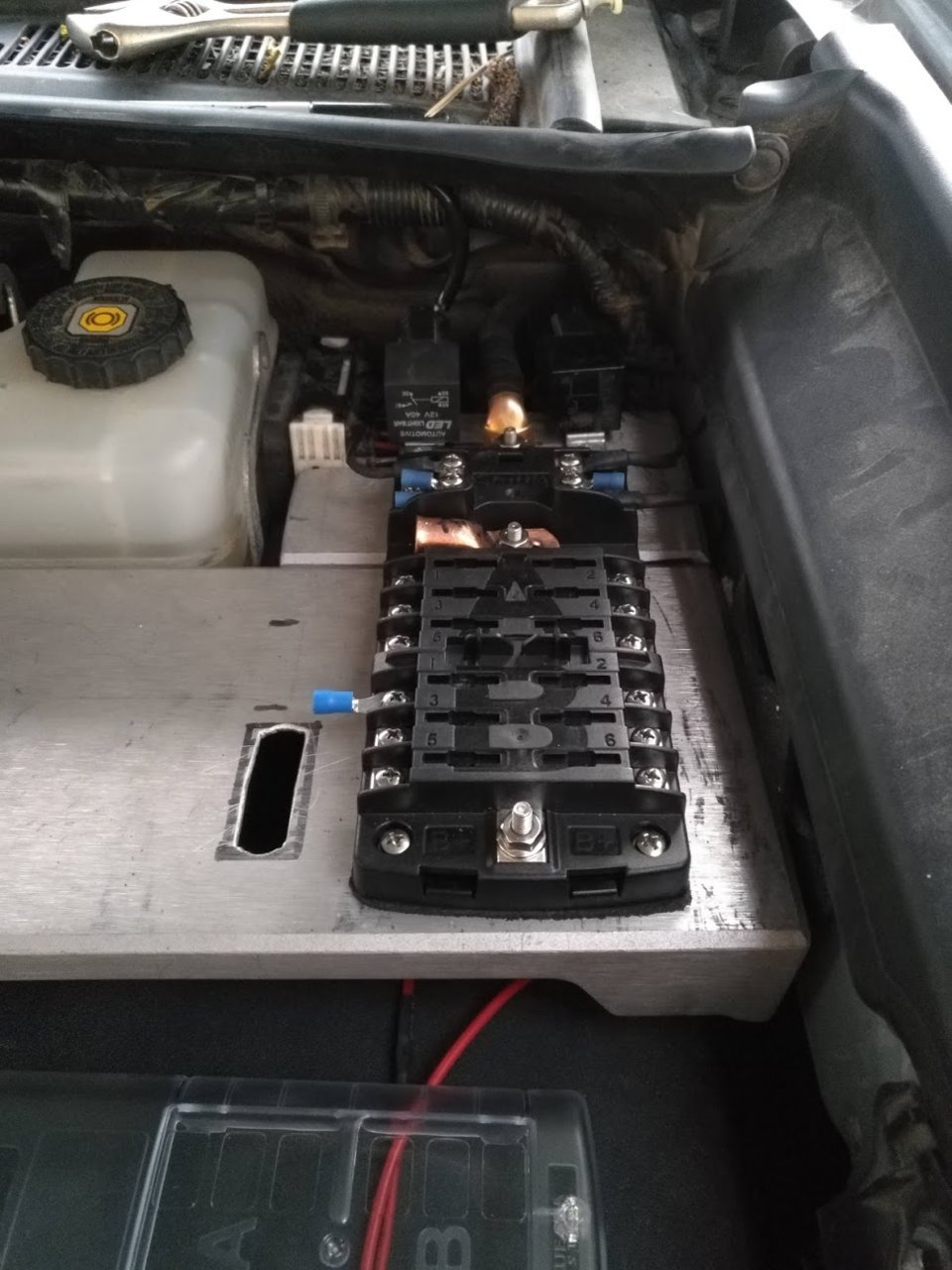

ST Blade Split Bus Fuse Block, 100A and 150A circuit breakers for an easier way to add in a second battery on the passenger side

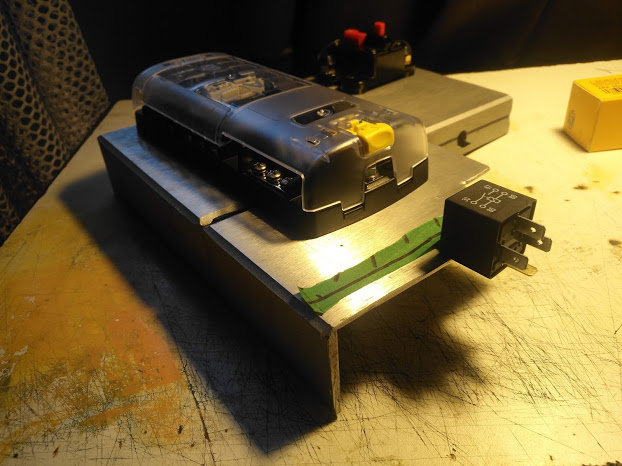

panel bed is from my Dad's old table saw extension wings.



Anyone in here use the Rough Country MLC? looks like a nice unit for the price. I started building a panel, but it's just not as clean as I'd like it to be.

https://www.roughcountry.com/mlc6-multiple-light-controller-70955.html



never used one, but looks good and clean. reminds me of the Spod setup.

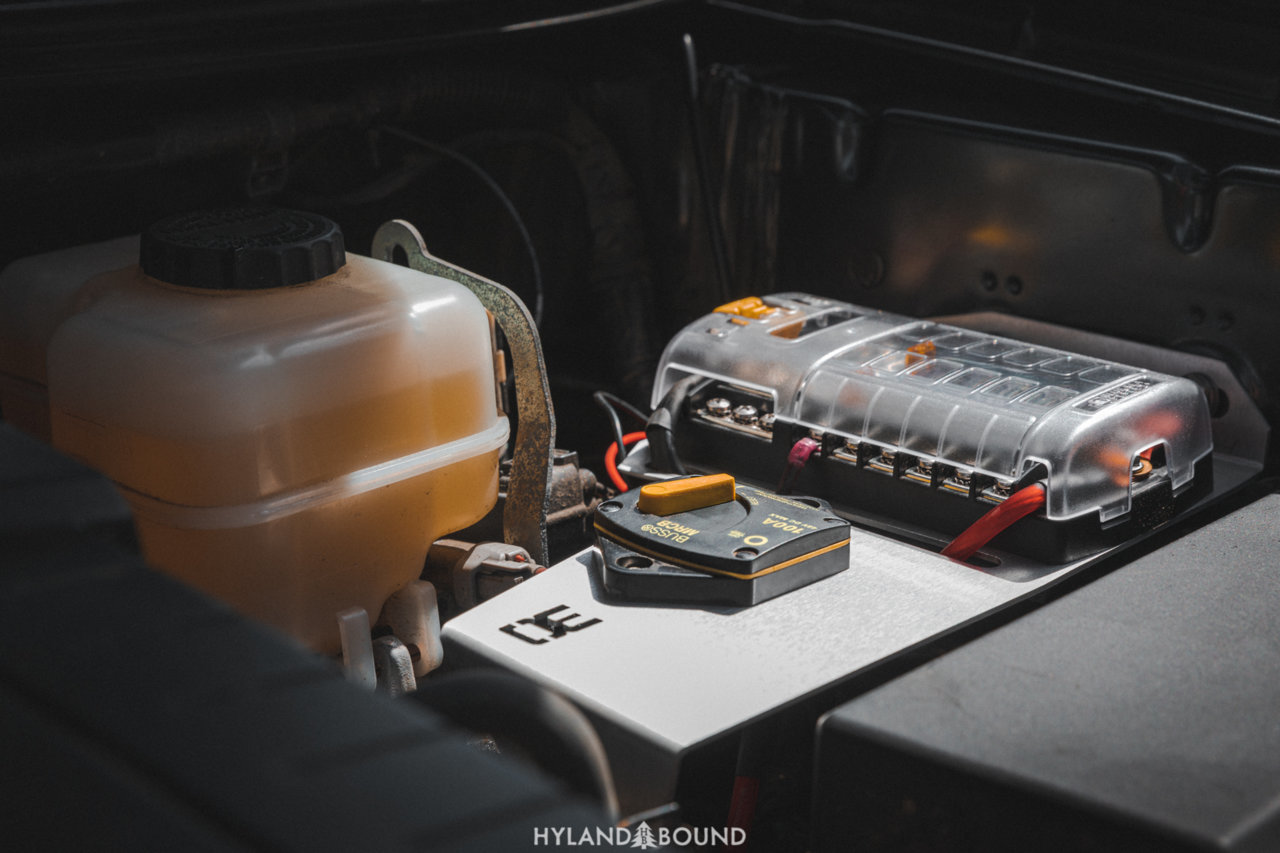

Just installed Overland Equipped. Quality product highly recommend . Wire already built for you.



should do an update;
Blue Seas fuse box panel is in and the Negative is all wired up with about a 2 ft length of 1/0


Positive terminals and positive connections (for the relays) will go in once i get my circuit breakers. Still in the midsts of shipping for the last 3 weeks...



That looks nice! $200 is not unreasonable either.



that is an incredibly good price... Especially knowing that the fuse block is around $60 and the switch (depending where you get it) at about the same price.

all the others i've seen start $4-500...
