Discussion in 'Lighting' started by Newlife, Dec 29, 2013.

Page 9 of 95
  1. Jul 10, 2015 at 1:41 PM
    #161
    Newlife

    #161
    Newlife [OP] Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    8,570
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    2020 t4r orp
    Bone f’n stock for now
    Bored at work

    Newlife, Jul 10, 2015
    #161
  2. Jul 10, 2015 at 1:41 PM
    #162
    SMKYTXN

    #162
    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,040
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    And you can delete your multiple posts by clicking edit and then delete.

    SMKYTXN, Jul 10, 2015
    #162
  3. Jul 10, 2015 at 1:43 PM
    #163
    Dj Suisav

    #163
    Dj Suisav Well-Known Member

    Joined:
    May 27, 2015
    Member:
    #156140
    Messages:
    321
    Gender:
    Male
    First Name:
    Saul
    San Antonio, TX
    Vehicle:
    2011 MGM DCSB Trd Sport
    RIP 2009 Super White DCSB Trd Sport

    once again!!!:frusty:lol:headbang:

    Dj Suisav, Jul 10, 2015
    #163
  4. Jul 10, 2015 at 1:45 PM
    #164
    Incognito

    #164
    Incognito No better friend, no worse enemy

    Joined:
    May 25, 2009
    Member:
    #17626
    Messages:
    13,751
    Gender:
    Male
    VA
    Vehicle:
    2012 Pyrite AC TRD OR
    Spacer lift, bumper stickers, ejector seat, etc.

    Incognito, Jul 10, 2015
    #164
    Dj Suisav likes this.
  5. Jul 10, 2015 at 2:22 PM
    #165
    SMKYTXN

    #165
    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,040
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

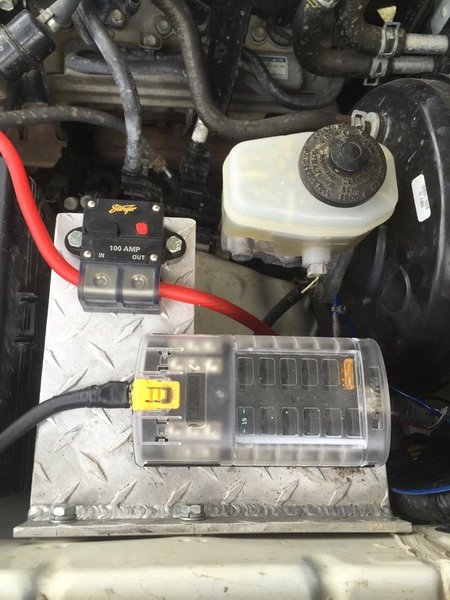

    Might as well show mine off. :D


    SMKYTXN, Jul 10, 2015
    #165
    Yossarian, CRW, ready6delta and 5 others like this.
  6. Jul 10, 2015 at 3:00 PM
    #166
    Up2NoGood

    #166
    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    I've seen that one and I must say.... pretty slick!

    Up2NoGood, Jul 10, 2015
    #166
    Stryker420 and SMKYTXN like this.
  7. Jul 10, 2015 at 5:43 PM
    #167
    UssMoGn

    #167
    UssMoGn That Vegas dude

    Joined:
    Oct 24, 2013
    Member:
    #115139
    Messages:
    836
    Gender:
    Male
    First Name:
    James
    Las Vegas NV
    Vehicle:
    05&04 Tacoma SR5
    Home Built Front Bumper HID Headlights LED Cab lights 2013 Radio swap MOLLE DC Insert Traffic Cam F&R 6'' Procomp lift Custom Grillie
    Damn man!

    UssMoGn, Jul 10, 2015
    #167
  8. Jul 10, 2015 at 5:44 PM
    #168
    Newlife

    #168
    Newlife [OP] Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    8,570
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    2020 t4r orp
    Bone f’n stock for now
    Whoa whoa whoa what the hell is that and a remote I need more info

    Newlife, Jul 10, 2015
    #168
  9. Jul 10, 2015 at 5:48 PM
    #169
    SMKYTXN

    #169
    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,040
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    :thumbsup:

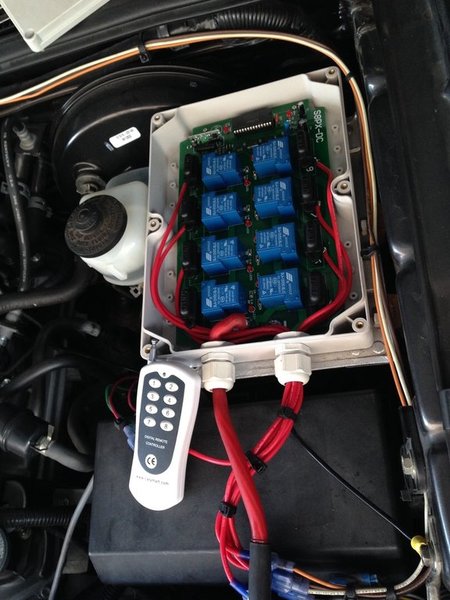

    That's the NSA Switch Panel that I designed, and now sell.

    http://www.trailtoys.net/nsa-switch-panel.html

    Eight different programming options, no wires through the firewall, and up to a 250ft range.

    SMKYTXN, Jul 10, 2015
    #169
    Armyhater458 likes this.
  10. Jul 10, 2015 at 6:47 PM
    #170
    UssMoGn

    #170
    UssMoGn That Vegas dude

    Joined:
    Oct 24, 2013
    Member:
    #115139
    Messages:
    836
    Gender:
    Male
    First Name:
    James
    Las Vegas NV
    Vehicle:
    05&04 Tacoma SR5
    Home Built Front Bumper HID Headlights LED Cab lights 2013 Radio swap MOLLE DC Insert Traffic Cam F&R 6'' Procomp lift Custom Grillie

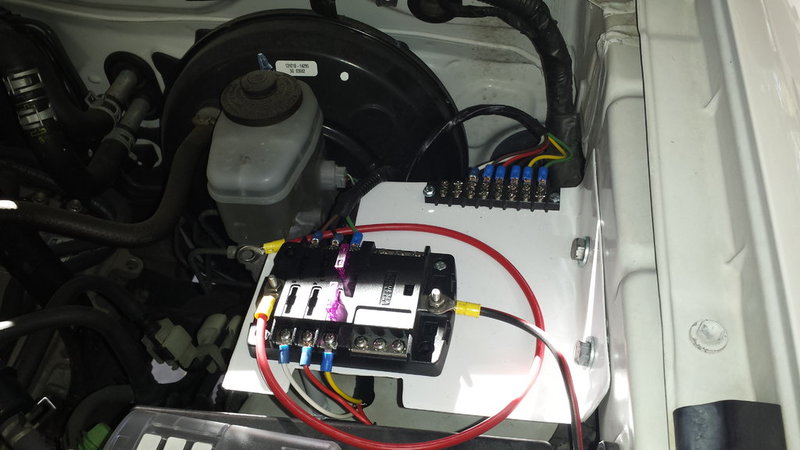

    Heres mine!20140110_100321.jpg
    Damn man! Thats awesome, ill keep that in mind on my next build.

    UssMoGn, Jul 10, 2015
    #170
    SMKYTXN[QUOTED] likes this.
  11. Jul 11, 2015 at 4:35 AM
    #171
    bubagump74

    #171
    bubagump74 SkiFreak

    Joined:
    Jun 18, 2014
    Member:
    #132198
    Messages:
    1,103
    Gender:
    Male
    First Name:
    Fred
    Montreal,Quebec
    Vehicle:
    2013 Trd OR
    NSA Pnl,US OFF ROAD winch mount bumper,Sirrius pods,Clazzio covers,Wheathertech mats, Pro Comp wheels,Image dynamics audio,leer cover,lights,bed mat,anti dark light...
    sub"d

    bubagump74, Jul 11, 2015
    #171
  12. Jul 11, 2015 at 6:38 PM
    #172
    weldo

    #172
    weldo Well-Known Member

    Joined:
    Oct 15, 2014
    Member:
    #140423
    Messages:
    1,337
    Gender:
    Male
    First Name:
    Mike
    Pittsburgh, pa
    Vehicle:
    2014 base ac 2.7 5-speed 4x4
    The nsa box is awesome! Anyone try making a mount for the remote in the cab? Or just leave it in the cup holder or something?

    Anyone see that SPOD box that uses a small touchscreen for a controller? Its a neat idea but they want $750 for it!

    weldo, Jul 11, 2015
    #172
  13. Jul 13, 2015 at 7:28 AM
    #173
    Dj Suisav

    #173
    Dj Suisav Well-Known Member

    Joined:
    May 27, 2015
    Member:
    #156140
    Messages:
    321
    Gender:
    Male
    First Name:
    Saul
    San Antonio, TX
    Vehicle:
    2011 MGM DCSB Trd Sport
    RIP 2009 Super White DCSB Trd Sport
    @SMKYTXN fucking amazing!!! so clean man.:ohsnap: :headbang::thumbsup:
    :bananadance:

    Dj Suisav, Jul 13, 2015
    #173
    SMKYTXN[QUOTED] likes this.
  14. Jul 13, 2015 at 7:28 AM
    #174
    SMKYTXN

    #174
    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,040
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Thanks! I'm actually working with a guy to make a mount for the NSA and the remote. We're thinking some sort of ram mount for the remote.

    Typically I just toss my remote into the center console in front of the shifter. When I'm on the trail the remote lives in a cupholder for easy access.

    SMKYTXN, Jul 13, 2015
    #174
    greeneggsnspam likes this.
  15. Jul 13, 2015 at 7:32 AM
    #175
    SMKYTXN

    #175
    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,040
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

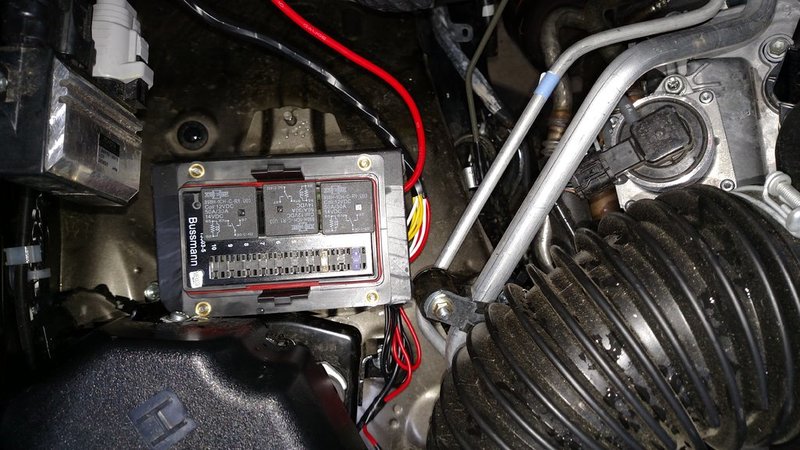

    Saul, here's a close up shot of the relays, fuses, harness connections, and indicator LED's. Glad you like it.

    [​IMG]

    SMKYTXN, Jul 13, 2015
    #175
    Dj Suisav[QUOTED] likes this.
  16. Jul 27, 2015 at 1:08 PM
    #176
    weldo

    #176
    weldo Well-Known Member

    Joined:
    Oct 15, 2014
    Member:
    #140423
    Messages:
    1,337
    Gender:
    Male
    First Name:
    Mike
    Pittsburgh, pa
    Vehicle:
    2014 base ac 2.7 5-speed 4x4
    Woot! Made some switch backs! What a pain this was. Got the hang of it toward the end though. They came out nice. I'm gonna put them in the 3 blanks I have left of the steering wheel.


    _EP38200.jpg _EP38201.jpg


    The green wire goes to dimmer +, white to dimmer -, red to +12V and black to ground. The grey, blue and purple will go to their respective relays.

    weldo, Jul 27, 2015
    #176
  17. Aug 1, 2015 at 8:29 PM
    #177
    DougsGraphics

    #177
    DougsGraphics Duck Hunter!

    Joined:
    Jun 28, 2015
    Member:
    #158319
    Messages:
    244
    Gender:
    Male
    First Name:
    Doug
    Northern New Mexico
    Vehicle:
    2015 Pyrite Mica DCSB TRD OR
    3" Revtech Level, ARB Deluxe Bull Bar front bumper with WARN 9.5XP Winch and KC Pro-Sport LED Driving Lights, black Diamond Back HD tonneau cover, 4 cameras through Entunes display with capacity for two more, LED interior lights with map lights tied to dome, Bussman auxiliary fuse/relay box with 100 amp breaker/disconnect under hood.
    Put mine in today.

    DougsGraphics, Aug 1, 2015
    #177
    4x4Taco09 likes this.
  18. Aug 2, 2015 at 7:45 AM
    #178
    Dj Suisav

    #178
    Dj Suisav Well-Known Member

    Joined:
    May 27, 2015
    Member:
    #156140
    Messages:
    321
    Gender:
    Male
    First Name:
    Saul
    San Antonio, TX
    Vehicle:
    2011 MGM DCSB Trd Sport
    RIP 2009 Super White DCSB Trd Sport
    Looks great. I'm an electrician by trade and an electronics fanatic. This is very sexy lol:D:thumbsup::bowdown:

    Dj Suisav, Aug 2, 2015
    #178
  19. Aug 2, 2015 at 8:06 AM
    #179
    TuckGraham

    #179
    TuckGraham Keep it straight

    Joined:
    Nov 30, 2013
    Member:
    #117625
    Messages:
    627
    Gender:
    Male
    First Name:
    Tg
    Montana
    Can anyone help me with what i will need to do a aux fuse panel? I'm running 3 aux lights soon to be running 5 with seat heaters..I was looking at Blue Sea fuse box but not sure what exactly i need.

    TuckGraham, Aug 2, 2015
    #179
  20. Aug 2, 2015 at 9:48 AM
    #180
    Yotamac

    #180
    Yotamac Well-Known Member Vendor

    Joined:
    Mar 30, 2013
    Member:
    #100909
    Messages:
    1,338
    Gender:
    Male
    First Name:
    Ze
    562- Cerritos, CA
    Vehicle:
    07 PreRunner
    Stuff, stuff and more stuff
    You will need at mounting plate and relays in addition to the fuse block.

    Yotamac, Aug 2, 2015
    #180
Page 9 of 95

Products Discussed in

RED WOLF 60 Amp Circuit Breaker W/Ring Terminal 6 Gauge Connector Manual Reset Switch for Boat Trolling Motor Marine ATV Trailer Vehicles Stereo Audio Electronic Battery Solar System Inline Fuse
$16.98
NOCO Boost GB40: 1000A UltraSafe Jump Starter – 12V Lithium Battery Booster Pack, Portable Jump Box, Power Bank & Jumper Cables - for 6.0L Gas and 3.0L Diesel Engines
$99.95
Renogy Rover 20A 12V/24V Auto DC Input MPPT Solar Charge Controller Parameter Adjustable LCD Display Solar Panel Regulator fit for Gel Sealed Flooded and Lithium Battery, Rover 20A,black
$63.44
RVBOATPAT 12V Fuse Relay Box with 6 Relays and 11 Way ATC/ATO Blade Fuses, Pre-Wired Fuse and Relay Box 12 Vlot Relay Fuse Box Block for Automotive Marine Boat
$24.99
Recoil BTO Solid Brass Positive Negative Battery Terminals with Adaptor Collars, 1X0/2/4 Gauge & 1X4/8 Gauge Outputs, Top-Mounted or Side-Mounted Power Ring Provision and OEM Post Adapter
$23.99
DAIERTEK Marine Bus Bar 12V 6 x 1/4" (M6) Terminal Studs 12 Volt Bus Bar Power Distribution Block with Cover Max 300V AC 48V DC Positive & Negative Battery Terminal Block for Automotive Car Boat
$22.99
QC 3.0 USB Outlet 12V Boat Marine Waterproof Cigarette Lighter Socket Splitter 12 Volt DC Power Charger Adapter DIY Kit with Blue LED Dual USB Ports for Rocker Switch Panel on Car RV Golf Cart ATV
$9.99
M1A2 80Amp Circuit Breaker for Boat Trolling Motor Marine ATV Trailer Vehicles Stereo Audio Electronic Battery Solar System Inline Fuse with Manual Reset Switch Waterproof DC 12V-48V
$13.99
ZhiYo 50FT 3/8” Wire Loom Split Tubing Auto Wire Conduit Flexible Cover | High Temperature Heat Resistant -40F to 257F | Plastic Cover for Electrical Wires & Cables
$16.98
XFasten Wire Harness Tape, 3/4" x 50-Foot (5-Pack), High Temp Wiring Loom Harness, Self-Adhesive Felt Cloth Electrical Tape for Automotive Engines, Noise Dampening, and Cable Protection
$13.98
Keco 100ft – 1/2" PET Expandable Braided Cable Sleeve – Wire Sleeving for Audio Video and Other Home Device Cable Automotive Wire - Black
$15.99
FXC Rocker Switch Aluminum Panel 4 Gang Toggle Switches Dash 5 Pin ON/Off 2 LED Backlit for Boat Car Marine Blue
$18.98
WUPP 12 Volt Fuse Block, Waterproof Boat Fuse Panel with LED Warning Indicator Damp-Proof Cover, 6 Circuits with Negative Bus Fuse Box for Car Marine RV Truck DC 12-24V
$17.59
ESUPPORT Car Heavy Duty Relay Switch 12V 30A SPST 4Pin Wire Socket Plug Harness Waterproof Electrical Automotive Pack of 5
$11.09
True Mods 12V DC Auto Waterproof Fuse 5-Pin Relay Box Block [6 Bosch Style Relay Holder] [6 ATC/ATO Fusible Holder] Universal Relay Block Box for Automotive Vehicles Cars Marine Boat Light Equipment
$21.99
Victron Energy Smart BatteryProtect 12/24-Volt 65 amp (Bluetooth)
$51.99
Auxiliary Power Fuse Block Bracket Updated Design Compatible with 3rd Gen 2016-Present Toyota Tacoma.
$69.98
True Mods 10 Pack Bosch Style 5-Pin 12V Relay Switch [SPDT] [30/40 Amp] 12 Volt Automotive Relays for Auto Fan Cars
$15.99
Fastronix 5/16" - 1/4" Stud Terminal Cover 2 Pack (Red)
$7.99
Blue Sea Systems 7044 187-Series Circuit Breaker, Panel Mount, 100A
$50.04
Blue Sea Systems 2314 100 Amp Mini BusBar with 5 screws and a cover
$18.79
Blue Sea Systems 5191 Fuse Block Terminal 30-300 AMP
$25.42
JooFn Waterproof Sealed ATO ATC Fuse Holder Assembly Splice Existing Wire Kit (Pack of 6)
$11.49
Blue Sea Systems 5032 ST Blade Fuse Block Dual 12 with Ground and Cover, 100 Amps
$46.68
DC 12V 40A Universal Car Vehicle Waterproof Sealed Integrated Relay Kit & Base (5-Pin Relay)
$12.00
Bussmann series HMEG Fuse Holder - 1 Piece
$14.99
XScorpion Silver Finish Ring Terminal Connection Style Battery Terminal
$12.99
Xscorpion DBT024RP Platinum Digital Battery Terminal with Screw Terminals for any AWG Wire
$18.98
GP SAE 6 SPOT BATTERY TERMINALS HEAVY DUTY
$69.98
PINFOX Waterproof Plastic Project Box ABS IP65 Electronic Junction Box Enclosure 6.2 x 3.54 x 2.3" 158 x 90 x 60 mm (Black)
$8.99
Permatex 22058 Dielectric Tune-Up Grease, 3oz. - High Performance Dielectric Grease Used To Protect Terminals, Spark Plugs, Wiring And Other Electrical Connections Against Salt, Dirt, And Corrosion
$9.99
uxcell DC 12V/24V 80A 5-Pin Wire Cable Relay Socket Harness Connector 5pcs for Car Truck
$16.98
True MODS 5 Pack 5-Pin 12V Bosch Style Waterproof Relay Kit [Harness Socket] [12 AWG Hot Wires] [SPDT] [30/40 Amp] 12 Volt Automotive Marine Relays for Boats Auto Fan Cars
$24.95
Yellow Loom Tool Kit - Cable Insertion for Bundles from 1/4" to 1" (1 Small Tool + 1 Large Tool)
$8.49
Electriduct Wire Loom Cable Insertion Tool for 3/8" to 1/2" Conduit Sleeving Installation - Model CM08
$5.80
Performance Tool W2935 Stainless Steel Wire Insertion Tool - Piercing for 1/4" Wiring Hole
$8.99
QILIPSU Waterproof Junction Box Outdoor Electrical Enclosure IP67 Plastic Weatherproof Project Box with Mounting Plate, Wall Brackets, Hinged Grey Cover 11.2"x7.7"x5.1"
$22.99
Blue Sea Systems 5025 ST Blade Fuse Block 6 Way Circuits with Negative Bus and Cover, 100 Amps
$25.03
Gratury Junction Box, Hinged Cover IP65 Waterproof Plastic Enclosure for Electrical Project Includes Internal Mounting Panel 290×190×140mm (11.4"×7.5"×5.5")
$30.49
Blue Sea Systems 1733 Mini OLED DC Voltmeter, Yellow
$32.13
Bussmann (BP/CB185-100) 100 Amp Circuit Breaker
$48.39
Alex Tech 25ft - 3/4" Split Wire Loom Tubing - Black
$18.98
To Top
