Show us your homemade truck Racks

Discussion in '2nd Gen. Tacomas' started by burhead, May 30, 2011.

  1. May 30, 2011 at 5:38 PM
    #1
    burhead

    burhead [OP] Member

    Joined:
    Apr 17, 2009
    Member:
    #16104
    Messages:
    17
    Gender:
    Male
    First Name:
    Craig
    Thunder Bay
    Vehicle:
    2009 Tacoma 2.7 - 4x4
    Timbrens added to suspension Custom made boat racks
    Here is my home made truck rack / back rack.

    I made this back/truck rack last weekend. It took me about 12 hours total to make this rack using 1 1/2 inch square tubing for the back rack and 1 1/4 square tubing for the rails and the rack inserts. It cost me $150.00 (Canadian) in steel and my time welding it up with my arc welder. Makes me want a mig welder :) !!!!

    I designed it after a buddies rack. The racks that hold the canoes and boats are easily removed and stored in the garage when not in use (see pic showing racks removed).

    I hate having racks on when not needed. Only the back rack and rails stay on the truck and its below the roof level which gives no wind drag for fuel savings.

    What do you think?

    Truck Rack 001.jpg
    Truck Rack 002.jpg
    Truck Rack 003.jpg
    Truck Rack 005.jpg
    Truck Rack 006.jpg

  2. May 30, 2011 at 6:17 PM
    #2
    george3

    george3 Well-Known Member

    Joined:
    Jun 8, 2008
    Member:
    #7173
    Messages:
    3,169
    new jersey
    Vehicle:
    tacoma
    Seat belt beeper, Cabelas (Weathertech) floor liner gray, Covercraft Seat Savers in Taupe, Protecta Heavy Duty Rubber Truck Bed Mat, Pop n Lock PL5200, Pace Edwards Full Metal JackRabbit, Wolverine oil pan heater, Scangauge2, afe pro dry s filter, Remote Underbody 4 Piece LED Light Kit (White) used as Bed light, DIY Washable Cabin Air Filter, PA15-TOY, 4x4 Illuminated Switch, full synthetic, Redline Tuning Hood Support, Smittybilt Nerf Steps black powder-coated
    What do you think? Very nice job - that's what I think.:D

  3. May 30, 2011 at 6:19 PM
    #3
    Highland Logan

    Highland Logan UBIQUE

    Joined:
    Apr 11, 2011
    Member:
    #54752
    Messages:
    2,812
    Gender:
    Male
    First Name:
    Frank
    Nova Scotia, Canada
    Vehicle:
    2011 Black AC TRD Off Road w/ factory tow pkg
    Great job. Looks good. Have you done work like that before?

    Frank

  4. May 30, 2011 at 6:23 PM
    #4
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    4,274
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
    I was thinking of doing something similar, using the back rack as a post for a removable bed rack mine would be a RTT though,

    Nice setup :thumbsup:

    Wondering why you built it so tall though?!

  5. May 30, 2011 at 6:33 PM
    #5
    pudge151

    pudge151 Well-Known Member

    Joined:
    Apr 4, 2010
    Member:
    #34558
    Messages:
    2,428
    Gender:
    Male
    First Name:
    Sean
    Connecticut
    Vehicle:
    08 TRD Sport
    5100's @ .85, Custom Grill, Debadged, Bestop Supertop, BHLM, DDM 4500k HID heads, Nokya 2500k fogs, LED interior lights, Weathertech Mats...
    thats some very nice work, i wish i could weld :(

  6. May 30, 2011 at 6:44 PM
    #6
    Dutchman

    Dutchman Active Member

    Joined:
    Apr 8, 2011
    Member:
    #54558
    Messages:
    31
    Gender:
    Male
    Up North
    Vehicle:
    02 2.7 5sp SC 4X4
    Found this rack on Craigslist for $200 - it was for a full size truck but I cut it down to fit. That's 20 16' long treated deck boards on top - works great!

    [​IMG]

  7. May 30, 2011 at 6:46 PM
    #7
    Dutchman

    Dutchman Active Member

    Joined:
    Apr 8, 2011
    Member:
    #54558
    Messages:
    31
    Gender:
    Male
    Up North
    Vehicle:
    02 2.7 5sp SC 4X4
    Rides real smooth - - -
    [​IMG]

  8. May 30, 2011 at 6:46 PM
    #8
    sachou

    sachou Well-Known Member

    Joined:
    Sep 30, 2009
    Member:
    #23554
    Messages:
    644
    Gender:
    Male
    First Name:
    Sam
    Richland, Washington
    Vehicle:
    2006 TRD Sport Acc Cab 4x4 V6 6spd
    OP - That sir, is an an IMPRESSIVE looking rack.

  9. May 30, 2011 at 6:49 PM
    #9
    DWreck

    DWreck Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,120
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,

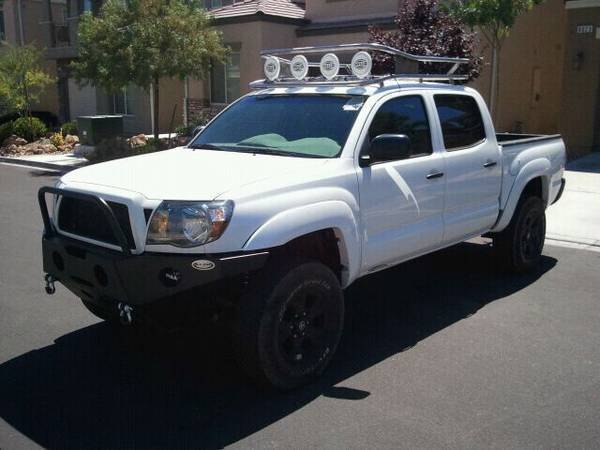

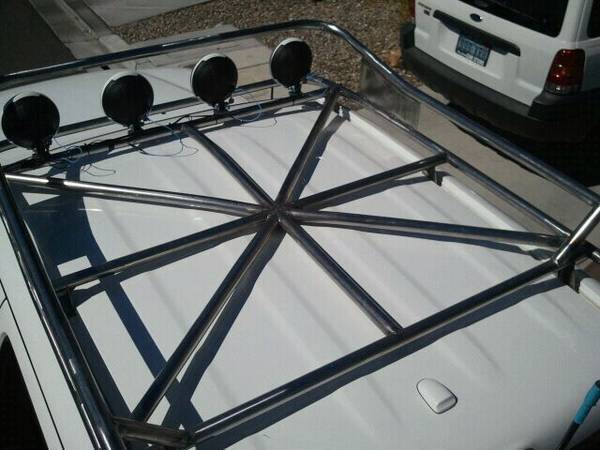

    Rack, basket, same thing. It holds shit!

    [​IMG]

    [​IMG]

  10. May 30, 2011 at 7:46 PM
    #10
    burhead

    burhead [OP] Member

    Joined:
    Apr 17, 2009
    Member:
    #16104
    Messages:
    17
    Gender:
    Male
    First Name:
    Craig
    Thunder Bay
    Vehicle:
    2009 Tacoma 2.7 - 4x4
    Timbrens added to suspension Custom made boat racks
    Its built that high

    1. so the canoe does not hit the roof of the truck

    2. so I can put my quad under neath the boat and or canoes.

    This was my first build of a truck rack.

  11. May 30, 2011 at 7:47 PM
    #11
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    4,274
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
    Oh nice,

    Yea I was wondering how much the canoe bent down towards the truck,

    Multi-functional!

  12. May 30, 2011 at 7:52 PM
    #12
    OH-MAN

    OH-MAN Well-Known Member

    Joined:
    Apr 23, 2009
    Member:
    #16324
    Messages:
    2,263
    Gender:
    Male
    First Name:
    Steve
    Sunny Az.
    Vehicle:
    10 4X4 O.R. White
    TRD skid painted black,
    Derek,
    I like your basket a lot!
    Using the factory mount locations is the way to go in my opinion.
    It is more than I would need with the light guard in front but I may have to attempt to build one with a lower profile and a bit less heavy duty.
    Thanks for giving me an idea of how to do it!!!!!!

  13. May 30, 2011 at 8:04 PM
    #13
    DWreck

    DWreck Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,120
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    Yessir. This was my first rack build. More to come with revisions and yes, a lower profile.

  14. Jun 4, 2011 at 6:22 PM
    #14
    kirkofwimbo

    kirkofwimbo Say no to Bro

    Joined:
    Jul 17, 2010
    Member:
    #40338
    Messages:
    1,772
    Gender:
    Male
    First Name:
    Clayton
    Wimberley, TX
    Vehicle:
    '07 DCSB SR5 4x4
    It's got LSD man.....

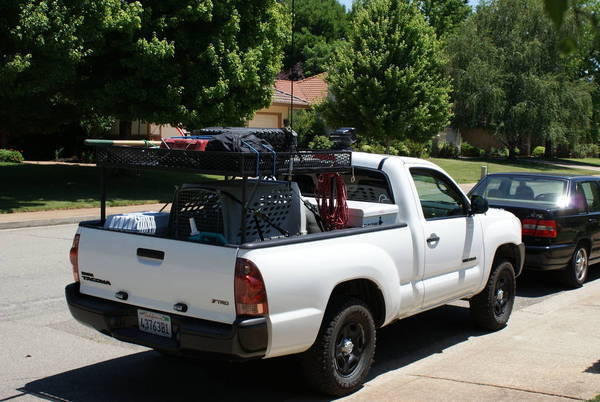

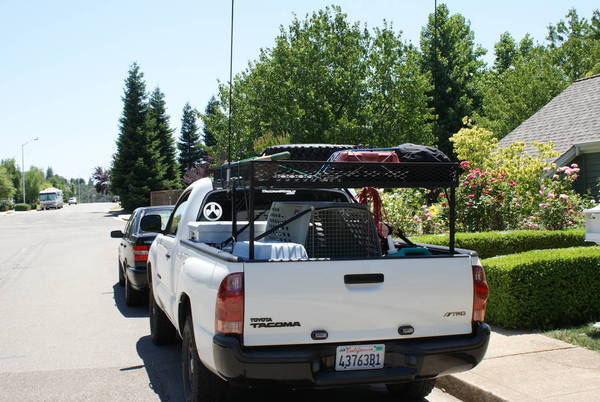

    Not as good as everyone else's, but it was the best I could do without a welder. All-in-all it turned out very sturdy, use it to haul my kayaks.

    [​IMG]
    [​IMG]
    [​IMG]

  15. Jun 4, 2011 at 6:56 PM
    #15
    TOYOTA 09

    TOYOTA 09 Kicking Ass Since 1981

    Joined:
    Feb 12, 2010
    Member:
    #31266
    Messages:
    931
    Gender:
    Male
    First Name:
    Mike
    Maine
    Vehicle:
    2009 SR5 MT 4x4 Access Cab
    Preview 2009 SR5 4x4 MT Black Sand Pearl (Access Cab) SUSPENSION ToyTec 5100 Billstein Coil Overs (3" Lift) Fox 2.0 Remote Res Rear Shocks Total Chaos UCAs Full Dakar Leaf Pack w/Extra AAL TIRES & WHEELS BFG AT KOs 265/75/16 load range E American Rancing AR-23 Wheels Borla CAT back exhaust AFE cold air intake w/custom TRD clear cover Satoshi grill w/Grill Craft insert Hella 500 behind grill lights Rigid Industries Backup lights Interior Custom LEDs and Bed Lights Backup Cam Anytime MOD Leather armrest and rear seat MOD Weathertech floor liners Custom rear gear/dog platform Cobra CB and Garmin GPS Bed Mat UWS low pro tool box with Custom LED lights Diff breather MOD Custom painted engine cover Wet Okole seat covers
    ^nice job!

  16. Jun 4, 2011 at 7:10 PM
    #16
    TacomaBuzz

    TacomaBuzz Manual Transmission Enthusiast

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,180
    Gender:
    Male
    First Name:
    Matt
    Connecticut
    Vehicle:
    2011 RegCab Manual 5 lug
    Hose clamp mod, Bench>Buckets swap,6-Speed center console,Secondary air filter removed,AFE pro dry s,Weathertech mats,TRD seat covers,Sirius,Pop N Lock, Bed Mat,Int Wiper switch, Bugflector,Yellow Fog lights,Ventvisors,back-rack.
    OP you did a he'll of a job fabricating that rack, looks store bought! :thumbsup::cheers:

  17. Jun 5, 2011 at 5:38 AM
    #17
    fjrmurph

    fjrmurph Well-Known Member

    Joined:
    Jul 21, 2009
    Member:
    #19956
    Messages:
    340
    Gender:
    Male
    nice job, i like the way the racks can be removed when not needed. You should probably tie that canoe down though might not stay there like that

  18. Jul 17, 2011 at 9:58 PM
    #18
    norcal4banger

    norcal4banger 11-98 MUD

    Joined:
    Jan 13, 2011
    Member:
    #49206
    Messages:
    725
    Gender:
    Male
    First Name:
    Jack
    Far Northern California
    Vehicle:
    2005 4 Cylinder 2WD 5 Lug RC Tacoma
  19. Jun 17, 2012 at 8:42 PM
    #19
    Babatoni

    Babatoni Member

    Joined:
    May 11, 2011
    Member:
    #56454
    Messages:
    10
    Gender:
    Male
    Vancouver, Canada
    Vehicle:
    2011 SR5 V6
    I bought this rack from a guy that had it on a full size Dodge. After looking at, I figured I could modify it to fit the Taco, seeing as it was completely adjustable.

    He had made it with 1 1/2" & 1 1/4" square steel tubing that slides into each other to adjust. It is bolted together with 7/16 bolts, and nicely welded corner peices. He had made this in his garage himself and did a very nice job! The mods I had to do were, even with it in its smallest size it was still to long and to wide. As well I had to make it fit my bed rail system, as he had it mounted right into the bed wall holes on full sizes.

    Cutting the lengths to size was pretty straight forward. In order to mount it to my truck, in the box on that small lip, I mounted a right angle bracket, and used a 1/2" bolt to go thru the post. I used a 1/2" carriage bolt in the bed rail for the four posts. As you can see in the photos, he made attaching points so the entire rack can be easily removed and just the attachment posts are left in the box of the truck. I made this in order to carry my 12' aluminum fishing boat, as I tow my tent trailer behind the truck. I added the rollers on the back corners. On the front cross member I put an upright 1/2" bolt which goes right into the handle hole on the bow plate of the boat. I made a bracket out of flat bar, which goes on the inside of the bow plate and bolts down the bow of the boat right to the rack. Eliminating the need for a safety line to the front bumper, which I think is annoying to have to do!

    I have done four fishing trips with the boat on top, and it hasn't even budged! The kicker is I bought this rack for $75, and with some new bolts, and hardware and rollers, I am into it for $137! Sure beats a $800 for a factory made one! Hope some of my ideas are helpful. Cheers and happy trucking!


  20. Mar 6, 2015 at 2:37 PM
    #20
    wgbhouse

    wgbhouse New Member

    Joined:
    Mar 6, 2015
    Member:
    #150270
    Messages:
    1
    Gender:
    Male
    First Name:
    bill
    louisiana
    Vehicle:
    tacoma prerunner
    In-the-bed rack for my 12' Radisson aluminum canoe. the bar rolls for easy loading.
