Simple how-to: fix that crappy door trim

Discussion in '1st Gen. Tacomas (1995-2004)' started by scocar, Apr 29, 2011.

  1. Apr 29, 2011 at 10:45 PM
    #1
    scocar

    scocar [OP] Scouting the perimeter for weakness

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    31,421
    Gender:
    Male
    First Name:
    Dick
    In close proximity to an undisclosed location
    Vehicle:
    2015 DCLB 4x4 SR5
    Back to square one after the 2001. So...

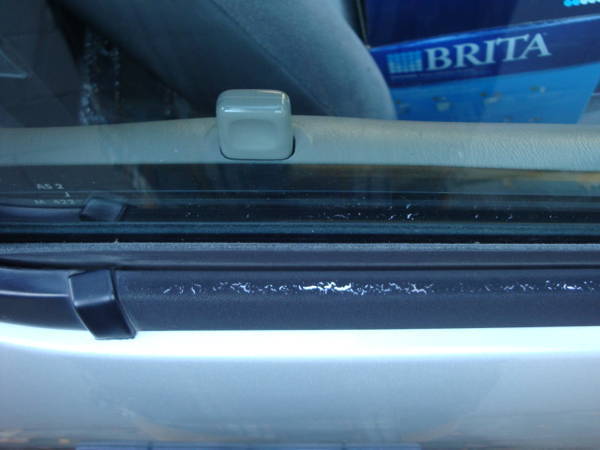

    This seems to be a pretty common issue on the first gens: the flipping stupid piece of trim at the bottom of your driver side window. There it is, every stinking time you get into the truck. All flaky and alligatored, "chrome" shining out from the black, uh, what is that stuff, anyway? Paint? Rubber? WTF? And if I pull this stuff off, am I going to break a bunch of little clips?

    [​IMG]

    Turns out, it is an extremely thin layer of rubber on top of aluminum. In sunny, hot regions, the rubber just cooks off after about a 100k miles. Not only that, but I realized the part that wipes against the glass had also become stiff and deformed away from the glass, allowing water to get inside the outer door. Bad. Some people just take this trim off and paint it black, but that won't fix the bad seal against the window.

    It is pretty damn ghetto (not that ghettos are bad). But it is an easy fix.

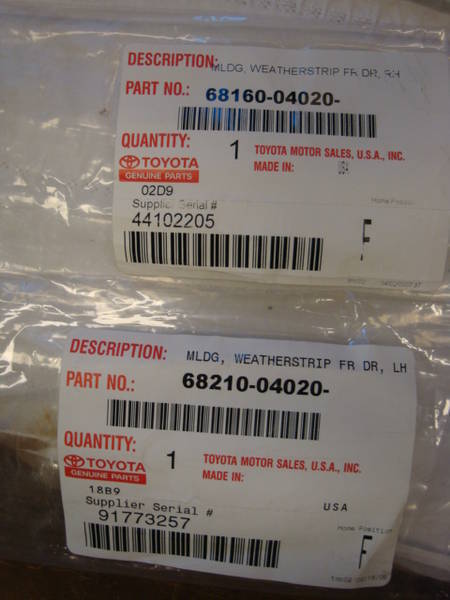

    Here are the part numbers for the Xtra cab, anyway. About $30 from the dealer. They call it weatherstrip:
    [​IMG]

    Note: others point out that you can do this without removing the mirror. I had never done this before, so I was picking it apart carefully to avoid breaking stuff.

    Anyway...enjoy.

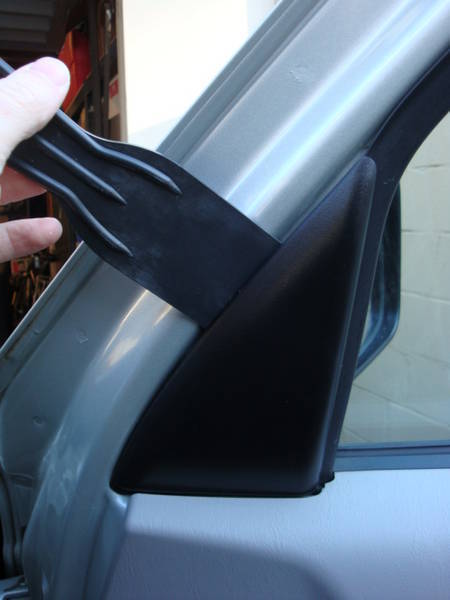

    Pop off the little piece of plastic trim next to the mirror inside the door. Use a plastic putty knife or something similar.
    [​IMG]

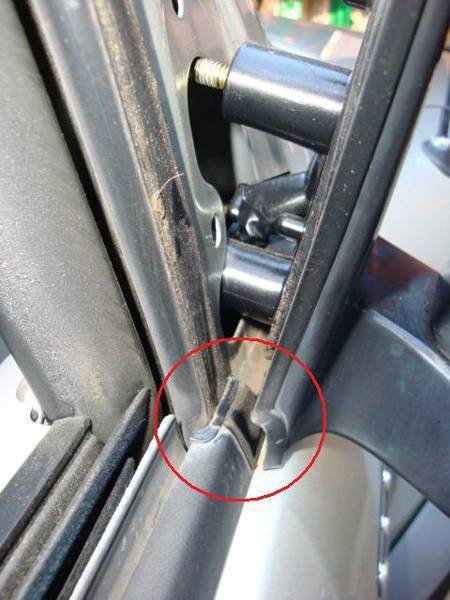

    This is what it looks like behind it. You aren't going to break anything.
    [​IMG]
    Remove the mirror nuts:
    [​IMG]
    Pull the mirror away to expose the front of the trim:
    [​IMG]

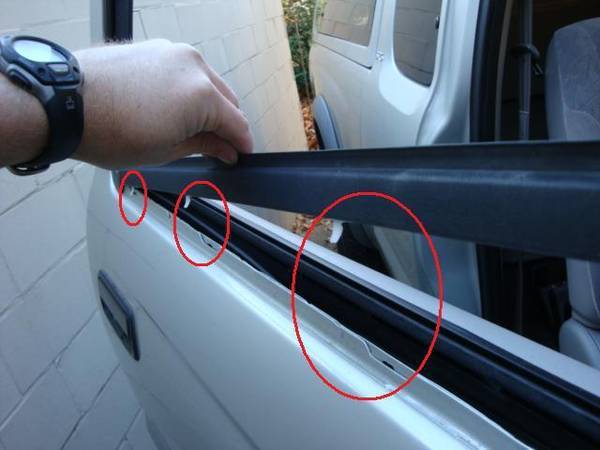

    Grasp the weatherstrip from above and pull upward. You are popping off three white clips. You might break one if you aren't careful, but the new parts include all the clips:
    [​IMG]

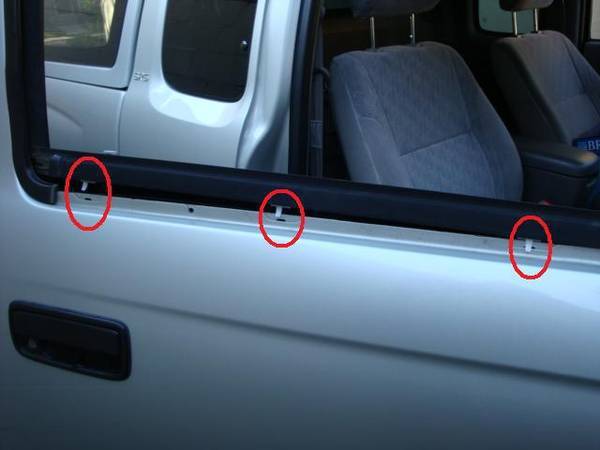

    Here's another shot:
    [​IMG]

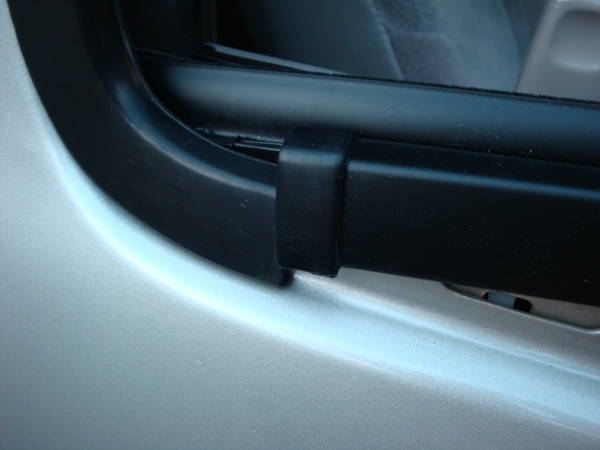

    This is how the back end comes apart. The bottom piece slips into the rest of the weatherstrip:
    [​IMG]
    Installation, as usual, is the reverse. Start from the back forward.

    To help prevent this new rubber from going bad, I am applying 303 UV protectant on it after each wash.

    Final step, insert beer:
    [​IMG]

    ronoc, Biscuits and MindFork like this.
  2. Apr 29, 2011 at 10:53 PM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,187
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Well done!

  3. Apr 30, 2011 at 7:50 AM
    #3
    twfsa

    twfsa Well-Known Member

    Joined:
    May 29, 2010
    Member:
    #37997
    Messages:
    1,342
    Gender:
    Male
    First Name:
    Tom
    Omaha Ne
    Vehicle:
    04 TRD 4X4
    881 Front coils, Bilstien 5100's all the way front set to "0" Icon Dynamic's mini leafs in rear, stock tires.
    Nice write up!

  4. Apr 30, 2011 at 7:55 AM
    #4
    johnw

    johnw Well-Known Member

    Joined:
    May 18, 2009
    Member:
    #17381
    Messages:
    7,181
    Gender:
    Male
    First Name:
    john
    orlando florida
    Vehicle:
    06 prerunner v-6 4.0L 4 door
    well you asked for specs..... 06 trd sport speedway blue V-6 4.0 camburg lift spindles extended travel icons total chaos lowers allpro 4" leaf pack 17" xd hoss rims 305/65/17 mickey thompson baja atz Allpro hybrid bumper with 3 kragen HID lights color matched headlights grill craft grill AFE stage 3 CAI wicked flow muffler under cover bed cap inside i have..... wet okole real tree camo seat cover blue oznium dome light stealth sub box with 2 10" kicker comp subs kicker 400 watt amp weathertech floor mats
    now do it on the 2nd gen so i can do it lol

  5. Apr 30, 2011 at 11:19 AM
    #5
    brelandt

    brelandt Well-Known Member

    Joined:
    Jul 21, 2009
    Member:
    #19979
    Messages:
    460
    Gender:
    Male
    First Name:
    Terry
    Dublin, CA
    Vehicle:
    04 Prerunner reg cab SR5
    3" lift front and back
    every 6 months or so I apply silicone on all my rubber trim parts including the weather strip. The truck is a 2004 and the rubber feels and looks brand new still. hopfully that helps others with keeping their new trim in perfect condition?
    Nice write-up!

  6. Apr 30, 2011 at 11:25 AM
    #6
    zero4

    zero4 Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    440
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    Nice write up but it's not necessary to loosen or remove the side view mirror to install these. Simply pull the old ones off (no worrying about breaking clips as the new ones come with them) starting from the rear. Then slide the new ones on under the side view mirror, line up, & snap into place.

    I have a double cab & it's the same for rear.

    Local dealer wanted $34 each. Get them from an online sales dealer for $17ea. Conicelli offers free shipping on orders over $100 & is where I got mine.

  7. Apr 30, 2011 at 8:26 PM
    #7
    rab89

    rab89 Well-Known Member

    Joined:
    Jan 14, 2009
    Member:
    #12578
    Messages:
    5,467
    Gender:
    Male
    First Name:
    Ross
    Kelowna b.c canada
    Vehicle:
    2012 DCLB
    Grillcraft mx black upper and lower BHLM with Gloss black 265 70 17 bfg a/t center console light mini mag mounted in center console debadged bed lights 35W 5000k HID's
    AWESOME! I have been wanting to paint mine, definitely doing this though!

    cruxofthebisquit likes this.
  8. Apr 30, 2011 at 11:54 PM
    #8
    MapleMoose

    MapleMoose Drunk Canadian

    Joined:
    Feb 15, 2011
    Member:
    #51211
    Messages:
    8,589
    Gender:
    Male
    First Name:
    Ian
    West Kootenays
    Vehicle:
    1996 Tacoma SR5
    3" Eibach Coils, 3" AP Springs, AP 6" Shackles Toytec Diff drop, BAMF Sliders, Deck plate mod,Volt meter, Highbeam mod, PIAA fogs, 18" Magnaflow, LED dash swap, Color matched Satoshi Grille, Custom Rear Plate Bumper
    Great write up! I haven't noticed it but ill check tomorrow!

  9. May 7, 2011 at 2:49 AM
    #9
    onesixseven

    onesixseven Well-Known Member

    Joined:
    Dec 25, 2010
    Member:
    #48210
    Messages:
    760
    Gender:
    Male
    First Name:
    Tyler
    Santa Clarita California
    Vehicle:
    02 Prerunner SR5
    3.5" Kind Coilovers Total Chaos UCA's 31" BFG A/T's 8000k hi/lo HID kit Flowmaster Super 44 5% tint all around exterior LED's Deck Plate Mod bedlined flares debadged Full Fosgate/JL Audio Stereo
    dude i f***ing love u and in conjunction this website. been wondering how to replace, and now i am doing that next week! awesome write up!

    Atowns40 likes this.
  10. May 7, 2011 at 6:09 AM
    #10
    Yamaha Dave

    Yamaha Dave Well-Known Member

    Joined:
    Mar 27, 2010
    Member:
    #34080
    Messages:
    2,677
    Gender:
    Male
    AWESOME AWESOME AWESOME! Mine has a little sun damage and it's always bothered me. I think I'm going to do mine now. Thanks!

  11. May 7, 2011 at 8:54 AM
    #11
    scocar

    scocar [OP] Scouting the perimeter for weakness

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    31,421
    Gender:
    Male
    First Name:
    Dick
    In close proximity to an undisclosed location
    Vehicle:
    2015 DCLB 4x4 SR5
    Back to square one after the 2001. So...
    Glad you guys are finding this helpful. I can feel the love. In fact, it feels a little damp and sticky in here.

  12. May 7, 2011 at 10:21 AM
    #12
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,979
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D60 F/R
    SAS.. Need I say more.
    That's the humidity, not what you are thinking. Haha. :eek:

  13. May 7, 2011 at 10:29 AM
    #13
    jesus

    jesus Well-Known Member

    Joined:
    Oct 31, 2009
    Member:
    #25236
    Messages:
    944
    Gender:
    Male
    First Name:
    jesus
    bakersfield
    Vehicle:
    02
    K&N ram intake & doug exs.
    Great job....

  14. May 7, 2011 at 10:33 AM
    #14
    Watari06V6

    Watari06V6 Faster than a speeding ticket

    Joined:
    Feb 28, 2011
    Member:
    #52042
    Messages:
    999
    Gender:
    Male
    Wounded Knee
    Vehicle:
    TRD-V6-SR5-06
    awesome tip- TY!:D

    cruxofthebisquit likes this.
  15. May 7, 2011 at 10:33 AM
    #15
    scocar

    scocar [OP] Scouting the perimeter for weakness

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    31,421
    Gender:
    Male
    First Name:
    Dick
    In close proximity to an undisclosed location
    Vehicle:
    2015 DCLB 4x4 SR5
    Back to square one after the 2001. So...
    Coming from Jesus, that means a lot.

    iDigTulsa likes this.
  16. May 7, 2011 at 7:45 PM
    #16
    Scott78

    Scott78 Well-Known Member

    Joined:
    Oct 27, 2010
    Member:
    #45292
    Messages:
    367
    Gender:
    Male
    First Name:
    Scott
    Vacaville, CA
    Vehicle:
    '13 STI Hatch\\
    +1 cred

  17. May 7, 2011 at 10:46 PM
    #17
    TacoBlitz

    TacoBlitz Well-Known Member

    Joined:
    Oct 29, 2010
    Member:
    #45430
    Messages:
    299
    Gender:
    Male
    First Name:
    Jake
    Omaha, Nebraska
    Vehicle:
    01 DoubleCab SR5 TRD, white
    Topper, Yakima Racks, Yakima Loadwarrior roof basket (lights all around) 20% window tint (all 4 doors), Spectre ProFab Air Intake System, Black grille, Rino Lined rocker panels, rear bumper and flares Suspension: New OME 881 coils and OME 5 leaf rear springs, Blilstein shocks and struts, Daystar Greasable lift shackels Extended rear brake line
    Thanks for the info. this problem has been bugging me for a while, didnt realize that there would be this easy of a solution. thank you!

    cruxofthebisquit and Atowns40 like this.
  18. May 21, 2011 at 7:22 PM
    #18
    duckfan

    duckfan Active Member

    Joined:
    Jan 31, 2011
    Member:
    #50271
    Messages:
    40
    Gender:
    Male
    Vehicle:
    '01 Doublecab Prerunner
    I just replaced my fronts this morning. It's really easy. Thanks to OP for the how-to. I didn't need to loosen the mirror, just slide the trim under it.
