Skid Plate Install Instructions!

Discussion in '3rd Gen. Tacomas (2016-2023)' started by whitedlite, Apr 22, 2017.

  1. Apr 22, 2017 at 5:47 PM
    #1
    whitedlite

    whitedlite [OP] Well-Known Member

    Joined:
    Jul 14, 2016
    Member:
    #192033
    Messages:
    9,273
    Gender:
    Male
    USA!
    Vehicle:
    3RD Gen TRD 4WD
    Okay so I'm installing 4 rci skids.

    The ifs is where I'm at.

    Do I use the bolts removed in the crossmember back in the crossmember.

    I couldn't get the bolts to align with skid so I removed them and still struggling to get bolt to go back in.



    Last edited: Apr 23, 2017
  2. Apr 22, 2017 at 5:56 PM
    #2
    Finch1018

    Finch1018 Well-Known Member

    Joined:
    Jan 21, 2017
    Member:
    #208238
    Messages:
    181
    Gender:
    Male
    First Name:
    Matt
    Hampton Roads VA
    Vehicle:
    2015 DCSB TRDOR
    Build Thread: https://www.tacomaworld.com/threads/finch1018s-15-dcsb-build-thread.489528/
    I can't speak for Gen 3 products, but I just installed full RCI skids back to the Transfer Case and the IFS skid came with two replacement bolts for the front crossmember. I didn't have to use any stock hardware. Weird they came without instructions. FYI, if you're installing all the way to the T-case, don't crank down on anything until all the plates are installed and aligned, then tighten. Good luck brother.

    Kyitty and 90yota like this.
  3. Apr 22, 2017 at 5:59 PM
    #3
    whitedlite

    whitedlite [OP] Well-Known Member

    Joined:
    Jul 14, 2016
    Member:
    #192033
    Messages:
    9,273
    Gender:
    Male
    USA!
    Vehicle:
    3RD Gen TRD 4WD
    Thanks. I gotta spanking deal on some powdercoated steels from Florida. All 3 skids and tank for 600.

    So their used. Not rci fault.

  4. Apr 22, 2017 at 6:02 PM
    #4
    whitedlite

    whitedlite [OP] Well-Known Member

    Joined:
    Jul 14, 2016
    Member:
    #192033
    Messages:
    9,273
    Gender:
    Male
    USA!
    Vehicle:
    3RD Gen TRD 4WD
    Can someone give me pics of the instructions with the skid plates?

    Thanks

  5. Apr 22, 2017 at 6:05 PM
    #5
    Finch1018

    Finch1018 Well-Known Member

    Joined:
    Jan 21, 2017
    Member:
    #208238
    Messages:
    181
    Gender:
    Male
    First Name:
    Matt
    Hampton Roads VA
    Vehicle:
    2015 DCSB TRDOR
    Build Thread: https://www.tacomaworld.com/threads/finch1018s-15-dcsb-build-thread.489528/
    That's a great deal, nice work. I just looked at the pic on RCI's site, it looks like the OEM bolts were reused on the front crossmember. So if you didn't get bolts that would fit, you should have no issues using the OEM ones. If you have a diff drop, you may need to space down slightly on the aft two bolts that secure the rear end of the IFS skid and front of the transmission skid. But again, I'm not familiar with the Gen 3 particulars. Unfortunately, I'm out of town this weekend or I'd happily send pics of the instructions.

  6. Apr 22, 2017 at 7:01 PM
    #6
    ctfriel

    ctfriel @Overland_NC

    Joined:
    Jan 31, 2016
    Member:
    #176641
    Messages:
    401
    Gender:
    Male
    First Name:
    Chris
    Winston-Salem, North Carolina
    Vehicle:
    2017 TRD OR AT (@overland_nc)
    Basic overland stuff...

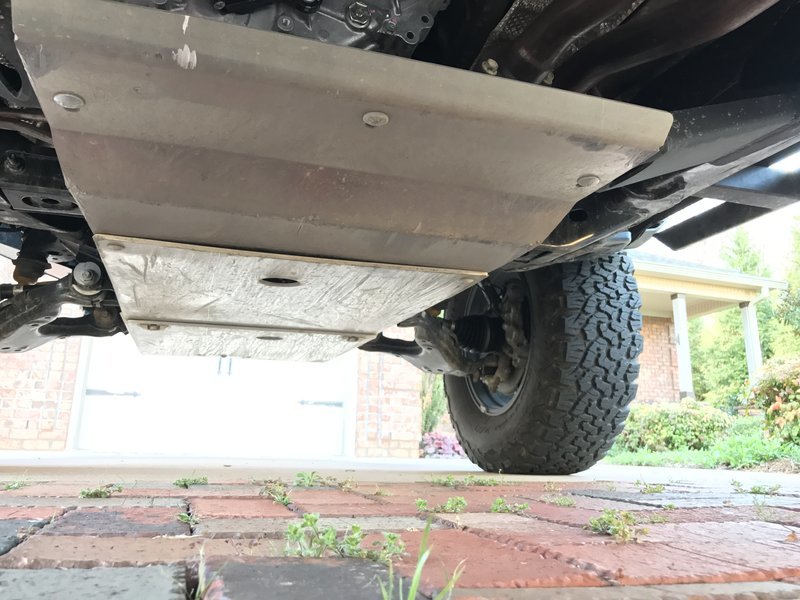

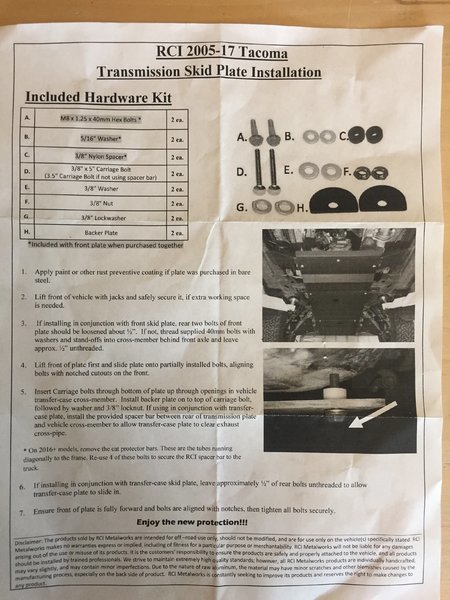

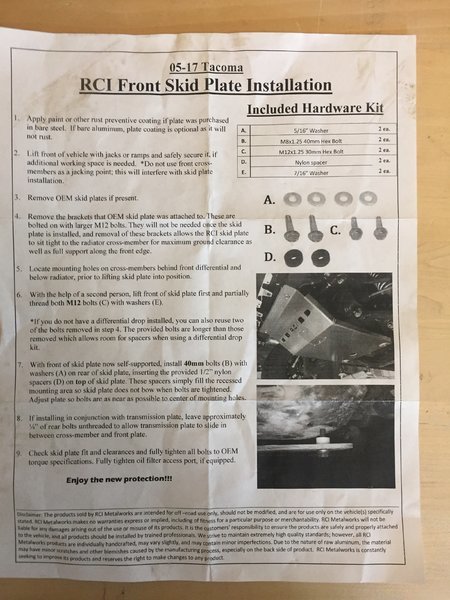

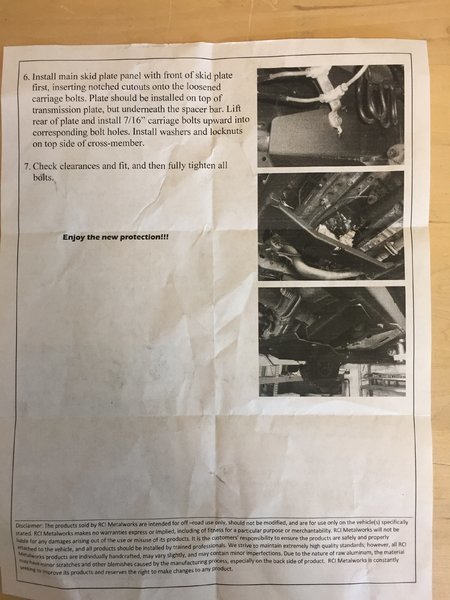

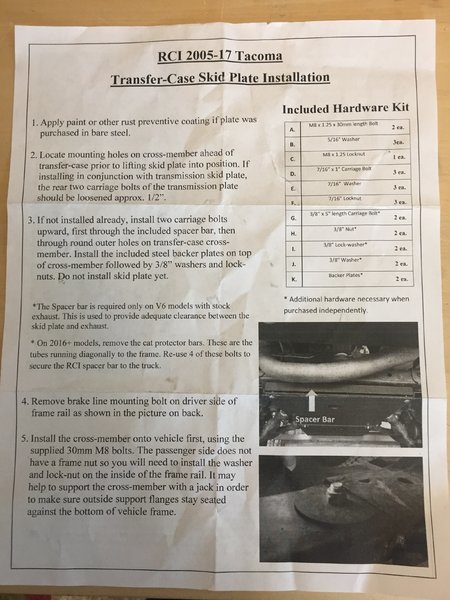

    Not sure if this helps any.


    SilverII and whitedlite[OP] like this.
  7. Apr 22, 2017 at 7:09 PM
    #7
    whitedlite

    whitedlite [OP] Well-Known Member

    Joined:
    Jul 14, 2016
    Member:
    #192033
    Messages:
    9,273
    Gender:
    Male
    USA!
    Vehicle:
    3RD Gen TRD 4WD
    It actually does some. That's a good close up i can tell where some bolts go.

  8. Apr 22, 2017 at 7:11 PM
    #8
    ctfriel

    ctfriel @Overland_NC

    Joined:
    Jan 31, 2016
    Member:
    #176641
    Messages:
    401
    Gender:
    Male
    First Name:
    Chris
    Winston-Salem, North Carolina
    Vehicle:
    2017 TRD OR AT (@overland_nc)
    Basic overland stuff...
    I'll try to dig up my instructions tomorrow.

  9. Apr 22, 2017 at 7:20 PM
    #9
    chrisrocks300

    chrisrocks300 War Eagle

    Joined:
    Mar 11, 2017
    Member:
    #212994
    Messages:
    7,419
    Gender:
    Male
    First Name:
    Chris
    Brandon, MS
    Vehicle:
    2016 4x4 Tacoma DCSB Trd Off-road Superwhite
    Total Chaos UCA's, Raceline Raptor wheels (16x8) 4.5 BS, 285/75/16 Cooper S/T Maxx tires, Icon Stage 2 Lift Kit, Sos sliders w/ fill plates, exhaust reroute, mobtown offroad skid plates (ifs, transmission, transfer case), and diff breather mod
    Just hold it up and keep hitting it with a hammer until it stays on. Or use some duct tape, either option is solid

    MO Tacoma, bobrown14, SocalOC and 2 others like this.
  10. Apr 22, 2017 at 7:25 PM
    #10
    jowybyo

    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    I'm partial to hot glue.

    Ch78 and chrisrocks300[QUOTED] like this.
  11. Apr 22, 2017 at 7:26 PM
    #11
    chrisrocks300

    chrisrocks300 War Eagle

    Joined:
    Mar 11, 2017
    Member:
    #212994
    Messages:
    7,419
    Gender:
    Male
    First Name:
    Chris
    Brandon, MS
    Vehicle:
    2016 4x4 Tacoma DCSB Trd Off-road Superwhite
    Total Chaos UCA's, Raceline Raptor wheels (16x8) 4.5 BS, 285/75/16 Cooper S/T Maxx tires, Icon Stage 2 Lift Kit, Sos sliders w/ fill plates, exhaust reroute, mobtown offroad skid plates (ifs, transmission, transfer case), and diff breather mod
    I've been a professional mechanic for 25 years and hot glue seems overkill. The closest thing I've used was a piece of chewing gum for a client who was going desert racing

    Mobtown Offroad likes this.
  12. Apr 22, 2017 at 7:29 PM
    #12
    jowybyo

    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    Well shit. In that case then Big League Chew it is.

  13. Apr 22, 2017 at 7:39 PM
    #13
    SocalOC

    SocalOC Well-Known Member

    Joined:
    Mar 6, 2017
    Member:
    #212470
    Messages:
    2,583
    Gender:
    Male
    Vehicle:
    2015 Sport
    17" rockstart 2 levling kit 285/70/17 toyo ipen country
    Dont forget gorilla glue

    chrisrocks300[QUOTED] likes this.
  14. Apr 22, 2017 at 7:43 PM
    #14
    IronPeak

    IronPeak PermaLurker

    Joined:
    Mar 9, 2016
    Member:
    #180799
    Messages:
    3,232
    Gender:
    Male
    First Name:
    AuggieX
    Back to Back
    Vehicle:
    2007 sr5 4x4 DCLB/2015 TRD sport 4x4 DCLB sold
    Bigger Taller Slower
    #4

    xxTacocaTxx, Mabel and bobrown14 like this.
  15. Apr 22, 2017 at 7:45 PM
    #15
    jowybyo

    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    That shit expands in a really weird way and makes a huge mess. Plus it holds too good. Stick with Elmer's.

    Ch78 and chrisrocks300 like this.
  16. Apr 22, 2017 at 7:49 PM
    #16
    SocalOC

    SocalOC Well-Known Member

    Joined:
    Mar 6, 2017
    Member:
    #212470
    Messages:
    2,583
    Gender:
    Male
    Vehicle:
    2015 Sport
    17" rockstart 2 levling kit 285/70/17 toyo ipen country
    True maybe gorilla tape for the joints so dirt dont get up in there

  17. Apr 22, 2017 at 7:54 PM
    #17
    jowybyo

    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    Scotch tape?

  18. Apr 22, 2017 at 7:55 PM
    #18
    chrisrocks300

    chrisrocks300 War Eagle

    Joined:
    Mar 11, 2017
    Member:
    #212994
    Messages:
    7,419
    Gender:
    Male
    First Name:
    Chris
    Brandon, MS
    Vehicle:
    2016 4x4 Tacoma DCSB Trd Off-road Superwhite
    Total Chaos UCA's, Raceline Raptor wheels (16x8) 4.5 BS, 285/75/16 Cooper S/T Maxx tires, Icon Stage 2 Lift Kit, Sos sliders w/ fill plates, exhaust reroute, mobtown offroad skid plates (ifs, transmission, transfer case), and diff breather mod
    Why would he use that when he could take the sticky part off an envelope and fold it in half and lick it to hold it on

    Ch78, jowybyo[QUOTED] and SocalOC like this.
  19. Apr 22, 2017 at 7:55 PM
    #19
    SocalOC

    SocalOC Well-Known Member

    Joined:
    Mar 6, 2017
    Member:
    #212470
    Messages:
    2,583
    Gender:
    Male
    Vehicle:
    2015 Sport
    17" rockstart 2 levling kit 285/70/17 toyo ipen country
    Thats only if you wanna get fancy and have that see transparent look

    jowybyo[QUOTED] likes this.
  20. Apr 22, 2017 at 9:15 PM
    #20
    Hobbs

    Hobbs Anti-Lander from way back…

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    22,351
    Yep…
    Vehicle:
    Rock Bangen', Desert Tamin', Gold Findin' Machine!
    I installed the RCI engine/tranz/transfer skids and like the product. However, I did receive the incorrect install instructions with the transfer skid. I kinda had to figure things out for myself. The hardware kit provided left something to be desired...

    jowybyo likes this.
